Ophit DDAX User manual

OPHIT’s Digital to Analog Converter
OPHIT’s Digital to Analog Converter
User’s Manual : DDAX
OPHIT Co., Ltd.
#302,Suntechnovil,5-27,Mangpo-Dong,
Paldal-Gu, Suwon-City, Kyungki-Do, Korea
Precautions
WARNING
- Do not dismantle the housing or modify the product.
Dismantling the housing or modifying the product may result in
electrical shock or burn.
- Refer all servicing to qualified service personnel.
Do not attempt to service this product yourself as opening or
removing housing may expose you to dangerous voltage or other
hazards.
- Keep the product away from liquids.
Spilling into the housing may result in fire, electrical shock, or
equipment damage. If an object or liquid falls/spills into the housing,
unplug the product immediately. Have the product checked by a
qualified service engineer before using it again.
- Do not touch the Product with wet hands.
Touching the housing and plug with wet hands is dangerous and can
cause electrical shock.

OPHIT’s Digital to Analog Converter
1.Introduction
DDAX, This unique DVI converter transports your PC’s DVI
signal to analog graphic signal so that analog display devices
without DVI output can be connected to your PC and
notebook with digital output easily and conveniently.
2. Description
Input Connector : 1 DVI receptacle
Output : 1 VGAand 1 DVI receptacle
Compatible with DVI standard by DDWG
Power Supply : External DC +5V
WUXGA, UXGA, SXGA,XGA, SVGA, VGA
HDCP Compliant
3. Package Contents
Before you start installing DDAX series, please check the package contents
-DDAX
-Power Adapter(+5VDC ,2.0A)
-User’s Manual
4. Part name
① ②
④③
1
DC IN (+5V)
2
DVI INPUT
3
VGA OUTPUT
4
DVI OUTPUT

OPHIT’s Digital to Analog Converter

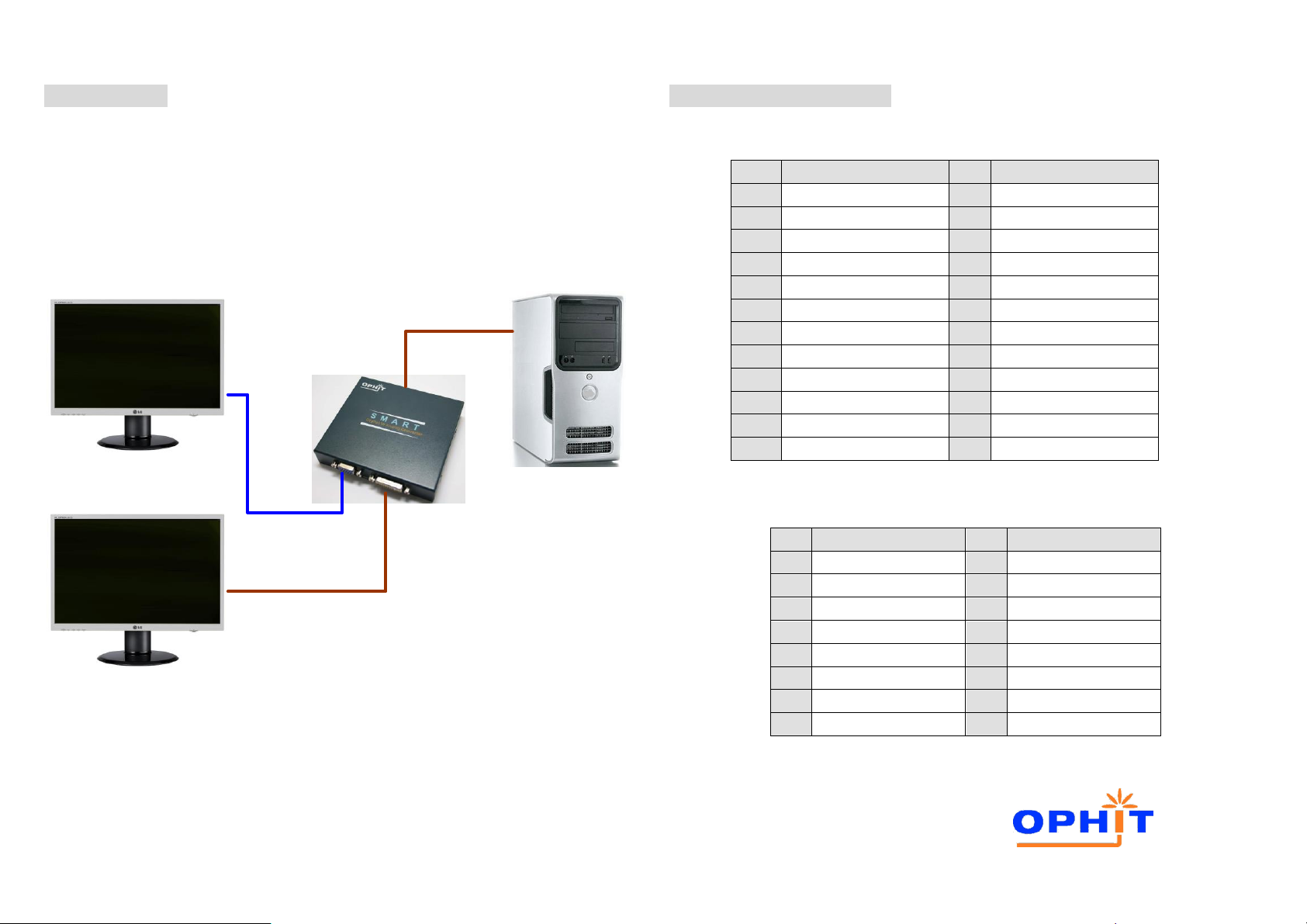

5. Connection
1. Connect the DVI signal from the PC to the DDAX
2. Connect the DVI Cable from the LCD monitor for Digital to the DDAX
3. Connect the monitor for VGAto DDAX
4. When input and output cable connection is completed, connected the
DC power adapter.
PC
DVI Plug
VGA Plug
DDAX
DVI Cable
DVI Cable
VGA Cable
6. Signal Pin Assignment
DDAX : Input (DVI)
Pin
Signal
Pin
Signal
1
T.M.D.S Data2-
13
No Connect
2
T.M.D.S Data2+
14
No Connect
3
T.M.D.S Data2 Shield
15
Ground(for +5V)
4
No Connect
16
Hot Plug Detect
5
No Connect
17
T.M.D.S Data0-
6
DDC Clock
18
T.M.D.S Data0+
7
DDC Data
19
T.M.D.S Data0 Shield
8
No Connect
20
No Connect
9
T.M.D.S Data1-
21
No Connect
10
T.M.D.S Data1+
22
T.M.D.S Clock Shield
11
T.M.D.S Data1 Shield
23
T.M.D.S Clock+
12
No Connect
24
T.M.D.S Clock-
DDAX : Output 1 (VGA)
Pin
Signal
Pin
Signal
1
RED
9
No Connect
2
GREEN
10
GND
3
BLUE
11
GND
4
GND
12
No Connect
5
GND
13
Hsync
6
RGND
14
Vsync
7
GGND
15
No Connect
8
BGND

OPHIT’s Digital to Analog Converter
DDAX : Output 2 (DVI)
Pin
Signal
Pin
Signal
1
T.M.D.S Data2-
13
No Connect
2
T.M.D.S Data2+
14
+5V
3
T.M.D.S Data2 Shield
15
Ground(for +5V)
4
No Connect
16
Hot Plug Detect
5
No Connect
17
T.M.D.S Data0-
6
DDC Clock
18
T.M.D.S Data0+
7
DDC Data
19
T.M.D.S Data0 Shield
8
No Connect
20
No Connect
9
T.M.D.S Data1-
21
No Connect
10
T.M.D.S Data1+
22
T.M.D.S Clock Shield
11
T.M.D.S Data1 Shield
23
T.M.D.S Data2-
12
No Connect
24
T.M.D.S Data2-
7. Drawing
8. Specifications
-Maximum Supporting Graphic Resolution :
WUXGA resolution (1920 x 1200)
* Detail Supporting Graphic Resolution Refer to next page
-Input Connector : 1 DVI receptacle
-Output Connector : DVI 24pin Receptacle and
HD-15 VGA female connector
-Power Consumption : 3.5 Watt
-Power Adaptor :100-240 V with DC 5V, 2A
-Dimension :111 x 99 x 22 (mm) Weight : 317(g)
9. Warranty
■1 (One) Year Warranty

OPHIT’s Digital to Analog Converter
Resolution
Frequency(Hz)
Scan Type
Picture Ratio
640 x 480
60Hz or 59.94Hz
Progressive
4:3
720 x 480
60Hz or 59.94Hz
Progressive
4:3
720 x 480
60Hz or 59.94Hz
Progressive
16:9
1280 x 720
60Hz or 59.94Hz
Progressive
16:9
1920 x 1080
60Hz or 59.94Hz
Interlaced
16:9
720(1440) x 480
60Hz or 59.94Hz
Interlaced
4:3
720(1440) x 480
60Hz or 59.94Hz
Interlaced
16:9
720(1440) x 240
60Hz or 59.94Hz
Progressive
4:3
720(1440) x 240
60Hz or 59.94Hz
Progressive
16:9
2880 x 480
60Hz or 59.94Hz
Interlaced
4:3
2880 x 480
60Hz or 59.94Hz
Interlaced
16:9
2880 x 240
60Hz or 59.94Hz
Progressive
4:3
2880 x 240
60Hz or 59.94Hz
Progressive
16:9
1440 x 480
60Hz or 59.94Hz
Progressive
4:3
1440 x 480
60Hz or 59.94Hz
Progressive
16:9
1920 x 1080
60Hz or 59.94Hz
Progressive
16:9
720 x 576
50Hz
Progressive
4:3
720 x 576
50Hz
Progressive
16:9
1280 x 720
50Hz
Progressive
16:9
1920 x 1080
50Hz
Interlaced
16:9
720(1440) x 576
50Hz
Interlaced
4:3
720(1440) x 576
50Hz
Interlaced
16:9
720(1440) x 288
50Hz
Progressive
4:3
720(1440) x 288
50Hz
Progressive
16:9
2880 x 576
50Hz
Interlaced
4:3
2880 x 576
50Hz
Interlaced
16:9
2880 x 288
50Hz
Progressive
4:3
2880 x 288
50Hz
Progressive
16:9
1440 x 576
50Hz
Progressive
4:3
1440 x 576
50Hz
Progressive
16:9
1920 x 1080
50Hz
Progressive
16:9
1920 x 1080
24Hz
Progressive
16:9
1920 x 1080
25Hz
Progressive
16:9
1920 x 1080
30Hz
Progressive
16:9
2880 x 480
60Hz or 59.94Hz
Progressive
4:3
2880 x 480
60Hz or 59.94Hz
Progressive
16:9
2880 x 576
60Hz or 59.94Hz
Progressive
4:3
2880 x 576
60Hz or 59.94Hz
Progressive
16:9
1920 x 1080
50Hz, H = 31.25KHz
Interlaced
16:9
1920 x 1080
100Hz
Interlaced
16:9
1280 x 720
100Hz
Progressive
16:9
720 x 576
100Hz
Progressive
4:3
720 x 576
100Hz
Progressive
16:9
720(1440) x 576
100Hz
Interlaced
4:3
720(1440) x 576
100Hz
Interlaced
16:9
1920 x 1080
120Hz or 119.88Hz
Interlaced
16:9
1280 x 720
120Hz or 119.88Hz
Progressive
16:9

OPHIT’s Digital to Analog Converter
Resolution
Frequency(Hz)
Scan Type
Picture Ratio
720 x 480
120Hz or 119.88Hz
Progressive
4:3
720 x 480
120Hz or 119.88Hz
Progressive
16:9
720(1440) x 480
120Hz or 119.88Hz
Interlaced
4:3
720(1440) x 480
120Hz or 119.88Hz
Interlaced
16:9
720 x 576
200Hz
Progressive
4:3
720 x 576
200Hz
Progressive
16:9
720(1440) x 576
200Hz
Interlaced
4:3
720(1440) x 576
200Hz
Interlaced
16:9
720 x 480
240Hz or 239Hz
Progressive
4:3
720 x 480
240Hz or 239Hz
Progressive
16:9
720(1440) x 480
240Hz or 239Hz
Interlaced
4:3
720(1440) x 480
240Hz or 239Hz
Interlaced
16:9
PC Graphic Resolution
640 x 350
60Hz and 75Hz
Progressive
640 x 400
60Hz and 75Hz
Progressive
720 x 400
60Hz and 75Hz
Progressive
640 x 480
60Hz and 75Hz
Progressive
800 x 600
60Hz and 75Hz
Progressive
848 x 480
60Hz and 75Hz
Progressive
1024 x 768
60Hz and 75Hz
Progressive
1152 x 864
60Hz and 75Hz
Progressive
1280 x 768
60Hz and 75Hz
Progressive
1280 x 960
60Hz and 75Hz
Progressive
1280 x 1024
60Hz and 75Hz
Progressive
1360 x 768
60Hz and 75Hz
Progressive
1400 x 1050
60Hz and 75Hz
Progressive
1440 x 900
60Hz and 75Hz
Progressive
1600 x 1200
60Hz
Progressive
1680 x 1050
60Hz
Progressive
1792 x 1344
60Hz
Progressive
1856 x 1392
60Hz
Progressive
1920 x 1200
60Hz
Progressive
1920 x 1440
60Hz
Progressive
