User Manual
HDFX-700-TR
Preliminary
Doc No. : OE-HD210329 / V0.9
One (1) Fiber HDMI 2.0
Optical Detachable Extender
With Copper Extension

Welcome!
Congratulations on your purchase of the one (1) fiber HDMI extender with
copper extension, HDFX-700-TR. This manual contains information that will
assist you in installing and operating the product.
Product Description
HDMI 2.0 one(1) fiber optic detachable extender, HDFX-700-TR, extends
HDMI 2.0 signal up to 200m (656feet) and transmits 4K UHD (4096x2160) at
60Hz over one(1) LC multi-mode fiber. Cutting-edge technology of Opticis
reduces limits in installation by providing an option for longer copper extension.
HDFX-700-TR transmit uncompressed and transparent data signal even when
used with up to 2 m copper cable as an intermediary. This enables installation
of the product in the limited spaced area in such our small module type
extender cannot be used. 2m copper cable is provided in the shipping group.
Furthermore, to meet all the needs of the customers, HDFX-700-TR offers two
selectable options which are: fully support of ARC, and full interoperability with
HDFX-500 as a pair. Depending on the circumstances, customer can choose
to use direct connection type module on one side, and copper extension type
module on the other side.
HDFX-700-TR gives slim, light, and easy installation with perfect electrical
isolation, but without electrical hazard and interference. It is operated external
DC power adapter which is supplied in the shipping group.

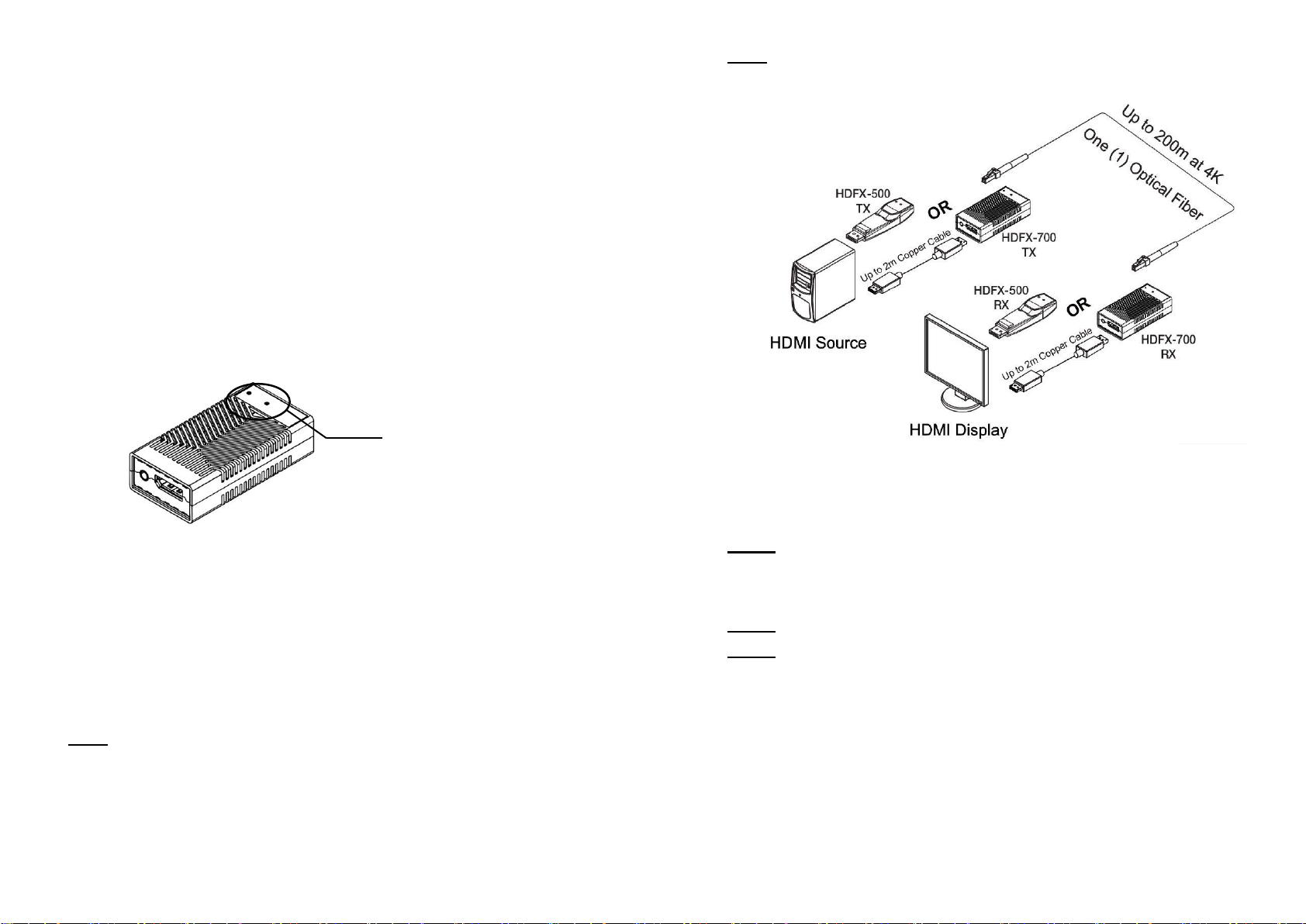

Figure 1 –Overall Connection of HDFX-700-TR
1-1 Welcome, Product Description
System Requirements for Setup
□Hardware requirements
You must have a HDMI source and display. It should support the
maximum graphic resolution feature of displays to be connected.
No special requirements of memory size, CPU speed and
chipsets, if you’ve already properly installed your HDMI systems or
graphic cards.
Proper initial trial of the entire platform with its application using a
short length copper cable is recommended prior to the installation
with the optical link.
□Software requirements
No special restrictions, if you’ve already properly installed your
HDMI systems.
FW upgradable via micro USB port: contact t[email protected]
to download the most recent FW version.
Default FW setting allows ARC support. If using HDFX-500-TR as
a pair is desired, contact tos[email protected] for the manual to
change the FW.
□Power Technical Advisory
Enclosed Power Adaptors should supply power for both
Transmitter and Receiver.
□Connection Advisory
It is highly recommended that HDMI source is connected to
HDMI display output via HDFX-700-TR without any connection
with incompatible distributor, switcher and selector.
The Shipping Group of HDFX-700-TR;
□One (1) Transmitter (TX) and One (1) Receiver (RX)
□Two (2) 2m Male to Male HDMI copper cable
□Two (2) 5V 1A power adapter
□User Manual
※If the purchase was made with mixed pair of HDFX-700 and
HDFX-500, the shipping group may vary.
1-2 System Requirements for Setup

Installation
Important: Please keep the installation procedure below. Failure in
operation may result if the start-up sequence is not correctly followed.
Step 1
Carefully unpack the contents in the shipping group.
Step 2
Power on the HDMI source and display. The external power is recommended
for the stable power supply for both the transmitter and receiver.
Step 3
The Power LED will be turned on and the Status LED will blink three (3)
times. Then the Status LED will blink again when the whole connection is
made.
Figure 2 –Position of the LED
Step 4
Connect one (1) LC optical fiber between the transmitter and the receiver.
Ensure the connectors are fully engaged and then, the top LED will begin to
blink regularly.
Step 5
Connect the transmitter and the receiver to the source and the display
respectively via 2m copper cable provided in the shipping group.
Note: If the connectors are fully engaged, the bottom LED will turn on.
1-3 Installation
Note: If HDFX-500 module is used as its pair for HDFX-700, connect HDFX-
500 module directly into the HDMI port on the source or display.
Fig Figure 3 –Connection of optical fiber
Step 6
If the system does not work properly, go to the page 1-5 for trouble shooting.
Note1: Please DO NOT look directly into the LC receptacles of the
Transmitter, while it is powered on. Although this product is regulated strictly
enough to operate under the LASER Class I, classified by CDRH/FDA for eye
safety, it is not recommended to do so.
Note2: The maximum extension length by OM3 fiber is 200 meters (656ft.).
Note3: It is recommended NOT to use any intermediate cable or adapter that
is not provided in the shipping group between the modules to avoid
undesirable performance degradation.
1-4 Installation
Position of the LED

Product Specifications
Compliance with HDMI standard: supports HDMI 2.0
Extension limit: 200m (656feet) for 4K (4096x2160) at 60 Hz
refresh rate over one (1) LC OM3 fiber (50/125um).
Graphic Transmission Bandwidth: Supports total data rate
18Gbps (6Gbps per lane).
Supports HDR at 10bit or 12bit speed respectively within 18Gbps
Extra Copper Extension available up to 2m on each side (TX/RX)
Supports ARC up to 200m
Selectable Option: full compatibility with HDFX-500-TR as a pair
Firmware upgradable via micro USB port
Support CEC, EDID, and HDCP 2.2 / 1.4
Mechanical specifications of transmitter and receiver
Dimensions(WDH):39mm x 76mm x 20mm
Environmental Specifications
Operating temperature: 0°C to 50°C
Storage temperature: -30°C to 70°C
Humidity: 10% to 85%
AC/DC Power Adapter
Power Input: AC 100-240V, 50/60Hz.
Power Output: +5 V, 1A SMPS DC-power Adapter
LED indicator
Status LED
RED: No connection with the Fiber
AMBER: No data signal
GREEN: Signal ON
BLUE: ARC ON
Power LED
BLUE: Power connected
1-6 Product Specifications
Troubleshooting
The display shows black screen.
□Ensure that all the plugs and jacks used by DC power supplies are firmly
connected. Ensure that the LED is ON.
□Ensure that the HDMI cables are firmly plugged into the HDMI source and
display.
□Ensure that the transmitter and receiver modules are plugged correctly to the
source and display, respectively.
□Check if the HDMI source and display are powered on and properly booted.
□Reset the system by de-plugging and re-plugging the transmitter or receiver,
or by de-plugging and re-plugging the DC power adapters that are plugged to
the transmitter and receiver module.
□Re-boot up the system while connecting the module.
Screen is distorted or displays noises.
□Check if the graphic resolution is properly set. Go to the display Properties
and tap the Settings. Ensure that the resolution sets less than WQUXGA
(3840x2400) at 60Hz refresh ratio.
□Reset the system.
□Power down, disconnect and reconnect the optical system cable or DC power
adaptors, and power up again.
Maintenance
No special maintenance is required for the optical system cables and power
supplies. Ensure that the cables and power modules are stored or used in a
benign environment free from the liquid or dirt contamination.
There are no user serviceable parts. Refer all service and repair issues to Opticis
or its authorized distributor.
Technical Support and Service
For commercial or general product support, contact your reseller. For technical
service, contact Opticis by email [e-mail] or visit its website at
www.opticis.com
1-5 Trouble Shooting, Maintenance, Technical Support and Service

Warranty Information
1 (One) Year Warranty
Opticis warrants this optical HDMI module to be free from defects in workmans
hip and materials, under normal use and service, for a period of one (1) year fr
om the date of purchase from Opticis or its authorized resellers.
If a product does not work as warranted during the applicable warranty period,
Opticis shall, at its option and expense, repair the defective product or part, deli
ver to customer an equivalent product or part to replace the defective item, or r
efund to customer the purchase price paid for the defective product.
All products that are replaced will become the property of Opticis.
Replacement products may be new or reconditioned.
Any replaced or repaired product or part has a ninety (90) day warranty or the r
eminder of the initial warranty period, whichever is longer.
Opticis shall not be responsible for any software, firmware, information, or mem
ory data of customer contained in, stored on, or integrated with any products re
turned to Opticis for repair under warranty or not.
Warranty Limitation and Exclusion
Opticis shall have no further obligation under the foregoing limited warranty if
the product has been damaged due to abuse, misuse, neglect, accident,
unusual physical or electrical stress, unauthorized modifications, tampering,
alterations, or service other than by Opticis or its authorized agents, causes
other than from ordinary use or failure to properly use the product in the
application for which said product is intended.
Dispose of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate systems)
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
1-7 Warranty Information
Certifications
CE / FCC, Class 1 Laser Eye Safety
Certification of Eye Safety
This laser product is inside implemented by using 780, 825, 850, 930, 960,
990nm LD Transceivers, manufactured by Opticis Co., Ltd., which are all
certified by CDRH/FDA referred as classified in Laser Class 1 (IEC60825-1).
Caution –Use of controls or adjustments or performances of procedures
other than those specified herein may result in hazardous radiation exposure.
1-8 Certifications
