Optoma 5 1RK Series User manual

User manual
Interactive Flat Panel

English
2
TABLE OF CONTENTS
SAFETY ............................................................................................... 5
Safety Instructions..................................................................................................................... 5
Copyright ................................................................................................................................... 6
Disclaimer.................................................................................................................................. 6
Trademark Recognition ............................................................................................................. 6
FCC Statement.......................................................................................................................... 6
FCC Warning............................................................................................................................. 6
Declaration of Conformity for EU Countries .............................................................................. 7
WEEE........................................................................................................................................ 7
ENERGY STAR ......................................................................................................................... 7
INTRODUCTION.................................................................................. 8
Package Contents ..................................................................................................................... 8
Standard Accessories........................................................................................................... 8
Optional Accessories............................................................................................................ 9
Product Overview ..................................................................................................................... 10

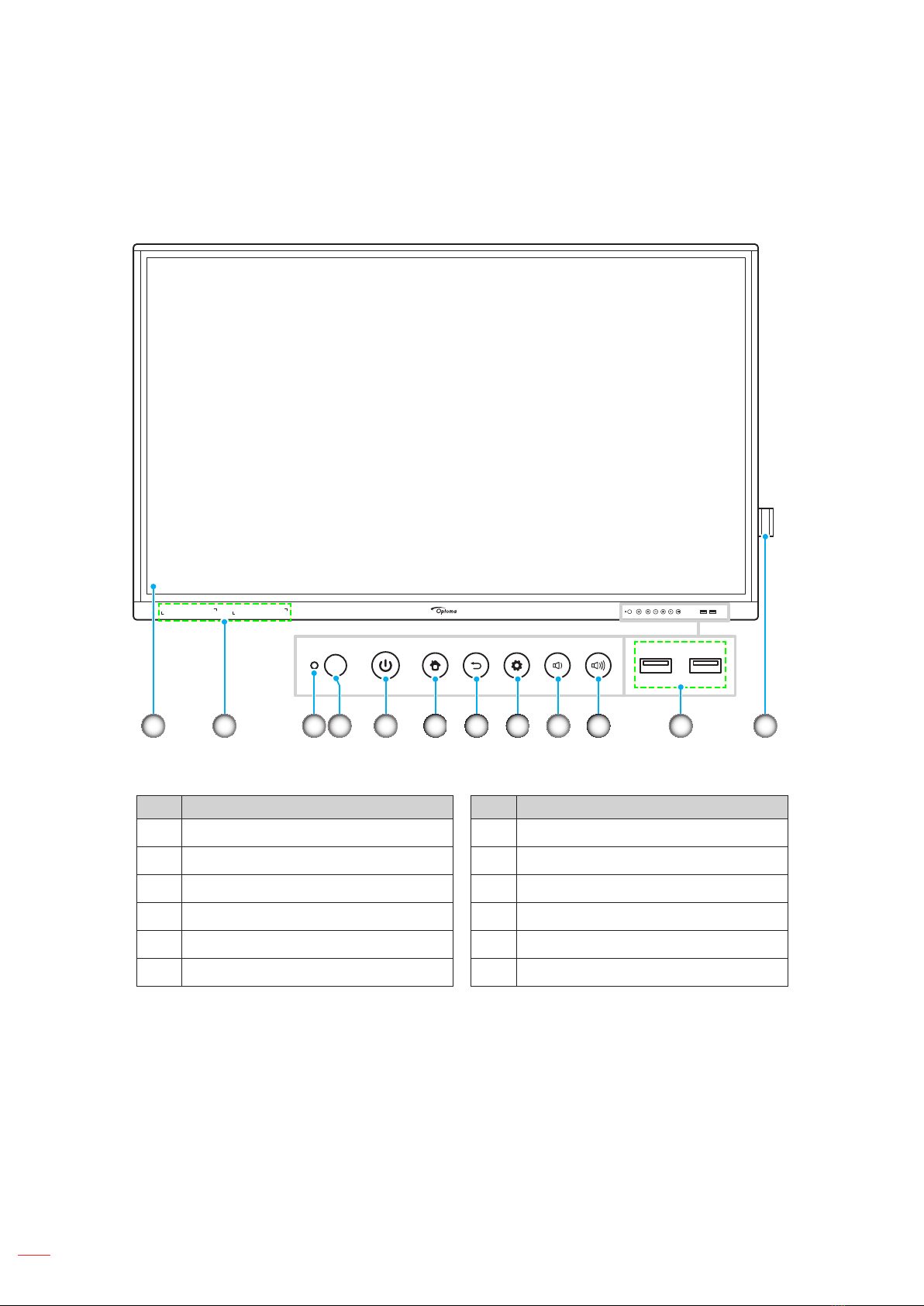

Front View ........................................................................................................................... 10
Rear View............................................................................................................................ 11
Remote Control ........................................................................................................................ 12
SETUP AND INSTALLATION ............................................................. 14
Wall Mounting Installation......................................................................................................... 14

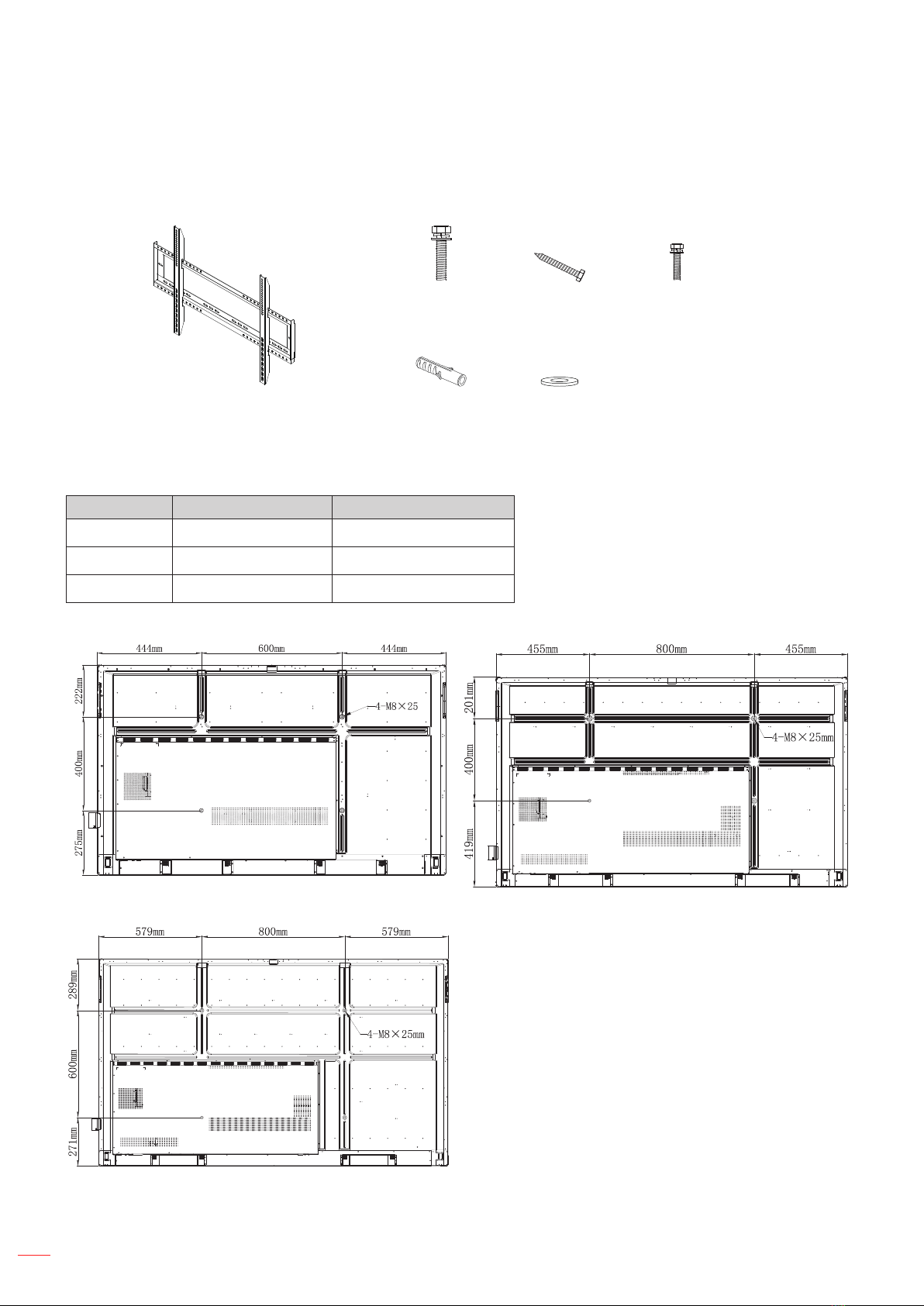

Wall Mount Specications ................................................................................................... 14
Installing an External Mini Computer................................................................................... 17

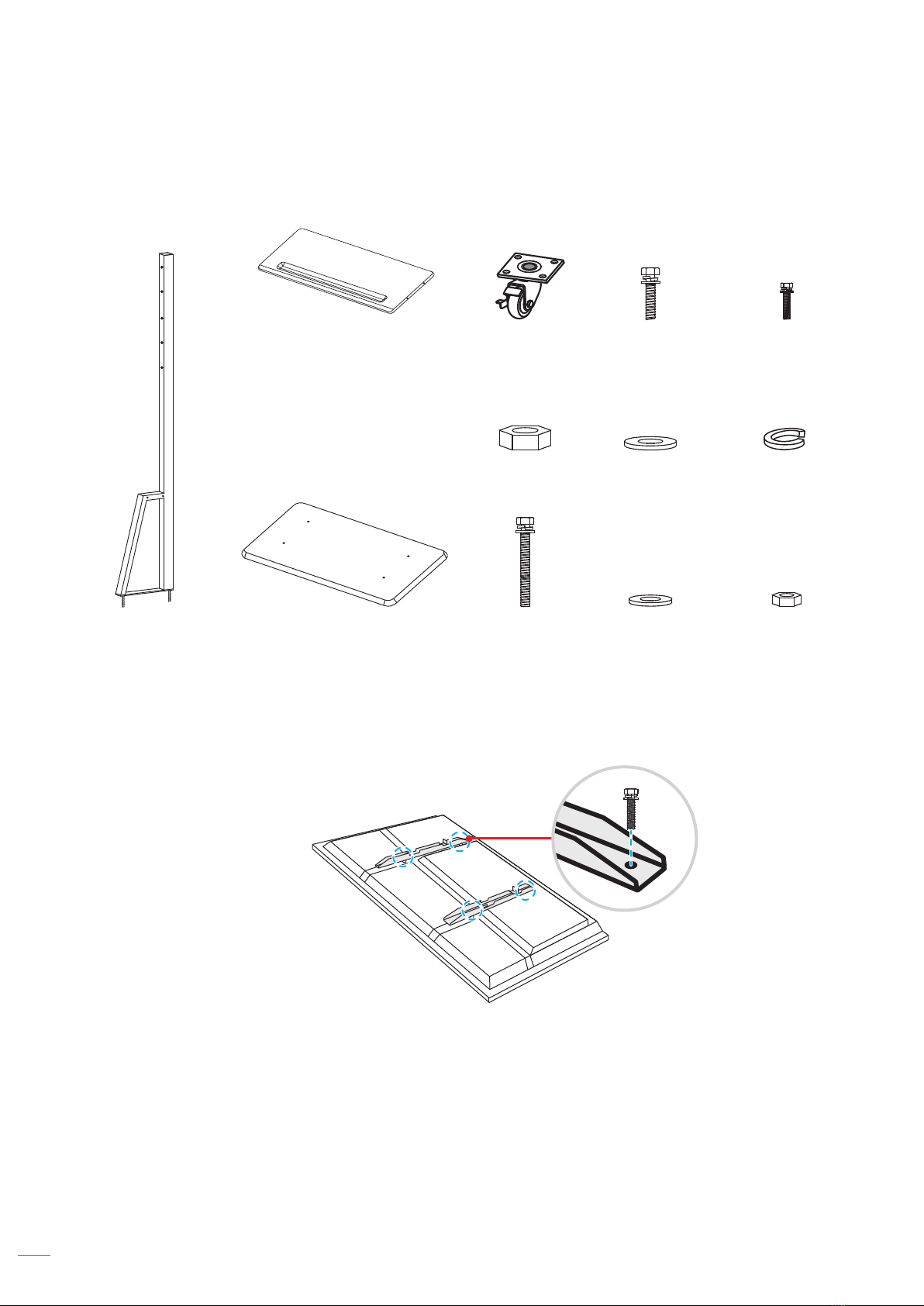

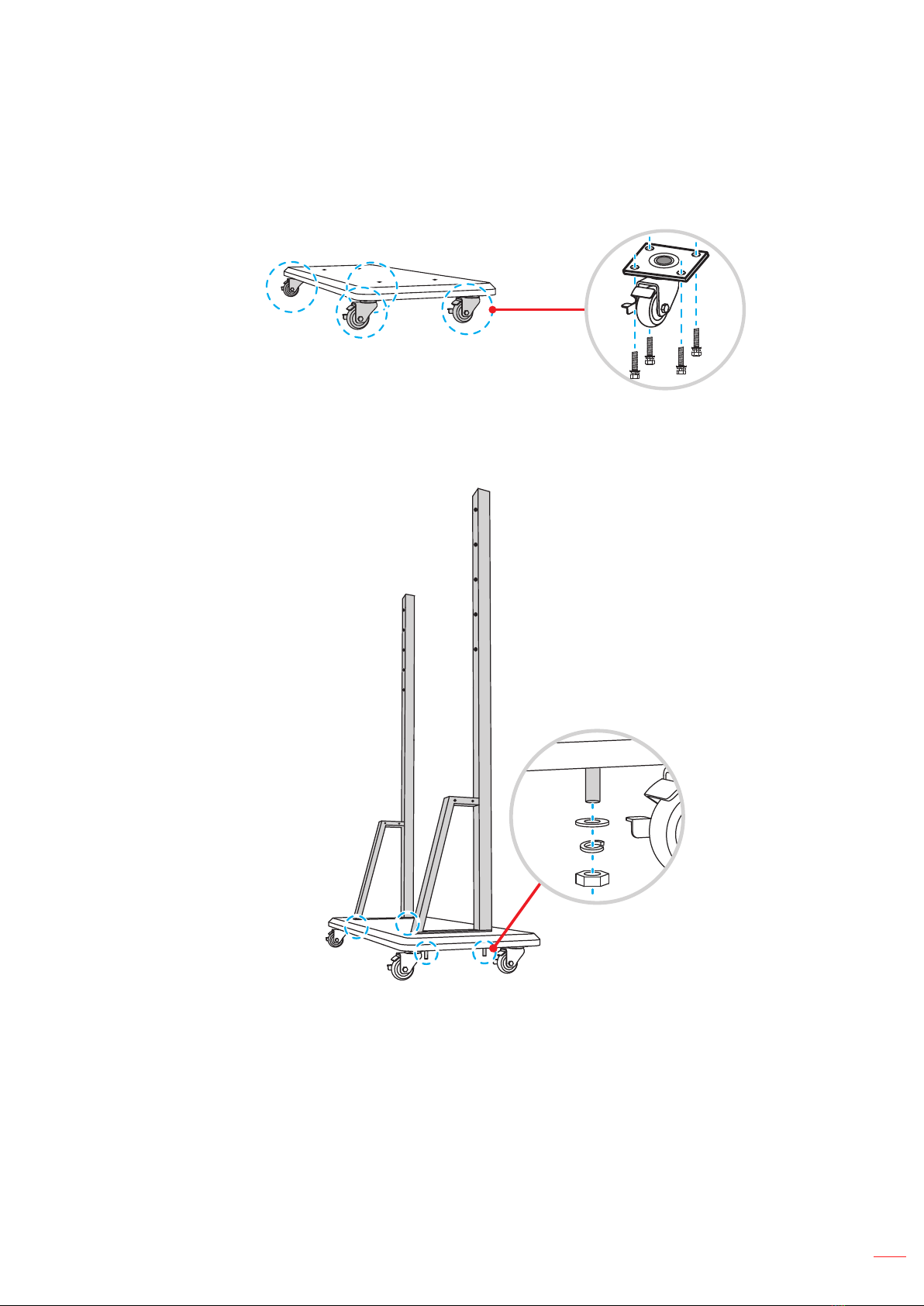

Stand Mounting Installation (Optional) ..................................................................................... 18
Using the Remote Control ........................................................................................................ 21
Installing/Replacing the Remote Control Batteries.............................................................. 21
Remote Control Operating Range....................................................................................... 22
Connections.............................................................................................................................. 23
Connecting to Power ........................................................................................................... 23
Connecting External Devices .............................................................................................. 23
USING THE DEVICE........................................................................... 28
Turning the Power On/Off......................................................................................................... 28
Setup Wizard............................................................................................................................ 29
BASIC OPERATIONS......................................................................... 31
Home Screen Overview............................................................................................................ 31
Setup Menu .............................................................................................................................. 32
Selecting an Input Source ................................................................................................... 33
Adjusting the Backlight Level .............................................................................................. 33
Activating the Low Blue Light Function ............................................................................... 34

English 3
Adjusting the Volume Level................................................................................................. 34
Conguring OSD Settings ........................................................................................................ 35
Conguring Image Settings ................................................................................................. 35
Conguring Display Settings ............................................................................................... 36
Conguring Signal Settings (for VGA input only)................................................................. 37
Conguring Audio Settings.................................................................................................. 37
Viewing Device Information................................................................................................. 38
Conguring Advanced Settings ................................................................................................ 39
Personalizing the System.................................................................................................... 40
Conguring Network Settings.............................................................................................. 41
Conguring Device Settings ................................................................................................ 43
Conguring Security Settings .............................................................................................. 45
Conguring System Settings ............................................................................................... 47
Side Toolbar.............................................................................................................................. 51
Viewing Recent Tasks ......................................................................................................... 52
Team Share App.................................................................................................................. 53
Annotation App .................................................................................................................... 58
Screen Freezing .................................................................................................................. 59
Other Utilities....................................................................................................................... 59
Screen Recorder ................................................................................................................. 66
Floating Annotation Toolbar ...................................................................................................... 66
USING THE APPS .............................................................................. 67
TapCast Pro........................................................................................................................................................ 68
TapCast Pro App Compatibility Table .................................................................................. 68
Mobile Device...................................................................................................................... 68
Computer............................................................................................................................. 70
TapCast Pro Advanced Settings.......................................................................................... 72
File Manager ...................................................................................................................................................... 74
Managing Files .................................................................................................................... 74
Cloud Storage ..................................................................................................................... 76
Playing Multimedia Files...................................................................................................... 77
Screen Lock........................................................................................................................................................ 81
Browser................................................................................................................................................................ 81
Keeper.................................................................................................................................................................. 82
Joan on TV.......................................................................................................................................................... 82
Visualizer............................................................................................................................................................. 86
ADDITIONAL INFORMATION ............................................................ 87
Dimensions............................................................................................................................... 87
65-inch................................................................................................................................. 87
75-inch................................................................................................................................. 88
86-inch................................................................................................................................. 89
Supported Timing List............................................................................................................... 90
RS232 Protocol Function List................................................................................................... 92
RS232 Pin Assignments...................................................................................................... 92
RS232 RJ45 Control Connection ........................................................................................ 92
SET Command.................................................................................................................... 93
GET Command ................................................................................................................... 95

English
4
LED Indicator............................................................................................................................ 97
Troubleshooting........................................................................................................................ 98
Maintenance............................................................................................................................. 99
Cleaning the Screen............................................................................................................ 99
Clean the Front Frame ........................................................................................................ 99
Optoma Global Ofces ............................................................................................................ 100

English 5
SAFETY
Please follow all warnings, precautions and maintenance as recommended in this user manual.
Safety Instructions
 Only use attachments/accessories specied by the manufacturer.
Do not block any ventilation openings. To ensure reliable operation of the device and to protect from
overheating, it is recommended to install the device in a location that does not block ventilation. Do not
put the device in an enclosure such as a book case or a cabinet that restricts air ow.
 Do not use the device near water or moisture. To reduce the risk of re and/or electric shock, do not
expose the device to rain or moisture.
Do not install near heat sources such as radiators, heaters, stoves or any other apparatus, such as
ampliers, that emits heat.
Do not let objects or liquids enter the device. They may touch dangerous voltage ports or short out parts
that could result in re or electric shock.
Do not place the device on an unstable surface. The device may fall over, resulting in injury or the device
may become damaged.
Do not setup the device in places where it might be subjected to vibration or shock.
Do not use any hard or sharp object to operate the touch screen.
Do not use the device if it has been physically damaged or abused. Physical damage/abuse would be
(but not limited to):
– The device has been dropped.
– Power supply cord or plug has been damaged.
– Liquid has been spilled on to the device.
– The device has been exposed to rain or moisture.
– Something has fallen in the device or something is loose inside.
Do not attempt to service the device yourself. Opening or removing covers may expose you to dangerous
voltages or other hazards. Please call Optoma before you send the device for repair.
Disconnect the power plug from AC outlet if the device is not being used for a long period of time.
Remove the batteries from the remote control before storage. If the batteries are left in the remote for
long periods, they may leak.
Turn off and unplug the power plug from the AC outlet before cleaning the device.
Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners,
waxes or solvents to clean the device.
See the device enclosure for safety related markings.
The device should only be repaired by appropriate service personnel.

English
6
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws,
with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without
written consent of the author.
©Copyright 2020
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations or
warranties with respect to the contents hereof and specically disclaims any implied warranties of merchantability or
tness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes
from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or
changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending
applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
Google, the Google logo, and Google Drive are trademarks or registered trademarks of Google LLC.
OneDrive is a trademark and brand of Microsoft Corporation.
All other product names used in this manual are the properties of their respective owners and are Acknowledged.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian CAN ICES-3 (B)/NMB-3 (B).
Remarque à l'intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.

English 7
Declaration of Conformity for EU Countries
EMC Directive 2014/30/EU (Including amendments)
Low Voltage Directive 2014/35/EU
WEEE
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure
utmost protection of the global environment, please recycle it.
ENERGY STAR
ENERGY STAR is a U.S. Environmental Protection Agency voluntary program that helps businesses
and individuals save money and protect our climate through superior energy efciency. Products
that earn the ENERGY STAR prevent greenhouse gas emissions by meeting strict energy efciency
criteria or requirements set by the U.S. Environmental Protection Agency. The following logo appears
on all ENERGY STAR-certied models:
This product qualies for ENERGY STAR in the “Standard mode” setting and this is the setting in
which power savings will be achieved. Changing the Standard mode picture settings or enabling
other features will increase power consumption that could exceed the limits necessary to qualify for
ENERGY STAR rating. Refer to EnergyStar.gov for more information on Energy Star program.

English
8
INTRODUCTION
Package Contents
Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items
under optional accessories may not be available depending on the model, specication and your region of
purchase. Please check with your place of purchase. Some accessories may vary from region to region.
The warranty card is only supplied in some specic regions. Please consult your dealer for detailed information.
Standard Accessories
USB Touch Cable HDMI Cable Touch Pen (x2) Remote Control
Batteries
(for remote control)
Touch Pen HolderBasic User Manual
*Theproduct images shown are for illustration purposes only and may not be an exact representation of the product.
Optomareserves the right to change product images and specifications at any time without notice.
Interactive Flat
Basic User Manual
Panel
For detailed instructions, please scan the QR code or visit the URL:
https://www.optoma.com/support/download
European Power Cord American Power CordInteractive Flat Panel UK Power Cord
Note: For warranty information, please visit www.optoma.com.

English 9
INTRODUCTION
Optional Accessories
Wall Mount with
PC Vesa Bracket
(OWMFP01)
OPS2-i5 (solt in PC,
intel i5 8th CPU, 8G
RAM, 128G SSD)
Wi-Fi Dongle
OPS2-i7 (slot in PC,
intel i7 8th CPU, 8G
RAM, 256G SSD)
Stand Mount

English
10
INTRODUCTION
Product Overview
Front View
321 4 5 6 7 8 9 10 11 12
No. Item No. Item
1. Touch screen 7. Back button
2. Touch pen placements (x2) 8. Setup menu button
3. Light sensor 9. Decrease volume button
4. IR receiver 10. Increase volume button
5. Power button with LED indicator 11. USB 2.0 ports (x2)
6. Home button 12. Touch pen holder
Note: Front USB 2.0 ports are full channel USB ports. USB ports can be used irrespective of the chosen input
source.

English 11
INTRODUCTION
Rear View
3.03.03.0
2.0
HDMI IN 1HDMI OUT HDMI IN 2 HDMI IN 3 TOUCH 2TOUCH 1
SPDIFAUDIO IN AUDIO OUTRS232VGA LAN
2
3
4
6
7
5
5
8 9 12 17 1810 13 1411 16 1515
1
No. Item No. Item
1. Handles (x2) 10. SPDIF port
2. OPS slot 11. RS232 port
3. HDMI Out port 12. Audio Out jack
4. USB 3.0 ports (x3) 13. LAN port
5. Touch USB port (x2) 14. USB 2.0 port
6. HDMI 2.0 ports (x3) 15. 16W speakers (x2)
7. Wi-Fi dongle slot 16. Mounting holes for wall mount
8. VGA port 17. AC In socket
9. Audio In port 18. Power switch
Note: Side USB 3.0 ports are full channel USB ports. USB ports can be used irrespective of the chosen input
source.

English
12
INTRODUCTION
Remote Control
12
6
7
9
16
18
25
26
22
20
12
15
5
3
4
8
10
11
17
13
14
19
21
24
27
23
No. Button Description
1. Power ( ) Turn on/off the interactive at panel (IFP).
2. Mute ( ) Turn off the sound temporarily.
3. Start Perform the same function as the Windows key on a computer keyboard.
4. Space Perform the same function as the Space key on a computer keyboard.
5. Alt+Tab Perform the same function as the Alt and Tab keys on a computer keyboard.
Pressing both keys, you can switch between all open applications (windows).

English 13
INTRODUCTION
No. Button Description
6. Alt+F4 Perform the same function as the Alt and F4 keys on a computer keyboard. Pressing
both keys, you can close the current window.
7. Numeric keys Numeric input keys
8. Display Show the current input source and information.
9. Repeat ( ) No function.
10. Home Return to the Home screen.
11. Input Select the input source.
12. Menu Display or hide the OSD menu.
13. Red ( ) Lock or unlock the Power button (on the IFP) and touch functions.
14. Green ( ) Lock or unlock the Power button (on the IFP) function.
15. Yellow ( ) Lock or unlock the touch function.
16. Blue ( ) Freeze the screen.
17. Blank ( ) Blank the screen.
18. Backspace ( ) Perform the same function as the Backspace key on a computer keyboard.
19. Navigation keys
(pqtu)Select an item or option.
20. Enter Conrm the selection.
21. Team Share ( ) Launch the Team Share app.
22. Back Return to the previous screen.
23. PgUp Perform the same function as the PgUp key on a computer keyboard.
24. Channel keys No function.
25. Volume keys Adjust the volume level.
26. PgDn Perform the same function as the PgDn key on a computer keyboard.
27. Function keys
(F1 ~ F12) Perform the same function as the F1 ~ F12 function keys on a computer keyboard.
Note: If the PC module is not installed into the OPS slot, all computer-related keys will have no function.

English
14
SETUP AND INSTALLATION
Wall Mounting Installation
Use only an Optoma-approved optional wall mount kit (available separately). Kit will include the following items:
Screw A(x4) Screw B(x8) Screw C(x2)
Dual mounting brackets and wall mount Anchor (x8) Washer (x8)
Wall Mount Specications
Model Name VESA Grid Screw Type & Length
65-inch 600 x 400 mm M8*25L
75-inch 800 x 400 mm M8*25L
86-inch 800 x 600 mm M8*25L
65-inch 75-inch
86-inch

English 15
SETUP AND INSTALLATION
To mount the IFP on the wall, complete the following steps:
1. Install the dual mounting brackets on the rear of the IFP. Then secure the brackets with four
screws (A).
A
2. Drill eight small holes on the mounting location and insert the anchors into the holes.
3. Position the wall mount on the wall, then secure the wall mount with eight screws (B) through the
washers into the installed anchors on the wall.
B

English
16
SETUP AND INSTALLATION
4. Align and hook the dual mounting brackets to the wall mount.
5. Secure the dual mounting brackets and the wall mount with two screws (C).
C
Note:
The maximum wall mount kit load capacity:160kg (352lbs).
The wall mount should be installed into concrete wall to ensure installation rmness. If concrete wall is
not available, we recommend to use a stand instead. Please refer to page 18.
Screws must be tightly secured; however, to avoid damage to the mounting brackets, wall mount, or
IFP, do not overtighten the screws.
The installation should only be performed by qualied technicians. Improper installation may cause the
IFP to fall or malfunction.
Please note that damage resulting from incorrect installation will void the warranty.

English 17
SETUP AND INSTALLATION
Installing an External Mini Computer
Install the mini PC bracket on the rear side of the wall mount, then complete one of the following to install the mini
computer:
Install the screws onto the mini computer, then align and hook the mini computer to the mini PC bracket.
Align and install the mini computer to the mini PC bracket. Then secure it with four screws.
OR

English
18
SETUP AND INSTALLATION
Stand Mounting Installation (Optional)
The stand mount kit includes the following items:
Pen tray (x1) Wheel (x4) Screw J(x16) Screw H(x4)
Nut G(x4) Washer G1 (x4) Split Ring Lock
Washer G2 (x4)
Stand pole (x2) Stand base (x1) Screw K(x4) Washer K1 (x4) Nut K2 (x4)
To mount the IFP on the stand, complete the following steps:
1. Install the dual mounting brackets on the rear of the IFP. Then secure the brackets with four
screws (A).
A
Note: Dual mounting brackets, wall mount, and screws (A)are included in the wall mount kit. Refer to
“Wall Mounting Installation” on page 14.

English 19
SETUP AND INSTALLATION
2. Flip the stand base so that you can see the screw holes for the wheel, then install the wheel onto its
slot and secure it with four screws (J).
Repeat the same procedure to install the remaining three wheels.
J
3. Place the stand base on the stable surface, then install the stand pole onto its slot and secure both
standoffs with two nuts (G) through the washers (G2 and G1).
Repeat the same procedure to install another stand pole.
G
G2
G1

English
20
SETUP AND INSTALLATION
4. Align the pen tray with the screw
holes on the middle part of the poles,
then secure the pen tray with four
screws (H).
5. Install the wall mount on the upper
part of the poles, then insert the
screws (K) through the screw holes
from the rear side of the poles.
6. Place the washers (K1)and the nuts
(K2) into the screws, then tighten the
nuts (K2) to secure the wall mount in
place.
7. Align and hook the dual mounting brackets to the installed wall mount on the stand poles.
H
K
K1
K2
