Optoma Optoma EP550 User manual

English
2
Table of Contents
Usage Notice
Precautions ............................................................................................. 3
Introduction
About the Product.................................................................................... 4
Package Overview .................................................................................. 5
Installation
Product Overview .................................................................................... 6
Start Your Installation............................................................................... 8
User Controls
User Control Overview ............................................................................ 10
Function Descriptions.............................................................................. 13
Appendices
Troubleshooting ....................................................................................... 16
The Apple Macintosh Connections ......................................................... 18
Maintenance............................................................................................ 19
Specifications .......................................................................................... 21
Compatibility Modes................................................................................ 22

3
English
Usage Notice
Warning- Do not look into the lens. The bright light may hurt your eyes.
Warning- To reduce the risk of fire or electric shock, do not expose this
product to rain or moisture.
Warning- Please do not open or disassemble the product as this may cause
electric shock.
Warning- When changing the lamp, please allow unit to cool down, and follow
all changing directions.
Warning- If the cooling fan is not working, switch off the power immediately.
The product will be overheated without ventilation.
Warning- Before switching off the product, please keep the cooling fan
running for a few minutes.
Precautions
Follow all warnings, precautions and maintenance as recommended in this
user’s manual to maximize the life of your unit.
Do:
qTurn off the product before cleaning.
qUse a soft cloth moistened with mild detergent to clean the display housing.
qDisconnect the power plug from AC outlet if the product is not used for a long
period of time.
Don’t:
qBlock the slots and openings on the unit provided for ventilation.
qUse abrasive cleaners, waxes or solvents for your cleaning.
qUnder the following conditions:
- Extremely hot, cold or humid environment.
- Areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic field.
- Place in direct sunlight.

English
4
Introduction
About the Product
This product is a SVGA data/video portable projection display. The outstanding
features of it are listed as follows:
q9.25 lbs (4.2 kg) lightweight compact design
qSingle panel 6.4” TFT LCD projection system
q800 x 600 SVGA addressable pixels
qCompression for 1024 x 768 XGA computer image
q16.7M (24-bit) displayable colors
qXGA/ SVGA/ VGA/ VESA/ Mac/ NEC PC-98/ Fujitsu FM Towns compatible
qNTSC/ NTSC 4.43/ PAL/ SECAM composite video & S-Video
qMultifunction presentation & image control
qMultilingual OSD menu adjustments
qBuilt-in multimedia audio
qAdvanced functions--
keystone correction/ zoom/ freeze/ curtain/ pointer

5
English
Package Overview
This projection display comes with all the items shown below. Check to make sure your
unit is complete. Contact your dealer immediately if anything is missing.
LCD Projection Display
User’s Manual Warranty Card
Battery x 2 EVD Lamps x 2
S-Video Cable Composite Video Cable
Carrying Case Power Cord
Audio Cable
VGA Cable
Remote Control

English
6
Installation

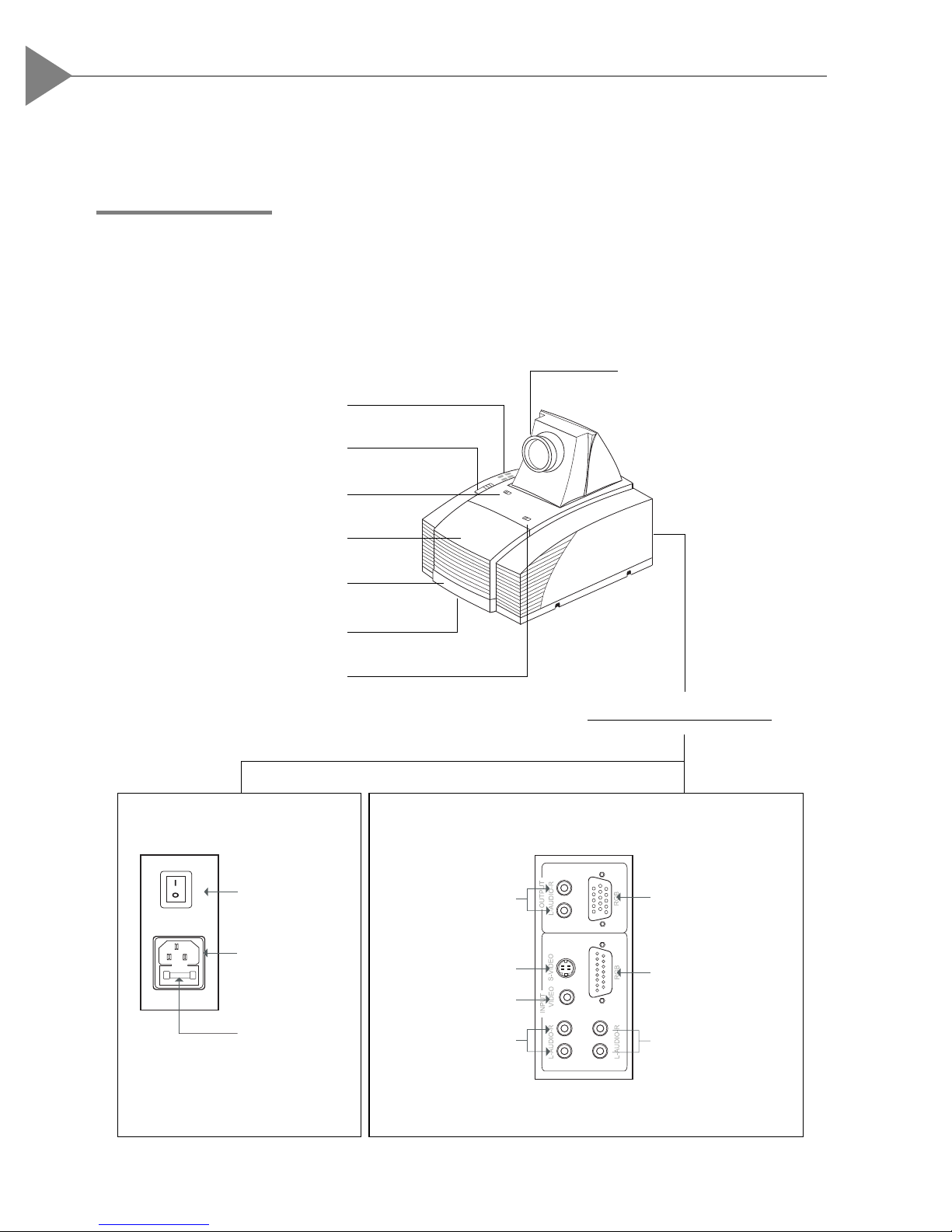

Product Overview
Rear Connection Ports
Panel Control Buttons
Keystone Correction
Lens Latch
Lamp Door
Carrying Handle
Elevator Foot
Lamp Latch
Lens
Power Switch
Power
Connector
Fuse
Monitor Loop-
through Connector
Computer Input
Connector
Audio Inputs for
Computer
Audio Outputs
S-Video
Connector
Composite Video
Connector
Audio Inputs
for Video
wMain Unit

7
English

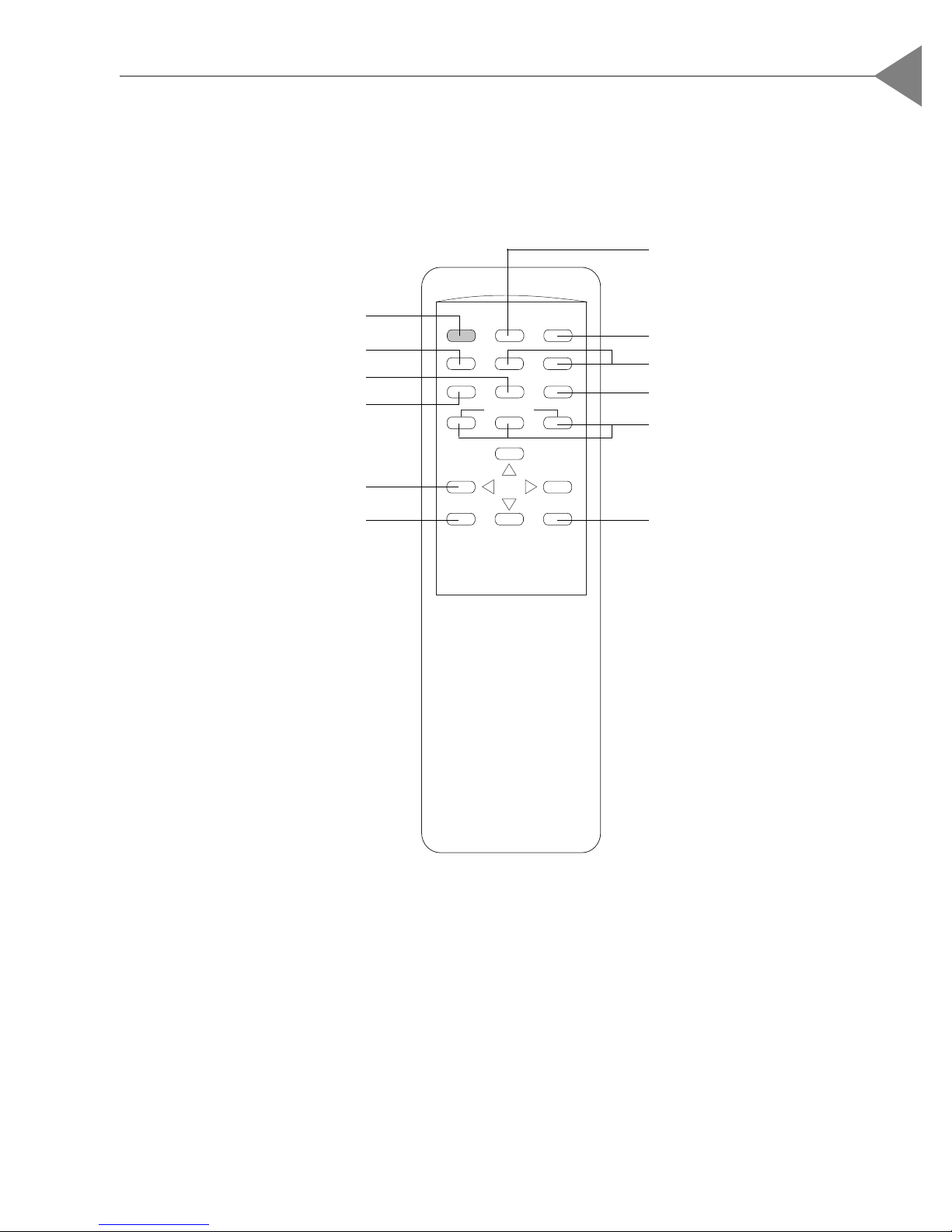

wRemote Control
Reset
Freeze
Zoom in/Zoom out
Source selection
Volume
Enter/Pointer
MENU
ZOOM
IN
ZOOM
OUT
CURTAIN
COL/TIN
POWER ON
STANDBY
ENTER
POINTER
TRACK
CON/BRI
VOLUME
MUTE
+
_
Power on/Standby
Curtain/Color functions
Contrast/Brightness
Tracking
On-Screen menus
Directional select keys
SOURCE
RESET FREEZE
Notice: For more detailed information, please refer to “Function descriptions” on
page 13.

English
8
Start Your Installation

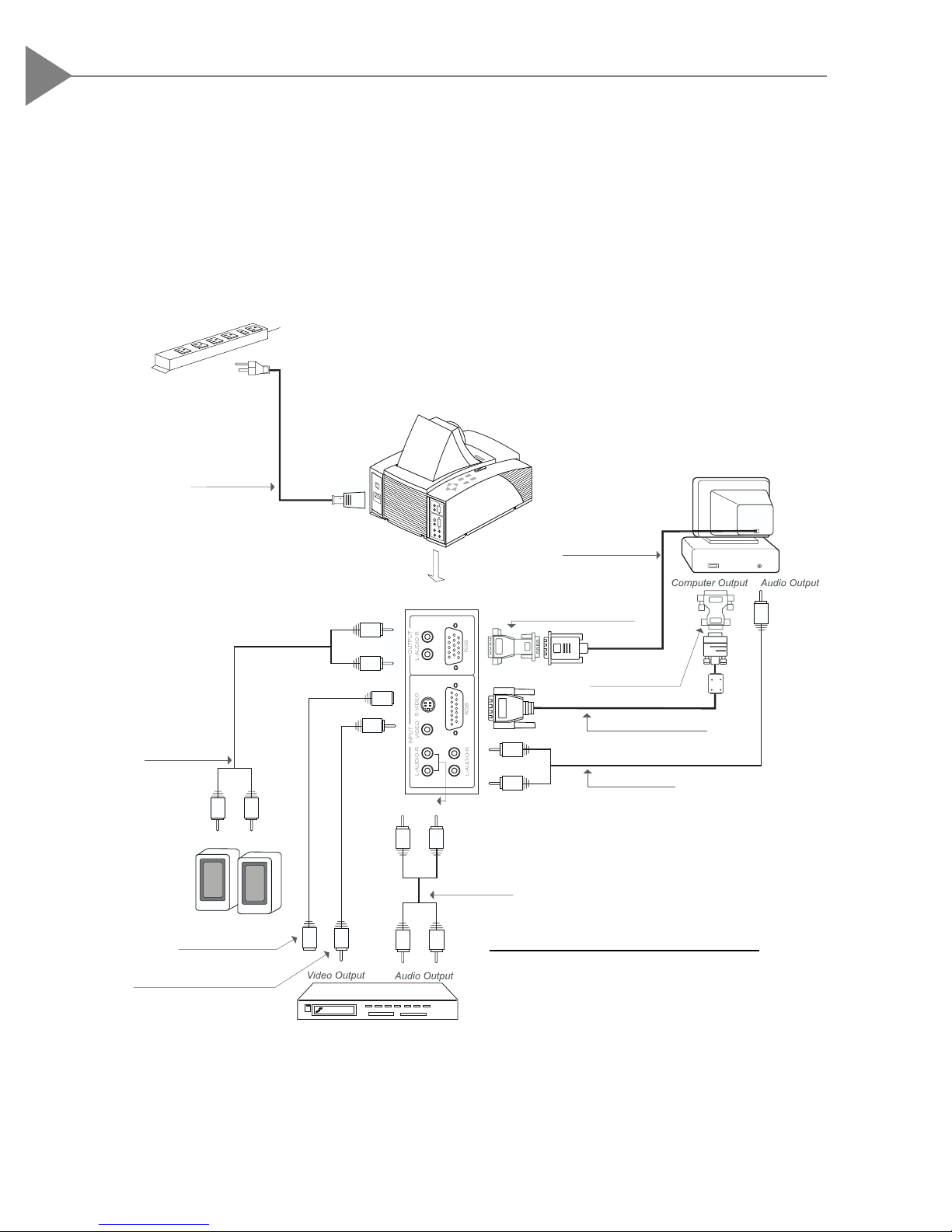

wConnecting the projection display
Notice: To ensure the projection display works well with your computer, please
config-ure the display mode of your graphic card to make it less than or equal to 800 x
600 resolution and make sure timing of the display mode is compatible with the projection
display. Refer to Compatibility Modes on page 22.
Power Cord
Mac Monitor Adapter
Monitor Cable
VGA Signal Cable
Audio Cable
Audio Cable
Audio Cable
S-Video Cable
Composite Video Cable
*For Macintosh, use the Mac adapter.
(Refer to the Apple Macintosh Connection on page
18 for more information.)
Mac Adapter*

9
English
wSetting up the projection display
qPositioning the projection display
(projection distance and image size)
qSlide the lens latch and pop-up the projection lens. Switch on the power and
press “Power on/Standby” button. (Either from the main unit or remote control)
qAdjusting the screen image.
1. Rotate the projection lens to focus the image.
2. Slide the keystone correction button to adjust image shape.
3. Adjust the elevation:
(1) Pull out the carrying handle.
(2) Lift the projection display to the desired angle.
(3) Press down on the elevator node to loosen the elevator foot.
Keystone Correction
Carrying Handle
Elevator Node
Lens
Power Switch
Power on/
Standby Buttons
Lens Latch
Projection
Distance 5 ft.
(1.5 m) 6.5 ft. (2 m) 9.5 ft. (3 m) 13 ft. (4 m) 20 ft. (6 m)
Image Size
(diagonal)
40"
(1.01m)
(min.)
60"
(1.52m) 80" (2.03m) 110" (2.79m) 160"
(4.06m)
(max.)

English
10
User Controls
User Control Overview
We have two ways for you to control the functions: panel control and remote control.
wPanelcontrol
POWERON
STANDBY RESET
MENU ENTER
4 Directional Keys
wRemotecontrol
Freeze
Zoom in/Zoom out
Source selection
Volume
Enter/Pointer
MENU
ZOOM
IN
ZOOM
OUT
CURTAIN
COL/TIN
POWERON
STANDBY
ENTER
POINTER
TRACKCON/BRI
VOLUME
MUTE
+
_
Power on/Standby
Curtain/Colorfunctions
Contrast/Brightness
Tracking
On-Screenmenus
SOURCE
Reset
RESET FREEZE
Directional select keys

11
English
wOSDMenus
TheOSD (On-ScreenDisplay)menus willallowyouto easilyadjustthedisplay
functions. Pressthe “MENU” button forthe OSD menuoptions.
4When in computer sources,
the OSD will be:
Language
Contrast
Tracking
Frequency
Custom Memory
Audio
Source
Rear Projection
Ceiling Projection
Auto Image
Exit
4When in video sources,
the OSD will be:
Language
Contrast/Brightness
Color/Tint
Audio
Source
Rear Projection
Ceiling Projection
Exit

English
12
FunctionDescriptions
4Power On/Standby Press the “Power On/Standby” button to turn on the
projection lamp.
Press “Menu” button to pop up the OSD menu.
Press “Reset” to return the display parameters of the
current mode to its factory default settings.
“Enter” is used for confirming your selection.
(1)Use 5or6button to select items. Use 3or4to make
adjustments for your selection.
(2)Use 5or6button to change vertical positioning of the
image; and 3or4button to change the horizontal
positioning of the image.
Choose “Language” item to select your choice of English,
French, German, Spanish, Italian, Japanese, and Chinese.
(1)Volume adjustments: “+”, “-”, “Mute”
(2)Audio adjustments: Bass, Treble, Balance, Volume, 4
sound modes.
Use “ Source” control to choose between video and
computer source.
Choose this function from OSD menu for a rear projection.
4Menu
4Reset
4Enter
4Four Directional
Select Keys
4Audio
4Source
wBasicFunctions:
4Language
4Rear Projection

13
English
4Exit
4Ceiling Projection
4Contrast
Press the “Pointer” button to show a hand shape pointer.
Use5,6,3or4button to move pointer around the
projected image.
Press the “Freeze” button to still the screen image.
Press “Curtain” button to cover all the screen, then use
5or6to pull up or down the curtain.
Press “Zoom In” button to enlarge the projected image,
“Zoom Out” to resume the image.
Choose this function from OSD menu to adjust contrast
of the image.
4Curtain
4Zoom In/Zoom Out
4Freeze
wPresentation Functions - computer source
4Pointer
Choose this funtion from OSD menu for a ceiling
mounted projection.
Choose “Exit” item to leave OSD menu.

English
14
Choose “Tracking” item to synchronize the signal timing
of the display to that of the graphic card. When you
experience an unstable or flickering image, use this
function to correct it.
“Frequency” is for changing the display data frequency
to match the frequency of your computer’s graphic card.
When you experience a vertical flickering bar, use this
function to make an adjustment.
This function enables you to save your current settings
for the computer source. To use this function, first
choose “Custom Memory” from OSD menus, and go to
the custom group you need (such as “Custom 3”), then
select “Save” and press “Enter” to save your current
settings; or choose “Open” and press “Enter” to load
your preset settings. There are six groups of custom
memories for your use.
If you want to come back to RGB standard source, go to
the “RGB Standard” mode located before “Custom 1” in
Custom Memory OSD menus.
* When opening your preset custom setting, you may
experience a “Invalid” message appearing on the
screen. This means the computer you connected or
the current setting is the wrong one, not what you
preset in the projection display.
* The “Reset” function of this projection display
only works in RGB Standard mode.
Choose “Auto Image” from OSD menus to obtain an
optimum quality for your projected image.
* “Auto Image” function will not support 1024 x
768 resolution.
* This feature could not perform well in case of
input weak signal from VGA cable.
4Auto Image
4Tracking
4Frequency
4Custom Memory
Language
Contrast
Tracking
Frequency
Custom Memory
Audio
Source
Rear Projection
Ceiling Projection
Auto Image
Exit

15
English
wPresentation Functions -- video source
To adjust the contrast or brightness of the image, select
“Contrast/Brightness” from OSD menus.
To adjust the color or tint of the image, select “Color/
Tint” from OSD menus.
Press the “Freeze” button to still the screen image.
4Contrast/Brightness
4Color/Tint
4Freeze

English
16
Appendices
Troubleshooting
If you are experiencing trouble with the projection display, refer to the follows. If
the problem persists, please contact your local dealer or our service center.
Problem: No image appears on screen.
4Press “Power on/Standby” button.
4Ensure all the cables and power connections are correctly and securely connected
as described in the “Installation” section.
4Ensure the pins of connectors are not crooked or broken.
4Check if the projection lamp has securely installed. Please refer to the “Changing
the lamp” section.
4Ensure the cooling fan is on. If not, you may need to change the fuse. Please refer
to the “Changing the fuse” section.
Problem: Partial, scrolling or incorrectly displayed image.
4If you are using a PC:
Resolution of your computer is higher than 800x600. Follow the steps outlined
below to reset the resolution.
For Windows 3.x:
1. In the Windows Program Manager, click the “Windows Setup” icon in the Main
group.
2. Verify that your Display resolution setting is less than or equal to 800x600.
For Windows 95:
1. Open “My Computer” icon, the “Control Panel” folder, and then double click the
“Display” icon.
2. Select the “Setting” tab.
3. In the “Desktop Area” you will find the resolution setting. Verify that the
resolution setting is less than or equal to 800x600 resolution.
If the projection display is still not projecting the whole image, you will need
to also change the monitor display you are using. Refer to the following steps.
4. Follow above steps 1~2. Click on the “ChangeDisplay Type” button.
5. Select the “Change” button under the “Monitor Type” box.

17
English
4If you are using a Notebook PC:
1. You are required to implement above steps of resolution setting of computer
first.
2. Switch the Notebook PC display to the “external display only” or “CRT only”
mode.
4If you are using an Apple Macintosh:
Resolution of your computer is higher than that of the projection display. You may
need to change the Mac adapter of 800 x 600 resolution.
4If you are using anApple PowerBook:
Resolution of your PowerBook is higher than that of the projection display. You
may need to change the Mac adapter of 800 x 600 resolution.
4If you are experiencing difficulty in changing resolutions or your monitor freezes,
restart all the equipment and the projection display.
Problem: The screen of theNotebook or PowerBook computer is not displaying
your presentation.
4If you are using Notebook PC:
Some Notebook PCs may deactivate their own computers’ screens when asecond
display device is in use. Each of them has different way to be reactivated.
Refer to your computer’s documentation for detailed information.
4If you are using anApple PowerBook:
In Control Panels, open the PowerBookDisplay to select Video Mirroring “On”.
Problem: Image is unstable or flickering
4Use “Tracking” to correct it.
4Change the monitor color setting from your computer.
Problem: Image has vertical flickering bar.
4Use “Frequency” to make an adjustment.
4Check and reconfigure the display mode of your graphic card to make it compatible
with the product.
6. Under “Manufacturers”, select “Standard monitor types”
7. Verify that the resolution setting of the monitor display is less than or equal to
800x600.

English
18
4For 640 x 480 Resolution:
1. Connect the supplied 15-pin VGA signal cable to the unit.
2. Connect the supplied MAC (VGA) adapter between the VGAsignal cable and the
signal output of your computer.
4For 800 x 600 Resolution:
1. Connect the supplied 15-pin VGA signal cable to the unit.
2. Connect the supplied MAC 8x6 (SVGA) adapter between the VGA signal cable and
the signal output of your computer.
3. Restart your computer.
4. In Control Panels, open the Monitors & Sound; set your Macintosh to 800 x 600
resolution.
*If you cannot find any 800 x 600 resolution, please contact your Macintosh
dealer.
4For 640 x 480 Resolution:
1. Connect the supplied 15-pin VGA signal cable to the unit.
2. Connect the supplied MAC (VGA) adapter between the VGA signal cable and the Mac
external monitor cable of your PowerBook.
4For 800 x 600 Resolution:
1. Connect the supplied 15-pin VGA signal cable to the unit.
2. Connect the supplied MAC 8x6 (SVGA) adapter between the VGA signal cable and the
Mac external monitor cable of your computer.
3. Restart your PowerBook.
4. In Control Panels, open the PowerBook Display; set the number of colors; click the
Monitor 2 and set your PowerBook to 800 x 600 resolution.
5. Restart the PowerBook again.
* When using video mirroring and high color graphics, the projected image occasionally
may turn black and white. If this happens, change the number of colors again on
Monitors in the Control Panels.
The Apple Macintosh Connections
wConnecting a Macintosh Desktop Computer
wConnecting an Apple PowerBook Computer

19
English
Maintenance
wChanging the lamp
Make sure the projection display has cooled for at least 30 minutes before changing
the lamp. After you slide the lamp latch and open the lamp door, you will see two lamps
inside; one is in “usage” position, the other is in “spare” position. Refer to the lamp
changing directions below.

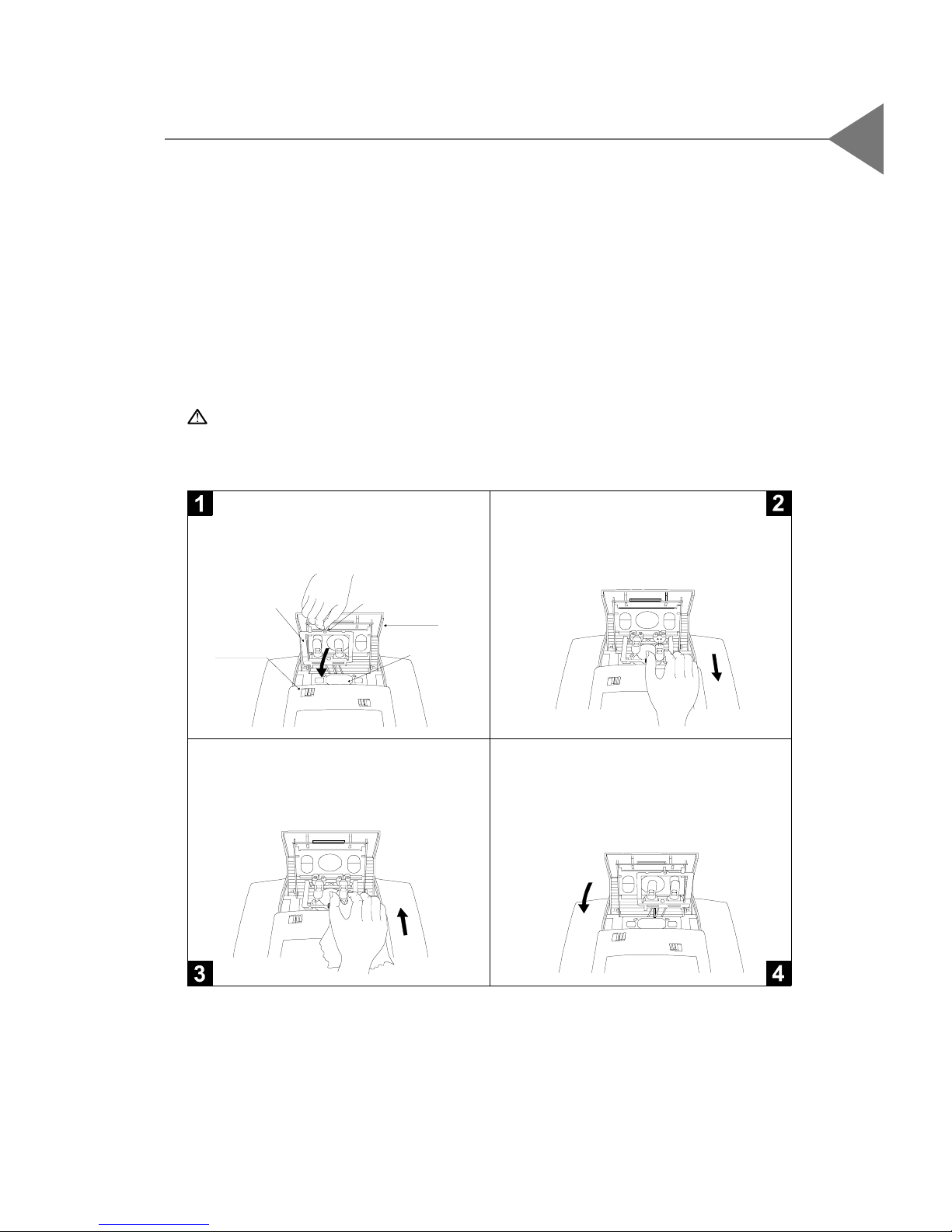

Lamp Changing Directions:
Warning: Lamp compartment is hot! Allow it to cool before changing lamps!
Notice: Use only USHIO or OSRAM HLX 64663T EVD 36V 400W lamp. Please
contact your local supplier or service center.
Slide the lamp latch; open the lamp compartment.
Move the lamp assembly by the long pin. Slide the lamp assembly sideways to place the spare lamp into the “usage” position. Remove the
used lamp.
Hold the new lamp with a plastic bag or clean cloth
and then push it firmly into the socket. (Finger oil,
dust or water will damage the lamp.)
Be sure the lamp assembly is set firmly back in
position. Then close the lamp door.
Lamp Assembly
Lamp Latch
Long Pin
LampDoor
“Usage” Position

English
20
wChanging the fuse
4Switch off the power and unplug the power cord.
4Pull out the fuse holder.
4Remove the blown fuse and then insert a new fuse.
4Put the fuse holder back in position.
Fuse Holder the Blown Fuse

21
English
Specifications
LCD panel - active matrix TFT color LCD
- 6.4” panel x 1
- tr=30ms, tf=50ms response time
- 150:1 contrast ratio
Lamp - 400 watt halogen
Display Resolution - 800 pixels(H) x 600 lines(V)
Displayable Color - 16.7M colors
Image Size - 40” to 180” diagonal
Projection Distance - 5 ft. to 20 ft. / 1.5 m to 6 m
Computer Compatibility - IBM&VESAVGA 640 x 350, 70/85Hz
640 x 400, 70/85Hz
720 x 400, 70/85Hz
640 x 480, 60/72/75/85Hz
VESASVGA 800 x 600, 56/60/72/75Hz
VESAXGA 1024 x 768 compressed, 60/70/75Hz
- Apple Macintosh 640 x 480, 67Hz
(Extra SVGA/ VGAmode select)
- NEC PC-98 series 640 x 400, 57/70Hz
640 x 480, 60Hz
- Fujitsu FM Towns 640 x 400, 55Hz
640 x 480, 60Hz
Video Compatibility - NTSC/NTSC4.43/PAL/SECAM compatible
- composite video & S-Video capability
H. Frequency - 15kHz~60kHz horizontal scan
V. Frequency - 50Hz~85Hz vertical refresh
Multimedia Audio - two internal speakers with 3 watt output
- built-in amplifier with 3 watt x 2 output
Power Supply - Auto switch
- AC input 100~120/200~240V , 50~60Hz
I/O Connectors - power: AC power input socket
- computer input: 15-pin D-sub 2-row connector
- computer output: VGA 15-pin D-sub connector
- video input: composite video RCA jack x 1 / S-Video jack x 1
- audio input: 2 pairs of L/R RCA jacks
- audio output: 1 pair of L/R RCA jacks
Weight - 9.25 lbs / 4.2 kg
Dimensions (W x H x D) - 10.2 x 6.4 x 12.5” / 259 x 162 x 317 mm
Environmental - operating temperature: 10o~35oC/50o~95oF
humidity: 80% maximum
storage temperature: -20o~60oC/ -4o~140oF
humidity: 80% maximum
Safety Regulation - FCC class A, CE Mark, VCCI-I, UL, CUL, TÜV
