Optoma PanoView DE-GWII9092E User manual

Close supervision is necessary when any motorized screen
is used by or near children,do not leave motorized screen
unattended while in use.
Do not operate motorized screen with damaged cord or if the
motorized screen has been dropped or damaged,until it has
been examined by a qualified service technician.
Position the cord so that it will not be tripped over,pulled or in
contact with not surgaces.
Never yank cord to pull plug form outlet.aways grasp plug bu
head and pull to disconnect.
Let appliance cool completely before putting away.Loop cord
loosely around appliance when stoing.
To reduce the risk of electric shock,do not immerse this motor-
ized screen in water or other liquids.
To reduce the risk of electric shock,do not disassemble this
appliance,only a qualifid service technician may service or
repair motorized screen.Incorrect reassemble can cause
electric shock when the motorized screen is used.
Only use accessory attachment recommended by the
manufacturer.Use of non-manufacturer recommended
accessory attachments,may viod the screens warranty
and release Panoview of all liability.
Basic electrical safety precautions should always be
observed.
In the event,the above mentioned safety precautions are not
observed.The warranty may be viod and Panoview released
of all liability.
Basic safety precautions,including the following should
always be followed.
IMPORTANT SAFETY INSTRUCTIONS
Screen does not travel far enough into case:
Make sure middle fasten screw (F) loosened,then
loosen small left fasten screw (FL) .Turn left screw (LS)
counterclockwise to increase the amount of up travel.Run
the screen up to test the stop position.If more travel ie
desired,adjust the limit switch again.Repeat until the desired
position is set.When complete fasten middle fasten screw
(F) and small left fasten screw (FR).

Thank you for choosing Panoview screens. All screens
have passed the strict quality inspection before delivery.
Read this manual carefully to ensure proper usage.
Important Attention: the installation of the screen,
the electric wire connection, the setting of the limit switches
must be made by a trained engineer only

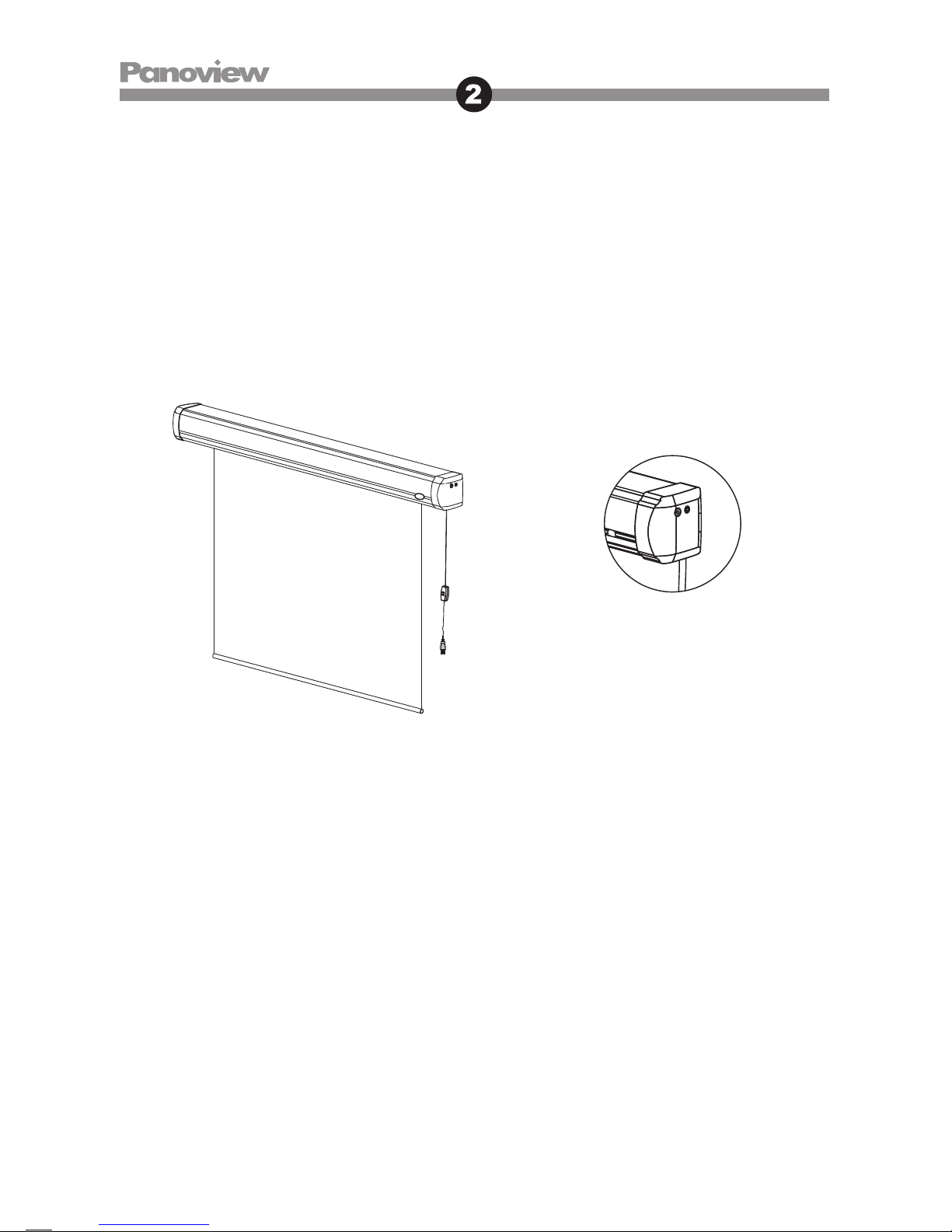

Motorized screen with IR remote control, switch control & 12v trigger port
Technical data:
Input Voltage: 120VAC/60HZ
Output Voltage: 3A
Fuse: 1A
IR Remote Control Distance: ≤8m, ±15°Horizontal
12V Trigger Jack: OD3.4xID1.3
12V Trigger Signal: Voltage:7---11VAC or 8---16VDC, Current: ≥2mA
IR Handset: 1pc
Switch control: 1pc
SETTING THE DOWN LIMIT POSITION
To reduce screen drop:
Make sure middle fasten screw (F) is loosened,then
loosen small right fasten screw (FR) .Turn right screw (RS)
counterclockwise to decrease the amount of screen
drop.Run the screen down to test the stop position.If the
screen drops too far,adjust the limit switch again.Repeat
until the desired position is set.When complete,fasten
middle fasten screw (F) and small right fasten screw (FR).
To increase screen drop:
Make sure middle fasten screw (F) loosened,then loosen
small right fasten screw(FR),turn right screw (RS) clockwise
to increase the amount of screen drop.Run the screen
down to test the stop position.If the screen does not drop
enough,adjust the limit switch again.Repeat until the
desired position is set.When complete,fasten middle fasten
screw (F) and small right fasten screw (FR).
SETTING THE UP LIMIT POSITION
CAUTION: Do not allow the slat bar to become wedged
between the roller and case. This could damage the fabric
and motor.Always check that the slat is free to move inside
the case.
Screen travels into case too far:
Make sure middle fasten screw (F) loosened,then loosen
small left fasten screw(FL).Turn left screw (LS) clockwise to
decrease the amount of travel.Run the screen up to test the
stop position.If the screen does not stop properly,adjust the
limit switch again.Repeat until the desired position is set.
When complete fasten middle fasten screw (F) and small
left fasten screw (FR).
SWITCH BOX
PLUG SWITCH JACK
12V TRIGGER

3
6
Unpack screen carefully, be sure screen is in good condition,
and check that all accessories are included inside carton.
Care in mounting and care in correct operation will mean a
long and satisfactory life for your Panoview screen. Locate the
screen where the audience can best see it and where other
furnishings in the room permit.
Check that voltage and frequency marked on screen is in
accordance with local power utility. It is suggested only to use
screen indoor under normal temperature and humidity
conditions.
Remove two pulling locks on the bottom slat bar after the
case has been installed.

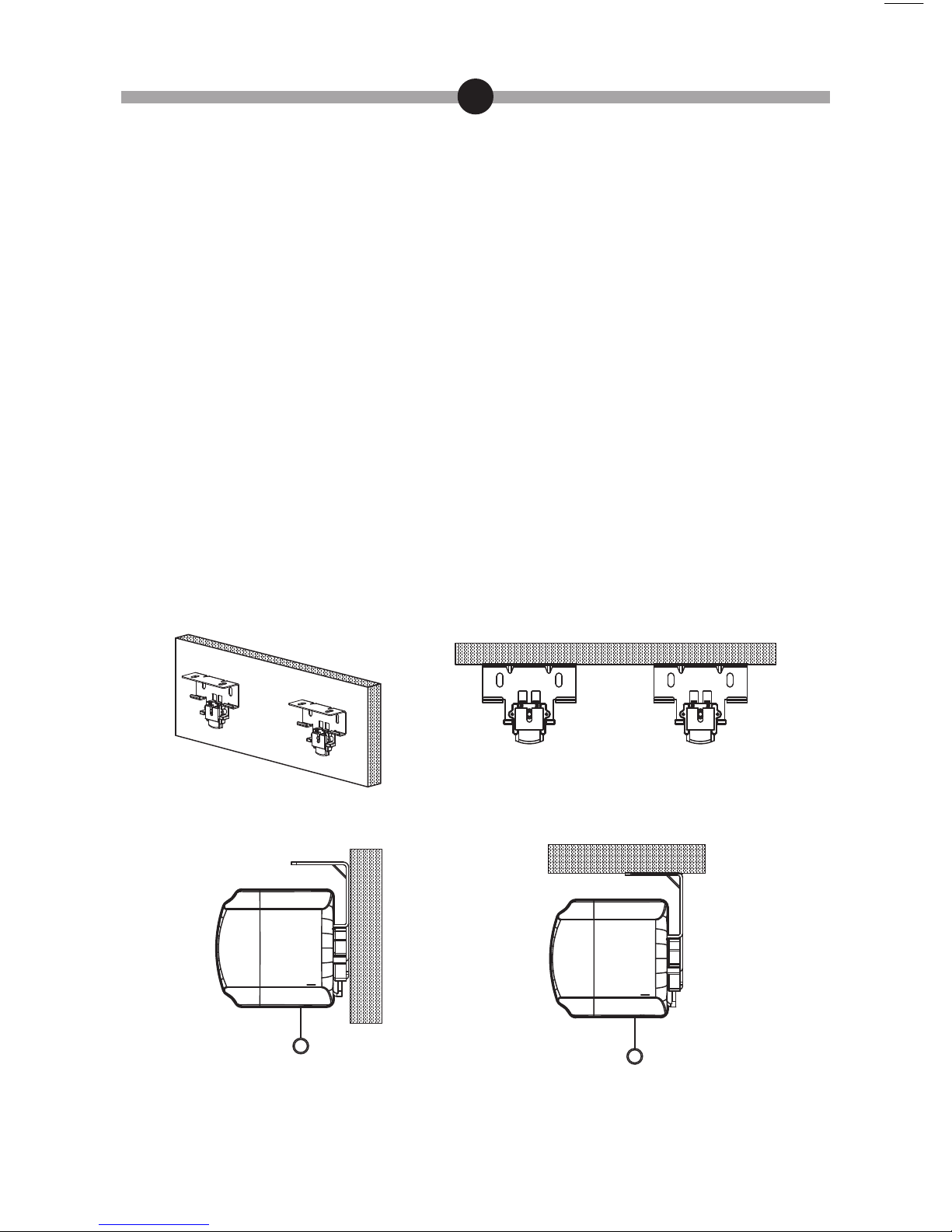

Install screen brackets onto ceiling or wall with appropriate
hardware.
Anchor screen onto bracket as shown in above figure below.
MOUNT SCREEN TO WALL MOUNT SCREEN TO CEILING
SCREEN ADJUSTMENT
Note: Adjustments to screen limit positions, can only
be performed by a trained technician.
Screen travel is stopped automatically in the down and up positions
by limit switches that are preset in the factory. If it is necessary to adjust
for more or less, please follow the steps below for adjustment.
Disconnect the power supply first before any operation.
Remove the plate on right bottom side of screen housing.
This is important.
Loosen Fasten Screw(F) first before adjustment,
Upper limit switch is on the left side and bottom limit is on the right
side.
Tighten Fasten Screen( F) after all adjustment.
PLATE
LEFT SCREW(LS) RIGHT SCREW(RS)
FASTEN SCREW(F)
FL FR

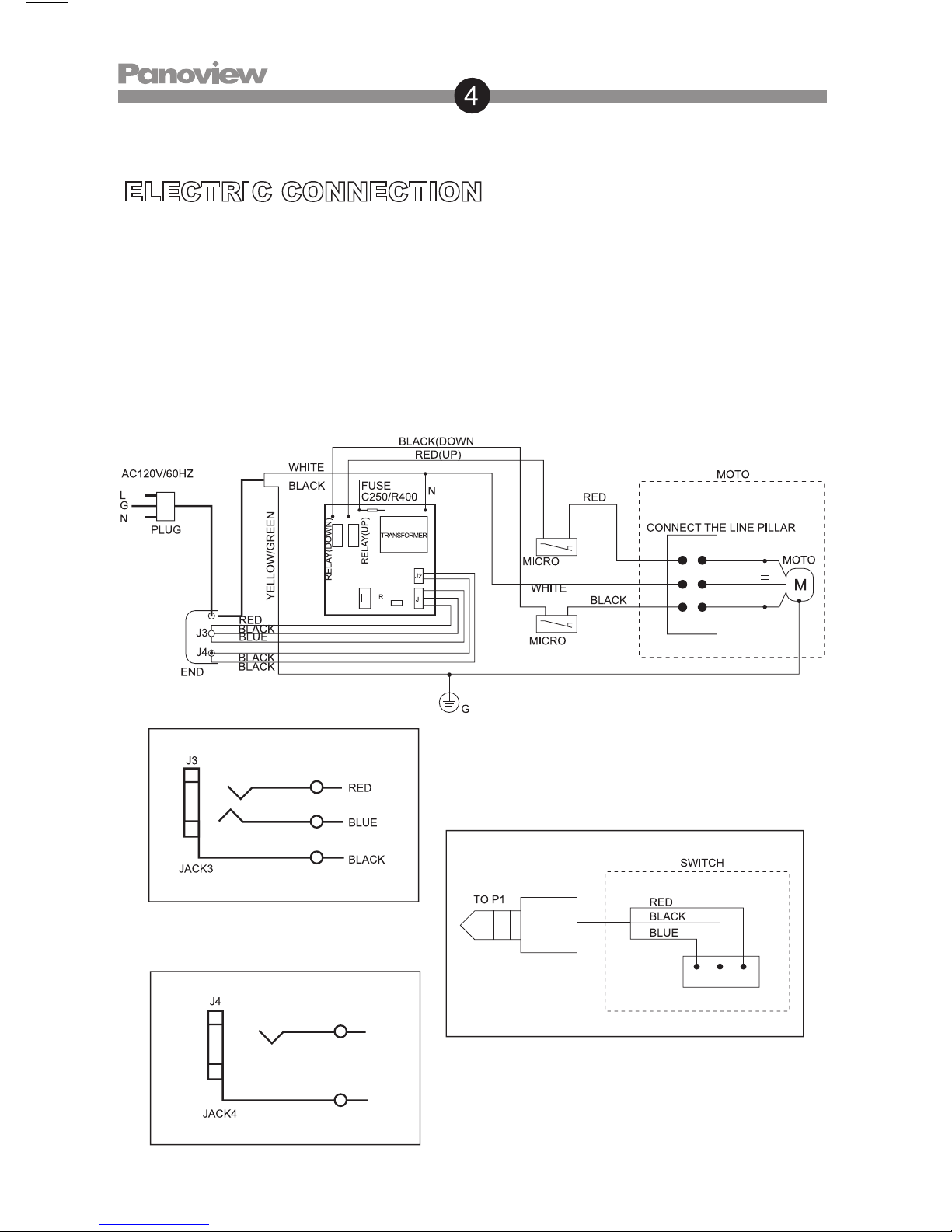

ELECTRIC CONNECTION
Remove two pulling locks on the bottom bar first before
any operation. this is important to prevent motor damage.
OPERATING INSTRUCTION:
Plug in power supply.
For Switch control: Plug in Switch into switch jack. Press
button to Up position, screen goes up. Press button to stop
position, screen stops. Press button to down position, screen
goes down.
For IR Remote: Direct the handset to IR window on
screen housing. Press the Up/Stop/Down button on the hand
set, screen goes Up/Stop/Down accordingly.
For 12V trigger: Input 12V trigger signal, screen goes
down. Stop this signal, screen goes up.
Electric lock: Press the Up & Down buttons on the IR
handset together, then all Up & Down buttons on the switch
and IR handset will be locked. To be unlocked press Stop
button on the IR handset again or unplug the power supply
and plug in again.
Keeping the screen rolled in its protective case when not
in use. Always examine both front and back of surface before
re-rolling into case to make certain screen is free of dust, dirt
or other foreign matter.
Internal wiring has been completed at the factory.No
additional wiring is necessary.
Note:all wiring related to the screen,may only
be serviced by a manufacturer approved trained
electrical technician.Tampering with electrical
wiring may void warranty and release Panoview
of liability.

ELECTRIC CONNECTION
Remove two pulling locks on the bottom bar first before
any operation. this is important to prevent motor damage.
OPERATING INSTRUCTION:
Plug in power supply.
For Switch control: Plug in Switch into switch jack. Press
button to Up position, screen goes up. Press button to stop
position, screen stops. Press button to down position, screen
goes down.
For IR Remote: Direct the handset to IR window on
screen housing. Press the Up/Stop/Down button on the hand
set, screen goes Up/Stop/Down accordingly.
For 12V trigger: Input 12V trigger signal, screen goes
down. Stop this signal, screen goes up.
Electric lock: Press the Up & Down buttons on the IR
handset together, then all Up & Down buttons on the switch
and IR handset will be locked. To be unlocked press Stop
button on the IR handset again or unplug the power supply
and plug in again.
Keeping the screen rolled in its protective case when not
in use. Always examine both front and back of surface before
re-rolling into case to make certain screen is free of dust, dirt
or other foreign matter.
Internal wiring has been completed at the factory.No
additional wiring is necessary.
Note:all wiring related to the screen,may only
be serviced by a manufacturer approved trained
electrical technician.Tampering with electrical
wiring may void warranty and release Panoview
of liability.

3
6
Unpack screen carefully, be sure screen is in good condition,
and check that all accessories are included inside carton.
Care in mounting and care in correct operation will mean a
long and satisfactory life for your Panoview screen. Locate the
screen where the audience can best see it and where other
furnishings in the room permit.
Check that voltage and frequency marked on screen is in
accordance with local power utility. It is suggested only to use
screen indoor under normal temperature and humidity
conditions.
Remove two pulling locks on the bottom slat bar after the
case has been installed.
Install screen brackets onto ceiling or wall with appropriate
hardware.
Anchor screen onto bracket as shown in above figure below.
MOUNT SCREEN TO WALL MOUNT SCREEN TO CEILING
SCREEN ADJUSTMENT
Note: Adjustments to screen limit positions, can only
be performed by a trained technician.
Screen travel is stopped automatically in the down and up positions
by limit switches that are preset in the factory. If it is necessary to adjust
for more or less, please follow the steps below for adjustment.
Disconnect the power supply first before any operation.
Remove the plate on right bottom side of screen housing.
This is important.
Loosen Fasten Screw(F) first before adjustment,
Upper limit switch is on the left side and bottom limit is on the right
side.
Tighten Fasten Screen( F) after all adjustment.
PLATE
LEFT SCREW(LS) RIGHT SCREW(RS)
FASTEN SCREW(F)
FL FR

Thank you for choosing Panoview screens. All screens
have passed the strict quality inspection before delivery.
Read this manual carefully to ensure proper usage.
Important Attention: the installation of the screen,
the electric wire connection, the setting of the limit switches
must be made by a trained engineer only
Motorized screen with IR remote control, switch control & 12v trigger port
Technical data:
Input Voltage: 120VAC/60HZ
Output Voltage: 3A
Fuse: 1A
IR Remote Control Distance: ≤8m, ±15°Horizontal
12V Trigger Jack: OD3.4xID1.3
12V Trigger Signal: Voltage:7---11VAC or 8---16VDC, Current: ≥2mA
IR Handset: 1pc
Switch control: 1pc
SETTING THE DOWN LIMIT POSITION
To reduce screen drop:
Make sure middle fasten screw (F) is loosened,then
loosen small right fasten screw (FR) .Turn right screw (RS)
counterclockwise to decrease the amount of screen
drop.Run the screen down to test the stop position.If the
screen drops too far,adjust the limit switch again.Repeat
until the desired position is set.When complete,fasten
middle fasten screw (F) and small right fasten screw (FR).
To increase screen drop:
Make sure middle fasten screw (F) loosened,then loosen
small right fasten screw(FR),turn right screw (RS) clockwise
to increase the amount of screen drop.Run the screen
down to test the stop position.If the screen does not drop
enough,adjust the limit switch again.Repeat until the
desired position is set.When complete,fasten middle fasten
screw (F) and small right fasten screw (FR).
SETTING THE UP LIMIT POSITION
CAUTION: Do not allow the slat bar to become wedged
between the roller and case. This could damage the fabric
and motor.Always check that the slat is free to move inside
the case.
Screen travels into case too far:
Make sure middle fasten screw (F) loosened,then loosen
small left fasten screw(FL).Turn left screw (LS) clockwise to
decrease the amount of travel.Run the screen up to test the
stop position.If the screen does not stop properly,adjust the
limit switch again.Repeat until the desired position is set.
When complete fasten middle fasten screw (F) and small
left fasten screw (FR).
SWITCH BOX
PLUG SWITCH JACK
12V TRIGGER

Close supervision is necessary when any motorized screen
is used by or near children,do not leave motorized screen
unattended while in use.
Do not operate motorized screen with damaged cord or if the
motorized screen has been dropped or damaged,until it has
been examined by a qualified service technician.
Position the cord so that it will not be tripped over,pulled or in
contact with not surgaces.
Never yank cord to pull plug form outlet.aways grasp plug bu
head and pull to disconnect.
Let appliance cool completely before putting away.Loop cord
loosely around appliance when stoing.
To reduce the risk of electric shock,do not immerse this motor-
ized screen in water or other liquids.
To reduce the risk of electric shock,do not disassemble this
appliance,only a qualifid service technician may service or
repair motorized screen.Incorrect reassemble can cause
electric shock when the motorized screen is used.
Only use accessory attachment recommended by the
manufacturer.Use of non-manufacturer recommended
accessory attachments,may viod the screens warranty
and release Panoview of all liability.
Basic electrical safety precautions should always be
observed.
In the event,the above mentioned safety precautions are not
observed.The warranty may be viod and Panoview released
of all liability.
Basic safety precautions,including the following should
always be followed.
IMPORTANT SAFETY INSTRUCTIONS
Screen does not travel far enough into case:
Make sure middle fasten screw (F) loosened,then
loosen small left fasten screw (FL) .Turn left screw (LS)
counterclockwise to increase the amount of up travel.Run
the screen up to test the stop position.If more travel ie
desired,adjust the limit switch again.Repeat until the desired
position is set.When complete fasten middle fasten screw
(F) and small left fasten screw (FR).
