GAIN TECHNICAL SPECIFICATIONS
1
BLUE
PAPERS
GAIN
TECHNICALMANUAL

GAIN TECHNICAL SPECIFICATIONS
2
CONTENT GEOMETRY 3
ERGONOMY 4
CHARACTERISTICS 5
OPTIONS 6
PARTS & HARDWARE 8
CABLE ROUTING 11
INSTRUCTIONS 17
IWOK ONE 21
IWOK TRIO 24
PROTOCOL 27
SOFTWARE EBIKEMOTION 29
MANTEINANCE 30
FRAME & MATERIAL 31
WARRANTY 32
ADITIONAL INFORMATION 33

GAIN TECHNICAL SPECIFICATIONS
3
GEOMETRY
SIZE XS S M L XL
1 - SEAT TUBE (C-T) 460 510 555 585 610
2 - TOP TUBE (EFF) 522 546 560 574 595
3 - HEAD TUBE 109 127 150 176 203
4 - CHAINSTAY 430 430 430 430 430
5 - BB HEIGHT 281 281 283 283 285
6 - BB DROP 70 70 68 68 66
7 - WHEELBASE 1016 1022 1037 1051 1067
8 - HEAD ANGLE 71 72 72 72 72,3
9 - SEAT ANGLE 75 74 74 74 73,5
10 - STANDOVER 754 782 815 829 876
11 - REACH 378 387 395 402 410
12 - STACK 535 555 575 600 625
13 - FORK LENGTH 400 400 400 400 400
RAKE 51 51 51 51 51
WHEEL SIZE 683 683 683 683 683

GAIN TECHNICAL SPECIFICATIONS
4
* Estimated measurements.
ERGONOMY
HEIGHT (cm) HEIGHT (in) SIZE
<160 XS
160-170 S
170-180 M
180 -19 0 L
>190 XL
This result is only orientative. We can recommend the best size for you, based on your measurements, on our web: www.orbea.com/us-en/calculate-size/type/
* The handlebar size is centre-centre.
SIZE CRANK STEM HANDLEBAR
XS 170 90 400
S170 100 420
M170 100 420
L172 110 440
XL 175 120 440

GAIN TECHNICAL SPECIFICATIONS
5
CHARACTERISTICS
DIRECTION 1" ⅛SEMI-INTEGRATED
BB BB68 THREADED
FRONT DERAILLEUR C/CLAMP Ø31,8
FRONT DERAILLEUR TP/DP DP
FD ANGLE 63º- 66º
SEAT POST DIAMETER DIAM 27, 2 MM
SEAT CLAMP INTERNAL DIAM 31,8 MM
DROPOUT ALL ROAD E-BIKE
CHAINSTAY PROTECTOR 11160033
OTHER PROTECTORS NO
CABLE TYPE ESTANDAR/EBIKEMOTION
REAR HUB LENGHT 135 MM.

GAIN TECHNICAL SPECIFICATIONS
6
OPTIONS
BRAKE
V-BRAKE NO
DISC BRAKE YES
REAR BRAKE IS/PM+DIAMETER DISC FLAT MOUNT 140/160 DEL/TRAS (POST MOUNT C/ADAPTADOR)
CALIPER BRAKE NO
LUGGAGE
BAG OPTION IN TOP TUBE NO
BOTTLE CAGE DT AND ST [ALL SIZES)
OPTION AERO AND STANDARD BOTTLE NO
REAR LUGGAGE OPTION YES
MUDGUARD OPTION YES
KICKSTAND NO
GEARS
11 SPEED YES
DOUBLE CRANK SI (MAXIMUN BIG CHAINRING 53, MAXIMUM SMALL RING 46)
COMPACT CRANK (34X50T) (ROAD) YES
TRIPLE CRANK NO
WHEELS MAXIMUM SIZE 700
TYRES MAXIMUM SIZE 700X40C
CABLE ROUTING
MECHANICAL SYSTEM (W/INTERNAL CABLE ROUTING) CABLEADO INTERNO EN TI
ELECTRONIC DI2 SYSTEM (W/INTERNAL CABLE ROUTING) NO
EXTERNAL SHIMANO BATTERY (IN LEFT CHAINSTAY) NO
CAMPAGNOLO EPS NO
POWER METERS SRAM QUARK NO
OTHERS UCI NO

GAIN TECHNICAL SPECIFICATIONS
7
OPTIONS
Groupsets
ROAD
SHIMANO
SHIMANO DI2 NO
SHIMANO DI2 DISC NO
SRAM
SRAM DISC YES (WITH DROPOUTS MODIFIED IN 57°)

GAIN TECHNICAL SPECIFICATIONS
8
PARTS & HARDWARE
X35ofeBIKEMOTION
PART NUMBER ORBEA DESCRIPTION
X35 BATTERY
P1 CHARGING PORT AND CONNECTION
X1 CHARGING PORT TO BATTERY CONNECTION
P2 BATTERY CHARGING CABLE
P5 DIAGNOSIS CABLE
P4 X35 EX WIRE
PART NUMBER ORBEA DESCRIPTION
P3 EXTERNAL BATTERY
X3 BATTERY TO MOTOR CONNECTION
M3 BATTERY CONNECTION CABLE AND MOTOR
X2 BATTERY CONNECTION CABLE TO SENSOR
S2 SPEED SENSOR CONNECTION
PART NUMBER ORBEA DESCRIPTION
D1 IWOK ONE START BUTTON AND CABLE
X5 IWOK ONE START BUTTON TO BATTERY CABLE
A4 IWOK TRIO START BUTTON AND CABLE
A5 SCREEN CABLE
Y1 “Y” CONNECTION FOR IWOK TRIO AND IWOK ONE
EXTERNALBATTERY
iWOOKTRIO
iWOOKTRIO
SCREEN
iWOOKONE
iWOOKONE
HEADLIGHT
REARLIGHT
INTERNALBATTERY
CHARGINGPORT
PAS SENSOR (RIGHTDROPOUT)
MOTOR(REARWHEEL)

GAIN TECHNICAL SPECIFICATIONS
9
4
10
3
3
3
5
5
9
9
11 12
12 12
6
7
8
PARTS & HARDWARE
VARIOUS&CAPS
2
13
2

GAIN TECHNICAL SPECIFICATIONS
10
4 632 51
PARTS & HARDWARE
VARIOUS&CAPS
PART NUMBER REFERENCE ORBEA DESCRIPTION
115430166 DROPOUT GAIN 2018
211001181 CABLE CLIP 5,5 FOR 1 CABLE
311001182 CABLE CLIP 5,5 FOR 2 CABLES
411000405 BOTTOM COVER GAIN
511200460 GUIDE FOR BATTERY GAIN
611001161 RUBBER CAP 3 MM KEYHOLE 30X10
712300019 SCREW M5X20 ISO 7380 INOX
812301058 SETSCREW M4X10 DIN 916 INOX
912309075 SCREW INOX M3X12 DIN 7911 BLACK
10 12300018 COUNTERSINK SCREW M5X25 DIN 7991 INOX
11 12306022 SCREW M5X10 ISO 7380 INOX
12 12301078 SCREW M5X8 ISO 7380 INOX
13 12301087 SCREW M5X6 TORX
14 12321020 WASER M5 DIN 125 INOX
8 9 10 117 12

GAIN TECHNICAL SPECIFICATIONS
11
FRONT DERAILLEUR (INTERNAL)
REAR DISC BRAKE (INTERNAL)
FRONT DISC BRAKE
REAR DERAILLEUR (INTERNAL)
CABLE ROUTING
MECHANICAL
1/ Insertion of the front and rear derailleur.

GAIN TECHNICAL SPECIFICATIONS
12
CHARGIN
PORT
HUB MOTOR
SENSOR (right chainstay)
MOTOR CABLE (LEFT CHAINSTAY)
iWOOK ONE
iWOOK ONE / SCREEN *
BATTERYX35
iWOOKONE + TRIO + SCREEN
CHARGINPORT
MOTOR
SENSOR
LIGHT
OPTIONAL LIGHT *
CABLE ROUTING
X35SYSTEM

GAIN TECHNICAL SPECIFICATIONS
13
*
The X35 battery has 2 cables in one end (that
will stay in the top part of the frame) and 3 in the
opposed end.
CHARGING PORT
DERAILLEUR
DISC
BRAKE
MOTOR
PASS
SENSOR
CABLE ROUTING
X35BATTERY

GAIN TECHNICAL SPECIFICATIONS
14
CABLE ROUTING

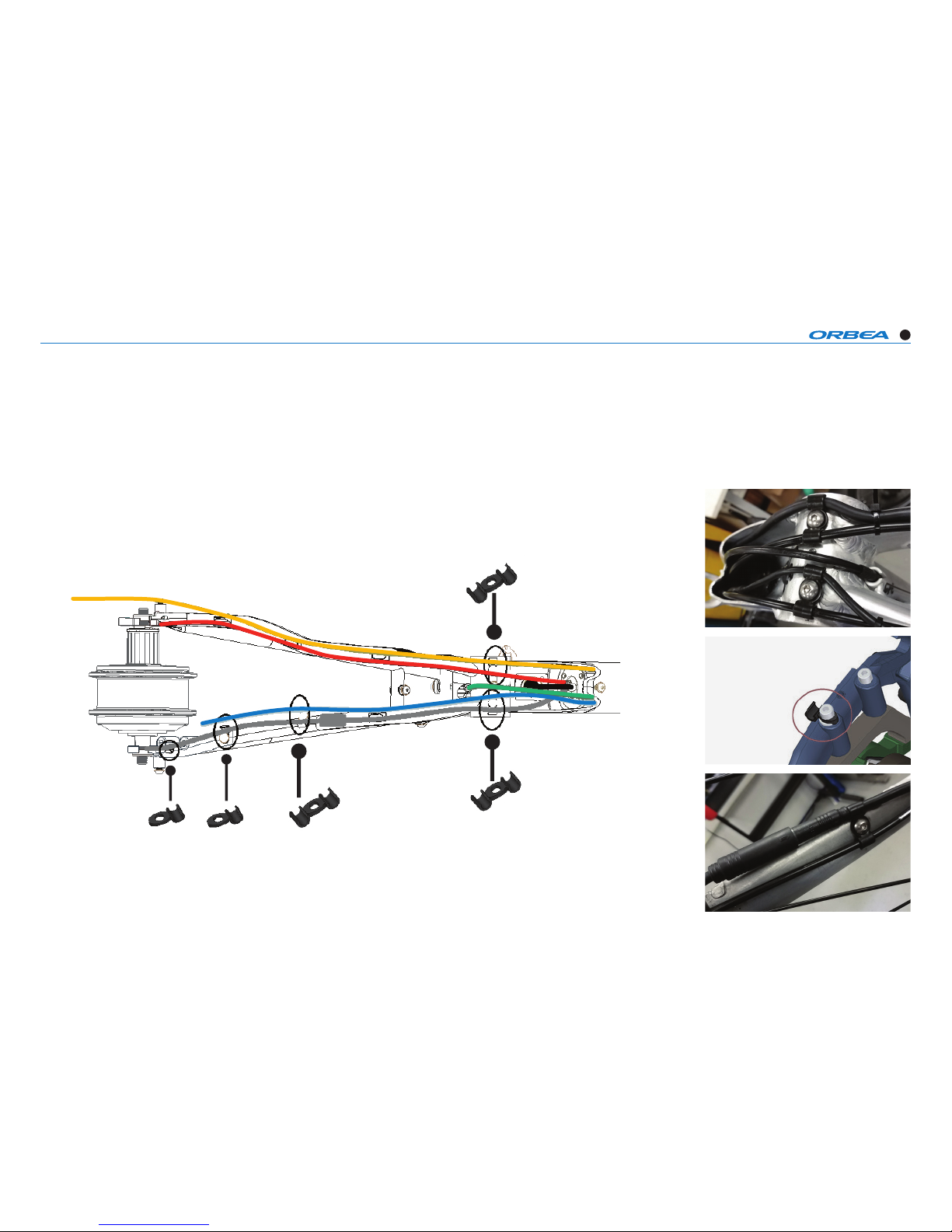

CABLEROUTING ON THE BASE
1/ cable clip 5,5 for 2 cables
2-3/ cable clip 5,5 for 1 cable

GAIN TECHNICAL SPECIFICATIONS
15
CABLE ROUTING
P.A.SSENSORPLACEMENT
1- Place de sensor in the specic whole in the inner
side of the drop-out, inserting the pivot it´s housing.
2- Then, x it with the setscrew (M4x10)
SETSCREW
M4

GAIN TECHNICAL SPECIFICATIONS
16
CABLE ROUTING
IWOC ONE CABLEROUTING
*
The cable routing for the start button IWOK ONE
will be done through the steering tube.
iWOOK
ONE
LIGHT CABLE
(OPTIONAL)
Ø20 HOLE
STEERING TUBE

GAIN TECHNICAL SPECIFICATIONS
17
INSTRUCTIONS
GUIDEPLACEMENTE INTHEBATTERY
*
First, attach the guides in both ends of the battery
with the double sided Scotch tape before attaching
it to the frame.
iWOOKONE + TRIO + SCREEN
CHARGINPORT
BATTERYX35
DOUBLESIDED
TAPE
LIGHT
MOTOR
SENSOR
INSTRUCTIONS
BATTERYPLACEMENTINTHEFRAME
*
Once the guides are attached in the battery, insert
it into the frame with 2 cables in one end and 3 in
the other (as shown in picture above) until matching
the 3 frame holes with the 3 in the battery.

GAIN TECHNICAL SPECIFICATIONS
18
INSTRUCTIONS
BATTERYPLACEMENTANDCOVER
1/ Secure the battery to the frame by the points A
and B with the M5x10 DIN 7380 screws and rout
the pertinent cables (derailleurs and disc brake).
2/ Later, x the bottom cover by the points C and
D, using the provided M5x20 INOX (DIN 7380) and
M5x25 INOX (DIN 7991) respectively.
A
B
B
C
C
D
D
bottomcover

GAIN TECHNICAL SPECIFICATIONS
19
INSTRUCTIONS
REARWHEEL ASSEMBLY / DISMANTLING
1/ Place the wheel in the frame, making sure the
power cable stays between the chainstay and seat
stay (g.1) for a easy connection later on.
2/ Place the anti-rotation whasers in both axle ends
and tighten the M2 nuts with an 8 Allen key at the
right torque (Min. 18Nm/ max. 25Nm.)
M12NUT
ANTI-ROTATION WASHER
1 2 3
CONECTOR

GAIN TECHNICAL SPECIFICATIONS
20
INSTRUCTIONS
FLATMOUNT-POST MOUNT / REARDISCINSTALLATION
REARFRONT
1/ The rear disc brake must be
installed with specic M5x6 TORX
screws. (ref. 12301087)
