WILD HT TECHNICAL SPECIFICATIONS
1
GEOMETRY 3
GENERAL INFO 4
SPECIFICATIONS 5
OPTIONS 6
PARTS & HARDWARE 8
CABLE ROUTING 23
FRAME AND MATERIAL 27
CONTENT

WILD HT SHIMANO

WILD HT TECHNICAL SPECIFICATIONS
3
SIZES S M L XL
1 - Seat tube (C-T) 390 390 415 440
2 - Top tube (EFF) 575 595 624 653
3 - Head tube 115 130 145 160
4 - Chain stay 445 445 445 445
5 - BB drop 63 63 63 63
6 - BB height 305 [FOR 29X2,6”] / 296 [FOR 27,5X3,0”]
7 - Wheel base 1113 1134 1165 1195
8 - Head angle 67º 67º 67º 67º
9 - Seat angle 72,5º 72,5º 72,5º 72,5º
10 - Fork offset – Rake 51 51 51 51
11 - Standover height 29x2.6” 690 690 690 690
11 - Standover height 27x3,0” 678 678 678 678
12 - Reach 375 390 415 440
13 - Stack 634 647 661 675
14 - Fork length 527 [FORK 120MM] 527 [FORK 120MM] 527 [FORK 120MM] 527 [FORK 120MM]
* Estimated measurements.
HEIGHT (cm)HEIGHT (in) SIZE
155 -170 61-67 S
165 -185 65-73 M
>180 >71 L
GEOMETRY
Maximum tyre dimension: 28” [Maximum external dimension 687mm]
ERGONOMY

WILD HT TECHNICAL SPECIFICATIONS
4
GENERAL INFO
RIM 27,5 AND 29
BB MOTOR SHIMANO DU_E8000
ISCG NO
FORK 120 MM
SHOCKSIZE ------
SUSPENSIONTRAVEL ------
SHOCKMOUNTING HARDWARE ------
SEATPOST 31,6 MM
SEAT CLAMP 35 MM
FRONT DERAILLEUR NO,FD. SINGLE FRONT WHEEL
HEAD TUBE [1-1/8”,45º/45º UPPER_ 1,5”,36º/45º LOWER] SPECS: FSA ORBIT C-40 (NO.42)
REAR AXLE STANDARD BOOST 148
MAX TIRE SIZE 27” 3,0” (TIRE SIZE VARIES BY BRAND, SOME MAY NOT FIT)
MAX TIRE SIZE 29” 2,6” (TIRE SIZE VARIES BY BRAND, SOME MAY NOT FIT)
CRANKSET 177 MM Q FACTOR COMPATIBLE [CENTRO A INTERIOR BIELA R/L; 72,6MM/72,6MM]
CHAINRINGS 1X: 34T MAX
CHAIN LINE 53MM

WILD HT TECHNICAL SPECIFICATIONS
5
SPECIFICATIONS
DIRECTION 1" 1/8 - 1" 1/5 – FSA [087_NO_42-CF-ACB]
MOTOR SHIMANO E8000 – [15,8º]
BB SHIMANO_ DRIVE UNIT 8000
FRONT DERAILLEUR NO
FRONT DERAILLEUR TP/DP NO
FD ANGLE NO
SEAT POST DIAMETER 31,6 MM
SEAT CLAMP 35 MM
DROPOUT 12X148 ONLY
CHAINSTAY PROTECTOR 11000410-PROT BASE WILD HT BOSCH 18
OTHER PROTECTORS 11000375-PROT GOMA TUBO DIAG WILD FS 18
CABLE TYPE FULL HOUSING
REAR HUB LENGHT 148

WILD HT TECHNICAL SPECIFICATIONS
6
BRAKE
V-BRAKE NO
DISC BRAKE ONLY
REAR BRAKE IS/PM+DIAMETER DISC 160 PM, 180 COMPATIBLE
CALIPER BRAKE NO
GEARS
11 SPEED SRAM & SHIMANO
DOUBLE CRANK NO
COMPACT CRANK (34X50T) (ROAD) -
TRIPLE CRANK NO
OXYMETRIC NO
OPTIONS

WILD HT TECHNICAL SPECIFICATIONS
7
OPTIONS
Groupsets
BTT
SHIMANO
XTR (10) YES
XTR/XT (11) YES
SAINT (9) NO
DEORE XT (9/10) YES
SL X (9/10) YES
ZEE (10) NO
HONE (9) NO
DEORE LX (8/9) NO
DEORE (9/10) YES
ALIVIO (8/9) YES
ACERA (8) NO
ALTUS (8) NO
TOURNEY (8) NO
SRAM
XX1 (11) YES
XX (10) YES
X0 (10) YES
X9 (10) YES
X7 (10) YES
X5 (9/10) YES
X4 (8/9) NO
X3 (7) NO

WILD HT TECHNICAL SPECIFICATIONS
8
7
1
2
22
813
24
17
PARTS & HARDWARE
Mechanic groupe AND Seatpost Digit or Standard
3
3
3
4
4
5
5

WILD HT TECHNICAL SPECIFICATIONS
9
PARTS & HARDWARE
Mechanic groupe AND Seatpost Digit or Standard
12 15
9
84 3 2 1
725 26
1918 5
17

WILD HT TECHNICAL SPECIFICATIONS
10
PARTS & HARDWARE
Mechanic groupe AND Seatpost Digit or Standard

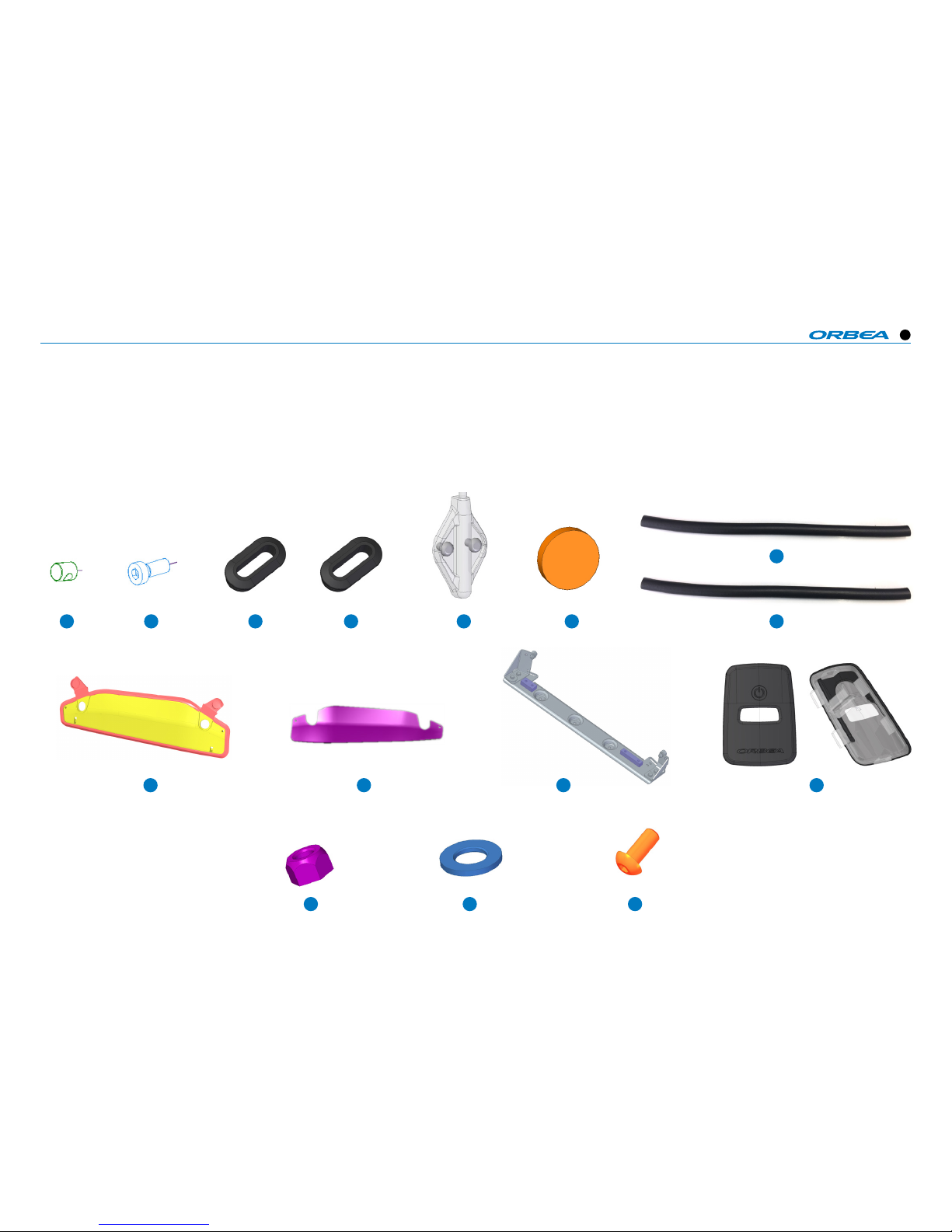

NÚMERO REFERENCIA NOMBRE/DESCRIPCIÓN
111001161 TAPON GOMA RANURA 30X10MM 18- PARA ESPESOR 3MM
211001163 TAPON GOMA 3MM RANURA 22X8
312300017 TORNILLO INOX M8X20 DIN6912
412310017 TUERCA BARRILETE M5X10 NEG
512301077 TORNIL INOX M5X12 ISO7380
611000403 PROTECTOR MOTOR
711000400 BOTON BATERIA WILD FS
811202827 SENSOR VEL DUE11 18 760MM
9 FOAM DIAMETRO INTERNO 8MM-300MM
10 12300059 TORNILLO INOX M4X8-DIN 7991
11 TORNILLO INOX M3X8 DIN 7991
12 11200003 IMAN DIAM 15X3MM
25 11000415 TAPA BATERIA WILD FS S/TAP ALU
26 11000416 TAPA ALUMINIO WILD FS BRUTO
15 FOAM DIAMETRO INTERNO 8MM-500MM
13 11200001 IMAN M5 SENSOR VELOCIDAD DUE11
16 11001172 GUIA ROSCADA D4 PARA M5X9
17 11000402 KIT SOPORTE DE BATERIA WILD FS
18 12311020 TUERCA INOX ALLEN M5-DIN 985
19 12321020 ARANDELA INOX M5 / DIN 125-M5-INOX
20 11000366 PROT BASE PLAST OCCAM HYDRO 16
21 11000375 PROT GOMA TUBO DIAG WILD FS 18
22 11160850 ABR SIL C/R 34.9 DIGIT NEG
22 11160827 ABR SIL C/T 34.9 ALU NEG
23 11000118 BRIDA 2,5X100 NEGRA
24 11000219 GOMA EXTRACCION BATERIA ORBEA
25 11000415 TAPA BATERIA WILD FS S/TAP ALU
26 11000416 TAPA ALUMINIO WILD FS BRUTO

WILD HT TECHNICAL SPECIFICATIONS
11
PARTS & HARDWARE
1. Batery support I
PART NUMBER REFERENCE ORBEA DESCRIPTION
111200004 IMAN DIAM 12 C/ESPARRAGO M4
2DIN 125-M4-INOX
3DIN 934-M4-INOX
412311020 DIN 985-M5-INOX
512320510 DIN 125-M5-INOX
612301077 DIN 7380-M5X12MM-INOX
3
3
4
4
4
2
2
2
5
6
6
6
5
5
1
1

WILD HT TECHNICAL SPECIFICATIONS
12
PARTS & HARDWARE
2. Batery support II
PART NUMBER REFERENCE ORBEA DESCRIPTION
1DIN 933-M4X8MM-INOX
2DIN 125-M4-INOX
2
2
2
2
1
1
1
1

WILD HT TECHNICAL SPECIFICATIONS
13
PARTS & HARDWARE

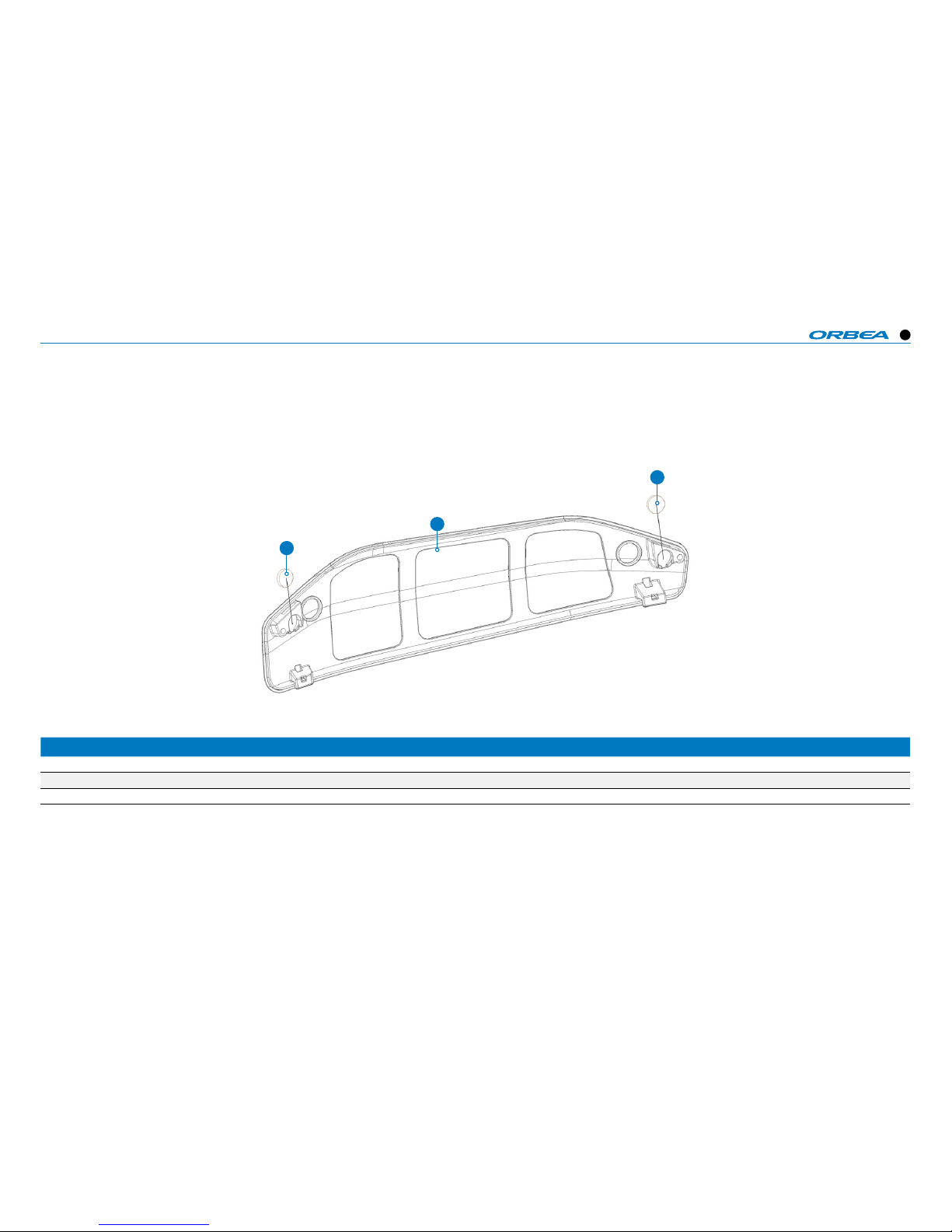

3. Batery cover
PART NUMBER REFERENCE ORBEA DESCRIPTION
111000415 TAPA BATERIA WILD FS S/TAP ALU
211000416 TAPA ALUMINIO WILD FS BRUTO
311200003 IMAN DIAM 15X3MM
2
2
1

WILD HT TECHNICAL SPECIFICATIONS
14
PARTS & HARDWARE
4. Speed magnet
PART NUMBER REFERENCE ORBEA DESCRIPTION
411200001 IMAN M5 SENSOR VELOCIDAD DUE11
4

WILD HT TECHNICAL SPECIFICATIONS
15
PARTS & HARDWARE
5. Motor screws
PART NUMBER REFERENCE ORBEA DESCRIPTION
112300017 TORNILLO INOX M8X20 DIN6912

WILD HT TECHNICAL SPECIFICATIONS
16
PARTS & HARDWARE

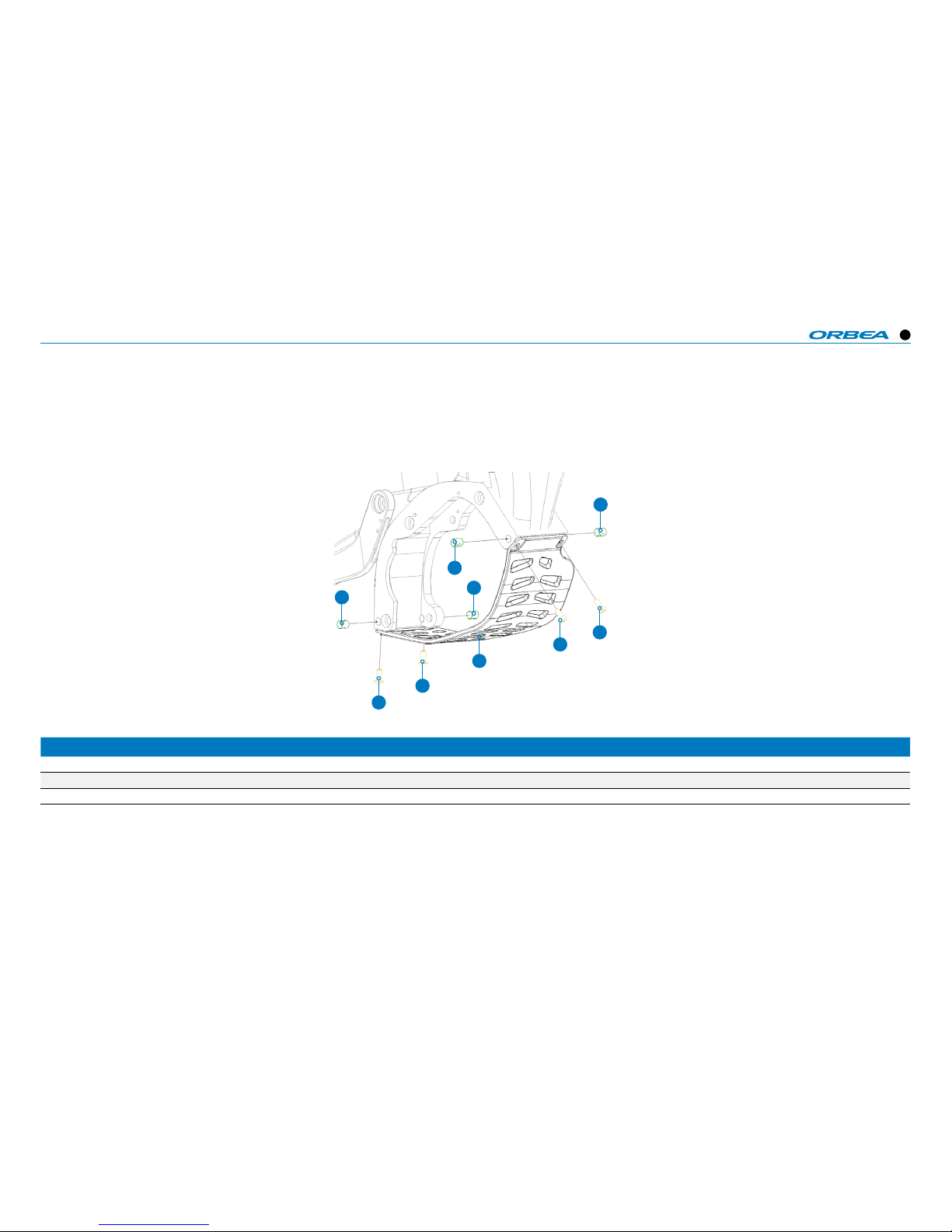

6. Motor protector
PART NUMBER REFERENCE ORBEA DESCRIPTION
112310017 TUERCA BARRILETE M5X10 NEG
212301077 TORNIL INOX M5X12 ISO7380
311000414 PROTECTOR MOTOR WILD HT BOSCH
2
2
3
2
2
1
1
11

WILD HT TECHNICAL SPECIFICATIONS
17
PARTS & HARDWARE

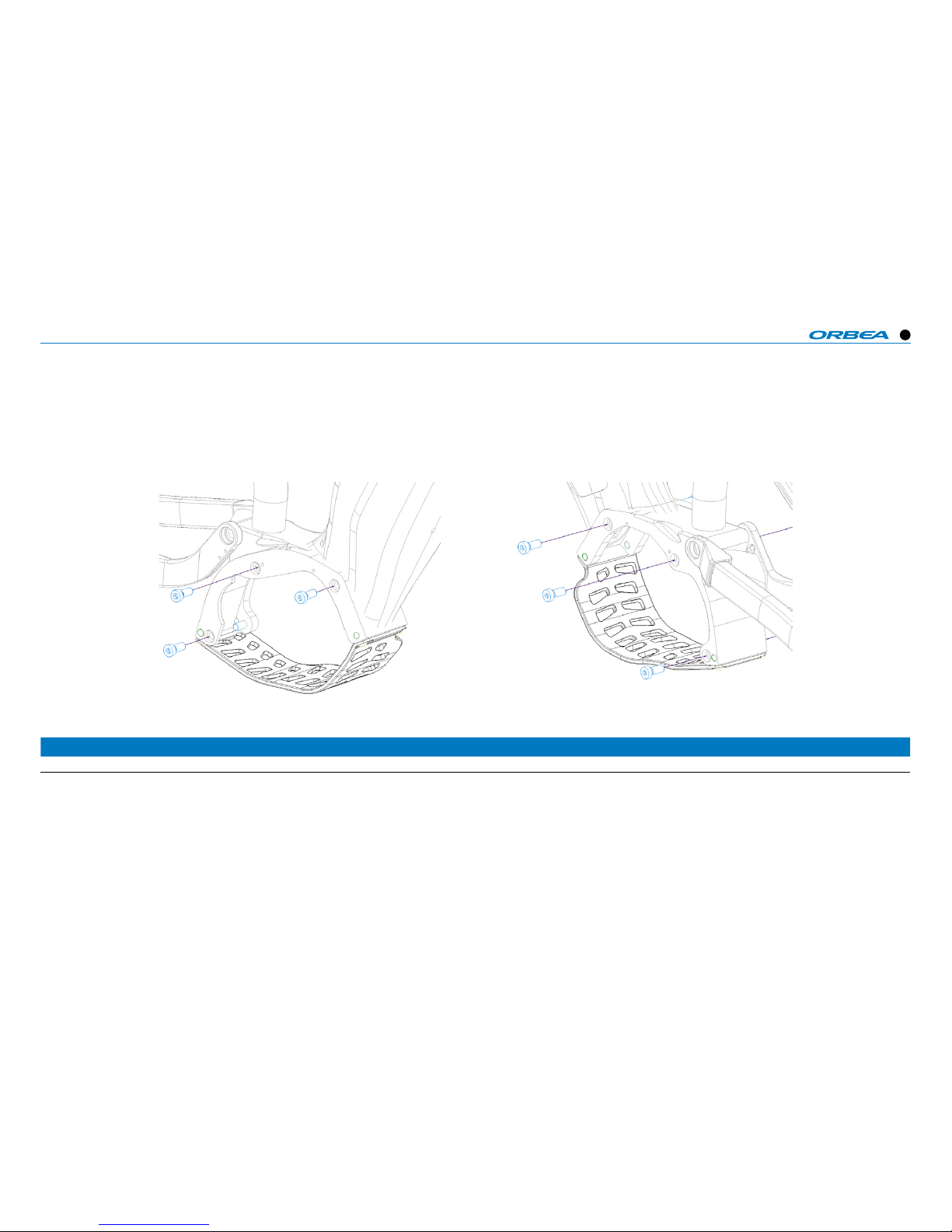

7. Bolts for Motor cover
PART NUMBER REFERENCE ORBEA DESCRIPTION
112310017 TUERCA BARRILETE M5X10 NEG
212301077 TORNIL INOX M5X12 ISO7380
PROTECTOR MOTOR

WILD HT TECHNICAL SPECIFICATIONS
18
CABLE ROUTING

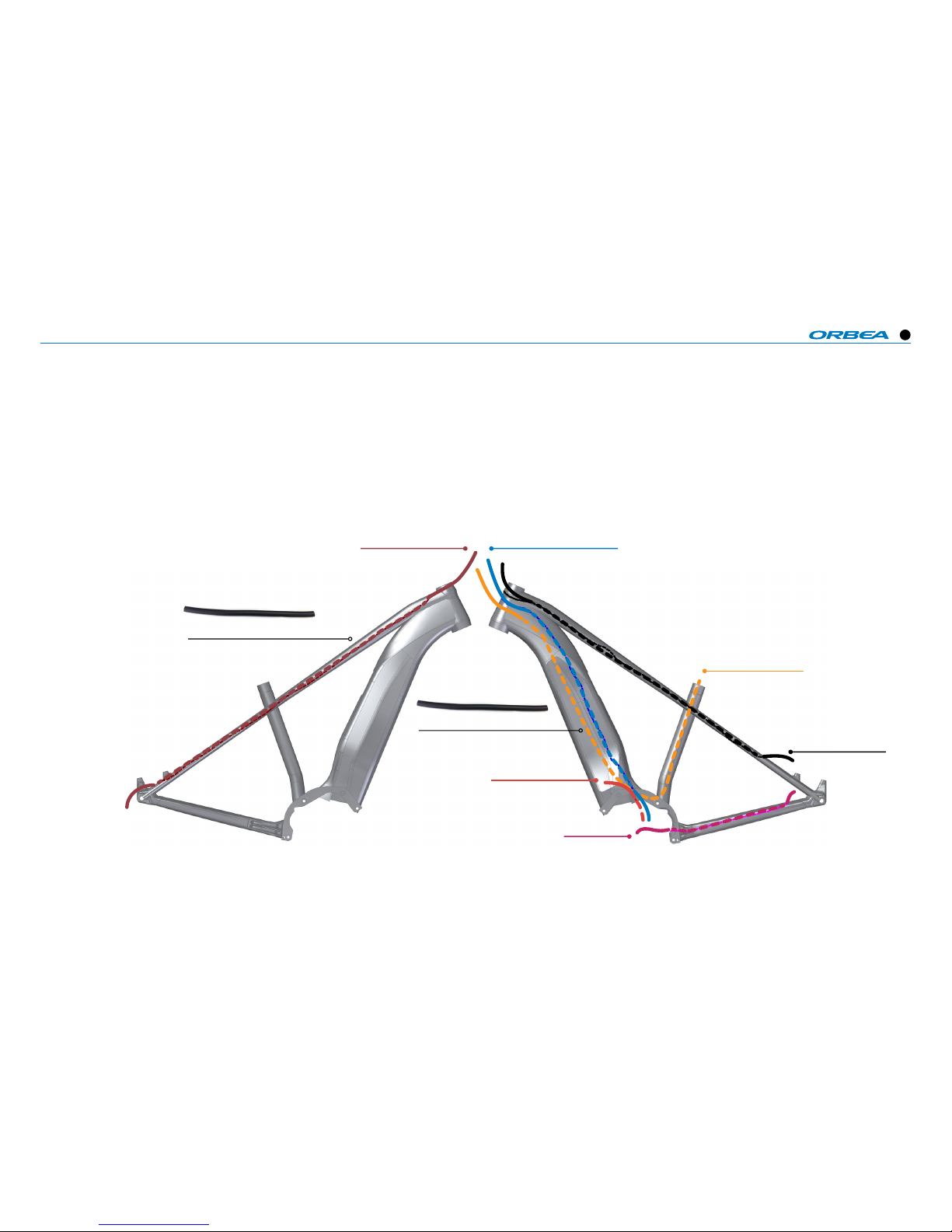

Mechanic groupe + Hydraulic seatpost
DISPLAY-DRIVEUNITREADDERAILLEUR
BATTERY-DRIVEUNIT
REARBRAKE
MAGNET
TELESCOPISEATPOST
TT;FOAMDIAM INTERNO8MM-300MM
DT; FOAM DIAMINTERNO8MM-500MM

WILD HT TECHNICAL SPECIFICATIONS
19
FRAME AND MATERIAL
Orbea frames are carefully designed to be durable,
efcient, and easy to maintain. Wild tubes are stiff and
light, giving excellent steering precision and pedaling
efciency. Wild carbon frame is extremely resistant to
corrosion, making it perfect for road. With only a mi-
nimum amount of maintenance, it’s easy to keep your
Wild in top condition.
1) Keep your Wild clean
Washing your bike with mild soap and water will keep
you looking stylish and allow you to check the con-
dition of the frame and components. Don’t use high
water pressure and avoid spraying water into bearings
or frame tubes. Citrus degreasers are biodegradea-
ble and do a great job of removing dirty grease from
gears and chain.
2) Keep your Wild lubed
Once your bike is clean, it’s a good time to put fresh
lube on the chain. Use only enough to get inside the
links and wipe off any excess because it will attract
dirt. Headset and pivot bearings should be inspected
every few months for smoothness and to ensure that
the seals are intact and lube is clean.
3) Inspect your Wild before you ride
Do a quick check before every ride to make sure your
bike is in excellent condition. It is very common to dis-
cover small issues at home that can become big pro-
blems on the trail. CHAIN Is the chain dirty, noisy or
dry? Clean and lube your chain before riding. BRAKES
Check your brakes to make sure they are working
correctly. Check for missing/loose caliper and rotor
bolts. TIRES Look for damage to the sidewalls of your
tires. Check and adjust tire pressure. WHEELS Spin
the wheels and look for wobbles, check for loose or
broken spokes. Check quick release levers to make
sure they are functioning properly. FRONT END Stand
over the saddle, pull on the brakes and rock the bike
back and forth. Feel for any play or knocking that
might indicate a loose headset, loose brake rotors or
calipers, or worn fork bushings.
TEST RIDE Take a quick ride up and down the street to
make sure your bike is shifting and braking properly.
Listen for unusual noises.
AFTER A CRASH OR IMPACT
Falling is part of riding and it’s impossible to avoid
minor accidents. If you crash your Wild, please make
sure you are okay and seek medical attention if ne-
cessary. If you are not injured, you should check your
bike before continuing:
1) Inspect your frame and components for da-
mage. Do not ride your bike if any problems are de-
tected.
WHAT TO LOOK FOR
Inspect Frame and fork for evidence of cracking or
bending. If cracks are discovered, discontinue use
immediately.
Check the drivetrain and spin the wheels to make sure
components are operating correctly. If you discover
damage to your components, discontinue use imme-
diately.
Even if you don’t nd any damage, pay careful atten-
tion to the sound of your bike when you continue rid-
ing. Unusual noises can be caused by cracks or other
problems. A well-maintained bike will be quiet and
free of creaks or squeaks. Investigate and locate the
source of any new noises.
2) Bring your bike to your Orbea dealer for pro-
fessional inspection. Some damage can only be de-
tected by disassembling the bike to check for cracks
or other signs of stress.
A crash or impact can put extraordinary stress
on your bike and components, causing them
to fail or to fatigue prematurely. Failure can
happen suddenly with no warning, causing loss
of control, serious injury or death.
