Orbit Merret OMB 451UNI User manual

OMB 451UNI
OMB 452UNI
4 DIGIT PROGRAMMABLE
UNIVERSAL INSTRUMENT
DC VOLTMETER/AMMETER
PROCESS MONITOR
OHMMETER
THERMOMETER FOR PT 100/500/1 000
THERMOMETER FOR NI 1 000
THERMOMETER FOR THERMOCOUPLES
DISPLAYS FOR LIN. POTENTIOMETERS
GUARANTEE
YEARS

2|INSTRUCTIONS FOR USE OMB 450UNI
SAFETY INSTRUCTIONS
Please, read the enclosed safety instructions carefully and observe them!
These instruments should be safeguarded by isolated or common fuses (breakers)!
For safety information the EN 61 010-1 + A2 standard must be observed.
This instrument is not explosion-safe!
TECHNICAL DATA
Measuring instruments of the OMB 450 series conform to the European regulation 89/336/EWG.
The instruments are up to the following European standards:
EN 55 022, class B
EN 61000-4-2, -4, -5, -6, -8, -9, -10, -11
Seismic capacity:
IEC 980: 1993, chapter 6
The instruments are applicable for unlimited use in agricultural and industrial areas.
CONNECTION
Supply of energy from the main line has to be isolated from the measuring leads.
ORBIT MERRET, spol. sr.o.
Vodnanska 675/30
19800 Prague 9
Czech Republic
Tel: +420 - 281040200
Fax: +420 - 281040299
e-mail: [email protected]
www.orbit.merret.cz

INSTRUCTIONS FOR USE OMB 450UNI |3
1CONTENTS
1. Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. Instrument description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. Instrument connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. Instrument setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Symbols used in the instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting the DP and the (-) sign . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Control keys function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Setting/permitting items into “USER” menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
5. Setting “LIGHT” menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.0 Description “LIGHT” menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Setting input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Setting Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Setting analog output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Nastavení rozsahu bargrafu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Nastavení LCD stupnice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Setting of bargrahp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Selection of programming menu „LIGHT“/„PROFI“. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Restoration of manufacture setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Calibration - input range (DU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Selection of instrument menu language version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Setting new access password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Instrument identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
6. Setting “PROFI” menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.0 Description of “PROFI” menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.1 “PROFI” menu - INPUT
6.1.1 Resetting internal values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
6.1.2 Setting measuring type, range, mode, rate, ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
6.1.3 Setting the Real Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
6.1.4 External input function selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
6.1.5 Optional accessory functions of the keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
6.2 “PROFI” menu - CHANNEL
6.2.1 Setting measuring parameters (projection, filters, decimal point, description) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
6.2.2 Setting mathematic functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
6.2.3 Selection of evaluation of min/max. value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
6.3 “PROFI” menu - OUTPUT
6.3.1 Setting data logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
6.3.2 Setting Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
6.3.3 Setting data output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
6.3.4 Setting analog output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
6.3.5 Selection of display projection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
6.3.6 Selection of bargraph projection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
6.4 “PROFI” menu - SERVICE
6.4.1 Selection of programming menu „LIGHT“/„PROFI“ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
6.4.2 Restoration manufacture setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
6.4.3 Calibration - input range (DU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
6.4.4 Selection of instrument menu language version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
6.4.5 Setting new access password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
6.4.6 Instrument identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
7. Setting items into “USER” menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
8. Method of measuring of the cold junction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
9. Data protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
10. Error statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
11. Table of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
12. Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
13. Instrument dimensions and instalation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
14. Certificate of guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Declaration of conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

4|INSTRUCTIONS FOR USE OMB 450UNI
2.1 DESCRIPTION
The OMB 451/452 model series are programmable, three-color panel bargraphs with auxiliary display and adjustable
LCD scale. The instruments are designed as dimensional replacement of the ZEPAKOMP instruments. Available are types
UNI, PWR and UQC.
Type OM 402UNI is a multifunction instrument with the option of configuration for 8 various input options, easily configurable
in the instrumentmenu. By further options of input modules it is feasible to measure larger ranges of DC voltage and current
or increase the number of inputs up to 4 (applies for PM).
The instrument is based on an 8-bit microcontroller with a multichannel 24-bit sigma-delta converter, which secures high
accuracy, stability and easy operation of the instrument.
The OMB 451/452 is a multifunction instrument available in following types and ranges
type UNI
DC: 0…60/150/300/1 200 mV
PM: 0…5 mA/0…20 mA/4…20 mA/±2 V/±5 V/±10 V/±40 V
OHM: 0…100 Ϊ/0…1 kΪ/0…10 kΪ/0…100 kΪ/Auto
RTD-Pt: Pt 50/100/Pt 500/Pt 1 000
RTD-Cu: Cu 50/Cu 100
RTD-Ni: Ni 1000/Ni 10000
T/C: J/K/T/E/B/S/R/N/L
DU: Linear potentiometer (min. 500 Ϊ)
type UNI, option A
DC: 0…1 A/0…5 A/120 V/±250 V/±500 V
type UNI, option B (expansion by 3 more inputs)
PM:
3x 0…5 mA/0…20 mA/4…20 mA/±2 V/±5 V/±10 V/±40 V
PROGRAMMABLE PROJECTION
Selection: of type of input and measuring range
Measuring range: adjustable as fixed or with automatic change
Setting: manual, optional projection on the display may be set in the menu for both limit values of the input
signal , e.g. input 0…20 mA> 0…850,0
LCD scale: illuminated and freely programmable
Projection: -9999…9999 (-99999…999999)
COMPENSATION
of conduct: in the menu it is possible to perform compensation for 2-wire connection
of conduct in probe: internal connection (conduct resistance in measuring head)
of CJC (T/C): manual or automatic, in the menu it is possible to perform selection of the type of thermocouple and
compensation of cold junctions, which is adjustable or automatic(temperature at the brackets)
LINEARIZATION
Linearization:* by linear interpolation in50 points (solely via OM Link)
DIGITAL FILTERS
Floating average: from2…30 measurements
Exponen.average: from2…100 measurements
Rounding: setting the projection step for display
MATHEMATIC FUNCTIONS
Min/max. value: registration of min./max. value reached during measurement
Tare: designed to reset display upon non-zero input signal
* only for types DC, PM, DU
INSTRUMENT DESCRIPTION2

INSTRUCTIONS FOR USE OMB 450UNI |5
Peak value: the display shows only max. or min. value
Mat. operations: polynome, 1/x, logarithm, exponential, power, root, sin x
EXTERNAL CONTROL
Lock: control keys blocking
Hold: display/instrument blocking
Tare: tare activation/resetting tare to zero
Resetting MM: resetting min/max value
Memory: data storage into instrument memory
2.2 OPERATION
The instrument is set and controlled by five control keys located on the front panel. All programmable settings of the instrument
are performed in three adjusting modes:
LIGHT Simple programming menu
- contains solely items necessary for instrument setting and is protected by optional number code
PROFI Complete programming menu
- contains complete instrument menu and is protected by optional number code
USER User programming menu
- may contain arbitrary items selected from the programming menu (LIGHT/PROFI), which determine
the right (see or change)
- access without password
All programmable parameters are stored in the EEPROM memory (they hold even after the instrument is switched off).
Complete instrument operation and setting may be performed via OM Link communication interface,
which is a standard equipment of all instruments.
The operation program is freely accessible (www.orbit.merret.cz) and the only requirement is the
purchase of OML cable to connect the instrument to PC. It is manufactured in version RS 232 andUSB and is compatible
with all ORBIT MERRET instruments. Another option for connection is with the aid of data output RS 232 or RS 485 (without
the need of the OML cable).
The program OM LINK in „Basic“ version will enable you to connect one instrument with the option of visualization and
archiving in PC. The OM Link „Standard“ version has no limitation of the number of instruments connected.
2.3 OPTIONS
Excitation is suitable for supplying power to sensors and transmitters. It has a galvanic separation.
Comparators are assigned to monitor one, two, three or four limit values with relay output. The user may select limits regime:
LIMIT/DOSING/FROM-TO. The limits have adjustable hysteresis within the full range of the display as well as selectable
delay of the switch-on. Reaching the preset limits is signalled by LED and simultaneously by the switch-on of the relevant relay.
Data outputs are for their rate and accuracy suitable for transmission of the measured data for further projection or directly
into the control systems. We offer an isolated RS232 and RS485 with the ASCII or DIN MessBus protocol.
Analog outputs will find their place in applications where further evaluating or processing of measured data is required in
external devices. We offer universal analog output with the option of selection of the type of output - voltage/current. The
value of analog output corresponds with the displayed data and its type and range are selectable in Menu.
Measured data record is an internal time control of data collection. It is suitable where it is necessary to register measured
values. Two modes may be used. FAST is designed for fast storage (40 records/s) of all measured values up to 8000
records. Second mode is RTC, where data record is governed by Real Time with data storage in a selected time segment
and cycle. Up to 250 000 values may be stored in the instrument memory. Data transmission into PC via serial interface
RS232/485 andOM Link.
2INSTRUMENT DESCRIPTION

6|INSTRUCTIONS FOR USE OMB 450UNI
The instrument supply leads should not be in proximity of the incoming low-potential signals. Contactors, motors with larger
input power should not be in proximity of the instrument. The leads into the instrument input (measured quantity) should be
in sufficient distance from all power leads andappliances. Provided this cannot be secured it is necessary to use shielded
leads with connection to ground (bracket E).
The instruments are tested in compliance with standards for use in industrial area, yet we recommend to abide by the above
mentioned principles.
MEASURING RANGES
Type Input I Input U
DC 0…60/150/300/1 200 mV
PM 0…5/20 mA/4…20 mA ±2/±5/±10/±40 V
OHM 0…0,1/1/10/100 kΪ/Autorange
RTD-Pt Pt 100/Pt 500/ Pt 1 000
RTD-Cu Cu 50/100
RTD-Ni Ni 1 000/10 000
T/C J/K/T/E/B/S/R/N/L
DU Linear potentiometer (min. 500 Ϊ)
OPTION “A”
Type Input I Input U
DC ±0,1 A/±0,25 A/±0,5 A to GND (C)
±2 A/±5 A to GND (B) ±100 V/±250 V/±500 V to GND (C)

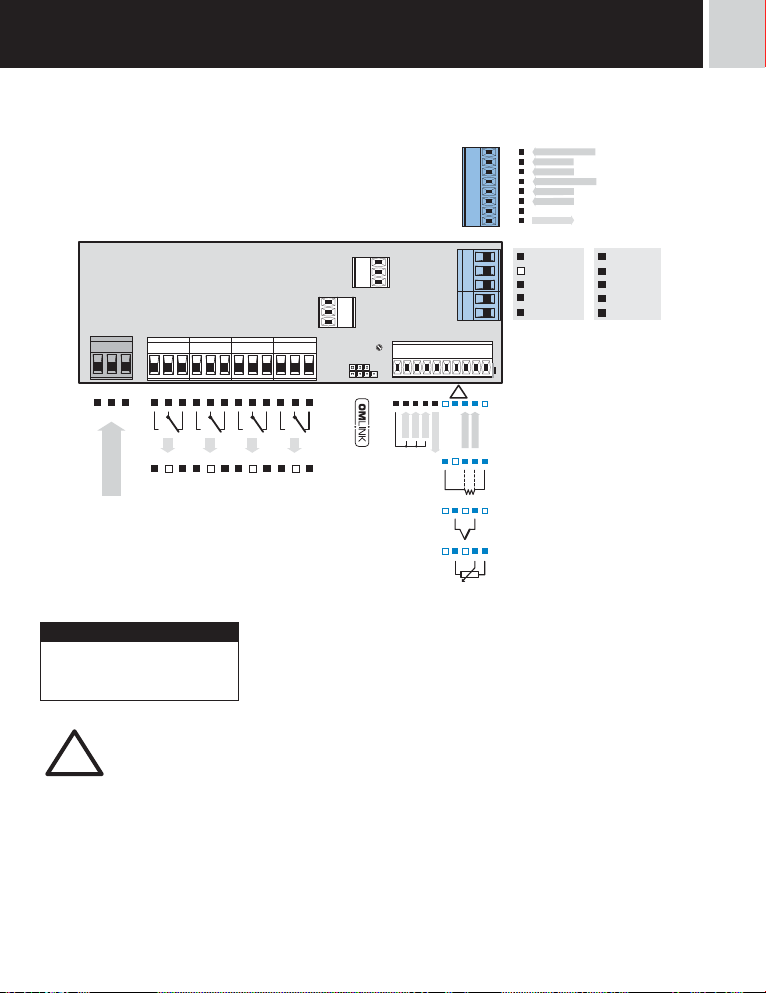

INSTRUMENT CONNECTION3

INSTRUCTIONS FOR USE OMB 450UNI |7
+
+
16 17 18 19 20 21 22 23
EXT. 1
GND
INPUT - I INPUT - U
-
Excitation
EXT. 3 EXT. 2
S+ S- E--E+
ES+
E+ ES- ES--
2524
+
+
-
L
NPOWER SUPPLY
E
123
IV V VI
III II I
RxD/L+
TxD/L-
GND
Analog output - I
Analog output - U
GND
-
DC, PM
RTD, OHM, Ni
DU
T/C
CEA
CJC
-+
DB
Open collector
C 2 E 1 C 1 E 2
S+
INPUT - I
INPUT - U
*GND - U/I0,5
Option A
*GND - I5
+
+
-
-
INPUT - I
INPUT - U
GND - U
PWR
GND - I
INPUT - U
OMB 451UQC
INPUT B2
INPUT C2/Reset
ABC D E FGH
Excitation
INPUT A2
+
+
+
-GND
+
+
+
+
INPUT A1
INPUT C1/Reset
INPUT B1
10 11 12 13 14 15 456789
L1
L2
L3
L4
C 4 E 3 C 3 E 4
Relays
3INSTRUMENT CONNECTION
Maximum of 250 mA may be connected to “INPUT - I” (bracket no. 23) , i.e. 10-times range overload.
Mind the correct connection/mistaking of current - voltage input.
Destruction of measuring resistance in current input (15R) may occur.
!
!
Excitation has the minus pole common with the
input - the bracket no. 22 - GND and you may set its
value by trimmer above the bracket no. 16
!

8|INSTRUCTIONS FOR USE OMB 450UNI
INSTRUMENT SETTING4
• For trained users
• Only items necessary for instrument
setting
• Access is password protected
• Possibility to arrange items of the
„User“ menu
• Linear menu structure
• For expert users
• Complete instrument menu
• Access is password protected
• Possibility to arrange items of the
„User“ menu
• Tree menu structure
Setting PROFISetting LIGHT
• For user operation
• Menu items are set by the user
(Profi/Light) as per request
• Access is not password protected
• Optional menu structure either tree
(PROFI) or linear (LIGHT)
Setting USER

INSTRUCTIONS FOR USE OMB 450UNI |9
4INSTRUMENT SETTING
4.1 SETTING
The instrument is set and controlled by five control keys located on the front panel. All programmable settings of the instrument
are performed in three adjusting modes:
LIGHT Simple programming menu
- contains solely items necessary for instrument setting and is protected by optional number code
PROFI Complete programming menu
- contains complete instrument menu and is protected by optional number code
USER User programming menu
- may contain arbitrary items selected from the programming menu (LIGHT/PROFI), which determine
the right (see or change)
- acces without password
All programmable parameters are stored in the EEPROM memory (they hold even after the instrument is switched off).
Complete instrument operation and setting may be performed via OM Link communication interface, which is a standard
equipment of all instruments.
The operation program is freely accessible (www.orbit.merret.cz) and the only requirement is the purchase of OML cable
to connect the instrument to PC. It is manufactured in version RS 232 and USB and is compatible with all ORBIT MERRET
instruments.
Another option for connection is with the aid of data output RS 232 or RS 485 (without the need of the OML cable).
Scheme of processing the measured signal
CHAN. A
FILTER
MAT.FCE.
Relays
Analog
Memory
Min/Max
Data
Linearization
Input
Linearization Display

10 |INSTRUCTIONS FOR USE OMB 450UNI
Setting and controlling the instrument is performed by means of 5 control keys located on the front panel. With the aid of
these keys it is possble to browse through the operation menu and to select and set required values.
Symbols used in the instructions
DC PM DU OHM RTD T/C Indicates the setting for given type of instrument
DEF values preset from manufacture
42symbol indicates a flashing light (symbol)
MIN inverted triangle indicates the item that can be placed in USER menu
CONNEC.broken line indicates a dynamic item, i.e. it is displayed only in particular selection/version
increasing the value by rotating the ke to the right (UP)
decreasing the value by rotating the ke to the left (DOWN)
pressing the key shortly
pressing the key for longer than 2 seconds (> 2 s.),
after pressing the key the set value will not be stored
after pressing the key the set value will be stored
30
continues on page 30
INSTRUMENT SETTING4
Function (green LED)
M Min/max. value
T Tare
LCD scale
Relay status (red/green/orange LED)
Indication of measured input (red/green/orange LED)
12 T 34 M
372.4~C
0 500200 400100 300
Measured value (red/green LED)
the last two places may display
measuring units
Keys control
ON the digit is lit
OFF the digit is not lit
OFF the digit is flashing
limits withrestriction
(hysteresis, delay)
Indication of measured input (green LED)
input number
(only for option “A”)

INSTRUCTIONS FOR USE OMB 450UNI |11
Setting the decimal point and the minus sign
DECIMAL POINT
Its selection in the menu, upon modification of the number to be adjusted it is performed by the short push key with
transition beyond the highest decade, when the decimal point starts flashing. Positioning is performed by / .
THE MINUS SIGN
Setting the minus sign is performed by the key on higher decade. When editing the item substraction must be made from
the current number (e.g..: 013 > , on class 100 > -87)
Control keys functions
Setting items into „USER“ menu
• inLIGHT or PROFI menu
• no items permitted in USER menu from manufacture
• on items marked by inverted triangle
4INSTRUMENT SETTING


--- +NO YES SHOW ---
return to item
legend is flashing - current setting is displayed
Key Measurement Menu Setting numbers/selection
access into USER menu exit menu quit editing
programmable key function back to previous level move to higher decade
programmable key function move to previous item move down
programmable key function move to next item move up
confirm setting after selection
numeric value
+numeric value is set to zero
programmable key function move to next level confirm setting/selection
+direct access into PROFI menu
+access into LIGHT/PROFI menu
+
configuration of an item for
“USER” menu
+
determine the sequence of items
in “USER - LIGHT” menu

12 |INSTRUCTIONS FOR USE OMB 450UNI
5.0 SETTING “LIGHT”
LIGHT Simple programming menu
- contains only items necessary for instrument setting and is protected by optional number code
5

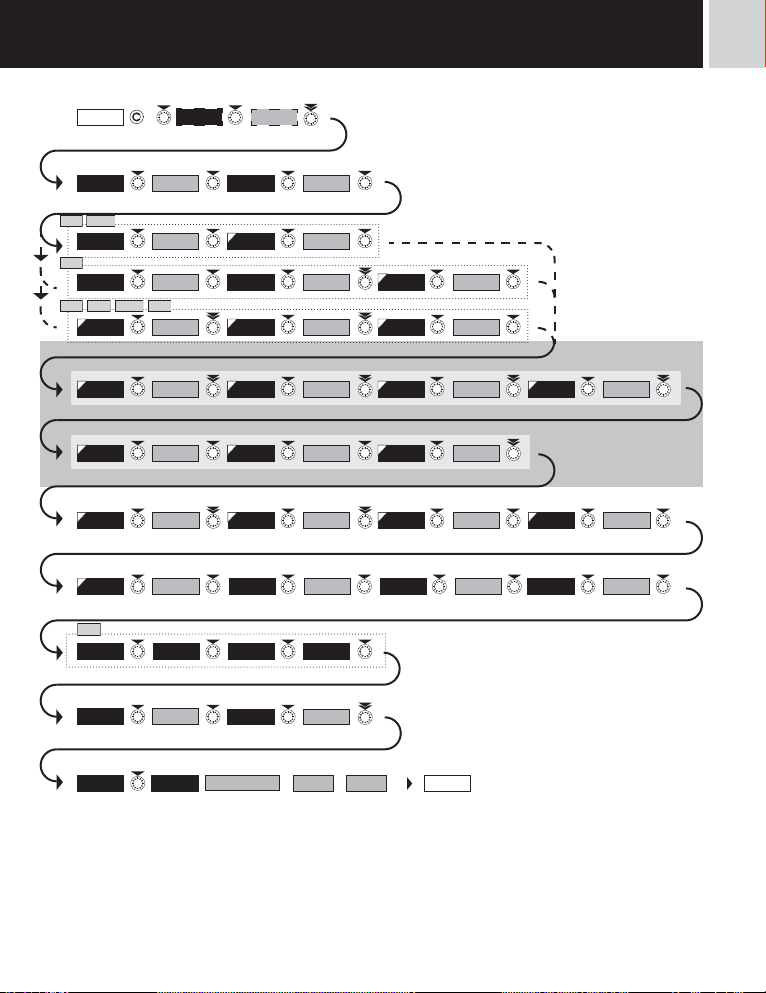

light
light
• For capable users
• Only items necessary for instrument
setting
• Access is password protected
• Possibility to arrange items of the
„User“ menu
• Linear menu structure
Setting LIGHT
SETTING
Upon delay exceeding 60 s the programming mode
is automatically discontinued and the instrument
itself restores the measuring mode
!
Password “0”
Menu LIGHT
USER menu off
Setting the items DEF
Preset from manufacture

INSTRUCTIONS FOR USE OMB 450UNI |13
5SETTING
light
light
TY P . A . O . MIN . A.O. MAX. A.O. 10004-20
Return to measur-
ing mode
Identification
New password
142. 8IDENT.YES OMB 452UNI
PAS.LI.0
C. MIN .YES C. MAX.YES
DU
Language selection
LANG.CZECH
142. 8 PASSW.0
2-WIRECONNEC.00000. oFO RM . A
OHMRTD
EXT.1TCCONNEC.23C.J.TEM .FOR M . A 000000
Selecting projection and connection
T/C
0MIN A 100MAX A FO RM . A 0000.oo
PMDC DUOHM
LIM . L.1 20 LIM . L. 2 40 LIM . L.3 60 LIM . L.4 80
65-001 4-20
Type of instruments SW: version Input
Type of instruments
PMTY P E
Measuring range
4-20 m AMODE
Bargraph projection - beginning
0MIN .BG.
Colour
CERV.CO LO R
Bargraph projection - end
100MAX.BG.
Level of LCD backlight
100%BACKL.
LCD scale division
5 DIV.DIVIS .
Limit 1 Limit 4Limit 3Limit 2
Setting type A.O. End A.O.Beginnig A.O.
RE.SET.YES
Return to manufacture setting
MENU LIG HT
Menu type
RE.CAL.YES
Return to manufacture calibration
+
Access password
Calibration - only for “DU”
Option - Analog output
Option - comparator

14 |INSTRUCTIONS FOR USE OMB 450UNI
TY P E Selection of the type of
instrument
- primary selection of the type of instrument
- performs default setting DEF of values
from manufacture, incl. calibration
DEF = “PM”
TYPE
Menu Type of instrument
DC DC voltmeter
PM Process monitor
OHM Ohmmeter
RTD-Pt Thermometer for sensors Pt
RTD-Ni Thermometer for sensors Ni
TC Thermometer for thermocouples
DU Display for lin. potentiometer
RTD-Cu Thermometer for sensors Cu
Type “PM” Example


5
light
light
142. 8
PASSW. 0
TY P E DC PM OHM RTD-P t RTD-Ni TC
DU
Entering access password
for access into the menu
PASSW.Access into instrument
menu
PAS = 0
- access into menu is unrestricted, after
releasing keys you automaticaly move to first
item of the menu
PAS > 0
- access into menu is protected ny number
code
Set „Password” = 42 Example
0 1 2 0212
42
22
32TY P E
MODEPM
SETTING
RTD-Cu
Type „DC“ 16
Type “PM” 18
Type “OHM“ 20
Type “RTD-Pt“ 22
Type “RTD-Ni“ 24
Type “T/C“ 26
Type “DU” 28
Type “RTD-Cu“ 30

INSTRUCTIONS FOR USE OMB 450UNI |15
5
light
light
SETTING

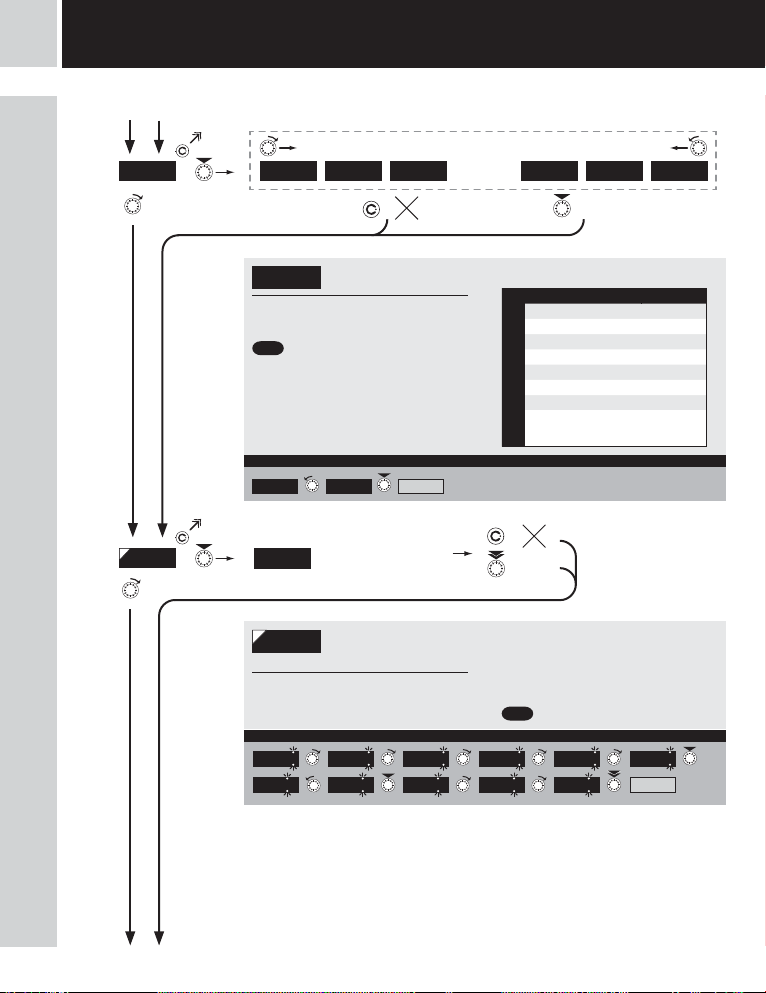

16 |INSTRUCTIONS FOR USE OMB 450UNI
MIN A Setting display projection
for minimum value of
input signal
- range of the setting is -99999…999999
- position of the DP does not affect display
projection
- the DP is automatically shifted after the
value is confirmed
DEF = 0

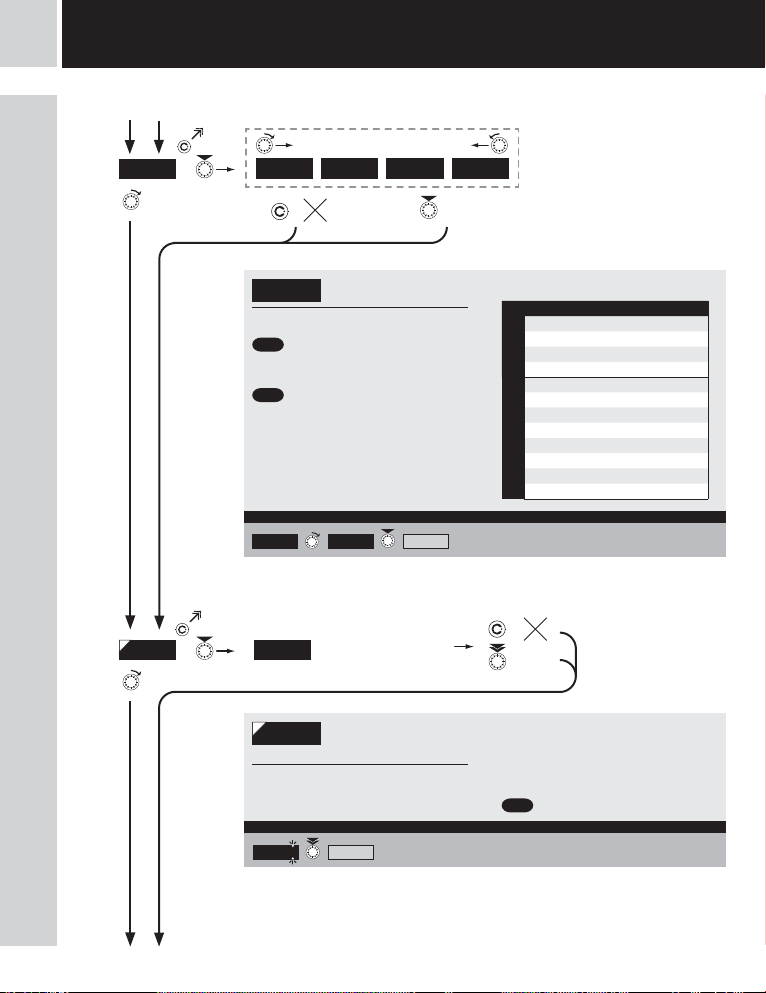

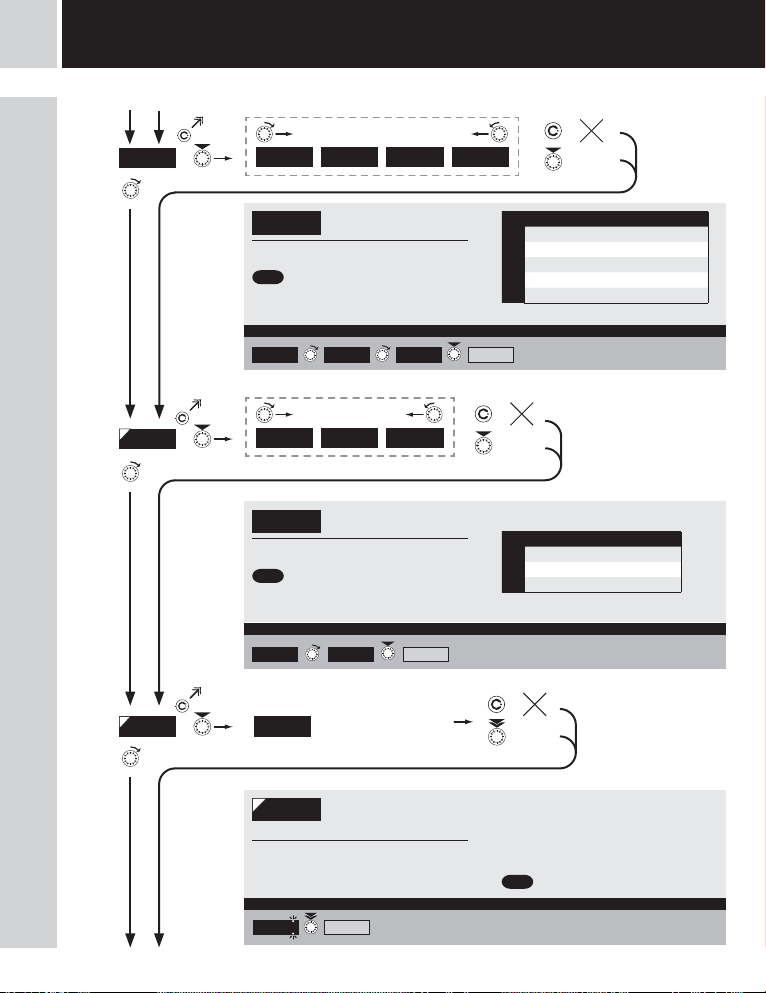

MODE Selection of the instrument
measuring range
DEF = 60 mV
DEF = 500 V*
* only for option “A”
MODE
Menu Measuring range
60 mV ±60 mV
150 mV ±150 mV
300 mV ±300 mV
1200mV ±1,2 V
MODE - A
100 V ±100 V
250 V ±250 V
500 V ±500 V
0.10 A ±0,1 A
0.25 A ±0,25 A
0.50 A ±0,5 A
1.00 A ±1 A
5.00 A ±5 A
Projection for 0 mV > MIN A = 0 Example
5
light
light
0Setting for minimum
input signal
MIN A
Type “DC”
DC DC DC DC DC DC DC DC DC DC DC DC DC
0MAX A
Range ±150 mV Example
MODE
60 mV
60 mV 150 mV 300 mV 1200mV
150 mV MIN A


SETTING



INSTRUCTIONS FOR USE OMB 450UNI |17
5
light
light
100
MAX A Setting display projection
for maximum value of
input signal
- range of the setting is -99999…999999
- position of the DP does not affect display
projection
- the DP is automatically shifted after the
value is confirmed
DEF = 100
Setting for maximum
input signal
MAX A
DC DC DC DC DC DC DC DC DC DC DC DC DC
Projection for 150 mV > MAX A = 3500 Example
100100100
500
400300200
FO RM . A0500
32
FORM . A
35001500 2500
SETTING


Projection of DP on display > 00000.o Example
FORM . A Setting projection of the
decimal point
- positioning of the DP is set here in the
measuring mode
DEF = 0000.oo
MENU0000.oo 00000. o
000000 00000. o 0000.oo 000.ooo 00.oooo 0 . ooooo FLOA . P.


* subsequent item on the menu depends on instrument equipment

18 |INSTRUCTIONS FOR USE OMB 450UNI
5
light
light
0
MIN A Setting display projection
for minimum value of
input signal
- range of the setting is -99999…999999
- position of the DP does not affect display
projection
- the DP is automatically shifted after the
value is confirmed
DEF = 0
Setting for minimum
input signal
MIN A
PM PM PM PM PM PM PM PM PM PM PM PM
Projection for 0 mA > MIN A = -25 Example
0
MAX A
1
05
5432
-05-5-15 -25
SETTING
Type “PM”
MODE Selection of the instrument
measuring range
DEF = 4 - 20 mA
MODE
Menu Range
0-5mA 0…5 mA
0-20mA 0…20 mA
4-20mA 4…20 mA
0-2 V ±2 V
0-5 V ±5 V
0-10 V ±10 V
0-40 V ±40 V
Er.4-20 4…20 mA, with error statement of
„underfl ow“ upon signal smaller
than 3,36 mA


Range 0…20 mA Example
4-20 m A 0-20mA MIN A
0-5mA 0-20mA 4-20mA 0-10 V 0-40 V Er . 4
• • •
MODE



INSTRUCTIONS FOR USE OMB 450UNI |19
5
light
light
100
MAX A Setting display projection
for maximum value of
input signal
- range of the setting is -99999…999999
- position of the DP does not affect display
projection
- the DP is automatically shifted after the
value is confirmed
DEF = 100
Setting for maximum
input signal
MAX A
PM PM PM PM PM PM PM PM PM PM PM PM
Projection for 20 mA > MAX A = 2500 Example
100100100 400300200
FO RM . A500 1500 25000500
32
FORM . A
SETTING


Projection of DP on display > 00000.o Example
FORM . A Setting projection of the
decimal point
- positioning of the DP is set here in the
measuring mode
DEF = 0000.oo
MENU0000.oo 00000. o
000000 00000. o 0000.oo 000.ooo 00.oooo 0 . ooooo FLOA . P.


* subsequent item on the menu depends on instrument equipment

20 |INSTRUCTIONS FOR USE OMB 450UNI
MIN A Setting display projection
for minimum value of
input signal
- range of the setting is -99999…999999
- position of the DP does not affect display
projection
- the DP is automatically shifted after the
value is confirmed
DEF = 0
5
light
light
Type “OHM”
OHM OHM OHM OHM OHM OHM OHM OHM OHM
Projection for 0 Ω > MIN A = 0 Example
0Setting for minimum
input signal
MIN A
0 MAX A
CONNEC.
Type of connection - 3 wire > CONECT. = 3-WIRE Example
2-WIRE
2-WIRE 3-WIRE 4-WIRE
CONNEC.Selection of the type of
sensor connection
DEF = 2- WIRE
CONECT.
Menu Connection
2-WIRE 2-wire
3-WIRE 3-wire
4-WIRE 4-wire
3-WIRE MIN A
MODE 100 R 1 K 10 K 100 K
MODE Selection of instrument
measuring range
DEF = 100 Ϊ
MODE
Menu Measuring range
100 R 0…100 Ϊ
1 k 0…1 kΪ
10 k 0…10 kΪ
100 k 0…100 kΪ
AUTO Autorange
Range 0…10 kΩ Example
100 R 1 K CONNEC.10 K
SETTING






