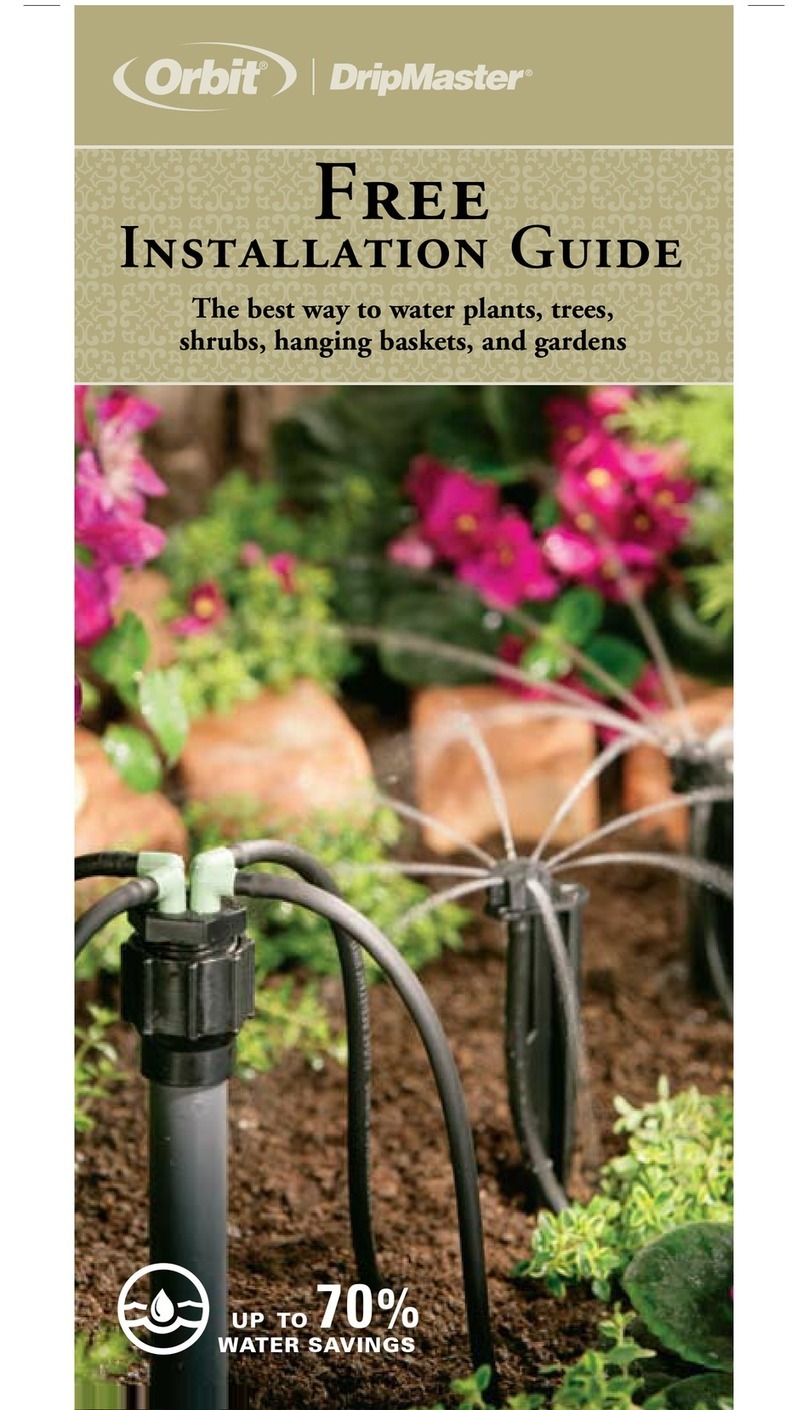

Orbit DripMaster User manual

Free
Free
Installation Guide
The best way to water plants, trees,
shrubs, hanging baskets, and gardens
UP TO 70%
WATER SAVINGS
2010
2010

Drip M a s t e r
Orbit®DripMaster®| Installation Guide
2Orbit®DripMaster®| Installation Guide 3
DripMaster®
A Drip-Irrigation system is a watering system designed to
apply water to designated areas, such as gardens, flower
beds, container plants, trees, and ground cover.
Why Install A
Drip-Irrigation System?
nSaves Water—Water is delivered directly to the roots
nSaves Money—Up to a 70% reduction in water waste,
resulting in lower water bills
nSaves Time—Replaces hand watering
nHealthier Plants—Plants flourish when receiving the precise
amount of water
nLess Yard Maintenance—Delivers water to the plants,
not to weeds
TABLE OF CONTENTS
What is Drip-Irrigation?
Section 1
Before You Begin ......................................................Page 4
Section 2
Water Sources ................................................................Page 5
Section 3
Connecting to a Hose Faucet ..................................Page 6
Section 4
Common Hose Faucet Projects
Potted/Hanging Plants.............................................Page 8
Ground Cover & Flower Beds.................................Page 10
Small Trees & Shrubs ...............................................Page 12
Section 5
Retrofit—Converting a Shrub Head
to Drip Irrigation......................................................Page 14
Section 6
Common Retrofit Projects
Container Plants and Shrubs...................................Page 16
Flower Beds, Ground Cover, Shrubs,
and Large Plants........................................................Page 19
Section 7
Direct Connection to an
automatic sprinkler system.......................................Page 22
Section 8
Common Projects
Gardens ......................................................................Page 23
Desert Landscaping...................................................Page 25
Section 9
Orbit® DripMaster® Parts List..................................Page 29

WATER SOURCE AND PRESSURE
Water Source—Drip-Irrigation Systems can be connected to any of the
following water sources. Select the best option for you.
1Outside Hose Faucet
2Converting a Shrub Head to Drip (Retrofit)
3 Automatic Irrigation System
Water Pressure—Obtain a
water pressure gauge (available at
most home improvement stores)
and attach it to your source of
water. Drip-Irrigation systems are
designed to operate between 15– 35
PSI (high water pressure may cause
system failure).
PROCEED TO THE APPROPRIATE SECTION
1. For Hose Faucet Connection—proceed to the next page.
2. Convert a Shrub Head to Drip—proceed to page 14.
3. Automatic Irrigation System—proceed to page 22.
IDENTIFY PLANTS WITH SIMILAR
WATERING REQUIREMENTS
Drip M a s t e r
4 5
DripMaster®
.
..
..
.
.
..
.
.
...
.
.
.
....
.
..
.
.
.
.
.
.
.
.
.
.
.
..
..
.
.
..
.
.
...
.
.
.
....
.
..
.
.
.
.
.
.
.
.
.
.
12
3
SECTION 2
Water Sources
SECTION 1
Before You Begin
1–TREES & SHRUBS 2–GARDEN
3–GROUND COVER 4–POTTED PLANTS
Orbit®DripMaster®| Installation Guide Orbit®DripMaster®| Installation Guide
1
23
4

3 Distribution/Supply Tube
The main supply line that feeds
water to the Drip-Irrigation system.
Distribution Tube may be installed
either above or below ground.
(part # 67345 or 67346)
TIP— To make installation easier,
allow the 1/2" Distribution/Supply
Tube to sit in the sun and soften prior
to installation.
4Tube End Cap
Plugs the end of the 1/2"
Distribution/Supply Tube and
serves as a drain for the Drip-
Watering system. (part # 67462 or
69462)
COMMON USES FOR DRIPIRRIGATION
1. Potted/Hanging plants—page 8
2. Ground Cover and Flower Beds—page 10
3. Large Plants, Small Trees & Shrubs—page 12
Select the application that best matches your needs.
Drip M a s t e r
6 7
DripMaster®
3
4
SECTION 3
Connecting To A Hose Faucet
CONNECTING TO AN OUTSIDE
HOSE FAUCET
An outside hose faucet is one of the simplest ways to
connect your Drip-Irrigation system.
TIP—For complete hands-free watering,
install an Orbit Electronic Hose Timer
to the hose faucet prior to connecting
your Drip-Irrigation system.
The following items are recommended for your hose
faucet Drip-Irrigation system:
1Anti-Siphon
Prevents contaminants from entering
your drinking water supply. (Required
in most areas).
(part # 67750 or 69750)
23-in-1 Drip Faucet Connection
A Pressure Regulator (20 PSI), Filter,
and 1/2" Drip Tubing Adapter in one.
(part # 67739 or 69739)
Orbit®
2
3
1
Important: Check local code
requirements prior to installing any
watering system.
Orbit®DripMaster®| Installation Guide Orbit®DripMaster®| Installation Guide
2
1

Drip M a s t e r
8 9
DripMaster®
FOR POTTED PLANTS
4 Attach Multi-Stream Drippers to
each 1/4" Distribution/Supply Line
and insert stake next to each plant.
5 Remove the 1/2" End Cap and
turn on water to flush system; replace
cap.
6 Adjust water flow by twisting the
top of the Multi-Stream Dripper.
FOR HANGING PLANTS
4 Attach Adjustable Flow Mist
Sprayers to each 1/4"
Distribution/Supply Line and aim
sprayer into the hanging basket.
5 Continue running lines to each
hanging basket until the system is
completed.
6 Remove the 1/2" End Cap and
turn on water to flush system; replace
cap.
7 Rotate the flow control knob on
the Mist Sprayer to adjust flow rate.
IMPORTANT: The maximum
recommended number of Multi-Stream
Drippers and Mist Sprayers per 1/2"
supply line is 15.
Supplies needed
- 1/2" Tube Straps (part # 65716 or 69716)
- 1/4" Tube Straps (part # 65715 or 69715)
- 1/4" Distribution/Supply Tube (part # 67300, 67301 or 67303)
- 1/4" Barbed Couplers (part # 67402 or 69402)
- Stake with Multi-Stream Dripper (part # 67105 or 69105)
- Adjustable Flow Mist Sprayer (part # 67190 or 69190)
- Punch Tool (part # 67756 or 69756)
SECTION 4
POTTED / HANGING PLANTS
Note: Steps 1–3 apply to both potted & hanging plants
1 Distribution/Supply Line—Place the 1/2" Distribution/Supply Line close
to your Potted or Hanging Plants. Use 1/2" Tube Straps to secure the Tube and
install a 1/2" End Cap.
2 Hole Punch—Punch holes in
the 1/2" Distribution/Supply Line
for each container or hanging basket.
Next, insert 1/4" Barbed Couplers
into each hole.
3 Connect 1/4" Distribution/Supply
Line to each exposed Barbed Coupler
and run the Distribution/Supply Line
to each container/basket. Use 1/4"
Tube Straps to hold in place.
IMPORTANT: A single 1/4"
Distribution/Supply Line should not
exceed 30'.
Common Hose Faucet Projects
2
3
4
6
4
7
To Hose Faucet
To Hose Faucet
1/2" Tube Straps
To Hose Faucet
To Hose Faucet
Tube Straps 1/2"
Orbit®DripMaster®| Installation Guide Orbit®DripMaster®| Installation Guide

Drip M a s t e r
10 11
DripMaster®
4Connect the 1/4" Distribution/
Supply Line to each of the exposed
Barbed Couplers and run the
Distribution/Supply Line to each
sprinkler location. Cut tubing to
desired length.
IMPORTANT: Keep Drip-Tubing
lengths to less than 30’.
5 Attach the On-Stake Low-
Volume Sprinkler to each 1/4"
Distribution/Supply Line.
6 Remove the 1/2" End Cap, turn
on water to flush system; replace cap.
7 Rotate the flow control knob to
adjust flow rate.
IMPORTANT: The maximum
recommended number of Low-Volume Sprinklers per 1/2" supply line is 16 at
medium flow setting (8 at the maximum setting)
Supplies needed
- 1/4" Distribution/Supply Tube (part # 67300, 67301 or 67303)
- 1/4" Barbed Couplers (part # 67402 or 69402)
- Low-Volume Sprinkler on Stake (part # 67135, 67136, 67137 or 67138)
- 1/2" Loop Stake (part # 65731 or 66731)
- Punch Tool (part # 67756 or 69756)
SECTION 4
GROUND COVER & FLOWER BEDS
1 Distribution/Supply Line—Lay the 1/2" Distribution/Supply Line
down the center of the Flower Bed or Ground Cover and install a 1/2" End
Cap. Use Loop Stakes to hold in place.
2 Low-Volume Sprinkler—
Following the illustrated example,
place Quarter-Spray-Pattern
Sprinkler Heads in the corners, Half-
Spray-Pattern Sprinkler Heads along
the sides, and Full-Spray-Pattern
Sprinkler Heads in the center of your
ground cover.
IMPORTANT: Spacing should
be no more than 10’ from one
sprinkler to the next.
3 Hole Punch—Punch a hole on
top of the 1/2" Distribution/Supply
line for each Low-Volume Sprinkler.
Next insert a 1/4" Barbed
Coupler into each hole.
Common Hose Faucet Projects
2
3
4
5
6
7
1
No more
than 10'
Loop Stake
Orbit®DripMaster®| Installation Guide Orbit®DripMaster®| Installation Guide

Drip M a s t e r
12 13
DripMaster®
5 Remove the 1/2" End Cap, turn
on water to flush system; replace cap.
Note: If your Drip-irrigation
system is being installed on non-
level ground, replace all 4 GPH Flag
Drippers with 1 or 2 GPH Pressure
Compensating Drippers to ensure consis-
tent water flow across the entire system.
IMPORTANT: The total number of 4 GPH (Gallons per Hour) Flag
Drippers attached to a single 1/2" Supply Line should not exceed 45.
Supplies needed:
- Flag Drippers (part # 65201 or 66201)
- 1/2" Loop Stake (part # 65731 or 69731)
- 1/4" Insect Plug (part # 66405 or 67405)
- Punch Tool (part # 66756 or 69756)
SECTION 4
SMALL TREES & SHRUBS
1 Distribution/Supply Line—Lay the 1/2" Distribution/Supply Line
next to the base of your plants, shrubs, and trees. Install a 1/2" End Cap at
the end of the tubing. Use Loop Stakes to hold in place.
2 Hole Punch—Punch holes on
top of the 1/2" Distribution/Supply
Line next to the base of each plant,
shrub or tree. Insert the barbed end
of a 4 GPH Flag Dripper into the
hole.
3 If needed, attach 1/4"
Distribution/Supply Line to the end
of the Flag Dripper and run the 1/4"
Distribution/Supply Line to the
plant location.
4 Install an insect plug into the end
of the 1/4" Distribution/Supply Line.
Common Hose Faucet Projects
2
3
5
4
Loop Stake
Orbit®DripMaster®| Installation Guide Orbit®DripMaster®| Installation Guide

6
3
4
Drip M a s t e r
14 15
DripMaster®
SECTION 5
CONVERTING A SHRUB
HEAD TO DRIP IRRIGATION
Converting a shrub head to drip, using a drip manifold, is a simple way to
supply water to your Drip-Irrigation system. Retrofits are commonly used to
conserve water by replacing inefficient shrub sprinklers and bubblers.
Retrofit Drip-Irrigation
systems consist mainly of
1Manifold—Attaches to a 1/2" riser
and consists of 1 to 8 outlets.
21/4" Distribution/Supply Line
3Low-Volume Sprinkler, Dripper,
or Soaker Tube
MANIFOLDS
The main function of a Manifold is to distribute water through 1/4" outlets.
There are 4 types of Manifolds
1Adjustable Flow Manifolds—Ideal when water system pressures
exceeds 40 PSI and where flow control is desired.
2Full Flow Manifolds—Ideal for replacing inefficient shrub heads and
bubblers.
3Shrub Adapter—Ideal for micro-sprinklers.
4Riser Adapter Manifolds—Permits Drip-Irrigation without
eliminating a sprinkler head.
Retrofit
3
2
1
1 3
2
4
INSTALLATION FOR ADJUSTABLE
FLOW, FULLFLOW, AND RISER
ADAPTER MANIFOLDS
1Remove sprinkler head from a 1/2"
Riser and attach the manifold. (For
Riser Adapter Manifold, reattach
sprinkler head).
2Remove Cap(s) from the 1/4"
Barb(s) and insert 1/4" Distribution/
Supply Line.
3Attach a Low-Volume Sprinkler or
Drip-Irrigation Dripper to the end of
the Distribution/Supply Line.
4To avoid high water pressure
failure, install a 1/4" High Pressure
Clamp on all tube connections.
5Position Drip-Irrigation Dripper
next to plant.
6If applicable, adjust flow-control
knob for desired flow rate.
1
2
COMMON RETROFIT PROJECTS
1. Container Plants and Shrubs—page 16
2. Shrubs and Large Plants—page 19
Orbit®DripMaster®| Installation Guide Orbit®DripMaster®| Installation Guide

Drip M a s t e r
16 17
DripMaster®
SECTION 6
CONTAINER PLANTS AND SHRUBS
Replacing hand watering with Drip-Irrigation
1Connect an 8-Port or a 4-Port Adjustable Manifold to an exposed shrub
riser. If a vacant riser is not available, use a Saddle Adapter to connect to the
sprinkler line.
2Remove Caps and attach 1/4" Distribution/Supply Line to each 1/4"
Barb.
3Run each 1/4" Distribution/
Supply Line to each container. Use
1/4" Tube Straps to hold tube in
place. (Window boxes and large
containers may require more than
one line.)
IMPORTANT: A single 1/4"
Distribution/Supply Line should
not exceed 30'.
4Flush lines to clear any debris.
5Select the appropriate Drip-
Irrigation Dripper for each container
and plant.
Common Retrofit Projects
1
2
SECTION 6
HANGING BASKETS AND WINDOW BOXES
Use Orbit’s®FlexMist™
(part # 66190 or 69190).
POTTED PLANTS
Use Orbit’s®Multi-Stream on a Stake
(part # 67105 or 69105) or a Micro-
Bubbler on a Stake (part # 67110).
SHRUBS
Use Orbit’s®Low-Volume Sprinkler
Head on 12" Stake. (See Parts List
at end of manual for spray pattern
options)
6Adjust the flow rate by
turning the flow control screw.
Continued on next page
Common Retrofit Projects
Flow
Control
6
Orbit®DripMaster®| Installation Guide Orbit®DripMaster®| Installation Guide

Drip M a s t e r
18 19
DripMaster®
SECTION 6
Supplies Needed
- 8-Port Adjustable Manifold (part # 67000 or 69000)
Or
- 4-Port Adjustable Manifold (part # 67005 or 69005)
- The appropriate Drip-Irrigation Sprinkler listed above
- 1/4" Tube Straps (part # 65715 or 69715)
- 1/4" Distribution/Supply Tube (part # 67300, 67301 or 67303)
Common Retrofit Projects SECTION 6
FLOWER BEDS, GROUND COVER,
SHRUBS AND LARGE PLANTS
Replacing inefficient shrub heads with Drip-Irrigation
1Remove shrub heads from risers and replace with “Full-Flow 4-Port
Manifolds.”
2Remove Barb Caps from the manifolds and attach 1/4" Distribution/
Supply Lines to each exposed 1/4" Barb. Run individual 1/4" Distribution/
Supply Line to each Low-Volume Sprinkler Head. Flush lines to clear any
debris.
IMPORTANT: Full-Flow Manifolds
do not have an internal pressure
regulator. To avoid high pressure
failures install 1/4" High Pressure
Clamps on all 1/4" connections.
IMPORTANT: A single 1/4"
Distribution/Supply Line should not
exceed 30’.
Continued on next page
Common Retrofit Projects
1
2
Orbit®DripMaster®| Installation Guide Orbit®DripMaster®| Installation Guide

Drip M a s t e r
20 21
DripMaster®
SECTION 6
FLOWER BEDS AND GROUND COVER
Attach a Low-Volume Sprinkler Head on 12" Stake, spaced no more than
10' apart. (See Parts List for spray pattern options)
or
Multi-Stream Dripper on a stake, spaced no more than 3' apart.
(part # 67105 or 69105)
Note: Adjust the flow rate by turning
the flow control on each Drip-
Irrigation sprinkler head.
Common Retrofit Projects SECTION 6
SHRUBS AND LARGE PLANTS
Use Orbit’s®Multi-Stream Dripper on a Stake next to each shrub or large
plant. (part # 67105 or 69105)
Note: Adjust the flow rate by turning
the flow control on each Drip-Irrigation
Sprinkler Head.
Supplies needed:
- Full-Flow 4-Port Manifold (part # 67025 or 69025)
- The appropriate Drip-Irrigation sprinkler head listed above
- 1/4" Distribution/Supply Tube (part # 67300, 67301 or 67303)
- 1/4" High Pressure Clamps (part # 67710 or 69710)
Common Retrofit Projects
No more than 10' apart
No more than 3' apart
Orbit®DripMaster®| Installation Guide Orbit®DripMaster®| Installation Guide

Drip M a s t e r
22 23
DripMaster®
SECTION 7
Direct connection to an underground irrigation system is ideal for medium
to large Drip-Irrigation projects. This application is most commonly used
for gardens, large flower beds, shrubs, trees, and desert landscaping.
IMPORTANT:
• Contact the local water district for code requirements.
• Before digging, contact utility companies to mark utility lines.
Connection to the main sprinkler water line
14-in-1 Drip Irrigation Valve
– Low flow drip valve
– Debris filter
– Pressure regulator—30 PSI
– 1/2" Drip Tubing Adapter
21/2" Distribution/Supply Tubing (part 67345 or 67346) or ¾" PVC Pipe
Connection to an Existing
Automatic Sprinkler System
.
..
..
.
.
..
.
.
...
.
.
.
....
.
..
.
.
.
.
.
.
.
.
.
.
COMMON APPLICATIONS
1. Gardens—page 23
2. Desert Landscaping—page 25
SECTION 8
GARDENS
1Connecting to the 4-in-1 Valve—Using a Threaded x Slip PVC coupler,
connect 3/4" PVC to the end of the valve and run the pipe down the center
of the garden. Attach a 3/4" Slip x 1/2" Threaded Tee for each row. Use an
Automatic Drain Valve on the end of the pipe and on any low sections of
the PVC pipe.
2 Screw in 1/2" Risers on each Tee
(extending 6" to 8" above ground).
Attach an Orbit® 4-Port Adjustable
Manifold on each riser.
3Remove manifold caps and attach
1/4" Soaker Tube to each 1/4" Barb.
Run Soaker Tube along the base of
each plant.
Tip—Use Metal Loop Stakes
to hold the 1/4" Soaker Tube
in place.
Common Projects
To Automatic Irrigation Valve
.
..
..
.
.
..
.
.
...
.
.
.
....
.
..
.
.
.
.
.
.
.
.
.
.
2
3
1
1
Automatic Drain
Orbit®DripMaster®| Installation Guide Orbit®DripMaster®| Installation Guide

Drip M a s t e r
24 25
DripMaster®
SECTION 8
DESERT LANDSCAPING
A4-in-1 Drip Irrigation Valve
BPressure Compensating Dripper with a Tube Stake
C Loop Stake
D End Cap
1Connecting to the 4-in-1 Drip Irrigation Valve—Attach the 1/2" Drip
Tubing adapter (supplied with the valve) to the Valve and attach 1/2"
Distribution/Supply line to the adapter.
(See the top of page 26)
Common Projects
4Cut Soaker Tube to desired length
and insert a 1/4" End Plug.
Note: Keep each 1/4" Soaker Tube
length to less than 15'.
5Remove the Automatic Drain
Valve, attached to the end of the
PVC pipe and flush the line to
remove any debris.
6Adjust the flow rate by turning
the Flow Control Screw.
IMPORTANT: Do not attach more
than fourteen 4-Port Manifolds
Supplies Needed
- 3/4" Automatic Drain Valve (part # 51041)
- 4-Port Adjustable Manifold (part # 67005 or 69005)
- 1/4" Loop Stakes (part # 65730 or 69730)
- 1/4" Soaker Tubing (part # 67321, 67330 or 67331)
- 1/4" End Plugs (part # 67403 or 69403)
- 3/4" Slip x 1/2" Threaded Tees
- 1/2" Risers
Flow Control
4
6
A
B
D
C
Orbit®DripMaster®| Installation Guide Orbit®DripMaster®| Installation Guide

Drip M a s t e r
26 27
DripMaster®
SECTION 8
A 4-in-1 Drip Irrigation Valve
B 1/2" Drip Tubing Adapter
C 1/2" Distribution/Supply Line
2Run Distribution/Supply Line next to plants, shrubs and trees you
intend to water. Next install a 1/2" End Cap. Use 1/2" Loop Stakes to hold
the line in place.
3Hole Punch—Punch a hole in the
1/2" Distribution/Supply Line for
each shrub or tree. Next insert a 1/4"
Barbed Coupler into each hole.
4Connect the 1/4" Distribution/
Supply Line to each of the exposed
Barbed Couplers and run it to the
base of each shrub or tree. Cut tubing
to desired length.
IMPORTANT: A single 1/4" Distribution/Supply Line should not
exceed 30'.
Common Projects
.
..
..
.
.
..
.
.
...
.
.
.
....
.
..
.
.
.
.
.
.
.
.
.
.
A
B
C
3
4
5Remove the 1/2" End Cap and turn on water to flush 1/2" Distribution/
Supply Line, then replace cap to flush 1/4" Distribution/Supply Lines.
6Attach a Pressure Compensating Dripper to each 1/4" Distribution/
Supply Line. To hold dripper in place, next to the base of the shrub or tree,
use a Tube Stake.
Note: More than one 1/4"
Distribution/Supply Line (with
Pressure Compensating Dripper) may
be required for large trees or shrubs.
IMPORTANT: Do not attach more
than fifty-seven 2-GPH Pressure
Compensating Drippers to a single
1/2" Distribution/Supply Line
A Tube Stake
B Pressure Compensating Dripper
C 1/4" Distribution/Supply Line
Supplies needed:
- 1/2" Distribution/Supply Tubing (part # 67345 or 67346)
- 1/2" End Cap (part # 67462 or 69462)
- 1/2" Loop Stake (part # 65731 or 66731)
- Punch Tool (part # 67756 or 69756)
- 1/4" Barbed Couplers (part # 67402 or 69402)
- 1/4" Distribution/Supply Tube (part # 67300, 67301 or 67303)
- Tube Stakes (part # 65721or 69721)
- Pressure Compensating Dripper (part # 67205, 69205, 67206 or 69206)
5
66
A
B
C
Orbit®DripMaster®| Installation Guide Orbit®DripMaster®| Installation Guide

FAUCET
3-in-1 Faucet
–Adapter Filter
–Pressure Regulator
–1/2" Tubing
Adapter
67739, 69739
Faucet Adapter
1/2" Distribution
Tube x 1/2"
Tubing
67455, 69455
Faucet Adapter x
1/4" Tubing
67432, 69432
Hose Thread
Swivel x 1/2"
Tubing Tee
67456
Hose/Tap Filter
66735, 67735
Drip M a s t e r
28 29
DripMaster®
SECTIONSECTION 99 Orbit Dripmaster Parts ListOrbit Dripmaster Parts List
Orbit®DripMaster®| Installation GuideOrbit®DripMaster®| Installation Guide
MANIFOLDS
8-Port Manifold
67000, 69000
4-Port Manifold
67005, 69005
4-Port Manifold
67025, 69025
1/2" MPT
2-Port Manifold
67035, 69035
2-Port Manifold
66030, 67030
1/2" Female Pipe
Threaded Shrub
Adapter with
Threaded Outlet
67056
1/2" Riser Adapter
with 1/4" Barb
66035, 67035
4-Port Adapter
Manifold
67060, 69060
PIPE THREAD
Y-Filter
3/4" Male Pipe
Thread
67736, 69736
Pressure Regulator
(Below Ground)
25 PSI—3/4"
Threaded
67740
Pressure Regulators
25 PSI—3/4" Pipe
Threaded
67740
1/2" Thread x 1/2"
Tubing Adapter
67454
3/4" Thread x 1/2"
Tubing Adapter
67453
1" Thread x 1/2"
Tubing Adapter
67461
1/2" PVC Slip
x 1/2” Tubing
Adapter
67446
3/4" PVC Slip
x 1/2" Tubing
Adapter
67467
Pressure Regulators
25 PSI—Hose
Threaded
67741, 69741
Hose Bib Anti-
Siphon Valve
67750, 69750
Plastic Hose-Y
67745, 69745
LOW VOLUME SPRINKLER
Mini Rotating
Sprinkler
(0-30 GPH @ 25 PSI)
66113, 67113
Low-Volume
Sprinkler w/
Flow Control
(1-29 GPH @ 25 PSI)
Full 67116, 69116
1/2 67117, 69117
1/4 67118, 69118
Strip 67115, 69115
Low-Volume
Sprinkler Head
on Stake w/
Flow Control
(1-29 GPH @ 25 PSI)
Full 67136, 69136
1/2 67137, 69137
1/4 67138, 69138
Strip 67135
Adjustable Mist
Sprayer
(0.5-8 GPH @ 25 PSI)
67191, 69191
Adjustable
FlexMist™
(0.5-8 GPH @ 25 PSI)
66190, 69190
DRIPPERS AND BUBBLERS
Multi-Stream
Dripper
(1-16 GPH @ 25 PSI)
67100, 69100
Inline Dripper/
Emitter
(1-16 GPH @ 25 PSI)
67101, 69101
Multi-Stream on
a Stake
(1-16 GPH @ 25 PSI)
67105, 69105
Micro-Bubbler on
a Stake
(0.5-24 GPH @ 25 PSI)
67110
Flag Dripper
1 GPH
65199
2 GPH
65200, 66200
4 GPH
65201, 66201
Pressure
Compensating
Dripper
1/2 GPH
67204
1 GPH
67205, 69205
2 GPH
67206, 69206
Adjustable FlowFull FlowRiser Adapter Manifold

1/2" DRIPLOCK™
TUBING FITTINGS
Coupler
67451, 69451
Tee
67452, 69452
Elbow
67450, 69450
End Cap
67462, 69462
Shut-Off Valve
67463
1/2" UNIVERSAL
DRIP FITTINGS
Hose/Faucet
Adapter
67469
Coupler
67467
Elbow
67465
Tee
67466
End Cap
67468
Figure 8
65443, 66443
DISTRIBUTION/SUPPLY
TUBE
1/4" Distribution
Tube
50' 67300, 67303
100' 67301
1/2" Distribution
Tube
50' 67345
100' 67346
500' 67347
1/4" SOAKER TUBE
Drilled Soaker
Tubing 60'
(0.9 GPH @ 25 PSI)
61073, 67321
1/4" Porous
Soaker Tube
(0.5 GPH @ 25 PSI)
50' 67330, 69330
100' 67331
1/2" SOAKER TUBE
1 GPH Emitter
Tubing 100'
67366
SPRINKLER STAKES
12" Tubing Stake
with 12" Riser
67722
1/4" Inline Stake
67720, 69720
Female Hose x
1/2" Pipe Thread
67990
1/2" Drip Inline x
1/2" Pipe Thread
67991
1/2" Barb x 1/2"
Male Pipe Thread
x End Cap
67992
TUBING STAKES
1/2" Tubing Stake
67732
1/4" Stake Tubing
65721, 69721
1/4" Dripper Stake
67719
Loop Stake
1/2" 65731, 66731
1/4" 65730, 69730
MISCELLANEOUS
Tubing Strap
1/2” 65716, 69716
1/4” 65715, 69715
1/4” High Pressure
Clamp
67710, 69710
Tube
Punch Tool
67756, 69756
Punch Gun
67757
Drip M a s t e r
30 31
DripMaster®
SECTION SECTION
9 9
Orbit Dripmaster Parts List Orbit Dripmaster Parts List
Orbit®DripMaster®| Installation Guide Orbit®DripMaster®| Installation Guide
1/4" TUBING FITTINGS
Barb Elbow
67400, 69400
Barb Tee
67401, 69401
Barb Coupling
67402, 69402
Barb End Plug
67403, 69403
Barb Shut-Off
Valve
67404, 69404
Insect/Water
Distribution Plug
66405, 67405
Fits .690 to .710 drip tubing
Fits .620 to .710 drip tubing

Drip M a s t e r
Drip M a s t e r
32 Orbit®DripMaster®| Installation Guide
Orbit®Irrigation Products, Inc.
North Salt Lake, UT 84054 USA
www.orbitonline.com 1-800-488-6156
Orbit®Irrigation Products, Inc.
North Salt Lake, UT 84054 USA
www.orbitonline.com 1-800-488-6156
PN 61600-01 rB
PN 61600-01 rB
Simply push tubing into tting to connect
Simplemente empuje la tubería hacia el conector para unir
Push tubing on and rotate
nut over tubing to connect
Presione la tubería y gire la tuerca sobre ésta para conectar
DripLock™
Fittings
Conectores
DripLock™
Universal
Fittings
Conectores
universales
Fits Tubing size .690 to .710 OD
· Orbit® 1/2" · Raindrip® 5/8”
· Dig® 1/2" · Toro® BlueStripe™
· Mister® Landscapter 1/2"
Se adapta a tuberías de 0,690 a 0,710 de diámetro exterior
· Orbit® 1/2" · Raindrip® 5/8”
· Dig® 1/2" · Toro® BlueStripe™
· Mister® Landscapter 1/2"
Fits Tubing size .620 to .710 OD
· All major brands of Drip Tubing
Se adapta a tuberías de 0,620 a 0,710 de diámetro exterior
· Todas las principales marcas de tuberías de goteo
32
Orbit®DripMaster®| Guía de instalación

Drip M a s t e r
30 31
DripMaster®
SECCIÓN SECCIÓN
9 9
Lista de piezas del
Dripmaster de Orbit Lista de piezas del Dripmaster de Orbit
Orbit®DripMaster®| Guía de instalación Orbit®DripMaster®| Guía de instalación
CONECTORES DE TUBERÍAS
DRIPLOCK™ DE ½"
Acoplador
67451, 69451
Conector en T
67452, 69452
Codo
67450, 69450
Tapa de extremo
67462, 69462
Válvula de cierre
67463
CONECTORES UNIVERSALES
POR GOTEO DE ½"
Adaptador para
manguera/grifo
67469
Acoplador
67467
Codo
67465
Conector T
67466
Tapa de extremo
67468
Figura 8
65443, 66443
TUBERÍAS DE
DISTRIBUCIÓN/SUMINISTRO
Tubería de
distribución de ¼"
50' 67300, 67303
100' 67301
Tubería de
distribución de 1/2"
50' 67345
100' 67346
500' 67347
TUBO IRRIGADOR DE 1/4"
Tuberías para
irrigador perforadas
de 18 m
(3,4 LPH @ 1,7
BAR)
61073, 67321
Tubo irrigador poroso
de ¼”
(1,9 LPH @ 1,7
BAR)
50' 67330, 69330
100' 67331
TUBO IRRIGADOR DE ½"
Emisor de 3,79 LPH
30,48 m de tuberías
67366
REGADOR EN ESTACA
Estaca de tuberías
de 30,48 cm con
elevador de extensión
de 30,48 cm
67722
Estaca en línea de
1/4"
67720, 69720
Manguera hembra y
67990
Estaca en línea de ¼" y
roscado para tuberías
de ½"
67991
Dentado de ½",
roscada para tubería
macho y tapa de
extremo
67992
ESTACA DE TUBERÍA
Estaca de tubería
de 1/2"
67732
Estaca de tubería
de 1/4"
65721, 69721
Estaca para gotero
de 1/4"
67719
Estaca en “U”
1/2" 65731, 66731
1/4" 65730, 69730
MISCELÁNEOS
Abrazadera para
tubería
1/2" 65716, 69716
1/4" 65715, 69715
Abrazadera de presión
alta de 1/4"
67710, 69710
Perforador de tubo
67756, 69756
Perforador
67757
CONECTORES DE TUBERÍAS
DE ¼"
Codo dentado
67400, 69400
T dentada
67401, 69401
Acoplador dentado
67402, 69402
Tapón terminal
dentado
67403, 69403
Válvula de cierre
dentada
67404, 69404
Tapón de distribución
contra insectos/agua
66405, 67405
Se adapta a tubería por goteo de 0,690 a 0,710
Se adapta a tubería por goteo de 0,620 a 0,710

Lista de piezas del
Dripmaster de Orbit
Lista de piezas del
Dripmaster de Orbit
TUBOS COLECTORES
Tubo colector de
8 puertos
67000, 69000
Tubo colector de
4 puertos
67005, 69005
Tubo colector de
4 puertos
67025, 69025
Tubo colector de
2 puertos MPT de ½"
67035, 69035
Tubo colector de
2 puertos
66030, 67030
Adaptador para
arbusto roscado de
tubería hembra de
½" con salida roscada
67056
Adaptador para tubo
ascendente de ½" con
acoplador dentado
de ¼"
66035, 67035
Tubo colector
adaptador de
4 puertos
67060, 69060
ROSCADO DE TUBERÍAS
Roscado de tuberías
macho de ¾" con
filtro en forma de Y
67736
Reguladores de
presión (bajo el suelo)
de 25 PSI - Roscado
de tuberías de ¾"
67740
Flujo regulableTubo colector con adaptador para elevador Flujo completo
GRIFO
Grifo de 3-en-1
–Filtro adaptador
–Reguladordepresión
–Adaptador de
tubería de 1/2"
67739, 69739
Adaptador de grifo y
tubería de ½"
67455, 69455
Adaptador de grifo y
tubería de ¼"
67432, 69432
Unión giratoria x
conector en T para
tuberías de 1/2"
67456
Filtro para manguera/
grifo
67456
Drip M a s t e r
28 29
DripMaster®
SECCIÓNSECCIÓN 99
Orbit®DripMaster®| Guía de instalaciónOrbit®DripMaster®| Guía de instalación
Reguladores de
presión de 25 PSI -
Roscado de tuberías
de ¾"
67740
Adaptador de tubería
de ½" y roscado de ½"
67454
Adaptador de tubería
de ¾" y roscado de ½"
67453
Adaptador de tubería
de 1" y roscado de ½"
67461
Deslizador de PVC
de ½" y adaptador de
tubería de ½"
67446
Deslizador de PVC de
3/4" y adaptador de
tubería de 1/2"
67467
Reguladores de
presión de 25 PSI -
Manguera roscada
67741, 69741
Válvula antisifón para
grifo de manguera
67750, 69750
Conector Y para
manguera plástico
67745, 69745
REGADOR DE BAJO VOLUMEN
Miniaspersor giratorio
(0-113 LPH a 1,7
BAR)
66113, 67113
Regador de bajo
volumen con control
de flujo
(3,7-109 LPH a 1,7
BAR)
Completo 67116,
69116
1/2 67117, 69117
1/4 67118, 69118
Tira 67115, 69115
Cabezal de regador
de bajo volumen en
estaca con control
de flujo
(3,7-109 LPH a 1,7
BAR)
Completo 67136,
69136
1/2 67137, 69137
1/4 67138, 69138
Tira 67135
Atomizador regulable
(1,9-30 LPH a 1,7
BAR)
67191, 69191
FlexMist™ regulable
(1,9-30 LPH a 1,7
BAR)
66190, 69190
GOTEROS Y BURBUJEADORES
Gotero de chorro
múltiple
(3,8-60 LPH a 1,7
BAR)
67100, 69100
Gotero/Emisor en
línea
(3,8-60 LPH a 1,7
BAR)
67101, 69101
Chorro múltiple en
una estaca
(3,8-60 LPH a 1,7
BAR)
67105, 69105
Microburbujeador en
una estaca
(3,8-89 LPH a 1,7
PSI)
67110
Gotero fijo de
3,8 LPH
65199
7,6 LPH
65200, 66200
15,1 LPH
65201, 66201
Gotero compensador
de presión de
1,9 LPH
67204
3,7 LPH
67205, 69205
7,6 LPH
67206, 69206

Drip M a s t e r
26 27
DripMaster®
SECCIÓN 8
A Válvula de irrigación por goteo 4 en 1
B Adaptador a tubería por goteo de 1/2"
C Línea de distribución/suministro de 1/2"
2Lleve la línea de distribución/suministro junto a las plantas, los arbustos
y los árboles que desea regar. Luego coloque una tapa de extremo de 1/2".
Utilice estacas en “U” de 1/2" para
que la línea se sostenga en su sitio.
3Perforador : Haga un orificio en
la línea de distribución/suministro de
1/2" para cada arbusto o árbol. Luego
introduzca un acoplador dentado de
1/4" en cada orificio.
4Conecte la línea de distribución/
suministro de 1/4" a cada acoplador
dentado y llévela hasta la base de cada
arbusto o árbol. Corte las tuberías a la longitud deseada.
IMPORTANTE: Una sola línea de distribución/suministro de 1/4" no debe
ser superior a 9 m.
Proyectos comunes
.
..
..
.
.
..
.
.
...
.
.
.
....
.
..
.
.
.
.
.
.
.
.
.
.
A
B
C
3
4
5Retire la tapa de extremo de 1/2" y abra el paso de agua para descargar la
línea de distribución/suministro de 1/2", luego coloque nuevamente la tapa
para descargar las líneas de distribución/suministro de 1/4".
6Agregue un gotero compensador de presión a cada línea de distribución/
suministro de 1/4". Utilice una estaca de tubo para sostener el gotero en su
lugar, junto a la base del arbusto o árbol.
Nota: Pueden ser necesarias más de
una línea de distribución/suministro
de 1/4" (con gotero compensador
de presión) para árboles grandes y
arbustos.
IMPORTANTE: No agregue más de
57 goteros compensadores de presión
de 7,5 LPH a una sola línea de dis-
tribución/suministro de 1/2".
A Estaca de tubo
B Gotero compensador de presión
C Línea de distribución/suministro de 1/4"
Accesorios necesarios:
- Tubería de distribución/suministro de 1/2" (pieza # 67345 ó 67346)
- Tapa de extremo de 1/2" (pieza # 67462 ó 69462)
- Estaca en “U” de 1/2" (pieza # 65731 ó 66731)
- Perforador (pieza # 67756 ó 69756)
- Acopladores dentados de 1/4" (pieza # 67402 ó 69402)
- Tubería de distribución/suministro de 1/4" (pieza # 67300, 67301 ó
67303)
- Estacas de tubo (pieza # 65721 ó 66721)
- Gotero compensador de presión (pieza # 67205, 69205, 67206 ó 69206)
5
66
Orbit®DripMaster®| Guía de instalación Orbit®DripMaster®| Guía de instalación
A
B
C
