Orbit 24723 User manual

Product Features
6. Once the start-up sequence is complete; create your timer
program.
7. Turn dial to AUTO
8. Slide timer onto a valve mounting bracket.
9. Turn on hose faucet.
Installation and Programming Instructions

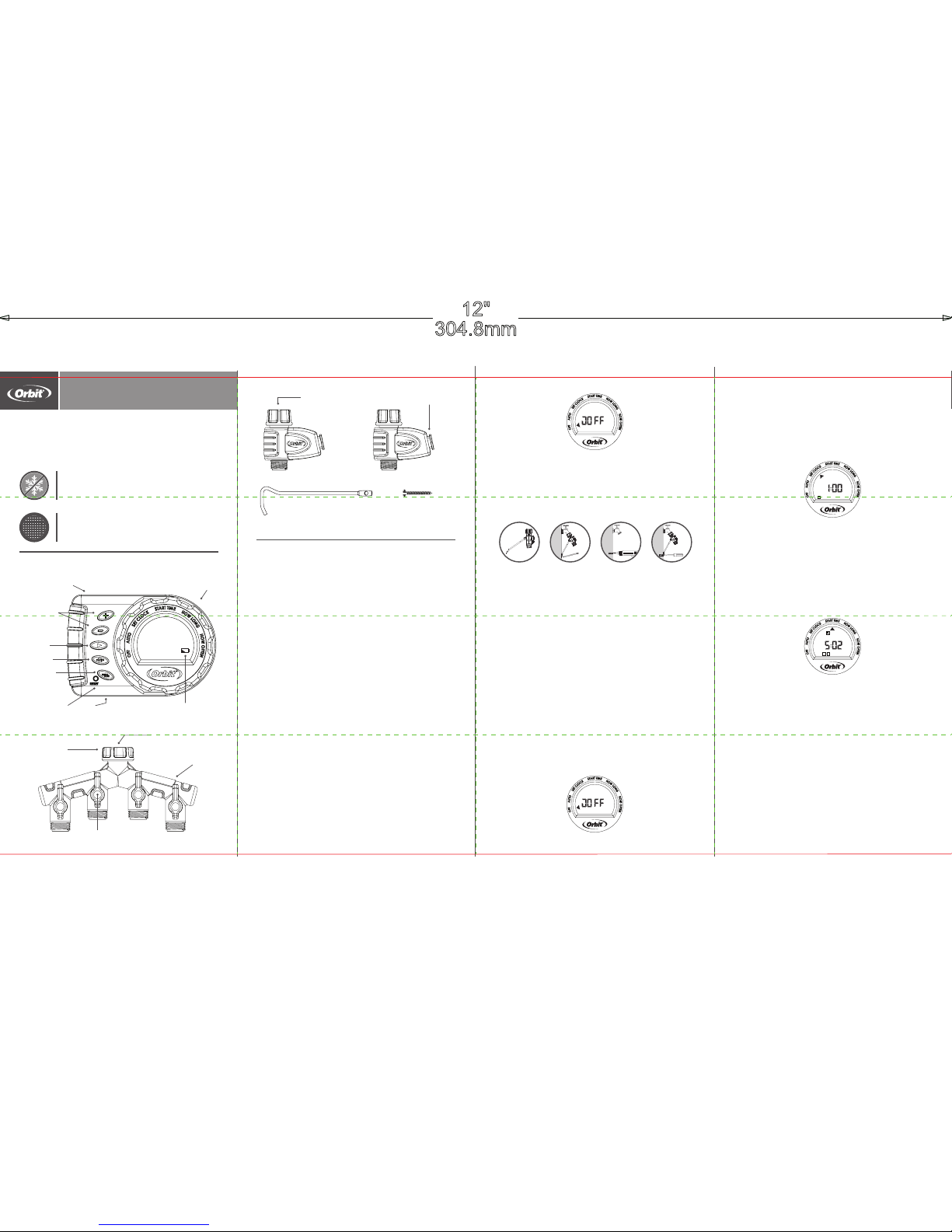

Mounting the Manifold
1. Attach support rod to manifold by inserting it into the two
mounting holes on the back of the manifold.
2. Mark where support rod touches the wall.
3. Drill a pilot hole using a ¼-in. drill bit.
4. Attach the support rod using the screw provided.
Installing the Batteries
1. Attach up to 4 valves to the manifold outlets (the valves are
electronically operated and must be attached to the timer
for proper operation). Open fully each of the shutos with
a valve attached.
2. Remove the plug and connect the wire from a valve to
one of the numbered ports on the back of the timer. The
numbers 1 through 4 are the “STATIONS” used while
programming your timer. Attach up to 4 valves.
3. Remove the tray on the side of the timer by sliding or
pulling it out.
4. Insert two AA (1.5V) alkaline batteries (not included) and
replace the tray.
Note: Firmly replace the battery tray to ensure water
resistance and increase battery life. You will know the battery
tray is fully inserted if it does not pull out easily. Used up or
dead batteries must be removed from the timer and disposed
of properly. Replace batteries when low battery icon appears
on display. Do not dispose of batteries in fire. Batteries may
explode or leak.
For Rain Delay Press + in Auto
MANIFOLD
MANUAL/
CLEAR
BATTERY TRAY DIAL
RESET LOW BATTERY INDICATOR
Printers are responsible for meeting print production requirements. Any changes must be approved by Orbit®.
Printed piece must meet designated specifications on this form. © 2014 Orbit Inc. This work is the property of Orbit®, and cannot be
used, reproduced or distributed in any way without their express permission.
Dieline PMS 0000
Fold PMS 0000
Product Coverage PMS 0000
Dims ./ Call out PMS 0000
∙ ∙ ∙ ∙
Orbit® 1.801.299.5555 orbitonline.com Glue
Folded Flat Additional Information
PRINTE RS ARE REQUIREDTO M ATCH ALL SPEC IFIED PMS COLORS.
K
DATE: 06/19/2015 DESIGNER: SH MARKETING: SW SOFTWARE: Adobe Indesign CS6 ARTWORK №: 24723-24 rB L:
W: H:
0.0" W:
H:3.0"
1.5"
12.0" 6.0"
Timer
When expecting freezing temperatures,
timers should be removed from the
hose faucet and stored indoors to avoid
potential freeze damage.
Filter traps dirt particles, prolonging
life of timer. Clean filter regularly and
replace if worn.
Important, please read!
+/
BUTTONS
ARROW
5. Please ensure that the valves are attached to the timer
before installing batteries. Once the batteries are installed
the timer will immediately begin a start-up sequence noted
on the screen by a circling icon.
6. Once the start-up sequence is complete you may begin
programming.
Programming the Timer
Set Clock and Day
1. Turn dial to SET CLOCK.
2. Using the +/- buttons, set the time of day, including AM
and PM. Timer advances faster if button is held down.
3. Press the ARROW button to set current day.
4. Press the +/- buttons to move between and select the
current day of the week. Press the ARROW button to toggle
back to the time of day.
5. Turn dial to save changes.
Start Time
A start time is the time of day that the timer will begin to
water. This timer features three start times.
1. Turn dial to START TIME.
2. Press the ARROW button to move through and select a
start time; A, B, or C.
3. Using the +/- buttons, set your first start time, including
AM and PM. Timer advances faster if button is held down.
A box is placed around each programmed start time.
4. Press the STATION button to move through and select
stations; 1-4. Only stations with connected valves are
shown. Press the + / - buttons to toggle a station on/o.
A box is placed around each selected station.
Note: To remove a start time press CLEAR.
5. Repeat steps 2-4 to program additional start times.
Note: Only one start time is required.
6. Turn dial to save changes.
Expandable
Watering Timer
STATION
SHUTOFF LEVER
NEXT START TIME
EVERY
STATION
MINS
S M T W T F S
AM
PM
HRSDAYS
INT
B C
RAIN
DELAY
1 2
FILTER
HOSE TAP
CONNECTION
FILTER
1 #14 ROUND
HEAD SCREW
1 7 ¼-in.
SUPPORT ROD
TIMER MOUNTING BRACKET
DIAL—Rotate the dial to customize your watering schedule
+/- Buttons—Use these buttons to adjust time and program.
While in AUTO press + to activate Rain Delay.
ARROW—Moves cursor around the screen during
programming.
STATION—Moves between Station 1 - Station 4
MANUAL/CLEAR—Press to water manually
or to clear programming
RESET—Press to reset back to factory settings
OFF—Turn o all watering
AUTO—Timer waters according to your customized schedule
SET CLOCK—Set the time of day
START TIME—Select what time you would like
to start watering
HOW LONG—Determine how long to water
HOW OFTEN—Choose how often you will water
Quick Start Guide
1. Attach manifold to an outdoor hose faucet.
2. Secure manifold to wall using the mounting hardware and
instructions provided.
3. Attach up to 4 valves to the manifold outlets. Open fully
each of the shutos with a valve attached.
4. Connect the wire from each valve to one of the numbered
ports on the back of the timer.
5. Install two AA alkaline batteries into the battery tray
(Remove the tray on the side of the timer by sliding or
pulling it out.)
Note: Please ensure that the valves are attached to the timer
before installing batteries. Once the batteries are installed
the timer will immediately begin a start-up sequence noted
on the screen by a circling icon.
1. 2. 3. 4.
S M T W T F S
PM
B C
1 2
4 PLUGS
(behind timer)

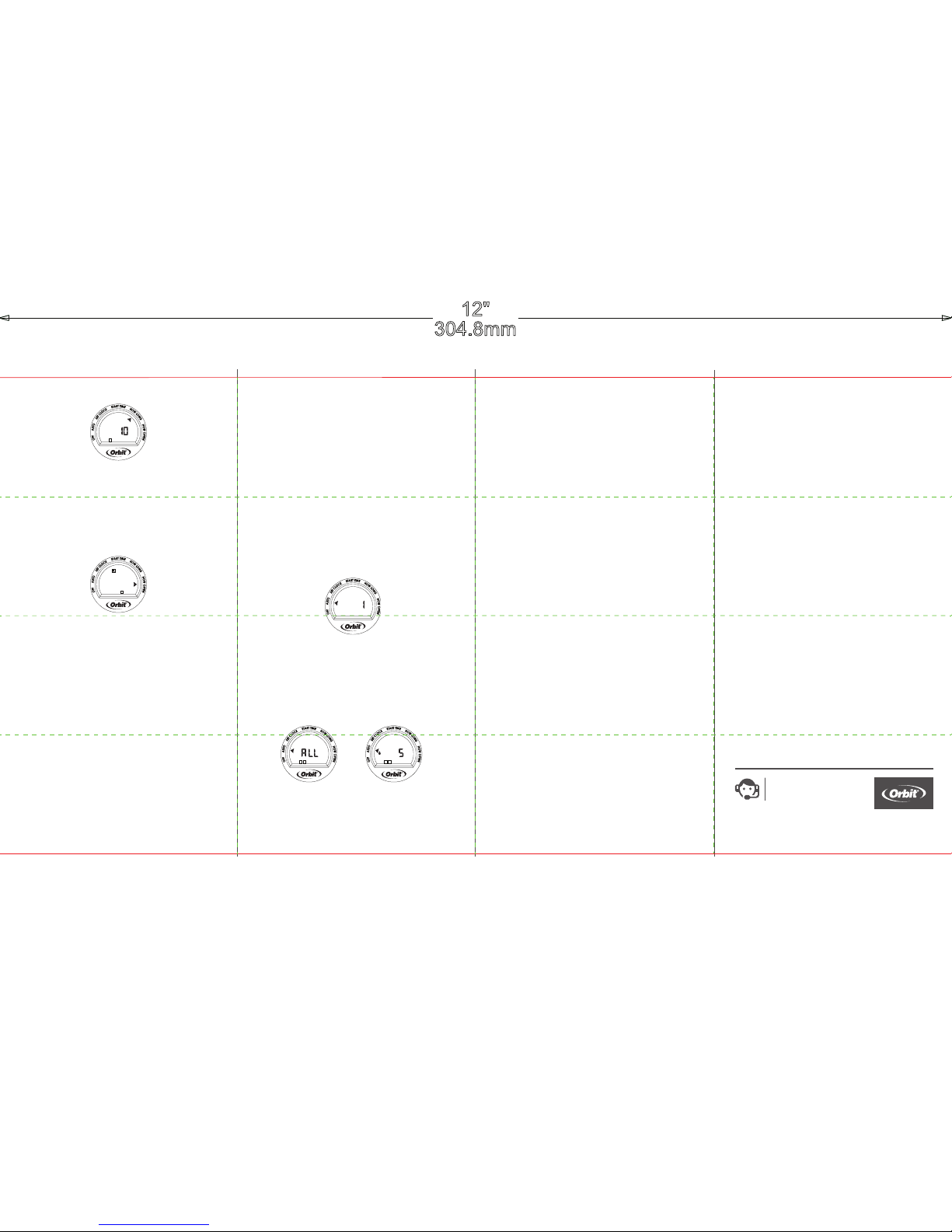

To manual water all stations as programmed:
• With the dial on AUTO, press the MANUAL button.
• ALL will be displayed and the timer will water all stations as
programmed.
To manual water specific stations or durations:
• With the dial on AUTO, press the MANUAL button.
• Press the STATION button to select desired station.
• Using the +/- buttons, select watering duration from 1 to
360 minutes.
Note: There may be a slight delay between the time the
manual button is pressed and when watering begins.
2. Screen will flash between clock and time remaining before
automatic programming resumes.
3. To stop manual watering, turn the dial to OFF.
4. Turn the dial back to AUTO to resume your programmed
watering schedule.
Troubleshooting
Water does not come on at desired time.
Check if:
• Manifold shutos are fully open where valves are attached.
• Clock is set to correct time, including AM and PM.
• Dial is set to “Auto”
• Start time is set to desired time, including AM and PM.
• Rain Delay is on.
Timer does not water.
Check if:
• Manifold shutos are fully open where valves are attached.
• Timer is set to AUTO.
• Hose faucet is on.
• Batteries are low.
• Clock is set to correct time, including AM and PM.
• Rain Delay is on.
Water won’t turn o.
Check if:
• HOW LONG is set to desired time.
• HOW OFTEN is set to desired interval hour or day.
• Valve was just added without start-up sequence.
Working water pressure:
• Minimum: 10 psi
• Maximum: 100 psi
Working temperature:
• Maximum: Do not exceed 120°F
• Minimum: Keep from freezing
Warnings:
For outdoor use with cold water only.
Not for use with appliances.
Operates up to 100 psi.
Add or Replace Valves
1. Turn o hose faucet.
2. Slide timer o of valve mounting bracket.
3. Attach up to 4 valves to the manifold outlets (the valves are
electronically operated and must be attached to the timer
for proper operation). Open fully each of the shutos with
a valve attached.
4. Remove the plug and connect the wire from a valve to
one of the numbered ports on the back of the timer. The
numbers 1 through 4 are the “STATIONS” used while
programming your timer. Attach up to 4 valves.
5. Turn the timer dial to OFF. Once the timer is OFF the timer
will begin a start-up sequence noted on the screen by a
circling icon.
6. Once the start-up sequence is complete you may begin
programming the new valve(s).
7. When programming is complete turn the dial to AUTO to
allow your timer to water according to programmed time,
station, duration, and frequency.
8. Slide timer onto a valve mounting bracket.
9. Turn on hose faucet.
Additional Features
Rain Delay
Rain delay allows you to postpone watering for a set period of
time. To access the rain delay, follow the steps below.
1. With the dial on AUTO, press the + button to select a delay
of 1 to 7 days.
2. Screen will flash between clock and hours remaining
before programmed cycle resumes.
3. To remove rain delay, turn dial to OFF and then back to
AUTO.
Manual/Hand Watering
This feature allows you to manual water without interrupting
your set schedule. To access this feature, follow the steps
below.
1. There are two ways to manual water: all stations as
programmed or selected stations.
How Long
1. Turn dial to HOW LONG.
2. Press the STATION button to move through and select
a station; 1-4. Only stations with connected valves are
shown. A box is placed around each selected station.
3. Using the +/- buttons, select watering duration from 1
to 360 minutes for each desired station. Timer advances
faster if button is held down.
Note: To remove a watering duration press CLEAR.
4. Turn dial to save changes.
How Often
1. Turn dial to HOW OFTEN.
2. Press the ARROW button to move through and select a
start time A, B, and/or C.
3. Press + or – button to move the cursor down to select Days
of the Week or Interval watering frequency.
4. There are two ways to set your watering frequency for
each start time; Days of the Week or Interval.
Days of the week–Select specific days you want to water:
• Using the ARROW button move to the desired day.
• Press the + / - buttons to toggle the day of the week on/o.
• Select any combination of days.
Interval–Select an interval period you want to water:
• Using the ARROW button move to INT.
• Press the + / - buttons to cycle through each interval.
You may choose to interval water 1 to 7 days.
5. Repeat steps 2 and 4 to program watering frequency for
additional start times.
6. Turn dial to AUTO.
7. Slide timer onto a valve mounting bracket.
8. Turn on hose faucet.
Congratulations!
Your timer is now programmed. Turn the dial to AUTO to allow
your timer to water according to programmed time, station,
duration, and frequency.
© 2015 Orbit Irrigation Products, Inc.
All rights reserved. All trade names are registered
trademarks of respective manufacturers listed.
Orbit
®
Irrigation Products, Inc.
North Salt Lake, UT 84054
PN 24723-24 rB
Customer Service
1-800-488-6156
orbitonline.com
