Orchard-Rite 1700 User manual

Part No. 129559 rev. 0
Contains Some Maintenance Information
1700 Shaker - Operator’s Manual
Two-Piece Shaker

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
2
1700S Operator’s Manual
orchard-rite.com
Table of Contents
New Machine Sales Agreement 3
Limited Warranty 5
Introduction 6
Machine Characteristics 9
Safety Precautions 10
DO’s and DO NOT’s of Operation and Maintenance 11

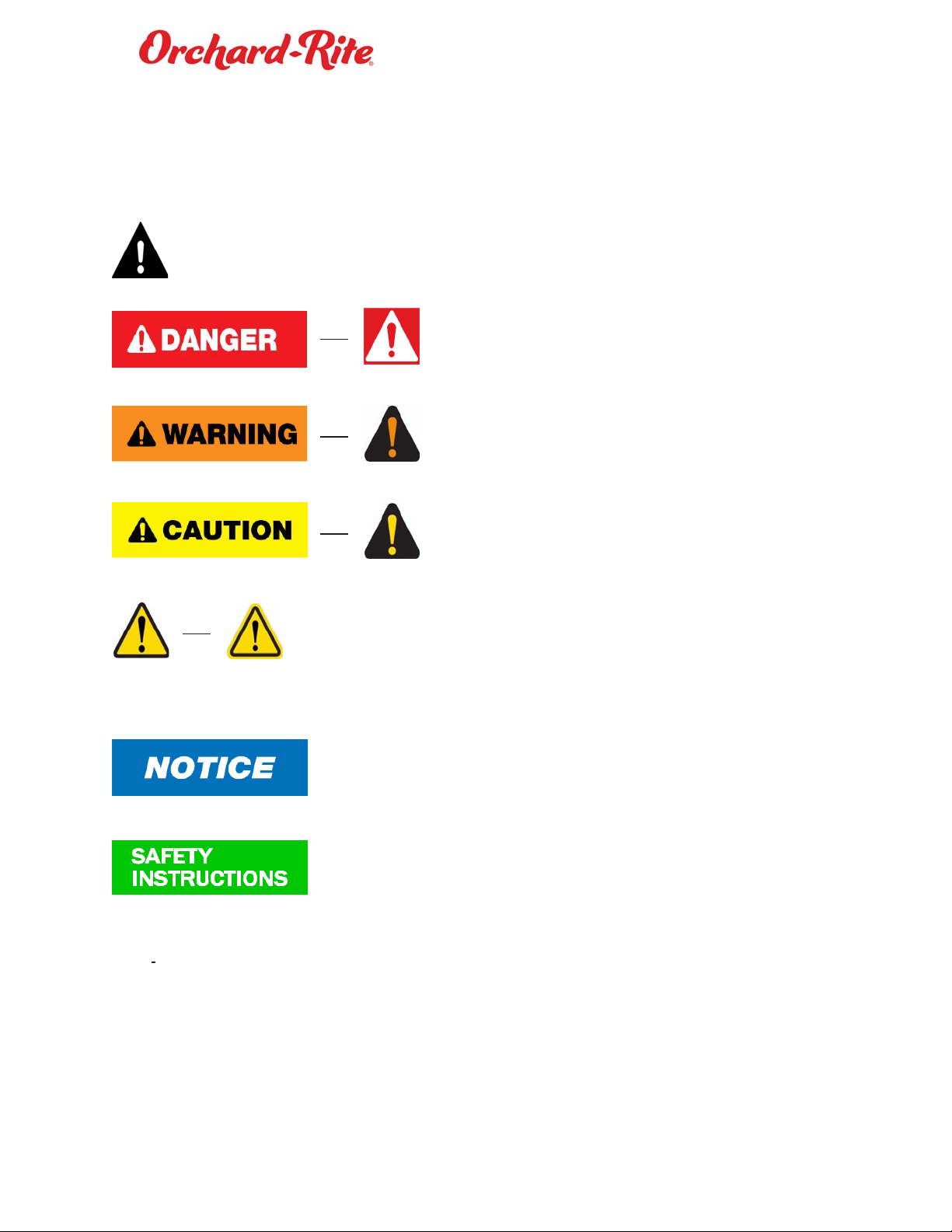

Hazard Classication 12

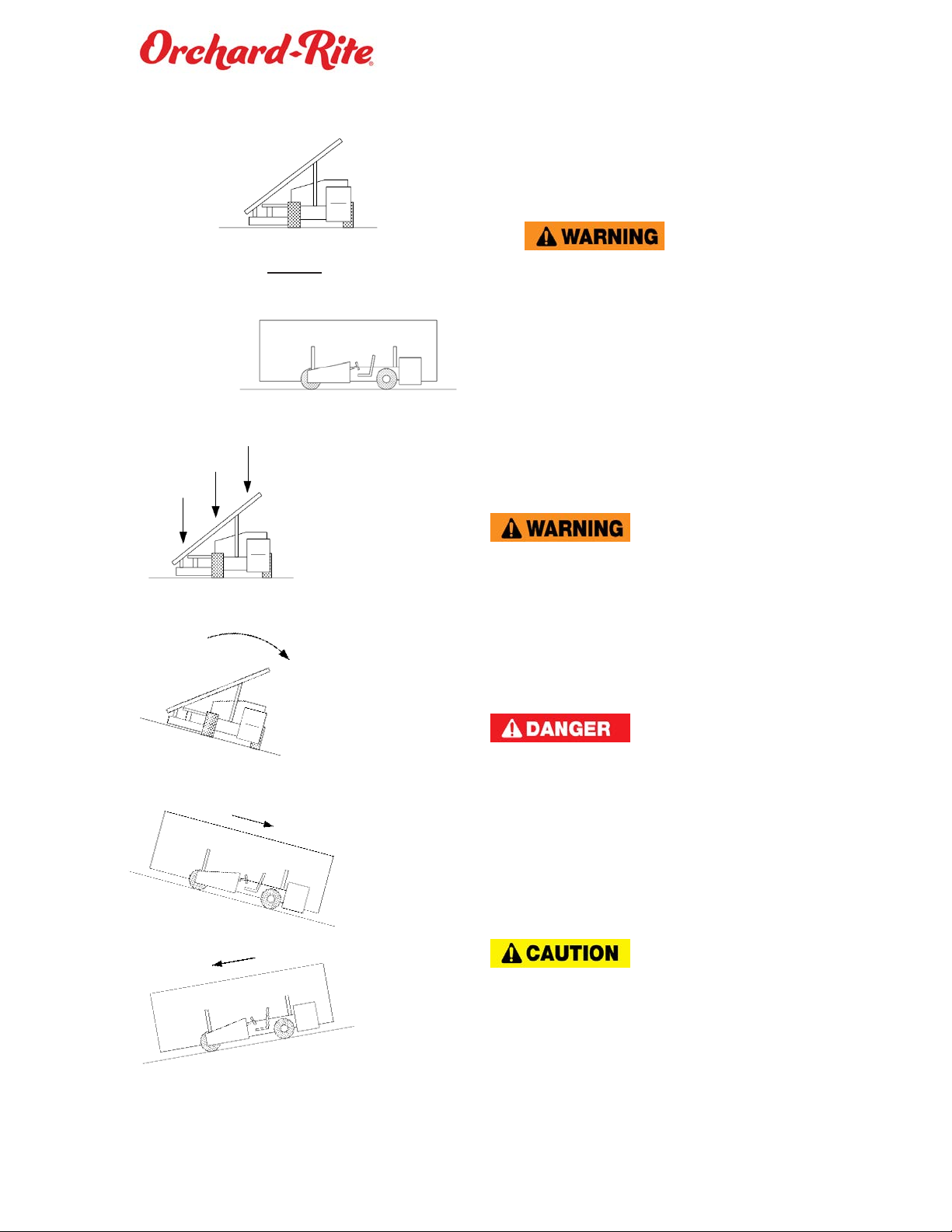

Driving Hazards 13

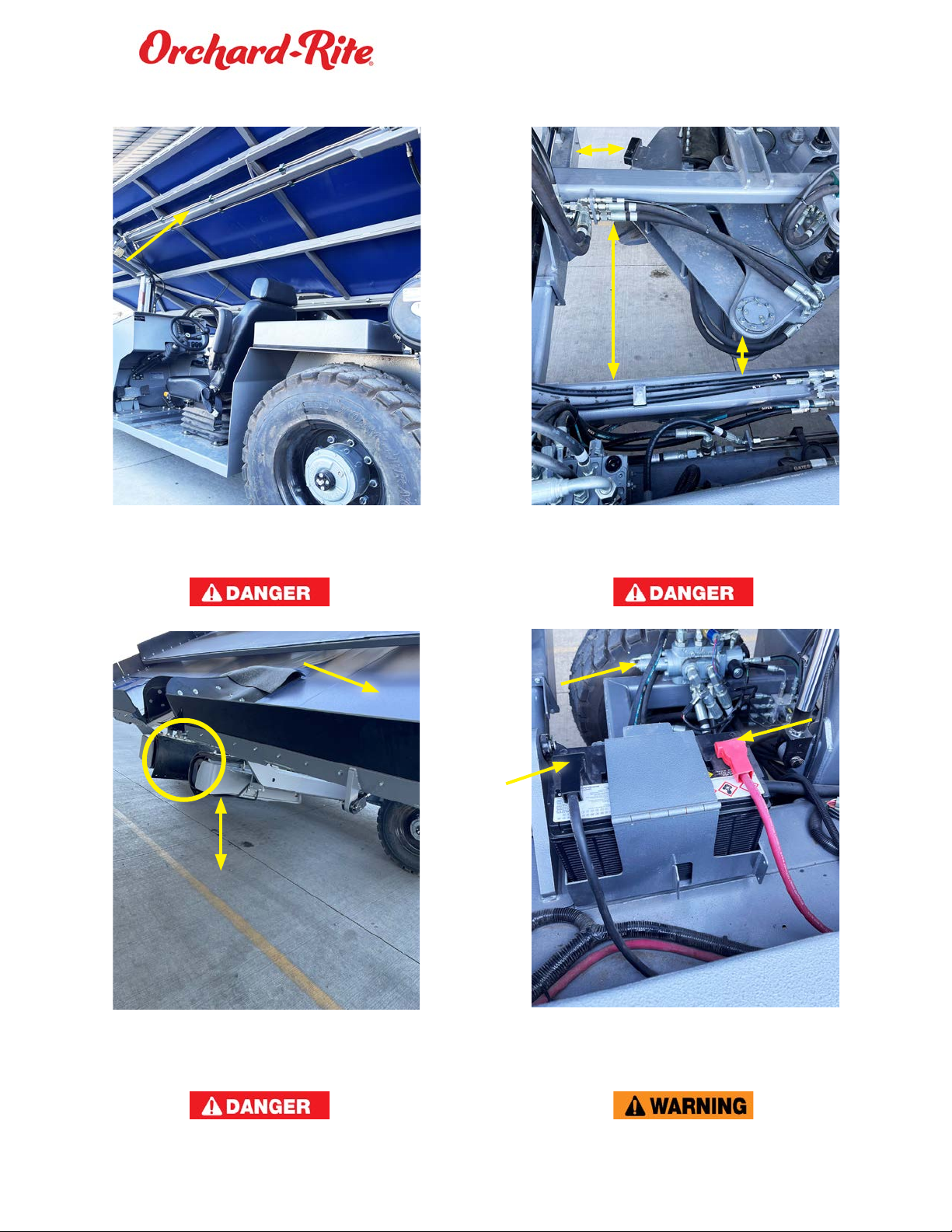

Hazards 14

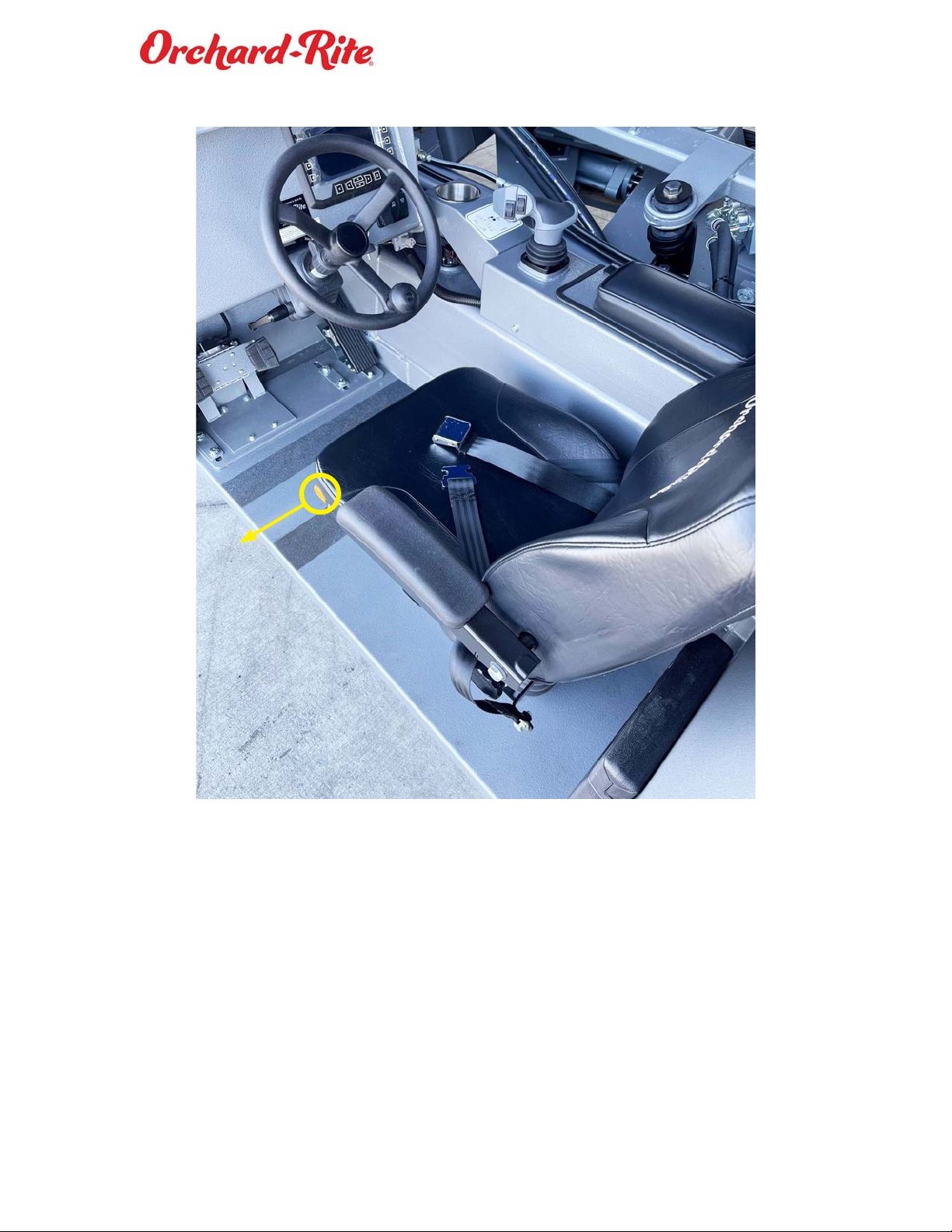

Cab Area 15
Dashboard Features/Fuse Panel 16
Joystick Decal and Foot Controls 17
Display Panel - Main Run Screen 18
Display Panel - Main Run Screen Part Two 19
Display Panel - Main Run Screen Part Three 20
Display Panel - Engine Information Screen 21
Display Panel - Hydraulic Pressure Screen 22
Display Panel - Settings Pass Code Screen 23
Display Panel - Settings Menu Screen 24
Display Panel - Pedal Calibration Menu Screen 25
Display Panel- Shake Settings Menu 26
Display Panel - Variable Shake Settings Menu 27
Starting and Operating the Orchard-Rite® 1700S 28
Regen Switch/Wait to Disconnect Light 29
Maintenance and Service Schedule 30
Engine Service Specications 31
Fluid Locations 34
Grease Locations 35
Tie Down/.Jack Placement Locations 36
Legal Notices 38

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
3
1700S Operator’s Manual
orchard-rite.com
New Machine Sales Agreement
1. Pacic Distributing, Inc., (Company) warrants the original equipment product
manufactured by Orchard-Rite, Ltd., Inc. (the “Company Product”) will be free of any
defects in material and workmanship from the date of delivery until one (1) year
following the date of delivery or for a period ending after 500 hours of use, whichever
shall rst occur. Certain structural components of the Company Product, as described
below, are warranted from the date of delivery until two (2) years following the date
of delivery or for a period ending after 1,000 hours, whichever shall rst occur. These
structural components are limited to: chassis main frame weldment less sheet metal
and any bolted on accessories, boom weldment, steering weldment less sheet metal, tilt
section/suspension weldment, head case and clamp arm weldment.
2. THE WARRANTIES SET FORTH HEREIN ARE IN LIEU OF AND TO THE EXCLUSION OF
ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,
ANY IMPLIED WARRANTY AS TO THE MERCHANTABILITY OR FITNESS OF THE PRODUCT
FOR A PARTICULAR PURPOSE OR AS TO ITS PERFORMANCE. Any statement, description
or specication in the Company’s literature is for the sole purpose of identication of
products sold by the Company and imparts no guarantee, warranty or undertaking by
the Company of any kind.
3. Upon satisfactory proof by the buyer to the Company that a defect in material or
workmanship occurred within the warranty period, as described in Section 1 above, the
Company shall at its election, repair or replace any such defect as the sole and
exclusive remedy as to Company Products only.
4. The warranties created herein shall not extend beyond the repair or replacement of
the component parts of Company Products. Components and accessories which are not
component parts of the Company Products are not included in this warranty but may be
warranted separately by their respective manufacturers.
5. The Company shall not warrant all or any component parts of its Company Products
which have been, misused, abused, altered, modied, negligently operated, damaged
by virtue of an accident, due to lack of service, or repaired or altered in any manner by
anyone other than an authorized service representative.
6. The Company shall not warrant high wear items including, but not limited to the
following: belts, extension cylinder, hoses, suspension mounts, slings, clamp cylinders,
shaker pads, tires, conveyor belts, decking tarps, tree seals, and other high wear items
associated with the deck assembly.
7. The timeliness of all warranty work provided is contingent upon and subject to the
Company’s ability to obtain the necessary labor and materials. No warranty of timeliness
of performance of the warranty work is made by the Company nor shall be implied.
8. Any attempt to modify the Company Product in any manor will result in the voiding of
all warranties. Buyer acknowledges that any such modication may create a hazardous
condition.

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
4
1700S Operator’s Manual
orchard-rite.com
New Machine Sales Agreement
9. The Company shall, pursuant to the terms of the limited warranty described herein,
provide free of cost to the Buyer, labor associated with warranty work performed during
normal business hours. Any Warranty work requested to be performed by Buyer outside
of the Company’s normal business hours is subject to charge to the customer at the
Company’s then current over time rates.
10. The Company generally and specically disclaims all liability for injury to person or
damage to property arising out of the operation of Company Products. The Company
shall not be liable for damages of any kind from any cause whatsoever including loss of
income and/or crop loss or damage due to equipment down time. UNDER NO
CIRCUMSTANCES SHALL COMPANY BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR OTHER SIMILAR DAMAGES INCLUDING,
BUT NOT LIMITED TO, DAMAGE TO PROPERTY, LOSS OF PROFIT, LOSS OF BUSINESS OR
ANY OTHER LOSS BY BUYER OR ANY THIRD PARTY. Buyer’s sole recourse is limited to
repair or replacement of the Company Product upon the terms and conditions provided
in the limited warranty described herein.
11. The Company reserves the right to modify and/or alter the design or manufacture of
any of its Company Products at any time without incurring any obligation to the Buyer
to modify and/or alter units previously sold.
12. This Sales Agreement and Limited Warranty (the “Agreement”), and any dispute arising
from the relationship between the parties to the Agreement, shall be governed by
California law, including any laws that direct the application of another jurisdiction’s
laws. Any dispute that arises under and/or relates to the Agreement, whether in
contract, tort, by statute or other theory, shall be submitted to the jurisdiction of the
federal or state courts located in the State of California.
13. Buyer and the Company intend this Agreement to be the nal expression of the terms
of their agreement and further intend that this writing be the complete and exclusive
statement of all the terms of the Agreement.

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
5
1700S Operator’s Manual
orchard-rite.com
Limited Warranty
1. Used equipment is sold AS-IS WITH ALL FAULTS, and is sold without any express or
implied warranty provided by the Company or any of its agents unless stipulated to in
writing under the special warranty section immediately following this section.
2. The Company Disclaims:
• All warranties of title or the Company’s right to transfer the goods;
• All warranties that the goods will be free from security interest, liens or other
encumbrances: and
• Any warranties relating to the Buyer’s undisturbed possession of the goods. These
disclaimers apply whether the warranties arise under California Commercial Code
section 2312(1), from expressions of the Company by implication, or under the
common law. The Company assumes no responsibility for defending whatever
interest is conveyed.

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
6
1700S Operator’s Manual
orchard-rite.com
Introduction
We would like to welcome you as a new owner of our highly advanced
Orchard-Rite® 1700S® Tree Shaker. Your Orchard-Rite® Tree Shaker is backed by years of
hands-on experience, research, development, and testing. You will nd that your
Ochard-Rite® Tree Shaker is engineered and manufactured with the highest quality
components available to our industry.
The combination of the Caterpillar® four-cylinder engines, along with the electronically
controlled Sauer-Danfoss® hydraulic components, result in a machine that is powerful, fuel
efcient and retains the Orchard- Rite® tradition of reliability and serviceability.
We encourage you to read this operator’s manual in its entirety, and to review its contents
with all of your operators and service personnel before placing the tree shaker into service.
If the operator cannot read English or if the manual cannot be translated, DO NOT ALLOW
THE INDIVIDUAL TO OPERATE THE MACHINE. In that circumstance, a qualied translator
should review the entire contents of this operator’s manual with the operator, making sure
to review all safety precautions. The safety precautions should be read by all personnel
who might encounter the Orchard-Rite® 1700S® Tree Shaker.
Should questions arise regarding the operation or maintenance of your Orchard-Rite®
1700S® Tree Shaker, please be sure to contact your authorized Orchard-Rite® Tree Shaker
dealer. For a current list of dealers, please visit orchard-rite.com.
Thank you for choosing the Orchard-Rite® 1700S® Tree Shaker. We
sincerely appreciate the trust you have placed in us to aid in your orchard harvest needs. At
Orchard-Rite® we continue to look to the future to bring new ideas in orchard technologies
to our growers, and to continue as the industry leader in tree shaker innovations.

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
7
1700S Operator’s Manual
orchard-rite.com
Introduction
Manufactured by:
Orchard-Rite®Ltd. Inc.
1615 W. Ahtanum Rd.
Union Gap, WA 98903
United States
[phone]
Authorized Representatives:
Pacic Distributing, Inc.
PDI Selma PDI Chico
1029 Valley View Ct. 3195 Durham/Dayton
Selma, CA 93662 Chico, CA 95928
United States United States
(559) 96-3222 [phone]
PDI Hughson PDI Shafter
5724 E Whitmore 128 S Beech Ave
Hughson, CA 95326 Shafter, CA 93263
United States United States
[phone] [phone]
This Operator’s Manual Applies to Orchard-Rite® 1700S Two-Piece Shakers with the
following features:
Engine:
• Caterpillar C3.4B: 1700S Serial Number: 17SA3.4/22-01 3.4, up to and including
17SA3.4/22-06 3.4
OR
• Caterpillar C3.6: 1700S Serial Number: 17SA3.6-2307 and up
Software Download:
• P3532AT01707R01D01
Display:
• P3572AT01557R02D01

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
8
1700S Operator’s Manual
orchard-rite.com
Introduction
Bulletin Distribution Notice
Various bulletins are used by Orchard-Rite® to communicate important safety and product
information to dealers and machine owners. The information contained in the bulletins is
tied to specic machines using the machine model and serial number. Upon receiving your
Orchard-Rite® machine, be sure to ask your dealer if there are any relevant bulletins
pertaining to your machine, and be sure to read and comply with bulletins if applicable.
Contacting your Dealer
Should the need arise to contact your Orchard-Rite® dealer, be ready to supply the model
number and serial number of your machine, along with your name and contact information.
Your dealer should be contacted for, at minimum, for:
• Accident reporting
• Questions regarding product applications or safety
• Standards and regulatory compliance information
• Current owner updates, such as changes in machine ownership, or changes in owner
contact information.

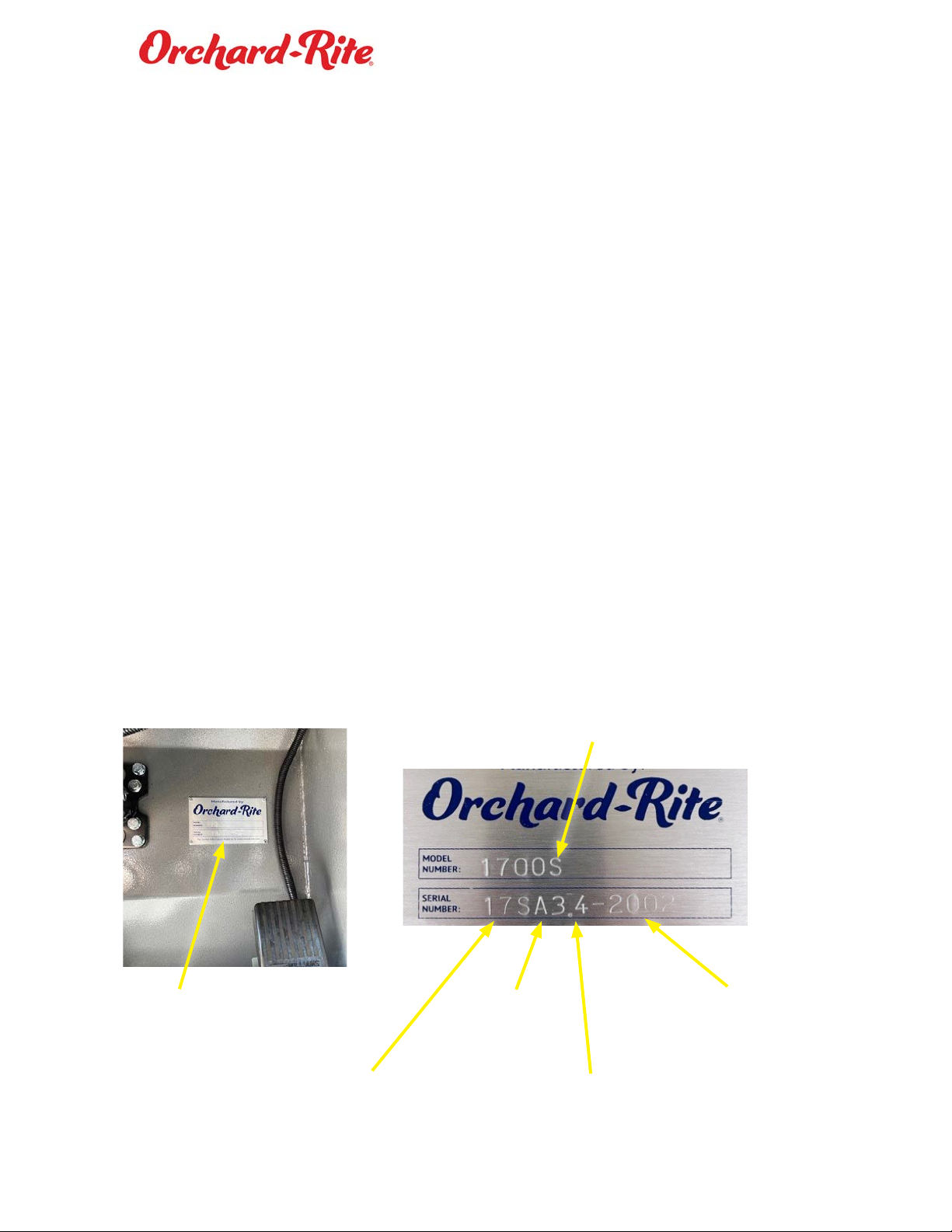

Locating The Model and Serial Number
For the 1700S, the nameplate containing the model and serial number is located to the
right of the steering column and above the throttle pedal in front of the driver seat.
Engine
Identier
Planetary Drive
Identier.
A = Auburn Gear®
R = Rexroth®
17S = 1700 Series
Shaker
1700S = 1700 Series
Shaker
Nameplate Serial Number: The rst two
digits are the model year. The
last two digits are the production
unit sequence

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
9
1700S Operator’s Manual
orchard-rite.com
Machine Characteristics
Weight 14,000 lbs. / 6350 kg
Height (Canopy Collapsed) 2.74 m / 9 ft. 3 in. (approx)
Height (Canopy Extended) 3.09 m / 10 ft. 2 in. (approx)
Width (Head Retracted, Deck Collapsed) 2.74 m / 9 ft. 2 in. (approx)
Width (Head Extended, Deck Extended) 3.53 m / 11 ft. 7 in. (approx)
Length 24’ / 7.31 m
Boom Stroke 3’ / 0.9144 m
Wheelbase 10’4” / 3.12 m
Tire Size 33L x 15.5, 14 ply
Engine CAT 3.6L 120 HP or CAT 3.4L 120 HP
Drive Fully Hydrostatic with 3 seperate wheel motors
Electric Power 12 V DC
Noise Emissions 85< dB during shake cycle in operator seat
(hearing protection required for operation)
Head and Canopy Collapsed. Head and Canopy Extended.

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
10
1700S Operator’s Manual
orchard-rite.com
Safety Precautions
Before operating this equipment, READ this entire manual carefully.
• The operator MUST be familiar with all of the controls and their functions before
attempting to start or run the equipment.
• NEVER operate the equipment while under the inuence of alcohol or drugs, during
times of illness, or while using medication that could impair hearing, vision, or good
judgement.
• All personnel except the operator MUST stay 75 feet/23 meters away from the
equipment before it is started or operated.
• The operator MUST NOT leave the operator’s seat while the equipment is running.
• NEVER stand or place any part of your body under the shaker head, even if the engine is
not running.
• If you are approaching the equipment while the engine is running, be SURE that the
operator sees you and shuts the engine off before you approach.
• NEVER operate the equipment if the operator’s vision becomes obscured for any reason.
Be sure to correct the problem before continuing operation.
• ALWAYS STOP AND LOOK behind you BEFORE backing up or turning right.
• This equipment is NOT to be driven on public roads.
• To avoid serious injury or death, ALWAYS lower the shaker head to the ground before
shutting the equipment down.
• STOP all movement of the equipment, lower the head, shut the engine off and remove
the ignition key BEFORE maintenance or repair work is started.
• NEVER use the machine to transport additional personnel or equipment it is not
designed for.
• NEVER work beneath the machine unless the engine is shut off, on level ground with
the wheels and shaker head blocked, with the ignition key removed.
BE ALERT. THE INJURY YOU PREVENT OR LIFE YOU SAVE MAY BE YOUR OWN.

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
11
1700S Operator’s Manual
orchard-rite.com
DO’s and DO NOT’s of Operation and Maintenance
Listed below are a few of the “DO’S AND DO NOT’S” which pertain to both the operation
and upkeep of your Orchard-Rite® Tree Shaker.
DO read and understand this operator’s manual before operating the tree shaker.
DO follow the maintenance schedule included in this manual.
DO change and/or rotate the tree shaker pads frequently to minimize heat in the pads and
slings.
DO allow oil in the engine and hydraulics to warm before operating the tree shaker.
DO stop and look before backing up and/or turning right.
DO observe the tree before, during and after shaking for signs of barking or other damage.
DO NOT Continue to operate the shaker if multiple trees are damaged. Contact your local
service rep.
DO NOT grease the slings. This tree shaker is equipped with an automatic liquid sling
lubricating and cooling system.
DO NOT use grease on any of the wear plates.
DO NOT skip the daily or scheduled maintenance routine.
DO NOT set clamp pressure above 1900 psi or below 1700 psi.
DO NOT operate the tree shaker if uid levels are low.
DO NOT engage the parking brake while the tree shaker is in motion.
DO NOT run the tree shaker head at high rpm when not attached to a tree.
DO NOT operate the tree shaker without all doors and covers securely in place.
DO NOT attempt to maneuver the tree shaker head or machine while clamped to a tree.
DO NOT push or tow the tree shaker.
DO NOT weld on the wheel rims.
DO NOT climb on the canopy.

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
12
1700S Operator’s Manual
orchard-rite.com
Hazard Classication
This manual and decals on the machine use the following symbols, color coding, and signal
words to identify the following:
OR
OR
OR
Indicates a hazardous situation that, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
Indicates a type of safety sign, or a seperate panel on a safety
sign, where specic safety-related instructions or procedures are
described.
Indicates a hazardous situation that, if not avoided,
will result in minor or moderate injury.
Indicates information considered important, but not hazard
related.
Safety alert symbol: used to alert personnel to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
OR For use with DANGER, WARNING, or CAUTION signal words. These
allow for consistency with certain ISO standards.
Note: The location and/or use of these symbols, color coding, and signal words are subject
to change at any time.

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
13
1700S Operator’s Manual
orchard-rite.com
Driving Hazards
Potential for rollover hazard while traversing
steep grades.
Potential for injury due to falling debris during harvest.
Potential for tires slipping while travelling
up or down steep grades.
Operator must be aware of limited sight and blind
spots around canopy while driving and operating.
ENSURE ALL AREAS AROUND MACHINE ARE CLEAR BEFORE MACHINE OPERATION.
And/or
LIMITED OR
NO VISIBILITY
LIMITED OR
NO VISIBILITY
LIMITED OR
NO VISIBILITY

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
14
1700S Operator’s Manual
orchard-rite.com
Hazards
Potential overhead hazard under the canopy. Potential crushing hazard where clamp arm
opens against boom, and where head retracts
towards the frame.
Potential crushing hazard where head and canopy
lower toward the ground. Potential crushing
hazards around head and canopy openings.
Do NOT climb on canopy.
Potential electrical hazard from battery, and
potential oil splashing hazard from diverter
valve.

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
15
1700S Operator’s Manual
orchard-rite.com
Cab Area
11..
55..44..
77..
88..
99..
22..
33..
10.10.
11.11.
12.12.
1. Seat forward/rear adjustment. Pull lever in direction illustrated by arrow to adjust.
2. Moveable arm rest.
3. Mount location for re extinguisher, if desired.
4. Seat backrest adjustment.
5. Document container.
6. Seatbelt.
7. Arm rest/storage area.
8. Joystick.
9. Joystick instruction decal.
10. Control screen/ignition/light switches/accessory.
11. Steering wheel.
12. Foot pedal assembly.
66.

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
16
1700S Operator’s Manual
orchard-rite.com
Dashboard Features/Fuse Panel
Fuse panel and air lter access behind
driver seat.
11..
22..
33..44..55..
1. Touch screen display/control panel.
2. Ignition switch.
3. Headlight.
4. Shaker head working light.
5. USB port.

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
17
1700S Operator’s Manual
orchard-rite.com
Joystick Decal and Foot Controls
1.2.3.
1. Drive machine forward.
2. Drive machine reverse.
3. Engine Throttle Pedal.
Depress button on bottom of joystick
to extend/retract upper deck.

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
18
1700S Operator’s Manual
orchard-rite.com
Display Panel - Main Run Screen
Toggle Tree
Counter/Timer
Toggle Manual/Auto
Open/Retract
View Machine
Faults
(ashes when faults
are present)
Toggle Between
Set/Foot Throttle
Toggle Between
Field/Road Speed
Toggle Parking
Brake
Description:
From this screen, the operator can set throttle and eld/road speed functions. To operate
the HydraShake™ and AccuShake™ functions, press the Settings Screen icon (see page 26
for setting screen location).

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
19
1700S Operator’s Manual
orchard-rite.com
Display Panel - Main Run Screen Part Two
Select V-Shake
Preset Set Throttle
Icons change while in Variable
Shake Mode
Throttle
Adjustment
Manual
Auto Open
Auto Retract
Tap to Cycle
Options

ORCHARD-RITE®, 1700S®, and WETHEAD® are trademarks of Orchard-Rite® Ltd. Inc.
All Rights Reserved.
Part No. 129559.0
20
1700S Operator’s Manual
orchard-rite.com
Display Panel - Main Run Screen Part Three
Engine
Hours
Engine Info
Press to Display
Hydraulic
Pressure Screen
*Blinking Icon = Low Hyd. Oil Level
Settings Screen
Press to Adjust
Fuel Gauge
Engine Coolant
Temperature
Diesel Exhaust Fluid
(DEF) Level
Traction Lock
(If Equipped)
Engine RPM
Arrow Keys used to adjust:
1. Idle in Foot Throttle Mode.
2. Throttle Speed in Set Throttle Mode
