Ordica SWIFT User manual
1.
YOUR ORDICA SWIFT
ORDICA SWIFT 26 INCH MIXIE/HYBRID - AVAILABLE IN RED/CHARCOAL/PALE BLUE
1. INTRODUCTION
For your safety and for the safety of others, we recommend that you obey all
road regulations and wear a protective helmet. For optimal, safe and enjoyable use
of your e-bike, make sure you thoroughly read this user guide before you first ride.
Have a pleasant ride
2. GENERAL INFORMATION
BIKE COMPONENTS
Frame Material
Aluminum 6061 Alloy Mixie *420MM / Hybrid *460MM
Fork
Suspension Fork
Gearing
Shimano 7 Speed
Crankset
42T Crank Set
Shifters
Shimano Shifter
Rear Derailleur
Shimano Tourney
Brakes
Tektro Disc
Rim
26 Inch
Tyres
CST ZEPPELIN 26x2.0
Freewheel/Cassette
Shimano
Handlebars
City CM-5
Stem
Quick Adjustable
Grips
Comfort Grips
Seatpost /Saddle
Alloy/Plush Saddle
Pedals
Trekking Pedal
Weight
22.9kg Including Battery
ELECTRICAL COMPONENTS
Display Unit
LCD Multi Function Display
Motor
200W Rear Drive
Drive/Sensor
Candice Sensor
Battery
DLI 36V 10.4Ah Li-Ion
Range Performance
Depend on Level of Motor Assist. Range 40~60km
Maximum Speed
25~27kph with Power Assist
Charging Time
2-6 Hours Depending on Battery Level Indicator
WARRANTY
Frame
3 Years
Battery & Motor
1 Year
Bike Parts & Components
1 Year
3. ORDICA DISPLAY PANEL
Features:
- Multi function display panel.
- High Quality contrast matrix screen.
- Suitable for High & low temperature. Max +45/-10”C
- Ergonomic external button design, easy to operate, water resistance
-Speed display : AVG SPEED, MAX SPEED, SPEED(Real-time).
- Kilometer: speed display in KM.
- Battery indicator : Provide approx battery level indicator.
- Up to 5-level Assist : 5-level motor assist mode.
- Mileage indicator : Odometer/Trip distance/Riding time.
- Power indicator : real time power indicator, digital / analog.
- Error code indicator.

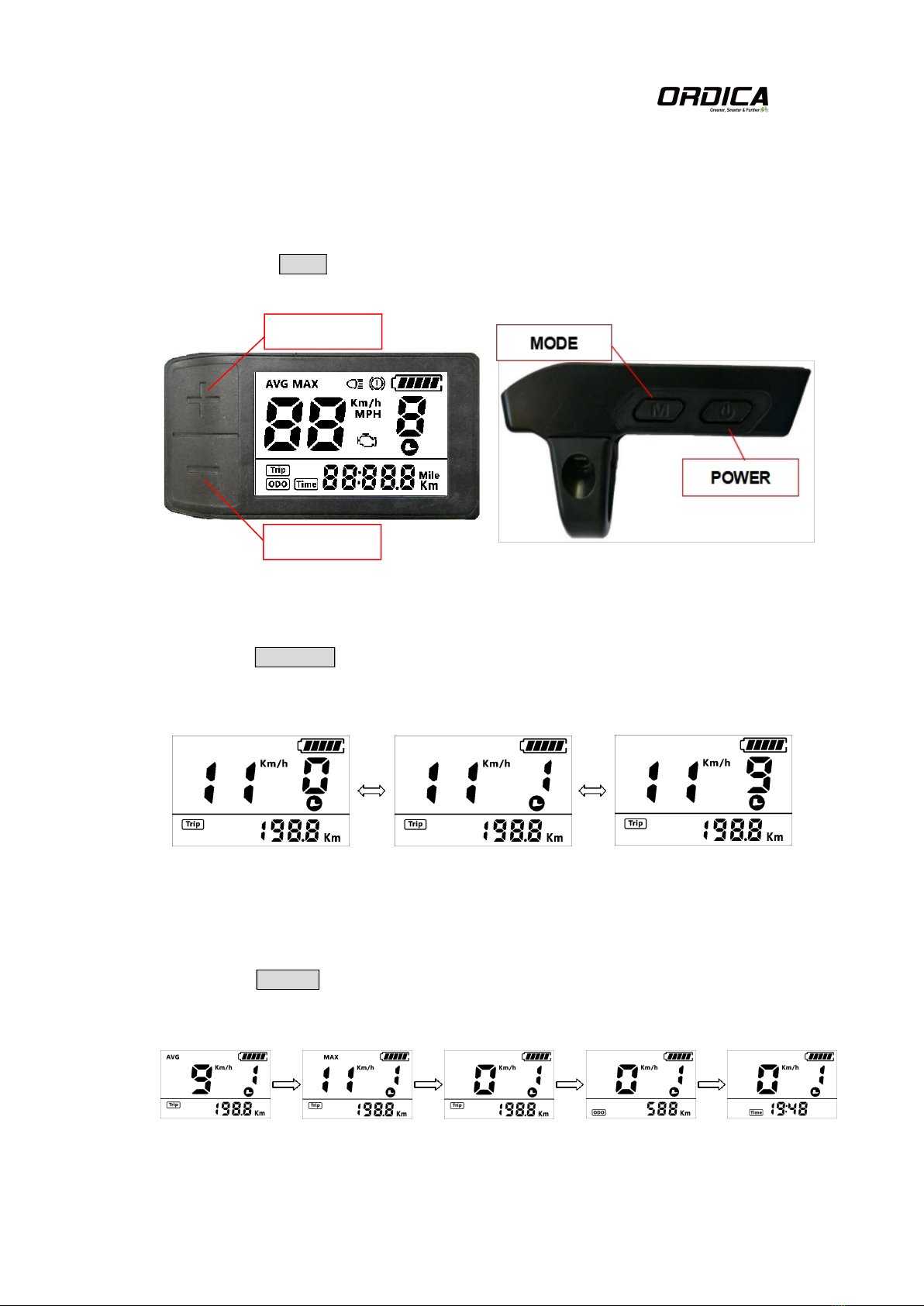

3.DISPLAY PANEL FUNCTIONS
3.1 Power On/Off
Press and hold Power button for 1 second to turn on/off the display. The Display
will automatically turn off when there is no operate & ride for 5 minutes.
3.2 Motor Power Assist Level
Short press UP/DOWN button will change the motor assist level. Top assist level is
9, 0 for neutral. Level options can be adjusted according to the rider requirements.
3.3 Speed & Mileage Mode
Short press MODE button will change the speed and mileage mode, AVG SPPED→
MAX SPEED→TRIP →ODO→TIME.
**If there is no operation for 5 seconds, display will return to Speed (Real-Time) display automatically.
DOWN
UP
UP
3.4 Backlight On/Off
Press and hold button for 1 second will turn on/off the backlight.

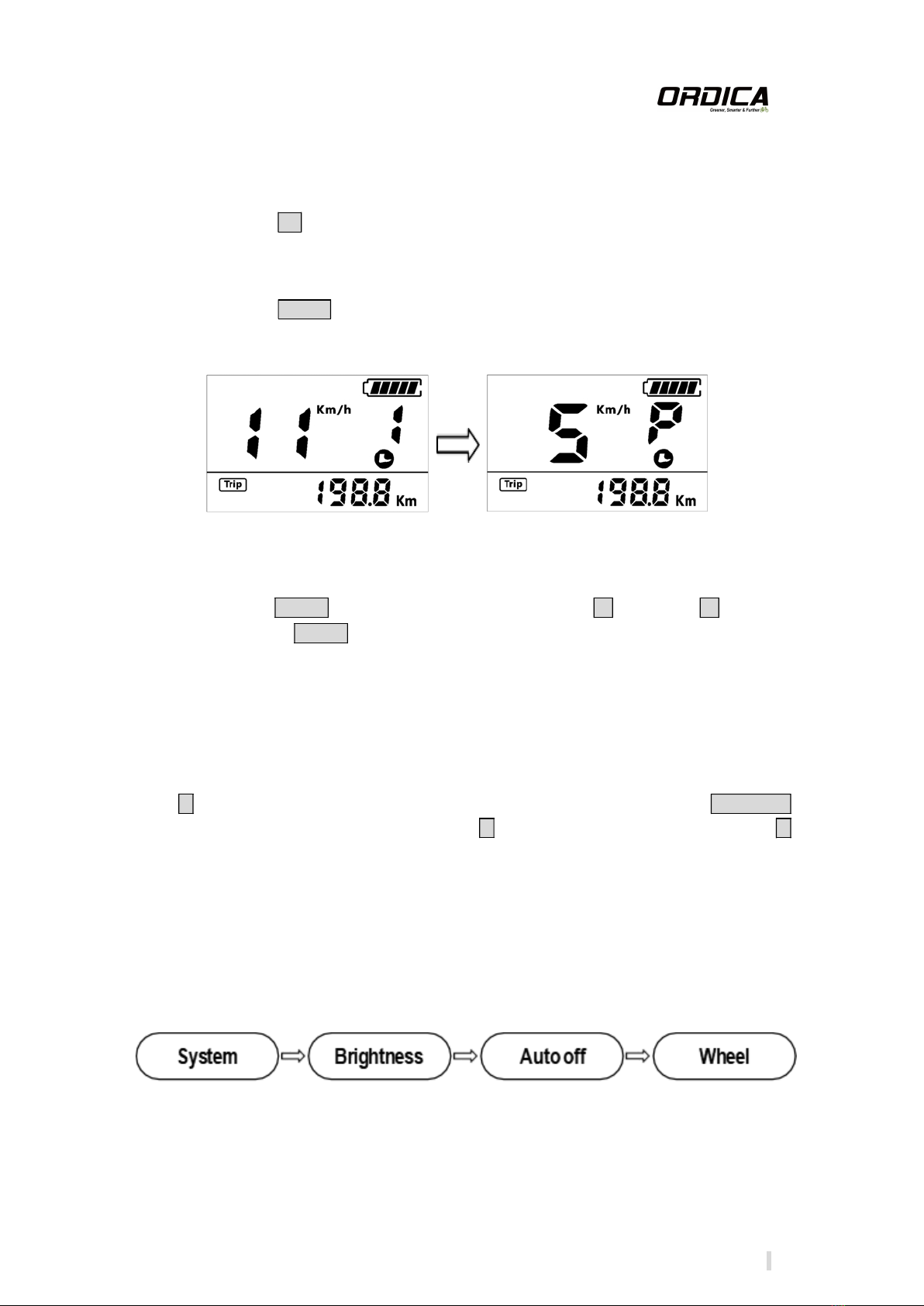

3.5 Walking mode (6km)
Press and hold DOWN button for more then 2 second will activate walking mode,
release the button to stop walk mode
3.6 Data Reset
Press and hold MODE buttons for 2 second. Then Set Cr to Y by pressing + Button to
highlight Y. Press MODE again to clear data include AVG Speed / MAX Speed / Trip /
Time.
* These temporary data will not erased by powering off.
4.DISPLAY PARAMETER SETTING
Press M button (press no less than 2second) get into setting menu, press UP/DOWN
buttons to change the parameter setting, press M button can switch to next item. Press
M (press no less than 2second) button will exit from menu.
* Display will automatically leave menu screen when there is no operation for 10 seconds.
* For safety, display MENU cant not be access when riding.
* Display will quit MENU when you start riding.
The order of parameters are as follows.
4.1 System : Press Up / Down button to move to next setting.
Please note that the above is for illustration only. NOT all setting are accessible to change.
5.ERROR CODE DEFINITION
If error occurs , display panel will show warning ERROR code message, icon on
the screen, and show error code at the bottom of the screen, error code is from 01
E~0N E. The table below are the error definitions.
Error Code
Error description
Error display
0x01
Normal
No error
0x03
Brake signal
No error
0x04
Throttle on high position
Display 04H on speed position
0x06
Low voltage protection
Display 06H on speed position
0x07
High voltage protection
Display 07H on speed position
0x08
Motor’s hall sensor error
Display 08H on speed position
0x09
Phase line of motor error
Display 09H on speed position
0x10
Controller over temperature
Display 10H on speed position
0x11
Motor over temperature
Display 11H on speed position
0x12
Current sensor error
Display 12H on speed position
0x13
Battery’s temperature sensor
error
Display 13H on speed position
0x14
Motor‘s temperature sensor
error
Display 14H on speed position
0x21
Speed sensor error
Display 21H on speed position
0x22
BMS communication error
Display 22H on speed position
0x30
Communication error
Display 30H on speed position
6.REQUIREMENTS PRIOR TO EACH RIDE
6.1 QUICK-RELEASE DEVICES/SEAT POST/ BRAKES/ TIRE PRESSURE
Tighten the adjusting nut by hand and move the quick release lever to the closed
position.You should feel considerable resistance while moving the lever. If not, re-
open and re-tighten the lever, then move it to the closed position so it is in line with
the frame.
*** SEAT POST HEIGHT- DO NOT GO ABOVE THE RECOMMENDED HEIGHT
FOR TALLER RIDERS, PLEASE BUY LONGER SEAT POST 400MM.
***** DO NOT MOUNT ANY QUICK RELEASE RACK TO SEAT POST*****
WE KNOW FROM PAST EXPERIENCE THAT GOING ABOVE OUR
RECOMMENDED SEAT POST HEIGHT & ATTACHING QUICK RELEASE
RACK MAY DAMAGE THE FRAME. WE WILL NOT COVER UNDER
WARRANTY IF THE TOP SEAT POST FRAME CRACK OR BREAKS.
- Check that the brakes are all working properly. Check the pressure of the tires.
Make sure that the hinges on your bike are properly locked. When using the bike on a
regular basis, the tension of the hinges’ adjustment and locking systems will move
slightly. Whenever necessary, adjust the tension again.
This bike is not designed for rough usage condition, such as jumps or stunts.
For your own safety, DO NOT modify the bike.WARRANTY WILL VOID for bike
modification that may cause damage to the E-bike.Please note: if you use the bike
frequently, it is recommended that you inspect the state of the fork, the frame, the
suspension and the fasteners. The materials and components may be subject to
different reactions to usage and wear.
7. SAFETY MAINTENANCE AND
RECOMMENDATIONS
7.1 SAFETY RECOMMENDATIONS
Helmet
For safe riding- use of a bicycle helmet.
Tyres
Inspect the wear of your tyres on a regular basis and verify the tyre pressure at least
once a month. Tyre pressure: depending on the weight of the user, check tire for
PSI pressure.
Wheel-rims-spokes
Please check regularly of spokes and rim-wear.
Brakes
Please check your brakes are working properly before attempting to ride the e-bicycle.
Secure the front wheel to the bicycle by tightening the quick release mechanism and
clamping the lever to the closed position. Important: braking distance increases on humid
or slippery ground.

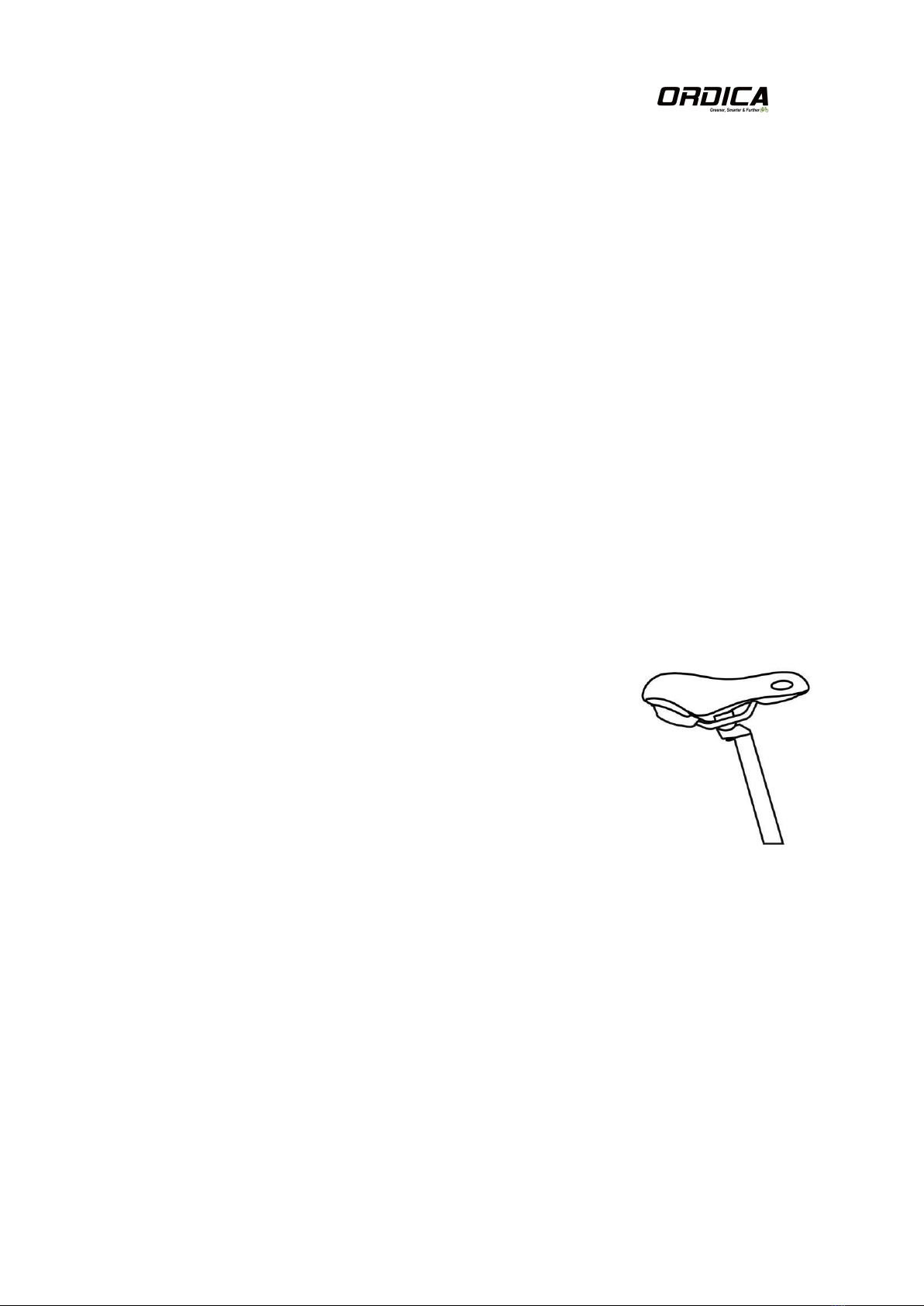

Saddle-post
Do not go above the recommended height. For taller rider
please buy the right size frame ORDICA ebike or use
longer 400mm seat post. DO NOT mount rack on seat
post.
Reflector
Positioning of reflectors and lights such
that these are not obscured when pannier is attached to
the rack carrier.
Gears
Like the chain, the freewheel must be kept clean and well
lubricated. If the chain has become worn and needs replacing,
then it is likely that the freewheel will also have become worn and should also be
replaced. Take the chain off the freewheel and rotate it with your hand. If you hear a
grinding noise or the freewheel stops suddenly after spinning it, it may
need adjustment .
Carrier /Rack
Maximum load: 25kg. This carrier is not designed to pull a trailer. Don't install the
child-seat on the carrier. The bicycle may behave differently (particularly with
regard to steering and braking) when the carrier is loaded. Please ensure that
any pannier fitted to the carrier is securely fitted in accordance with the
manufacturer’s instructions and that there are no loose straps that can get caught in
any of the wheels.
Rack
The rack is able to hold a maximum, evenly balanced load of 25kg.
Signaling device /Bell
The bike is silent. In order to alert others as to your presence, you have a signaling
device(Bell): use it only when absolutely necessary, don’t abuse it!
WARNING: As with all mechanical components, the bicycle is subjected to wear and
high stresses. Different materials and components may react to wear or stress
fatigue in different ways. If the design life of a bike component has been exceeded, it
may suddenly fail possibly causing injuries to the rider. Any form of crack, scratches
or change of coloring in highly stressed areas indicate that the life of the
component has been reached and it should be replaced.
LUBRICATION
Note: The frequency of maintenance should increase with use in wet or dusty
conditions. Do not over lubricate - remove excess lubricant to prevent dirt build up.
Never use a degreaser to lubricate your chain.
Frequency
Component
Lubricant
How to Lubricate
Monthly
Chain
Derailleur Pulleys
Derailleurs
Brake Calipers
Brake Levers
Chain Lube or Light Oil
Chain Lube or Light Oil
Oil
Oil
Oil
Brush On or Squirt
Brush On or Squirt
Oil Can
3 drops from oil can
2 drops from oil can
Monthly
Shift Levers
Lithium Based Grease
Every Six Months
Freewheel
Brake Cables
Oil
Lithium Based Grease
2 squirts from oil can
Disassemble
Yearly
Bottom Bracket
Pedals
Derailleur Cables
Wheel Bearings
Headset
Seat Post
Lithium Based Grease
Lithium Based Grease
Lithium Based Grease
Lithium Based Grease
Lithium Based Grease
Lithium Based Grease
Disassemble
Disassemble
Disassemble
Disassemble
Disassemble
Disassemble
Service Checklist
Frequency
Task
Before every ride
Make sure battery are fully
charged
Check tire pressure
Check brakes
Check wheels for loose spokes
After every ride
Be sure to fully charge battery
Quick wipe down with damp cloth
Monthly
Inspect wires
Inspect connectors
Check derailleur adjustment
Check brake adjustment
Check brake and gear cable adjustment
Check tire wear and pressure
Check wheels are true and spokes tight
Check hub, head set and crank bearings for looseness
Check pedals are tight
Check handlebars and stem are tight
Check seat and seat post are tight and comfortably adjusted
Check frame and fork
Lubrication as per schedule
Perform safety check
Every six months
Lubrication as per schedule
Check all points as per monthly service
Check and replace brake pads, if required
Check chain for excess play or wear
Book general bike service (ORDICA
electric bike dealer )
Yearly
Lubrication as per schedule
Book general bike service (ORDICA electric bike dealer)
MAINTENANCE
Caution
Bike maintenance and repair require specific skills and appropriate tools. Do not repair
your bike or change any of its settings if you have the slightest doubt regarding your ability
to correctly proceed with such work. Contact your dealer. Any adjustments or repairs that
are not properly done can damage the bike and lead to accidents resulting in injuries. Using
only genuine replacement bike parts for safety-critical components;
Electric Bicycle - Cleaning
Always remove the battery when cleaning. Use soapy water or water mixed with a gentle
detergent, and then rinse with clean water. Make sure all electrical components are wipe clean
and dry from any water or moisture.
Store your ORDICA electric bicycle inside and do not leave outdoor for long period of time.

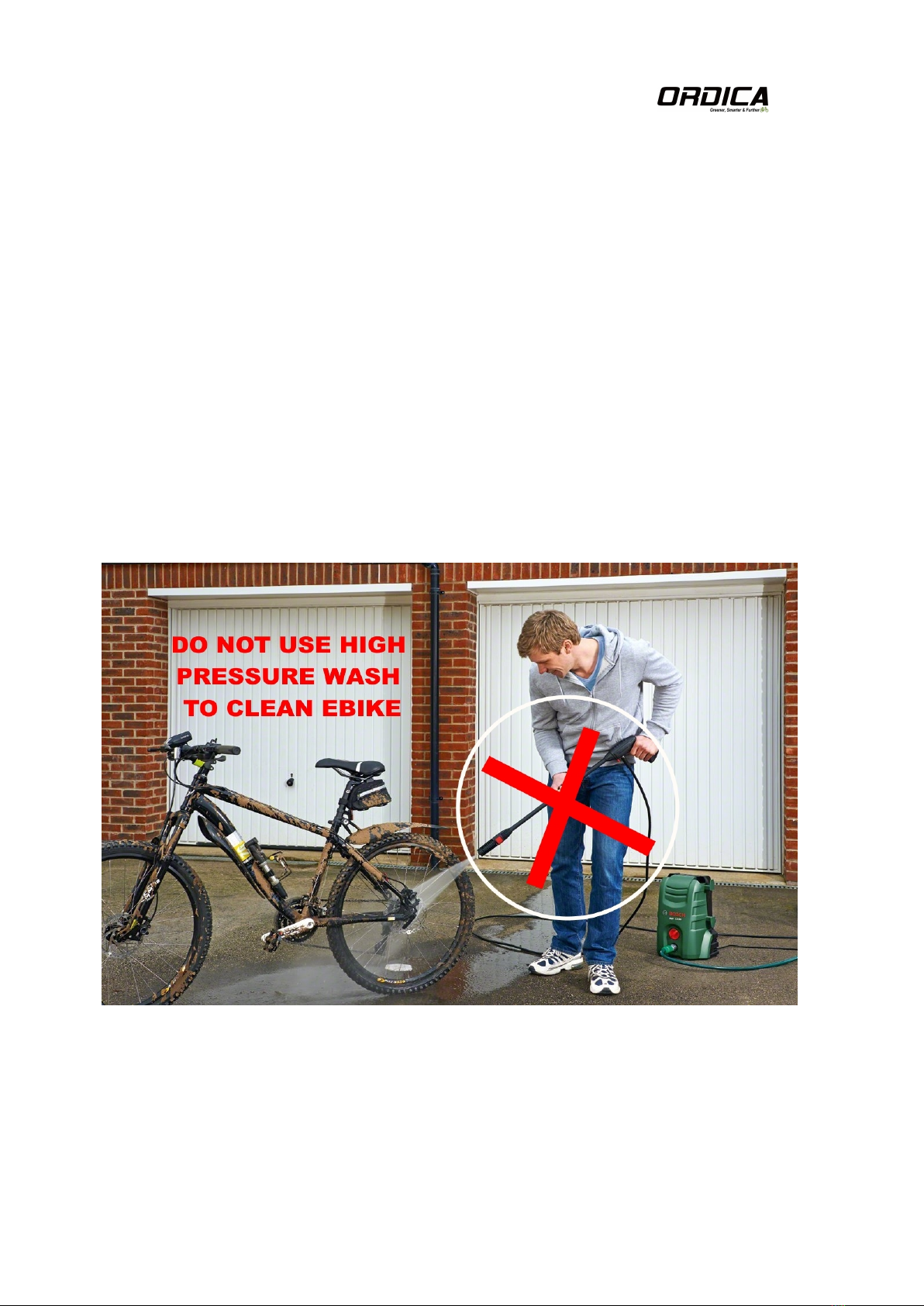

DO NOT USE HOSE OR HIGH PRESSURE WASHER!
DO NOT use a Hose or High Pressure Washier to Clean Bike!

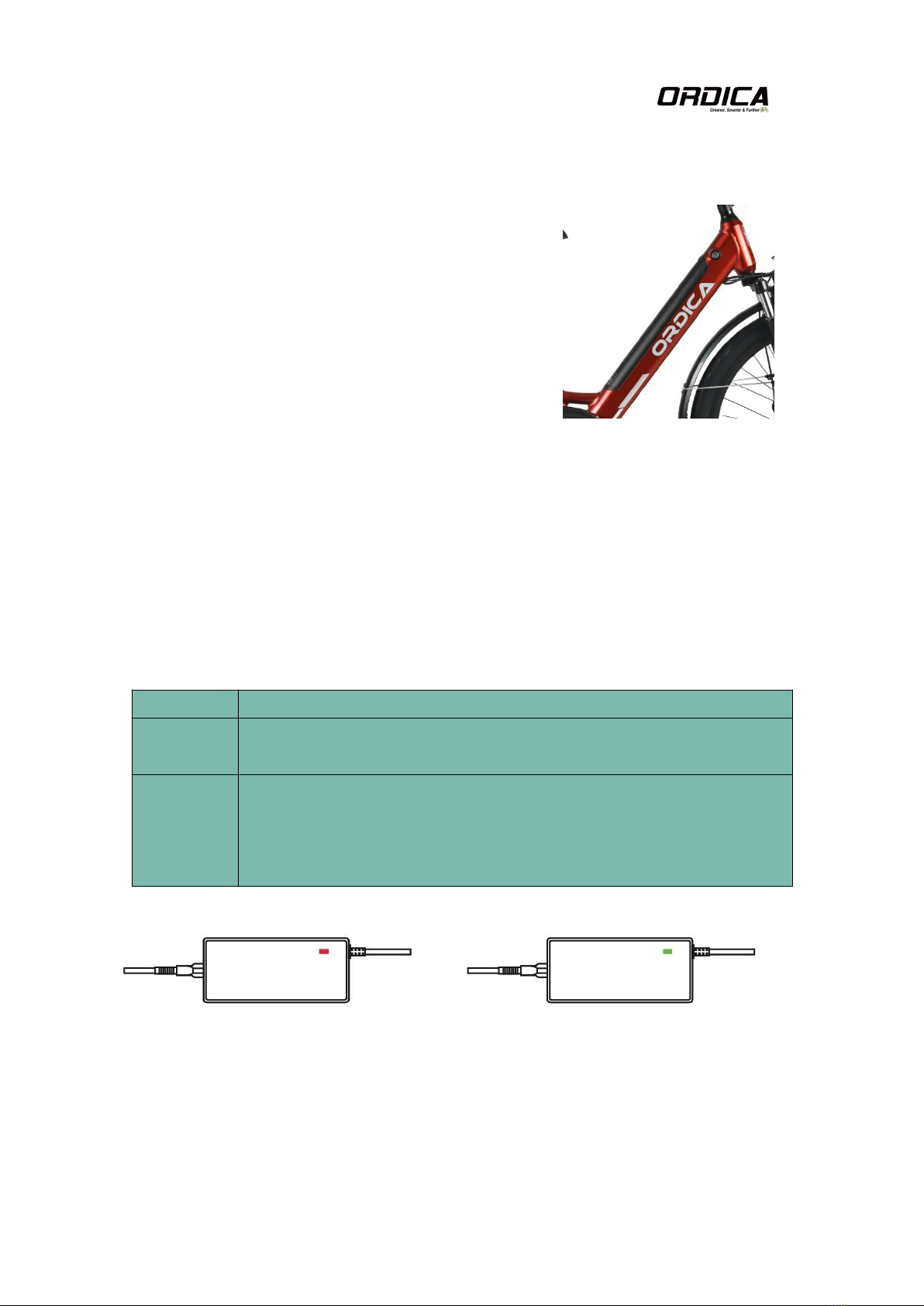

8.BATTERY
INSTALLING AND REMOVING THE BATTERY
To remove the battery, use key and turn anti clockwise
the lock which is located along the lower frame.
Remove the battery by lifting it out with the key is
turned. To put the battery back into place, insert the
battery then gently push down against the frame until
you hear a click.
CHARGING THE BATTERY
Never let a battery be charged unattended. We recommend charging battery during
the day and NOT over night. The battery’s voltage is indicated by the LED lights
located on the battery, and also on the display unit located on the handlebar.
Your battery must be charged in an ambient temperature, on a non-flammable and dry
surface, away from any sources of heat, humidity or flammable materials. Also, it must
not be covered.
Here are the steps to be followed when charging your battery:
Step 1
Remove battery from the bike.
Step 2
Plug the charger into the socket and then insert the charger’s plug into
the battery, which is also off.
Step 3
The charger’s LED indicators lit up in the following manner:
• The red LED light will be on:（A）the battery is beingcharged.
• The red LED light becomes green :（B）thebattery is fully charged; You
can unplug the charger.
(A) (B)
It takes 2-8 hours for the battery to be fully charged when using the standard
charger that’s supplied with your bike. Will Vary depending on battery capacity.
BATTERY AUTONOMY AND LIFESPAN
Autonomy
The bike’s autonomy ranges from 40 to 60 kilometers, as it depends on many
different factors (degree of assistance used, , rider’s weight, frequent
stops/start-ups, hills, tyre pressure, etc.…)
Battery
Your battery is just like a household battery. It contains a limited amount of energy,
which diminishes as it is being used over time. Ordica battery comes with 2 Year
limited warranty.
Maintenance
If you don’t use your bike for a period of time exceeding 2 months, store it in
a humidity-free area to protect the electronic components and make sure
that the battery is neither completely charged nor completely discharged .(1
or 2 green LEDs lit up)
BATTERY SAFETY INSTRUCTIONS
The battery is an electric component made up of chemical elements. For your safety, it
is imperative that you obey the following rules:
Note: Never store a completely discharged battery as it might result in permanent damage.
During the winter or long storage periods, it is recommended that you charge the battery halfway
every 2 months. Don’t forget to switch it off. Store your battery at a temperature between 15° and
25°.
Always handle with great care;
Always keep it away from children;
Do not take it apart or hit, pierce or submerge it;
Keep it away from temperatures exceeding 50°
Never create a connection between the contacts located at
the bottom of the battery;
Never let the battery charge unattended;
Never sleep near a battery that is charging;
Only use the charger that came with your ORDICA or that
was supplied by your dealer;
If your battery is damaged, do not use it and take it back to
your dealer as soon as possible
SAFETY MAINTENANCE AND RECOMMENDATIONS
SAFETY RECOMMENDATIONS
Helmet
For safe riding- use of a bicycle helmet.
Tyres
Inspect the wear of your tyres on a regular basis and verify the tyre pressure at least
once a month. Tyre pressure: 40-50 PSI depending on the weight of the user.
Wheel-rims
Please take care of the wheel-rims and a clear of any danger of rim-wear.
Brakes
Please check all connections of the Brakes before attempting to ride the bicycle.
Secure the front wheel to the bicycle by tightening the quick release mechanism
and clamping the lever to the closed position. Important: braking distance
increases on humid or slippery ground
Saddle-post
Suitable covering and coil springs are needed under the
saddle if a child-seat is fitted to prevent trapping of fingers.
Reflector
Positioning of reflectors and lights such
that these are not obscured when pannier is attached to the
rack carrier.
Gears
Like the chain, the freewheel must be kept clean and well
lubricated. If the chain has become worn and needs replacing,
then it is likely that the freewheel will also have become worn and should also be
replaced. Take the chain off the freewheel and rotate it with your hand. If you hear a
grinding noise or the freewheel stops suddenly after spinning it, it may
need adjustment .
Carrier /Rack
Maximum load: 25kg. This carrier is not designed to pull a trailer. Don't install the
child-seat on the carrier. The bicycle may behave differently (particularly with
regard to steering and braking) when the carrier is loaded. Please ensure that
any pannier fitted to the carrier is securely fitted in accordance with the
manufacturer’s instructions and that there are no loose straps that can get caught in
any of the wheels. Please distribute pannier evenly between the two sides of the
carrier.
Rack
The rack is able to hold a maximum, evenly balanced load of 25kg.
Signaling device /Bell
The bike is silent. In order to alert others as to your presence, you have an
approved signaling device(Bell): use it only when absolutely necessary, don’t abuse
it!
WARNING: As with all mechanical components, the bicycle is subjected to wear and
high stresses. Different materials and components may react to wear or stress
fatigue in different ways. If the design life of a component has been exceeded, it may
suddenly fail possibly causing injuries to the rider. Any form of crack, scratches or
change of coloring in highly stressed areas indicate that the life of the
component has been reached and it should be replaced.
MAINTENANCE
Caution
Bike maintenance and repair require specific skills and appropriate tools. Do not repair
your bike or change any of its settings if you have the slightest doubt regarding your
ability to correctly proceed with such work. Contact your dealer. Any adjustments or
repairs that are not properly done can damage the bike and lead to accidents resulting
in extensive injuries. Using only genuine replacement parts for safety-critical
components;
Cleaning
Always remove the battery when cleaning. Use soapy water or water mixed with a
gentle detergent, and then rinse with clean water. Make sure that the controller located
behind the battery compartment is not exposed to humidity as it contains
electronic components. Do not use a high pressure washer!
Maintenance
Used parts must be disposed of in appropriate selective sorting recycling bins. A
battery that no longer works must be returned to your dealer so that he may pass it on
to a recycling company.
Engine/Motor:
The motor does not require any sort of maintenance.
Chain:
It is recommended that you lubricate the bike’s 7 speed gearwheels and chain on
a regular basis using appropriate products (ask your dealer for advice).
ACCESSORIES - OPTIONAL EXTRAS
Helmet
Baskets
Storage pouch
To order these accessories, get in touch with your dealer
Using only genuine replacement part for safety-critical components.
WARRANTY
Your bike comes with 3 years frame warranty and 2 years on motor and battery and
1 year on bike parts. Warranty is not transferable.Details regarding the warranty
coverage terms is available from your dealer. Please make sure that you register
your bike serial number to activate warranty. The serial number is located in front of
the head tube. Please note that it is still your responsibility to keep record of the
frame number incase your bike is stolen.

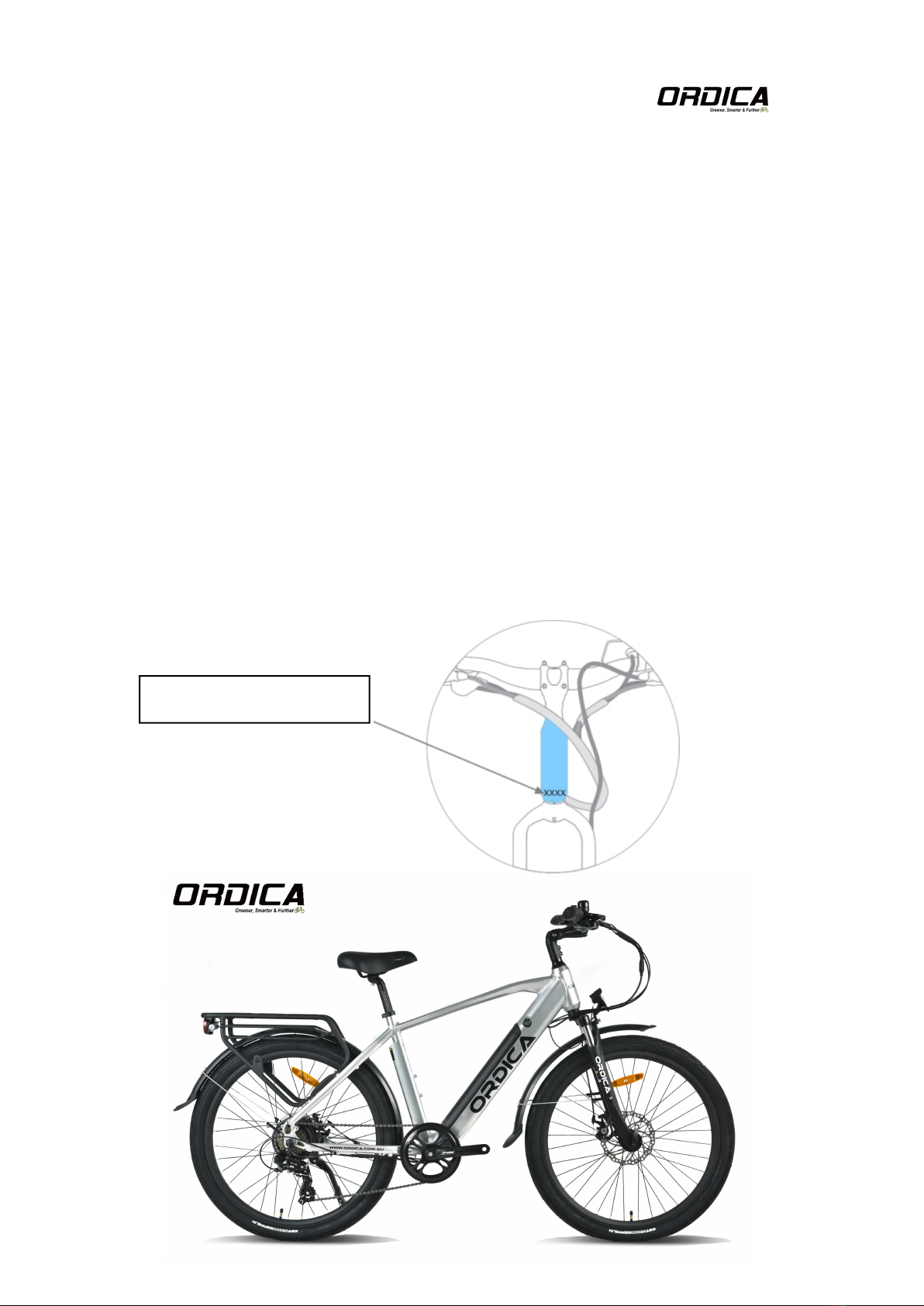

FRAME SERIAL NUMBER
Table of contents
Other Ordica Scooter manuals
