Oregon Scientific BPW221 User manual

1
GB
Oregon Scientific™ Wrist Blood Pressure
Monitor (BPW221)
UserManual
TABLE OF CONTENTS
Introduction .................................................................... 2
Keyfeatures ................................................................... 2
Mainunit ................................................................... 2
Plastic storage container.......................................... 2
LCD display symbols ................................................ 2
Safety and care instructions ......................................... 3
Safety precautions ................................................... 3
Caring for your blood pressure monitor .................... 4
Aboutbloodpressure ..................................................... 4
What is blood pressure? ........................................... 4
What are systolic pressure and diastolic pressure? 4
What is mean arterial pressure? ............................... 4
Why measure your blood pressure? ......................... 4
What is the standard blood pressure classification? ..... 5
Variation in blood pressure ...................................... 5
Howdoes the blood pressure monitorwork? ............... 5
Gettingstarted ............................................................... 6
Installing and replacing the batteries........................ 6
Setting the date, time and measurement units ......... 6
Positioning the wrist cuff .......................................... 7
Takingabloodpressure measurement ......................... 8
Recalling measurements stored in the memory .......... 9
Troubleshootingguide .................................................... 9
Additionalresources ..................................................... 11
Specifications ............................................................... 11
Informationconcerning the CE mark ........................... 12
Bloodpressurelogbook ............................................... 12
INTRODUCTION

2
GB
INTRODUCTION
Thank you for selecting the Oregon Scientific™ Wrist Blood
PressureMonitor(BPW221) asyourhealth productof choice.
This product has been designed to provide you with many
years of reliable service provided it is used correctly, and
can help you measure and track the following metrics:
·Systolic pressure
·Diastolic pressure
·Meanarterial pressure
·Pulse rate
·Ahistoric record of up to 60 measurements per user
(maximum 2 users)
Readings taken by the BPW221 are equivalent to those
obtainedbya trainedobserverusing thecuffand stethoscope
auscultationmethod,within thelimits prescribedby“EN1060-
3Non-invasiveSphygmomanometers-Part 3:Supplementary
requirementsforelectro-mechanicalbloodpressuremeasuring
systems.” The monitor’s accuracy in measuring diastolic
pressure was tested using the fifth Korotkoff sound method.
This manual contains important safety and care information,
and provides step-by-step instructions for using the product.
Read the manual thoroughly before using the product
KEY FEATURES
Main unit (Figure 1)
Plastic storage container (Figure 2)
LCDdisplaysymbols
Symbol Description Explanation
Systolic pressure The highest blood
pressuremeasured.
Diastolic pressure Thelowest blood
pressuremeasured.
Time (hour : minutes) The current time.
LCDand
protectivecover
ON Button
Wrist cuff
Button
SET/
Button
Storage
compartment
Battery
compartment

3
GB
SAFETY AND CARE INSTRUCTIONS
Safetyprecautions
Pleaseobserve the followingsafety precautionswhen setting
up and using your blood pressure monitor.
·This device is intended for adult use only.
·This device is intended for non-invasive measuring and
monitoring of arterial blood pressure. It is not intended
foruse on extremitiesother thanthe wrist orfor functions
other than obtaining a blood pressure measurement.
·Do not confuse self-monitoring with self-diagnosis. This
unit allows you to monitor your blood pressure. Do not
begin or end medical treatment based solely on the
measurements of this device. Consult a physician for
treatment advice.
·If you are taking medication, consult your physician to
determine the most appropriate time to measure your
blood pressure. Never change a prescribed medication
without consulting your physician.
·This unit is not suitable for continuous monitoring during
medicalemergencies oroperations.
·If the cuff pressure exceeds 300mmHg, the unit will
automatically deflate. Should the cuff not deflate when
pressures exceeds 300mmHg, detach the cuff from the
wrist and press the ON button to stop inflation.
·Toavoid measurement errors,carefully read thismanual
before using the product.
Pulse Pulse rate per minute.
User Shows which user profile
(1 or 2) is being displayed.
Memory If “MEM” shows,thedisplayed
measurementvalueisfromthe
memory, and not necessarily
from the last reading.
Weak battery Batteries are low and need
to be replaced.
Inflating Unit is inflating with air to
obtain the needed level of
pressure.
Deflating Wrist cuff air is exhausting,
or deflating.
Theaverage blood pressure
measured(formore
information, see page 4, “What
is Mean Arterial Pressure?”).
Meanarterial
pressure

4
GB
Caringfor your bloodpressure monitor
To ensure you receive the maximum benefit from using this
product, please observe the following care guidelines.
·When not in use, store the main unit in the protective
plastic container that came with it.
·Do not immerse the main unit in water. If it comes in
contact with water, dry it immediately with a soft lint-free
cloth.
·Use a soft, slightly moistened cloth to wipe off the main
unit casing and cuff. Do not use abrasive or corrosive
cleaning agents, as these may cause damage.
·Removethe batterieswhenever youareplanning tostore
the main unit for a long period of time.
·Whenreplacing batteries, usenew batteries asspecified
in this user manual. Do not mix new and old batteries.
·Do not place objects such as stickers on the wrist cuff or
main unit, as these may impair the measurement.
·Do not subject the main unit to excessive force, shock,
dust, temperature changes, or humidity. Such treatment
may result in malfunction, a shorter electronic life span,
damaged batteries, or distorted parts.
·Donot tamperwiththe internalcomponents. Doingso will
terminate the product warranty and may cause damage.
The main unit contains no user-serviceable parts.
·If you no longer need to use this product, protect the
environment by bringing it to your dealer or designated
collection point for proper disposal.
ABOUT BLOOD PRESSURE
Whatis blood pressure?
Blood pressure is the force generated by the blood against
thewalls ofarteries duringcardiac contraction andrelaxation
(e.g., the pumping action of the heart).
What are systolic pressure and diastolic pressure?
When ventricles contract and pump blood out of the heart,
blood pressure reaches its maximum value. This highest
pressure in the cycle is known as systolic pressure. When
the heart relaxes between heartbeats, the lowest blood
pressure is diastolic pressure.
What is mean arterial pressure (MAP)?
The mean arterial pressure (MAP) is the average pressure
that forces blood through the arteries. It is not the average of
the systolic and diastolic blood pressure; rather, MAP
corresponds to a state of balance between the compressive
andexpansive forcesacting on thearterial wallwhen thereis
no distension outward or inward. MAP is an excellent way to
evaluate the stress on the walls of your blood vessels, and
canbeused toevaluate excessiveloadon thecardiovascular
system. Show your MAP history to your doctor to provide
additional information that may help him or her understand
your situation.
Whymeasureyour blood pressure?
Blood pressure measurement can highly reflect one’s health
condition.High blood pressureis potentiallylinked to serious
illnesses such as stroke, heart disease and kidney failure.
Sincethereisnosymptommostofthetime,manyhypertensive

5
GB
people do not realize they are at risk until their health is
seriously threatened.
What is the standard blood pressure classification?
The following chart (Figure 3) was taken from the World
Health Organization (WHO), and describes the various
classifications.
Pleasenote:
·Hypotension value is for reference only.
·Bloodpressureisconsideredhighwheneitherthediastolic
or systolic blood pressure value exceeds the normal
range.
·Onlya physician can tellyou your normalblood pressure
rangeand the pointat which youare at risk.Consult your
physician to obtain these values. If the measurements
taken with this product fall outside the range, consult
your physician.
Whydoesmybloodpressurefluctuatethroughout theday?
Individual blood pressure varies greatly both on a daily and a
seasonalortemperaturebasis. Thesevariationsmaybemore
pronounced in hypertensive patients. Normally the blood
pressure rises while at work and is at its lowest during sleep.
Figure4 belowillustrates thevariations overasingle daywith
measurement taken every five minutes. The thick line
represents sleep time. The rises in blood pressure at 4 PM (A
in the graph) and 12AM (B in the graph) correspond to an
attack of pain and sexual intercourse (Beven, Honour &
Stott, Clin. Sci. 36:329, 1969).
HOW DOES THE BLOOD PRESSURE ?
This product uses the Oscillometric Measuring method to
detect your blood pressure. Before every measurement, the
160
A B
TimePM
BLOOD PRESSURE
(mmHg)
AM
Sleep
140
120
100
80
60
40
20
12 13 14 15 16 17 18 19 20 21 22 23 24 1 2 3 45 6 7 8 9 10 11
Figure 3
Figure 4
90 140 160
95
90
Systolic (mmHg)
diastolic (mmHg)
Hypertension systolic over 160
(high pressure) diastolic over 95
Hypertonia systolic 140-159
(Border value) diastolic 90-94
Hypotension Normal
(lowpressure) range
systolic under 90 systolic under 139
diastolic under 89

6
GB
main unit establishes a “zero pressure” equivalent to the air
pressure.Then itstarts inflating thewrist cuffto 180mmHgor
higher until it senses that it has blocked your blood in the
artery. After that, the deflation process starts, during which
time the main unit detects pressure oscillations generated
by beat-to-beat pulsatile, which is used to determine the
systolic, mean and diastolic pressure, and also your pulse
rate. Any motion during this period will result in an incorrect
measurement.Afterallreadingsaredeterminedanddisplayed
on LCD, the measurement is finished and the wrist cuff
automatically deflates.
GETTING STARTED
Installing and replacing the batteries
To install the batteries:
1. Slide off the battery cover (Figure 5a).
2. Install the batteries by matching the correct polarity, as
shown by Figure 5b. Always use the correct battery type
(2 Alkaline LR03 AAA-size).
3. Replace the cover (Figure 5c).
Note: Replace the batteries whenever the weak battery
mark ( ) shows, the display is dim, or the display does
not illuminate when the power is on. Replace all the
batteries at the same time – it is dangerous to mix old and
new batteries.
Contactyour localwaste disposalauthority forinstructions
on how to dispose of used batteries. Used batteries can
be harmful to the environment, and should not be thrown
out with household trash.
Setting the date, time, and measurement units
It is important to set the clock before using your blood
pressure monitor, so that a time stamp can be assigned to
each record that is stored in the memory.
To set the date, time, and measurement unit:
1. Press and hold SET for 2 seconds to enter the setting
mode.
The setting order is as follows: 12/24 hour format, hour,
minute, month/day or day/month format, month, date,
andmeasurement unit (mmHgor kPa).
2. Press to increase a value or change the setting.
3. Press SET to accept the change and switch to the next
setting.
4. When you are finished, press ON to exit the setup menu.
Figure 5a Figure5b Figure5c

7
GB
Positioning the wrist cuff
It is important to properly position the wrist cuff to ensure that you receive an accurate reading.
1. Remove all accessories (watch, bracelet, etc.) from your left wrist. If your physician has diagnosed you with poor
circulation in your left arm, use your right wrist.
2. Roll or push up your sleeve to expose the skin.
3. Apply the cuff to your left wrist with your palm facing up (Figure 6a).
4. Position the edge of the cuff about 1 centimeter from the bottom of your palm (Figure 6b).
5. Fasten the wrist cuff around your wrist, leaving no extra room between the cuff and your skin. If the cuff is too loose, the
measurement will be inaccurate (Figures 6c – 6d).
Note: Graphics may not exactly match product.
Figure6a Figure6b Figure6c Figure6d

8
GB
TAKING A BLOOD PRESSURE
MEASUREMENT
You can choose to take your blood pressure while sitting or lying
down.
HelpfulTipsfortakingameasurement:
·Be sure to set the clock before taking your first measurement,
or whenever you replace the batteries, so that the date and
timearestoredinthememorywithyour history.Forinstructions,
refer to page 6.
·Itisimportantto relaxwhentakingyourblood pressure. Try to
take a 15-minute rest before you begin.
·Donotleanbackwardor bendyourwristinwardwhiletaking a
measurement.
·Avoid talking or moving your fingers and hand while taking a
measurement. Rapid movements or other activities may alter
yourreading.
·Waitatleastonehourbeforetakingyourbloodpressureifyou
have just eaten a large meal.
·Donotsmokeordrinkalcoholbeforetakingyourbloodpressure.
·Do not measure your blood pressure if you are under stress.
·Wait at least 3 minutes between measurements. This allows
your blood circulation to recover.
·For a meaningful comparison, try to measure under similar
conditions. For example, take daily measurements at
approximatelythesametime,onthesamewrist,orasdirected
by a physician.
·To stop the measurement process at any time, press the ON
button.
·The main unit automatically switches off 1 minute after taking
a measurement. To save the battery life, press
the ON button as soon as you are finished.
To takea measurement:
1. Choosethe positionyou from whichyou wishto measure
– sitting or lying down.

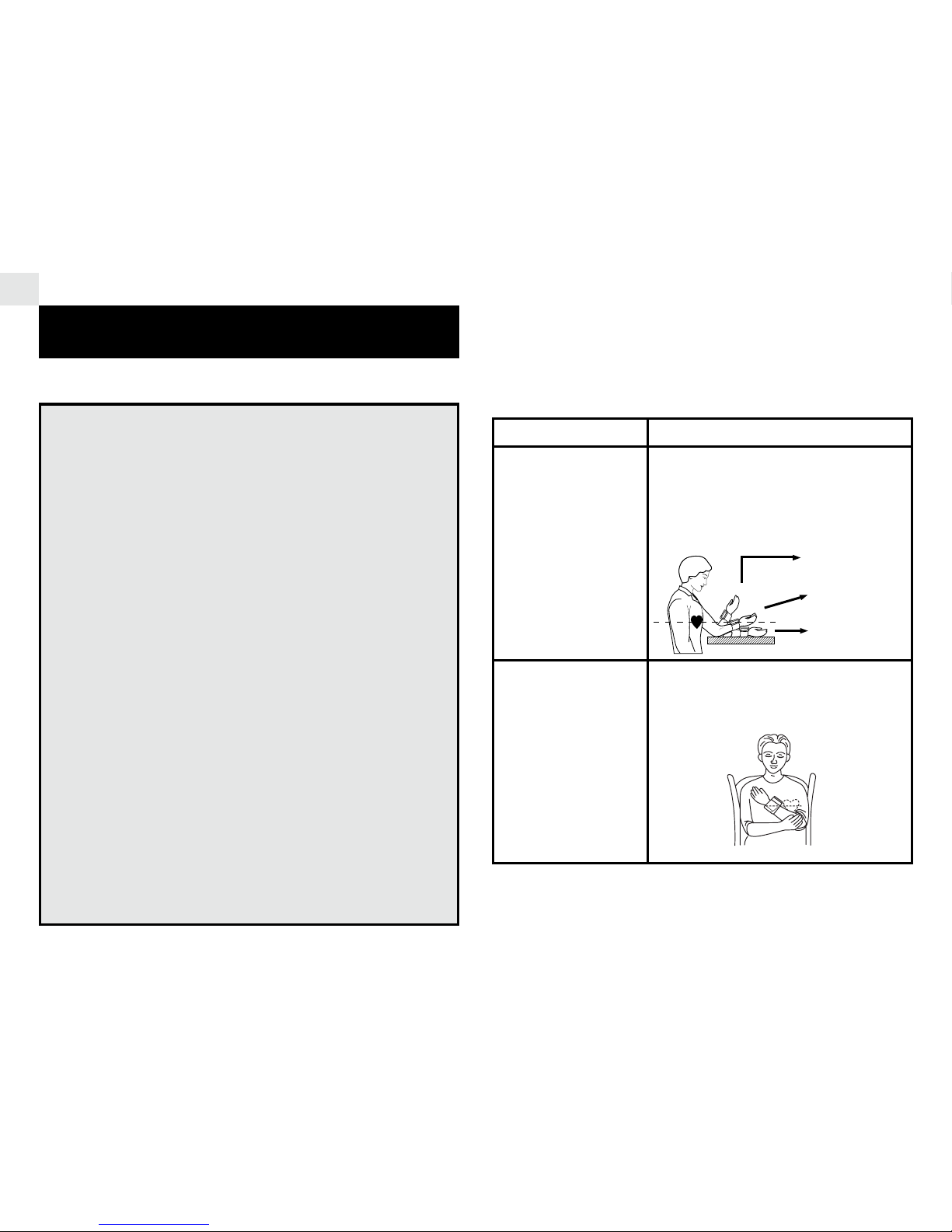

2. Position your body so that your wrist is parallel with your
heart, using the chart and illustrations below as a guide.
IF you are… THEN…
Sitting down with
an armrest
Sitting down with
no armrest
MeasurementReading
becomeslower
Correct measurement
position
Measurementreading
becomeshigher
Place your elbow on a table, using
the plastic storage case or other
object as a support under your
forearm.Yourwrist should beparallel
with your heart with the palm facing
up.
Place your arm across your chest
with the wrist parallel to your heart.
Holdyour elbowwith the otherhand.

9
GB
RECALLING MEASUREMENTS STORED
IN THE MEMORY
The memory can hold up to 60 records per user, for two
users.The records areonly stored ifyou choose topress the
SET button prior to taking a new record (See Steps 4 - 5 for
“Taking a blood pressure measurement”, on page 8.)
To view a history of user 1’s records, press .
To view a history of user 2’s records, press SET.
OR, press SET to display a list of users, and then press
to select a user.
Note:
·The most recent record (1) is shown first. Each new
measurement is assigned to the first (1) record. All
otherrecordsarepushedbackonedigit(e.g.,2becomes
3, and so on), and the last record (60) is dropped from
the list.
· Press again to see additional records.
·Thedateandtime ofmeasurementareshown witheach
record.
·Memory records will be kept even when the batteries
are replaced.
TROUBLESHOOTING GUIDE
This section includes a list of error messages and frequently
asked questions for problems you may encounter with your
bloodpressure monitor. If the productis not operating as you
think it should, check here before arranging for servicing.
Lyingdown
3. Relax your hand.
4. If you wish to save the record to the memory, press SET
to select “user 1” or “user 2”. If you do not press the SET
button, the record will not be saved.
5. Press the ON button.
Result: Aftera few seconds,the blood pressuremonitor
beeps and begins inflating the wrist cuff. It then slowly
deflates until there is another beep, signifying that the
measurementis complete.Don’t movefromthe firstbeep
until the last to ensure a more accurate measurement.
Your systolic and diastolic pressure readings flash on
the display, followed by MAP (Mean Arterial Pressure,
see page 4) and pulse per minute readings every two
seconds. If you chose to save the record to memory in
Step 4, the measurement is automatically stored as the
first (1) entry in the user record you selected; the last
entry(60) isdropped, andall theentries inbetween move
up one digit (e.g., 58 becomes 59, and so on).
Position your wrist on a support, cushion,
or your thigh so that it is parallel with your
heart with the palm facing up.

10
GB
Display is dim
orwill notlight
up.
Nopower Batteriesare
exhausted. Replacewith newbatteries
( 6).
Batteries are
inserted
incorrectly.
Insert the
batteries
correctly( 6).
Low
batteries shows on
the display. Batteries are low. Replacewith new batteries
( 6).
Error
message shows on the display. A
measurement
error
occurred.
Relax for a
momentand
thenmeasure
again.
1, 2, or 3
shows on the
display.
Thewrist
cuff is not
secure.
Refasten the
cuff and then
measure
again ( 7).
4 shows
onthedisplay. Themonitor
detected
motionwhile
measuring
Movement
can affect
the
measurement.
Relax for a
momentand
thenmeasure
again.
Pressure
is over
280mmHg
(37.3 kPa)
5 shows
onthe display. Relax for a
moment and
thenmeasure
again.
Problem Symptom Checkthis Remedy 6 shows
on the
display.
Deflation
periodwas
too long
Movementcan
affect the
measurement.
Relax for a
momentandthen
measureagain.
7 or 8
shows on
the display.
A calibration
error
occurred
Retakethe
measurement.If
theproblem
persists, contact
the retailer or our
customer service
departmentfor
further
assistance. Refer
to the warranty
for contact
informationand
return
instructions.
Settings
arewrong Date and
timeare
incorrect.
The clock
was not set
or reset after
installingnew
batteries.
Reset the clock
( 6).
Error
message
Measurement
unit(mmHg
or kPa) are
incorrect.
The
measurement
unit was not
set or reset
after installing
new batteries.
Reset the
measurement
unit
( 6).
Problem Symptom Checkthis Remedy

11
GB
SPECIFICATIONS
Application:
Measuringmethod Oscillometric / non-invasive
Application For adult use only
Measurementlocation Wrist section of lower arm
Memory Maximum 60 records per user
MaximumNumber
of users 2
Dimensions:
Height x Width x Depth ~91mm x80mm x 31mm
(3.6in x 3.2in x 1.3in)
Weight 160g (5.5 oz) with batteries
Cuff circumference ~ 13.5 – 19.5cm (5.3 – 7.7in)
Measuringrange:
Pressure 30 - 280mmHg (4.0 – 37.3 kPa)
Pulse 30 - 200 pulse/min
Accuracy:
Pressure +/- 3mmHg (+/- .4 kPa)
Pulse +/- 5%
Power:
Powersupply 3V DC, two (2) LR03 / AAA / UM4-
size 1.5V batteries
ADDITIONAL RESOURCES
Visit our website (www.oregonscientific.com) to learn more
about your blood pressure monitor and other Oregon
Scientific™ products such as digital cameras, sports
watches, hand-held organizers, alarm clocks, and weather
stations. The website also includes contact information for
our customer service department, in case you need to reach
us.
Nouser
memory Cannotfind a record. Thememory was not
activated prior
to taking a
measurement.
Retakethe
measurement
( 8). In Step 4,
press SET to
activate the
memory,and then
select the user
record to which
you wish to store
themeasurement.
Therecord
was stored to
the wrong user
memory
Press to
view user 1’s
record.
Press SET to
view user 2’s
record.
Problem Symptom Checkthis Remedy

12
GB
Powersave Auto poweroff after1 minute ofnon-
activity
Operatingenvironment:
Operation 10°C…40°C(50°F…104°F)
Storage /Transport -20°C…60°C(-4°F…140°F)
Humidityrange 10%…83% relativehumidity
INFORMATION CONCERNING THE CE
MARK
This device complies with the European regulations based
on the Medical Products Code, and bears the CE mark
“CE0123”.The device hasbeen quality inspected according
to EG guideline 93/42/EWG and tested in compliance to the
“EN1060-1 Non-invasive sphygmomanometers – Part 1,
General requirements” and “EN1060-3 Non-invasive
sphygmomanometers– Part3: Supplementaryrequirements
for electromechanical blood pressure measuring systems”.
TheCEmarkfurther indicatesthatthisbloodpressure monitor
meets the general requirements for electronic products as
regards to resistance to electromagnetic interference.
Malfunctioning may however occur in the proximity of
extremely strong electromagnetic fields. In accordance with
the“OrdinanceforOperators ofMedicalProducts”,atechnical
inspection must be carried out if this device is used for
industrial or commercial purposes.
BLOOD PRESSURE LOG BOOK
To create a log of your blood pressure history, complete the
personalinformation section atthe top,then enter thedetails
(date, time, and measurements) for each reading you take.
To plot your history, use an S (systolic), D (diastolic) and M
(mean arterial pressure) to mark the points where each
measurement falls on the chart, then connect the points to
view your history over time.

13
GB
kPa mmHg
60
80
100
120
140
160
180
200
220
M
DD
M
s
s
Name: Age: Weight: (kg/lbs)
Date
Time 10 PM 10 PM
10
Oct 17
Oct
SYS
DIS
MAP
158
90
110
155
95
112
85 90
8.0
10.7
13.3
16.0
18.7
21.3
24.0
26.7
29.3
© 2003 Oregon Scientific. All rights reserved.
