Oregon Scientific BAR339P User manual

Radio-controlled Projection Clock
with
Colo
ur
Weather Forecast
ur Weather Forecastur
Mod
el: BAR339P
USER MANUAL
BAR339P_M_EN_R1.indd 9 6/21/07 2:08:10 PM
P/N: 086L004766-034 REV1
1/70

1
EN
Radio-Controlled Projection Clock
with
Colo
ur Weather Forecast
Mod
el: BAR339P
USER MANUAL
CONTENTS
Introduction ..............................................................2
Clock overview ........................................................2
Front view ..............................................................2
Back view ..............................................................2
Remote sensor ......................................................3
Getting started .........................................................3
Power supply .........................................................3
Remote sensor .........................................................3
Sensor data transmission ......................................4
Clock .........................................................................4
Clock reception .....................................................4
Manually set clock .................................................5
Alarm ........................................................................5
Weather Forecast ....................................................5
Temperature .............................................................6
Projector and backlight ...........................................6
Colour .......................................................................6
Key lock ....................................................................7
Reset .........................................................................7
Precautions ..............................................................7
Specifi cations ..........................................................8
About Oregon Scientifi c .........................................8
EU-Declaration of conformity .................................8
BAR339P_M_EN_R1.indd 1 6/21/07 2:07:56 PM
P/N: 086L004766-034 REV1
2/70

2
EN
4. / : Toggle setting options; activate / deactivate
clock reception
5. TEMP: Toggle in / out temperature display
6. Projector (LED Aperture)
BACK VIEW
1
7
8
9
10
11
4
5
3
26
1.
FOCUS
: Focus the projected image
2. RESET: Reset settings to default
3. °C / °F: Select temperature unit
4. EU / UK: Radio signal switch
5. Battery compartment
6. Light sensor
INTRODUCTION
Thank you for selecting this Oregon
Scientific
™
Radio-Controlled Projection Clock with Colour Weather
Forecast. Please keep this manual for instructions and
information you should know about.
CLOCK OVERVIEW
FRONT VIEW
1
6
2
3
4
5
1. SNOOZE: Snooze alarm; activate backlight; rotate
dual line projection display by 180°
2. ALARM: View alarm status; set alarm
3. CLOCK: Change display; set clock
BAR339P_M_EN_R1.indd 2 6/21/07 2:07:58 PM
P/N: 086L004766-034 REV1
3/70

3
EN
7. MEM: View current, maximum and minimum
temperature
8. PROJECTION: ON / OFF switch
9. LIGHT: Backlight ON / OFF switch
10. DEMO WEATHER FORECAST: Select between
demo mode and weather forecast mode
11. Adapter socket
REMOTE SENSOR
1
2
3
4
5
1. LED status indicator
2. Wall mount hole
3. Battery compartment
4. RESET hole: Reset unit to default settings
5. CHANNEL button: Select channel 1
GETTING STARTED
POWER SUPPLY
Batteries serve as a back-up power supply. For
continuous use of projector and backlight, install
adapter
.
The socket-outlet shall be installed near the
equipment and shall be easily accessible
.
NOTE will appear when power supply is not
connected.
To insert batteries:
1. Remove the battery compartment and insert
batteries, matching polarities.
2. Press RESET after each battery change.
LOCATION MEANING
Clock / alarm area Main unit batteries low
Outdoor / indoor
temperature area Sensor batteries low

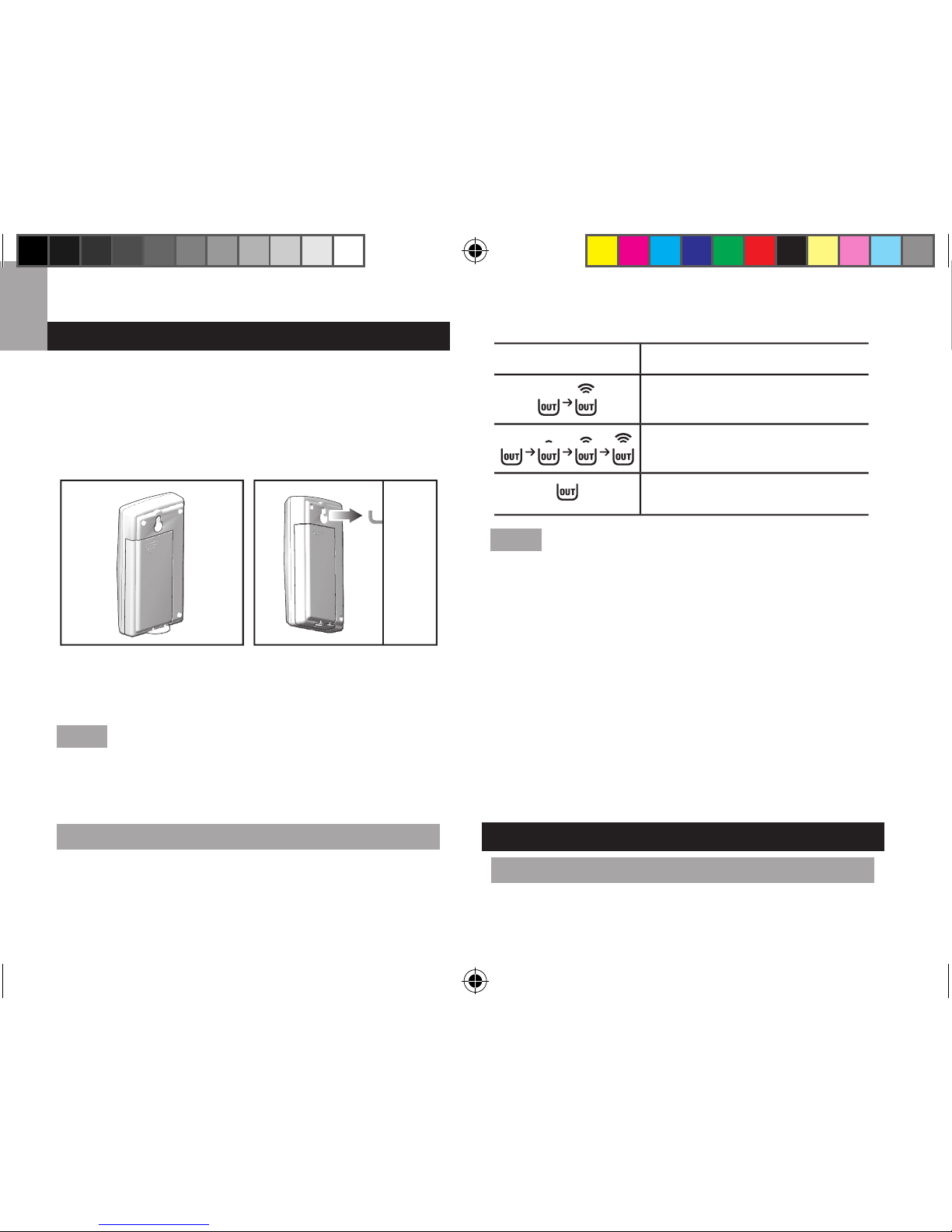

REMOTE SENSOR
To set up the sensor:
1. Open the battery compartment, and insert batteries,
matching polarities.
2. Place the sensor within 30 m (98 ft) of the main
unit using the table stand or wall mount.
BAR339P_M_EN_R1.indd 3 6/21/07 2:08:01 PM
P/N: 086L004766-034 REV1
4/70

4
EN
The transmission range may vary depending on many
factors. You may need to experiment with various
locations to get the best results.
NOTE We recommend that you use alkaline batteries
with this product for longer usage and consumer grade
lithium batteries in temperatures below freezing.
SENSOR DATA TRANSMISSION
Outdoor sensor
:
The main unit will automatically search for the outdoor
sensor. The sensor reception icon in the remote sensor
area shows the status:
ICON DESCRIPTION
Main unit is searching for
sensor(s)
A channel has been found
The sensor cannot be found.
NOTE If the sensor is not found, check the batteries,
obstructions, and remote unit location.
For best results:
• P
lace the sensor
out of direct sunlight and moisture.
• Position the sensor facing main unit, minimizing
obstructions.
• Place the sensor in a location with a clear view to
the sky, away from metallic or electronic objects.
• Position the sensor close to the main unit during
cold winter months.
CLOCK
CLOCK RECEPTION
This product is designed to synchronize its clock
automatically with a clock signal.
S
lide
EU / UK to select the signal received.
• EU: DCF-77 signal: within 1500 km (932 miles) of
Frankfurt, Germany.
• UK: MSF-60 signal: within 1500 km (932 miles) of
Anthorn, England.
To enable / disable signal reception
:
Touch and hold to enable, or to disable signal
signal reception.
NOTE Reception takes 2-10 minutes. If the signal is
weak, it can take up to 24 hours to get a valid signal.
BAR339P_M_EN_R1.indd 4 6/21/07 2:08:04 PM
P/N: 086L004766-034 REV1
5/70

5
EN
Clock signal reception indicator:
STRONG
SIGNAL
WEAK
SIGNAL
NO
SIGNAL
MANUALLY SET CLOCK
1. Touch and hold CLOCK for 2 seconds.
2. Touch or to change the settings.
3. Touch CLOCK to confi rm.
4. The setting order is: time zone offset, 12/24-hr
format, hour, minute, year, day / month format,
month, day and language.
NOTE Time zone offset sets the clock +/- 23 hours
from the received clock signal time.
NOTE The language options are (E) English, (D) German,
(F) French, (I) Italian, and (S) Spanish.
To select display mode:
Touch CLOCK to choose between clock with seconds
and clock with weekday.
ALARM
To set the alarm:
1. Touch and hold ALARM for 2 seconds to enter
alarm-setting mode.
2. Touch / to set hour / minute.
3. Touch ALARM to confi rm. indicates alarm is ON.
To toggle alarms ON / OFF:
1. Touch ALARM to display alarm time.
2. Touch ALARM again to turn alarm ON / OFF.
To silence the alarms
:
• Touch SNOOZE to silence it for 8 minutes
OR
• Touch any other key to turn the alarm off and activate
it again after 24 hours.

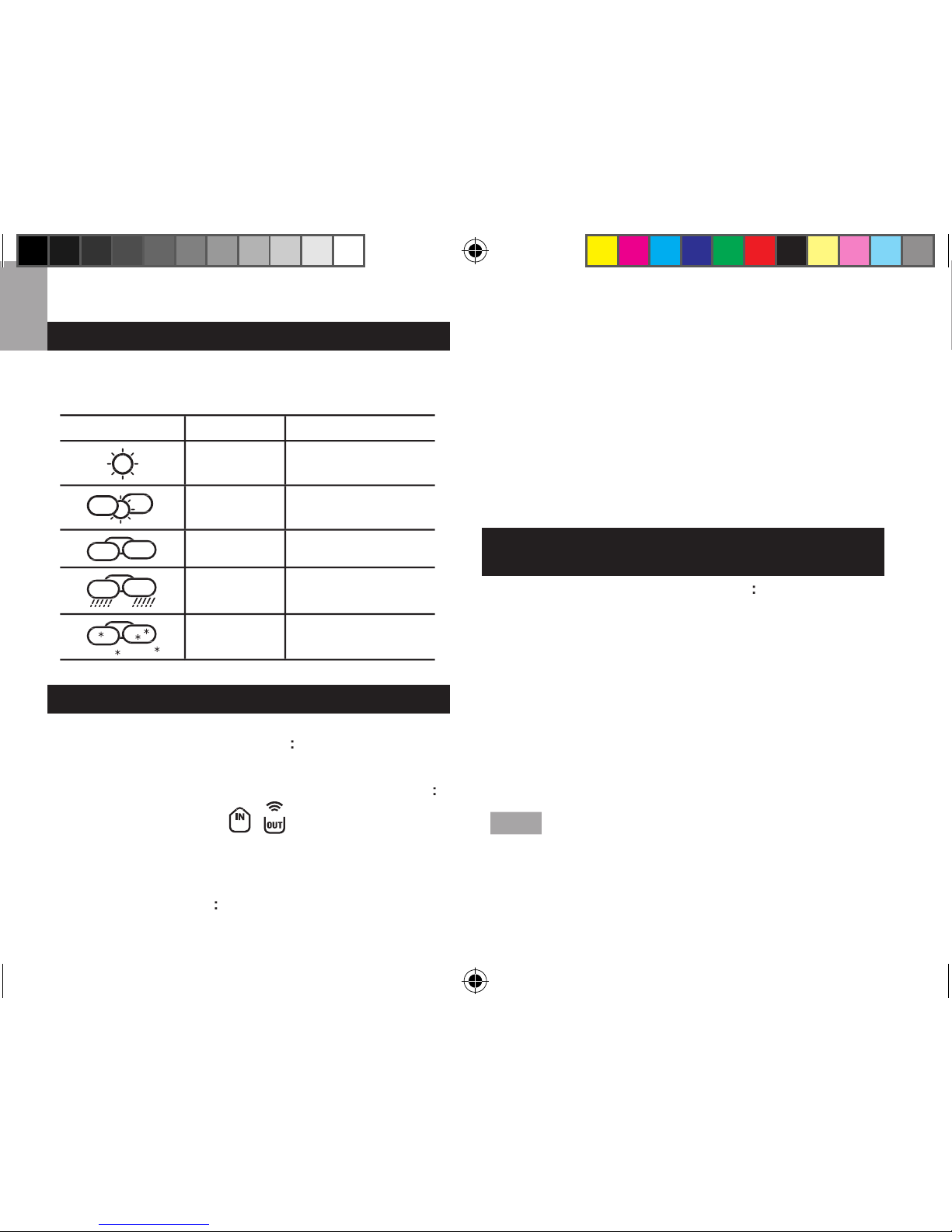

WEATHER FORCAST
It will forecast the next 12 to 24 hours of weather within a
30-50 km (19-31 mile) radius using different colour icons.
ICON COLOUR DESCRIPTION
Red /
Orange SunnyS
Pink Partially Cloudy
Turquoise Cloudy
Purple Rainy
Green Snowy
BAR339P_M_EN_R1.indd 5 6/21/07 2:08:07 PM
P/N: 086L004766-034 REV1
6/70

6
EN
• Touch repeatedly to fl ip dual line projection image
by 180 degrees.
NOTE
If projection is illuminated, do not look directly
into the projector.
NOTE To save battery life, the projector and backlight
will only operate continuously when adapter is installed.
The light sensor will turn off the projector automatically
when it detects external light sources.
COLOUR
The colour function lights up the LCD screen. There are
2 different types of display:
• WEATHER FORECAST: The colour changes
according to the different weather forecast. (As
shown in Weather forecast).
• DEMO: The colour gradually changes between the
colours (rainbow display).
TEMPERATURE
To toggle temperature unit
:
Press °C / °F.
To toggle between outdoor / indoor sensor readings
:
Touch TEMP. / indicates indoor and outdoor
temperature.
To auto-scan between sensors
:
Touch and hold TEMP for 2 seconds to display the
sensor’s data for 5 seconds.
To deactivate auto-scan function touch TEMP.
To toggle between current, minimum and maximum
temperature records for outdoor / indoor:
Press MEM repeatedly.
To clear the records:
Press and hold MEM for 2 seconds.
PROJECTOR AND BACKLIGHT
To activate Projection function
:
• Slide PROJECTON switch to ON to illuminate
projection continuously.
To activate Backlight function:
• Slide LIGHT switch to ON to illuminate backlight
continuously.
OR
• Touch SNOOZE to turn on projector and backlight
for 5 seconds.
BAR339P_M_EN_R1.indd 6 6/21/07 2:08:08 PM
P/N: 086L004766-034 REV1
7/70

7
EN
To activate / deactivate the weather forecast or rainbow
display, slide the relevant switch to one of the following
options:
• WEATHER FORECAST: Colour changing weather
forecast.
• DEMO: For gradual changes between the colours.
KEY LOCK
Auto key lock will activate if no key is pressed for 1
minute. indicates key lock is engaged, touch any
key to unlock.
RESET
Press RESET to return to the default settings.
PRECAUTIONS
• Do not subject the unit to excessive force, shock,
dust, temperature or humidity.
• Do not cover the ventilation holes with any items
such as newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid
over it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive
materials.
• Do not tamper with the unit’s internal components.
This invalidates the warranty.
• Only use fresh batteries. Do not mix new and old
batteries.
• Images shown in this manual may differ from the
actual display.
• When disposing of this product, ensure it is collected
separately for special treatment.
• Placement of this product on certain types of wood
may result in damage to its fi nish for which Oregon
Scientifi c will not be responsible. Consult the furniture
manufacture’s care instructions for information.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal
waste. Collection of such waste separately for special
treatment is necessary.
• Please note that some units are equipped with a
battery safety strip. Remove the strip from the battery
compartment before fi rst use.
NOTE The technical specifi cations for this product and
the contents of the user manual are subject to change
without notice.
BAR339P_M_EN_R1.indd 7 6/21/07 2:08:09 PM
P/N: 086L004766-034 REV1
8/70

8
EN
SPECIFICATIONS
TYPE DESCRIPTION
MAIN UNIT
L x W x H 177 x 56 x 112 mm
(6.97 x 2.21 x 4.41 in)
Weight 340 g (12.0 oz) without battery
Temperature Unit °C / °F
Temperature range -5°C to 50°C
(23°F to 122°F)
Resolution 0.1°C (0.2°F)
Signal frequency 433 MHz
Power 3 x UM-3 (AA) 1.5 V batteries /
4.5V AC / DC adapter
REMOTE UNIT (THN132N / THN132NH)
L x W x H 92 x 60 x 20 mm
(3.6 x 2.4 x 0.8 in)
Weight 62 g (2.2 oz)
Transmission range 30 m (98 ft) unobstructed
Temperature range -30°C to 60°C
(-22°F to 140°F)
Power 1 x UM-3 (AA) 1.5 V battery
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientifi c.com) to learn
more about Oregon Scientifi c products. If you’re in
the US and would like to contact our Customer Care
department directly, please visit:
www2.oregonscientifi c.com/service/support
OR
Call 1-800-853-8883.
For international inquiries, please visit:
www2.oregonscientifi c.com/about/international
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientifi c, declares that this Radio-
Controlled Projection Clock with Colour Weather
Forecast (Model: BAR339P) is in compliance with the
essential requirements and other relevant provisions
of Directive 1999/5/EC. A copy of the signed and dated
Declaration of Conformity is available on request via
our Oregon Scientifi c Customer Service.
COUNTRIES RTTE APPROVAL COMPLIED
All EU countries, Switzerland
and Norway
CH
CH
N
BAR339P_M_EN_R1.indd 8 6/21/07 2:08:09 PM
P/N: 086L004766-034 REV1
9/70

1
IT
Orologio Radiocontrollato
con Proiezione dell’Ora
e Previsioni del Tempo a Colori
Modello: BAR339P
MANUALE PER L’UTENTE
INDICE
Introduzione .............................................................2
Panoramica del prodotto ........................................2
Vista anteriore .......................................................2
Vista posteriore .....................................................2
Sensore remoto .....................................................3
Operazioni preliminari .............................................3
Alimentazione ........................................................3
Sensore remoto .......................................................4
Trasmissione dei dati del sensore .........................4
Orologio ....................................................................4
Ricezione dell’ora .................................................4
Impostazione manuale dell’ora .............................5
Sveglia ......................................................................5
Previsioni meteorologiche ......................................6
Temperatura .............................................................6
Proiezione dell’ora e retroilluminazione ................6
Colore .......................................................................7
Blocco dei tasti ........................................................7
Funzione Reset ........................................................7
Precauzioni ..............................................................7
Specifi che tecniche .................................................8
Informazioni su Oregon Scientifi c .........................9
Dichiarazione di conformita’ UE .............................9
BAR339P_M_IT_R1.indd 1 6/21/07 2:10:53 PM
P/N: 086L004766-034 REV1
10/70
