Oregon Scientific RMR500ES User manual

User Manual
+ECO Clima Control
Model: RMR500ES / RMR500ESU / RMR500ESA

EN
1
+ECO Clima Control
Model: RMR500ES / RMR500ESU /
RMR500ESA
USER MANUAL
CONTENTS
Earth Friendly....................................................................2
Overview............................................................................2
Front View.......................................................................2
LCD Display....................................................................2
Back View........................................................................3
Outdoor Sensor - THGN500.........................................3
Remote Sensor - THGR122N.......................................4
Getting Started..................................................................4
Solar Panel......................................................................4
Backup Power.................................................................5
Name Tags......................................................................5
Remote Sensors................................................................5
Clock and Calendar..........................................................6
Clock Reception..............................................................6
Manually Set Clock.........................................................7
Temperature and Humidity..............................................7
Mold Alert........................................................................7
Weather Forecast..............................................................8
Backlight............................................................................8
Reset..................................................................................8
Specications...................................................................8
Precautions.......................................................................8
About Oregon Scientic..................................................9
EU-Declaration of Conformity.........................................9
FCC Statement.................................................................10
Declaration of Conformity..............................................10

EN
2
EARTH FRIENDLY
Oregon Scientic™ proudly presents +ECO Clima Control,
an environmental-friendly weather-monitoring clock that
converts solar energy into its source of power via a solar
panel. Convenient and easy to use, you only need to lift the
solar panel and face it directly towards the sun for a few
hours in order to receive the amount of energy necessary
to power the device.
OVERVIEW

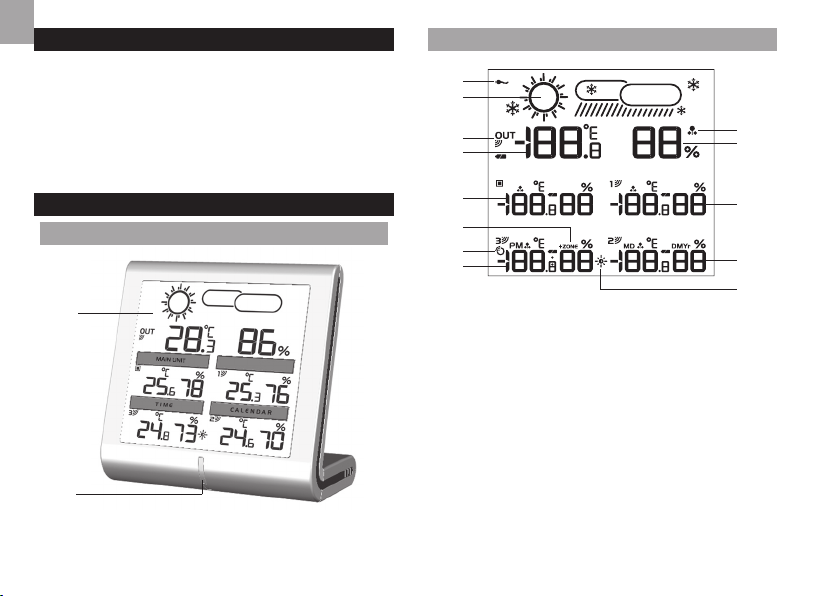

FRONT VIEW (FIG 1)
1
2
1. LCD Display
2. LED indicator
LCD DISPLAY (FIG 2)
1
2
3
4
5
6
7
8
9
10
11
12
13
1. AC/DC power adaptor icon
2. Weather forecast icon
3. Outdoor sensor reception icon
4. Outdoor temperature display for THGN500*
5. Temperature/humidity display for main unit
environment
6. Time zone
7. Clock signal reception indicator
8. Clock display (or temperature/humidity display for
optional sensor)
9. Sunlight icon
10. Calendar display (or temperature/humidity display for
optional sensor)

EN
3
11. Temperature/humidity display for THGR122N remote
sensor
12. Outdoor humidity display for THGN500*
13. Mold alert
*This product is designed to display the temperature and
humidity reading of THGN500 in the outdoor temperature/
humidity area only.
BACK VIEW (FIG 3)
1
6
3
7
4
5
8
2
1. Solar panel
2. : Toggle between clock, calendar and temperature/
humidity displays; enter setting mode
3. : Increase values in setting mode; activate clock
signal reception
4. : Decrease values in setting mode; deactivate clock
signal reception
5. : Activate backlight
6. RESET: Reset unit to default settings
7. °C / °F: Select temperature unit
8. Power adaptor jack
OUTDOOR SENSOR - THGN500 (FIG 4)
1
2
3
4
1. LED status indicator
2. Wall mount hole
3. Battery compartment
4. RESET hole

EN
4
REMOTE SENSOR - THGR122N (FIG 5)
2
1
3
4
5
6
1. LCD display
2. LED status indicator
3. Wall mount hole
4. RESET hole
5. CHANNEL switch
6. Battery compartment
GETTING STARTED
SOLAR PANEL
This product uses a 600mAH rechargeable battery which
should be charged via the solar panel. For the battery’s rst
charge, it is strongly advised to charge it for at least 12 hours
by lifting and positioning the solar panel in such a way that it
faces sunlight directly.
IMPORTANT The solar panel should be lifted and
positioned at no more than 90°.
600mAH
rechargeable
battery
When the rechargeable battery is nearly at, the LED
indicator on the main unit and will ash. Expose the solar
panel directly to sunlight for approximately 5 to 6 hours to
charge the battery. Normally, the battery life will last for 2
months.
TIPS
• For best results when charging the battery, avoid
placing the product behind glass windows, but expose
the solar panel directly to sunlight.
• Do not scratch the solar panel’s surface or wipe it with
strong detergent.
• Do not expose the solar panel to rain, snow or
moisture.

EN
5
• The duration of the rechargeable battery’s charging or
operating time is determined by either the intensity of
sunlight or the positioning of the solar panel towards
the sun.
BACKUP POWER
CR2032 batteries
In the case when the rechargeable battery is at or nearly
at, the 2 pieces of CR2032 batteries can act as backup
power supply for the main unit.
1. Remove the battery compartment.
2. Insert the batteries, matching the polarities.
3. Press RESET after each battery change.
2 x CR2032
LOCATIONMEANING
Outdoor temperature/
humidity area (THGN500) Outdoor sensor battery low
Main unit environment area CR2032 batteries low
Remote sensor area
(THGR122N)
Remote sensor batteries
low
Clock and calendar area
(or optional sensors area)
Optional sensors batteries
low
Power adaptor (not included)
The power adaptor can also be used for charging the
rechargeable battery. When connected to the main unit,
will be displayed.
NAME TAGS
Name tags can be inserted in the main unit as in Fig. 1.
There are 10 name tags provided in this package, with 7
blank tags and 3 tags printed as “MAIN UNIT”, “TIME” and
“CALENDAR”. You can write in the blank tags the name of
the location where THGR122N and other optional sensors
are installed.
NOTE If optional sensors are installed, “CALENDAR” and
“TIME” tags will be replaced.
REMOTE SENSORS
This product can work with up to 4 sensors at any one time
to capture temperature and relative humidity readings in
various locations.

EN
6
2 remote sensors (THGN500 and THGR122N) are provided
in this package, while 2 more optional wireless remote
sensors can be purchased separately.
Optional wireless remote sensors such as those listed below
can be purchased separately:
- THGR122N / THGN122N
- THGN132N
- THGR228N / THGN228N
- THGR238N / THGN238N
To set up the remote sensor:
1. Open the battery compartment and insert batteries,
matching the polarity.
2. Select a channel then press RESET.
3. Close the battery door.
4. Place the remote sensor within 30 m (98 ft) from the
main unit.
NOTE Use alkaline batteries for longer usage and consumer
grade lithium batteries in temperatures below freezing.
To search for a sensor:
Press and hold + at the same time.
The remote sensor reception icon will show the following
status:
ICON DESCRIPTION
Main unit is searching
for sensor(s).
A channel has been
found.
The sensor cannot be
found.
TIP The transmission range may vary depending on many
factors. You may need to experiment with various locations
to get the best results.
CLOCK AND CALENDAR
NOTE If optional sensors are installed:
• clock and calendar display will be replaced by
temperature/humidity readings.
• press to toggle between clock and temperature/
humidity display, or calendar and temperature/humidity
display.
CLOCK RECEPTION
This product is designed to synchronize its clock
automatically with a clock signal.
RMR500ES:
EU: DCF-77 signal: within 1 500 km (932 miles) of Frankfurt,
Germany.

EN
7
RMR500ESU:
UK: MSF-60 signal: within 1 500 km (932 miles) of Anthorn,
England.
RMR500ESA:
WWVB-60 signal: within 3200 km (2000 miles) of Fort
Collins, Colorado.
To enable / disable clock signal reception:
Press and hold to enable or to disable clock signal
reception.
NOTE Reception takes 2-10 minutes. If the signal is weak,
it can take up to 24 hours to get a valid signal. If signal
reception is unsuccessful, place your unit next to a window,
press and hold to force another signal search.
Clock signal reception indicator:
STRONG SIGNAL WEAK / NO SIGNAL
MANUALLY SET CLOCK
To set the clock manually, disable the clock signal reception
rst.
1. Press and hold .
2. Press or to change the settings. The settings
order is: time zone, 12/24 hr format, hour, minute, year,
calendar mode (month – day / day – month), month and
day.
3. Press to conrm.
RMR500ES / RMR500ESU: Time zone sets the clock +/-
23 hours from the received clock signal time. If you have
deactivated the clock signal reception, do not set a value
for time zone.
RMR500ESA: Select the time zone: (0) Pacic, (+1)
Mountain, (+2) Central or (+3) Eastern.
TEMPERATURE AND HUMIDITY
To toggle temperature unit:
Press °C / °F.
NOTE “HH.H” or “LL.L” will be displayed when the received
temperature is out of the specied temperature range.
MOLD ALERT
This product features moisture alert function for the
prevention of mold. If the humidity is over 60%, the mold
alert icon will ash, and will stop ashing if the humidity
is less than 60%.

EN
8
WEATHER FORECAST
This product forecasts the next 12 to 24 hours of weather
within a 30-50 km (19-31 mile) radius with 75% accuracy.
Sunny
Partially Cloudy
Cloudy
Rainy
Snowy
BACKLIGHT
Press to activate LED backlight for 5 seconds.to activate LED backlight for 5 seconds.
RESET
Press RESET to return to the default settings.
SPECIFICATIONS
TYPE DESCRIPTION
MAIN UNIT
L x W x H 130 x 80 x 130 mm
(5.1 x 3.15 x 5.1 in)
Weight 400 g (14.11 oz) without battery
Signal frequency 433 MHz
Temperature range -5°C to 50°C (23°F to 122°F)
Humidity range 25% - 95%
Power
600mAH rechargeable battery;
6V AC/DC adaptor (not included);
2 x CR2032 batteries (for backup)
REMOTE UNIT (THGN500)
L x W x H 50 x 22 x 96 mmmmmm
(1.9 x 0.9 x 3.8 in)
Weight 63 g (2.22 oz) without batteryg (2.22 oz) without battery(2.22 oz) without battery
Signal frequency 433 MHz
Number of channel 1
Transmission range 30 m (100 ft) unobstructed
Temperature range -20°C to 60°C (-4°F to 140°F)
Humidity range 25% - 95%
Power 1 x UM-3 (AA) 1.5  batteryA) 1.5 V battery) 1.5 V battery
REMOTE UNIT (THGR122N)
L x W x H 92 x 60 x 20 mmmmmm
(3.6 x 2.4 x 0.79 in)
Weight 63 g (2.22 oz) without batteryg (2.22 oz) without battery(2.22 oz) without battery
Signal frequency 433 MHz
Number of channel 3
Transmission range 30 m (100 ft) unobstructed
Temperature range -20°C to 60°C (-4°F to 140°F)
Humidity range 25% - 95%
Power 2 x UM-4 (AAA) 1.5  batteryA) 1.5 V battery) 1.5 V battery
PRECAUTIONS
• Do not subject the unit to excessive force, shock, dust,
temperature or humidity.
• Do not cover the ventilation holes with any items such
as newspapers, curtains etc.
