Oregon ScientificTM Body Weight Monitor
(BWR102)
User’s Manual
TABLE OF CONTENTS
About this guide ............................................... 1
Key features ..................................................... 2
Scale ..................................................... 2
Remote unit ........................................... 2
LCD display symbols ............................. 2
Getting started .................................................. 3
Switch between clock and user profiles ........... 3
Set clock and measurement unit ...................... 3
Set user profile ................................................. 3
Measure weight and BMI .................................. 4
Access user memory ........................................ 4
Reset system ................................................... 4
Batteries ........................................................... 4
How the body weight monitor works ................ 5
Safety and care ................................................ 6
Warnings .......................................................... 6
Troubleshooting ................................................ 6
Specifications ................................................... 7
Measurement units ........................................... 8
About Oregon Scientific ................................... 8
EC Declaration of Conformity ........................... 8
ABOUT THIS GUIDE
Thank you for selecting the Oregon ScientificTM
body weight monitor as your healthcare product
of choice. Your BWR102 body weight monitor is
designed to give you many years of reliable
service provided it is used correctly, and
includes the following conveniences:
•User selectable weight measurement
in kilograms, pounds, or stone
pounds.
•Patented step-on technology that
automatically turns on the scale
whenever you step onto it.
•Wireless remote unit with 8 meter
range and large LCD display for
viewing information.
•Storage of height information.
•Automatic calculation and storage
of body mass index (BMI).
•Storage of up to seven
measurement records for four
different users, including time-date
stamp, weight, and body mass
index (BMI).
•Guest record for weight and BMI
calculation (no memory available).
•Built-in clock.
Keep this manual handy as you use your new
product. It contains practical step-by-step
instructions, as well as technical specifications
and warnings you should know.
BWR 102 new English r8 op 12/27/03, 10:25 AM1
Black

GB
2

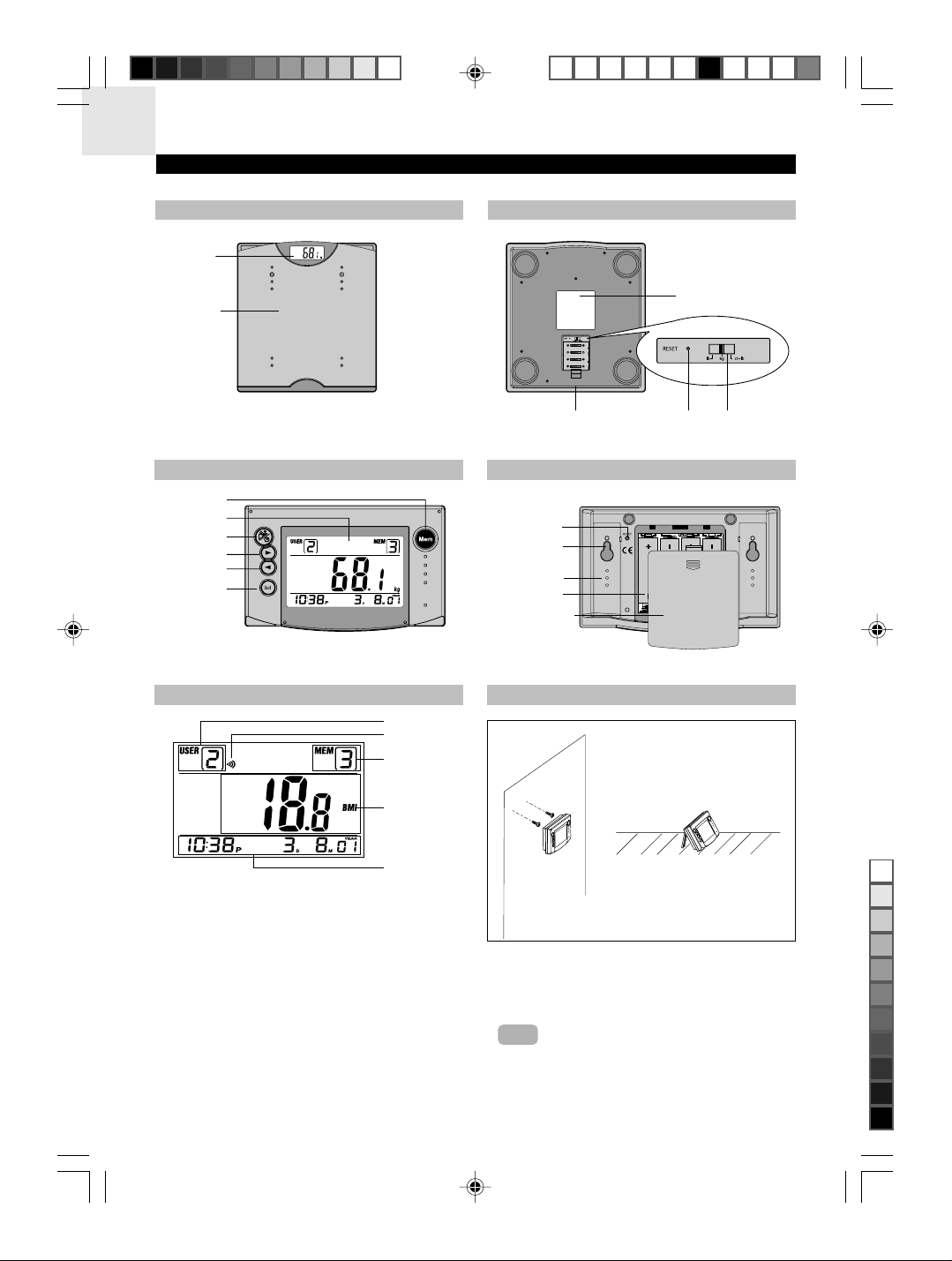

KEY FEATURES
SCALE - FRONT SCALE - BACK
REMOTE UNIT - FRONT REMOTE UNIT - BACK
LCD DISPLAY
NOTE
LCD Display
Scale platform
Battery Compartment Reset Button Measurement
Unit Switch
Instruction panel
Memory Button
LCD Display
User / Clock
Button
Increase Button
Decrease Button
Set Button
Reset Button
Wall Mount
Stand
Battery
Compartment
Compartment
Lid
User Record
Data Reception
in Progress
Memory Record
Body Mass Index
(calculated)
Record Time and
Date Stamp
HOW TO PLACE THE REMOTE UNIT
Images not drawn to scale.
Mount or place the remote unit on a wall or flat
surface within 8 meters of the scale. Avoid
obstructions (such as walls or heavy furniture).
BWR 102 new English r8 op 12/27/03, 10:25 AM2
Black

GB
3
GETTING STARTED
1. Unpack the product. In the box you will
find:
•Scale
•Remote unit
•8x AA 1.5V batteries
•Carpet feet
•User manual
Keep all packing materials in a
safe place, in case you need to later
transport or return the product for
servicing.
2. Insert the batteries in the remote unit
and scale. Be sure to match the polarity
as shown in the battery compartment.
3. Set the measurement unit (back of scale)
to lb, kg, or st-lb (stone pound).
4. (Optional) Place the carpet feet on the
scale if you will be using the scale on an
uneven surface, such as a carpet.
(For best results, use the scale on a flat
surface.)
5. Place the scale on the floor. and
will show on the display when
you first set it down. Wait until the display
is blank before you proceed to Step 6.
6. Hold the remote unit in your hands, and
step on the scale.
7. The scale will beep and show your weight.
To set up the remote unit to display this
information (first-time use only), press and
hold for 2 seconds. The remote unit
will beep two times, and will show on
the display, followed by your weight. Once
your weight is shown on the remote unit,
the set up is complete.
You will need to repeat Steps
6 - 7 every time you replace the batteries.
8. Set the clock and measurement unit on
the remote unit ( next section).
9. Create your user profile ( Set User
Profile).
10. Place the remote unit on a wall or flat
surface within 8 meters of the scale.
Avoid obstructions (such as walls or
heavy furniture).
SWITCH BETWEEN CLOCK AND USER
PROFILES
Press to switch between the clock and
user profiles.
SET CLOCK AND MEASUREMENT UNIT
Set the clock to provide a time-date stamp for
each record you save, or to use the remote
unit as a clock in your bathroom.
1. From clock display, press and hold
to enter the setting mode.
2. The setting order is as follows:
24 / 12 hour format, hour, minute, month /
day or day / month format, month, date,
and measurement unit (kg, lb, or st-lb).
3. Press or to increase or decrease
a value or change the setting.
4. Press to accept the change and
switch to the next setting.
SET USER PROFILE
With this product, you can create a user profile
for up to four people (users 1 - 4) and one
guest who regularly use the body weight
monitor. This allows the BWR102 to
automatically calculate the body mass index
(BMI) whenever a user measures their weight.
1. Press to switch to the user
profiles.
2. Press or until the desired user
number displays.
3. Press and hold until the height
flashes.
4. Press or to adjust the setting.
Height is measured centimeters or feet,
inches, and tenths of inches, depending
on the weight measurement unit you
select ( Set Clock and Measurement
Unit).
5. Press to confirm.
NOTE
NOTE
BWR 102 new English r8 op 12/27/03, 10:25 AM3
Black

GB
4

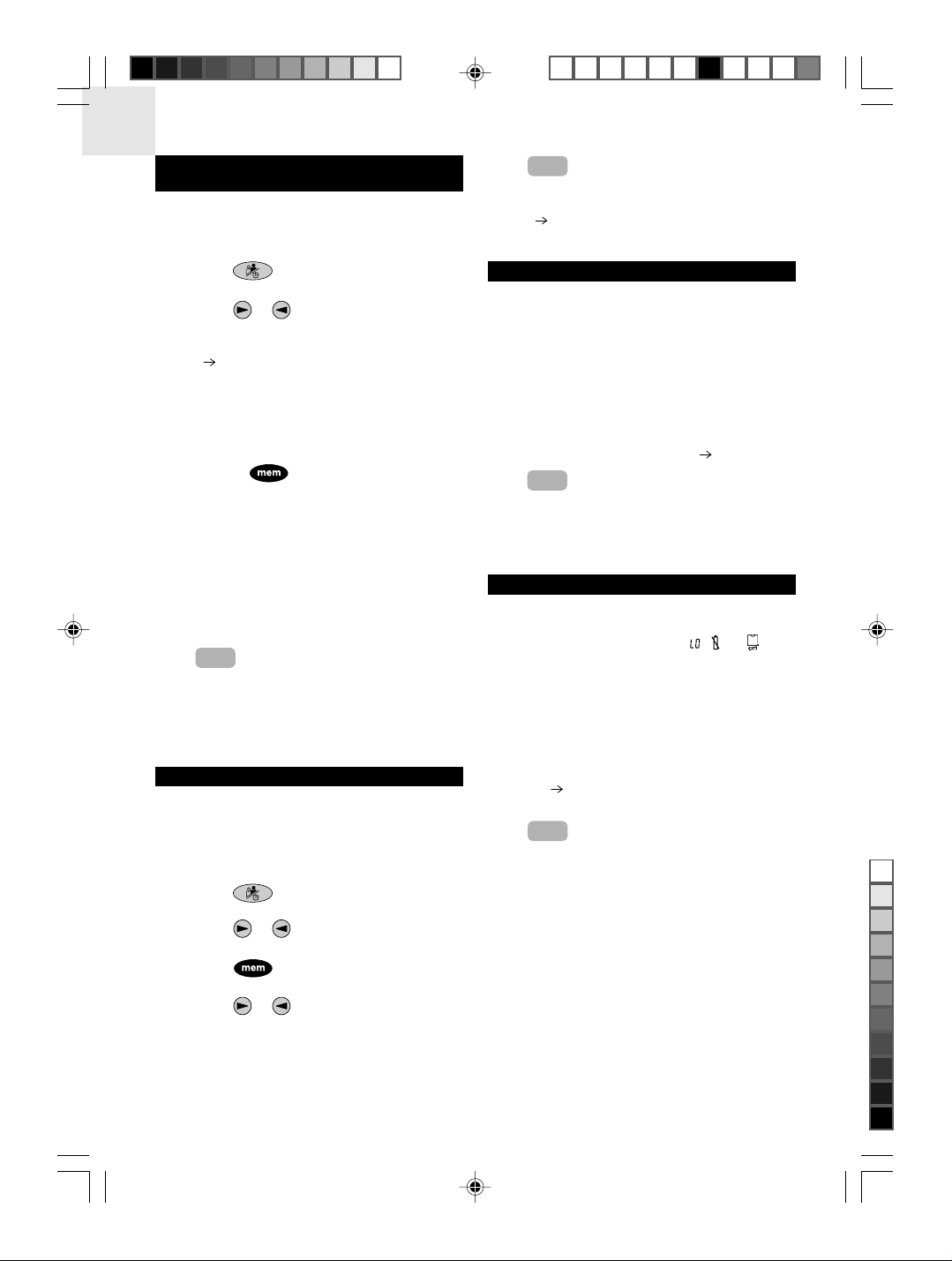

MEASURE WEIGHT AND BODY MASS INDEX
(BMI)
If you do not wish to calculate your BMI, simply
step on the scale and wait a few moments until
your weight displays.
1. Press on the remote unit to
switch to the user profiles.
2. Press or until the desired user
number displays. If you select “GUEST”,
you will need to enter your height
(3, Steps 2 - 5).
3. Step on the scale. “- - - -” will flash on
the display, followed by your weight. The
scale will beep when the measurement
is complete, and the weight will show on
the remote unit.
4. To save the measurement to memory, press
and hold for 2 seconds on the
remote unit. A “1” will appear in the memory
box on the remote display once the record
has been stored. (Each new measurement
is assigned to the first record number (1).
All other records are pushed back one
digit -- e.g., 2 becomes 3, and so on). The
weight will be shown first, followed by the
BMI value if the height has been set for that
user record. If no height has been set,
“- - - -” will show for the BMI value.
The scale display will automatically
go off after 5 - 10 seconds, even if weight is
still applied. The remote display will return
to clock mode if it is left idle for 30 seconds.
Press any key to prolong the display.
ACCESS USER MEMORY
This product can save up to 7 records for each
user. Each record is saved with the time-date
stamp, weight, and body mass index (BMI)
calculation. Records cannot be saved for
guests.
1. Press to switch to the user
profiles.
2. Press or until the desired user
number appears.
3. Press . A “1” will show in the MEM
box for the selected user.
4. Press or to scroll through the
records. Weight and BMI value will
alternatively display every 2 seconds.
The time and date for the measurement
are shown at the bottom of the screen.
NOTE
If the height has not been set,
"- - - -" will display for the BMI value.
Refer to the SET USER PROFILE section
(3) for height setting instructions.
RESET SYSTEM
The RESET buttons are located in or near the
battery compartments for the scale and remote
unit. Press these buttons with the tip of a blunt
object (such as a ballpoint pen) whenever you
change the batteries, or whenever performance
is not behaving as expected (e.g., unable to
establish radio frequency link with remote unit).
This will return all settings to default value.
Once you press RESET, repeat Steps 6 - 7 of
the GETTING STARTED section ( 3).
RESET does not erase user
profiles, records, or measurement units
that were previously stored. To erase a
record, simply record new data over it.
BATTERIES
Batteries for the remote unit and scale are
supplied with this product. Replace them
whenever the low battery signal ( ,, or )
displays on the scale or remote unit. Remove the
battery compartment lid on the bottom of the
scale or back of the remote unit, and insert the
batteries. Be sure to match the correct polarity,
as shown in the battery compartment. Before you
close the lid, press the RESET button with the
point of a blunt object (such as a ball point pen).
Repeat Steps 6 - 7 of the GETTING STARTED
section ( 3) to set up the remote unit to
display scale information.
Insert the batteries in the remote
unit before the scale. Do not use
rechargeable batteries. Batteries can be
harmful to the environment. Contact your
local waste disposal authority for proper
disposal instructions.
NOTE
NOTE
NOTE
BWR 102 new English r8 op 12/27/03, 10:25 AM4
Black

GB
5
HOW THE BODY WEIGHT MONITOR
WORKS
What does the body weight monitor
measure?
The body weight monitor measures weight and
calculates body mass index (BMI), an
international standard for assessing overall
health.
How does the body weight monitor work?
This product uses wireless radio frequency (RF)
technology to transmit data from the scale to the
remote unit. The range for the transmission is
8 meters, in any direction from the scale.
When you step on the scale, your weight is
measured in pounds, kilograms, or stone
pounds, depending on the unit you select. The
measurement is then transmitted to the remote
unit, where the body mass index (BMI) can be
calculated provided you have created a user
profile for yourself or entered the height if you are
using the “GUEST” profile.
What is body mass index (BMI)?
Body mass index (BMI) is a widely used
international standard that measures height to
weight ratio to determine obesity. BMI is
expressed by the following terms:
BMI = Body weight (kg)
[Body height (m)]2
The BMI index is only a general
indicator of overall health. The range
may vary depending on your body type
and composition. Consult with your
doctor to gain a full understanding of
your health condition.
How to interpret BMI
The result is a value (such as 22) that
corresponds to the four BMI ranges:
underweight, recommended, overweight, and
obese (described to the right). The ranges are
based on a comprehensive clinical study of the
averages for thousands of people for whom BMI
was calculated. BMI can be used to estimate
potential health risks. Based on this research, it
has been shown that the health risk for people
with a BMI of 22 is lowest.
NOTE
BMI ranges
The chart
below gives
the values
and description
for each range.
Health
risk
BMI value
Health
Indication
BMI
Range
Description
Underweight Less
than
20.0*
Your body
weight is lower
than average.
Work to
maintain a
healthy,
regular diet
and exercise
plan to build
up your health.
Asian
BMI:
Less
than
18.5
Recommended 20.0 to
25.0*
You are at the
recommended
level.
Maintain a
balanced diet
and exercise
routine to stay
at the present
level.
Asian
BMI:
18.5 to
23.0
Overweight 25.1 to
29.9*
Your body
weight may be
above normal.
Exercise more
and maintain
a healthy diet
to lower your
risk for serious
illness.
Asian
BMI:
23.0 to
29.9
Obese 30.0 or
greater*
You may be at
risk for heart
disease, high
blood
pressure, and
other illnesses.
Consult your
doctor to
create a proper
health and
fitness plan.
* Asians have a separate BMI range due to
their different body composition.
BWR 102 new English r8 op 12/27/03, 10:25 AM5
Black

GB
6
Consult your physician before you
begin a new diet or exercise program.
BMI should not be used as a health risk
indicator for the following groups:
•Children and teenagers - BMI ranges
are based on adult heights.
•Athletes and body builders - BMI
does not differentiate between fat
and muscle and can therefore be
inaccurate for people with high
muscle density.
•Pregnant or nursing women - this
group may experience elevated fat
levels as part of the pregnancy.
•People over age 65 - this group may
experience elevated fat levels as part
of the aging process.
References:
Jequier, E. (1987), Energy, obesity, and body
weight standards.
American Journal of Clinical Nutrition,
45, 1035-1047.
The Japan Society for the Study of Obesity
The Weight Loss Research Center
MyDr.com (www.mydr.com.au)
SAFETY AND CARE
Wash the unit with a slightly damp cloth and
mild detergent. Avoid dropping the unit, storing
it in an upright position, or storing it with objects
placed on it.
Allow the scale to rest for at least 30 minutes
whenever there is a sudden change in
environment (e.g., you move it from a warm,
humid room to a cool, air-conditioned room).
Help us protect the environment.
Recycle the packaging, batteries, and product
when you no longer need them.
WARNINGS
This product is designed to give you years of
service if handled properly. Observe the
following guidelines:
•Never immerse the unit in water. This
can cause electrical shock and damage
the unit.
•Do not subject the unit to extreme force,
shock, or fluctuations in temperature or
humidity.
NOTE
NOTE
•Do not tamper with the internal
components.
•Do not mix new and old batteries or
batteries of different types.
•Do not use rechargeable batteries with
this product.
•Remove the batteries if storing this
product for a long period of time.
•Do not scratch the LCD display.
•Do not make any changes or
modifications to this product.
Unauthorized changes may void your
right to use the product.
The contents of this user manual are
subject to change without notice.
Images not drawn to scale.
TROUBLESHOOTING GUIDE
Check here before contacting our customer
service department.
Problem Symptom Remedy
Display is
blank
Batteries are
inserted
incorrectly
Check battery
polarity. It
should match
the diagrams
on the inside of
the battery
compartment.
Batteries are
exhausted
Replace
batteries
(4).
Display is
dim
Batteries are
low
Replace
batteries
(4).
Display
shows ,,
or .
Batteries are
low
If shows,
replace the
scale batteries
(4).
If shows,
replace the
remote unit
batteries
(4).
Error
message:
shows on
the scale
when I take a
measurement
The weight is
unstable or
unevenly
distributed
Step off the
scale and try
again ( 3).
BWR 102 new English r8 op 12/27/03, 10:25 AM6
Black

GB
7
Problem Symptom Remedy Problem Symptom Remedy
Error
message:
“OL” shows
on the scale
display
The scale is
overloaded.
Maximum
weight is
150 kg / 330 lb
/ 23st-8lb
Step off the
scale and try
again with
less weight
(3).
"---" shows
on the
remote unit
where height
should show
Height has
not been
entered for
the selected
user profile
Input height
data, then
repeat the
measurement
(3).
"---" shows
on the
remote unit
where BMI
should show
BMI
calculation is
out of range
Check the
height ( 3).
Wrong user
profile
selected
Check the
user profile
(3).
"---" shows on
the remote
unit where
weight should
show, and
is flashing
The remote
unit is not set
up to receive
data from the
scale
Set up the
remote unit
with the scale
(3, Getting
Started, Steps
6 - 7).
Height
(cannot
enter)
Remote unit
batteries are
low
Replace the
batteries in the
remote unit
(4).
Memory
does not
work
Guest profile
was selected
(you cannot
store records
to memory
for guests)
Select
another user
profile, then try
again
(3).
The record
was
accidentally
saved to
another user
memory
Select
another user
profile, then
try again.
(3)
User profile
was not
selected
within
30 seconds
of stepping
on the scale
Try again.
The user
profile must
be selected,
and
must be
pressed for
2 seconds
within
30 seconds of
taking a
measurement.
Weight does
not match
between
remote unit
and scale
Measurement
units do not
match
Check the
measurement
units ( 3).
Weight is not
accurate
Scale is
uneven or on
carpet
Use the carpet
feet or try
using the scale
on a flat
surface
(3, Getting
Started,
Step 4).
Remote unit
suddenly
switches into
clock mode
Display has
timed-out
Press to
switch back to
the user
profile mode.
was
not pressed
long enough
Try again.
The user
profile must be
selected, and
must
be pressed
and held for
2 seconds
within
30 seconds of
taking a
measurement.
Remote unit
is too far
from scale,
or there are
too many
obstructions
Move the
remote unit
within
8 meters of
the scale, with
minimal
obstructions.
SPECIFICATIONS
Dimensions:
Scale W x H x L 290 x 310 x 38 mm
Scale weight 1.2 kg
(without batteries)
Remote unit W x H x L 137 x 86 x 30 mm
Remote unit weight 180 g
(without batteries)
Weight measuring range:
Weighing mechanism strain gauge
mechanism
Weight units kilogram (kg) /
pounds (lb) / stone
pounds (st-lb)
Maximum weight 150kg / 330 lb /
23st-8lb
Graduation 0.1 kg / 0.2 lb
BWR 102 new English r8 op 12/27/03, 10:25 AM7
Black

GB
8
Height measuring range:
Height units centimeters (cm) /
feet (‘) and
inches (“)
Min / Max height 94.0 to 240.0 cm /
3' 1.0" to 7' 10.5"
BMI:
Min / Max BMI 5 - 50 kg/m2
Radio frequency:
System 433 Megahertz
(MHz) radio
frequency
Range 8 meters with no
interference
(Partitions, walls,
and electrical
appliances may
affect reception
range)
Display:
Time 12 hr AM / PM or
24hr user
selectable
Date MM / DD
(month / date) or
DD / MM
(date / month) user
selectable
Year 2001 - 2050 user
selectable
Power:
Scale 4xLR6 (“AA”) UM-3
1.5V batteries
Remote unit 4xLR6 (“AA”) UM-3
1.5V batteries
Power save Scale unit auto-off
after 5 to
10 seconds
Operating environment:
Operation temperature 5 °C to 45 °C
(41 °F to 113 °F) at
85% relative humidity
Storage temperature -5 °C to 60 °C
(23 °F to 140 °F)
at 85% relative
humidity
MEASUREMENT UNITS
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to
learn more about other Oregon ScientificTM
products such as digital cameras, projection
clocks, health and fitness gear, and weather
stations. The website also includes contact
information for our customer service department,
in case you need to reach us.
EC-DECLARATION OF CONFORMITY
This product contains the approved transmitter
module TX 05 and complies with the essential
requirements of Article 3 of the R&TTE 1999/5/EC
Directives,if used for its intended use and that the
following standard(s) has/have been applied:
Radio frequency spectrum
(Article 3.2 of the R&TTE Directive)
applied standard(s):
ETSI EN 300 220-3 (Ver.1.1.1):2000-09
Electromagnetic compatibility
(Article 3.1.b of the R&TTE Directive)
applied standard(s):
ETSI EN 301 489-1-3 (Ver.1.4.1):2002-08
Safety of information technology equipment
(Article 3.1.a of the R&TTE directive)
applied standard(s): EN 60950:2000
Additional information:
The product is therefore conform with the Low Voltage
Directive 73/23/EC, the EMC Directive 89/336/EC and
R&TTE Directive 1999/5/EC (appendix II) and carries
the respective CE marking.
VS-Villingen / Germany August 2003
Gerhard Preis
R&TTE Representative of manufacturer
COUNTRIES RTTE APPROVAL COMPLIED
All EC Countries, Switzerland
and Norway
Unit Location Conversion
kg Metric
kilogram
Global 1 kg = 2.20 lb
1 kg = 0.16 st-lb
lb Imperial
pound
US 1 lb = 0.45 kg
1 lb = 0.07 st-lb
CH
N
st-lb British
stone
pound
UK 1 stone = 14.0 lb
1 stone = 6.35 kg
BWR 102 new English r8 op 12/27/03, 10:25 AM8
Black
