Advanced Weather Station
with Atomic Time
Model: BAR208HG
USER MANUAL
BAR208HG_M_COVER.indd 1 8/9/07 5:42:09 PM

1
EN
CONTENTS
Overview .................................................................... 2
Front View ............................................................. 2
Back View ............................................................. 3
Remote Sensor ..................................................... 3
Getting Started .......................................................... 3
Insert Batteries ...................................................... 3
Remote Sensor ......................................................... 4
Sensor Data Transmission .................................... 4
Clock .......................................................................... 5
Clock Reception .................................................... 5
Manually Set Clock ............................................... 5
Weather Forecast ..................................................... 6
Weather Warning Message ...................................... 6
Temperature and Humidity ...................................... 6
Ice Warning ........................................................... 6
Advanced Weather Station
with Atomic Time
Model: BAR208HG
USER MANUAL
Weather Trends ..................................................... 7
Moon Phase .............................................................. 7
Backlight ................................................................... 7
Reset .......................................................................... 7
Precautions ............................................................... 7
Specifications ........................................................... 8
About Oregon Scientific .......................................... 8
EU-Declaration of Conformity ................................. 8
BAR208HG_M_EN_R3.indd 1 8/9/07 9:13:28 AM

2
EN
OVERVIEW

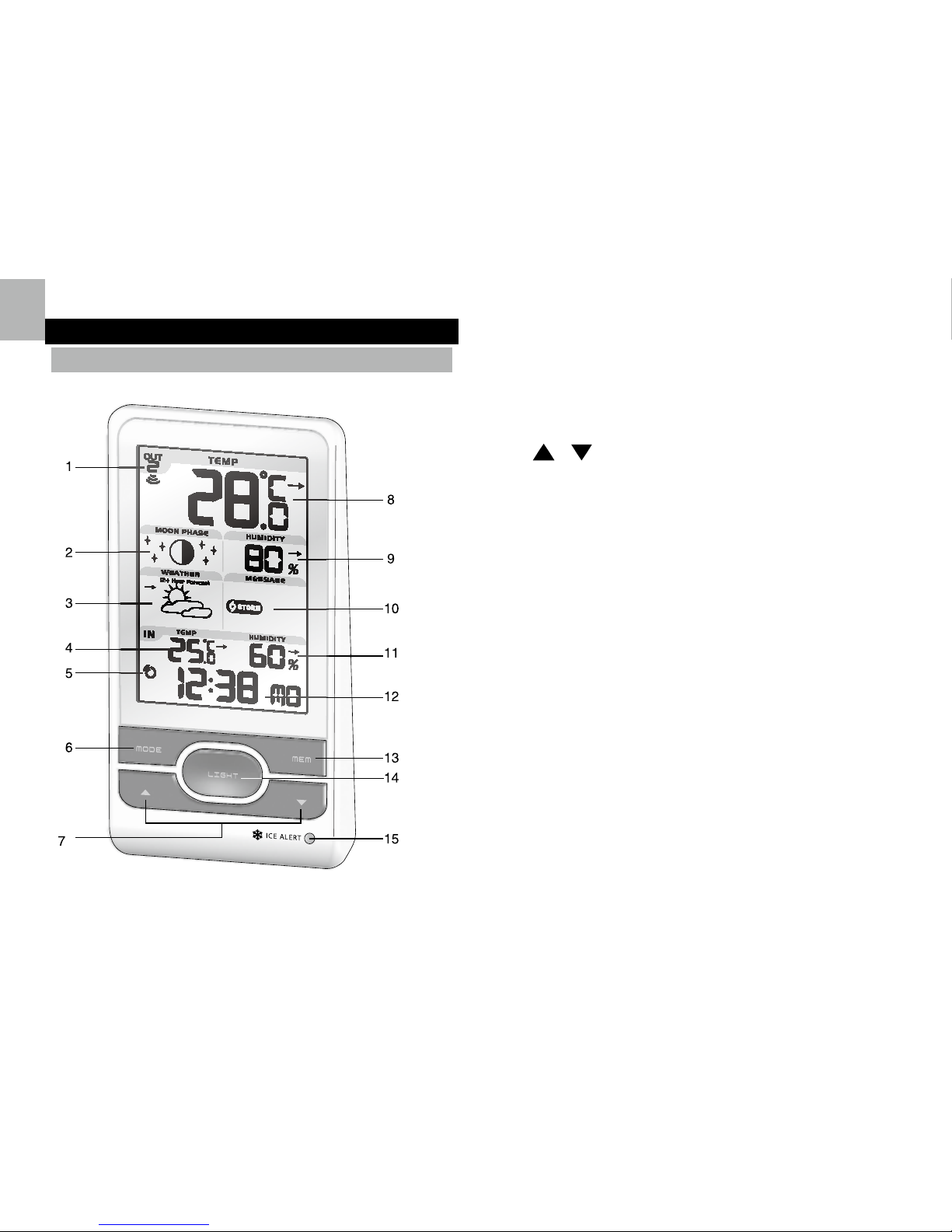

FRONT VIEW (FIG 1)
1. Remote sensor reception indicator
2. Moon phase reading
3. Weather forecast
4. Indoor temperature with temperature trend
5. Clock signal reception indicator
6. MODE: Change settings / display
7. / : Increase / decrease settings; activate /
deactivate clock reception signal
8. Outdoor temperature with temperature trend
9. Outdoor humidity with humidity trend
10. Weather warning message
11. Indoor humidity with humidity trend
12. Clock with weekday
13. MEM: View current, maximum and minimum
temperature / humidity
14. LIGHT: Activate backlight for 5 seconds
15. Ice alert LED indicator
BAR208HG_M_EN_R3.indd 2 8/9/07 9:13:35 AM

3
EN
BACK VIEW (FIG 2)
1
2
3
1. °C / °F: Select temperature unit
2. EU / UK: Select the nearest radio signal
3. RESET: Reset unit to default settings
REMOTE SENSOR (FIG 3)
1. LED status indicator
2. Wall mount hole
3. Battery compartment
4. RESET hole
5. CHANNEL switch
GETTING STARTED
INSERT BATTERIES
1. Remove the battery compartment.
2. Insert the batteries, matching the polarities (see FIG
2).
3. Press RESET after each battery change.
1
2
3
4
5
BAR208HG_M_EN_R3.indd 3 8/9/07 9:15:28 AM

4
EN

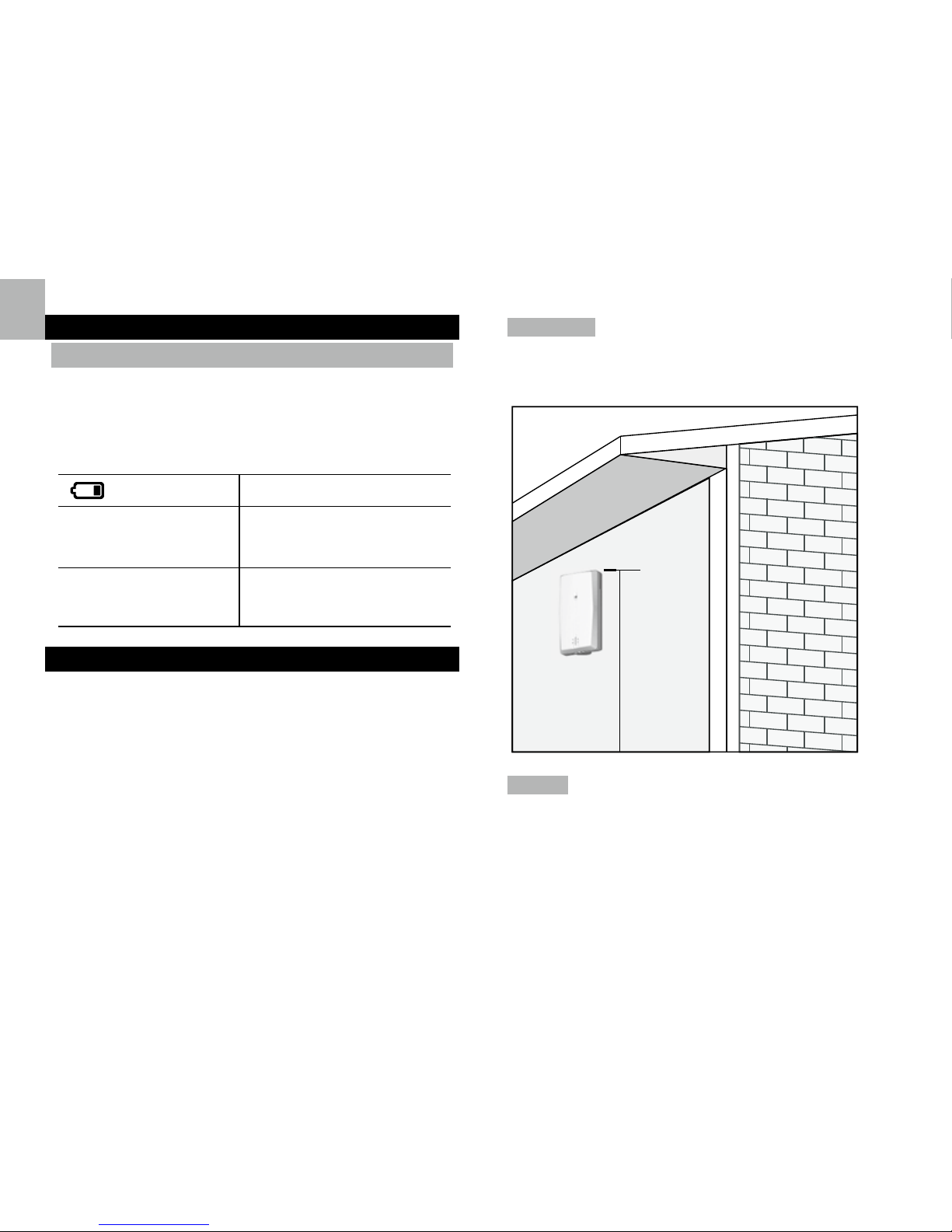

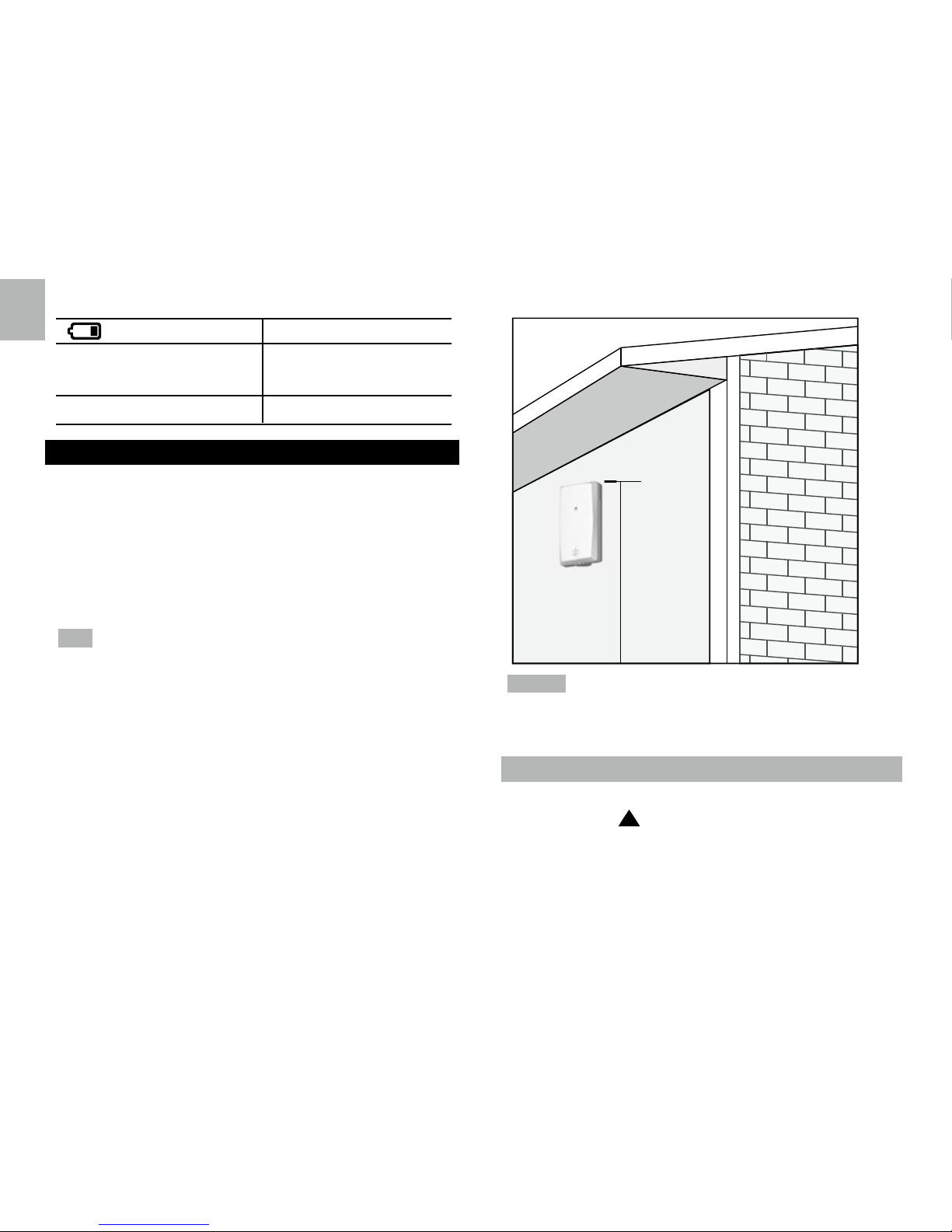

LOCATION MEANING
Clock / alarm and Main unit batteries low
Indoor temperature area
Outdoor temperature area Sensor batteries low
REMOTE SENSOR
The main unit can collect data from up to 3 sensors.
To set up the sensor:
1. Open the battery compartment (see FIG 3).
2. Select a channel then press RESET.
3. Close the battery door.
4. Place the sensor within 30 m (98 ft) of the main unit
using the table stand or wall mount.
TIP Ideal placements for the sensor would be in any
location on the exterior of the home at a height of not
more than 1.5 m (5 ft) and which can shield it from direct
sunlight or wet conditions for an accurate reading.
1.5m(5ft)
NOTE Use alkaline batteries for longer usage and
consumer grade lithium batteries in temperatures below
freezing.
SENSOR DATA TRANSMISSION
To search for a sensor:
Press and hold + MODE.

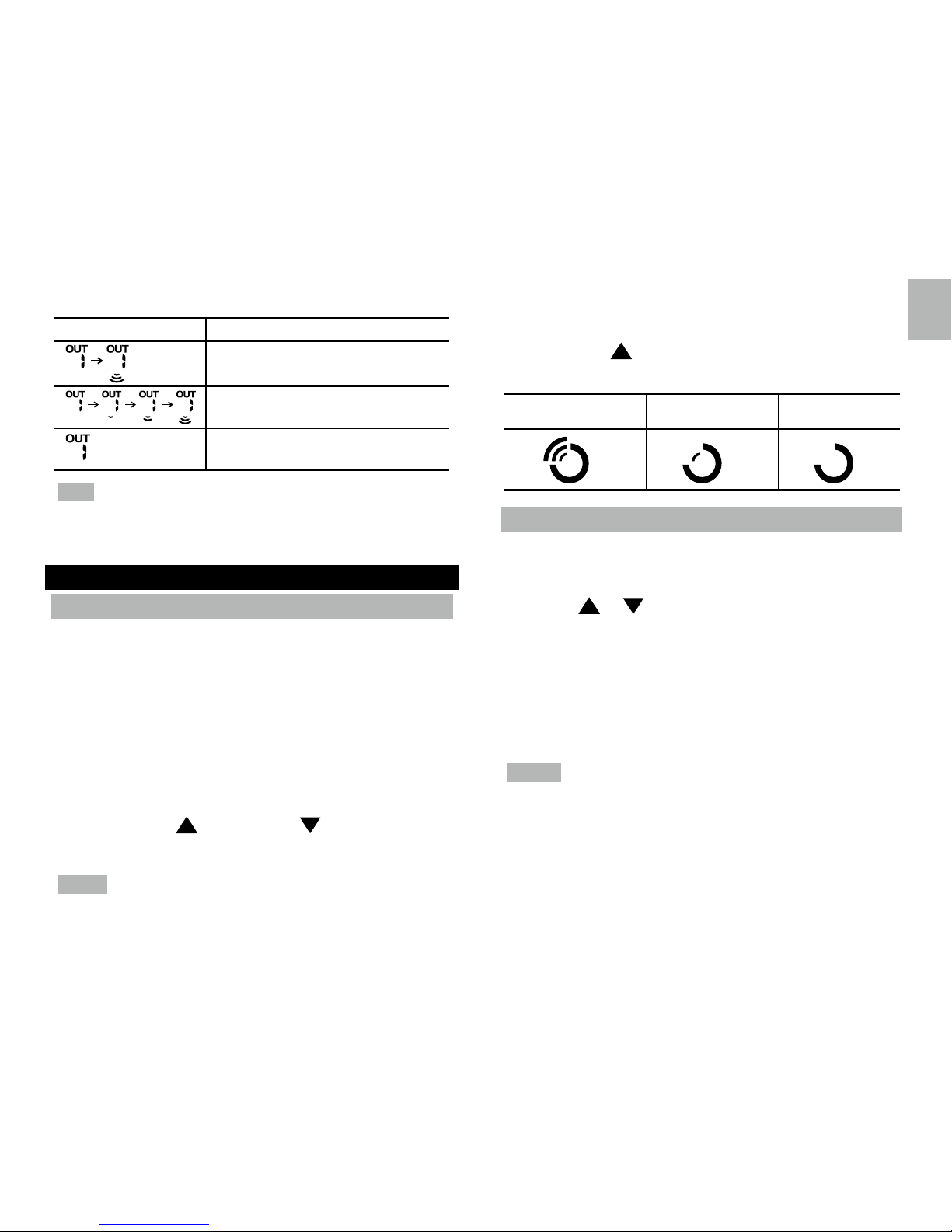

The sensor reception icon in the remote sensor area
shows the status:
BAR208HG_M_EN_R3.indd 4 8/9/07 9:14:04 AM
