MULTIVAPTM
Nitrogen Evaporation System
Model 118
DIGITAL & TIME CONTROL SYSTEM
INSTRUCTION MANUAL
ORGANOMATION ASSOCIATES INC.
266 RIVER ROAD WEST
BERLIN, MA 01503
U. S. A.
Tel: [phone] Fax: [phone]

TABLE OF CONTENTSMULTIVAP 118
Forward - Letter from the President
Introduction
Instrument Items Shipped
Instrument Description
Instrument Part Identification
Installation
Location
Bath Setup
Instrument Setup
Safety Considerations - Read before operation
Operation
Instrument Control Identification
Planning and Preparation
Type Z Purge Intrinsically Safe Bath Option
Bath Operation
Instrument Operation
Optimization
Maintenance and Cleaning
Trouble Shooting
Technical Information
Parts List
Service and Returns
Shipping - Claims for damage or shortage
Specifications
UL - Underwriters Laboratories
Warranty
Wiring Diagrams
Z-Purge NFPA Guidelines
Accessories
Other Products and Services
Contacting Organomation and its Representatives
Product designs are subject to change without notice
© 1999 Organomation Associates Inc.
Printed in U. S. A.
M99.0

M99.0
INTRODUCTIONMULTIVAP 118
Items Shipped
Carefully check the contents of all cartons received for damage which may have
occurred in transit. Retain all cartons and packaging materials until all components have been
checked against the packing slip, the component list below, and the equipment has been
assembled and tested. Contact Organomation Associates Inc. immediately if any damage or
discrepancies are found.
Your shipment should contain one or more of the instruments shown below. Option codes are
listed on the next page.
Instrument Size
9 Position MULTIVAP Nitrogen evaporation system
15 Position MULTIVAP Nitrogen evaporation system
1
30 Position MULTIVAP Nitrogen evaporation system
48 Position MULTIVAP Nitrogen evaporation system
80 Position MULTIVAP Nitrogen evaporation system
Flow meter Assembly with Mounting Bracket & Connector Tube
0-30 or 0-100 LPM for all Model 118 MULTIVAP.
1 ea 11809, 11815, 11830 & 11848, 2 ea & 11880
19 ga. x 4” Stainless Steel Needles, blunt end. 30, 48, 80 each for respective
models and positions.
14 ga x 4” Stainless Steel Needles, blunt end. 18 ea for the 11809
SS gas tube 1/4” (7 mm) OD, 1 ea 11830 & 11848, 2 ea 11880
Manual for N-EVAP models 11809-80
Pasteur Pippet Adapter with flow controller, 1 Dozen per set (Optional).
Aluminum Inserts, size per order. Set of 15.
Aluminum Inserts, size per order. Set of 30.
Aluminum Inserts, size per order. Set of 48.
Cat #
11809
11815
11830
11848
11880
NA1421
NA0603
NA1105-14
V_ _ _ _ _
V10124
NA0636
NA1802
NA1832
NA1803
MULTIVAP and OA-SYS are Trademarks of Organomation Associates Inc.

M99.0
INTRODUCTIONMULTIVAP 118
Option Codes and additional items shipped
The following list contains option codes and items which may have been shipped in
conjunction with the standard parts shown on the previous page. Please check your packing
list and order information carefully to determine if these items are included in your shipment.
For a complete list of available accessories, please refer to the Accessories Section.
Your shipment may contain the following optional items:
Description
Pasteur Pipit Fittings replace SS needles and on the MULTIVAP. 30, 48,
60, or 96 pieces are provided with the respective MULTIVAP size
ordered, reference part # NA0637.
MULTIVAP Instrument and OA-SYS heating unit are coated in Teflon.
Instrument is black in color. The water bath exterior is blue and the heat
block is black.
Pasteur Pipet fittings as above, provided with Teflon coated unit.
SS Needles 19 gauge x 4” (100mm) Long, are coated in Teflon and are
black in color.
OA-SYS heating unit has been modified for the Type-Z Purge Intrinsically
Safe bath option. Additional parts include: differential pressure gauge,
mounting bracket, and tubing.
OA-SYS water bath is wired as a 240 Volt unit.
Option
-P
-R
-RP
-RT or -T
-Z
-2
Teflon is a registered Trademark of EI Dupont Inc.

M99.0
INTRODUCTIONMULTIVAP 118
Instrument Description
The MULTIVAP Nitrogen Evaporation System is designed for general evaporation
and / or concentration of analytical or biological samples in a variety of test tube based
glassware under controlled and reproducible conditions.
The complete instrument is shown below.
Figure 1

M99.0
INTRODUCTIONMULTIVAP 118
Item
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
Part Name
Hoist Assembly
Toggle Gas Valve
Lift Knob
SS Gear Rod
Blunt Needle
Teflon coated
(Optional)
Needle Guide Assem.
Insert
Heat Unit
Gas Tube
Swing Away Manifold
Luer Fitting
Flow Meter & Bracket
Pressure Gauge
Pressure Regulator

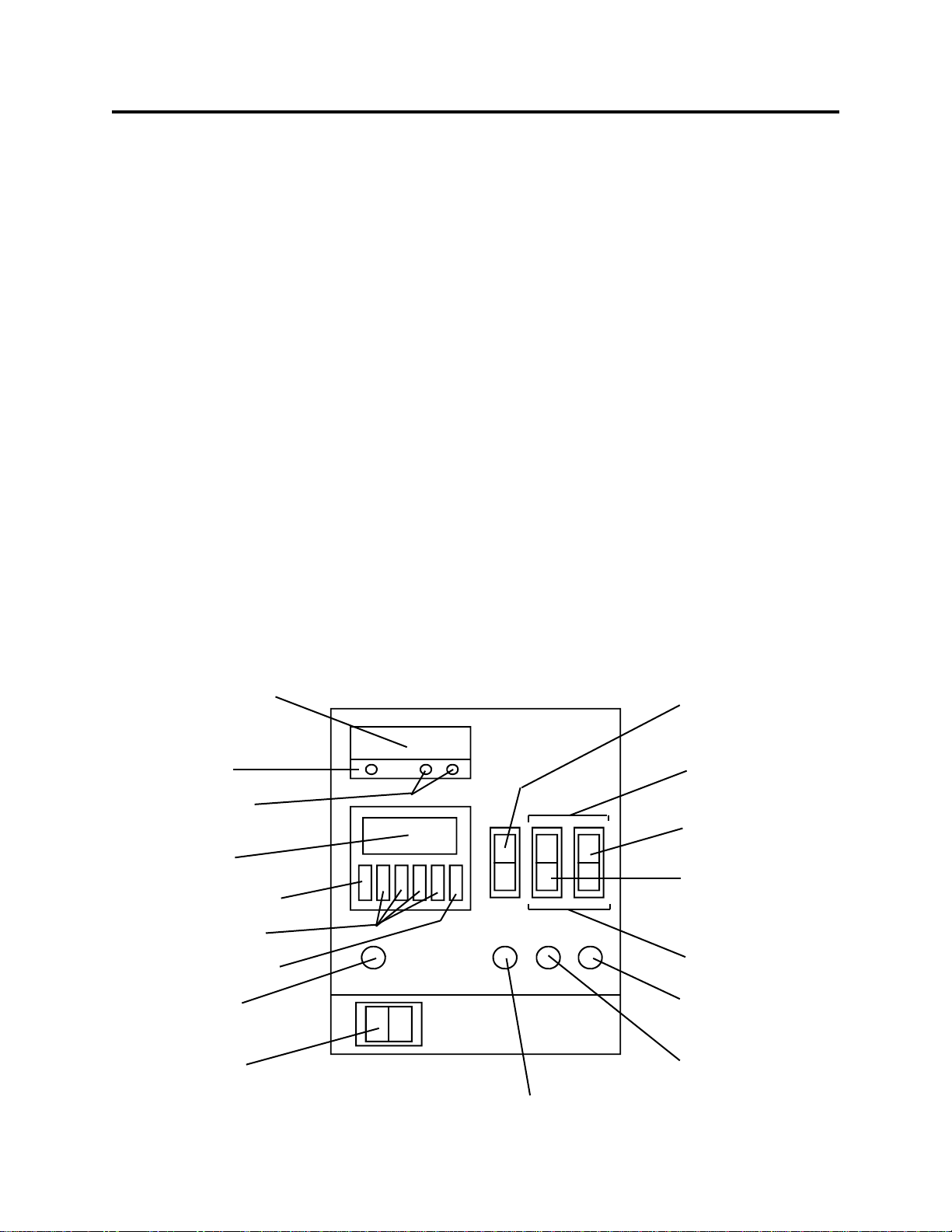

Digital Controller
Timer Control
Description
Assists lifting of instrument. Connects gas tube for
swing away movement. Delivers gas to manifold.
On/Off gas control for each manifold row.
Rotate to raise and lower manifold.
Stand rod for manifold, has geared grooves.
Delivers gas to each sample.
Teflon coated for acid resistance.
Aligns needles into sample tubs. (Optional)
Allows different diameter sample tubes in heat
block.
Dry block and control system.
SS tube connects flow meter to manifold.
Gas delivery system with swing away feature.
Connects SS needle to manifold.
Measures gas flow rate.
Measures gas pressure.
Adjusts incoming pressure to system.
Temperature control system.
Time control system.
Cat #
N A
N A
N A
N A
NA0603
NA0603-T
N A
N A
N A
N A
N A
P1302
NA1521
N A
N A
N A
N A
PARTS LIST

M99.0
INSTALLATIONMULTIVAP 118
Location
The MULTIVAP Evaporator System should be located on a bench top or in a chemical
fume hood if hazardous or flammable materials and solvents are to be used. The location
should provide the necessary support services for the instrument. These include electrical
power (required for water bath) and a clean inert gas source (Air or Nitrogen). Please review
the Specifications Section for further information.
Dry Bath Setup
1. Position the bath on a stable flat surface such as a lab bench or in a chemical fume
hood.
2. Turn the bath rocker switch to the “OFF” position.
3. Turn the heat switch to the center “OFF” position.
4. Plug the bath electrical cord into a 3 wire grounded electrical outlet rated for 110-120
VAC, 50-60 Hz, single phase, 15 amps.
Optional 220 VAC baths are clearly marked and should be plugged into a 3 wire
grounded electrical outlet rated for 220-240 VAC, 50-60 Hz, single phase, 15 amps.
5. GFCI (Ground Fault Circuit Interrupter) is an optional safety device which may be
present. For 110-120 VAC baths, the GFCI plugs into the wall outlet and the plug at
the end of the power cord plugs into the GFCI. For 220-240 VAC baths, this item is
located inline on the power cord approximately 12 inches behind the plug. Please
proceed to the next step if your bath does not have this item installed.
A. After the power cord has been plugged in, depress the “RESET” button on the
GFCI to activate the unit.
NOTE: Any time the electrical power to the outlet is disrupted, the GFCI must
be reset.
B. The GFCI may be tested by simulating a “fault” condition. Depress the “TEST’
button. The GFCI will detect the failure and trip off. Depress the “RESET”
button to re-energize the GFCI.
C. If you encounter difficulty using the GFCI or the GFCI continually trips off
during bath use, please review the troubleshooting section or call the
Organomation Technical Department for assistance.

M99.0
INSTALLATIONMULTIVAP 118
Dry Bath Setup (Continued)
6. Type-Z Purge Intrinsically Safe Bath option - If you do not have this option, please
proceed to the next section. Procedures for operating this system may be found in the
Operation Section. Quick start instructions are posted on the front of the bath. A copy
of the NFPA (National Fire Protection Assoc.) guidelines for intrinsically safe equip-
ment are in the appendix. Please refer to Figure 3 below for parts list and installation.
A. Install the Type Z Purge Gauge Assembly to the rear of the bath as shown. The
bracket attaches to the rear of the bath and is held in place by a 6-32 x 1/4” screw
on the shoulder spacer and by a 1/4” bulkhead hex nut on the gas inlet fitting.
B. Connect the small white silicone tube attached to the gauge to the gas inlet fitting
using the compression nut provided.
C. Attach the filter with 5 foot tube to the plastic elbow fitting located at the base of
the bath. Insert the filter into the fitting and tighten the nut. Connect the tube to
a clean gas source.
D. Test the system by turning on the gas flow to the Z Purge System. Adjust the
gas flow until the gauge reads 0.1 inches water pressure.
WARNING - If this unit is located in a hazardous area where volatile fumes are present,
the Z-Purge System must be activated for a minimum of 10 minutes prior
to activation of bath power. Please review the Safety and Operations
sections.
FIGURE 3
1
2
3
4
5
6
7
8
11
12
Gauge and Housing
1/4 White Silicone Tube
10/32 x 1/4 Screw
Tube Fitting Nut
3/8 OD Clear Tube
Bulkhead Hex Nut
Filter
Plastic Elbow Fitting
Shoulder Spacer
Gas Inlet Fitting
Front
Z-Purge Assembly Diagram - Side View

M99.0
INSTALLATIONMULTIVAP 118
Dry Bath Setup (Continued)
7. Flow meter Assembly - Provided with all N-EVAP Systems. If an OA-SYS bath was
purchased without an N-EVAP instrument, proceed to the next section. See figure 4
for parts identification and position.
A. Attach the flow meter and bracket to the top left rear corner of the Control Box
with the two 10/32 x 1/2” screws provided. The meter should be positioned
with the needle valve facing forward.
B. Connect the connector tube to the bulkhead fitting located on the left rear corner
of the control box.
C. Connect the 1/4” plastic tube from the control box to the lower fitting on the
flow meter.
D. Connect the Connector Tube to a clean gas source (Air or Nitrogen). Source
should be capable of being regulated down to 30 psig maximum. If source is in
excess of 30 psig, then Organomation part # NA0630 Pressure Reducing Regu
lator will be required.
8. Pressure Reducing Regulator is standard on all systems utilizing a side mounted control
box. This item is pre-installed onto the top of the control box immediately in front of
the flow meter. Adjustment range is 0 - 30 psig.
Figure 4
