USER GUIDE
Keep this user guide for future reference. Always retain your proof of purchase in case of
warranty service and register your product on line at: AUSTRALIA: www.oricom.com.au
Oricom DECT Digital
Corded Phone with
Answering System
eco7100-1
DECT Digital Corded Phone with Answering System

TABLE OF CONTENTS
SAFETY INFORMATION 1
GETTING STARTEd 3
CORdLESS HANdSET LAYOUT 5
CORdLESS HANdSET LCd dISpLAY 7
CORdEd BASE kEY LAYOUT 9
CORdEd BASE LCd LAYOUT 11
CORdLESS HANdSET OpERATIONS 15
USING YOUR pHONEBOOk 17
USING THE CALL LOG 20
USING THE REdIAL LIST 21
SET CLOCk & ALARM 23
AdvANCEd USE OF YOUR TELEpHONE 25
USING THE INTERCOM/ MAkE CONFERENCE CALL 27
ANSWERING SYSTEM 28
CORdEd BASE OpERATIONS 31
ANSWERING SYSTEM ON THE BASE 36
CUSTOMER SUppORT 37
WARRANTY 38

1
TABLE OF CONTENTS
• Clean with a dry, soft, lint-free cloth. Never use
cleaning agents, particularly aggressive solvents.
• Because the phone works by sending radio
signals between base station and handset,
wearers of hearing aids may experience
interference in the form of a humming noise.
• Your phone can interfere with electrical equipment
such as answering machines, TV and radio sets,
clock radios and computers if placed too close. It
is recommended that you position the base unit at
least one metre from such appliances.
• This telephone complies with applicable safety
requirements for exposure to radio waves
(EMR). The mean power of this telephone does
not exceed 20mW limit at which point testing is
required.
• Privacy of communications may not be ensured
when using this telephone.
• The earpiece of the handset may attract small
metal objects such as staples and pins. Care
should be taken when placing the handset near
these items.
• This telephone is not designed for making
emergency telephone calls when the mains power
fails. Always have a corded phone available to
be able to make and receive calls to emergency
services if the mains power fails.
SAFETY INFORMATION
IMPORTANT
• Avoid exposure of this telephone to moisture or
liquid.
• To prevent electric shock, do not open the
handset or base cabinet.
• Avoid metallic contact (e.g. metal clips, keys)
between the battery contacts and charging
conductors.
• There is a slight chance that the telephone
could be damaged by an electrical storm. It is
recommended that users unplug the phone from
the mains supply and telephone socket during a
storm.
• Do not use the handset in an explosive hazard
area such as where there is gas leaking.
• Follow the local regulations regarding the disposal
of your packing materials, exhausted batteries
and used phone. Wherever possible, recycle
those materials.
• This phone should not be used near intensive care
medical equipment. Persons with pacemakers
should consult their Doctor or cardiologist before
using this phone.

2
• Do not use your telephone during an electrical
storm or thunderstorm as it is possible to get an
electric shock. Refer to information contained in
White pages directory.
• This phone is designed for connection to a PSTN
telephone line or an analogue extension port of a
PBX system. If you connect this device to a digital
extension of a PBX, damage may result to the
PBX.
Use only the mains adaptors supplied with this
product. Incorrect adaptor polarity or voltage can
seriously damage the unit.
Adaptor for base unit and charger:
Base Unit power supply – Input: 100-240VAC
50/60Hz Output: 6V 0.5A
Ext Charger power supply – Input 100-240VAC
50Hz Output: 6V 150mA
CAUTION
!
SAFETY INFORMATION

3
Read first before getting started
Location
The base unit needs to be placed within 2 metres of
the mains power socket and telephone socket so that
the cables can reach.
The base unit should not be placed too close to other
electrical equipment for avoidi interference.
Avoid exposure of the phone to moisture or liquid.
Avoid exposure of the phone to hot, humid conditions
or strong sunlight.
Radio signals between handset and
base unit
To use your handset and base unit together, you must
be able to maintain a radio link between them. Be
aware that any large metal objects, like a refrigerator,
amirror,lingcabinetetc,betweenthehandsetand
the base unit may block the radio signal. Other solid
structures, like walls, may reduce the signal strength.
Interference
If the sound quality gets worse as you move around
while on a call, this is probably caused by interference
between the handset and the base unit, perhaps
because you are too near to another phone or other
electrical equipment. Move to a different position to
clear the interference. If you do not move, it might
cause a short break or your call may be cut off.
Mains power connection
IMPORTANT - The base unit and charger pod must
be used with the power adaptors that supplied with this
product as using other power adaptors might damage
the product.
Battery safety
ONLY use the rechargeable batteries supplied with
this product.
DO NOT use non-rechargeable batteries - which might
explode or damage the product.
Remove the batteries if you do not plan to use the
product for several months at a time
RISK OF EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.
CAUTION
!
If you have a Broadband line
If you connect your telephone to a line with a
broadband connection, you will need to insert a
micro-lterbetweenthetelephoneandthetelephone
line; otherwise you may get interference between the
telephone and the broadband, which could cause
problems.
SAFETY INFORMATION GETTING STARTEd

4
In a home with broadband, every telephone must
haveamicro-lterconnected,notjusttheoneatthe
telephone point that your modem is connected to. If
youneedmorebroadbandmicro-lters,contactyour
broadband supplier.
Packing contents
The following items should be contained in the pack:
• 1 base unit (with corded handset)
• 1 cordless handset
• 1 charging cradle with power supply
• 1 power supply
• 1 line cord
• 2 rechargeable batteries (Ni-MH 1.2V 400mAh)
• 1 user guide
• 1 color brochure
Note:
If any of these are missing, please contact your
supplier with purchase receipt.
Battery installation
1) Remove the battery compartment cover and
insert the AAA rechargeable batteries into the
handset in accordance with the polarity that is
marked inside the battery compartment.
2) Replace the battery compartment cover, sliding
it into place, pressing firmly to make sure it is
closed.
Charging the batteries
Before the handset is used for the first time, place
it into the charging station for at least 14hours. The
charging status is indicated in the handset display.
GETTING STARTEd

5
Cordless Handset layout
1 Earpiece
2 OK button
- Select a menu entry
3 NAVIGATION button
- Up to increase volume and view CID
- Down to decrease volume and access
Phonebook
4 TALK button
- Make or Accept a call
5 Menu button
- Access to main menu
6 [*] button
- Long press to activate or deactivate the key lock
7 Mute button
- Mute or Unmute the microphone during a call
8 Display
9 BACK button
- Cancel a menu entry
- Backspace the digit (s) or character (s)
- Press and hold to toggle between handset
name and date/time in standby mode
10 END button
- End a call
- Press and hold to turn the handset on/off
- Exit the menu/operation
GETTING STARTEd CORdLESS HANdSET LAYOUT

pACk CONTENTS
6
11 Redial button
- Enter redial list to view the last dialed number
12 R (Recall) button
13 [#] button
- Insert a pause.
- Long press to turn the ringer on/off
14 INT button
- Make the intercom call
- Make the conference call
15 Microphone
CORdLESS HANdSET LAYOUT

pACk CONTENTS 7
1 Display icons
2 Displays during the MENU mode to confirm the
selection
3 Indicates more options available Use Up/Down
key to scroll up/down
Cordless Handset LCD display
4 Display during the MENU mode
Press
BACK to return to the pervious menu level.
Press BACK to delete the last entered digit or
character
CORdLESS HANdSET LAYOUT CORdLESS HANdSET LCd dISpLAY

8
Icon Definition
Icon Name Description
Battery Level Indication Indicates the battery charge level
Call Indicates that an external call is connected or held.
Icon blinks when receiving an incoming call.
Message Indicates you have a new Voice Mail message.
Caller display Indicates you have new missed calls, or the call log is being
viewed.
Phonebook Displays when the phonebook is accessed.
Alarm Displays when the alarm clock is activated.
Ringer Off Displays when ringer volume is turned off.
Signal Level
Indicates that the handset is registered and within range of the base
station.
Icon blinks when the handset is out of range or is searching for a
base.
Tam
Slowly Blinking to indicate new TAM message(s)
Fast blinking to indicate TAM is full
Icon is not displayed when TAM is off
CORdLESS HANdSET LCd dISpLAY

9
Corded base key layout
CORdLESS HANdSET LCd dISpLAY CORdEd BASE kEY LAYOUT

10
1 Hook lock
- fix the corded handset on the corded base
while the corded base is hung against the wall
2 Speaker
3 BACK button
- Press to return to Standy mode
4 OK/ CLOCK button
 - Presstoconrmallsettings
- Long press to set date and time
5 Key lock / * button
- Long press to activate or deactivate the key
lock on corded base
6 INT/PAGE button
- Press to page the registered cordless handset
- Press to initiate the intercom call
- Press to make conference call
7 MUTE/CANCEL/DELETE button
8 R (Recall) button
9 Microphone
10 Redial button
- Press to enter Redial list and make a calling
by pressing SPEAKER button or pick up the
corded handset
11 Ring Off/ Pause/ # button
- Long press to turn the ringer on/off
- Insert a pause
12 Speaker button
- Press to make or answer a call
- Press to switch to speakerphone during a call
13 Volume button
- Press to adjust the corded base ringer level in
standby mode
- Press to adjust the corded base speaker /
receiver volume during a call
14 Phonebook button
- Press to enter Phonebook
15 CID up/ down button
- Press up/ down button to view the call list
16 Play/ Stop button
- Press to play message or stop playback
17 Annoucement button
18 MEMO button
19 Answer On/ Off button
- Press to turn the answering system on or off
20 Display
CORdEd BASE kEY LAYOUT

11

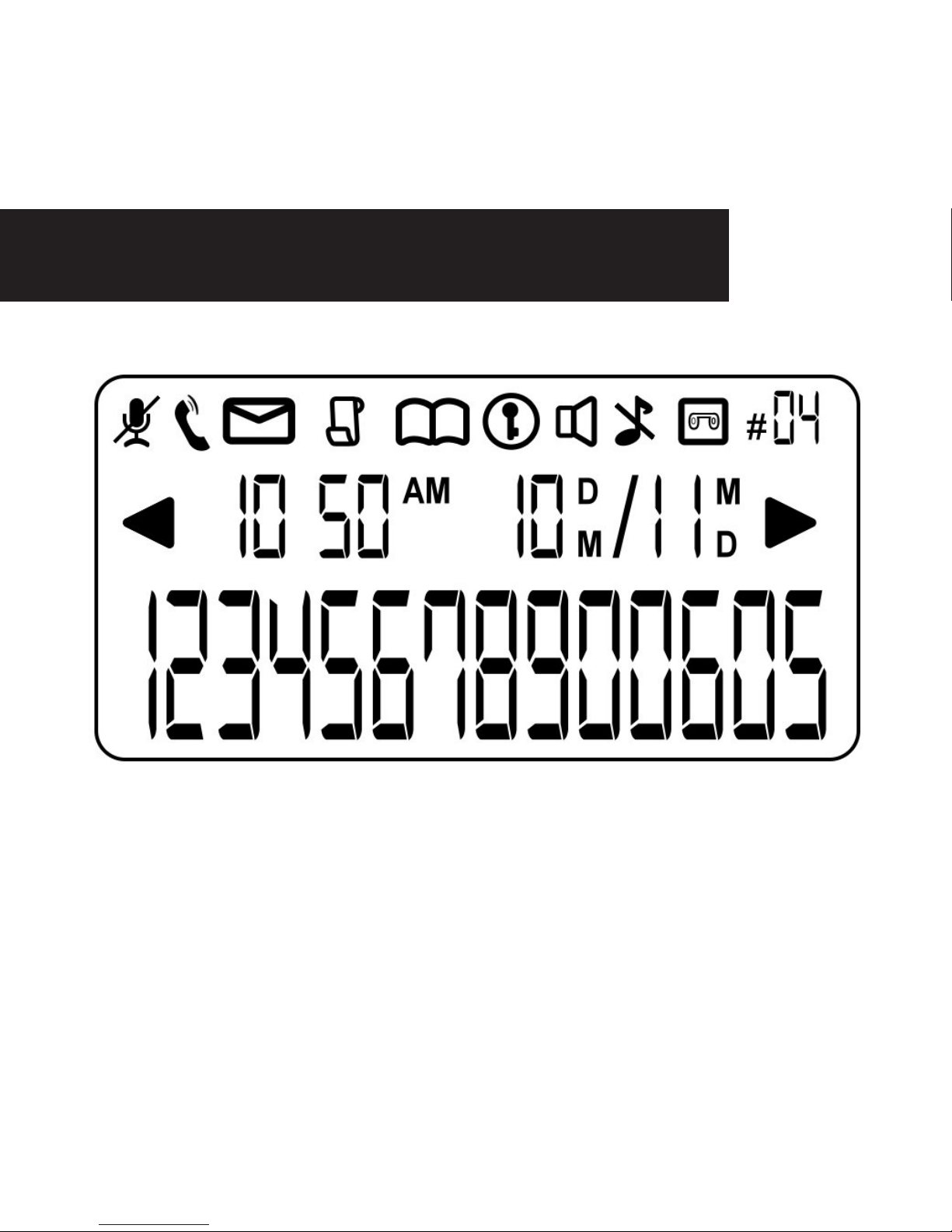

CORdEd BASE kEY LAYOUT CORdEd BASE LCd LAYOUT

12
Icons Definition
Icon Name Description
Mute Indicates the mic is turned off
Call Indicates that an external call is connected or held.
Icon blinks when receiving an incoming call.
Message Indicates you have a new Voice Mail message.
Caller display Indicates you have new missed calls, or the call log is being
viewed.
Phonebook Displays when the phonebook is accessed.
Key lock Displays when the key clock is activated.
Speaker Displays when the speaker is activated.
Ringer Off Displays when ringer volume is turned off.
TAM
Slowly Blinking to indicate new TAM message(s)
Fast blinking to indicate TAM is full
Icon won’t be displayed when TAM is off
CORdEd BASE LCd LAYOUT

13
#88 Recorded number in
Phonebook or CID list Indicates the recorded number for Phonebook or CID entry
Digits on the right Displays when there is more digit(s) available on the right for
displaying
Digits on the left Displays when there is more digit(s) available on the left for
displaying
88:88AM
88M/88D
OR
88:88PM
88D/88M
Time/ Date 1 Displays for Caller ID date/time while viewing CID list
2 Displays for the actual time
3 AM/ PM states for the time format
4 “D”indicates for Date, “M”indicates for Month
CORdEd BASE LCd LAYOUT CORdEd BASE LCd LAYOUT

14
Main Menu Sub-menu 1
PHONEBOOK NEW ENTRY
LIST
EDIT ENTRY
DELETE
DELETE ALL
DIRECT MEM
PERSONAL SET HANDSET NAME
HANDSET TONE
LANGUAGE
AUTO HANG-UP
CLOCK & ALARM DATE/ TIME
SET FORMAT
ALARM
ALARM TONE
ADVANCED SET CHANGE PIN
REGISTRATION
UNREGISTER
RESET
AUTO PREFIX
RECALL TIME
FIRST RING
ANSW MACHINE PLAY
DELETE ALL
ANSW. ON/OFF
RECORD OGM
ANSWER MODE
SETTINGS
Menu Tree
COREdE BASE LCd LAYOUT

15
Cordless Handset Operations
Switching ON/ OFF
Press and hold the END button for more than 2
seconds to switch on/off the handset in standby mode.
You can switch the handset off to save battery charge.
Note:
The handset cannot be used for Emergency
calls when switched off. Also, it won’t ring during
an incoming call. You need to switch it back on
to answer a call, which might take some time for
the handset to re-establish a radio link with the
base unit.
Make a call
You can input with maximum 24 digits.
Pre-dialing - Dial the number and then press TALK
button.
Note:
You can press BACK button to erase the digits
if you made an error.
Direct dialing - Press TALKbuttonrstandthendial
the number
Note:
You won’t be able to erase and correct the entered
digits in direct dialing mode.
You can also call from Call log/Redial
list/Phonebook
Call from call log
Press Navigation Up button in standby mode and
select the desired entry by using Up/down button
Press TALK button to make a call
Note:
You needsubscribetoCallerLineidentication
service to view the caller’s number or name in
the call log.
Call from Redial list
Press Redial button in standby mode and select the
desired entry by using up/down button
Press TALK button to make a call
Call from Phonebook
Press Phonebook button in standby mode and select
the desired entry by using up/down button
Press TALK button to make a call
Answer and End a call
Answer – Press TALK button to answer a call when
the phone rings
End – Press END button to end a conversation
COREdE BASE LCd LAYOUT CORdLESS HANdSET OpERATIONS

16 CORdLESS HANdSET OpERATIONS
Volume control
During a call, you can increase/ decrease the
earpiece volume by pressing Navigation up/down
button
Mute
The Mute function allows you to turn off the microphone
during a call, so that the caller can’t hear you. But, it
won’t affect you hearing from the caller side.
Press the Mute button to activate/ deactivate mute
function
Note:
“MUTE ON” will be displayed on the handset
screen when mute is activated
Paging
This feature enables you to locate the misplaced
cordless handset when it is in range and with power on.
Press INT/PAGE button on the base unit, all the
registered handsets will start to ring.
Press TALK button on any one of the registered
handsets or press INT/PAGE button on the corded
base again to stop paging
To lock/ unlock the keypad
Press and hold the key for about 2 seconds to
lock/ unlock the keypad in standby mode.
Note:
Incoming calls can still be answered even when
the keypad is locked.
Call waiting
If you have subscribed to Call Waiting service, the
earpiece will emit a beep tone to inform you that there
is a second incoming call. The number or name of the
second caller will also be displayed on your phone
if you have subscribed to Caller Line Identification
service (CLI). Please contact your network provider for
more information on this service.

17
USING YOUR pHONEBOOk
CORdLESS HANdSET OpERATIONS
Using your Phonebook
You can store up to 30 phonebook memories with a
maximum of 24 digits for the phone number and 12
characters for name for each entry.
The stored entries will be listed in alphabetic order.
Add an entry into Phonebook
1. Press MENU button in standby mode and select
PHONEBOOK with navigation up/down button
2. Press OK button to access PHONEBOOK and
select NEW ENTRY
3. Press OK button to confirm your selection and
handset will display ENTER NAME
4. Enter the name by pressing the corresponding
numeric button and press OKbuttontoconrm
5. Enter the contact number and then press OK to
conrm.
Aconrmationbeepwillbeemitted.
Note:
You can erase the entered content by pressing
BACK button if you make an error.
You can’t save a new entry when the memory
is full. In that case, you will have to delete some
existing entries to make space for the new one..
View a Phonebook entry
1. Press Phonebook (Navigation down) button in
standby mode to access Phonebook directly
2. Press Navigation Up/Down button to select a
entry, then press OK button to confirm and the
stored number will be displayed
Or you can view by another way:
1. Press MENU button and select PHONEBOOK
by using Navigation Up/Down button, press OK
buttontoconrm
2. Press Up/Down button to select LIST and then
press OKbuttontoconrm
3. Press Up/Down button to select a entry, then
press OKbuttontoconrmandthestorednumber
will be displayed
Edit a Phonebook entry
1. Press MENU button and select PHONEBOOK
by using Navigation Up/Down button, press OK
buttontoconrm
2. Press Up/Down button to select EDIT ENTRY and
then press OKbuttontoconrm
3. Press Up/Down button to select a entry, then
press OKbuttontoconrm
4. The current stored name will be displayed, edit the
name and press OKbuttontoconrm
5. The current stored name will be displayed, edit the
number and press OKbuttontoconrm

18 USING YOUR pHONEBOOk
Note:
You can erase the entered content by pressing
BACK button if you make an error..
Delete a Phonebook entry
1. Press MENU button and select PHONEBOOK
by using Navigation Up/Down button, press OK
buttontoconrm
2. Press Up/Down button to select DELETE and
then press OKbuttontoconrm
3. Press Up/Down button to select a entry, then
press OKbuttontoconrm
4. Handset will display DELETE?, press OK button
toconrmandaconrmationbeepwillbeemitted.
Delete all Phonebook entries
1. Press MENU button and select PHONEBOOK
by using Navigation Up/Down button, press OK
buttontoconrm
2. Press Up/Down button to select DELETE ALL
and then press OKbuttontoconrm
3. Handset will display DELETE?, press OK button
toconrmandaconrmationbeepwillbeemitted.
Direct memory
You can store 2 direct access memories (Key 1 & 2)
in the Phonebook.
Long press the corresponding key in standby mode
will automatically dial the stored number.
Add a direct memory
1. Press MENU button and select PHONEBOOK
by using Navigation Up/Down button, press OK
buttontoconrm
2. Press Up/Down button to select DIRECT MEM.
and then press OKbuttontoconrm
3. Press Up/Down button to select KEY 1 or KEY 2,
press OKbuttontoconrm
4. handset will display NO NUMBER, press MENU
button to display EDIT NUMBER
5. Press OK button to display ENTER NAME and
press OKagaintoconrm,enternameandsave
by pressing OK button
6.
ENTER NUMBER will be displayed and press OK
toconrm,enterthenumberandsavebypressing
OK button
Edit a direct memory
1. Press MENU button and select PHONEBOOK
by using Navigation Up/Down button, press OK
buttontoconrm
2. Press Up/Down button to select DIRECT MEM.
and then press OKbuttontoconrm
3. Press Up/ Down button to select KEY 1 or KEY 2,
press OKbuttontoconrm
