Orlaco 0701200 User manual

www.orlaco.com
ORLACO
Orlaco is a Manufacturing company that specializes in making cameras
and monitor systems for commercial vehicles, fork-lift trucks, cranes, off
shore and maritime.
Our objective is to design and produce camera systems for the profes-
sional market that improve the drivers view and increase operating
efficiency.
At our factory in Barneveld, we have a production department, ware-
house, design department, service department and showroom.
Vision is our mission®, and Orlaco therefore deploys the development,
manufacture, supply and service of camera and display systems that will
improve safety and efficiency of all vehicles, machinery and vessels. Our
systems give the end user a view on each blind spot and create comfort
and improved working conditions. Our active approach will support mar-
ket demands and innovations and will lead to enthusiastic ambassadors
in the market; our Customers.
For more information: www.orlaco.com
Compact Oil Damped
Bracket Black/Sst
Installation Manual
Manual No. IM0973362 A 01
May 2010
English
Art. No. 0701200
0701210
0701200 Compact Oil Damped Bracket Black
0701210 Compact Oil Damped Bracket Sst

2 IM0973362 A 01
Installation Manual
Compact Oil Damped Bracked Black
Article number 0701200
Compact Oil Damped Bracked Sst
Article number 0701210
Safety
In order to guarantee safe operation, these safety
instructions must be read before you start using this
equipment.
• Do not open the enclosure. This can cause damage
• Do not expose the equipment to extreme temperatures. This can cause
deformation of the enclosure or damage to internal components.
• Repairs or adjustments to the equipment may only be undertaken by
Orlaco.
• The equipment must be assembled as shown in this manual.
Before you start using this equipment, please read this manual carefully
and follow all instructions. This installation manual describes the
functions of the equipment, outlines the connection options and explains
how to put the equipment into operation. We recommend that you keep
this manual in a safe place for reference purposes.
If you have any questions or issues concerning the operation of this
equipment, consult the relevant section in the manual or contact the
Orlaco Products BV Service department.
The camera and monitor systems from Orlaco comply with the latest
CE, ADR, EMC and mirror-directive regulations. All products are
manufactured in accordance with the ISO 9001 quality management, ISO/
TS16949 quality automotive and ISO 14001 environmental management
and all Ex products with the IECEx scheme and ATEX directives.
Available documentation
DS0701200 Compact Oil Damped Bracket Black
DS0701210 Compact Oil Damped Bracket Sst
DS0910240 Quick Release Set Weld version
DS0910250 Quick Release Set Bolt version
DS0910260 Mounting Bracket Set Additional
DS0910270 Suspension Tube Complete
Contents Page
1. Introduction 3
2. Mounting 3
2.1. Mounting Camera Bracket 3
2.2. Fitting to the crane with the optional Adapter pin 3
2.3. Mounting to a crane with Mounting Bracket Set Additional 3
3. Deflection Compact Oil Damped Bracket to the Mast 4
3.1. Adjusting damper 4
3.2. Adjusting camera angle 4
4. Maintenance and cleaning 4
5. Product specifications 5
5.1. Compact Oil Damped Bracket Black; Article No. 0701200 5
5.2. Compact Oil Damped Bracket Sst; Article No. 0701210 5
6. Dimensions 5
7. Disposal 6
8. General terms and conditions 6
9. Release notes 6
Article No. 0910240
Quick Release Set Weld version
Article No. 0910250
Quick Release Set Bolt version
Article No. 0910260
Mounting Bracket Set Additional
Article No. 0910270
Suspension Tube Complete
Optional sets; data sheets are available.
NOTE:
The Camera Bracket and Mounting Bracket are not included.
IM0973362 A 01 7
Installation Manual

6 IM0973362 A 01
Installation Manual
7. Disposal
Disassembly, removal and disposal. Local regulations for dealing with
waste must be followed when disposing of disassembled components or
entire units.
8. General terms and conditions
Orlaco Products BV is not liable for damage resulting from inadequate
servicing, incorrect usage or alterations made to the equipment without
informing the manufacturer in writing.
This installation manual has been made available by Orlaco Products
BV. All rights reserved. No part of this manual may be reproduced and/
or made public in printed form, in photocopy form or on microfilm, or in
any other way, without the prior written permission of Orlaco. This also
applies to the associated drawings and figures.
Orlaco reserves the right to make changes to components at any time
without informing customers beforehand or directly. All dimensions given
are for commercial purposes.
For information regarding repairs that is not covered in this manual,
please contact the Orlaco Products BV service department.
This manual has been prepared with all due care and attention. However,
Orlaco Products BV cannot be held responsible for any errors in this
manual or any consequences thereof.
9. Release Notes
R1-0 New edition, May 2010.
R1-1 Explanation adjusting damper changed, July 2010.
R1-2 Explanation adjusting damper changed, April 2011.
R1-3 Explanation adjusting damper changed, March 2012.
R1-4 Stainless steel version added, January 2013.
R1-5 Explanation adjusting damper changed, February 2013.
R1-6 Camera brackets deleted, August 2014.
R2-0 New manual number, May 2015.
A 01 Tightening torque bolts adapter pin and mounting bracket added October 2018.
IM0973362 A 01 3
III III IV
46,6
3 x 33,5
2 x 9,0
2 x 9,0
Note:
Ti ht th b lt f th ti b k t ith
Installation Manual
1. Introduction
Designed for usage on cranes to have a camera pointed downwards
perpendicular. The damper absorbs sudden movements and procure
stability to all Orlaco cameras. Cameras of Orlaco have been balanced by
the factory. Other cameras have to be checked to determine the position
of their centre of gravity.
2. Mounting
2.1. Mounting Camera Bracket
Mount the Camera Bracket (NOT included; Camera Bracket is included
with AFZ Camera) to the Compact Oil Damped Unit with the included
mounting parts see figure 1. Use the following bolts nuts and washers.
• 4x Lock nut stainless steel A2 M6
• 4x Washer stainless steel A2 M6
• 4x Washer ST6 100 HV
• 4x Button head screw stainless steel M6 x 16
The optional safety chain can be mounted parallel with this to the camera
bracket.
2.2. Fitting to the crane with the optional Adapter pin.
By using the Adapter pin Art. No. 2013280, the Suspension tube Art No.
0910270 should be fitted to the mast as shown in figure 2.
Always mount the suspension tube in line with the axis of the hoist gear.
Use the Lock pin to mount the camera to the Suspension tube. Use the
included Support plates to weld the Suspension tube firmly and square
to the mast. The Safety chain should be fitted to the mast, not to the
Suspension tube.
Note: Tighten the bolts of the adapter pin with a torque of 7 Nm.
Note that the holes in the Suspension tube for the Lock
pin in the right way at an angle of 45° to the mast is
welded, see overview mast positions in figure 4.
Note: Please do not weld without permission of the crane owner
2.3. Mounting to a crane with Mounting Bracket Set Additional
(The Mounting Bracket is NOT included). Using the Mounting Bracket Set
Additional, Art. No. 0910260, the Compact Oil Damped Bracked can be
mounted in different ways to the crane.
When mounting the Mounting Bracket Set Additional; 2 bolts M8 and 2
M8 washers are supplied. See figure 3.
Note: Tighten the bolts of the mounting bracket with a torque of 7 Nm.
45°
The Safety chain should
be fitted to the mast,
not to the Suspension tube.
Support plates
welded to the mast
(Square!)
Always mount the suspension
tube in line with the axis
of the hoist gear
Figure 1
Figure 2
Figure 3
Button head screw Stainless steel M6 x 16
Washer Stainless steel A2 M6
Lock nut Stainless steel A2 M6
Camera Bracket
Compact Oil Damped Unit
Washer ST6 100 HV
Safety chain
Note:
Tighten the bolts of the mounting bracket with a
torque of 7 Nm.

4 IM0973362 A 01

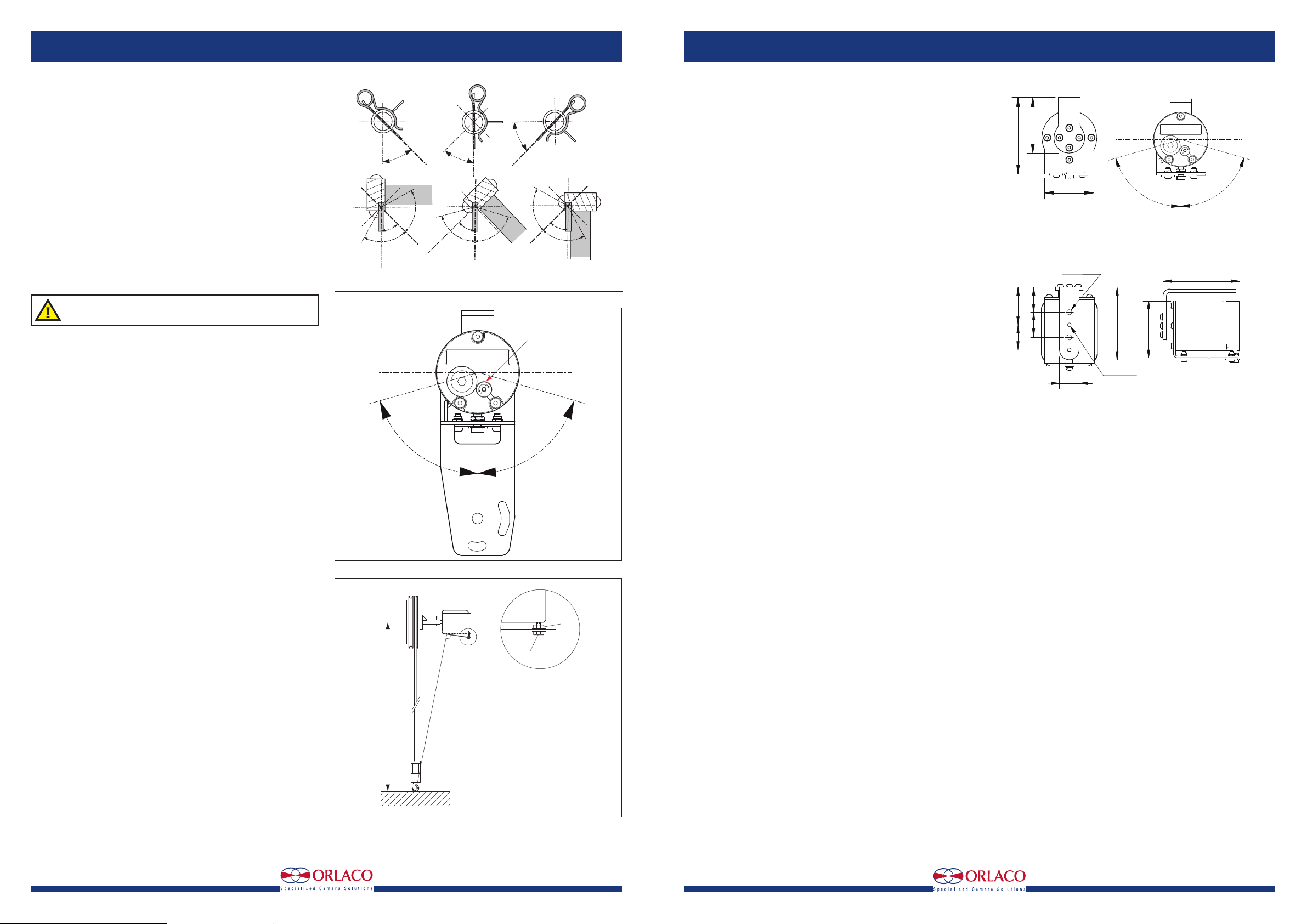

3. Deflection Compact Oil Damped Bracket to the mast
The maximum deflection of the Compact OGB is 74° to the left and 74° to
the right, see figure 4 and 5.
3.1. Adjusting damper
It is possible to adjust the damping using the socket head wrench
provided. Place the socket head wrench into the adjusting screw (A). Turn
to +; provides maximum damping; use this position in the summer.
Turn to -; provides minimum damping; use this position in the winter. The
damping can be felt by turning the shaft and simultaneously turning the
adjusting screw (A). See figure 5.
3.2. Adjusting Camera angle
1. Set the crane in the highest working position.
2. Turn the bolt (1) up until the hoisting hook is shown in the
centre of the monitor.
3. Lock the bolt with nut (2). See figure 6.
Safety remark: x this nut (2, Fig. 6) extra well!
4. Maintenance and cleaning.
This product should NOT be cleaned with harsh chemicals or abrasive
cleaners.
Installation Manual
74,0°
74,0°
45,0°
74,0°
74,0°
45,0°
74,0°
74,0°
45,0°
45°
45°
45°
Rotation angle:
74° to the right
74° to the left
74°
74°
A
Figure 4
Figure 5
Figure 6
Max.
1
2
IM0973362 A 01 5
Installation Manual
5. Product specications
5.1. Compact Oil Damped Bracket Black; Article No. 0701200
Housing: Material: AIMgSi1. Treadment: Black Nituff (PTFE Coated
according Mil-A-63576 type II). Offshore proof following IEC 60068-2-52.
Mounting hardware: Stainless steel.
Operating temperature: -40ºC ...- +85ºC.
Oil lling: Univis HVI 26 or alternative with kinematic viscosity 896 at
-40 ºC (Total volume = 40,23 cc).
Protection: Oil-filled and waterproof IP68 according to IEC 60529. The
bracket can withstand high pressure cleaning.
Weight: 3,4 kg (Compact OGB, Mounting bracket and Camera bracket).
Expected lifetime: 7-10 years.
Max. mast speed: 2º/sec.
5.2. Compact Oil Damped Bracket Sst; Article No. 0701210
Housing: Stainless steel. AlSl 316, Brushed.
Mounting hardware: Stainless steel.
Operating temperature: -40ºC ...- +85ºC.
Oil lling: Univis HVI 26 or alternative with kinematic viscosity 896 at
-40 ºC (Total volume = 40,23 cc).
Protection: Oil-filled and waterproof IP68 according to IEC 60529. The
bracket can withstand high pressure cleaning.
Weight: 6,1kg (Compact OGB, Mounting bracket and Camera bracket)
Expected lifetime: 7-10 years.
Max. mast speed: 2º/sec.
N.B.: Bracket can be used in EX zone type 1 or 2: As the magnesium
percentage is below 6% (aluminium value between 0,6-1,2%).
6. Dimensions
80
264,6
101
Units in mm
Rotation angle:
74° to the right
74° to the left
74°
74°
137
109,1
35 M8 x 1,25 - 6H
9.0 (2x)
130
45
45
67,5
45
Figure 7
