Ormesa Trolli Manual

16-02-23
seating system for TEENS and ADULTS
ADJUSTABLE
I
N
T
E
R
N
A
T
I
O
N
A
L
P
A
T
E
N
T
PATENTED
with adjustable headrest included

Pag. 1 / 53
ORMESA thanks you for choosing TROLLI a medical device designed and manufactured
by ORMESA srl – an italian company certified ISO 13485.
TROLLI is a folding seating system for easy and quick transfers for children and adults with
disabilities, that combines functionality with comfort and safety.
ORMESA s.r.l. recommends that you read this manual very carefully to understand
its contents fully. In addition to help you become familiar with TROLLI quickly, it also
contains practical tips for making the best use of it safely and keeping it in good working
order.
If, after reading it, you still have questions, contact your retailer, who will be happy to help
you, or call ORMESA directly at [phone], send a fax to [phone] or send
an e-mail to: [email protected]
Ormesa Team

Pag. 2 / 53
TABLE OF CONTENTS
GENERAL INFORMATIONS. .......................................................................................... 4
NORMATIVE REFERENCES AND SAFETY WARNINGS ............................................. 4
INTENDED USE, PURPOSE AND FUNCTIONS ............................................................ 4
WARNINGS ...................................................................................................................... 5
WHAT YOU SHOULD NOT DO WITH TROLLI ................................................................... 6
BRAKING the DEVICE .................................................................................................... 8
HOW TO TILT TROLLI TO OVERCOME OBSTACLES ................................................. 9

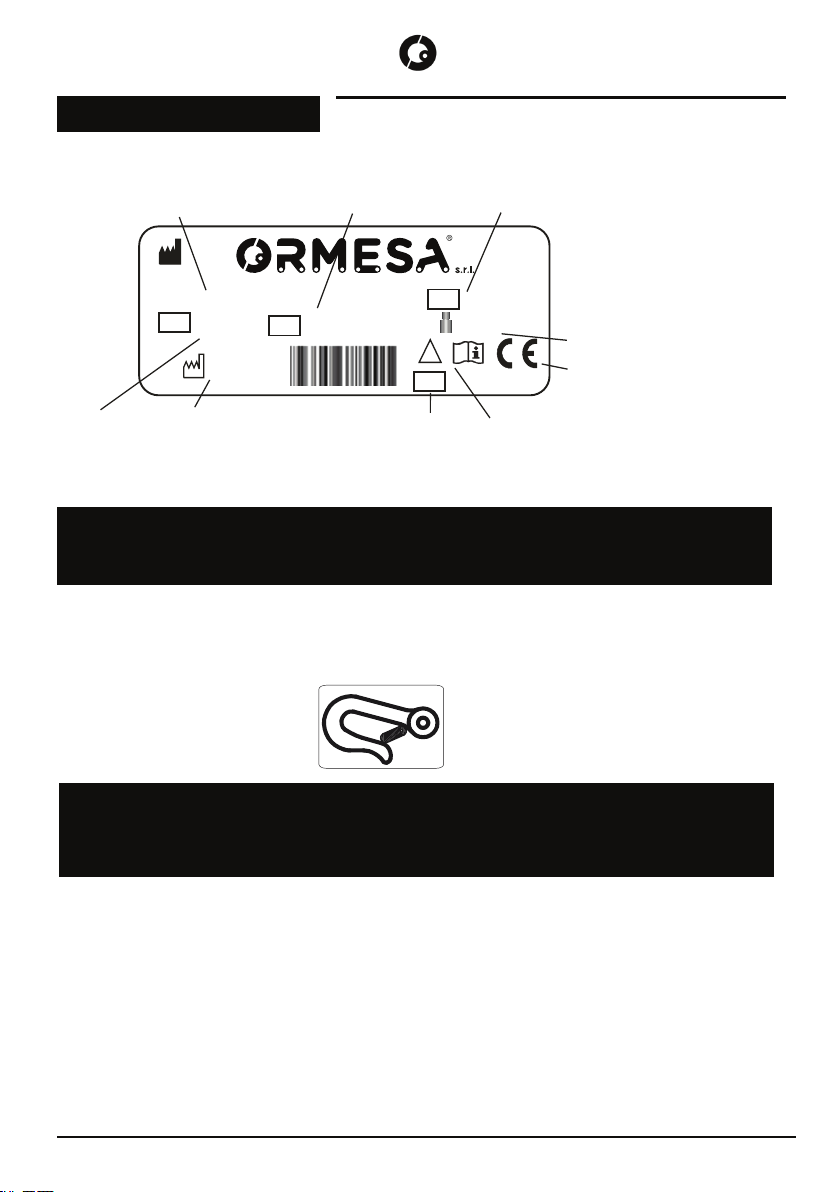

LABELS AND PLATES ................................................................................................... 10
WARRANTY ..................................................................................................................... 11
HOW TO STORE AND TRANSPORT THE MEDICAL DEVICE ..................................... 11

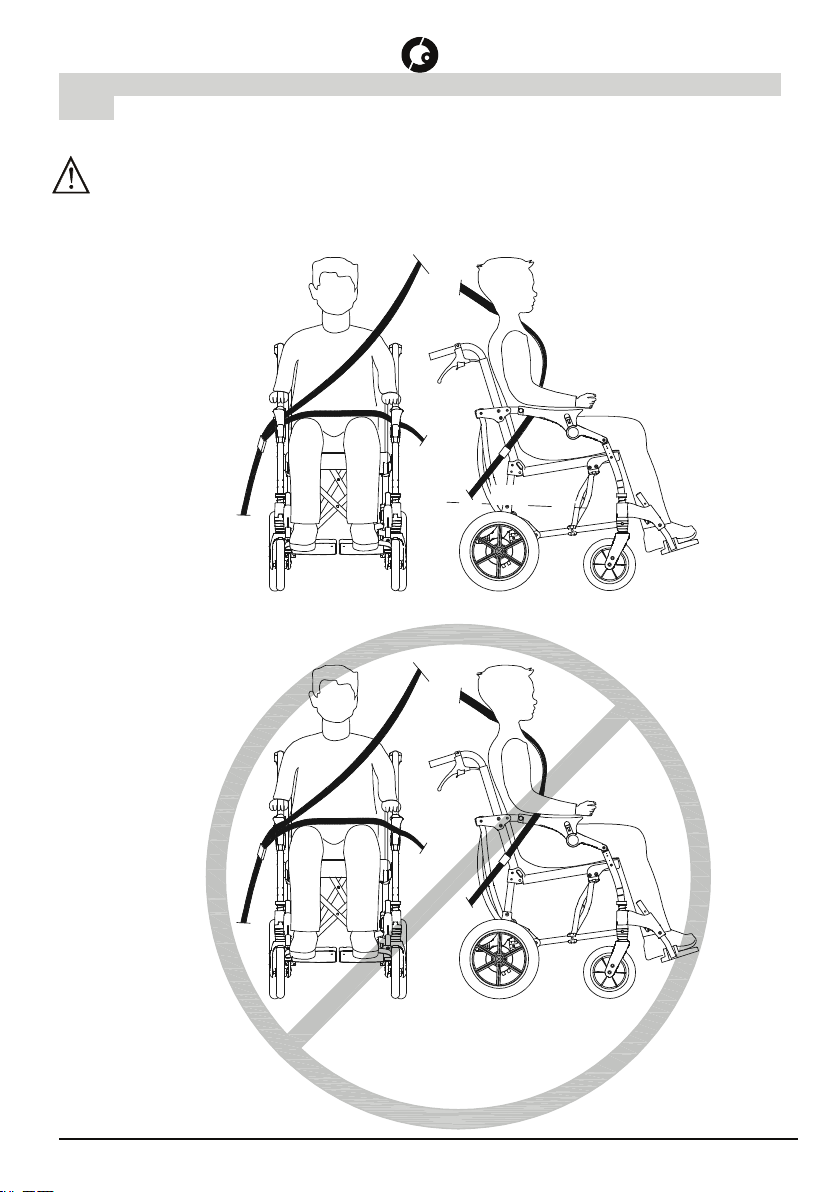

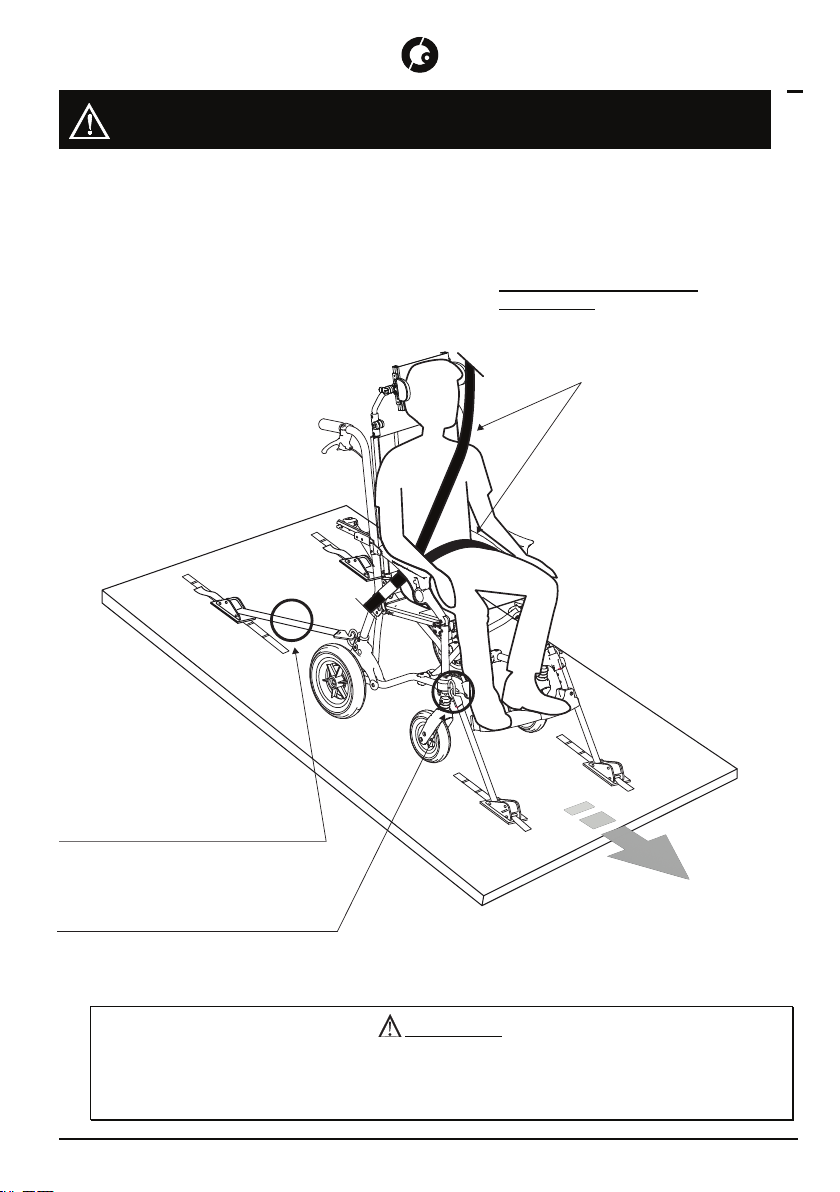

HOW TO USE TROLLI FOR TRANSPORT ON A MOVING VEHICLE (cars,
buses, etc.) ...................................................................................................................... 12

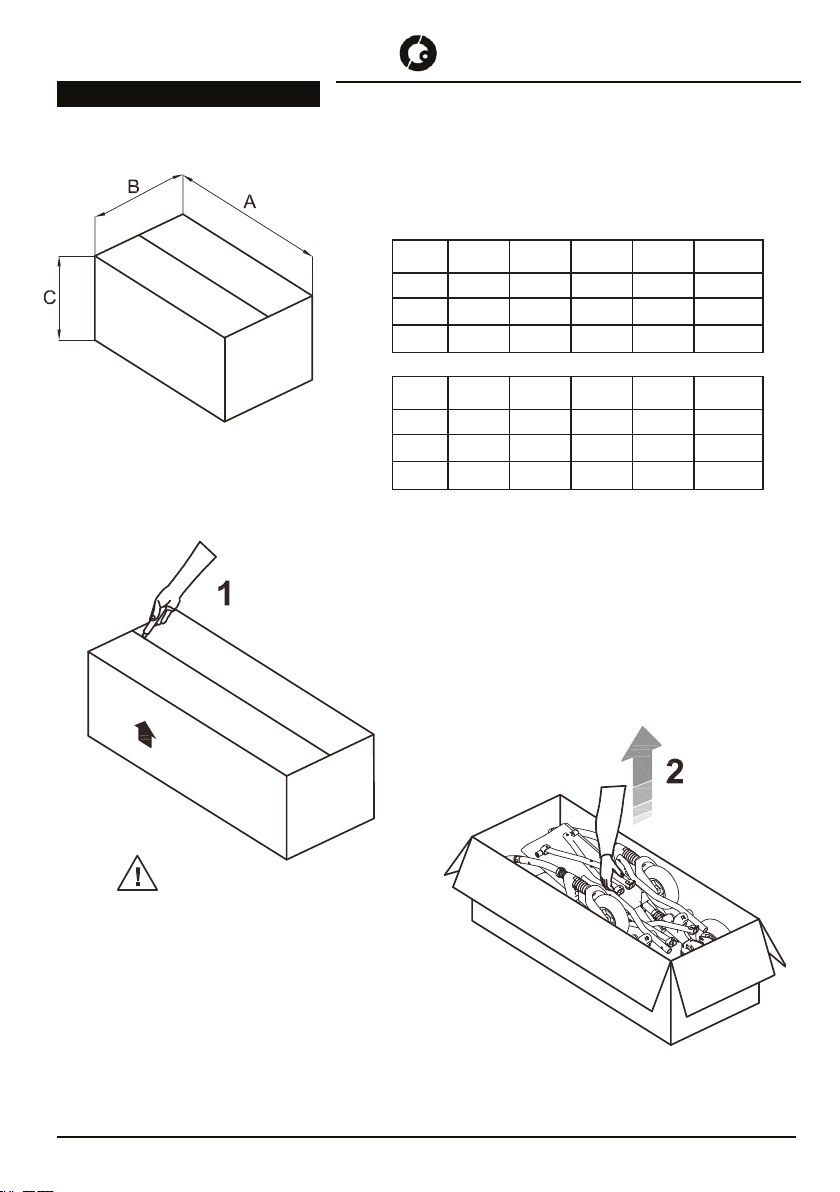

INITIAL PREPARATION .................................................................................................. 16
DESCRIPTION OF THE MEDICAL DEVICE ................................................................... 17
WHAT IT IS COMPOSED OF - TECHNICAL FEATURES .............................................. 17
DIMENSIONAL FEATURES ............................................................................................ 18
HOW TROLLI WORKS AND HOW TO USE IT ............................................................... 19
OPENING THE DEVICE ............................................................................................... 19
OPENING THE FOOTRESTS and INSERTING of the LEGREST BAND .................... 21
CLOSING THE FOOTRESTS ....................................................................................... 22
INVERSION OF THE FOOTRESTS ............................................................................. 23
CLOSING THE DEVICE ............................................................................................... 24
ADJUSTING THE FOOTRESTS IN HEIGHT ............................................................... 26
ADJUSTING THE DEPTH OF THE SEAT .................................................................... 27
ADJUSTING THE TILT OF THE BACKREST ............................................................... 28
ADJUSTING THE HEADREST ..................................................................................... 29
ADJUSTING THE HEIGHT OF THE BACKREST ........................................................ 31
ASSEMBLING THE ADDITIONAL COMPONENTS ....................................................... 32
PADDED PELVIC SIDE SUPPORTS 958 ................................................................... 32
TRUNK SIDE SUPPORTS 838 ..................................................................................... 33
WRAPPABLE AND FLEXIBLE TRUNK SIDE SUPPORTS 868 ................................... 35
FRONT HANDLEBAR 839 ............................................................................................ 37
ABDUCTION BLOCK 834 ............................................................................................. 38
POINT PELVIC BELT 920 ......................................................................................... 38
PELVIC BELT WITH VARIABLE ANGLE (from 45° to 90°) 947 ................................... 39

Pag. 3 / 53
VEST HARNESS 853 ................................................................................................... 40
4 POINT SHAPED HARNESS 853 SLIM ...................................................................... 40
SHOPPING BASKET 858 ............................................................................................ 40
891 TIEDOWN HOOKS (4 RINGS) .............................................................................. 41
HEEL RESTS 960 ......................................................................................................... 42
FRONT WHEEL DIRECTION LOCKS 812 ................................................................... 43
FOOTRESTS ADJUSTABLE IN TILT 956 .................................................................... 44
ADJUSTABLE PUSH HANDLES 951 ........................................................................... 45
PADDED SIDE PROTECTION COVERS 844 ............................................................. 46
CLEANING, DISINFECTION, SANITIZATION ................................................................ 47
INFORMATION ............................................................................................................. 47
WARNINGS .................................................................................................................. 47
PROCEDURE ............................................................................................................... 48
MAINTENANCE ............................................................................................................... 50
ORDINARY MAINTENANCE (monthly) ........................................................................ 50
PREVENTIVE MAINTENANCE (biennial) .................................................................... 51
EXTRAORDINARY MAINTENANCE (or corrective) ..................................................... 52
DISPOSAL ....................................................................................................................... 52
ASSISTANCE AND SPARE PARTS ............................................................................... 52
CONDITIONS FOR DURABILITY, REUSE AND REASSIGNMENT TO A
NEW USER ...................................................................................................................... 53

Pag. 4 / 53
GENERAL INFORMATIONS.
NORMATIVE REFERENCES AND SAFETY WARNINGS
INTENDED USE, PURPOSE AND FUNCTIONS
Adjustable TROLLI is a seating system designed for easy and quick transfers for
users affected by diseases, which prevent and limit the walking and for users who
need to be easily moved from one place to another thanks to the caregiver.
It allows the positioning of the user with disabilities of varying complexity, in the
most appropriate and functional posture in the different everyday environments.
The postural components (supports and belts) allow to give stability to the pelvis,
lower limbs, trunk, and head and to get different positions thanks to the reclining
backrest.
It can be used even in medium severity circumstances, in outdoor and indoor
environments, for the transport of those subjects, who are not able to independently
maintain the seating posture due to severe disorders of the nervous and muscle
system or of the rational sphere.
The posture is comfortable and containing:
-The seat is slightly inclined to prevent the user from sliding forward;
-The STRUCTURE of the DOUBLE CRUISE FRAME is solid, and it does not yield
when the user is seated
-The SUPPORTING BREATHABLE UPHOLSTERY is very RESISTANT, and it
is made of technological and innovative materials. When the user is in the device,
the upholstery makes the seat stretched and the backrest wrapping, allowing a
maintenance of a good sitting posture.
When folded, it is lightweight and compact, and it can be lifted and hold with just one
hand without opening. Otherwise, it can be easily pushed like a trolley since it moves on
its own rear wheels.
When opened, it is sliding, and it is easily maneuverable even in tight spaces because
its footrests tip-up and turn sideways, aligning themselves to the frame, so that they do
not stick out and do not restrict the maneuvering when you want to enter the car, the w.c.
or the sidewalks.
The device must be prescribed by a specialistic doctor who evaluates the residual
capacities of the user, and must be configured and adjusted by a rehabilitation
professional according to the laws in the user's place of residence.
The handling of the device during the daily activities is easy and it allows a very simple
and safe use even by other unqualified caregivers
CONTRAINDICATIONS: it is generally not intended for subjects with severe structured
musculoskeletal deformities, who need postural units or for users with no head control
skills, for whom it is necessary a postural system for the head in order to allow a
containment and high support.

Pag. 5 / 53
WARNINGS
•Carefully read the instructions in this manual before using the product; they will
help you use the product safely and keep it in good working order. It is an integral part
of the product and should be kept for future reference.
•The manual is intended for technically qualified retailers and for users and their
assistants; it provides instructions for its correct use.
•The manual reflects the technical state of the product at the time it was sold. Ormesa
s.r.l. reserves the right to make any changes to the product or manual suggested
by experience, technical considerations or regulatory developments without any
obligation to update its previous production and relevant manuals.
•Trolli should only be used by those who read the instructions in this handbook.
•The use of the device and its additional components must be checked by a
specialized doctor, in conformity with the laws and standards in force.
•Adjustments must be made only by qualified personnel.
•The use of the product is limited to people whose BODILY MEASUREMENTS
AND WEIGHT conform to the specifications in the section “technical characteristics,”
on pages 13.
•The product must be manoeuvred by people with the height and strength to control
its movements.
•Always check before each use, the EFFICIENCY of the BRAKES, the WEAR of
the WHEELS, the LOCKING of the HEADREST, the BACKREST and the
FOOTREST.
•WHEN PAUSING, ALWAYS LOCK BOTH BRAKES, even on level ground.
•Always LOCK THE BRAKES before positioning or removing the user from the
device and before making any adjustment!
•Climb up and down curbs facing forward and tilting the device on its rear wheels (see
page 11).
•The upholstery is flame retardant (FR) according to EN 1021-1: 1: 2014 - and EN
1021-2: 2014.

Pag. 6 / 53
WHAT YOU SHOULD NOT DO WITH TROLLI
-DO NOT USE THE PRODUCT WITH PEOPLE LARGER OR SMALLER THAN THE
DIMENSIONS SHOWN ON PAGE 13
-DO NOT ALLOW CHILDREN TO USE THE AID OR EVEN PLAY WITH IT
-DO NOT ALLOW ANYONE TO STAND ON THE FOOTRESTS OR THE BACK
-DO NOT LIFT THE PRODUCT BY THE ARMRESTS, FRAME, LEG SUPPORT OR
FOOTRESTS TO OVERCOME OBSTACLES
-NOT HANG BAGS ON THE REAR HANDLES, they may unbalance the
STROLLER. Use the 858 net basket and the rear pockets positioned on the
backrest for small objects
-NEVER LEAVE THE USER UNATTENDED, ESPECIALLY ON THE BEACH OR
NEAR A RAVINE, SWIMMING POOL, SLOPE, OPEN FLAME OR STAIRS
-NEVER LEAVE THE DEVICE PARKED FOR A LONG TIME IN DIRECT SUNLIGHT
OR NEAR SOURCES OF HEAT: THIS WILL AVOID OVERHEATING THE DEVICE
AND DISCOLOURING THE UPHOLSTERY
-DO NOT CARRY THE USER OVER ROUGH OR STEEP SURFACES OR STAIRS
-NEVER STOP TROLLI ON SLOPING GROUND
-DO NOT CLIMB OR DESCEND STAIRS WITH THE AID CARRYING THE USER
SINCE ITS STRUCTURE IS NOT DESIGNED FOR THIS PURPOSE(v. fig. pag. 11)
-DO NOT CLIMB CURBS OR STEPS WITH JUST THE SIDE WHEELS (front or back)
because it could tip over (see fig. on page 11)
-DO NOT USE THE PRODUCT IF PARTS ARE MISSING OR DAMAGED. INSIST
THAT ONLY ORIGINAL REPLACEMENT PARTS ARE USED BECAUSE ANY
OTHER TYPE WILL VOID THE WARRANTY.

Pag. 7 / 53
TROLLI IS A MECHANICAL MEDICAL DEVICE:
Perform REGULAR MAINTENANCE and
CLEANING following the instructions shown in the
"Maintenance" chapter on page 47-48-49-50-51-52
and HAVE THE DEVICE INSPECTED AT THE
INTERVALS INDICATED to VERIFY that it is
WORKING PROPERLY and in GOOD CONDITION,
otherwise warranty will fail and marking will lapse
PRODUCT REPAIRS other than the regular
maintenance shown on page 47-48-49-50-51-52 of the
manual must be ONLY MADE by a SPECIALIZED
SERVICE CENTER in the maintenance of
mechanical aids for disables, otherwise warranty and
marking will be voided
Any CHANGES in the product and the
REPLACEMENT WITHOUT ORIGINAL PARTS
OR COMPONENTS ARE NOT AUTHORIZED.
REFER ONLY TO ORMESA, otherwise warranty and
marking will be voided
In case of DOUBT about the SAFETY of the product
or DAMAGE to parts or components, you are urged
to IMMEDIATELY DISCONTINUE USE and
CONTACT a SPECIALIZED SERVICE CENTER in
the maintenance of mechanical aids for disables, or
directly ORMESA.

BRAKING THE DEVICE
LOCK
UNLOCK
Locking lever
parking brake
BEWARE!
BEFORE POSITIONING OR REMOVING
THE USER FROM THE TROLLI AND
BEFORE ANY ADJUSTMENT OF THE
DETAILS, IT IS NECESSARY TO BRAKE
THE SEAT SYSTEM
Pag. 8 / 53

HOW TO TILT TROLLI TO OVERCOME OBSTACLES
the two OVERCOMING STEP BARS, behind the rear wheels, greatly facilitate this operation
CLIMB FACING FORWARD DESCEND FACING BACKWARD
OVERCOMING
STEP BAR
Pag. 9 / 53

LABELS AND PLATES
THE CE MARKING CERTIFIES THAT TROLLI CONFORMS TO THE SAFETY
REQUIREMENTS defined with the REGULATION (EU) 2017/745 OF THE EUROPEAN
PARLIAMENT AND OF THE COUNCIL of 5 April 2017 applicable for MEDICAL DEVICE
Name of the model Series number Catalog code
Date of Medical
deviceproduction
LOT code Warning! Read the use and
maintenance handbook before use
Max. load
Conformity with the European
safety standards
M O D E L .
LOT SN
MAX. KG
!
REF
MD
SECUREMENT POINT TO FOR THE ANCHORAGE OF THE ISO 10542-2 APPROVED 4-
POINT STRAP-TYPE TIEDOWNS SUPPLIED BY THOSE VEHICLES WHICH ARE SUITABLE
FOR TRANSPORTING ORTHOPEDIC STROLLERS IN COMPLIANCE WITH THE ISO 7176-
19 STANDARD FOR APPROVED MODELS BY SN 02294 AND PROGRESSIVE NUMBERS
Pag. 10 / 53
Via delle Industrie, 6/8 - Z.I. Sant’Eraclio 06034 Foligno (PG) ITALY Tel. [phone] Fax + 39 0742 22637

Pag. 11 / 53
WARRANTY
ORMESA guarantees the product for 2 years ; in case of problems, contact the retailer
where you purchased it. Always ask for original spare parts, otherwise the guarantee will
decline
-ORMESA will not be liable for damage in the following cases:
-use by an unsuitable person;
-incorrect assembly of parts or accessories;
-unauthorized modifications or service;
-use of other than original replacement parts and parts subject to wear (upholstery, wheels, etc);
-improper use (such as, transporting objects or loads larger or heavier than those shown in the
instruction handbook t);
-damage caused by incorrect use and lack of regular maintenance, as shown in the instruction
handbook ;
-exceptional events;
-failure to follow the instructions in this manual.
THE GUARANTEE DOES NOT COVER WEAR PARTS, which are subject to wear and
tear, such as the upholsteries and the wheels.
HOW TO STORE AND TRANSPORT THE
MEDICAL DEVICE
THE DEVICE MUST BE STORED AND PACKED using Ormesa original packaging
materials, unless the guarantee will be voided
- Once unpacked, THE TRANSPORT OF THE DEVICE must be done by ANCHORING
ADEQUATELY it to the vehicle
-When travelling by plane, or in the car, DO NOT SUBJECT THE FOLDED FRAME
TO LOADS THAT, especially with road bumps, COULD DAMAGE ITS STRUCTURE
THE DEVICE MUST BE PARKED / STORED IN CLOSED AND DRY PLACES
-THE OPERATING ENVIRONMENT HAS NO PARTICULAR INFLUENCE ON THE
DEVICE UNLESS IT IS USED INCORRECTLY, such as by leaving it parked for a long
time in direct sunlight or exposed to bad weather such as rain, or in marine
environments, where salt could corrode the paint and sliding parts. IN THIS CASE, WE
RECOMMEND CAREFUL CLEANING AND DRYING THE FRAME FOLLOWING THE
INSTRUCTIONS SHOWN IN THE “MAINTENANCE, CLEANING AND DISINFECTION”
CHAPTER ON PAGES 47-48-49-50-51-52 AND THE WARNINGS ON PAGE 47

HOW TO USE TROLLI FOR TRANSPORT ON A MOVING
VEHICLE (cars, buses, etc.)
TROLLI conforms to the ISO 7176-19 and ANSI RESNA WC/19 standard,
which defines the safety requirements for transport, facing in the direction
of travel, on moving approved vehicles (cars, buses, etc.) with the following
WARNINGS:
ANCHORAGE OCCUPANT
RESTRAINT: the User has to wear both
a PELVIC BELT and a DIAGONAL
TRUNK BELT, that LABELLED with
CONFORMITY TO ISO 7176-19 or ISO
10542 STANDARDS
ATTENTION!
ORMESA RECOMMENDS THE USE OF A COMPLETE ISO 10542-2-COMPLIANT
“WTORS” SYSTEM, which consists of restraint systems for both the wheelchair and its
occupant
ANCHORAGE
STROLLER
RESTRAINT:
THE DEVICE MUST
BE ANCHORED TO
THE MOTOR VEHICLE
WITH THE BACKREST
IN THE UPRIGHT
POSITION BY:
1) a four-point strap-type tie down
system that complies with ISO
10542-2, supplied by the vehicle
(pag. 14)
2) component 891 – set of 4 tie-down
hooks (pag.38)
Approved models:
From SN 22 02294
and progressive numbers
FOR A USER WITH
MAXIMUM WEIGHT OF 75
KG (165 LB)
Pag. 12 / 53

-THE VEHICLE MUST BE APPROVED FOR TRANSPORTING ORTHOPAEDIC
WHEELCHAIRS/STROLLERS IN CONFORMITY WITH STANDARD ISO 7176-19
-THE STROLLER-SEATED OCCUPANT MUST FACE THE FRONT OF THE VEHICLE.
According to paragraph 6.3.4 of ISO 7176-19, compliance with ISO 7176-19 does not
preclude using the STROLLER facing rearward in accessible vehicles equipped and
approved with spaces dedicated to this specific use
-The ANCHORAGE OCCUPANT RESTRAINT (approved belts) HAVE TO FIT THE USER
BODY and so they have to be adjusted as tightly as possible, compatibly with the
comfort of the child. Be careful that the belts do not twist and that components or
parts of the STROLLER, such as wheels or pelvic supports, do not push them
away (pag. 15)
-the diagonal trunk belt must be above the shoulders (pag. 15)
-the “ADDITIONAL COMPONENT” belts shown in this manual ARE NOT APPROVED for
use as restraint systems
-The stroller must be stored in the boot or secured to the vehicle during the drive
whenever it is not in use with the User
THE STROLLER MUST BE INSPECTED BY THE MANUFACTURER OR ITS AUTHORIZED
RETAILER OR DISTRIBUTOR BEFORE REUSE FOLLOWING INVOLVEMENT IN ANY TYPE
OF VEHICLE COLLISION
ANY ALTERATION OR SUBSTITUTION OF PARTS OR COMPONENTS OF THE STROLLER,
WITHOUT THE WRITTEN AUTHORIZATION OF ORMESA SRL, IS FORBIDDEN AND WILL
VOID THE MARK AND THE WARRANTY
TROLLI SEATING SYSTEM IS APPROVED FOR CARRIAGE IN A MOVING VEHICLE FOR
A USER WITH MAXIMUM WEIGHT OF 75 KG (165 LB)
Pag. 13 / 53

1) HOW TO ANCHOR THE STROLLER TO THE MOVING VEHICLE (car,
bus, etc.)
HOOK THE APPROVED 4-POINT BELTS OF THE VEHICLE TO THE 891-4 TIEDOWN HOOKS (4
RINGS) AS SHOWN IN THE FIGURE AND IN THE DIRECTION OF TRAVEL OF THE VEHICLE
DIRECTION OF TRAVEL
OF THE VEHICLE
BELTS AND HOOKS
OF THE VEHICLE
891 TIEDOWN HOOKS
Anchor belt hook
compatible with
891 anchors
SEE PAGE 37 FOR ASSEMBLY INSTRUCTIONS FOR ADDITIONAL COMPONENT 891
TROLLI SEATING SYSTEM IS APPROVED FOR CARRIAGE IN A MOVING VEHICLE FOR A
USER WITH MAXIMUM WIGHT OF 75 KG.
Pag. 14 / 53

2) THE CORRECT POSITIONING OF OCCUPANT BELT RESTRAINTS ON THE
USER
ATTENTION! the pelvic-belt restraint should be worn low across the front of the pelvis, so that
theangle of thepelvic-belt restraint is within thepreferred zone of 30° to 75° to thehorizontal,
similar to that shown in Figure 1. A steeper (greater)angle within thepreferred zone is desirable
ATTENTION! TROLLI postural belts are not approved for use as restraint systems.
YES
beneath
the armrest
and the frame
FRONT VIEW SIDE VIEW
NO
above
the armrest
and the frame
Fig. 1
30° - 75°
THE INCORRECT PLACEMENT OF BELT RESTRAINTS
FRONT VIEW SIDE VIEW
Pag. 15 / 53

INITIAL PREPARATION
PACKAGING INFORMATION
CAUTION!
CUT WITHOUT PRESSING TOO HARD
WITH THE BLADE SO AS NOT TO DAMAGE THE
CONTENTS OF THE BOX
HOW TO REMOVE TROLLI FROM THE BOX
REMOVE FROM THE
BOX
36
40
43
size A B C volume weight
103
103
103
67
67
67
49
49
49
0,33
0,33
0,33
19,5
20
20,5
cm cm cm m3kg
36
40
43
size A B C volume weight
40,5
40,5
40,5
26,3
26,3
26,3
19,2
19,2
19,2
20137
20137
20137
42,9
44
45,1
In In In In3lb
Pag. 16 / 53

DESCRIPTION OF THE MEDICAL DEVICE
WHAT IT IS COMPOSED OF - TECHNICAL FEATURES
Compact: unlike other umbrella folding strollers when closed does not extend, taking up the minimum
space
Lightweight: without additional components less than 15 kg! (size 36)
Resistant: stability and resistance guaranteed by double crossbar, under the seat and behind the
backrest
Comfortable: the slightly inclined, ergonomic seat and the particular type of upholstery, breathable and
robust doesflex withthe weight of the user.
Grows with the child: ergonomic and comfortable seat adjustable in and in width.
Wide range of components to meet different needs; easy and quick tomanage
Lightweight umbrellafolding FRAME, in
aluminum painted with non-toxic epoxy
powders.
SUPPORTING UPHOLSTERY extremely
breathable, fireproof according to EN 1021-1:
2014 and EN 1021-2: 2014 standards, resistant
and easily washable (although not removable)
HEADREST, adjustable in height, tilt
and backward-forwards. It closed with
the stroller, there is no need to
remove it.
PUSH HANDLES with manual and
parking brakes. Height adjustable
with 951 additional component.
BACKREST reclining and adjustable
in height, without risk of losing the
screw.
SEAT adjustable in depth and width
thanks to padded side supports 958.
CLOSING LEVER equipped with a
safety device that prevents the
stroller from closing when the user is
seated.
Height adjustable
LEGREST.
Folding and swiveling
FOOTREST
without encumbrance.
Manual BAG and key on the back of
the backrest.
Solid WHEELS (puncture-proof) front:
swiveling 17 cm (7”) back 25 cm (10”)
withindependent drum brakes and
OVERCOMING STEP BARS on both
wheels.
Pag. 17 / 53

MEASURES
Measures in cm and inches
weight in kg and pounds
• Height of the user 130-175 cm (51,2”-68,9”)
The numbers divided by the dash specify a minimum and a maximum adjustment
94 cm (37”)
B
C
DE
80 cm (31,5”)
107 cm (42,2”)
G
F
42 cm (16,5”)
35-45 cm
(13,8”-17,7”)
36
40
43
A B C D E F G
39 cm
(15,4”)
43 cm
(16,9”)
46 cm
(18,1”)
36-46 cm
(14,2”-18,8”)
36-46 cm
(14,2”-18,8”)
36-46 cm
(14,2”-18,8”)
46-56 cm
(18,1”-22”)
46-56 cm
(18,1”-22”)
46-56 cm
(18,1”-22”)
42 cm
(16,5”)
46 cm
(18,1”)
46cm
(18,1”)
94 cm
(37”)
94 cm
(37”)
97 cm
(38,1”)
14,8 kg
(32,6 lb)
15,8 kg
(34,8 lb)
16,8 kg
(37 lb)
WEIGHT OF
THE AID MAX LOAD
90 kg
(198 lb)
90 kg
(198 lb)
90 kg
(198 lb)
59 cm
(23,2”)
63 cm
(24,8”)
66 cm
(26”)
36-32-28* cm
(14,2”-12,6”-11”)*
40-36-32* cm
(15,7”-14,2”-12,6”)*
43-39-35* cm
(16,9”-15,4”-13,8”)*
* With the padded pelvic sidesupports 958 the width is reduced by 4 cm (1,6”) or 8 cm (3,2”) removing
the internal padding. 36-40-43 cm (14,2”-15,7”-16,9”) width without padded pelvic side supports.
Pag. 18 / 53
