Operator’s Manual
Combo Caddy
125-836

Made in the U.S.A.
Combo Caddy
Operator’s Manual
The Combo Caddy is yet another innovative Orthman implement
engineered to provide the agricultural industry with unprecedented single
eld pass efciency. The impressive lifting capacity of up to 40,000 lbs.
allows the Combo Caddy to carry up to 1,000 gallons of liquid fertilizer
in combination with two three point mounted implements. Effectively,
the Combo Caddy minimizes weight applied to the towing device while
combining multiple operations in a single implement to maximize single
eld pass efciency.
Typically, the Combo Caddy is utilized to carry an Orthman 1tRIPr preplant
tillage tool in combination with a planter. This conguration combines
preplant tillage and the planting application in a single implement.
The Combo Caddy is available in four and six lift wheel congurations to
carry a wide variety of implement sizes. A wide stance creates stability in
the eld as well as during transport. High lift clearance allows implement
clearance in rough terrain. To increase lifting capacity, optional lift wheels
(2) are available for addition to four lift wheel Caddies.
DUAL IMPLEMENT AND FERTILIZER CARRIER
INTRODUCTION
combo
caddy
1

Made in the U.S.A.
Combo Caddy
Operator’s Manual
This manual is considered to be an integral component of the Combo
Caddy and is designed to educate the owner and operators regarding safety,
operation, maintenance, troubleshooting, and component identication.
The owner and operators are responsible for reading and understanding
the entire content of this manual. This manual is designed to keep
the operator safe and knowledgeable as well as prolong the life of the
implement, minimize downtime, and maximize prots. This manual
should accompany the implement if it were ever to be sold.
This manual is sequentially designed and written. It is highly advisable to
read the entire manual before manipulating the Combo Caddy in anyway. If
the sequential process explained and illustrated in this manual is followed,
all manipulations to the Combo Caddy will be simplied and easier for the
personnel involved in the operation of the Combo Caddy.
We would like to thank you for placing your condence in Orthman Mfg., Inc.
Your Combo Caddy is manufactured to meet the highest standards and is
built with precision and strength to increase your agricultural operation’s
dependability and protability.
An optional fertilizer tank package can carry up to 1,000 gallons of liquid
fertilizer to be incorporated by either carried implement. The fertilizer tank
package relieves the towing device of the additional weight of saddle
tanks, etc. An optional tire drive fertilizer pump mount package is available
to divert liquid from fertilizer tanks to the intended incorporation tool.
STILL THE STRONGEST
DUAL IMPLEMENT AND FERTILIZER CARRIER
Thank you for choosing Orthman
STILL THE STRONGEST
INTRODUCTION
combo
caddy
2

Made in the U.S.A.
Combo Caddy
Operator’s Manual
WARRANTY
Orthman Mfg., Inc. warrants the whole goods products it manufactures to be free from defects in material or workmanship for
a period of one (1) year from the date of sale of the product(s) to the original user. Products not manufactured, but supplied by
Orthman Mfg., Inc. on Orthman products, are subject to, conform with, and are limited to the warranty of our suppliers.
Orthman Mfg.,Inc.warrants the parts it manufactures to be free from defects in material or workmanship for a period of ninety (90)
days from the date of delivery of the product(s) to the original user.Products not manufactured,but supplied by Orthman Mfg.,Inc.
on Orthman products, are subject to, conform with, and are limited to the warranty of our suppliers.
Warranty of Orthman whole goods and/or parts applies only to material and workmanship. Misuse, misapplication, neglect,
alteration,accident, normal wear, or acts of God affecting Orthman products are not eligible for warranty.
Warranty of serial numbered goods will only be considered if the product has a completed Warranty Registration on le at Orthman.
This Warranty Registration must be completed and returned to Orthman within thirty (30) days of the sale of the product(s) to the
original user. No serial numbered goods or related parts and/or labor will be warranted without a Warranty Registration on le.
Warranty issues falling within the rst thirty days of a product’s use will be handled at the discretion of Orthman. Warranty of parts
will not require a Warranty Registration, but proof of date of delivery of the product to the original customer must be provided.
WARRANTY CLAIMS: A warranty claim and request to return defective product(s) must be presented to the Orthman Service
Department by the selling dealer describing the defect in material or workmanship of an Orthman product(s) within ten (10) days
of its discovery. This claim may be made via phone, e-mail, fax, or written request. Claims for warranty of serial numbered goods
must include the Orthman product serial number and model number. Claims for warranty of partswill not require a product serial
number or model number, but must be identied by an Orthman part number. Claims for warranty of whole goods or parts must
also include proof of date of sale of the product to the original customer by an Orthman dealer.
The Orthman Service Department will proceed in making a preliminary decision as to the eligibility of the claim for warranty
consideration. After the Orthman Service Department deems it necessary to proceed with warranty consideration,a Return Goods
Authorization (RGA) will be completed by the Orthman Service Department in conjunction with the selling dealer.Upon completion
of the RGA, the defective product(s) must be returned to Orthman to ensure warranty consideration.Defective product(s) must be
returned to Orthman by either the selling dealer or the customer. Customer delivery of defective product(s) must be approved by
Orthman and the selling dealer prior to delivery. The defective product(s) in question must be sent, freight prepaid, within sixty
(60) days of the discovery of the product(s) failure and initial warranty claim. Replacement product(s) may be sent to the selling
dealer, directly to the customer, or picked up at the Orthman facility. Replacement product(s), sent directly to the customer or
picked up must be approved by Orthman and the selling dealer.At the discretion of the Orthman Service Department,replacement
product(s) may be sent prior to, or after, the Orthman Service Department receives the defective product(s).
Any variation in the above procedure is at the sole discretion of the Orthman Service Department.
No products will be accepted at Orthman without all proper paperwork completed includingWarranty Registration and RGA(s).
Parts returned to Orthman without proper authorization will be returned to the sender at the sender’s expense.
Orthman agrees to handle all warranty claims in a timely manner and will inform dealers of any revisions or modications to the
Orthman Warranty Policy.Eligible warranty claims will be processed by Orthman within sixty (60) days of receiving failed product(s)
or a valid service or repair labor claim. Eligible warranty claims regarding returned product(s) or service and/or repair labor will
be paid through a credit memo issued to the appropriate dealer’s account as determined by the Orthman Service Department.
If a warranty claim is found to be ineligible for warranty coverage, the Orthman Service Department will be responsible to inform
the dealer in order to determine the course of action to be taken. Orthman reserves the right to make changes in specication and
design without notice and without incurring any obligations to owners of products previously sold.
© Copyright 2011
Orthman
Manufacturing Inc.
Lexington, Nebraska
All rights reserved.
Orthman provides this manual without warranty of any kind, expressed or implied. This manual
reects the product at the time of publication. All information within is based upon current
information on the publication date.Orthman assumes no responsibility for damages incurred due
to the use of the illustrations, information, and specications within this publication.
3

4
Farm Safety
Contrary to the popular image of fresh air and peaceful surroundings, a farm is
not a hazard-free work setting. Every year, thousands of farm workers are injured
and hundreds more die in farming accidents. According to the National Safety
Council, agriculture is the most hazardous industry in the nation.
How You Can Improve Farm Safety
You can start by increasing your awareness of farming hazards and making a conscious effort to prepare for emergency
situations including fires, vehicle accidents, electrical shocks from equipment and wires, and chemical exposures. Be
especially alert to hazards that may affect children and the elderly. Minimize hazards by carefully selecting the products
you buy to ensure that you provide good tools and equipment. Always use seat belts when operating tractors, and
establish and maintain good housekeeping practices. Here are some other steps you can take to reduce illnesses and
injuries on the farm:
• Read and follow instructions in equipment operator’s manuals and on product labels.
• Inspect equipment routinely for problems that may cause accidents.
• Discuss safety hazards and emergency procedures with your workers.
• Install approved rollover protective structures, protective enclosures, or protective frames on tractors.
• Make sure that guards on farm equipment are replaced after maintenance.
• Review and follow instructions in material safety data sheets (MSDSs) and on labels that come with chemical products
and communicate information on these hazards to your workers.
Health and Safety Hazards on Farms
Farm workers including farm families and migrant workers are exposed to hazards such as the following:
Danger
Potential Effect or Injury
Prevention
Chemicals/Pesticides
Skin and respiratory injury or death
MSDS and proper Personal Protective Equipment. Review Manufacturers data sheets
Cold
Illness, Frostbite or death
Dress properly for the day.
Dust
Respiratory injury or explosive combinations
Be aware of your surroundings and activity
Electricity
Shock, burns, fire, death
Use a qualified professional for wiring dangerous electrical devices. Never overload a
circuit. Replace damaged electrical devices or cords. Electrical tape will not insulate you
from injury.
Grain bins, Silos Entrapment, Suffocation, Explosion from
formation of dangerous gases and poisoning.
Make sure the bin is properly ventilated and maintained. Never walk the grain.
Hand tools Injury including cuts abrasions, electrocution,
strains, sprains and death
Make sure you hand tools are in good condition. Never leave a damaged tooling
accessible for someone else to use.
Highway traffic
Collisions resulting in injury or death
Follow regulations, stay alert. Avoid alcohol and use of communication devices while
driving
Lifting and lifting
devices
Back injury, sprains, strains. Falling material
resulting in being struck or crushed by heavy
material
Use proper lifting technique. Get help when the load is too heavy. Inspect chains, straps
or cables routinely to make sure they are in good condition.
Livestock handling
Serious injury or death resulting from being
pinned struck or trampled.
Always make sure you have adequate room and an escape route
Machinery/Equipment
Cuts, abrasions, amputations, death.
Thoroughly read and understand your Owners Equipment Manual. Never operate the
equipment without guards in place. Make sure the equipment can not be energized or
otherwise put into operation while you are working on it.
Manure pits
Explosion from formation of dangerous gases.
Suffocation. Poisoning
Proper maintenance.
Mud
Sprains, strains, entrapment and suffocation.
Eye injury and skin irritation.
Proper Personal Protective Equipment. In some conditions a “Spotter” may be needed.
Noise
Hearing damage
Personal Protective Equipment.
Ponds
Drowning
Wear a life preserver and make sure help is readily available.
Slips/Trips/Falls Sprains, strains, back and neck injury, bone
breaks or death
Keep work area free from clutter and organized. If working on anything elevated make
sure you have appropriate guarding and/or fall protection such as a harness and lanyard.
Sun/Heat Sun burn, Heat Stroke, shock, death Use common sense on excessively hot days, use sun screen, wear a hat and stay hydrated.
Toxic gases
Skin and respiratory injury or death.
Explosion.
MSDS and proper Personal Protective Equipment. Review Manufacturers data sheets
Tractors
Cuts, abrasions, amputations, death.
Thoroughly read and understand your Owners Equipment Manual. Never operate the
equipment without guards in place. Anti-roll over devices.
Wells
Electrocution, amputation, death
Avoid contact with water while working on an electrical device. Always be sure the
equipment can/will not be energized during repair or maintenance. Make sure all guarding
is in place.
Severe Weather
Electrocution, “struck by” injuries, death
Move to a safe place. Lightening, hail and tornadoes are unpredictable.
Orthman Manufacturing, Inc. does not limit the potential effects or injuries nor prevention measures to those listed above. They are provided solely as a
guideline to making your farm life safer. Always consult your Owner/Operators Manual for specific tool and equipment safety requirements.

5
High Risk Factors on Farms
The following factors may increase risk of injury or illness for farm workers:
•Age –Injury rates are highest among children age 15 and under and adults over 65.
•Equipment and Machinery – Most farm accidents and fatalities involve machinery. Proper machine guarding and doing
equipment maintenance according to manufacturers’ recommendations can help prevent accidents.
•Protective Equipment – Using protective equipment, such as seat belts on tractors, and personal protective equipment
(such as safety gloves, coveralls, boots, hats, aprons, goggles, face shields) could significantly reduce farming injuries.
• Take precautions to prevent entrapment and suffocation caused by unstable surfaces of grain storage bins, silos, or
hoppers. Never “walk the grain.”
• Be aware that methane gas, carbon dioxide, ammonia, and hydrogen sulfide can form in unventilated grain silos and
manure pits and can suffocate or poison workers or explode.
• Take advantage of safety equipment, such as bypass starter covers, power take-off master shields, and slow-moving
vehicle emblems.
•Medical Care – Hospitals and emergency medical care are typically not readily accessible in rural areas near farms.
The Benefits of Improved Safety and Health Practices
Orthman Manufacturing Provides this document in the hope that everyone that has a job to do, does it SAFELY. Our goal
and yours should be to end each day in the best possible health. Better safety and health practices reduce fatalities,
injuries, and illnesses as well as associated costs such as workers’ compensation insurance premiums, lost production,
and medical expenses. A safer and more healthful workplace improves morale and productivity.

Made in the U.S.A.
Combo Caddy
Operator’s Manual
TABLE OF CONTENTS
INTRODUCTION
6
Introduction
General Information - Combo Caddy
Warranty
Farm Safety
Table of Contents
Important Safety Information
Safety Alert Symbol - Signal Words - Shutdown and Storage
Your Protection - Safety Guidelines
Safe Transport - Warning and Safety Lights
Safe Operation - No Riders
Practice Safe Maintenance
Prepare for Emergencies
Liquid Fertilizer - Safety Never Hurts
Safety Decals
Orthman Decals
Component Identication
Terminology and Denitions
Component Identication
Preparation and Setup
Dual Fertilizer Tanks
Dual Fertilizer Tanks - Installation
Tire Drive Fertilizer Pump Mount
Tire Drive Fertilizer Pump Mount - Installation
Lift Wheel Package
Lift Wheel Package - Installation
Lift Wheel Package Hydraulic Components - Installation
Caddy to Primary Implement Connection
Caddy to Tractor Connection
Lift Wheel Scrapers
1
3
4
6
8
9
10
11
12
13
14
15
20
22
23
27
28
29
30
39
40
41
42
49
50

Made in the U.S.A.
Combo Caddy
Operator’s Manual
7
INTRODUCTION
Preparation and Setup - cont.
Caddy to Secondary Implement Connection
Simple Hydraulic Schematic
Field Settings
Caddy Height
Troubleshooting
Installing Dual Fertilizer Tanks
Installing Tire Drive Fertilizer Pump Mount
Installing Lift Wheel Package
Installing Lift Wheel Package Hydraulic Components
Primary Implement Connection
Caddy to Tractor Connection
Installing Lift Wheel Scrapers
Secondary Implement Connection
Simplied Hydraulic Schematic
Maintenance
Practice Safe Maintenance
Lubrication
Implement Inspection
Torque Specications
Implement Storage
TABLE OF CONTENTS
51
53
54
55
56
57
58
59
63
64
65

Made in the U.S.A.
Combo Caddy
Operator’s Manual
SAFETY ALERT SYMBOL
The
SAFETY ALERT SYMBOL warns of potential hazards to personal
safety and that extra precautions must be taken. When you see this
symbol, carefully read the message(s) that follow. Follow all recommended
precautions and safe operating practices in this manual.
NOTE: Hazard control and accident prevention are dependent upon safety awareness
and proper training of personnel involved in the operation of this implement.
BE AWARE OF SIGNAL WORDS
DANGER indicates a hazardous situation that, if not avoided, will result in
death or serious injury. DANGER is limited to extreme situations, typically
for machine components which, for functional purposes, cannot be guarded.
WARNING indicates a potentially hazardous situation that, if not avoided,
could result in death or serious injury. WARNING includes hazards that are
exposed when safety guards are removed. WARNING may also be used to
alert against unsafe practices.
CAUTION indicates a potentially hazardous situation that, if not avoided,
may result in minor or moderate injury. CAUTION may also be used to alert
against unsafe practices.
SHUTDOWN AND STORAGE
AVOID CRUSHING. Make sure all personnel are clear of the implement.
Lower implement to the ground, place tractor in park, turn off engine,
and remove key.
CAUTION
WARNING
D A N G E R
RED
ORANGE
YELLOW
SUPPORT THE IMPLEMENT. Use Caddy jack stand to support the
implement. Store implement on a clean, dry, and level surface. An
uneven surface could cause implement to shift or fall, resulting in injury
or death, as well as implement damage. Securely support all implement
components that must be raised. Store implement away from human
activity.
D A N G E R
off
WARNING
IMPORTANT SAFETY INFORMATION
SIGNAL WORDS designate a degree or level of HAZARD seriousness.
These SIGNAL WORDS include:
8
IMPORTANT SAFETY INFORMATION

Made in the U.S.A.
Combo Caddy
Operator’s Manual
FOR YOUR PROTECTION
EQUIPMENT SAFETY GUIDELINES
Operator safety is the primary concern when designing an Orthman
implement. Orthman integrates as many safety features into the
implement as possible. You can avoid many hazards and possible
accidents by observing precautions in this safety section.
Insist that yourself and personnel working with and around you follow all
safety precautions. Be cautious when working with or around implement
to avoid injury.
OPERATOR’S
MANUAL
CAUTION
READ AND UNDERSTAND THE ENTIRE CONTENT OF THIS MANUAL
BEFORE OPERATING OR SERVICING IMPLEMENT. Read and understand
all operator manuals for machinery used in conjunction with the Caddy.
Carefully READ ALL SAFETY DECALS in this manual as well as on the
implement. Keep implement clean so decals are easily visible. Keep all
safety decals in good, clean, and legible condition. Immediately replace
damaged and/or missing decals. Replacement decals are available from
your Orthman dealer.
Learn to operate the implement and all components properly. Do not
let others operate implement without proper instruction. Unauthorized
implement modications may impair function and safety. If you do not
understand any content in this manual or need assistance, contact your
Orthman dealer.
(Orthman Manufacturing Inc. - 75765 Rd. 435 - Lexington, NE 68850 - [phone])
9
IMPORTANT SAFETY INFORMATION

Made in the U.S.A.
Combo Caddy
Operator’s Manual
•Engage transport locking devices and Caddy cylinder locks prior to transport.
•Plan your route to avoid trafc. Yield to trafc in all situations.
•Maximum transport speed is 20 mph (32 kph). Various conditions will
require reduced speeds. Travel at speeds that allow for adequate control
of stopping and steering.
•AVOID ELECTROCUTION. Be aware of overhead power lines. Contact or
close proximity to power lines can result in injury or death. Use extreme
care when operating implement near power lines.
•Know implement transport height and gross weight. Avoid overhead
obstructions not allowing your transport height. Do not use bridges
rated below implement gross weight.
•Make sure a slow moving vehicle (SMV) placard is mounted to the
implement and is visible to other motorists.
•Make allowances for implement size when transporting. Sudden braking
can cause a towed load to swerve and/or rollover. Never use independent
braking with implement in tow as loss of control and/or rollover can result.
Reduce speed if towed implement is not equipped with brakes.
•Do not coast. Always keep tractor or towing device in gear to provide engine
braking when traveling downhill.
•Comply with state and local laws governing implement transport.

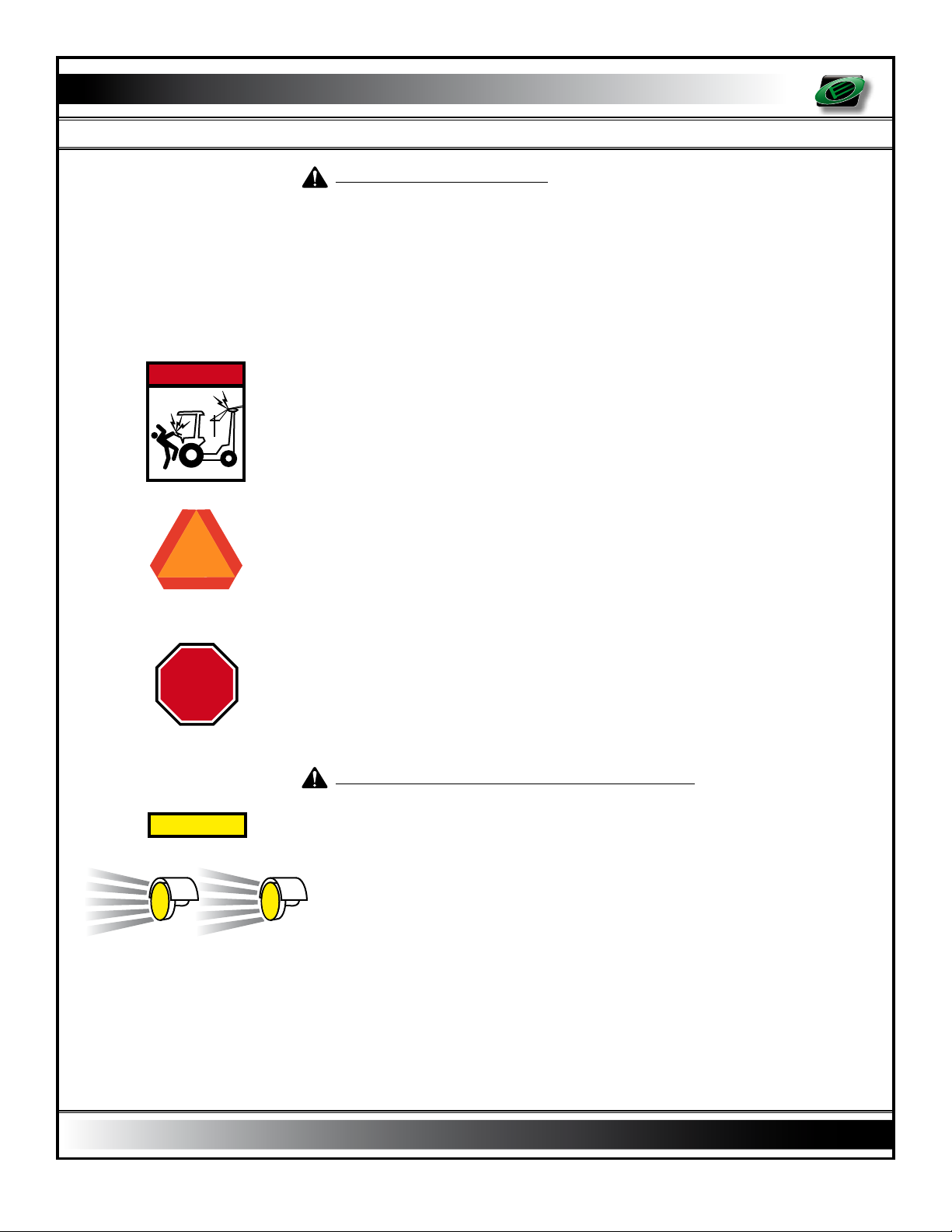

WARNING AND SAFETY LIGHTS
SAFE TRANSPORT
SMV
STOP
•Oversized implements and slow moving vehicles create a hazard when
being transported on public roads.
•Make sure all warning, safety lights, and turning signals are working and
clean. Use safety lighting when using public roads day and night. Replace
missing or damaged lights immediately. Comply with state and local laws
governing implement safety lighting.
CAUTION
D A N G E R
10
IMPORTANT SAFETY INFORMATION

Made in the U.S.A.
Combo Caddy
Operator’s Manual

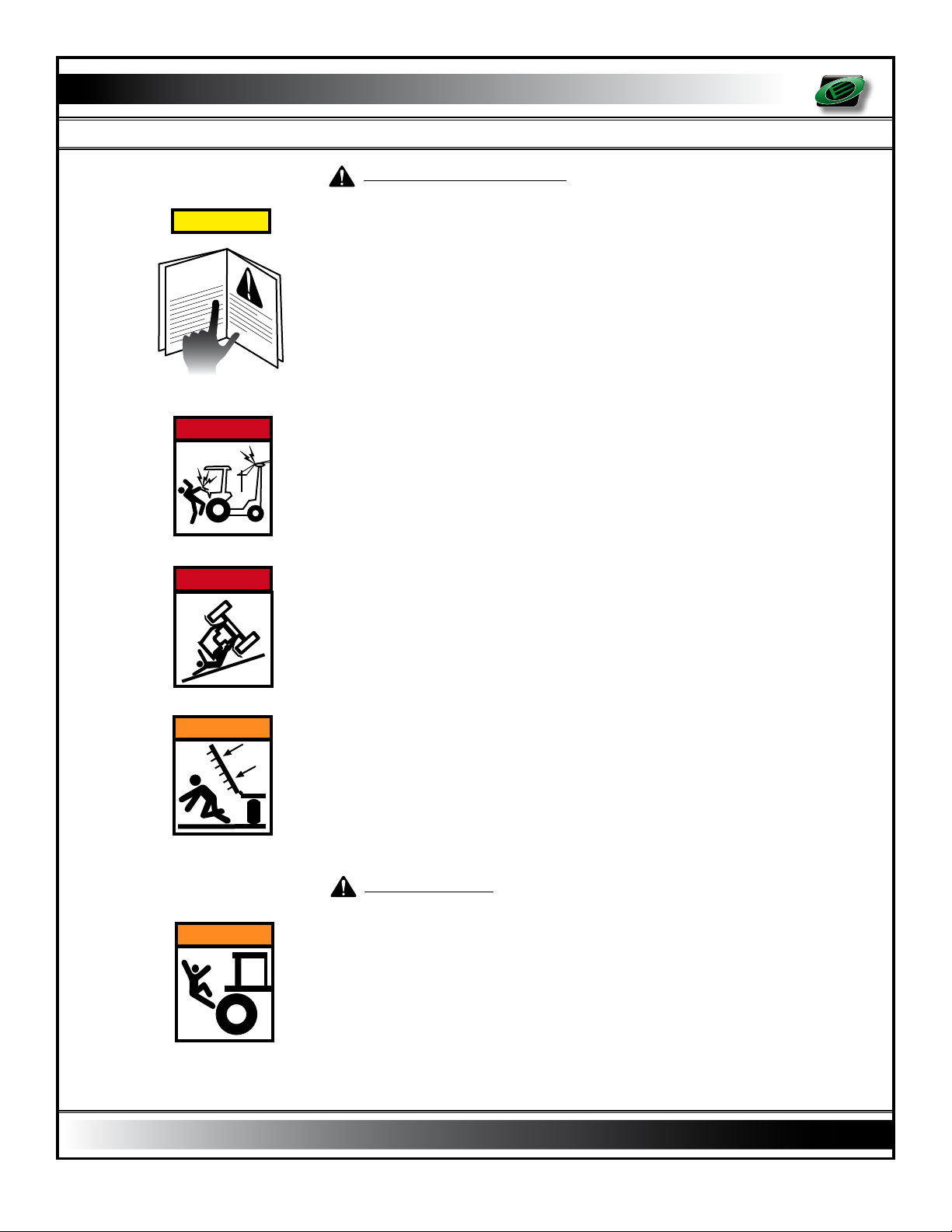

SAFE OPERATION
• READ AND UNDERSTAND THE ENTIRE CONTENT OF THIS MANUAL
BEFORE OPERATING OR SERVICING IMPLEMENT. Implement is to be
operated by qualied personnel only. Never let children operate
implement. A complete understanding of safety precautions, operation,
and maintenance is mandatory before implement use.
•AVOID ELECTROCUTION. Be aware of overhead power lines.
Contact or close proximity to power lines can result in injury or death.
Use extreme care when operating implement near power lines.
•Know implement transport height and gross weight. Avoid overhead
obstructions not allowing your transport height. Do not use bridges
rated below your gross weight.
• AVOID ROLLOVER. Do not fold or unfold implement and avoid sharp turns
when on a hillside, as shift of weight could cause rollover. Operate
implement at a safe distance from terrain irregularities and other
obstructions that could cause rollover.
• AVOID CRUSHING. Make sure all personnel are clear of implement at all
times implement is in motion. Be aware of obstructions above, below, and
around implement when in operation or transport. Injury or death can
result from being struck by the implement.
NO RIDERS
NEVER ALLOW RIDERS ON TRACTOR OR IMPLEMENT. Riders hinder
operator visibility and can be thrown from the implement and/or be
struck by foreign objects resulting in injury or death.
WARNING
D A N G E R
D A N G E R
WARNING
OPERATOR’S
MANUAL
CAUTION
11
IMPORTANT SAFETY INFORMATION

Made in the U.S.A.
Combo Caddy
Operator’s Manual
PRACTICE SAFE MAINTENANCE
•Proper maintenance is your responsibility. Maintenance neglect and/or
poor maintenance practices can result in injury or death. Always use the
proper tools to maintain implement.
• AVOID CRUSHING. Make sure all personnel are clear of the implement.
Lower implement to the ground, place tractor in park, turn off engine,
and remove key.
• SUPPORT THE IMPLEMENT. Use three point Caddy hitch bar stands or
drawbar Caddy jack stand to support the implement. Park implement on a
clean, dry, and level surface. An uneven surface could cause implement to
shift or fall, resulting in injury or death, as well as implement damage.
Securely support all implement components that must be raised.
Remove buildup of grease, oil, or debris prior to maintaining implement.
• AVOID ENTANGLEMENT. Never lubricate or service implement in motion.
Keep away from power driven parts when in motion. Disengage power
sources prior to maintaining implement. Injury or death can result from
contact with power driven parts when in motion.
• AVOID CRUSHING. Do not stand between the tractor and implement when
connecting or disconnecting implement. Injury or death can result from
being trapped between the tractor and implement.
•Escaping pressurized hydraulic uid can penetrate skin, resulting in injury
or death. Relieve hydraulic system pressure before connecting or
disconnecting tractor. Use cardboard or wood, NOT BODY PARTS , to check
for suspected hydraulic leaks. Wear protective gloves and safety glasses or
goggles when working with hydraulic systems. If an accident occurs, see a
doctor immediately for proper treatment.
D A N G E R
off
WARNING
D A N G E R
D A N G E R
D A N G E R
12
IMPORTANT SAFETY INFORMATION

Made in the U.S.A.
Combo Caddy
Operator’s Manual
PRACTICE SAFE MAINTENANCE

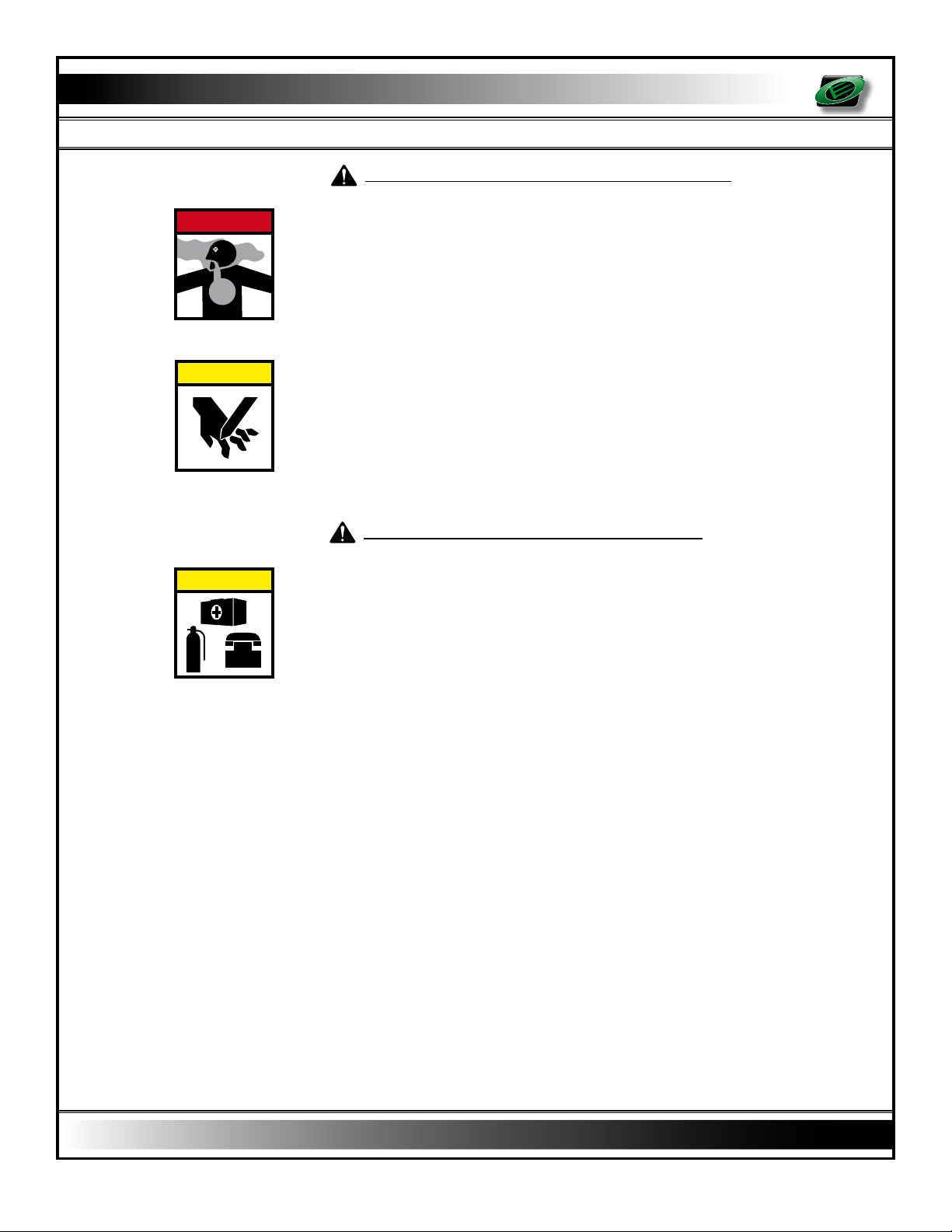

•Be prepared for a re. Keep a readily accessible re extinguisher at
all times.
•Keep a readily accessible stocked rst aid kit and emergency phone
numbers for your doctor, hospital, ambulance, and re department.
•Wear protective clothing and equipment. Wear clothing appropriate for
the situation. Protect your eyes, ears, hands, and feet with the use of
protective goggles, ear plugs, gloves, boots, etc.
PREPARE FOR EMERGENCIES
•Never operate a combustion engine in an enclosed area. Make sure there
is adequate ventilation. Exhaust fumes can cause asphyxiation.
•Be extremely careful working around unshielded sharp edges. Injury may
result from contact with sharp edges.
•Keep all parts in good condition and properly installed. Replace damaged
or missing parts immediately.
•Remove tools and unused parts prior to implement operation.
91 1
CAUTION
D A N G E R
CAUTION
13
IMPORTANT SAFETY INFORMATION

Made in the U.S.A.
Combo Caddy
Operator’s Manual
LIQUID FERTILIZER

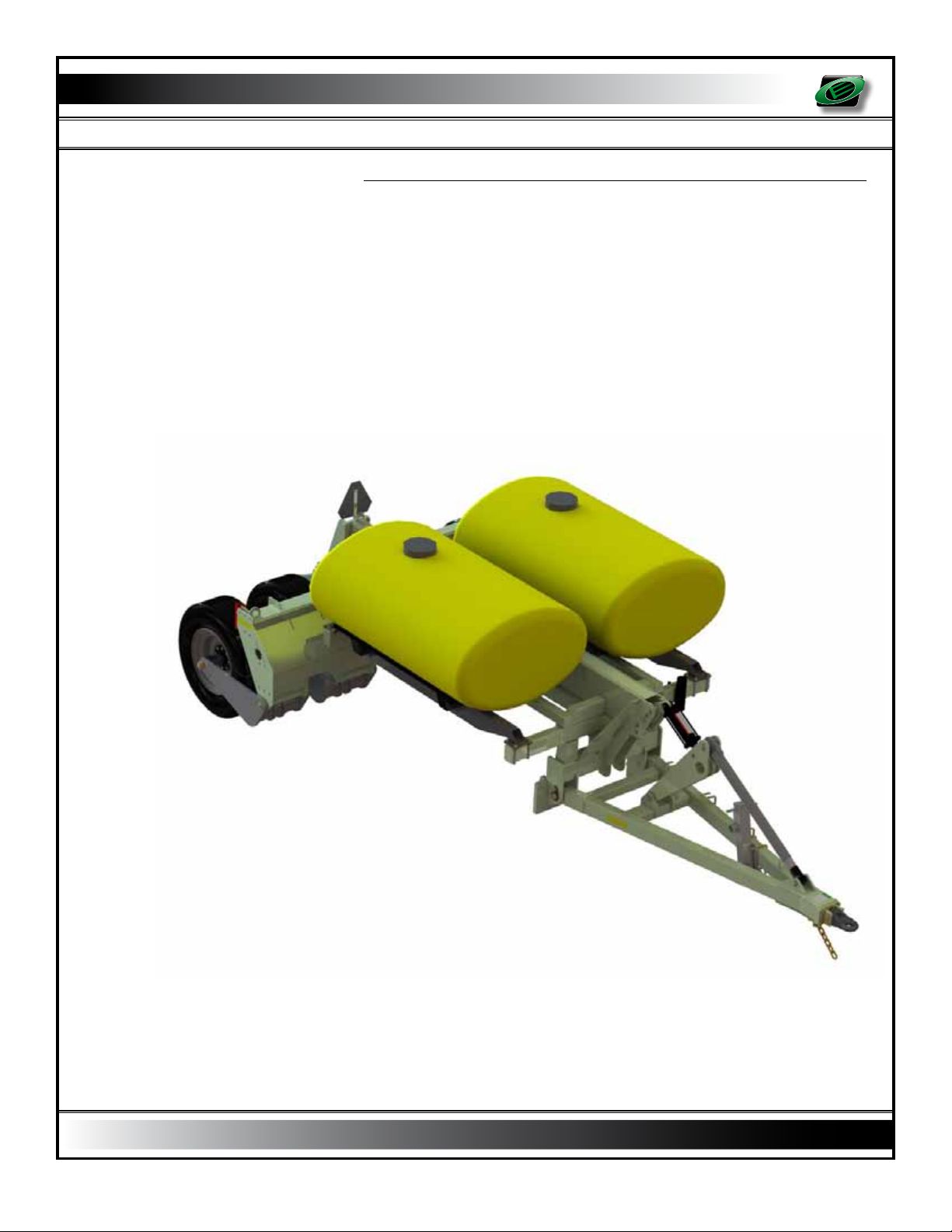

The Combo Caddy can be accessorized with an optional dual liquid fertilizer
tank package to apply liquid fertilizer.
•Keep a clean supply of water readily accessible in case of exposure to
liquid fertilizer.
•Wear protective goggles and gloves when working around liquid fertilizer.
Be sure all persons involved in the operation are properly trained
concerning the dangers and precautions involved in the application of
liquid fertilizer.
•If you choose to apply liquid fertilizer, it is advisable to consult documented
information regarding safe handling and application of liquid fertilizer.
Information is available from the following recognized sources:
•
LIQUID FERTILIZER APPEARS HARMLESS. DIRECT EXPOSURE TO
LIQUID FERTILIZER IS EXTREMELY DANGEROUS AND CAN RESULT IN
INJURY AND/OR DEATH.
OPERATOR’S
MANUAL
CAUTION
D A N G E R
SAFETY NEVER HURTS
1. American National Standards Institute - ANSI - www.ansi.org - [phone]
2. Material Safety Data Sheets - MSDS - www.msdsonline.com
3. National Safety Council - www.nsc.org/necas
4. The Fertilizer Institute - www.t.org
5. United States Department of Transportation - D.O.T. - www.dot.gov
6. Compressed Gas Association - www.cganet.com
READ AND UNDERSTAND THE ENTIRE CONTENT OF THIS MANUAL
BEFORE OPERATING OR SERVICING IMPLEMENT.
•Understand all implement functions.
•Never stand between tractor and implement when connecting or
disconnecting implement.
•Be aware of all surroundings before moving implement.
•Operate implement from operator’s seat only.
•Never mount or dismount a moving tractor.
•Never leave engine running when implement is unattended.
•Keep away from power driven parts when in motion.
•Make sure all personnel are clear before lowering implement to the ground.
14
IMPORTANT SAFETY INFORMATION

Made in the U.S.A.
Combo Caddy
Operator’s Manual
SAFETY DECALS
D A N G E R
WARNING
CAUTION
NOTE: To install decals: Thoroughly clean area where decal is to be placed and attach decal
void of bubbles. Refer to this safety information section for proper decal placement.
NOTE: Decal placement for both drawbar and three point Caddies are illustrated below.
Common (drawbar and three point) Caddy decals with common locations are illustrated once.
Safety decals promote awareness and knowledge concerning safe
operation and maintenance of the implement.
Carefully READ ALL SAFETY DECALS in this manual as well as on the
implement. Keep implement clean so decals are easily visible. Keep
all decals in good and legible condition. Immediately replace damaged
and/or missing decals. Replacement decals are available from your
Orthman dealer.
C A U T I O N
1. Read and understand all operator manuals before implement use.
2. Follow all tractor or towing device operating procedures and safety guidelines.
3. Do not allow riders on implement.
4. Lower implement to the ground, place tractor in park, turn off engine, and remove key.
Wait for all moving parts to come to a complete stop before working on implement.
5. Be extremely careful working around unshielded sharp edges.
6. Make sure all safety lighting and decals are clean. Use hazard lights when in transport.
7. Engage all safety devices before transporting or working beneath implement.
8. Contact or close proximity to power lines can result in electrocution.
9. Review all safety instructions with all operators on a frequent basis. 153-044
(left side Caddy hitch)
C A U T I ON
153-044
15
IMPORTANT SAFETY INFORMATION

Made in the U.S.A.
Combo Caddy
Operator’s Manual
SAFETY DECALS

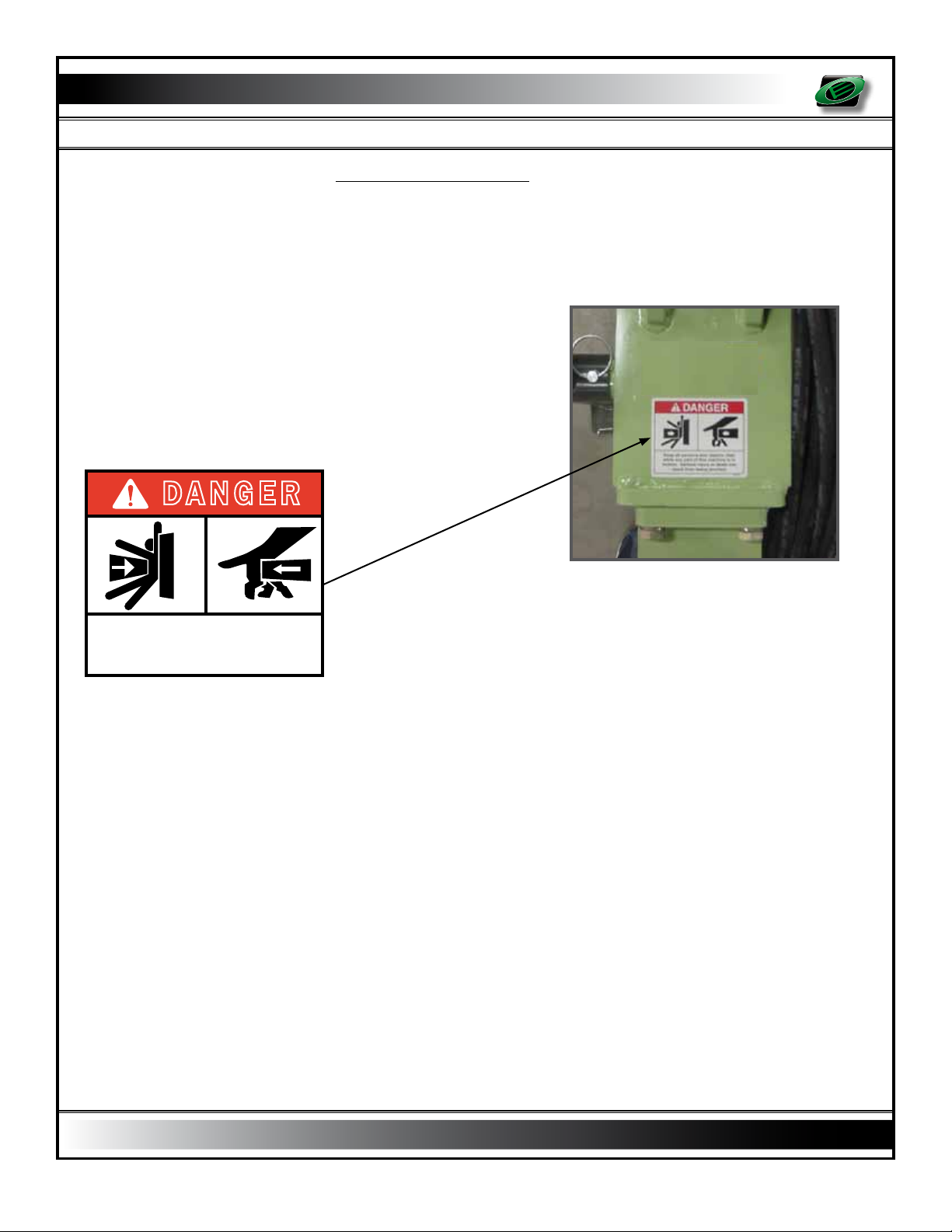

(upper side Caddy hitch)
DANGER
Keep all persons and objects clear
while any part of this machine is in
motion. Serious injury or death can
result from being pinched. 153-167
153-167
Safety decals promote awareness and knowledge concerning safe
operation and maintenance of the implement. Immediately replace
damaged and/or missing decals. Replacement decals are available from
your Orthman dealer.
16
IMPORTANT SAFETY INFORMATION

Made in the U.S.A.
Combo Caddy
Operator’s Manual

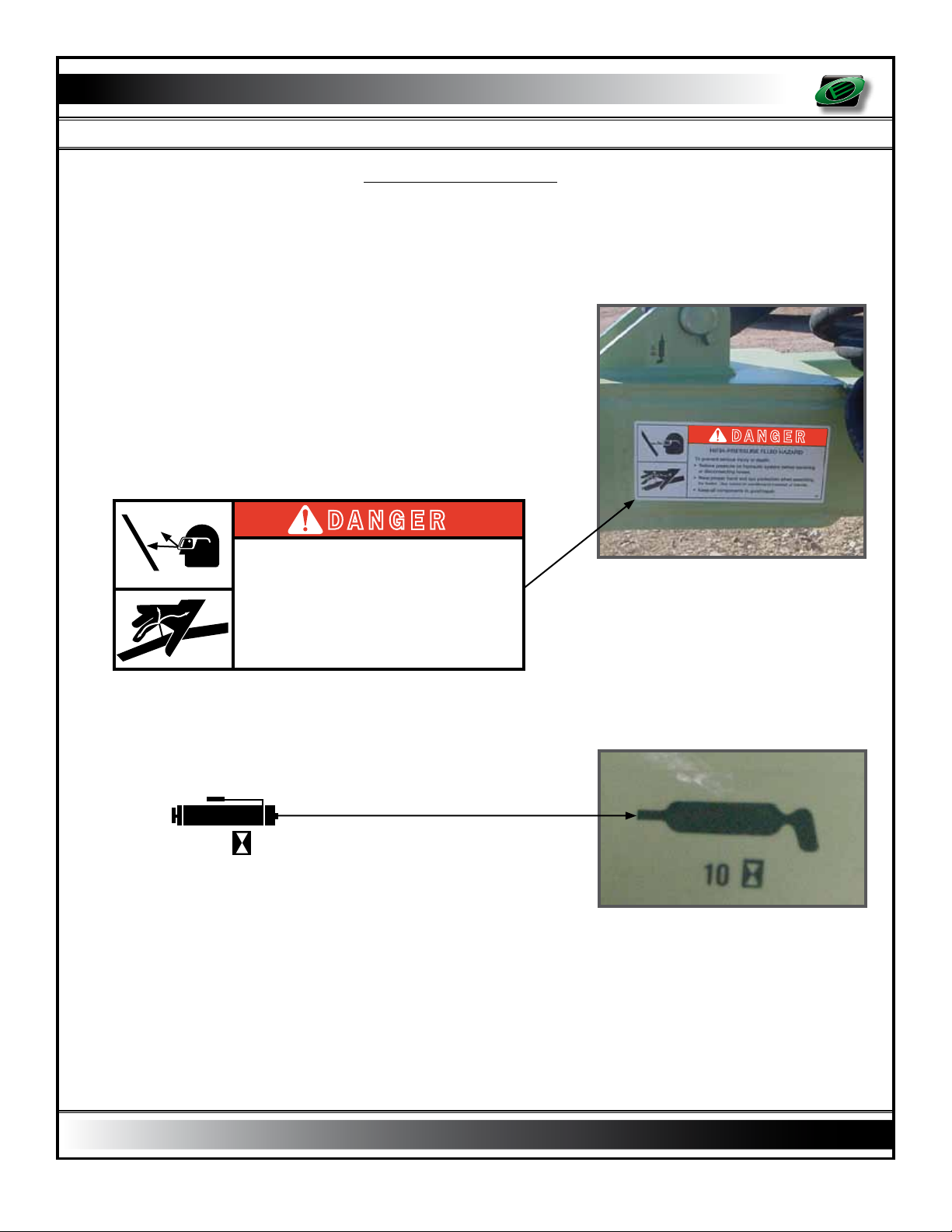

(refer to maintenance section)
(left side Caddy hitch)
10
DANGER
HIGH-PRESSURE FLUID HAZARD
To prevent serious injury or death:
•Relieve pressure on hydraulic system before servicing
or disconnecting hoses.
•Wear proper hand and eye protection when searching
for leaks. Use wood or cardboard instead of hands.
•Keep all components in good repair. 153-528
SAFETY DECALS
Safety decals promote awareness and knowledge concerning safe
operation and maintenance of the implement. Immediately replace
damaged and/or missing decals. Replacement decals are available from
your Orthman dealer.
DANGER
17
IMPORTANT SAFETY INFORMATION

Made in the U.S.A.
Combo Caddy
Operator’s Manual

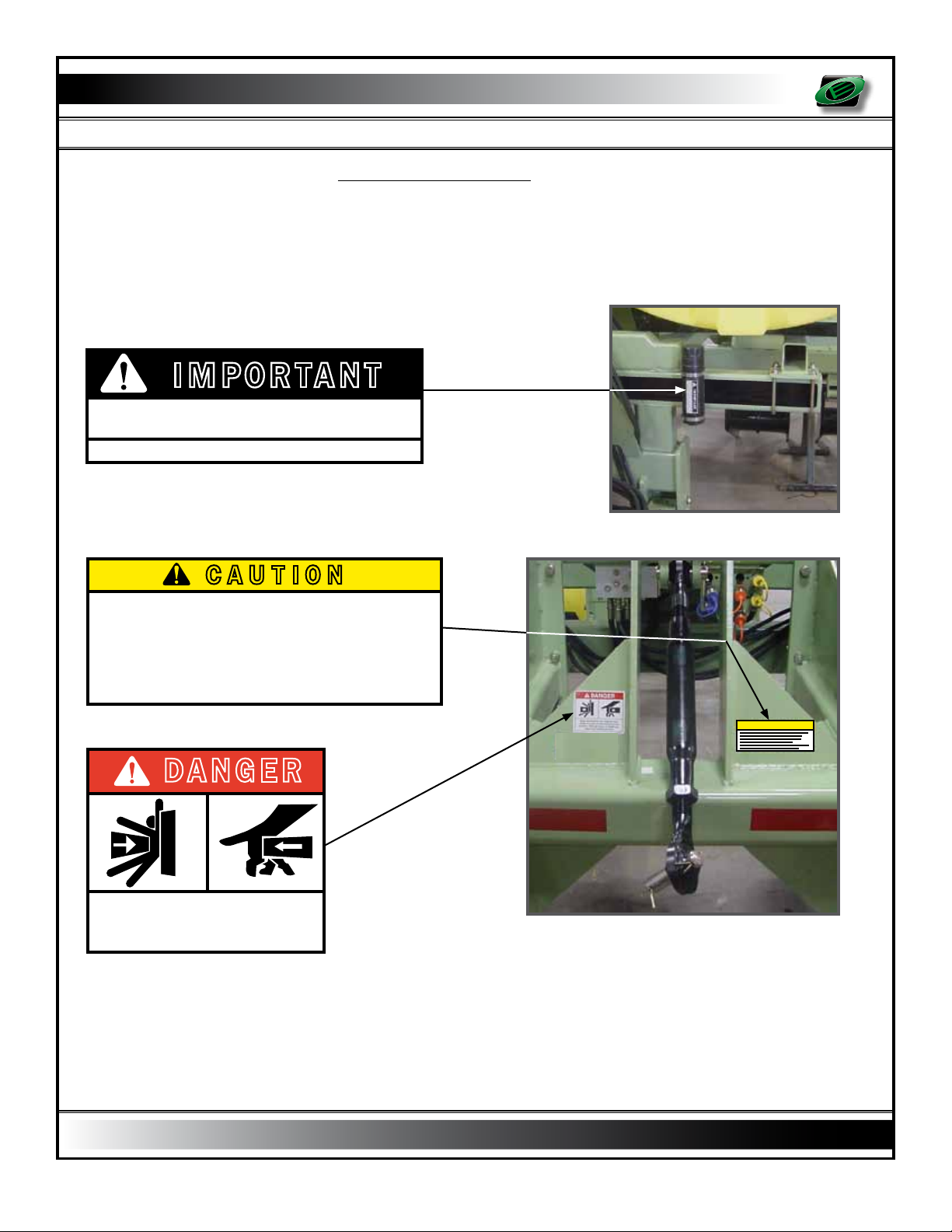

(rear center Caddy)
C A U T I O N
1. Read and understand all operator manuals before implement use.
2. Follow all tractor or towing device operating procedures and safety guidelines.
3. Do not allow riders on implement.
4. Lower implement to the ground, place tractor in park, turn off engine, and remove key.
Wait for all moving parts to come to a complete stop before working on implement.
5. Be extremely careful working around unshielded sharp edges.
6. Make sure all safety lighting and decals are clean. Use hazard lights when in transport.
7. Engage all safety devices before transporting or working beneath implement.
8. Contact or close proximity to power lines can result in electrocution.
9. Review all safety instructions with all operators on a frequent basis. 153-044
DANGER
Keep all persons and objects clear
while any part of this machine is in
motion. Serious injury or death can
result from being pinched. 153-167
I M POR TA N T
Equipment operators should understand the enclosed manual before
operating this equipment. Replacement manual, call 308-324-4654
Orthman Mfg., Inc. - 75765 Rd. 435 - Lexington, NE 68850
153-101
(manual enclosure)
153-101
153-044
153-167
(front left Caddy)
SAFETY DECALS
Safety decals promote awareness and knowledge concerning safe
operation and maintenance of the implement. Immediately replace
damaged and/or missing decals. Replacement decals are available from
your Orthman dealer.
C A U T ION
caddy
combo
18
IMPORTANT SAFETY INFORMATION

Made in the U.S.A.
Combo Caddy
Operator’s Manual
153-173
153-171
153-172

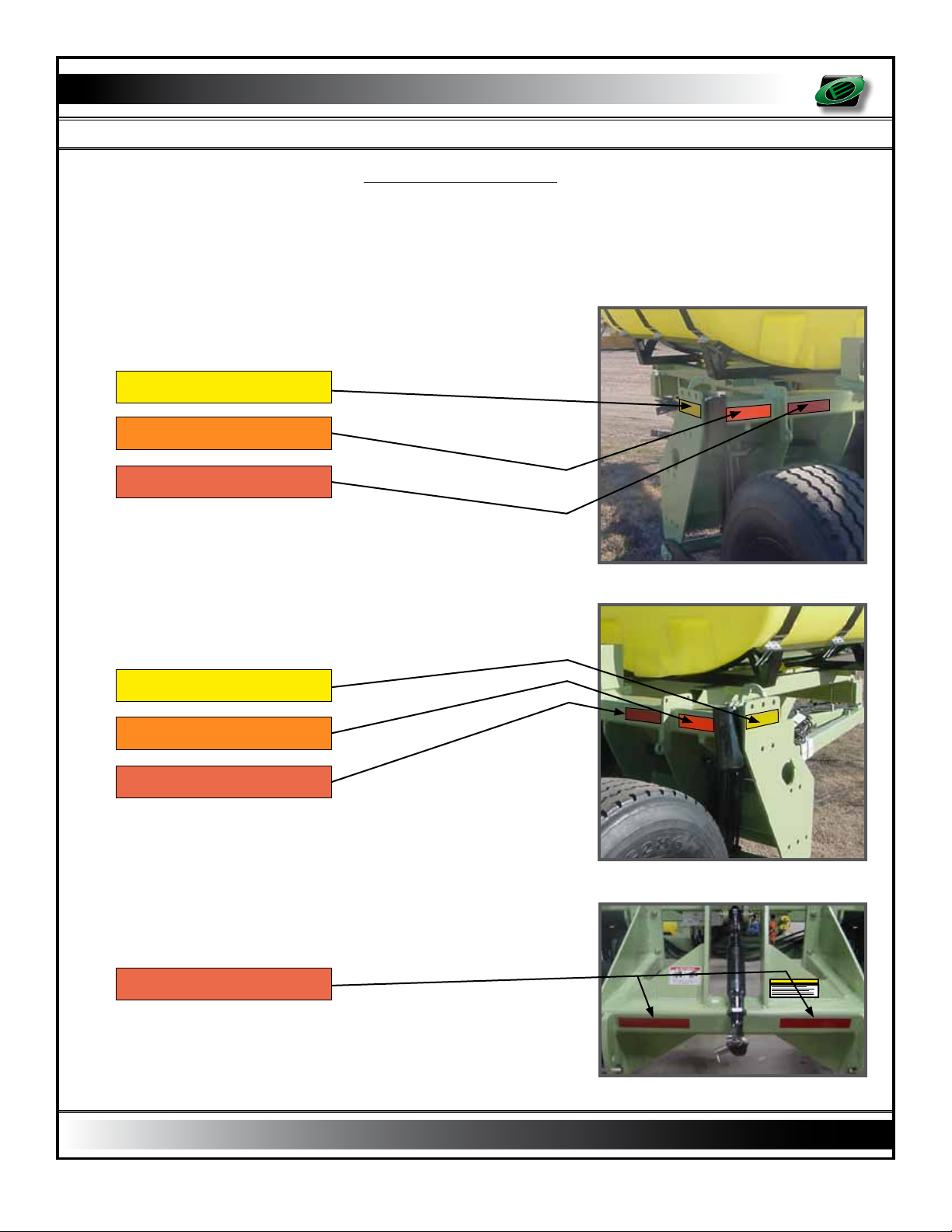

(rear left Caddy)
(rear right Caddy)
(rear center Caddy)
RED
ORANGE
YELLOW
153-173
153-171
153-172
RED
ORANGE
YELLOW
153-173
RED
SAFETY DECALS
Safety decals promote awareness and knowledge concerning safe
operation and maintenance of the implement. Immediately replace
damaged and/or missing decals. Replacement decals are available
from your Orthman dealer.
(ASAE Standard Reective)
19
IMPORTANT SAFETY INFORMATION
