Orthofab tango ce User manual

01202-0-00_rev2021-11-30
USER'S MANUAL

2
Centre:
Address:
Phone:
Please give this manual to the user of this Tango CE tilt
wheelchair.
Please read the entire manual before using the Tango CE tilt
wheelchair. Please refer to this manual as needed and pay close
attention to the warnings until you are familiar with them.
For any questions about items not covered in this manual,
consult a technician at an authorized service centre, or contact
our customer service department at 1-418-847-5225 or toll free
at 1-800-463-5293.
Adjustments to your Tango CE tilt wheelchair should only be
performed by health care professionals. Improper adjustments
can cause injury and/or damage to the occupant, the assistant,
the tilt wheelchair, or the environment.
Do not install accessories that are not authorized and not
approved by . Always consult a health care
professional for any modifications to your Tango CE tilt
wheelchair.

3
is pleased to have you as a customer. Thank you for choosing one of our
products.
The staff is motivated by our commitment to customer satisfaction and to
exceeding your expectations. This is why offers a comprehensive warranty
on all mechanical parts and components.
However, the warranty does not apply if:
a) a defect is due to installation of a component or part from a manufacturer that is not
authorized by ;
b) the device or component was repaired by an establishment that is not
authorized by .
Additionally, damage caused by abuse, neglect, accidents or normal wear and tear are
not covered by the warranty.
This instruction manual is designed to help you use the Tango CE tilt wheelchair safely
and effectively. It has information on safety, operation and adjustment.
The Tango CE tilt wheelchair features a number of customizable options to suit each
user's individual needs. The necessary adjustments and settings for the safe and optimal
use of your unit must be made by a qualified health care professional from a licensed
health care facility in Quebec.
To optimize the unit's performance and to extend its life, it's important to schedule an
annual check-up by a technician at an authorized service centre.
is not liable for any damage to persons or property resulting from improper
or negligent use of its products, lack of care, or modifications made without its written
consent.

TABLE OF CONTENTS
Inc. all rights reserved 4
1SAFETY RULES.................................................................................................................................................. 6
1.1 GENERAL INFORMATION ................................................................................................................................ 6
1.1.1 BEFORE YOU HIT THE ROAD ................................................................................................................... 6
1.1.2 GETTING AROUND IN A WHEELCHAIR.................................................................................................... 7
1.1.3 CROSSING A SLOPE ................................................................................................................................. 7
1.1.4 TRANSFERRING ....................................................................................................................................... 8
1.1.5 MISCELLANEOUS HANDLING .................................................................................................................. 9
1.1.6 CLEANING AND DISINFECTING................................................................................................................ 9
2RECOMMENDED USE..................................................................................................................................... 11
3SPECIFICATIONS............................................................................................................................................. 12
4INSTALLATION / ADJUSTMENTS .................................................................................................................... 13
4.1 LEG SUPPORT ASSEMBLY .............................................................................................................................. 13

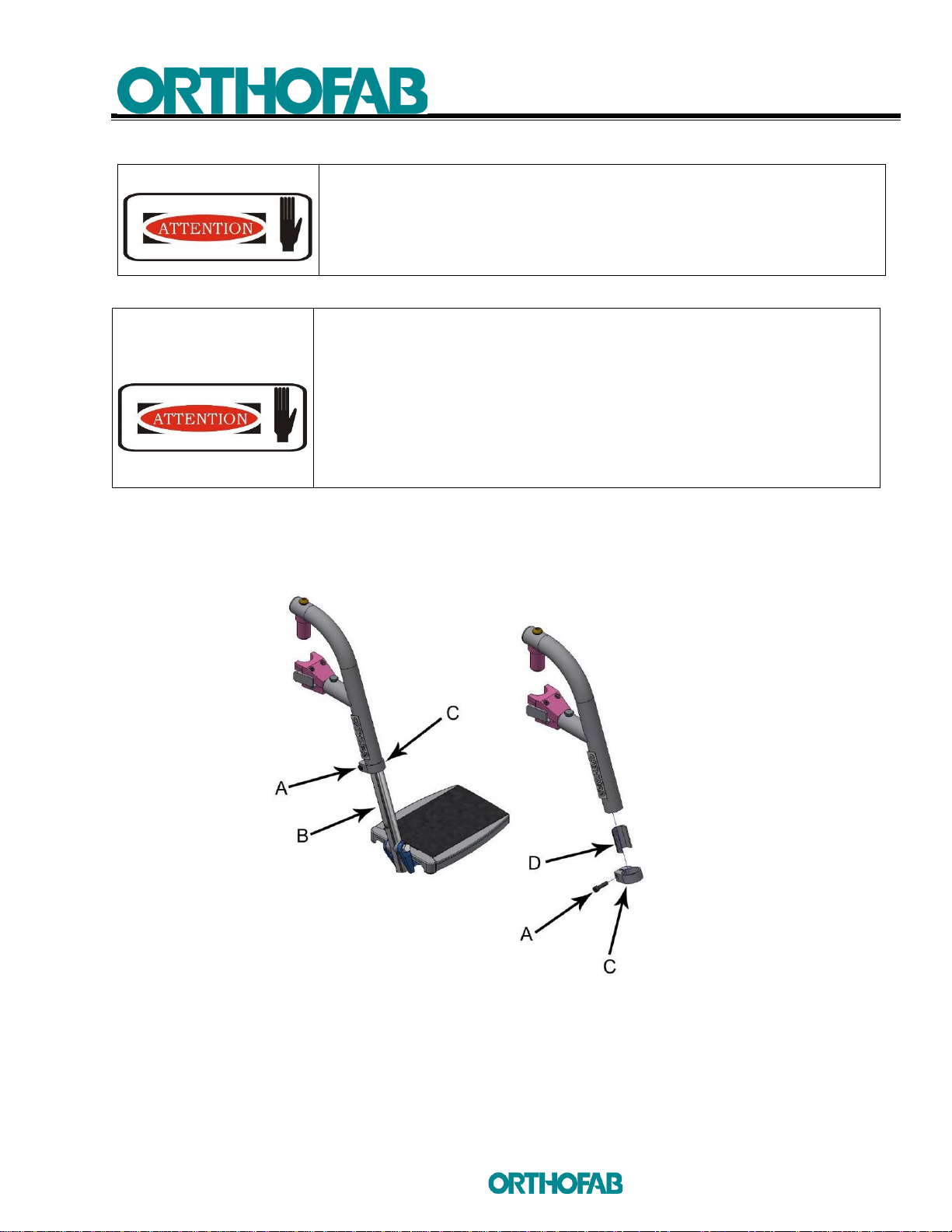

4.1.1 ADJUSTING THE LENGTH OF THE LEG SUPPORT ASSEMBLY................................................................. 13

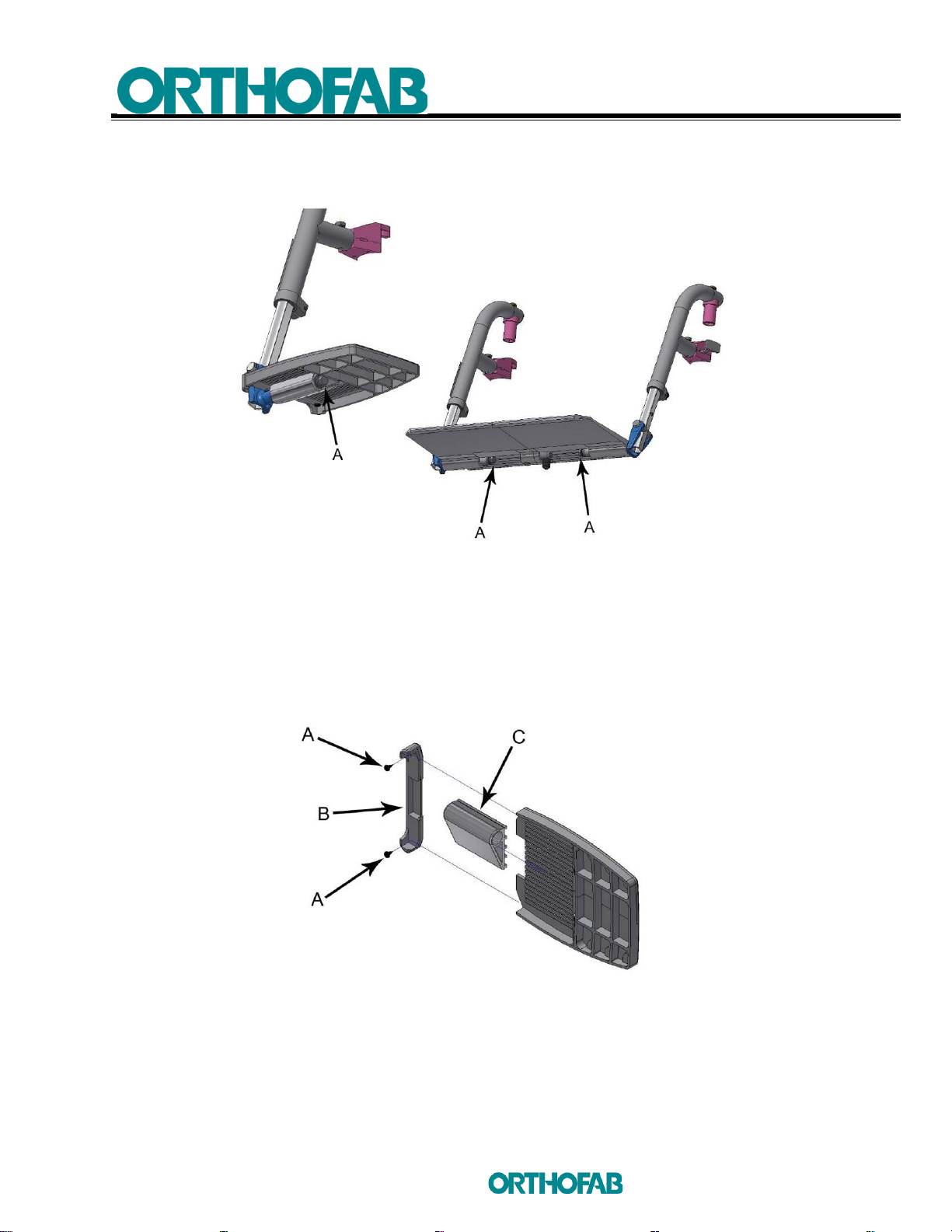

4.1.2 CHANGING THE ANGLE OF THE ADJUSTABLE ANGLE FOOT SUPPORT, SINGLE AND FULL WIDTH....... 14
4.1.3 CHANGING THE POSITION (DEPTH) OF THE ADJUSTABLE ANGLE FOOT SUPPORT .............................. 14

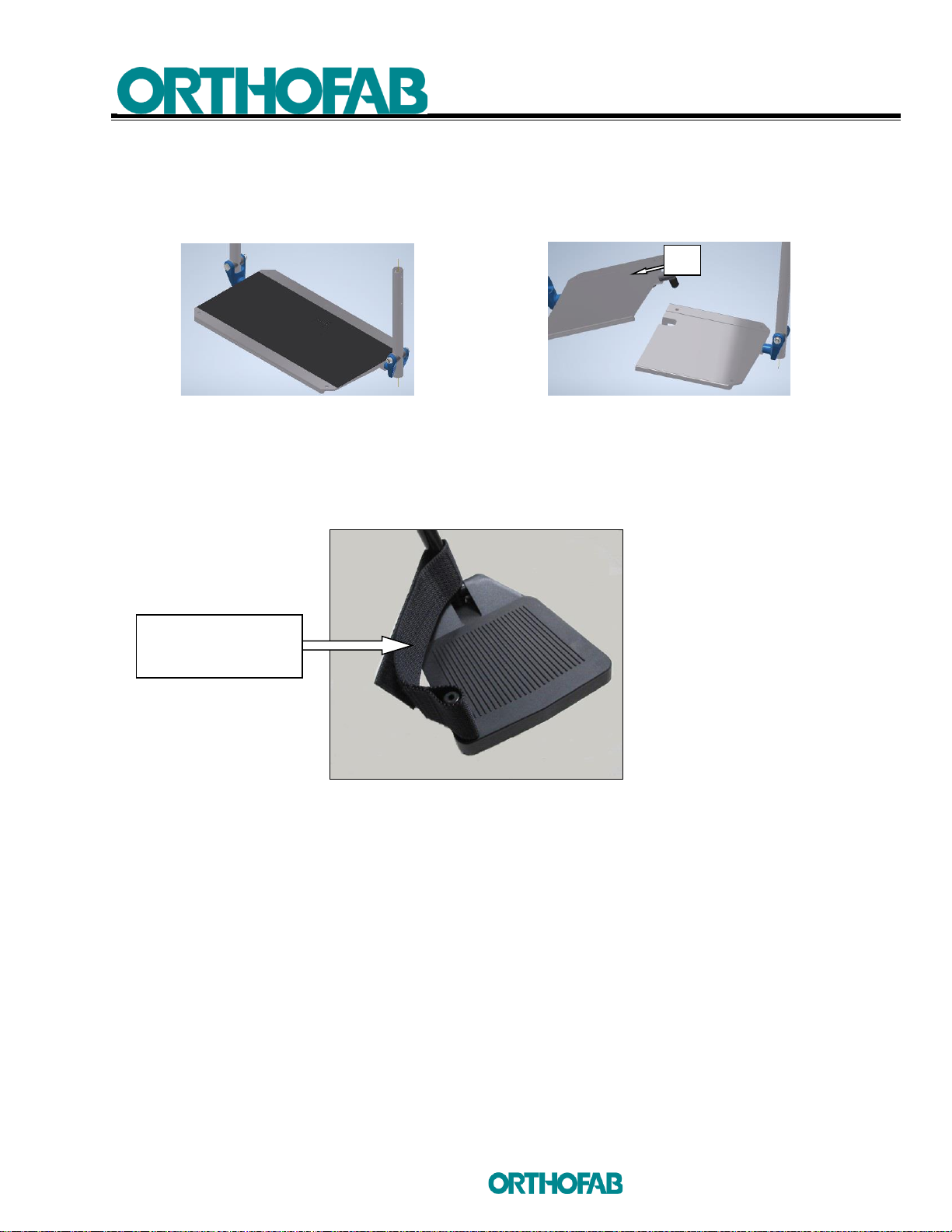

4.1.4 TWO-PIECE FULL-WIDTH PLATE............................................................................................................ 15
4.1.5 DEPTH ADJUSTMENT OF THE HEEL SUPPORT STRAP ........................................................................... 15
4.1.6 ADJUSTING THE FLAT PADDED LOWER LEG SUPPORT ......................................................................... 16
4.1.7 ADJUSTING THE SMALL FLAT PADDED LOWER LEG SUPPORT (14 IN. BASE)........................................ 17
4.2 ANGLE-ADJUSTABLE BACK SUPPORT ............................................................................................................ 18
4.2.1 CHANGING BACK SUPPORT ANGLE....................................................................................................... 18
4.2.2 ADJUSTING BACK SUPPORT HEIGHT..................................................................................................... 19
4.2.3 INSTALLING A BOLTED TENSION BAR WITH HEAD SUPPORT ANCHOR. ............................................... 20

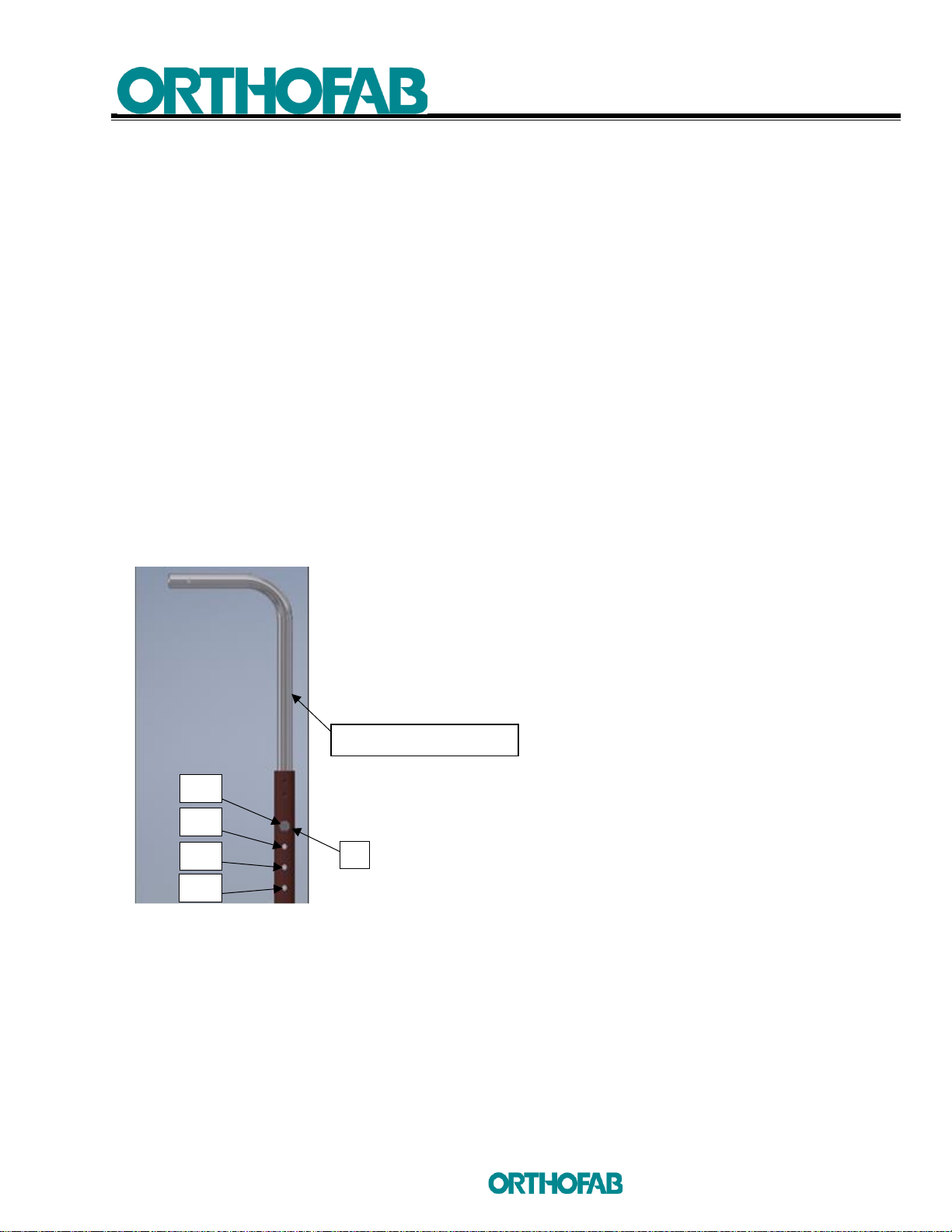

4.2.4 ADJUSTABLE ANGLE ELEVATED PUSH BAR ........................................................................................... 20
4.2.5 ADDING A TENSION BAR WITH AN ADJUSTABLE PUSH BAR................................................................. 24
4.3 SEAT .............................................................................................................................................................. 25
4.3.1 SEAT DEPTH ADJUSTMENT ................................................................................................................... 25
4.3.2 HEIGHT ADJUSTMENT........................................................................................................................... 26
4.4 FRONT WHEELS............................................................................................................................................. 29
4.4.1 CHANGING THE FRONT WHEEL DEPTH................................................................................................. 31
4.4.2 CHANGING THE FRONT WHEEL MODEL OR HEIGHT ............................................................................ 32
4.5 REAR WHEELS ............................................................................................................................................... 33
4.5.1 CHANGING THE WHEEL MODEL ........................................................................................................... 33
4.5.2 ADJUSTING THE CENTRE OF GRAVITY (rear axle) ................................................................................. 35
4.5.3 CHANGING THE REAR WHEEL WIDTH................................................................................................... 38
4.5.4 INSTALLING 12 IN. REAR WHEELS......................................................................................................... 38
4.6 LOCKING BRAKES .......................................................................................................................................... 40
4.6.1 BRAKE POSITION ADJUSTMENT............................................................................................................ 40
4.6.2 CHANGING OR INSTALLING A BRAKE LEVER EXTENSION ..................................................................... 43
4.6.3 CHANGING THE BRAKE LEVER ANGLE................................................................................................... 44
4.7 ANTI-TIPS ...................................................................................................................................................... 44
4.7.1 HEIGHT ADJUSTMENT........................................................................................................................... 45
5USE................................................................................................................................................................ 47

TABLE OF CONTENTS
Inc. all rights reserved 5
5.1 USE OF THE T-SHAPED ARM SUPPORTS........................................................................................................ 47
5.2 USE OF LEG SUPPORT ASSEMBLIES............................................................................................................... 48
5.2.1 RETRACTING THE LEG SUPPORTS ......................................................................................................... 48
5.2.2 Removing the leg support..................................................................................................................... 49
5.2.3 RAISING AND LOWERING THE LEG SUPPORT ELEVATOR ASSEMBLY.................................................... 50
5.3 Back support ................................................................................................................................................. 51
5.3.1 RECLINING BACK SUPPORT................................................................................................................... 51

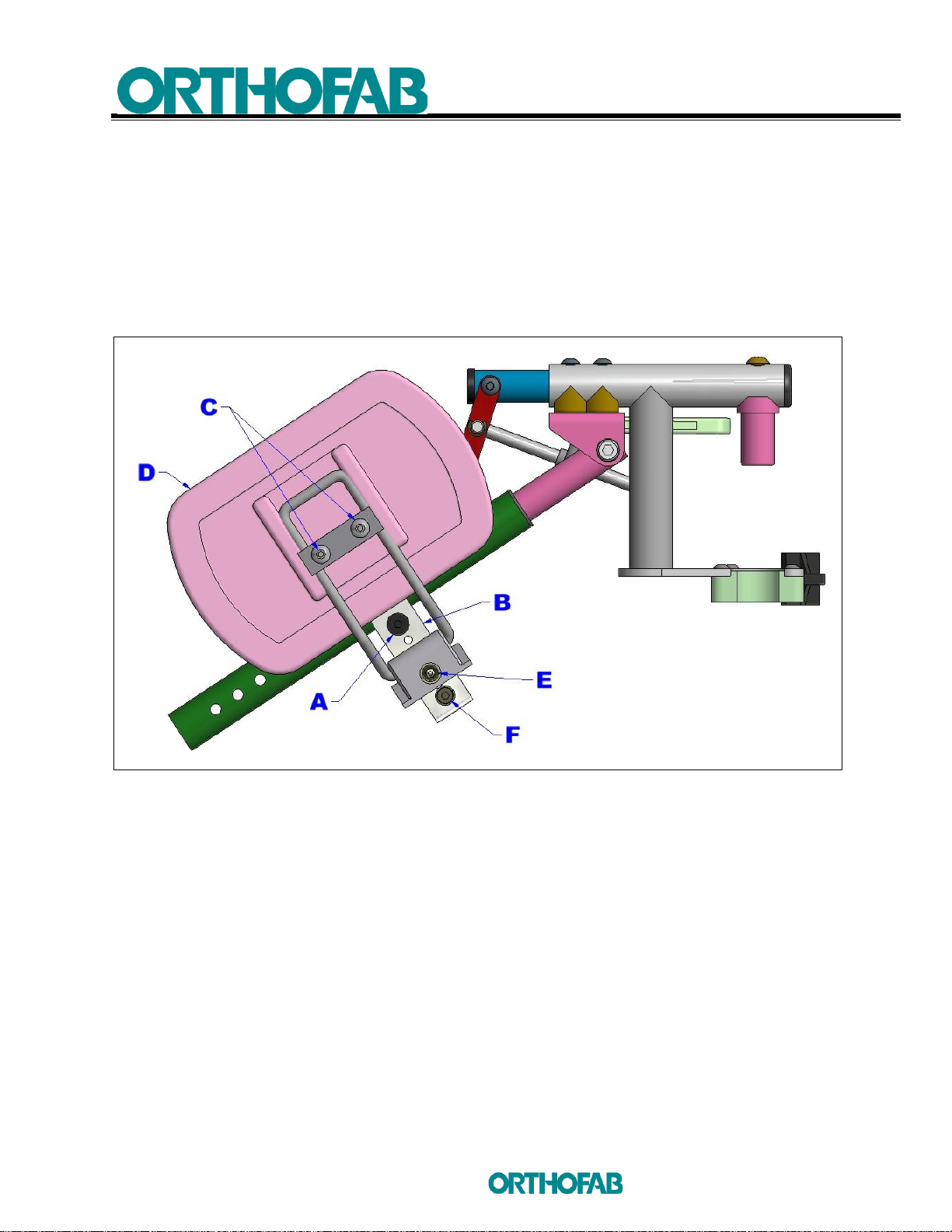

5.3.2 HEIGHT AND DEPTH ADJUSTABLE HEAD SUPPORT .............................................................................. 52
5.4 TILTING THE SEAT ......................................................................................................................................... 52
5.4.1 BACKWARD TILT.................................................................................................................................... 53
5.5 REAR WHEELS ............................................................................................................................................... 54
5.5.1 REMOVING –INSTALLING..................................................................................................................... 54
5.5.2 AIR TIRE PRESSURE ............................................................................................................................... 54
5.6 LOCKING BRAKES .......................................................................................................................................... 55
5.6.1 ENGAGING - RELEASING THE BRAKES................................................................................................... 55
5.6.2 TELESCOPIC BRAKE LEVER EXTENSIONS ............................................................................................... 55
5.6.3 12 IN. WHEEL BRAKES........................................................................................................................... 57
5.7 ANTI-TIPS ...................................................................................................................................................... 57
5.7.1 REMOVING............................................................................................................................................ 57
5.7.2 RETRACTING ......................................................................................................................................... 57
5.7.3 REINSTALLING....................................................................................................................................... 58
5.8 SEAT BELT ..................................................................................................................................................... 58
5.9 ANCHOR POINTS FOR SPECIALIZED TRANSIT ................................................................................................ 59
5.9.1 INSTRUCTIONS FOR SPECIALIZED TRANSIT........................................................................................... 59
5.9.1 TIPS FOR TRANSPORTING THE WHEELCHAIR WITH ITS USER............................................................... 61
6MAINTENANCE .............................................................................................................................................. 66
7TROUBLESHOOTING GUIDE ........................................................................................................................... 68
8WARRANTY ................................................................................................................................................... 69
AUTHORIZED CENTRES .......................................................................................................................................... 72

1.SAFETY RULES
Inc. all rights reserved 6
1 SAFETY RULES
1.1GENERAL INFORMATION
(Applies to all wheelchairs)
The driving settings should only be adjusted and/or
modified by a health care professional or an authorized
service technician.
1.1.1 BEFORE YOU HIT THE ROAD
•Check the charge indicator on the control box to ensure that the batteries are sufficiently
charged.
•Check that the anti-tips are installed.
•Check for adequate tire pressure (please see the user's manual for your electrically powered
wheelchair).
•Check that nothing is obstructing the wheels (scarf, umbrella, etc.).
•Check that your seating position is stable.
•Return the reclining back support to the upright position.
•Return the tilting mechanism to the driving position (the seat should be as close to horizontal
as possible).
•Buckle your pelvic positioning belt, with minimal slack.
•Check that the retractable leg supports are securely locked in the front position and that your
feet are stable.
•Lower the leg supports.
•Check that the retractable or removable arm supports are locked in place.
•Check that the control box is positioned to allow you to comfortably perform all of the control
movements.
•Check that the cables for the control box, positioning light switch and accessory control are
properly attached to prevent them from getting caught in the wheels or a door frame.
•Check that the rubber cover under the end of the joystick is in good condition. If not, have it
repaired immediately.
•Check that your personal belongings do not interfere with the proper operation of the
wheelchair.
•Check that the brakes are fully engaged.
•Do not attach or carry heavy objects to the back support of your wheelchair (backpack,
groceries, etc.).
•Do not use the wheelchair to pull loads, such as trailers.
•Do not release the brakes on an inclined surface.
•If you intend to be stationary for any length of time, turn off your electrically powered wheelchair.
This will reduce the risk of accidentally touching the joystick and also prevent any unintentional
movements that might be caused by electromagnetic interference.

1.SAFETY RULES
Inc. all rights reserved 7
1.1.2 GETTING AROUND IN A WHEELCHAIR
•Avoid any impacts to the control box or joystick;
•Avoid slippery (snow, ice, etc.) or uneven surfaces (unmanaged trails and tracks, construction
sites, etc.).
•Do not change direction abruptly at high speeds.
•Do not drive on expressways or high traffic lanes.
•Do not pull a trailer or carry passengers.
•Do not drive in extreme weather conditions (i.e., storms).
•When traveling outside at night, make sure you are visible to others.
•Do not go downhill in reverse.
•Do not approach a climb diagonally. Always climb in a straight line, in the direction of the incline.
•Operate the joystick carefully when starting on a hill to avoid tipping backwards.
•Do not turn around on an incline.
•Reduce your speed in tight or congested areas.
•Reduce your speed in crowds and use your horn to signal your presence.
•When faced with an obstacle, stop and go over it gradually.
•The wheelchair can climb 60 mm obstacles. However, it is strongly recommended to avoid
thresholds over 38 mm (1 ½ in.) as this could, depending on surface conditions, put your
stability at risk.
•Use elevators to move from one floor to another.
•Do not climb a surface with a slope exceeding 10(17% slope).
•Do not travel without your feet on the foot supports;
•Always use and properly adjust your pelvic positioning belt.
•Do not ride an escalator with your wheelchair.
•Keep your hands away from the wheels when your electrically powered wheelchair is in motion.
•Wear tight-fitting clothing, as loose clothing can get caught in the wheels.
•Avoid areas with uncertain ground conditions.
•Avoid inclement weather, rain or snow. If you find yourself in such conditions, find shelter as
soon as possible. Dry your wheelchair before using, loading or storing it.
1.1.3 CROSSING A SLOPE
•The wheelchair can negotiate slopes at low speed, with a maximum incline of 10°,
external or internal, and a length of at least 3 metres, alone or with an assistant. The
assistant must always be at the back of the wheelchair, whether ascending or
descending, and should hold the back support posts.
•Do not make sudden stops and starts.
•Always fasten the positioning belt.
•Anti-tips must be fitted to the wheelchair.
•Anti-tips must not be damaged or worn.
•When descending a slope, do not let the wheelchair accelerate.
•Stop if you feel you are losing control.

1.SAFETY RULES
Inc. all rights reserved 8
•Restart slowly, without letting the wheelchair accelerate.
•Do not approach a slope diagonally.
•Climb and descend slopes in a straight line, directly along the slope's axis; This
reduces the risk of tipping or falling.
•Avoid slippery slopes or surfaces.
•Avoid quick turns from a slippery surface to a grippy surface to prevent tipping.
•The wheelchair will maintain stable and in control of its path if all of the above
conditions are met. Ascending or descending an incline with a tilt wheelchair is
possible, if the consulting health care professional is satisfied that the user
understands the limitations of the wheelchair and is able to navigate under these
conditions.
1.1.4 TRANSFERRING
•Always switch off the control box before transferring or transporting. Retract
the control box if necessary.
•Fold down the foot supports.
•We recommend that you remove the foot supports before transferring.
•Always apply the brakes before transferring or before sitting in the wheelchair.
•Never lean forward or backward to reach an object.
•Position yourself sideways to the object to be reached, as close as possible.
•Use the arm support transfer supports to help you stand up, after checking that
they are securely in place.
•Never sit on a reclining back support.
•Never stand on the foot supports.
•Never sit on the arm supports.

1.SAFETY RULES
Inc. all rights reserved 9
1.1.5 MISCELLANEOUS HANDLING
Do not charge the batteries in your bedroom. Charging the
batteries may release harmful gases.
•Never immerse your wheelchair in water.
•Never store your wheelchair unattended.
•Never leave your wheelchair in the rain.
•Do not store your wheelchair in a damp or very cold place (this could cause serious
damage).
•The occupant can remain seated in the wheelchair while travelling on a road
vehicle adapted for transporting disabled persons, if the driver and owner of the
road vehicle comply with all legislative requirements, regulations, policies,
directives, standards, instructions and recommendations of any competent
authority.
•Do not approach inclined surfaces when the wheelchair is in freewheel mode. If
you must do so, the assistant should always be at the bottom of the slope relative
to the chair.
•Do not lift the wheelchair by its detachable components (arm supports, leg
supports, etc.).
•Do not operate your charger in a sealed environment (backpack, closet, drawer,
etc.).
•Switch off the charger before removing its plug from the wheelchair.
•Do not modify the battery charger connection (110 V AC).
•Do not modify the connection (24 V DC) to the wheelchair.
•When charging the batteries, check that the battery charger plug is fully inserted
into the box.
•Never charge the batteries in your bedroom.
•Never connect electrical equipment that is not manufactured by to
your wheelchair.
•Do not alter the integrity of the wheelchair's electrical system.
•Make sure to protect the control box when transporting the wheelchair.
•Immediately replace any damaged power cables.
•Regularly maintain your chair as recommended in this manual.
1.1.6 CLEANING AND DISINFECTING
To disinfect the wheelchair, first remove all accessories that require special treatment
and those that cannot be treated:

1.SAFETY RULES
Inc. all rights reserved 10
Special treatment: Any upholstery from which foam cannot be removed (back support,
lower leg support, etc.). Disinfection by hand. First clean with a cloth and a cleaning
agent, apply a disinfectant, wait the required time and then wipe dry.
Not treatable: Electronic components (batteries, controllers, accumulator).
Use a soft cloth to clean the control box and joystick as soon as they become soiled.
Washing fabric: remove foam and machine wash the cover in warm water, delicate
cycle, with mild soap. Hang to dry. Do not use alcohol-based detergents or thinners.
For other components, we recommend using pre-moistened alcohol and/or
quaternary ammonium wipes.

2.RECOMMENDED USE
Inc. all rights reserved 11
2 RECOMMENDED USE
Tango tilt wheelchair models have several customization options to meet the occupant's
specific and individual needs, while also making it easier for assistants and caregivers to
handle the chair. To ensure the utmost comfort for our customers, all models are
equipped with specialized posture components and provide all the mechanical functions
to adjust these components.
The seamless integration of the variable tilt and different propulsion modes means that
you won't have to compromise between resting posture and the correct posture for driving
the wheelchair.

3 SPECIFICATIONS
3 SPECIFICATIONS
Weight: 78 lbs For basic setup, including solid back support,
seat plate, leg supports, wheels, tension bar with head
support anchor.
Maximum user weight: 350 lbs.
Frame
Total width: Working width + 8 ½ in.
spread
Rigid frame (non-folding)
Adjustable centre of gravity (5 positions, 1 in. increments)
Centre of gravity tilt (Tango CE) from 0° to 40°
Seat
Width: 18 to 24 in.
Depth: 16 to 22 in.
Height: 14 to 19 in.
Rigid seat
Back support
Angle adjustable from 90° to 120° in 5° increments
Back support post height from 16 to 24 in.
Tension bar with head support anchor
Angle-adjustable push bar
Gas cylinder back support tilting mechanism
90° to 130°
Head support
Flat and padded
Adjustable head support mount
Arm support
Removable "T" type, height adjustable from 8 to 12 in. or
from 10 to 14 in. (Tango CE)
2-inch wide, 10-inch or 14-inch straight comfort padding
Leg support assembly
Swivel and removable
60° or 70° parallel support with adjustable length from 14 in.
to 19 in. or from 19 in. to 21 in.
90° parallel support with adjustable length from 14 in. to 19
in.
Manual height adjustable leg supports, from 15 to 21 in.
Heel support strap
Lower leg support strap
Folding foot support plates
Standard and oversized.
Adjustable angle and depth, standard or oversized
format
Adjustable full-width
Bumper with castors
Front wheels
8 in. semi-solid tires
6, 7 or 8 in. semi-solid, high-density tires
8 in. air tires
Rear wheels
20, 22 or 24 in. semi-solid tires
Reinforced spokes with 24 in. tube tires (heavy duty
option)
12 in. semi-solid molded plastic tire
Threaded or quick-release axles
Spoke guard
Hand rims
Smooth anodized aluminum
Plastic coated
Foam
With oblique projections
Brakes
Push type
Telescopic brake lever extensions
Others
Velcro or auto pelvic positioning belt
Anti-tips with castors
Spoke guard
Anchors for specialized transit

4 ADJUSTMENTS
Inc. all rights reserved 13
4 INSTALLATION / ADJUSTMENTS
After adjusting and before using the tilt wheelchair, check that
all hardware is tightly secured. Check that the locking
mechanisms are secure before using the wheelchair.
4.1 LEG SUPPORT ASSEMBLY
4.1.1 ADJUSTING THE LENGTH OF THE LEG SUPPORT ASSEMBLY
1 - Unscrew the hexagon socket screw (A) with a 5/32 in. Allen key.
2 - Slide the tube (B) to adjust the desired leg support length.
3 - Check that the spacer (D) is fully inserted in the stem.
4 - Reposition the clamping ring (C) and firmly tighten the screw (A).
Adjustments to your Tango CE tilt wheelchair should only be
performed by health care professionals. Improper adjustments
can cause injury and/or damage to the occupant, the
assistant, the tilt wheelchair, or the environment.

4 ADJUSTMENTS
Inc. all rights reserved 14
4.1.2 CHANGING THE ANGLE OF THE ADJUSTABLE ANGLE FOOT SUPPORT, SINGLE AND
FULL WIDTH
1 - Loosen the screws (A) with a 10 mm open-end wrench.
2 - Reposition the plates at the desired angle and firmly tighten the screws (A) (140 psi).
4.1.3 CHANGING THE POSITION (DEPTH) OF THE ADJUSTABLE ANGLE FOOT SUPPORT
1 - Unscrew the 2 Phillips screws (A) and remove the end cap (B).
2 - Pull the plate to release it from the plate support (C).
3 - Reposition the plate to the desired depth and replace the end cap (B) and screws (A).

4 ADJUSTMENTS
Inc. all rights reserved 15
4.1.4 TWO-PIECE FULL-WIDTH PLATE
1. For full-width plate, fold down the plate with the anchor rod (A) (see Figures 2-A
and 2-B).
Figure 2-A : Full-width plate Figure 2-B: Full-width plate
4.1.5 DEPTH ADJUSTMENT OF THE HEEL SUPPORT STRAP
Figure 3: Depth adjustment of the heel support strap.
Pull on the velcro strip
and adjust to the
desired length.
A

4 ADJUSTMENTS
Inc. all rights reserved 16

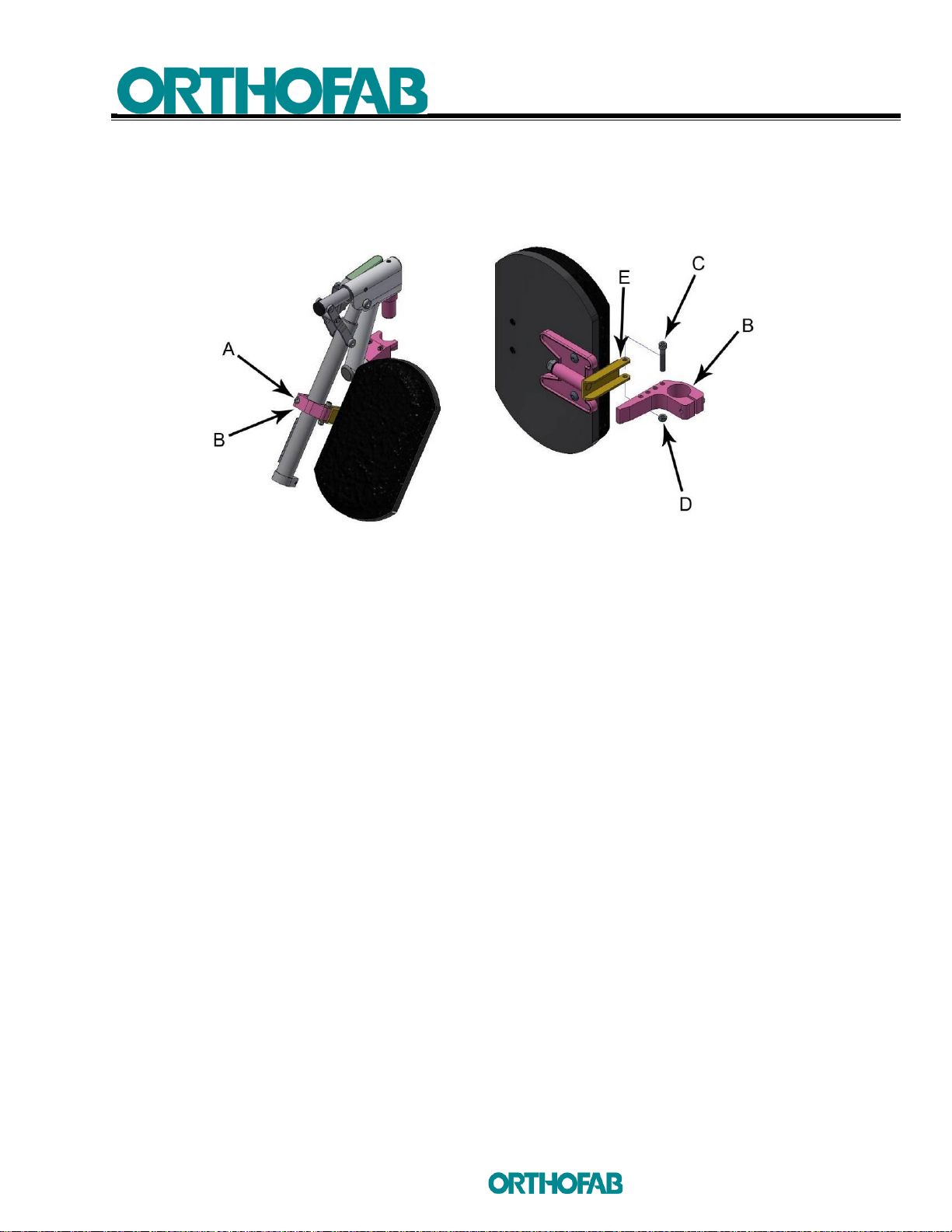

4.1.6 ADJUSTING THE FLAT PADDED LOWER LEG SUPPORT
HEIGHT
1 –Loosen the hexagon socket screw (A) with a 3/16 in. Allen wrench.
2 –Place the bracket (B) at the desired height and firmly tighten the screw (A).
DEPTH
1 –Remove the screw (C) and the nut (D) with a 4 mm Allen key and an 8 mm open-end wrench.
2 –Move the lower leg support (E) into one of the holes of the bracket (B).
3 –Replace and tighten the screw (C) and the nut (D).

4 ADJUSTMENTS
Inc. all rights reserved 17
4.1.7 ADJUSTING THE SMALL FLAT PADDED LOWER LEG SUPPORT (14 IN. BASE)
The lower leg support can be adjusted in height, depth and width (see Figure 4-B).
a) To adjust the height of the lower leg support:
1. Loosen the screw (A) with a 5 mm Allen key;
2. Slide the bracket (B) to the desired position;
3. Tighten the screw (A) firmly.
Figure 4-B: Adjusting lower leg support height.
b) Adjusting the lower leg support width: (See Figure 4-B)
1. Loosen the screws (C) with a 4 mm Allen wrench;
2. Slide the lower leg support (D) to the proper position;
3. Tighten screws (C).
c) Adjusting the lower leg support depth: (See Figure 4-B)
1. Remove the screw (E) and the stop screw (F) with a 5 mm Allen key;
2. Adjust to the desired position, while leaving a one-hole gap between the two
screws.
3. Tighten the screws, making sure to include the screw washer (F).

4 ADJUSTMENTS
Inc. all rights reserved 18
4.2 ANGLE-ADJUSTABLE BACK SUPPORT
4.2.1 CHANGING BACK SUPPORT ANGLE
POSITION
ANGLE
1
90o
2
95o
3
100o
4
105o
5
110o
6
115o
7
120o
Figure 5: Back support angle settings.
Figure 6: TANGO CE back support angle setting
Adjustments to your Tango CE tilt wheelchair should only be
performed by health care professionals. Improper adjustments
can cause injury and/or damage to the occupant, the assistant,
the tilt wheelchair, or the environment.
1
2
3
4
5
6
7

4 ADJUSTMENTS
Inc. all rights reserved 19
To adjust the back support angle:
1. Unscrew the nut (B) (7/16 in. open-end wrench) on each post.
(See Figure 6)
2. Stand behind the back support and remove the screw (A) on each side.
Caution: Once screws are removed, the back support can be folded completely
backwards.
3. Replace the back support screws into one of the (7) mounting holes on the adjustment
plate to achieve 90°, 95°, 100°. 105°, 110° or 120°, as shown in Figure 6.
4. Tighten the screw (A) and nut (B) on each back support post, followed by the circular
support for the Tango CE, or the belt attachment buckle if applicable. (See Figure 6
and relevant section)
4.2.2 ADJUSTING BACK SUPPORT HEIGHT
Figure 7: Adjust the back support height.
Loosen the screw (A) (7/16 in. open-end wrench)
on each back support post. Choose the desired
height by aligning the threaded hole of the back
support post with the hole of the back support (H1
to H4) and firmly tighten the screw (A).
Back support post
A
H1
H2
H3
H4

4 ADJUSTMENTS
Inc. all rights reserved 20
4.2.3 INSTALLING A BOLTED TENSION BAR WITH HEAD SUPPORT ANCHOR.
Figure 8-A: Tension bar.
Figure 8-B: Cutting the rubber
You can install a tension bar on the Tango CE to accommodate a head support.To do this:
1. Cut the rubber end of the back support posts to uncover their ends (see Figure 8-B).
2. With a 5/32 in. Allen wrench, tighten the screw (A) at each end of the tension bar to
the end of the back support posts, which you just uncovered in step 1 (see Figure 8-
A).
3. Firmly tighten the screws (A).
4.2.4 ADJUSTABLE ANGLE ELEVATED PUSH BAR
Figure 9-A: Adjustable angle elevated push bar.
