Orthofab Oasis User manual

1
inc All rights reserved
USER MANUAL
July 2008

2
inc All rights reserved
Please give this manual to the owner of the
motorized wheelchair.
Please read this manual in it entirety before using your
motorized wheelchair for the first time.
Read this manual until it becomes familiar and pay close
attention to the warnings.
If you have any questions about non-covered subjects in this
manual, please consult a technician in an authorized service
center or contact our customer service at: 1-(418)-847-5225
Center:
Address:
Phone:
The adjustments of your wheelchair must be made
by a health care professional. Inadequate adjustments can
cause wounds and/or damage to the user, the caregiver, the
wheelchair or the environment.
Do not install unauthorized accessories. Always consult a
health care professional for any modifications to your
motorized wheelchair.
Please also read in it entirety the command system manual
of your motorized wheelchair and also the one on
batteries charger before to use your wheelchair for the first
time. Do it for your safety.

3
inc All rights reserved
is proud to count you among its customers and thanks you for having chosen one
of its products.
All the products manufactured by respect or exceed the highest standards of quality
and safety currently in force in the industry. employees are guided by the desire to
satisfy customers expectations. This is why does not hesitate to offer a most
complete warranty, applying to the whole wheelchair elements and components. However, the
warranty does not apply to parts and components damaged by abuse, carelessness, accident
and normal use or installed and modified by an unauthorized person.
This operating instructions manual has been written to enable you to use your
motorized wheelchair safely. You will find in this document, information relating to
safety, operating instructions and adjustments.
In order to optimize the performance of your and to extend its lifespan, it
is essential to have it check regularly by a technician from an authorized service center.
refuse any responsibility for physical injuries or damages resulting from an improper
use of its products, from a lack of precaution in their use or from a modification made without it
written assent.

TABLE OF CONTENTS
4
inc All rights reserved
1SAFETY REQUIREMENTS ..................................................................................................6
1.1 SAFETY REQUIREMENTS........................................................................................................................ 6
1.1.1 BEFORE TAKING THE ROAD..................................................................................................................................................6
1.1.2 MOVING WITH THE WHEELCHAIR.........................................................................................................................................7
1.1.3 TO CARRY OUT TRANSFERT.................................................................................................................................................7
1.1.4 VARIOUS HANDLING OPERATIONS......................................................................................................................................8
1.1.5 CLEANING AND MAINTENANCE OF COMPONENTS...........................................................................................................9
1.2 WHAT ABOUT THE ELECTROMAGNETIC ENERGY............................................................................... 9
1.2.1 CAUTION.................................................................................................................................................................................10
1.2.2 USING TRANSMITTERS AND RECEIVERS..........................................................................................................................10
2RECOMMENDED USE.......................................................................................................11
2.1 OPERATING ENVIRONMENT ................................................................................................................. 11
2.2 USER........................................................................................................................................................ 11
2.3 WHEELCHAIR HANDLING....................................................................................................................... 11
2.3.1 STABILITY AND BALANCE...................................................................................................................................................11
2.3.2 NEGOTIATION OF DAILY OBSTACLES...............................................................................................................................12
2.3.3 NOTE TO THE CAREGIVER...................................................................................................................................................12
2.3.4 TILT..........................................................................................................................................................................................12
2.3.5 ROADSIDE CURB (SIDEWALK)............................................................................................................................................12
2.3.6 STAIRCASES..........................................................................................................................................................................13
2.3.7 TRANSFERS TO OR FROM AN OTHER SEAT.....................................................................................................................14
2.3.8 EXTENSIONS FROM THE WHEELCHAIR.............................................................................................................................14
3SPECIFICATIONS ..............................................................................................................16
3.1 OASIS MOTORIZED WHEELCHAIR........................................................................................................ 16
3.2 TECHNICAL SPECIFICATIONS............................................................................................................... 17
3.3 PERFORMANCES.................................................................................................................................... 17
3.4 STANDARD CHARACTERISTICS ........................................................................................................... 18
3.4.1 MOTORIZED BASE.................................................................................................................................................................18
3.4.1 SEAT ELEMENTS...................................................................................................................................................................18
4SETUP INSTRUCTIONS AND ADJUSTMENTS................................................................19
4.1 REAR SHROUD........................................................................................................................................ 19
4.1.1 TO REMOVE REAR SHROUD................................................................................................................................................19
4.1.2 REPLACE THE REAR SHROUD............................................................................................................................................20
4.2 SEATING POSITIONS.............................................................................................................................. 20
4.2.1 CHANGING THE ANGLE AND HEIGHT OF THE SEAT .......................................................................................................20
4.2.2 CHANGING HEIGHT OF THE SEAT (ADDITIONAL +1" OR +2") ........................................................................................21
4.3 WHEELS................................................................................................................................................... 23
4.3.1 CHANGE FRONT WHEEL TYPE............................................................................................................................................23
4.3.2 CHANGING SWING-ARM HEIGHT ........................................................................................................................................24
4.3.3 REAR WHEELS INSTALLATION...........................................................................................................................................25
4.4 BATTERIES.............................................................................................................................................. 26
4.4.1 BATTERY SELECTION...........................................................................................................................................................26
4.4.2 BATTERIES INSTALLATION .................................................................................................................................................26
4.5 FOOTRESTS............................................................................................................................................ 34
4.5.1 LEGREST LENGTH ADJUSTMENT.......................................................................................................................................34
4.5.2 CHANGING FOOTPLATE ANGLE.........................................................................................................................................34
4.5.3 CHANGING CALF PAD HEIGHT............................................................................................................................................35
4.5.4 CHANGING CALF PAD DEPTH.............................................................................................................................................36
4.6 ADJUSTABLE BACKREST....................................................................................................................... 37
4.6.1 CHANGING THE BACKREST ANGLE...................................................................................................................................37
4.6.2 CHANGING BACKREST HEIGHT..........................................................................................................................................38
4.7 JOYSTICK BOX ATTACHMENTS............................................................................................................ 39
4.7.1 DEPTH ADJUSTMENT ...........................................................................................................................................................39
4.7.2 HEIGHT ADJUSTEMENT........................................................................................................................................................40

TABLE OF CONTENTS
5
inc All rights reserved
4.7.3 SIDE POSITION ADJUSTMENT.............................................................................................................................................41
4.8 REAR SUSPENSION ADJUSTMENT ...................................................................................................... 42
4.9 COMMAND SYSTEM FOR 4 MOTORIZED ACCESSORIES................................................................... 43
4.10 UNIVERSAL CABLE................................................................................................................................. 43
4.11 GUIDE FOR BRAKES DISENGAGEMENT MECHANISM ....................................................................... 46
5OPERATING INSTRUCTIONS...........................................................................................47
5.1 FOOTREST / LEGREST........................................................................................................................... 47
5.1.1 SWINGAWAY..........................................................................................................................................................................47
5.1.2 TO REMOVE AND/OR INSTALL............................................................................................................................................47
5.1.3 TO RAISE OR LOWER THE LEGRESTS...............................................................................................................................48
5.2 ADJUSTABLE « T » SHAPE ARMREST HEIGHT.................................................................................... 49
5.2.1 TO REMOVE AND/OR INSTALL............................................................................................................................................49
5.2.2 ADJUSTING THE ARMREST HEIGHT...................................................................................................................................50
5.3 ADJUSTABLE « U » SHAPE ARMREST HEIGHT ................................................................................... 50
5.3.1 SWINGAWAY..........................................................................................................................................................................50
5.3.2 TO REMOVE............................................................................................................................................................................51
5.3.3 HEIGHT ADJUSTMENT..........................................................................................................................................................51
5.4 RECLINING BACKREST.......................................................................................................................... 52
5.4.1 WITH PNEUMATIC GAS ACTUATOR....................................................................................................................................52
5.4.2 WITH ELECTRICAL ACTUATOR...........................................................................................................................................53
5.5 SEAT BELT............................................................................................................................................... 54
5.6 DISENGAGING PARKING BRAKES........................................................................................................ 55
5.6.1 PERMANENT MODE...............................................................................................................................................................55
5.6.2 TEMPORARILY MODE...........................................................................................................................................................56
5.7 THERMAL CIRCUIT BREAKER ............................................................................................................... 58
5.7.1 IN THE EVENT OF THE THERMAL CIRCUIT BREAKER RELEASE...................................................................................58
5.8 LIGHTS..................................................................................................................................................... 59
5.9 45° TILT MECHANISM (OPTIONNAL) ..................................................................................................... 60
5.9.1 TO TILT THE SEAT.................................................................................................................................................................60
5.10 PARATRANSIT ANCHOR POINTS.......................................................................................................... 61
5.10.1 ADVISE FOR TRANSPORTATION.........................................................................................................................................61
5.11 RECHARGING BATTERIES..................................................................................................................... 62
5.12 STORAGE................................................................................................................................................. 63
5.13 MOTORIZED WHEELCHAIR TRANSPORTATION ................................................................................. 63
6MAINTENANCE..................................................................................................................64
6.1 MAINTENANCE PROCEDURES.............................................................................................................. 64
6.2 CHECK LIST............................................................................................................................................. 64
6.3 CLEANING................................................................................................................................................ 65
6.4 BATTERY.................................................................................................................................................. 65
6.4.1 RECHARGE FREQUENCY.....................................................................................................................................................65
6.4.2 BATTERY REFILL...................................................................................................................................................................65
6.4.3 BATTERY CLEANING ............................................................................................................................................................65
6.5 STRAIGHT TRAJECTORY....................................................................................................................... 66
6.6 WHEELS................................................................................................................................................... 66
6.6.1 PNEUMATIC WHEELS ...........................................................................................................................................................66
6.6.2 FRONT WHEELS ....................................................................................................................................................................66
6.6.3 REAR WHEELS.......................................................................................................................................................................66
6.7 BRAKES DISENGAGEMENT...................................................................................................................66
6.8 ONBOARD BATTERY CHARGER............................................................................................................ 66
7BREAKDOWN SERVICE GUIDE .......................................................................................67
8WARRANTY .......................................................................................................................69
9AUTHORIZED SERVICE CENTRES..................................................................................71

1 SAFETY REQUIREMENTS
6
inc All rights reserved
1 SAFETY REQUIREMENTS
1.1 SAFETY REQUIREMENTS
(Applies to all
wheelchairs)
The control parameters can be adjusted and/or modified only
by a health care professionals or an authorized technician.
1.1.1 BEFORE TAKING THE ROAD
•Always put the key switch OFF before getting on or off your vehicle.
•Make sure that the batteries are sufficiently charged (see battery status indicator).
•Make sure that the anti-tippers are installed.
•Make sure that brakes immobilize your wheelchair completely.
•Make sure that the tire pressure is appropriate.
•Make sure that nothing interferes with wheels (scarf, umbrella, etc…).
•Make sure that your seating position is stable.
•Position the backrest in the raised position.
•Make sure the 45° tilt mechanism is in driving position (seat horizontal with the ground).
•Fasten your seat belt correctly and without too much slack.
•Make sure that swing away legrests are locked in position and that your feet are stable
on them.
•Push down the elevator legrests.
•Make sure that the swing away or removable armrests are locked in their positions.
•Make sure that the position of the joystick box enable you to carry out all your
movements comfortably and easily.
•Make sure that the joystick rubber cover is in good condition, if not, try to have it fixed as
soon as possible.
•Make sure that your personal effects do not block in anyway the wheelchair functions.
•Do not install or transport heavy objects on the backrest of your wheelchair (backpack,
bags, grocery, etc).

1 SAFETY REQUIREMENTS
7
inc All rights reserved
1.1.2 MOVING WITH THE WHEELCHAIR
•Avoid any shock to the joystick box or the joystick itself.
•Avoid slippery surfaces (snow, ice, etc).
•Do not change direction abruptly at high speed.
•Do not use your wheelchair on expressways or streets with intense car circulation.
•Do not transport passengers.
•Do not use your wheelchair under extreme climatic conditions (storm, rain, etc).
•If you drive outside at night, ensure that you will be seen by others.
•Do not approach a slope in a diagonal trajectory, always approach the slope in a straight
line, perpendicularly to the slope.
•Do not go down in a slope in reverse.
•Always actuate the lever gently when you start moving in a slope in order to avoid tipping the
wheelchair.
•Do not make a half-turn in a slope.
•Reduce your speed in restricted or encumbered areas.
•Reduce your speed in a crowd and use your horn to announce your presence.
•In front of an obstacle you must stop and cross it perpendicularly and gradually.
•Avoid thresholds of more than 1 ½ in (38 mm), they can endanger your stability.
•Use the elevators to move you from one level to another.
•Do not approach a slope surface exceeding 10° (17% slope).
•Always fasten your seat belt.
•Keep legs on the legrest while driving.
1.1.3 TO CARRY OUT TRANSFERT
•Always put the on/off switch of the joystick box on the OFF position before carrying out a
transfer.
•Never lean forward or backward to reach an object.
•Always place yourself sideway and the nearest you can to the object to reach.
•Use the transfer supports on the armrests to raise yourself, after you made sure that they
are correctly in position.
•If your backrest is inclined, do not sit down on the backrest, you could damage the backrest
and tip the wheelchair.
•Do not raise yourself upright on the footplates, you could damage and/or tip the wheelchair.
•Do not sit on the armrests. The wheelchair could tip over.

1 SAFETY REQUIREMENTS
8
inc All rights reserved
1.1.4 VARIOUS HANDLING OPERATIONS
Never try to recharge the batteries in your bedroom while you
sleep. During recharge, batteries can produce a harmful gas
who can cause you health problem.
•Do not immerse your wheelchair, it could cause a dangerous electrical problem.
•Do not store or leave your wheelchair without someone taking care of it.
•Do not leave your wheelchair under the rain.
•Do not store your wheelchair in a wet or very cold place, this could cause a dangerous
problem on your motorized wheelchair.
•does not limit nor exclude that the user remains seated in his wheelchair
when using a road vehicle adapted for transportation (paratransit), provided the driver
and the owner of the aforesaid road vehicle respects, on this subject, all legislative
requirements, rules, laws, protocols, directives, norms, standards, instructions and
recommendations pertaining to such use by competent authorities.
•Do not travel on tilted surfaces when the wheelchair is in free wheel. If you have to do it,
the caregiver must always be oriented in the direction of the bottom of the slope.
•Do not raise the wheelchair by its detachable components (armrest, seat, etc).
•Do not use your battery charger in a hermetic place (backpack, drawer, etc.).
•Always put the on/off switch of the charger on the OFF position before disconnecting the
charging connector on the wheelchair.
•Never try to modify the connector (110 V AC) of the battery charger.
•Never try to modify the battery charger connector (24 V DC) which connect to the
wheelchair.
•Never try to recharge the batteries in your bedroom while you sleep.
•Never connect an electric component other than those manufactured by .
•Never modify the electric circuit of the wheelchair.
•Always protect the joystick box when you have to carry the wheelchair.
•Always immediately replace any damaged electric wires.
•Always carry out regularly maintenance of your motorized wheelchair as recommended
by .

1 SAFETY REQUIREMENTS
9
inc All rights reserved
1.1.5 CLEANING AND MAINTENANCE OF COMPONENTS
•Clean as soon as possible your joystick box once it been soiled.
•Use a soft rag and a diluted soft soap.
•Do not use detergent based on alcohol or thinner.
•Regularly carry out maintenance of your wheelchair as recommended by .
1.2 WHAT ABOUT THE ELECTROMAGNETIC ENERGY
All electronic instruments which transmit remote informations are generally apparatus
which emit in the environment some radio waves. These radio waves are called "
electromagnetic energy ".
The functionality of an electronic instrument can be deteriorated by this electromagnetic
energy field. It is what we call "an electromagnetic interference". Stronger the intensity
of energy is, greater the risk of bad functional problem of the apparatus increase. This
energy is measured in volt per meter (V/m).
All motorized wheelchair are suitable to be affected by these interferences. However,
current technology makes it possible to immunize them against these risks. It is what is
called their electromagnetic level of immunity to the interference, measured also in volt
per meter (V/m).
20 V/m is a level of immunity which offer a good protection against the electromagnetic
interferences. The electronic parts of the R-NET electronic from do meet
standard directive IEC 1000-4-3.
To avoid electromagnetic interferences, it is important to read
and respect the following warning section, before to use your
wheelchair for the first time.

1 SAFETY REQUIREMENTS
10
inc All rights reserved
1.2.1 CAUTION
Waves emitted by :
•Radio and television stations;
•Amateur radio;
•Radio transmitters and receivers;
•Cellular phones;
•Computers laptop.
CAN AFFECT THE CORRECT FUNCTIONALITY OF MOTORIZED WHEELCHAIR.
1.2.2 USING TRANSMITTERS AND RECEIVERS
•Avoid proximity of these sources of electromagnetic emissions.
•Always put the joystick box in the OFF POSITION before using a cellular phone or a CB
apparatus.
•The addition of electric accessories and/or electric modifications made to the wheelchair
will modify its level of immunity to the electromagnetic emissions.
•Always put the key in the OFF POSITION as soon as it safe to do it and that appears an
erratic operation with the wheelchair.
•Please forward any incident of this kind to .

2 RECOMMENDED USE
11
inc All rights reserved
2 RECOMMENDED USE
2.1 OPERATING ENVIRONMENT
Thanks to its small overall dimensions, your wheelchair is perfectly adapted to your
inside displacement. Its short turning radius allows easier movement.
With its motorization making it possible to reach a speed of 12 km/h, the wheelchair is
the ideal choice to move outside, on a paved or uneven surfaces.
The offer an adjustable seat to floor height and the possibility of adjusting the angle of
the seat. These adjustable structures allow us to adapt the wheelchair to the needs of each
customer. Its armrests and legrests are also adjustable to provide you a better comfort.
2.2 USER
The control of the wheelchair requires training. The operation of the wheelchair should only be
permitted to the person for whom it was prescribed. It can be particularly dangerous to let
children play with the wheelchair.
2.3 WHEELCHAIR HANDLING
This section shows the procedures and standard techniques for a safe operation of the
wheelchair. It is important to practice and control these techniques until you feel at ease around
the architectural barriers you frequently encounter.
Use this document as a basic guide. Techniques described in the next pages have been tested
by several users.
Wheelchair users have different capacities and limits; and must often develop skills in order to
compose within these in their daily activities. recognize these differences and
encourage each individual to test what works best for him or her in their environment.
Techniques described in this document are only a starting point for the new user and his or her
companion. Always remember that your first priority must be "safety".
2.3.1 STABILITY
AND BALANCE
To ensure the stability and a good operation condition for your wheelchair, you must maintain a
good balance at any time. Your wheelchair has been conceived to remain stable and upright
while doing your normal daily activities unless you move beyond your center of gravity.
Practically all the activities which require movements when you are seated in the wheelchair will
have an effect on the center of gravity. recommends you to always fasten your seat
belt when doing such activities.

2 RECOMMENDED USE
12
inc All rights reserved
2.3.2 NEGOTIATION OF DAILY OBSTACLES
While learning to drive your wheelchair, you will have to negotiate daily obstacles, such as curb,
staircase etc. Keep in mind where your "center of gravity" is in order to always maintain
stability and balance.
2.3.3 NOTE TO THE CAREGIVER
When the user needs assistance, it is necessary to use adequate body mechanics. Keep your
back straight and bend the knees when you must tip the wheelchair to overcome a curb or any
other obstacles.
Moreover, it is necessary to keep in mind the detachable components such as armrests and
footrests. You should never rely on these components to raise or to hold the wheelchair
because they can be inadvertently released and causes wounds to the user or the caregiver.
When training for a new technique, always practice it in the presence of an experienced
caregiver before trying it.
2.3.4 TILT
Never try to tip over the wheelchair without assistance. A
caregiver must always be present.
To tip over the wheelchair, the caregiver must firmly hold the backrest handles and make sure
that they are secured. He must inform the user before tipping over the wheelchair and remind
him to incline he or she backwards. Also make sure that the feet and hands of the user are not
to close to the wheels. The caregiver must apply a continuous motion until the point of balance
is reached. At this point, the caregiver will feel a difference in the distribution of the weight. Turn
the wheelchair in the desired direction if necessary. LOWER the front part of the wheelchair in a
continuous motion. Do not drop the wheelchair because it could cause wounds to the occupant
of the wheelchair.
2.3.5 ROADSIDE CURB (SIDEWALK)
After having mastered the tilt techniques, use this method to face curbs and other obstacles.
Caregiver must tip over the wheelchair until the front wheels exceed the curb. Disengaged the
brakes (see; section 5.6 and figure 1 next page) with the handle located on the backrest handles
of the seat, then push the wheelchair forwards until the front wheels cross the curb, lower the
wheels to the pavement (sidewalk). Push the wheelchair forward until rear wheels pass also the
curb and apply brakes. It is now possible to the user to drive the wheelchair again.

2 RECOMMENDED USE
13
inc All rights reserved

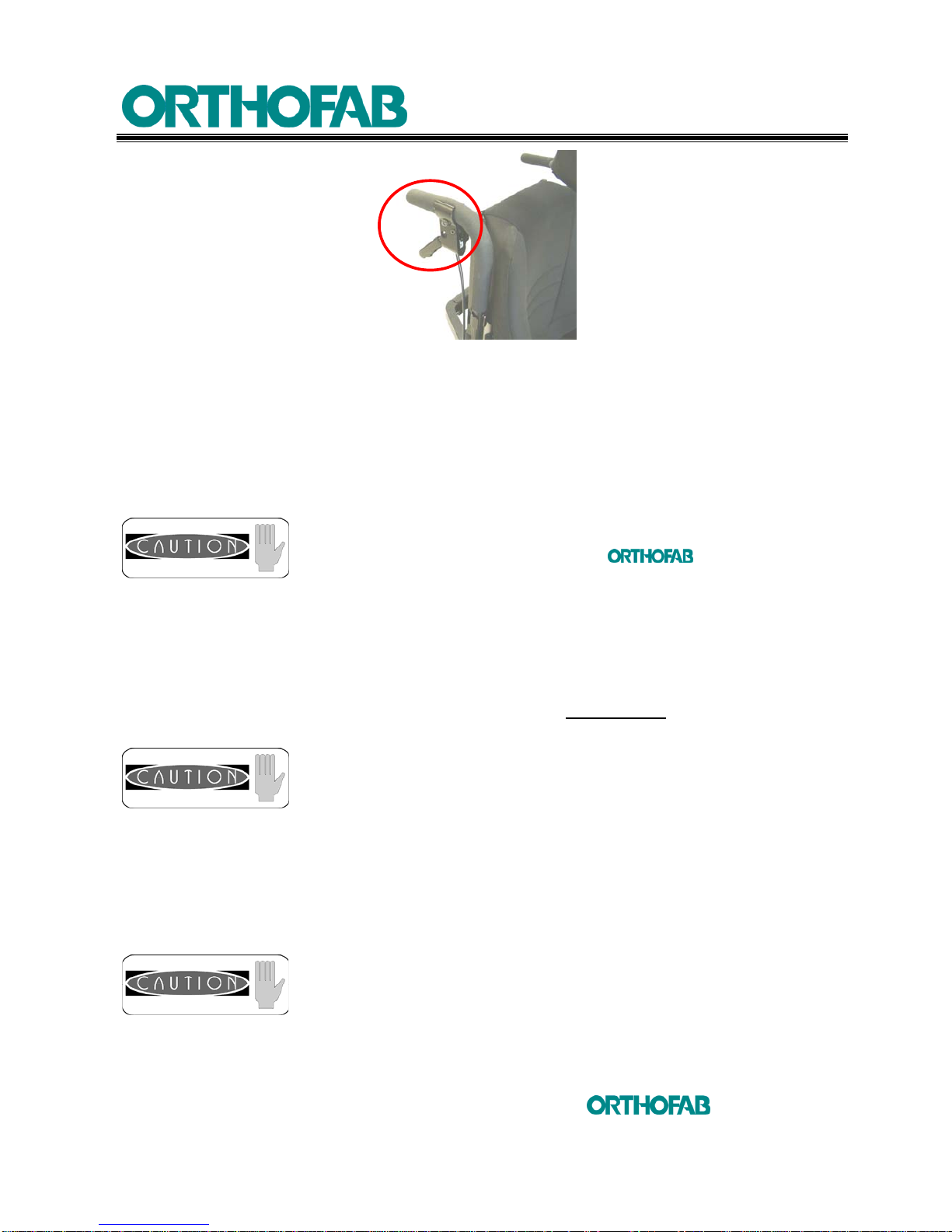

Figure 1: Brakes disengagement handle.
2.3.6 STAIRCASES
Do not try to move a motorized wheelchair using a staircase.
Use an elevator. If you must move a motorized wheelchair in a
staircase, the user should not remain in his wheelchair. He
must be transported independently of the wheelchair. Take off
the batteries before beginning these operations.
Extreme caution is necessary when you move an unoccupied
motorized wheelchair in a staircase. recommends
that two (2) caregivers must be present to carry out this
operation after required preparations. Grab the wheelchair by
it’s non-detachable components. Do not try to raise the
wheelchair while grabbing the detachable armrests or
legrests. This operation could cause body wounds to yourself
and/or damage the wheelchair.
Follow this procedure to move a wheelchair in a staircase, if and only if there is no elevator.
The weight of a wheelchair without the user and the batteries
is more than 120 pounds. Use an adequate technique while
raising the wheelchair. Use your legs instead of your back in
order to prevent wounds.
1. Move the user on another seat.
2. Take off the battery compartments of the wheelchair (see; section 4.4.2).
3. Firmly grab a non-detachable part of the frame, to raise the wheelchair
4. Climb or descend the staircases with precaution.
Do not under any pretext use escalators. Wounds could result
from such a maneuver.

2 RECOMMENDED USE
14
inc All rights reserved
2.3.7 TRANSFERS TO OR FROM AN OTHER SEAT
Always put the on/off switch of the joystick box on the OFF
position before beginning a transfer.
Before carrying out a transfer, it is essential to reduce space
between the two (2) points of transfer. The front wheels must
be turned in the direction of the point of transfer. Apply the
parking brakes in order to prevent a movement of the wheels.
During transfers, place all of your weight on the rear part of
the seat. This will prevent forward tipping of the wheelchair.
NOTE: You can undertake alone this maneuver if you have sufficient mobility and force in the
arms.
Position the wheelchair as close as possible to the seat you wish to transfer to, with the front
wheels directed towards the point of transfer.
Apply the parking brakes. Move the weight of the body towards the point of transfer.
During a transfer, there will be only little or no seat surface under you. Use a transfer board
when possible.
2.3.8 EXTENSIONS FROM THE WHEELCHAIR
Do not try to reach objects if you must move forwards from
your seat or if you must collect them on the ground by leaning
forward.
Several activities require that the user incline himself, make extensions and/or transfer in or out
of the wheelchair. These movements will change the point of balance, the center of gravity and
the distribution of weight of the wheelchair. In order to determine your specific limits, please
practice these extension movements and transfers in the presence of a HEALTH CARE
PROFESSIONNALS.
A good position of the front wheels is essential for safety. When doing extension movement or
movement who demand flexibility, it is important to use the front wheels like a tool in order to
maintain stability and balance.

2 RECOMMENDED USE
15
inc All rights reserved
DO NOT lean yourself forwards further that the length of your arms. Make sure that front
wheels are turned in the forward direction when you must incline yourself in this direction. To do
so, move your wheelchair forward and then backward in a straight line.
2.3.8.1 E
XTENSIONS AND FLEXIBILITY TOWARD FRONT
Position the wheels in the forward direction and engage the parking brakes. DO NOT REST ON
THE FRONT PART OF THE ARMRESTS.
2.3.8.2 E
XTENSIONS AND FLEXIBILITY TOWARD BACK
Do not rest on the top part of the backrest. This could change
the center of gravity and make the wheelchair tip over.
Position the wheelchair as close as possible to the object to be reached. Position the front
wheels in the forward direction in order to create the longest wheelbase. Extend your arm
backward as far as possible without having to change your position on the seat.

3 SPECIFICATIONS
16
inc All rights reserved
3 SPECIFICATIONS
3.1 OASIS MOTORIZED WHEELCHAIR

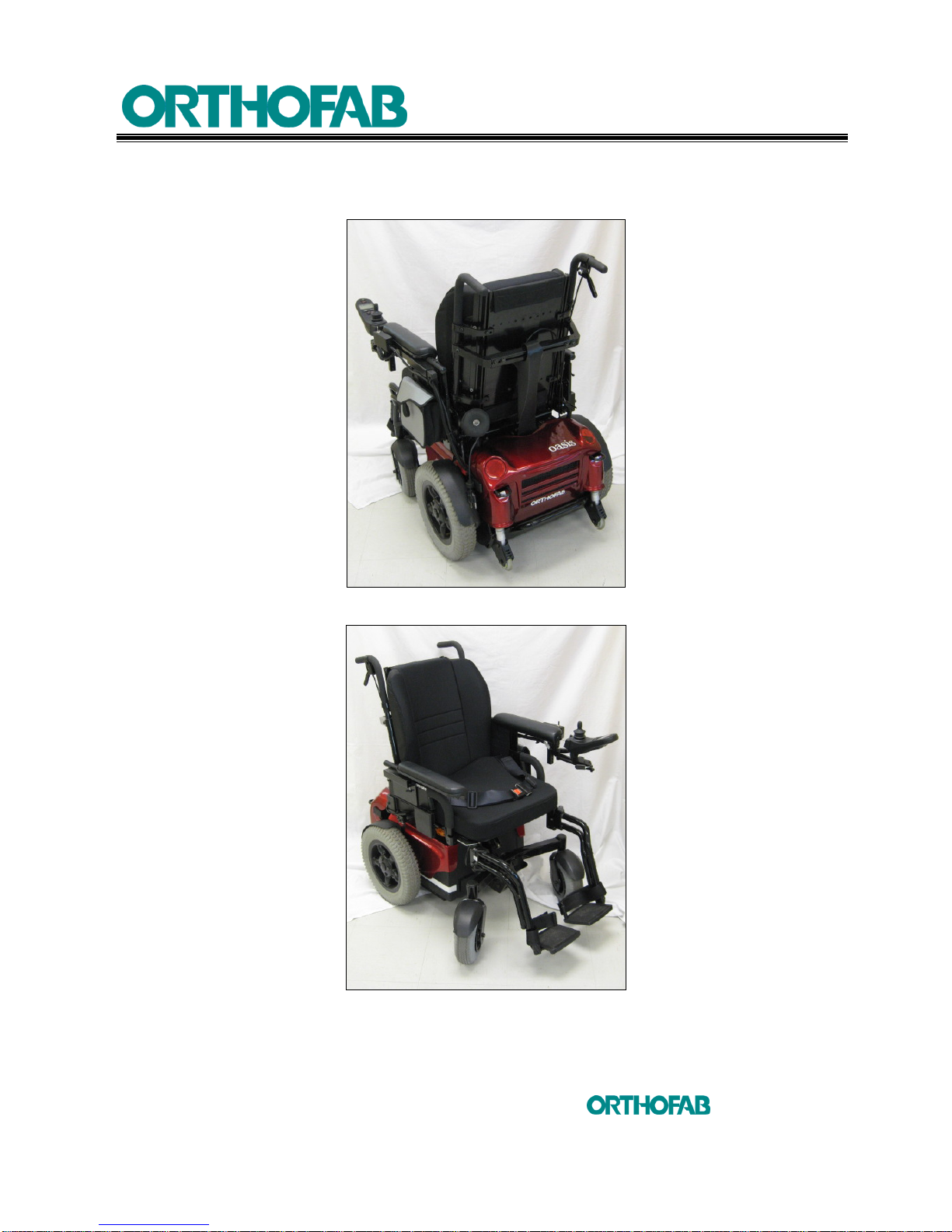

Figure 2: Oasis motorized wheelchair (Back view).
Figure 3: Oasis motorized wheelchair (Side view).

3 SPECIFICATIONS
17
inc All rights reserved
3.2 TECHNICAL SPECIFICATIONS
•Length 84 cm 33 inches
•Width 64 cm 25 inches
•Height (power base) 35.8 cm 14 1/8 inches
•Seat to floor height 40 to 48 cm 15 1/2 to 18 1/2 inches
•Seat angle -5º to +11º
•Turning radius 53 cm 21 inches
•Ground clearance 9 cm 3 1/2 inches
•Front wheels dimensions 20 X 5 cm 8 X 2 inches
23 X 7 cm 9 X 2 3/4 inches
•Rear wheels dimensions 35 X 8 cm 14 X 3 inches
•Tire pressure 0,25 MPa 35 psi
•Standard batteries group 24 (85 Amps/hour)
Maximum battery dimensions
10 ¼ (length) x 6 ¾ (width) x 9(height)
•Weight without batteries 59 kg 130 pounds
3.3 PERFORMANCES
•Speed 10 km/h 6,2 mi/h
•Capacity
(Maximum weight of the user) 159 kg (350 pounds)
•Range (according to batteries size and surface conditions)
Up to 70 km 42 miles

3 SPECIFICATIONS
18
inc All rights reserved
3.4 STANDARD CHARACTERISTICS
3.4.1 MOTORIZED BASE
•Pneumatic wheels.
•Front suspension.
•Removable battery compartments.
•Double mode battery charger (Gel / Acid).
•Battery charge status indicator.
•Automatic electromechanical disc brakes.
•Regeneration (battery recharge when braking or during descent).
•Manual brakes disengagement.
•Seat angular adjustment mechanism.
•Motorized tilt mechanism.
•Seat suspension.
•Rear shroud with lights.
•Paratransit anchor points.
•Rear bumper.
•Mudguard on front and rear wheels.
3.4.1 SEAT ELEMENTS
•Modular frame out of extruded aluminum.
•Adjustable backrest angle (from 90° to 120°)
•Adjustable seat width.
•Adjustable armrests height.
•Adjustable footrest length.
•Folding footplates.

4 SETUP INSTRUCTIONS
19
inc All rights reserved
4 SETUP INSTRUCTIONS AND ADJUSTMENTS
The adjustments of your wheelchair must be made
by a health care professional. Inadequate adjustments can
cause wounds and/or damage to the user, the caregiver, the
wheelchair or the environment.
After having carried out an adjustment and before using the
wheelchair, make sure that all hardware is tight. Make sure
that all functions are secure before using the wheelchair.
4.1 REAR SHROUD
4.1.1 TO REMOVE REAR SHROUD
The rear shroud must be removed to reach the various mechanical and electrical
components of your wheelchair. It must also be removed to carry out the setup, the
replacement or the maintenance of the batteries. It is not recommended to use your
wheelchair without the shroud being installed.
4.1.1.1 REMOVE REAR SHROUD
1- Put the on/off switch of the joystick box on the OFF position.
2- Open the two latches on each side of the rear shroud, near the position lights.
Figure 4-A: Remove rear shroud. Figure 4-B: Rear shroud insertion points.
3- Gently pull the shroud towards you and lay it down on the ground.
4- Put the rear shroud in a secure place in order not to damage it.
Anchor point
slotted holes.

4 SETUP INSTRUCTIONS
20
inc All rights reserved
4.1.2 REPLACE THE REAR SHROUD
1- Bring the rear shroud behind the wheelchair.
2- Insert the rear shroud insertion point (see; figure 4-B) between the power module and
the metal frame.
3- Make sure not to pinch any electric wires, the wires should pass on each side of the
seat and should not be hanging apart from the rear shroud.
4- Make the two anchors points pass through the two slotted holes.
5- Close the two latches on both side of the rear shroud (make sure to align both parts,
the catch and the latch).
6- Switch ON power to the wheelchair with the ON/OFF switch.
4.2 SEATING POSITIONS
4.2.1 CHANGING THE ANGLE AND HEIGHT OF THE SEAT
The seat angle (also called; "tilt angle") can be adjusted in order to allow the best possible
comfort. This adjustment is permanent. By modifying the front seat to floor height it will
increase or decrease the tilt angle.
The front and rear range of adjustment is 3 inches on a wheelchair with fixed seat.
On a wheelchair equipped with a 45° tilt seat, the front and rear height are 15½" and to
increase it to (16½" or 17½") you must add (4) seat to floor height modification interfaces
(see; section 4.2.2).
FIXED SEAT :
1- Put the on/off switch of the joystick box on the OFF position.
2- Remove right side and left side battery compartments (see; section 4.4.2.1).
3- Using a ½" wrench, unscrew nuts and bolts (as shown on figure 5; below).
4- Adjust the mobile part to the needed height (see; figure 5).
5- Put back the two bolts in place and tighten firmly with the nuts.
6- Install battery compartments (see; section 4.4.2.3).
Figure 5-A: Front height and tilt angle.
NOTE : The user will have a more stable posture if the tilt angle is set approximately to 5°.
