SORG Vector Service manual

Service Record
1
service record
for the rehab technician
Vector

Vector
2
IMPRINT
SORG Rollstuhltechnik GmbH+Co.KG
Benzstraße 3-5
D-68794 Oberhausen-Rheinhausen
Germany
Tel. [phone]
Fax [phone]
E-mail [e-mail]
Web www.sorgrollstuhltechnik.de
REVISION STATUS
Revision: 2018-09-25
TECHNICAL STATUS
Technical changes and misprints reserved. The pictures
in this user manual can – depending on the individual
equipment – differ from the actual equipment components.
However, a corresponding conduction is possible.
rehaKIND
We are a member of rehaKIND e.V.
International association
child and adolescent rehabilitation
COPYRIGHT
© by SORG Rollstuhltechnik GmbH + Co. KG Benzstraße
3-5, 68794 Oberhausen-Rheinhausen.
All texts and pictures in this user manual underlie the
international copyright protection and are not allowed to be
published without our consent – not even in excerpts!
CERTIFICATION
Our Quality Management System is certied according to
the ISO 9001:2015 under the certicate no. 12 100 20070
TMS.

Service Record
3
IMPRINT 2
REVISION STATUS 2
TECHNICAL STATUS 2
rehaKIND 2
COPYRIGHT 2
CERTIFICATION 2
Wheelchair overview 4
1 PREAMBLE 5
1.1 GENERAL INFORMATION 5
1.2 SIGN EXPLANATION 5
1.3 RECEPTION 5
1.4 SERVICE AND MAINTENANCE 5
1.5 DOCUMENTATION 6
1.6 ACCESSORY AND ATTACHMENT
DRIVES 6
2 ADJUSTMENTS ON THE
WHEELCHAIR 6
2.1 GENERAL INFORMATION 6
2.2 TIGHTENING TORQUE AND TOOLS 6
2.3 ASSEMBLY GROUP WHEELS 7
2.3.1 Centre of gravity(wheel base,
perforated plate) 7
2.3.2 Seat height in front 7
2.3.3 Seat height in back, seat slant 8
2.3.4 Steering head slant 8
2.3.5 Replacing/displacing the caster
adapters and casters 8
2.3.5 Removable rear wheels 8
2.3.6 Camber 9
2.3.7 Rear wheel track balance 10
2.4 ASSEMBLY GROUP SEAT 11
2.4.1 Growth setting seat depth 11
2.4.2 Setting the seat height 11
2.4.3 Setting the seat depth on SeatFix 11
2.4.4 Growth setting seat width 12
2.4.5 Adjusting the stabilizing rod 12
2.5 ASSEMBLY GROUP LEG SUPPORTS 13
2.5.1 Term definition 13
2.5.2 Leg support inner attachment 14
2.5.3 Leg support outer attachment,
continuous 14
2.5.4 Leg support outer attachment,
folds up sideways 15
2.5.5 Divided foot plate, folds up sideways15
2.6 ASSEMBLY GROUP SIDE GUARDS 16
VECTOR 16
2.6.1 Setting side guards 16
2.6.2 Skirt guard on the side guard 16
2.6.3 Armrest on the side guard 16
2.7 ASSEMBLY GROUP BRAKES 17
2.7.1 Standard wheel lock 18
2.7.2 Lockable wheel lock 18
2.7.3 Cable brake 18
2.7.4 Drum brake 19
2.8 ASSEMBLY GROUP ANIT TIPPER/
TIPPING LEVER 20
2.8.1 Height setting 20
2.8.2 Length setting 20
2.8.3 Tipping lever 20
2.9 ASSEMBLY GROUP BACK 21
2.9.1 Adjustable back cover 21
2.9.2 Curved back plate 21
2.9.3 Adjusting the back angle 22
2.9.4 Setting the back angle 22
2.9.5 Extension on standard backs 22
2.9.6 Extension on backs with
angle adjustment or setting 22
2.10. ASSEMBLY GROUP PUSH AIDS 23
2.10.1 Standard push handles 23
2.10.2 Extendible push handles 23
2.10.3 Clamping force of the
eccentric clamp 23
2.11 ASSEMBLY GROUP TRUSS PADS 24
2.11.1 Classification 24
2.11.2 Vertical setting 24
2.11.3 Horizontal setting 24
2.11.4 Fine adjustment of the
truss pad holder 24
2.11.5 Adjusting to the user 24
3 REPAIRS AND MAINTENANCE 26
3.1 CHECK LIST 26
3.2 TECHNICAL DATA 26
3.3 TYPE LABEL 27
3.4 DECLARATION OF CONFORMITY 27
3.5 RETAILER VERIFICATION 28

Vector
4
Wheelchair overview
1. push handles
2. back
3. side guard
4. skirt guard
5. wheel lock (knee lever brake)
6. seat
7. brake lever
8. brake bolt
9. frame
10. foot plate (continuous)
11. caster forkl
12. caster
13. driving wheel
14. hand rim
15. quick release axle
16. anti-tipper
1. push handles
2. back
3. skirt guard
4. brake lever of the wheel lock (built in to the
side guard).
5. anatomically formed seat cushion
6. brake bolt
7. frame
8. foot plate (continuous)
9. caster forkl
10. caster
11. driving wheel
12. hand rim
13. quick release axle
12 3 4 5
7
8
9
10
1112131415
16
6
10111213
1 2 3 4
5
7
89
6
Overview Vector

Service Record
5
1 PREAMBLE
1.1 GENERAL INFORMATION
�INDICATION
First and foremost, this service book is for the rehab tech-
nician.
All of the listed work is to be done by a qualied rehab
technician, due to safety reasons.
ATTENTION
All of the work listed here should only be done from a
qualied rehab technician.
All of our wheelchairs fulll the guidelines and require-
ments according to 93/42/EWG, 2007/47/EWG and
EN12183:2009. SORG Rollstuhltechnik is also certied ac-
cording to the quality management system ISO 9001. With
this, the quality of our wheelchairs are guaranteed and doc-
umented in each step from development to assembling.
If you have any questions, our qualied team would be hap-
py to help you ([phone]).
1.2 SIGN EXPLANATION
ATTENTION
This is how individual related safety aspects of utmost im-
portance are indicated.
�INDICATION
This is how possible indications of utmost importance are
labeled.
INFORMATION
This is how INFORMATION on mounting and adjustment
work is labeled.
READ
This refers to additional material.
BOLD PRINT
Text in bold print highlights important passages or remarks.
1.3 RECEPTION
DELIVERY
Each wheelchair is mounted, tested for functionality and
correctness in our works and packaged into special card-
board boxes by our shipping experts.
FORWARDING COMPANY
RECEIVING
�INDICATION
For liability reasons we have to ask you to check the
wheelchair IMMEDIATELY after receiving it and IN THE
PRESENCE of the deliverer (forwarding company) for pos-
sible damages that may have occurred during transpor-
tation.
CONFIRMATION OF RECIEPT
INDICATION
Only sign the conrmation receipt after you have thor-
oughly checked the wheelchair for defects.
�INDICATION
In case of damages, note on the conrmation receipt that
you have received a damaged wheelchair.
TRANSPORTATION DAMAGES
In case of damages, please proceed as follows:
• write a short record of the damage and review of
events, if possible include pictures clearly showing
the damage,
• get the personal information of the bearer (driver’s
license etc.),
• inform us immediately.
�INDICATION
According to the valid law, damages reported late can
neither be asserted to us nor to the forwarding company.
1.4 SERVICE AND MAINTENANCE
READ
According to § 33 subparagraph 1, clause 4, [German]
SGB V, the responsibility of maintenance, repairs and
replacement lies with the benefactor. After agreement
with your benefactor, be sure to have all safety relevant
inspections, maintenance work and if necessary repairs
conducted in order to make the wheelchair functional.
ATTENTION
Only original parts are to be used for all service and main-
tenance work.

Vector
6
INFORMATION
Proceed according to the maintenance plan in the user
manual.
1.5 DOCUMENTATION
�INDICATION
Keep this service record in a safe place. Have all work/
repairs done on your wheelchair documented by the med-
ical supply store in the maintenance plan. If applicable,
hand it back to your benefactor along with the wheelchair.
�INDICATION
In the event of the wheelchair being reused, the service
book is an important source of information for you bene-
factor. It provides evidence of regular inspections which
might be relevant in the event of warranty claim.
1.6 ACCESSORY AND ATTACHMENT DRIVES
ATTENTION
The addition of these accessory and attachment drives
is done by either the manufacturer or the sanitary house
and solely in their responsibility
2 ADJUSTMENTS ON THE WHEELCHAIR
2.1 GENERAL INFORMATION
ATTENTION: DANGER OF BRUISING
When operating the adjustable parts (back rest, side
guard, leg support, wheel lock, positioning aids etc.) as
well as xation and reparation work, there is an injury risk
or of crushing body parts in the pivoting range.
ATTENTION
All wheelchairs are to be handled with care. Removable
parts are not to be thrown or dropped!
ATTENTION
Before repairs or adjustments are made, clean/disinfect
the wheelchair and secure it from tipping over and/or fall-
ing down.
ATTENTION
Only use original spare parts.
ATTENTION
Safety nuts are only to be used once. After rst removal
the safety nut must be replaced by a new one.
2.2 TIGHTENING TORQUE AND TOOLS
INFORMATION
Technical changes reserved.
Screws
• M5: 5 Nm;
• M6: 7 Nm;
• M6: (hole plate) 10 Nm,
• M8: 20 Nm;
• M10 (Nut): 25Nm (caster)
• Fitting of quick-release axle: 35Nm
Tools needed:
• torque wrench (5-50 Nm)
• open end wrench
• ex ratchet handle with socket wrench inserts
• hexagon screw driver
• Phillips screw driver
• at head screw driver
• plastic mallet
• side cutter
• threadlocker (uid)
• bicycle inner tube repair kit
• work bench/jaw vise with rubber pads
Word explanation
Loosen screw:
means to only loosen the screw so that the parts are still
held together but (e.g.) can be moved around along a slot-
ted hole.
Remove screw:
means to completely remove the screw from where it was
attached so that the parts are no longer connected.

Service Record
7
very active
centre of gravity
very passive
centre of gravity
(1)
(A) (B)
(2)
(A)
(B)
2.3 ASSEMBLY GROUP WHEELS
2.3.1 Centre of gravity(wheel base, perforated
plate)
From the conguration of the rear wheels and casters, the
focal point, the wobbliness of the wheelchair, the seat height
in front and back and the seat angle can be set.
(1) To set the centre of gravity
• remove both rear wheels,
• remove all screws (A)
• displace the perforated plate in the alternative
holes (B).
• Displacement must occur parallel on both sides.
• Replace screws and tighten them.
ATTENTION
After every change made on the rear wheels, the wheel
lock must be newly adjusted.
ATTENTION
Slowly go to the maximum and from the user (!) wanted
point of wobbliness.
ATTENTION
The more you move the casters back, the higher the risk
that the wheelchair will tip forward when getting in or out.
The more you move the rear wheels with the perforated
plate forward, the higher the risk that the wheelchair
could tip backward.
�INDICATION
Please make sure, that with the seat slant the grip point
and grip direction are not affected by a too high place-
ment of the rear wheels.
2.3.2 Seat height in front
�INDICATION
Make sure that with the setting of the seat height in the
front that pushing under a table is not a problem and that
the knees do not hit the table edge.
(2) The seat height is set by the position of the casters in
the caster fork.
• remove the connection caster/caster fork (A) com-
pletely,
• mount the casters on both sides in the wanted
holes (B),
• retighten all screws.
INFORMATION
After every change you must check the vertical steering
head slant and, if necessary correct it (see chapter steer-
ing head slant).
ATTENTION
In the mounting parts of the casters, hair, lint, dirt, etc.
can collect, whereby the casters become hard to use. Re-
move the casters in short intervals and clean the forks,
axles and the husks thoroughly.
INFORMATION
Precede the same with synthetic forks.

Vector
8
(A)
(2) (3)
(B)
(4)
(C)
(3)
(B)
(C)
(A)
(4)
(A)
(B)
(C)
(A)
(1) (2)
(C)
(B)
2.3.3 Seat height in back, seat slant
ATTENTION
After each change made on the rear wheels the function-
ality of the wheel lock must be checked and the casters
must be newly adjusted.
Generally, the seat height in back is about 2-3 cm lower as
in front, for a safe and comfortable seat position with a good
distribution of the seat pressure and to avoid a “sliding out”.
However, other settings in individual cases can also be use-
ful.
• (1) Remove the rear wheels,
• remove the side guards/skirt guards with the
screws (A) (easily remove the desk side guard)
• (2) remove the quick-release axle tting including
all washers in the alternative holes (C)
• and retighten all screws. (tightening torque nuts
M18 tting 35Nm).
• Mount the side guards and place the rear wheels
back in the quick-release axle.
�INDICATION
The ttings must stick out of the perforated plate at the
same length on both sides. The ttings can only stick out
so that the side distance of the tires to the side guard is
as low as possible, however a min. of 10mm.
2.3.4 Steering head slant
ATTENTION
After every change on the rear wheel, the steering head
slant must be newly adjusted.
To adjust the caster adapter:
• (3) remove all screws (A) on both (!) sides,
• remove both screws (B).
• By tuning the adjust washer (C) (with a at head
screw driver) place the adapter in a vertical posi-
tion (using an angle).
• Retighten all screws; screws (A) with 9 Nm, screw
(B) with 7 Nm.
�INDICATION
A falsely set steering head slant can lead to the casters
shaking back and forth and can lead to hindering curve
rides (from casters).
2.3.5 Replacing/displacing the caster adap-
ters and casters
• (4) Remove the caps (A) on both sides,
• remove all screws (B) on both sides
• and remove also the distance pieces, if necessary.
• Replace the caster adapters with new ones and/or
displace them in the alternative holes (C).
• Replace all screws (if necessary also the distance
pieces) and tighten them; screws (A) with 9 Nm,
screw (B) with 7 Nm.
• Check the steering head slant (see 2.3.4)
In order to move the casters in the fork, proceed as de-
scribed in 2.3.2.
2.3.5 Removable rear wheels
ATTENTION
No person can be sitting in the wheelchair while mount-
ing/demounting the wheels. It must be supported and tip
safe, on rm ground and has to be secured against rolling
away and tipping over.
To remove/apply the rear wheels press the locking knob in
the wheel hub.

Service Record
9
2.3.6 Camber
Through the camber you inuence:
• the side tilt stability,
• the shoulder rear wheel position and
• the track width of the wheelchair.
INFORMATION
(1) To avoid the so called “eraser effect” we general-
ly mount the tting track balance ex-works (A). With a
change of the camber afterwards, the track balance
adapter (A) must be replaced by one that ts (spare part).
INFORMATION
With a camber of 8° a distance block to the wheelbase
extension is necessary (spare part).
Adjusting the camber
• (2) Remove the rear wheels,
• remove screws (A) and move them in the alterna-
tive holes (B),
• retighten the screws.
For a camber of 8°:
• (2+3) remove the screws (A),
• remove the screws (C),
• move the perforated plate holder (D) by turning it
180° on the outer part of the frame tube,
• replace the screws (C) and tighten them,
• replace the perforated plate with the screws (A)
and tighten them.
INFORMATION
The setting may not be possible if you wish to widen the
seat, being that then you would have to turn the quick-re-
lease axle ttings too far out of the perforated plate.
Check/correct the distance of the rear wheel to the side
guard and skirt guard by attaching the rear wheel.
INFORMATION
The tire of the wheel must be at least 10 mm away from
the side guard/skirt guard. Take notice that the distance
on the left and right are the same!
(1) In order to screw on or screw off the quick-release axle
ttings:
• remove the screws of the ttings (B) (the lock nut
(2E) on the inner surface as well),
• turn the whole tting (C) in the wanted position
and
• retighten the screws (tightening torque nuts M18
tting 35 Nm).
ATTENTION
You must check the functionality of the knee lever brake
and if necessary reset them.
(2)
(B)
(C)
(A)
(D)
(3)
(1)
(A)
(B)
(E)
(C)
(D)
(B)
inner outer

Vector
10
(1)
(A)
(A)
(B)
(B)
(C)
(C)
(D)
The picture shows in driving
direction the perforated plate
on the right.
2.3.7 Rear wheel track balance
If you have to change the camber and/or the seat slant you
must, in order to avoid the so called “eraser effect”, mount
appropriate wedge plates for the track balance.
To change/set the wedge plate;
• (1) remove the screws (A) of the quick-release axle
ttings (D) (also on the inside),
• apply the needed wedge plate/s (B),
• the mounting grooves (C) must point forward in
driving direction,
• replace all other washers
• and retighten the screws (A) of the quick-release
axle ttings (D) (also on the inside)
(turning point 35 Nm).
INFORMATION
Use the following chart the help you:
camber without seat slant normal seat slant
(< 5°)*
strong seat slant (>
5°)*
2° washer 0° washer 0° wedge plate 0,5°
4°-8° washer 0° wedge plate0,5° wedge plate 1°
11° washer 0° wedge plate 1° wedge plate 1°**
**If necessary, apply 2 sets of plates (2 x inner plate mount-
ed on the inside, 1x outer plate+ 1x inner plate mounted on
the outside)
ATTENTION
You must check the functionality of the knee lever brake
and if necessary reset it.

Service Record
11

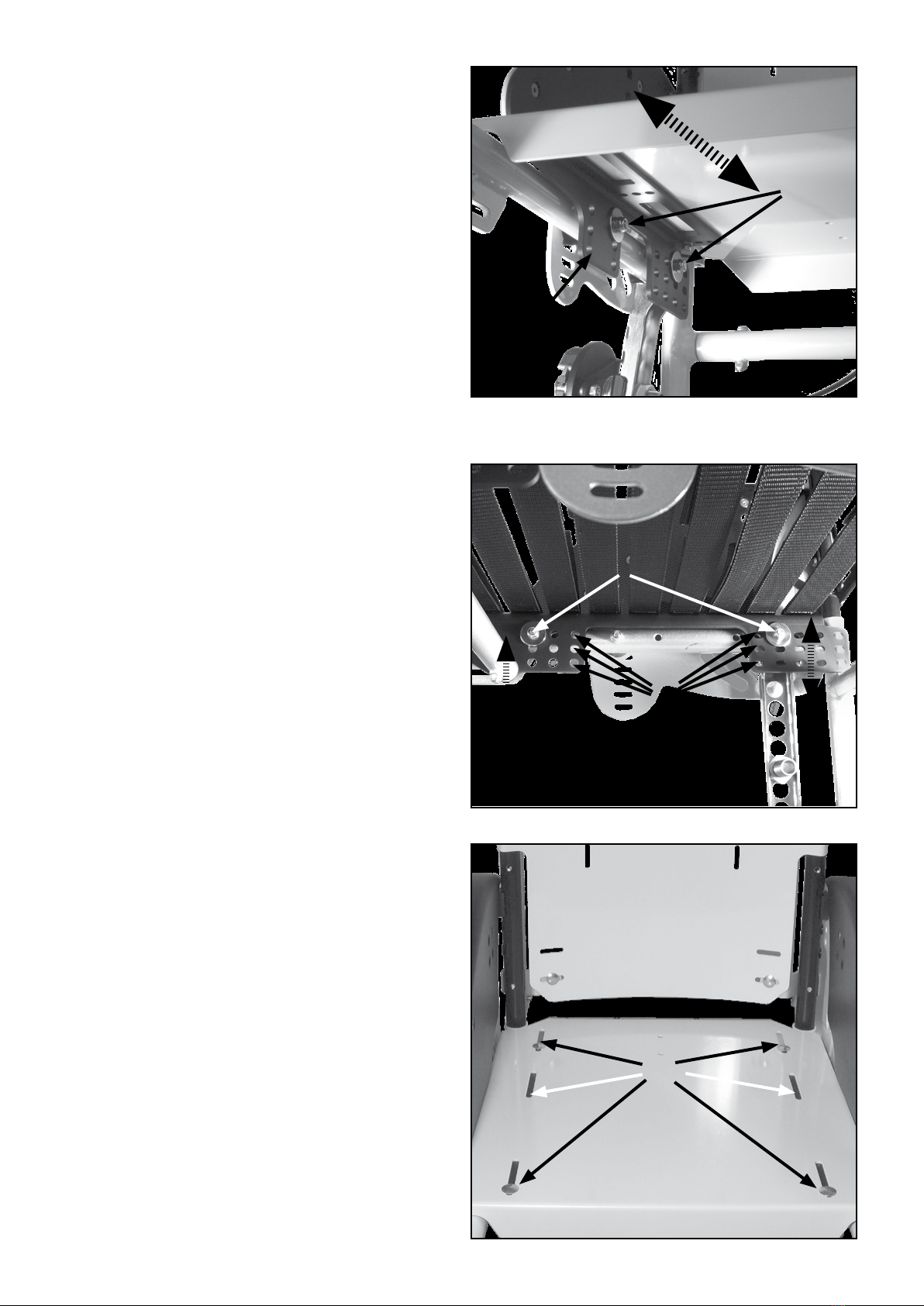

2.4 ASSEMBLY GROUP SEAT
2.4.1 Growth setting seat depth
The seat depth is changed the same for both types of seats
(seat cover/SeatFix). For preparation remove the driving
wheels.
• (1+2) Remove the screws (A) on both sides of the
seat supporting angle (B) and pull the bushings as
far out of the side guards so that the seat support-
ing angle moves freely.
• Place the seat supporting angle in the new posi-
tion. Replace the bushings in the chosen hole (C)
of the seat support angle and retighten the screws
on both sides.
2.4.2 Setting the seat height
(2) The seat height is changes the same for both types of
seats (seat cover/SeatFix). For preparation please proceed
the same as described above.
• To change the seat support angle please proceed
the same way described above.
2.4.3 Setting the seat depth on SeatFix
(3) The seat depth can be changed on the SeatFix not only
with the position of the seat support angle but also addition-
ally with the screws on the seat plate.
• Remove all screws on the bottom side of the Seat-
Fix.
• Place the seat plate in the new position and re-
tighten all of the screws.
(A)
(3)
(B)
(A)
(1)
(B)
(A)
(B)
(C)
(2)

Vector
12
2.4.4 Growth setting seat width
SEATFIX
(1) Remove the driving wheels and, if necessary, the stabiliz-
ing rod completely. If available remove the rm curved back
plate or loosen the Velcro connection of the adjustable back
cover on both sides.
INFORMATION
The old rm curved back plate must be replaced by a new
one with the appropriate measurements after widening
the wheelchair.
• Remove the screws (A) on one side at the bottom
of the SeatFix.
• Remove the screws of the cross bars (B) on the
same side.
• Reposition the cross bars one or two holes (=1 or
2 cm) in the new position.
• Replace the screws (B) and retighten them.
• Replace the screws (A) of the SeatFix in the new
position and retighten them.
• Proceed the same on the opposite side.
• The cross bars must be extended the same on
both sides.
• Close the Velcro connection of the back cover or
place the new rm curved back plate in place.
SEAT COVER
(2) Prepare the wheelchair as described above.
• On one side remove the Velcro connection (A) of
the seat cover out of the guidance.
• Remove the screws of the cross bars on the same
side (see above).
• Reposition the cross bars in the new position as
described above.
• Close the Velcro connection of the seat cover.
• Proceed the same on the opposite side.
• The cross bars must be extended the same on
both sides.
2.4.5 Adjusting the stabilizing rod
(3a+b) When widening the seat, the stabilizing rod must be
adjusted to the new measurements. There are two different
kinds of stabilizing rods:
• 3a single piece (for extendable push han-
dles),
• 3b three piece (for standard push handles).
• After widening, the single piece stabilizing rod
must be place in the appropriate hole (A) and
screwed on tightly.
• As for the three piece stabilizing rod, the middle
piece must be displaced in to the appropriate hole
(B) and afterward screwed together tightly.
(2) (B)
(3a)
(3b)
(A)
(B)
(A)
(B)
(1)

Service Record
13
2.5 ASSEMBLY GROUP LEG SUPPORTS
2.5.1 Term definition
Vector has nine different leg supports:
• (1) inner attachment with continuous foot plate
screwed on tight,
• (2) outer attachment with continuous foot plate
screwed on tight,
• (3) inner attachment with continuous foot plate
folds up sideways
• (4) outer attachment with continuous foot plate
folds up sideways
• (5) inner attachment with divided foot plate folds
up sideways
• (6) outer attachment with divided foot plate folds
up sideways
• (7) inner attachment with continuous foot plate
folds up sideways and to the back
• (8) outer attachment with continuous foot plate
folds up sideways and to the back
• (9) outer attachment with continuous foot plate
folds up sideways and additionally can be de-
tached.
� INDICATION
The leg supports are ideally xated (A) when the whole
thigh is evenly resting on the seat cushion to about 2-3
nger widths in front of the back of the knee, while the
leg is resting on the foot plate at a right angle.
• (A) The knee angle should be greater than 90°.
• (B) A too high adjusted foot plate can result in
a bent pose in the pelvic area and can cause a
decreased blood circulation.
• (C) A too low adjusted foot plate can result in
jams in the back of the knees and can cause
spasms.
(1) (2)
(5) (6)
(9)
(3) (4)
(A)
(C)
(B)
>9 0°
knee angle
(7) (8)

Vector
14

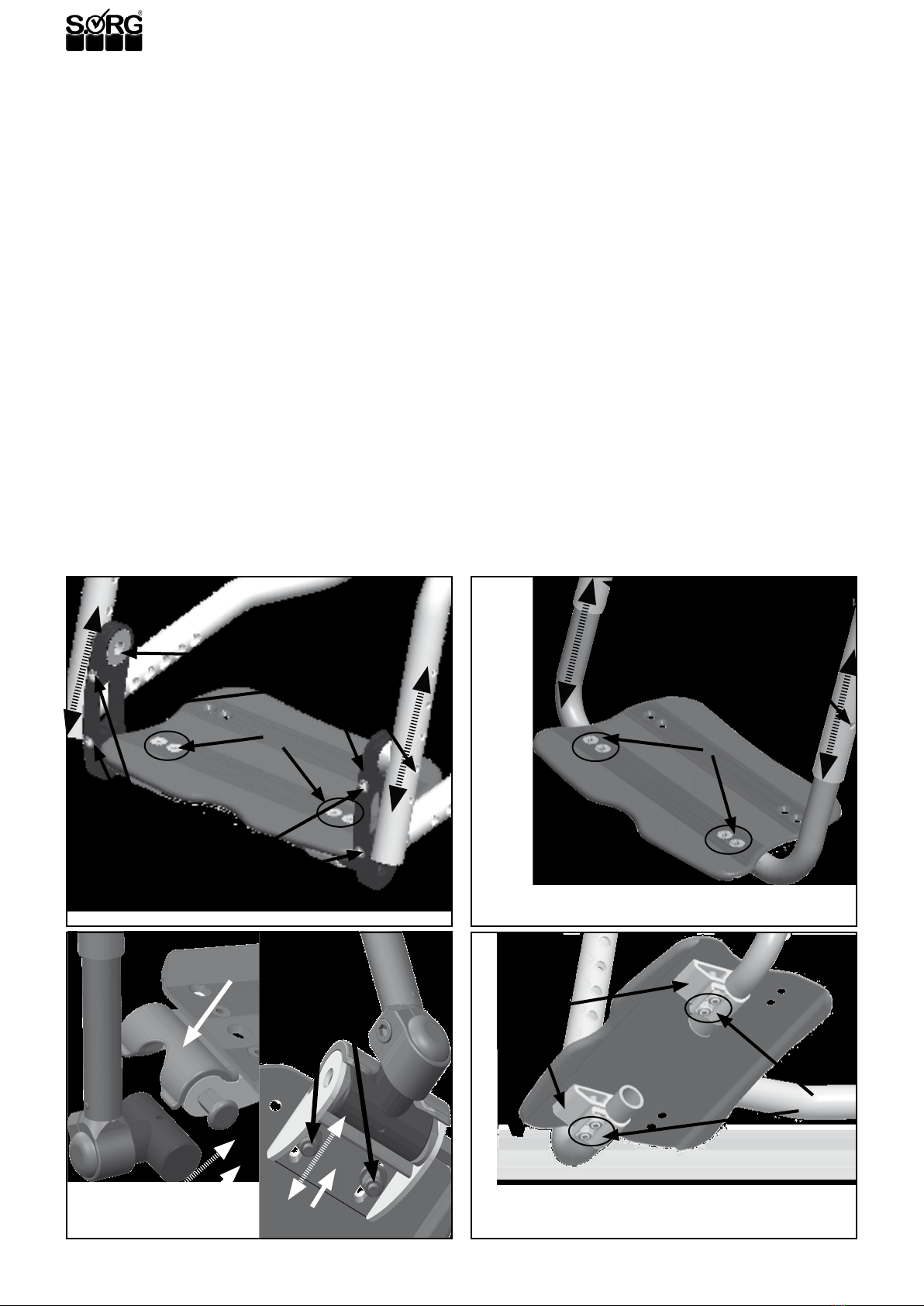

2.5.2 Leg support inner attachment
Setting the lower leg length
(1) Remove the screws (A) on the outer side of the frame on
both sides. Pull the positioning piece (B) together with the
bushing out of the frame tube, choose the new position in
the frame tube, replace the positioning piece and retighten
the screws.
Setting the depth and the angle
(1) Remove both screws (C) on both positioning pieces,
place the foot plate in the wanted position/angle and re-
tighten all of the screws.
�INDICATION
(1) Additionally, the foot plate/s can be displaced by turn-
ing them 180°. For this, remove all screws (D), turn foot
plate, replace and retighten all screws.
Fine adjustments of the locking claw
(2) In order to make ne adjustments on the locking claw
(A), remove the nuts (B) on the bottom side, move the hold-
er (C) until the foot plate closes. Retighten the nuts.
�INDICATION
The ne adjustments of the locking claw occurs the same
with all continuous foot plate types.
2.5.3 Leg support outer attachment, conti-
nuous
The setting of the lower leg length takes place in the same
way for both types “foot plate continuous” and “foot plate
folds up sideways”, on the bore holes of the frame tube.
(Also see pace (1))
Setting the lower leg length
(3) Remove the screws (A) on the outer side of the frame,
including the bushings, on both sides. Choose the new po-
sition, replace the screws and bushings and tighten them.
Setting the depth
You can attach the foot plate in 4 positions.
• (3) by repositioning the foot plate(B). Remove all
screws and nuts (C) on the foot plate and reposition the
foot plate. Replace all screws and nuts and retighten
them.
• (4) by turning the holders (D) on the bottom side of
the foot plate 180°. Remove all screws and nuts (E),
turn the holder and replace and retighten all screws
and nuts.
Setting the angle
(4) Remove the screws (E), set desired angle and retighten
the screws.
(3)
(4)
(A)
(C)
(B)
(2)
(A)
(B)
(D)
(C)
(1)
(A)
(E)
(D)
(C)
(B)

Service Record
15
2.5.4 Leg support outer attachment, folds up
sideways
Setting the lower leg length
(5) Remove the screws (A) on the outer side of the frame,
including the screws and bushings (B) on the inner side,
on both sides. Choose the new position, replace the screws
and bushings and tighten them.
Setting the depth
(6) The foot plate can be attached in 3 positions. Remove
all screws and nuts (A) on the foot plate and reposition the
foot plate. Replace all screws and nuts and retighten them.
Setting the angle
(7) Turn the cylinder screws (B) in the clamp on both sides
far enough until the clamp connection loosens. Set the
wanted angle and retighten the screws.
�INDICATION
The ne adjustments of the locking claw occurs the same
with all continuous foot plate types.
2.5.5 Divided foot plate, folds up sideways
ATTENTION
The divided foot plate is NOT suitable for users with tone
dysregulation.
The foot plates are set horizontal ex works. Should the plates
tilt in the course of use, they can be adjusted as follows:
Fine adjustment of foot plate angle, inner attachment
(8) Loosen the locking nut (A), turn the set screw (B) in the
wanted position and retighten the locking nut (A).
Fine adjustment of foot plate angle, outer attachment
(1) Loosen the locking nut (A), turn the set screw (B) in the
wanted position and retighten the locking nut (A).
(5)
(A)
(B)
(A)
(7)
(6)
(B)
outer attachement
(9)
(B)
(A)
(8)
inner attachment
(B)
(A)

Vector
16
2.6 ASSEMBLY GROUP SIDE GUARDS
VECTOR
2.6.1 Setting side guards
(1) The inner space between wheel and side guard should
be at least 10 mm distance so that in case of side strain the
side guard does not rub on the wheel cover.
(2) Upward, the outline of the side guard should have a dis-
tance of at least 10 mm as long as it is parallel to the outline
of the rear wheel.
� INDICATION
High settings can become hazardous for active drivers.
(3) To set the height, remove the rear wheels. Remove the
screw connections (B) in the front and back. Change the
position of the side guard, replace the screws and retighten
them.
2.6.2 Skirt guard on the side guard
(4) The skirt guard is placed on the side guard and should
cover the rear wheel to the outer side of the wheel.
When repositioning the rear wheels in the front perforated
plate, the skirt guards must be placed in the alternative
holes (A). Remove the screws (B), move the skirt guard, re-
place all of the screws and retighten them.
The distance between the upper part of the wheel and skirt
guard should be at least 10 mm so that the skirt guard does
not push the strain on to the wheel (also see picture 2).
2.6.3 Armrest on the side guard
(4) To set the arm rests remove the screws (A) on both
sides, place the cushion in the holes to the wanted position,
replace the screws and retighten them.
ca. 10 mm
(2)
(1) min. 10 mm
(5)
(A)
(B)
(A)
(3)
(B)
(3)

Service Record
17
2.7 ASSEMBLY GROUP BRAKES
wheel lock/service brake
(1+2) Every wheelchair is equipped with two wheel locks.
They consist of brake pressing bolt (A), brake lever (B) (if
necessary, also with an extension) and adjustment screws
(C).
ATTENTION
WHEEL LOCKS ONLY SERVE THE PURPOSE OF PUTTING
THE WHEELS IN A RESTING POSITION.
THEY ARE NOT MADE TO BRAKE THE WHEELCHAIR WHILE
DRIVING.
ATTENTION
The correct function of the brake can be impaired by :
• too low air pressure,
• wetness, dirt, snow, ice, etc.
• worn tires and
• too big of a distance between brake pressing bolt
and tire.
INFORMATION
Check the xture of the brake pressing bolt on the inner
side of the wheelchair regularly (D).
ATTENTION
After every change made on the rear wheels, reset the
brakes. The wheelchair with passenger must stand se-
curely, with drawn brake, on a ramp with a 12% descent.
INFORMATION
When the brake is open, the maximum distance between
brake pressing bolt and tire is:
standard knee lever brake 21 mm,
pull-to-lock brake 11 mm,
knee lever brake with rollback blocking 10mm,
cable brake 6 mm
(technical changes reserved).
(1)
(A) (D)
(C)
(B)
(2)
(C)
Regard technical information!

Vector
18
(2)
(A)
(A)
max. 21 mm
(1)
(3)
(A)
2.7.1 Standard wheel lock
(1) Check the air pressure in the driving wheels rst (re-
quired details on the tire cover). To adjust the brake loosen
both screws (A) on both sides, place brake in the appropri-
ate position and retighten the screws (A)
2.7.2 Lockable wheel lock
(2) The setting of the lockable brake is as described above.
To unlock pull the locking bolt out, turn it 90°, loosen or
tighten brakes, turn bolt again 90° until it snaps into place.
2.7.3 Cable brake
The cable brake is in the side guard and is operable with a
cable. This must be checked regularly to ensure its function-
ality and if necessary, it must be readjusted. The settings of
the cable brake are done as with the drum brake.
(3) To set the length of the brake lever loosen the screws (A),
adjust it to the wanted position and retighten both screws.
INFORMATION
(4) The distance between brake pressing bolt and tire cov-
er must be max. 6 mm.

Service Record
19
2.7.4 Drum brake
The drum brake, unlike the wheel lock, is also suitable as
a driving brake.
(1) The adjustment of the drum brake occurs through a
screw on the bottom end of the brake cable (A). By turning
the screw counter clockwise the brake cable can be tight-
ened.
ATTENTION
The brake shoe of the drum brake can react very sensitive
to dirt and lint etc. Be sure to clean the brake pad regu-
larly with a dry paint brush or with a blow dryer. Be sure
when removing or attaching the wheels with the quick re-
lease axle that you do not break the brake pad. This would
cause a signicant safety risk.
ATTENTION: RISK OF BRUISING
(2+3) When blocking the raster lever you can bruise your
ngers (C) under adverse circumstances.
(2)
(3)
(A)
(A) (C)
(B)
(B)
(1)
(A)

Vector
20
2.8 ASSEMBLY GROUP ANIT TIPPER/TIP-
PING LEVER
(1) The anti-tipper consists of 4 parts::
• (A) anti-tipper holder,
• (B) foot lever,
• (C) anti-tipper wheel with holder,
• (D) anti-tipper bail which can be pulled down and
turned 180° (partly sticking in the anti-tipper hold-
er).
The anti-tipper can be added and mounted on both sides. In
addition, the height of the anti-tipper and the length of the
anti-tipping lever can be changed.
2.8.1 Height setting
• (2) Remove the driving wheels,
• remove the screws (A),
• pull the anti-tipper lever (C) in the holder (D) down,
• displace the screw (A) in the wanted position (A)
• and retighten it.
Alternatively you can turn the holder 180°.
(1) If you want to set the anti-tipper rather low, you can
turn the anti-tipper holder (A) 180°. For this, remove both
screws (E) and the screw (F), remove the anti-tipper lever (D)
and turn it 180°, screw the anti-tipper holder back on to the
frame tube, replace the anti-tipper lever in the holder and
position it as needed with the screw (F) in the holes (2,B).
2.8.2 Length setting
(3) If the wheelchair if set very active and the activated an-
ti-tipper sticks out too far back, then the anti-tipper bail can
be shortened.
• Remove the anti-tipper wheel and holder (C) with
the screw (B),
• shorten the anti-tipper lever, with a suitable saw,
to the length wanted
• and replace the anti-tipper wheel and holder.
• Place the screw (B) in the right hole (A) and tighten
it.
2.8.3 Tipping lever
(4) In order to add an anti-tipper:
• Remove the cap at the bottom of the frame rod,
• guide the anti tipping lever (A) from underneath in
the frame rod and
• screw it on tightly to the frame with the screw (B).
INFORMATION
It is not possible to mount both an anti-tipper and a tip-
ping lever on the same frame side!
(A)
(B)
(C)
(2)
(D)
(C)
(E)
(F)
(A)
(B)
(1)
(C) (A)
(B)
(B)
(3)
(4)
(A)
