Ortlieb GRAVEL-PACK User manual

ORTLIEBSport art ikel GmbH · Rainstrasse 6 · 91560 · Heilsbronn, Germany· T [phone] · F [phone] · E [email protected] · www.ortlieb.com
PRODUCT INFO
IP 64
PVC
free
PS21R
QL2.1
system
An ti
scratch
Tipp
5|17
A
u
s
p
r
o
b
i
e
r
t
T
o
p
-
P
r
o
d
u
k
t
Gravel-Pack_09_2020
PS33

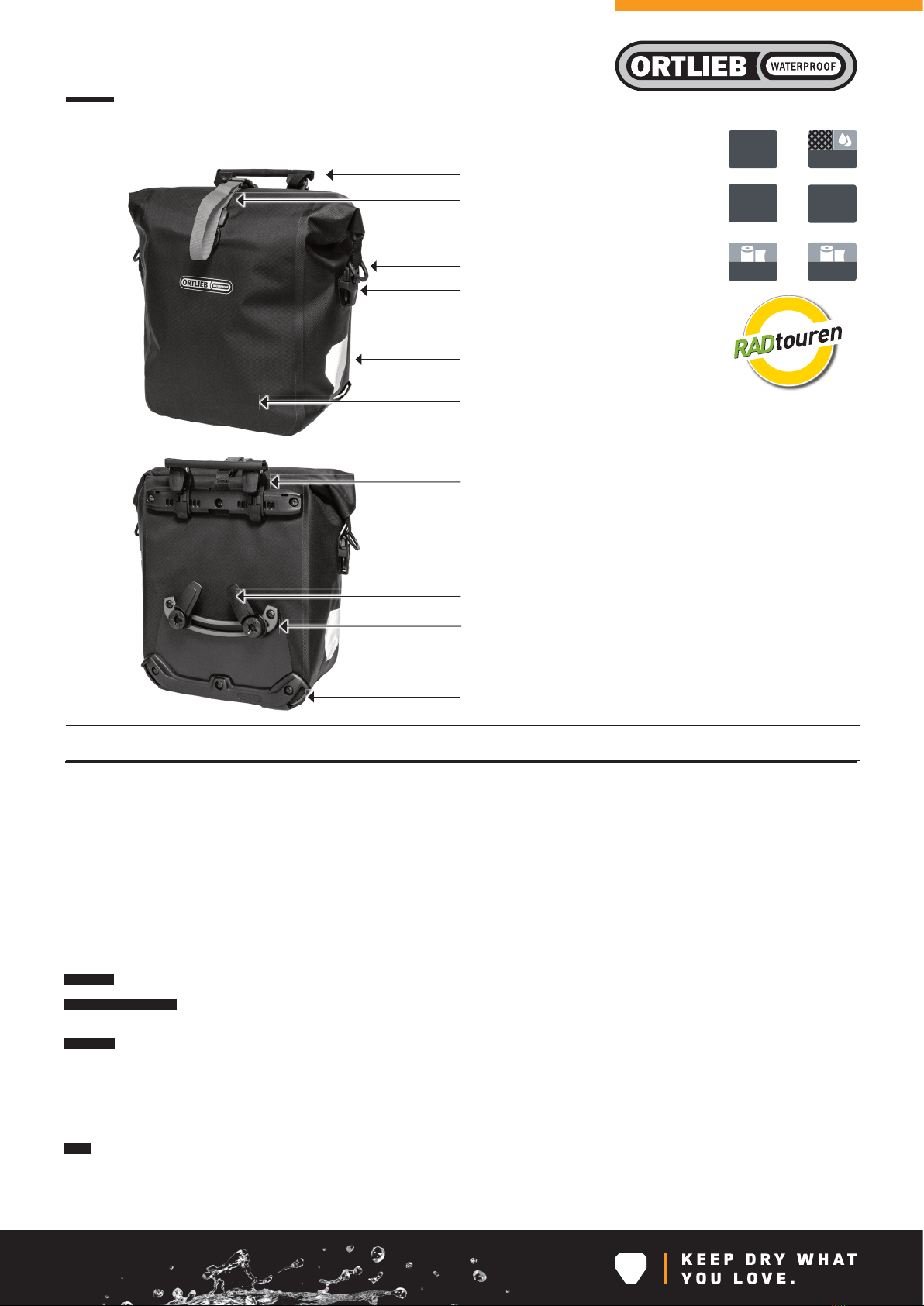

SPECIFICATIONS:
Infos onIP-symbols:www.ortlieb.com/us/service/technical/ip-symbols/
Handlefor mountingand releasing the
QL2.1system
Additional closure with buckle and D-ring (when
bag is carried with shoulder strap)
Bucklesfor closing roll closure at the top or
for attaching shoulder strap
Highly reflective 3M Scotchlite reflector
on both sides
+ Waterproofpannier pair with roll closure
+ Ideal pack for bikepacking, alp crossing and trekking tours
+ Light weight, sturdy PUlaminated rip stop nylon fabric
+ QL2.1 systemfor racks up to 16 mm,plus additional mounting hook for secure fixing to rack
+ Including reduction pieces for tube diameters 8, 10 and 12 mm; with anti-scratch function reducing abrasions on rack
+ TopQLhooks and lower sliding hook adjustable without requiring anytools
+ Lowerhook rail made of two-component „hard-soft“ synthetic reduces abrasions on carrier
+ Symmetrical shape allows use on right or left side
+ Highly reflective 3M Scotchlite reflectors
Contents: Single Pannier, reduction inserts for 8, 10 and 12 mm (two per size)
Optional accessories: Carrying SystemBike Pannier,Anti-Theft-Device(E124), Shoulder Strap (E172), QL2.1 hook 18 mm(E211), QL2.1 hook 20 mm
(E193)
Attention: Maximumload per pannier is 9kg / 20 lbs. Werecommendweighingeach loaded pannier to confirm that the maximumallowance of the
pannier fixation is not exceeded.Thispractice is advised for both rear and front panniers. CAUTION:Themaximumweightcapacity of everycarrier model
is different. Pleaseobserve the maximumweight allowance of the carrier fitted to your bicycle. Note: Sometimes the maximumcapacity of the panniers
fixing system can exceed the maximum capacity of the carrier. DONOTexceedthe maximumcapacity of the carrier! Note, that the useof panniers will
significantly influence the handling properties of yourbicycle.
Cannotbeusedwith a rack pack (25 mmconnector).
Note: In order to meet standard IP64 (6=dustproof 4=protected against splash watercomingfrom all directions) the lid must be rolled 3-4 times.
Exchangeablehook inserts in sizes
8, 10 and 12 mm
Edgeprotector with slots for mounting the ORTLIEBcarryingsystem
Hookrail madeof two-component
synthetic with anti-scratch function
2 slidable and rotatable hooks (15°
steps) with anti-scratch function
Automatically locking QL2.1 hooks with 16 mm diameter
GRAVEL- PACK
Waterproofpannier (single)
Height cm/in Width cm/ in Depth cm/ in Volume Ltr. Weight gr. max. capacity kg.
30/11.8 25/9.8 14/5.5 12.5 580 9
Sturdy rip stop nylon fabric
D-ring for fixing shoulder strap
(trap optional, sold separately)
„Tested top product“, Tipp
RADtouren5/17

MONTAGEANLEITUNG:
ASSEMBLY INSTRUCTIONS:
INSTRUCTIONS DE MONTAGE:
www.ortlieb.com WA106 0417
GRAVEL-PACK
GRAVEL-PACK ACCESSOIRES
ISTRUZIONI DI MONTAGGIO:
MONTAGE HANDLEIDING:
MONTERINGSVEJLEDNING:
INSTRUCCIONES DE MONTAJE:
MONTERINGS ANVISNING:
MONTERINGS ANVISNING:
ASENNUSOHJEET:
INSTRUKCJA MONTAZU:
SE
ES
NO
FI
PL
JP
DE
GB
FR
IT
NL
DK
= + Art. #E124 (s)= + Art. #E193
QL2.1 A
B C D
Anti-Scratch
function
12
8
10
8 mm
=
A
10 mm
=
B
12 mm
=
C
17 - 20 mm
13 - 16 mm
+
12 mm
C
11- 12 mm
= O.K
12
KLICK!!
5 - 8 mm
+
B
10 mm
A
+
8 mm
9 - 10 mm
10
KLICK!!
8
KLICK!!
Slide in insert
Pull Handle to open
2
1
10
10
= O.K
KLICK!!
Release Handle
Anti-Scratch
function
3-4x

K
AF
GH
K
IJOption 2
Option 1
open
close
E
= + 3 mm
10 mm 13 mm
90°
Anti-Scratch
function
= O.K.
open
close
QL2.1-SYSTEM
open
KLICK!!
close
Anti-Scratch
function
open
inside of bag
= N o4!
inside of bag
1.) 100 km (60 Miles)
2.) 500 km (300 Miles)
3.) 1000 km (600 Miles)
4.) 1500 km (900 Miles)
etc.
open
close
5
open
