ORVIS BATTENKILL User manual

1Foot Screw
2Foot
3Frame
4Adjusting Block
5Spindle
6Block Pivot
7Pawl Pivot
8Pawl Spring
9Drag Gear
10 Bronze Bushing
11 Handle Screw
12 Spool
13 Handle Washer
14 Handle Knob
15 Handle Screw
16 Quick-Release Cover Screw
17 Quick-Release Cover
18 Quick-Release Key Pin
19 Quick-Release Cover Pad
20 Quick-Release Key
21 Quick-Release Spring
22 Counter Weight
23 Counter Weight Screw
24 Pawl
BATTENKILL
®
741158_3FTX_Battenkill_Click_booklet.indd 1741158_3FTX_Battenkill_Click_booklet.indd 1 6/20/23 4:08 PM6/20/23 4:08 PM

BATTENKILL REEL SPECIFICATIONS
LINE WEIGHT I II III
WF1 100
WF2 75
WF3 50 100
WF4 75
WF5 50 125
WF6 100
WF7 75
INTRODUCTION
A simplistic design and flawless construction make the Battenkill®Reel a minimal-
ist’s dream. The Battenkill®features a classically styled, yet technically enhanced,
four position click-and-pawl drag system that is adjusted internally and is designed
to be used in tandem with the palm of your hand for fighting fish. Constructed with
a narrow spool for less line stacking on the retrieve and a larger spool diameter
for higher line retrieval rates, the Battenkill’s ultra-lightweight design balances
perfectly on shorter rods. It’s machined from heavy-duty bar stock aluminum,
features a curved reel foot, and can be switched between left- and
right-hand retrieve.
DRAG OPERATION
Battenkill® Reels feature a dependable four-position
click-and-pawl drag system. To adjust the drag,
remove the spool and turn the adjusting block (PART #4)
within the drag mechanism FIGURE 1 in either direction
to increase or decrease resistance. Sufficient drag
must always be applied when fighting a fish to
prevent the line from overrunning. Additional drag
may be applied by palming the spool rim with your
fingers or palm.
SPOOL REMOVAL
The spool release is located in the middle of the
reel spool. To remove, depress the spool release
latch while simultaneously lifting the spool out of
the reel body.
RIGHT-HAND CONVERSION
All Battenkill® Reels have the drag factory installed
for left-hand wind FIGURE 2.To change your reel to
right-hand wind, open the spool, remove the pawl
PART #24 within the drag mechanism, flip the pawl
over, slide it back into place, then reattach the
spool.
ROUTINE MAINTENANCE
Your new Battenkill® reel has been properly lubricated prior to shipping. However, it
should be cleaned and lubricated after extensive use or after contact with dirt or sand.
Your reel should receive routine cleaning and maintenance at least twice each year.
Lightly lubricate all moving components—handle, center spindle, and gear shaft with
Penn reel lube, which is available in tackle shops. Do not put the reel away wet, or into
a wet reel case or tackle box. For extended storage, remove both line and backing.

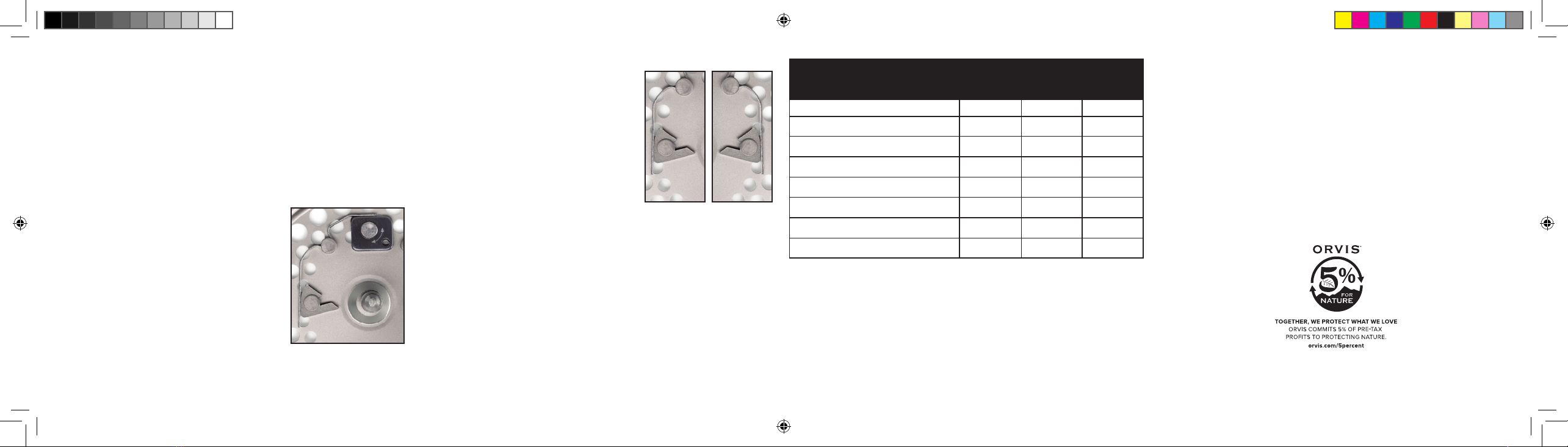

FIGURE 1 (PART #4)
BATTENKILL
®
CAPACITY CHART
CAPACITY IN YARDS
Stated capacities are based on Orvis 20-lb. Dacron® backing and a 90-ft. weight-for-
ward
floating fly line. If a double taper fly line is desired, deduct 50 yards from
stated capacities.
I Reel | weight: 3.4 oz. | 2.8"
II Reel | weight: 3.8 oz. | 3"
III Reel | weight: 4.1 oz. | 3.25"
Left-handed
retrieve
Right-handed
retrieve
FIGURE 2 PART #24 Guarantee:
Your Orvis Battenkill®Reel is unconditionally guaranteed against defects in
materials and workmanship.
Damaged reels can be repaired on an individual basis for a reasonable fee,
and we do offer a reel cleaning and reconditioning service.
Questions?
If you have any questions about the operation and maintenance of your new
reel, Orvis Technical Advisors are always available.
