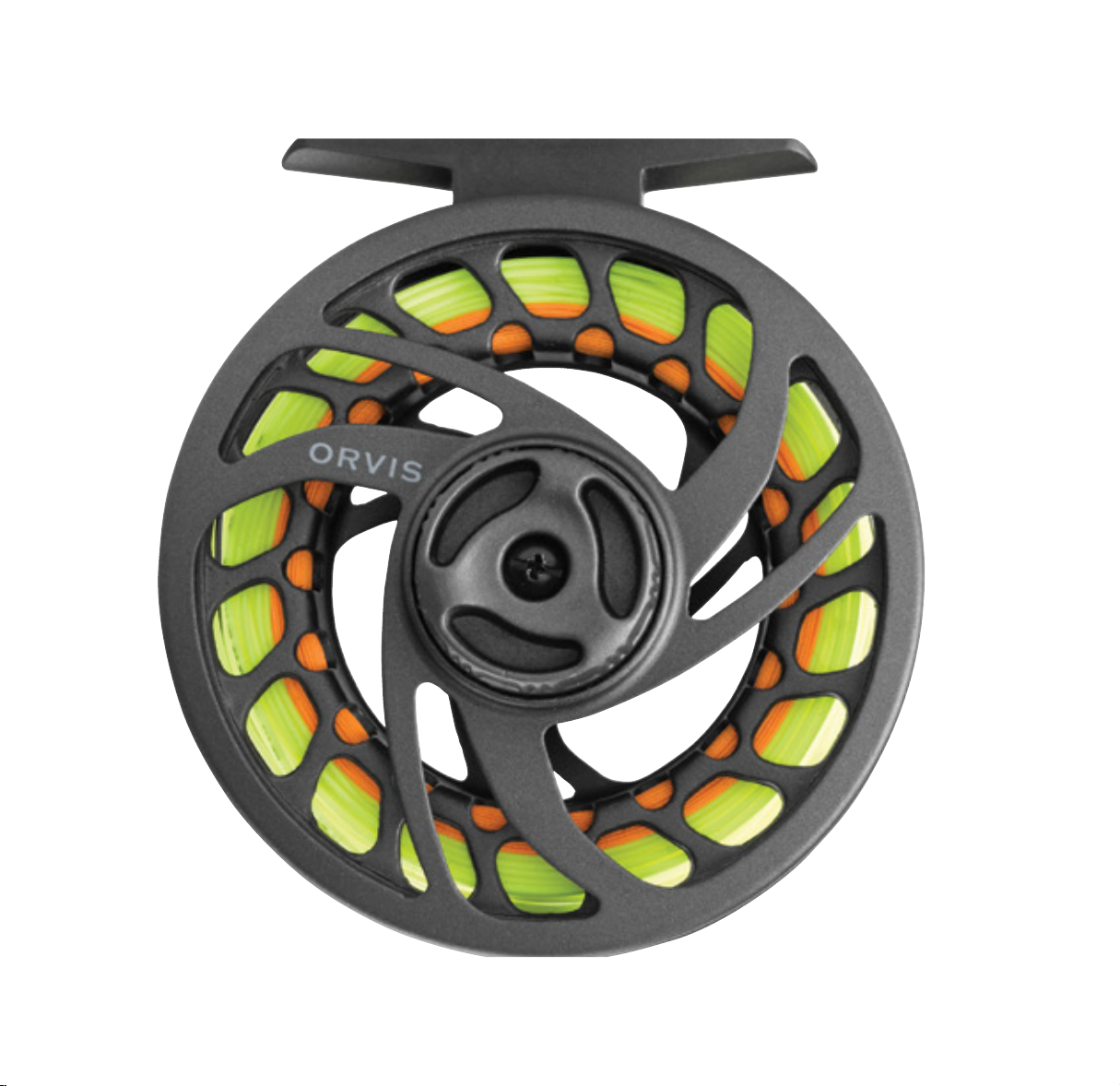

ORVIS CLEARWATER LARGE ARBOR User manual

CLEARWATER
LARGE ARBOR

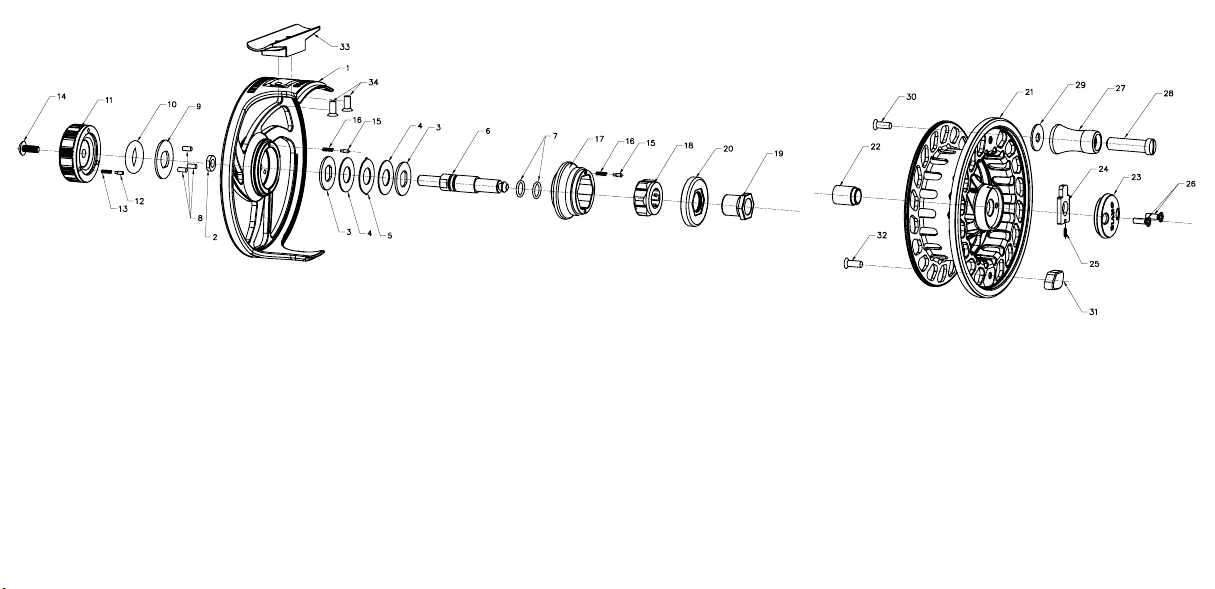

1Frame
2Main Shaft Nut
3Pressure Plate
4Drag Washer
5Friction Plate
6Main Shaft
7O-ring
8Push Pin
9Push Plate
10 O-Ring
11 Drag Knob
12 Drag Knob Clicker
13 Clicker Spring
14 Clicker Spring
15 Spindle Clicker
16 Clicker Spring
17 Drag Spindle
18 Clutch Bearing
19 Keyed Bush
20 Clicker Plate
21 Spool
22 Spool Bush
23 Spool Cap
24 Spool Retainer
25 Retainer Spring
26 Spool Cap Screw
27 Handle Knob
28 Handle Shaft
29 Handle Washer
30 Handle Shaft Screw
31 Counter Weight
32 Counter Weight Screw
33 Foot
34 Foot Screw

CLEARWATER
LARGE ARBOR
1Frame
2Main Shaft Nut
3Pressure Plate
4Drag Washer
5Friction Plate
6Main Shaft
7O-ring
8Push Pin
9Push Plate
10 O-Ring
11 Drag Knob
12 Drag Knob Clicker
13 Clicker Spring
14 Clicker Spring
15 Spindle Clicker
16 Clicker Spring
17 Drag Spindle
18 Clutch Bearing
19 Keyed Bush
20 Clicker Plate
21 Spool
22 Spool Bush
23 Spool Cap
24 Spool Retainer
25 Retainer Spring
26 Spool Cap Screw
27 Handle Knob
28 Handle Shaft
29 Handle Washer
30 Handle Shaft Screw
31 Counter Weight
32 Counter Weight Screw
33 Foot
34 Foot Screw

CLEARWATER
LARGE ARBOR
1Frame
2Main Shaft Nut
3Pressure Plate
4Drag Washer
5Friction Plate
6Main Shaft
7O-ring
8Push Pin
9Push Plate
10 O-Ring
11 Drag Knob
12 Drag Knob Clicker
13 Clicker Spring
14 Clicker Spring
15 Spindle Clicker
16 Clicker Spring
17 Drag Spindle
18 Clutch Bearing
19 Keyed Bush
20 Clicker Plate
21 Spool
22 Spool Bush
23 Spool Cap
24 Spool Retainer
25 Retainer Spring
26 Spool Cap Screw
27 Handle Knob
28 Handle Shaft
29 Handle Washer
30 Handle Shaft Screw
31 Counter Weight
32 Counter Weight Screw
33 Foot
34 Foot Screw

INTRODUCTION
Finally, a large arbor that’s lightweight enough to balance properly with your favorite
rod. Two years in design and development and with a powerful disc drag that can
hold its own with high-performance machined reels.
• Large arbor spool design
• Inline disc drag
• Easily converted to either left- or right-hand retrieve
• Positive click drag knob for consistent settings every time
• Offered in two sizes – II (4-6wt lines) & IV (7-9wt lines)
DRAG OPERATION
The Clearwater Large Arbor features a dependable center
line drag system. To adjust the drag, turn the knob FIGURE 1
clockwise to increase resistance, and counterclockwise
to decrease it. The minimum drag setting should never be
less than the pressure required to prevent over-running
of the line on fast runs. Additional drag may be applied
by palming the spool rim with your fingers or palm.
The easy drag adjustment is infinitely variable, providing
wide-ranging and controllable settings.
SPOOL REMOVAL
The spool release is located in the middle of the reel
spool. To remove, depress the spool release latch while
simultaneously lifting the spool out of the reel body.
RIGHTHAND CONVERSION
Clearwater Large Arbor Reels have the drag factory
installed for left-hand wind FIGURE 2. To change your
reel to right-hand wind, remove spool, pull the keyed bush
and clicker plate assembly PART #19 & #20 off the spindle.
Flip the clutch bearing PART #18 and reassemble.
ROUTINE MAINTENANCE
Your new Clearwater Large Arbor reel has been properly lubricated prior to shipping.
However, it should be cleaned and lubricated after extensive use or after contact with
dirt or sand. Your reel should receive routine cleaning and maintenance at least twice
each year. Lightly lubricate all moving components—handle, center spindle, and gear
shaft with Penn reel lube, which is available in tackle shops. Do not put the reel away wet,
or into a wet reel case or tackle box. For extended storage, remove both line
and backing and loosen the drag.

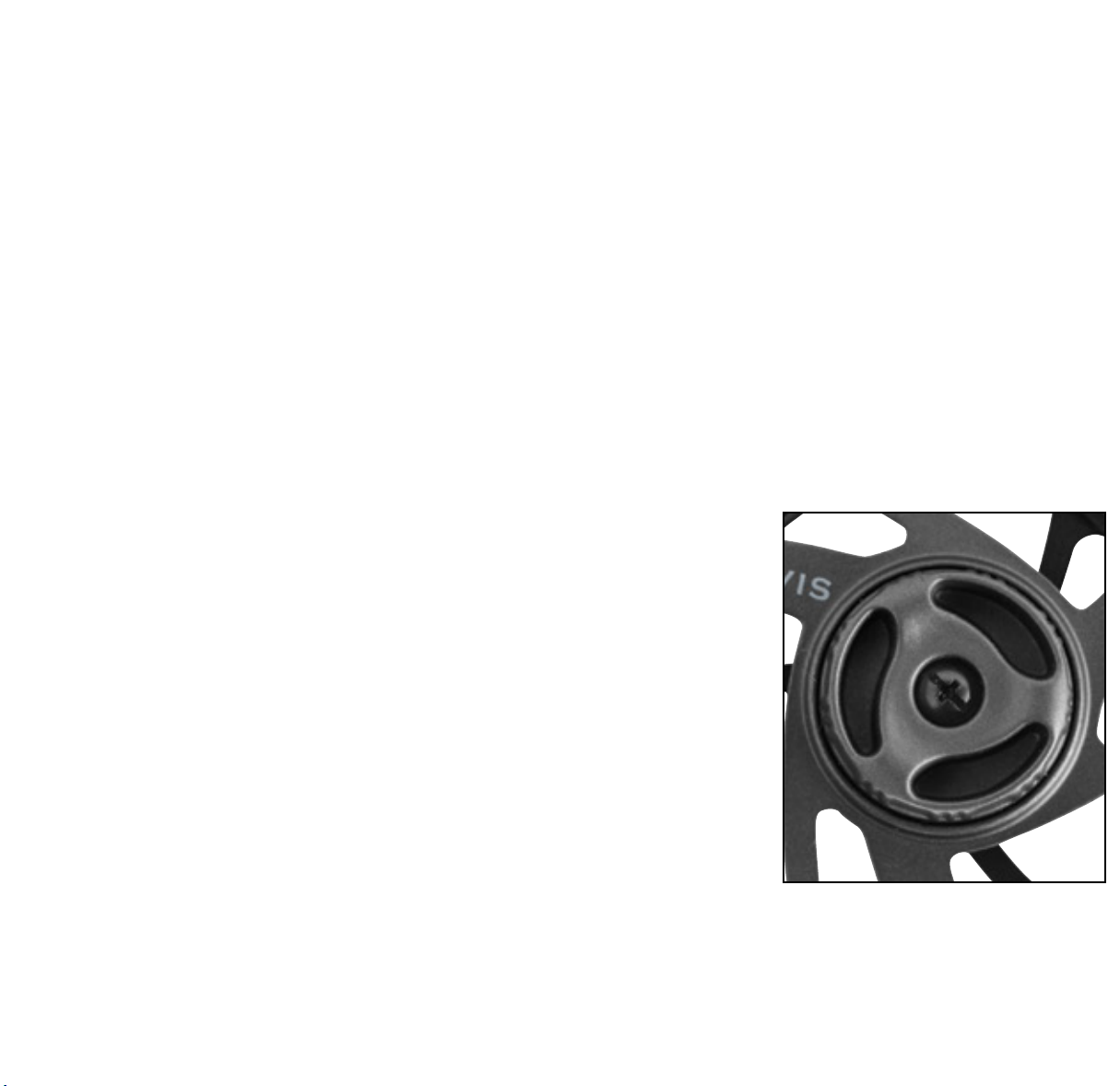

FIGURE 1

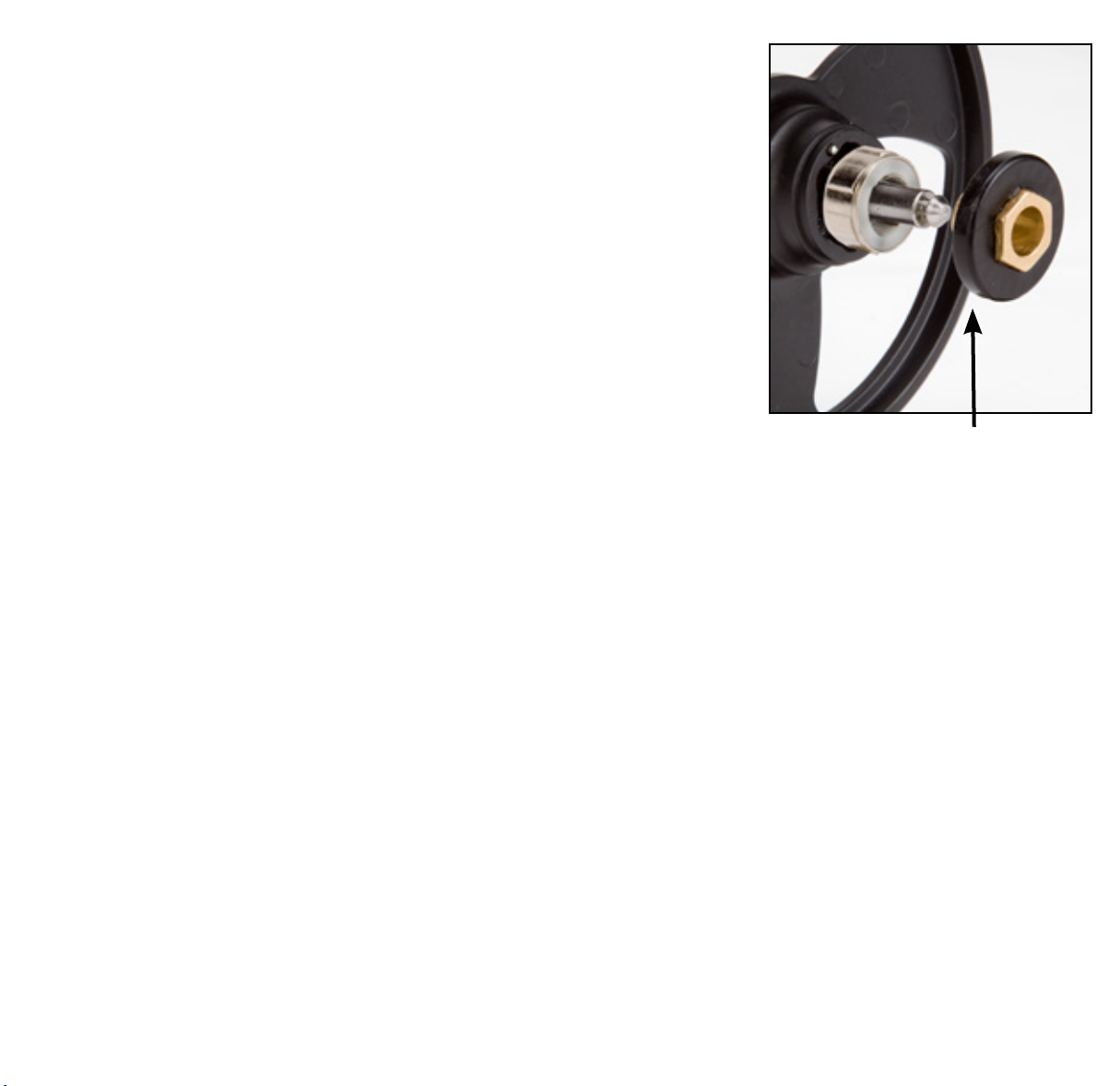

FIGURE 2 (PART #19 & #20)
GUARANTEE
Your Clearwater Large Arbor Reel is unconditionally guaranteed against defects in
materials and workmanship. Damaged reels can be repaired on an individual basis
for a reasonable fee, and we do offer a reel cleaning and reconditioning service.
Visit orvis.com/reelrepair for more information.
QUESTIONS?
If you have any questions about the operation and maintenance of your new reel,
Orvis Technical Advisors are always available.
E-mail: [e-mail] Phone: [phone]
Clearwater Large Arbor Fly Reel Specifications
Capacity in Yards
All capacities are quoted using 20-lb. Dacron®backing.
II Reel | weight: 5.4 oz. | 31⁄2"
IV Reel | weight: 6.1 oz. | 33⁄4”
LINE WEIGHT II IV
WF4 125
WF5 100
WF6 75
WF8 225
WF9 200
WF8 175
CLEARWATER LARGE ARBOR
CAPACITY CHART
THE ORVIS COMPANY | ORVIS.COM/FLYFISHING
MADE IN CHINA
7018
