Osada APIT 11 User manual

- 0 -
OSADAAPIT 11
APEX LOCATOR
0123
OSADA ELECTRIC CO., LTD.
We thank you for your purchasing
OSADAAPIT 11.
This instruction manual is for how to
operate and maintain the OSADA
APIT 11 properly to get its best per-
formance.
When you have any queries about this
product, please contact the authorized
OSADA distributor you purchased this
product from or directly OSADA
INSTRUCTION FOR USE
ENGLISH

- 1 -
Contents refer to Page 5.
FOR DANGER PREVENTION
Read carefully “Cautions for Handling the Device”in the instruction manual, and maintain with utmost
care the good condition for the function, reliability and safety of the device.
In this instruction for use, the following marks are used for preventing the possible danger.
There is a danger of serious injury to the user when mistakes in opera-
tions are made.
There is a danger of injury to the user when mistakes in operations are
made which may lead to damage or functional troubles in the equipment.
FOR EXEMPTION CLAUSES
We are not responsible for:
1. The damages or troubles caused by the installation, transfer, maintenance, or repair handled by
others who are not specified by us.
2. The damages and troubles caused by the other manufacturer’s product which we did not provide.
3. The damages and troubles caused by the maintenance, repair, etc. using the parts which are not
the genuine parts specified by us.
4. The damages and troubles caused by the negligence of the necessary cautions or proper
operations which are explained in this instruction manual.
5. The damages and troubles caused by the improper environmental conditions indicated in this
instruction manual including the condition of electricity source and installation environment.
6. The damages and troubles caused by the natural calamities such as Fire, Earthquake, Flood,
Lightning, etc.
Do not remodel the equipment.
FOR REPAIRS
Please contact the authorized OSADA distributor or OSADA (Tokyo) for repairs. When contacting, please
inform the product name, serial (manufacturing) number and the kind of the trouble with the equipment.
WARNING
CAUTION
WARNING

- 2 -
Contents refer to Page 5.
CAUTIONS FOR HANDLING THE DEVICE
For using the OSADA APIT 11 safely, read carefully the instruction manual beforehand and follow
strictly the instructions and cautions.
If there are points which are not understandable, before utilizing the device, please contact the
authorized OSADA distributor or directly OSADA (Tokyo) to clarify.
●PRECAUTIONS (INSTALLATION)
(1) Avoid the place where water affects the device.
(2) Place the device on the surface with less than 1 degree inclination.
(3) Do not be subject to strong shock, as when dropped. Besides that, be careful
not to drop on foot.
(4) Remove the dry batteries from the device if it is not expected to be used for a
long time or when the device must be transported to another location.
(5) Be careful about electromagnetic disturbance, in case of using in combina- tion
with other devices.
●PRECAUTIONS (IN USE)
(1) Do not use the device other than the dentist.
(2) Do not use the device for any purpose except measurement of the root canal
length.
(3) Do not use if the patient is using a Pacemaker, in consideration of safety.
(4) Do not use in combination with an electro-surgery unit, as there is danger of
damage to the device.
(5) If the abnormality is felt on the position which meter is indicating, always confirm
the position of K-file or reamer by the X-ray film without fail.
(6) The buzzer sound tells when the K-file or reamer reaches W.L. (working length).
When it happens, not only relying on the sound, always double check with the
meter indication without fail.
(7) Use the rubber dam not to swallow, by mistake, the lip clip, K-file or reamer.
(8) To prevent the infections, sterilize the lip clip and file holder cord by the steam
autoclave before using them.
WARNING
CAUTION

- 3 -
Contents refer to Page 5.
●PRECAUTIONS (IN USE)
CAUTION
(1) Use the device in enough luminance to read the meter indication.
(2) When the ambient temperature is low, it may happen that the symptoms like
the indications appear on the display panel rather slow, etc. Use the
device in appropriate environmental temperature, 10~40℃.

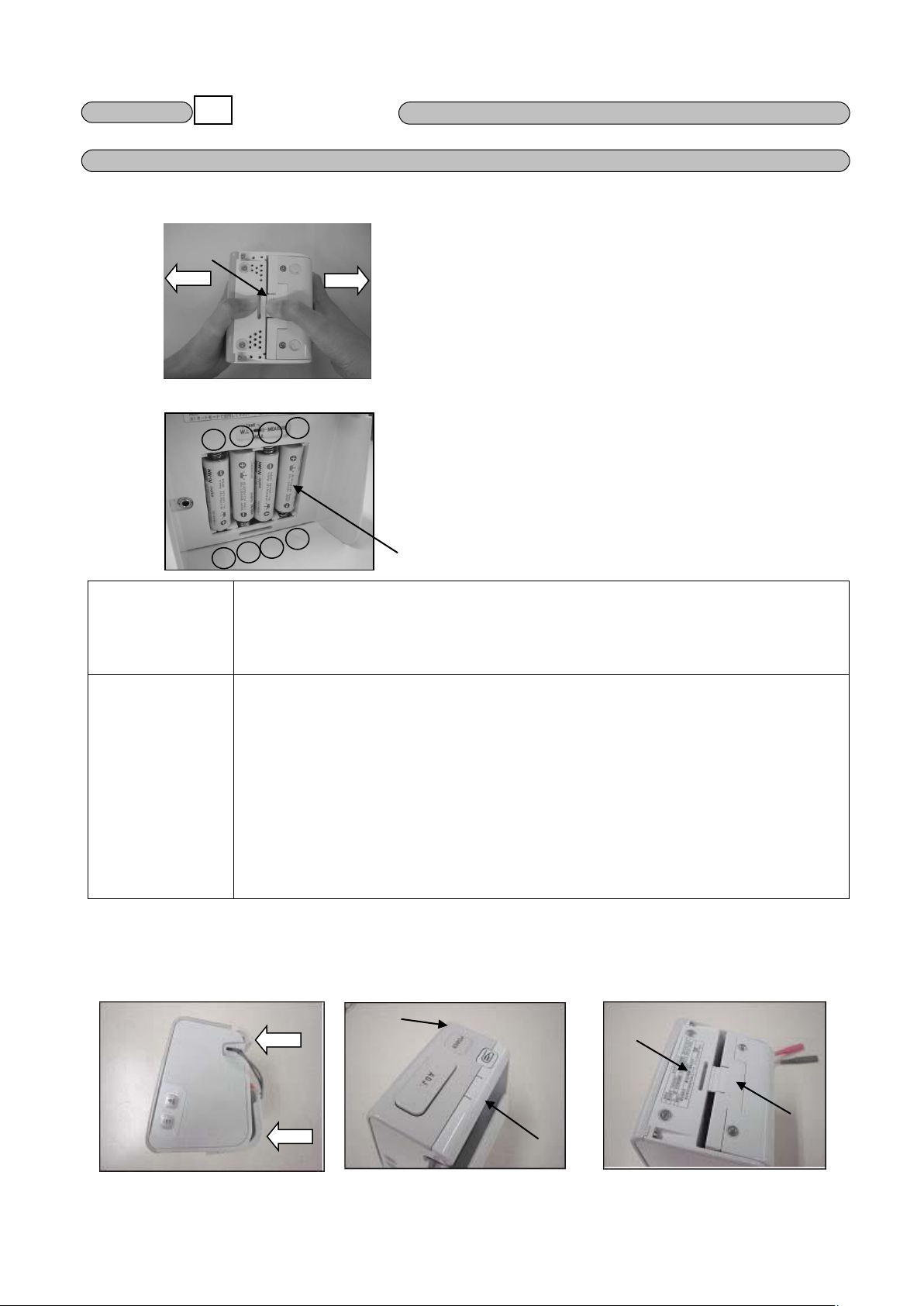

(3) Use an AA-size alkaline dry battery or AA-size nickel-hydrogen battery as the
electric power source. Do not use a manganese dry battery.
(4) Dry batteries are not set up in the device at the time of delivery. Please load
dry batteries properly in the device with the specified manner.
(5) Be careful about electrical leakages due to cervical caries and/or metallic
fillings in the patient's tooth.
(6) Use the K-file or reamer with the plastic handle. The metallic handle can not
be used.
(7) Measure the root canal which is filled with normal saline or sodium hypo-
chlorite as conductive solutions.
(8) Do not use strong acidic water, as there is danger of corroding the device.
●PRECATIONS (AFTER USE)
(1) After use, wipe both the inside and outside surfaces of the metallic clipping end
of the file holder cord with a cotton dipped in ethanol
●PRECATIONS (DISINFECTION/STERILIZATION)
(1)Take care of getting sufficient aeration to prevent the side effects from the
remaining gas of EOG sterilization, such as headache, dizziness, nausea, faint,
respiratory arrest, etc. by inhaling. Be careful of the skin wound by touching the
solution.
(2)High pressure steam sterilization is possible for the file holder cord and lip clip
only and if others are given the method of sterilization other than EOG
sterilization, (for example, high pressure steam sterilization), it may cause the
damage to them or they will not be able to perform well with sufficient efficiency.
CAUTION
CAUTION

- 4 -
Contents refer to Page 5.
●PRECATIONS (CHECKUP AND MAINTENANCE)
Be careful about the followings at the time of checkup, maintenance or exchange of expendables.
(1)Work after turning off the power switch. There is a danger of electrical leak- age
or shock.
※After the work, etc or when needed, turn on the power switch to confirm.
(2)Do not modify this equipment without authorization of the manufacturer.
(1) Make periodical checkup and maintenance.
(2) Wipe the surface of the Apit body with a soft cloth dipped in neutral detergent
which should then be followed by a wiping with a cloth dipped in water. (Wiping
with the OSADA Unit Cleaner is also acceptable, in this case.) Do not use
thinner, benzine or other chemical solutions, in this case. Wipe immediately
when dirtied by a medicament solution.
(3) Exchange for new batteries when the battery power indication shows one
level out of 3 levels.
(4) First check the device under 6.2 “Checkup”and then use it, when the
device is not used frequently,
※When the device gets out of order, do not try to repair by yourself, after indicating about it properly,
call for the authorized Osada distributor.
●PRECAUTIONS (STORAGE)
(1) Storage conditions are as follows.
Ambient Temperature -10－60°C
Relative Humidity 10－90%
Atomospheric Pressure 700－1060hPa
※When storing the device in the carton box for a long time, keep it in the
room.
(2) Store the device at the place where water or medical solutions do not affect.
(3) Check the device before use when the device has been stored for a long time.
●PRECAUTIONS REGARDING DISPOSAL
Do not dispose or treat the device as household waste but must process to
Directive 2002/96/CE. Should you wish to definitively dispose the device, please
comply with the regulations which apply in your country.
WARNING
CAUTION
CAUTION
CAUTION

- 5 -
＜CONTENTS＞
●FOR DANGER PREVENTION………………………………………………………………………..1
●EXEMPTION CLAUSES
●FOR REPARS
●CAUTIONS FOR HANDLING THE DEVICE………………………………………………………..2
1FEATURE……………………………………………………………………………………….6
2 PURPOSE OF UTILIZATION…………………………………………………………………7
3 SYMBOL DEFINITIONS
4 SPECIFICATIONS…………………………………………………………………………….8
5 NAME OF THE PARTS……………………………………………………………………….9
6 OPERATIONS………………………………………………………………………………..12
7 CLEANING, DISINFECTION AND STERILIZATION……………………………………..24
8 EXPENDABLE ITEMS……………………………………………………………………....26
9 WARRANTY PERIOD EXCEPT EXPENDABLE ITEMS
10 HIGH PRESSURE STEAM STERILIZER………………………………………………….27
11 REFERENCES………………………………………………………………………………..28

- 6 -
1. Accurate Measurement can be obtained.
Due to the measurement under relative value method using two different measuring frequencies
(1kHz and 5kHz.), the accurate measurement can be obtained.
2. Adjustment Function is incorporated.
The fundamental of precise measurements of Osada Apit 11 is to make adjustment (zero
adjustment). Osada Apit 11 incorporates two adjustment modes, auto and manual, which can be
selected by the dentist, depending on the preferred technique.
Root canals with subgingival caries, residual pulp, etc. which are liable to cause electric leakage
and not easy to measure, may be measured by pressing the ADJ. switch, as the result,
measurable clinical cases are widened.
3. File Holder Cord has become easier to use than before.
A part of the file holder cord which can be put in the mouth is10mm longer, so to approach the
molar has become easier. The metal clipping end has become 0.5mm thinner, so the length of
the K-file (or reamer) is used efficiently.
4. Reliable and Safe Treatment
1) The checker function is incorporated, so the device actuation can be checked periodically and
safely operated.
2) The measuring current is less than 2 microamperes at the maximum, and very safe for the
patient.
5. Environmentally Friendly
1) The battery-life has become longer, it approximately lasts 150 hours and the trouble of the
battery exchange has become less.
2) The rechargeable nickel hydride battery (AA-size) lasts approximately 100 hours by one full
charge, which can be used repeatedly, is also usable.
6. Easy to Understand
The large colored-liquid crystal display is easy to read and understand the device conditions
from the icon indicated on the display.

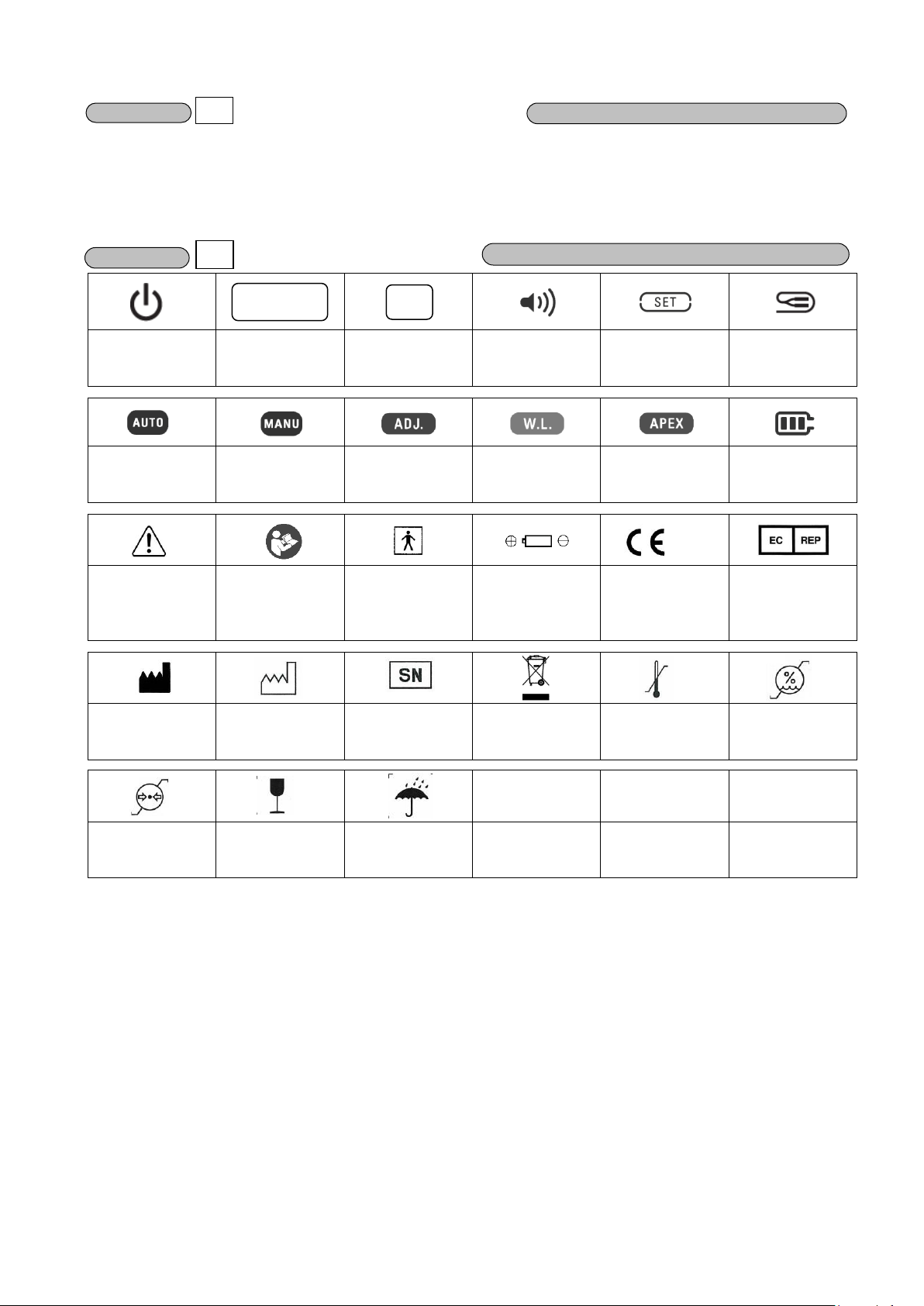

1FEATURES

- 7 -
Osada Apit 11 is an electronic root canal measuring device. It measures the root canal length by the
impedances between the electrodes of the file holder cord and lip clip in the root canal.
ADJ.
SET
ON/OFF
(Push-Push)
ADJ. Switch
Start-up Position of
Intermittent Buzzer
Sound
Volume of
Buzzer
Sound
Set Icon
Auto-
Winding
Auto
Adjustment
Icon
Manual
Adjustment
Icon
Zero
Adjustment
Icon
Working
Length
Icon
Apical Foramen
Icon
Battery Level
Icon
Warning/Caution
Consult
accompany- ing
documents
Warning/Caution
Consult
accompany- ing
documents
Type“BF”
Applied Part
Dry Battery
Indication
CE
Marking
Authorised
Representative
in the European
Community
Manufacturer
Date of Manu-
facture
Serial
Number
Not to be Disposed
of as Household
Waste
Temperature
Limitation
Humidity
Limitation
Atmospheric
pressure
Limitation
Fragile , handle
with care
Keep dry
3SYMBOL DEFINITIONS
2 PURPOSE OF UTILIZATION
0123
50°C
-10°
C
700hPa
1060hPa
10%
90%

- 8 -
ITEM
SPECIFICATION
REMARKS
1. Product
Osada Apit 11
2. Model (Model Number)
EM-S11
3. Classification according to the type
of protection against electric shock
Internally powered equipment
EN60601-1
4. Classification according to the degree
of protection against electric shock
Type BF applied part
Ａpplied part：File Holder Cord、Lip Clip
EN60601-1
5. Classification according to the degree
of protection against water perme-
ability
IPX0
6. Operating Mode
-Continuous operation
-The device meant to be used as transient
(the continuous duration is limited to less
than 60 min.)
7. Precautions against flammable
atmospheircs
This device is not suitable to be used in the
air/flammable anesthetic gas, oxygen,
nitrous oxide, or flammable anesthetic gas.
8. Power
Source①
Power Voltage
DC 6 V
Applicable Battery
4 pcs. of AA-size alkaline dry batteries
Power Input
15mA
9. Power
Source②
Power Voltage
DC 4.8 V
Applicable Battery
4 pcs. of AA-size rechargeable nickel
hydride batteries
Power Input
20mA
10. Body Dimensions
100 (W)mm x 79 (D)mm x 101 (H)mm
11. Body Weight
420 grams (excluding batteries)
12. Environmental Conditions (IN USE)
Ambient Temperature…10 ~ 40ºC
Relative Humidity……… 30 ~ 75%
Atmospheric Pressure…700 ~ 1,060hPa
Less than 2,000m altitude
13. Software Version
Ver 1.00
14. User (Dentist)
-The dentist who has normal vision and
normal audibility (the dentist who has the
slight impairment in vision or audibility or
the vision corrected to more than log
MAR0.2 (6/10 or 20/32) or audibility
corrected to be able to hear 30dB is
accepted.).
-No particular education or training
required for operating the device.
-Should read and understand English and
the Arabic figures.
4SPECIFICATIONS

- 9 -
NAME OF STANDARD COMPONENTS
Spare parts
NO.
NAME
QTY.
REMAKRKS
①
Osada Apit 11 Body
1
②
Probe Cord Auto-Winding Module
1
③
Probe Cord (inside the module)
1
Expendable item
④
File Holder Cord
1
Expendable item
⑤
Lip Clip
2
Expendable item
⑥
AA-size Dry Battery
4
⑦
Instruction for Use
1
①
②
⑦
⑤
④
⑥
③
5NAME OF THE PARTS

- 10 -
NAME OF OSADA APIT 11 BODY AND FUNCTIONS
NO.
NAME
FUNCTIONS
➀
Digital Display
Displays performance on screen. For details refer to Page 11.
②
Power Switch
On-Off switch of the power.
③
ADJ.(adjustment) Switch
When the K-file (or reamer) is inserted into the root canal and
the ADJ. switch is depressed, the meter needle on the display
panel falls on “ADJ.”it means, zero adjustment was made.
④
Buzzer Switch
Adjusts the volume of the buzzer sound.
⑤
Set Switch
Changes the start-up position of the intermittent buzzer
sound. For details refer to Page 14.
⑥
Checker Switch
Checks functions of the body. For details refer to Page 23.
⑦
Probe Auto-Winding Button
Is used for winding the probe cord. For details refer to Page
22.
➀
②
⑤
④
③
⑦
⑥
5NAME OF THE PARTS

- 11 -
NAME OF OSADA APIT 11 DIGITAL DISPLAY AND FUNCTIONS
NO.
NAME
FUNCTIONS
①
Display Meter
Can view the changes of the distance to the apical
foramen with the movement of the meter needle.
②
Battery Level Icon
Shows the remaining battery power in 3 levels.
③
Buzzer Sound Icon
Shows the volume of the buzzer sound in 3 levels.
④
Set Mode Icon
Shown when start-up position of the intermittent buzzer
sound is set by the set switch being depressed.
⑤
Auto-Adjustment Mode Icon
Shown when the auto-adjustment mode is selected.
⑥
Manual-Adjustment Mode Icon
Shown when the manual-adjustment mode is selected.
⑦
ADJ. (adjustment) Icon
Shown when zero adjustment is made.
⑧
W.L. (working length) Icon
Shown when the tip of the K-file or reamer reaches the
working length (W.L.).
⑨
APEX (apical foramen) Icon
Shown when the tip of the K-file or reamer reaches the
apical foramen (APEX).
④
⑤
⑥
⑦
⑨
⑧
①
②
③
5NAME OF THE PARTS

- 12 -
6. 1 ATTACHMENT OF PARTS
1. Detach the Auto-Winding Module.
Detach the auto-winding module from Osada Apit 11 body
by pressing its bottom.
2. Loading Dry Batteries.
Load dry batteries to the Osada Apit 11 body, in
accordance with the (+) and (-) polarity indications on the
dry battery. The spring side in the battery case of the
body is (-) polarity side.
Do not use with (+) and (-) polarity indications on the dry batteries reversed. The
device can be damaged. There is also danger of the batteries heating up, the
liquid leaking and/or the batteries exploding, due to the abnormal reaction by
charging batteries.”
1) Do not use batteries which mix new batteries with used batteries or mix up
different types of batteries. There is danger of the batteries heating up, the
liquid leaking and/or the batteries exploding, due to the difference in
characteristics.
2) Take out used-up batteries immediately from the device. If the used-up
batteries are left in the device for a long time, there is danger of the
batteries heating up, liquid leaking out, the batteries exploding and/or
damage the device due to the gas generated by its high electric discharge
from battery.
3) For using a device, read carefully the cautions for the charger of the
rechargeable nickel hydride battery (AA-size) and also for how to charge
the battery.
3. Attaching Auto-Winding Module.
First, insert the upper part ➀of the auto-winding module into Osada Apit 11 body and set in toward
the arrow-indication by pushing the lower part②of the auto-winding module.
Side View Top-Down View Reverse View
Dry Batteries
Body
Module
Body
Module
①
②
WARNING
CAUTION
6OPERATIONS
＋
－
＋
－
－
＋
－
＋
Its Bottom

- 13 -
6. 2 CHECKUP
1. Checking Before Use（Please do it before use）
1) Confirm the connection.
Confirm if the auto-winding module, file holder cord and lip clip are properly connected.
2) Confirm the actuation.
Confirm if the power switch can be turned on and off.
Confirm if the remaining battery power shows more than 1 levels.
2. Checking After Every Use
1) Confirm the connection.
Confirm if the auto-winding module, file holder cord and lip clip are properly connected.
2) Confirm the actuation.
Confirm if the power switch can be turned on and off.
Confirm if the remaining battery power shows more than 1 levels.
3. Checking Occasionally
1) Confirm by the checker.
Confirm the actuation by using the checker incorporated in the Osada Apit 11 body.
For details of how to use refer to Page 23.
2) Confirm the actuation.
①Confirm if the metal clip of the file holder cord is not corroded or dirtied.
②Confirm if the meter needle swings out when lip clip and the metallic clipping end of the file
holder cord is in contact.
4. Checking Before Use After Long Storage
1) Confirm standard components.
Provide OsadaApit 11 body, auto-winding module, file holder cord and lip clip.
2) Confirm the connection.
Confirm if the auto-winding module, file holder cord and lip clip are properly connected.
3) Confirm the actuation.
Confirm if the power switch can be turned on and off.
Confirm if the remaining battery power shows more than 1 levels.
4) Confirm by the checker.
Confirm the actuation by using the checker incorporated in the Osada Apit 11 body.
For details of how to use refer to Page 23.
5. Checking Periodically.
It is recommended to check the device periodically in order to maintain the device in the normal
condition. Regarding items and contents of the checkup, please contact the authorized Osada
distributor you purchased or directly Osada Electric Co., Ltd.
6OPERATIONS

- 14 -
6. 3 HOW TO SET UP
1. How to adjust the Buzzer Sound.
(At the time of factory-delivery, the buzzer sound is preset to the maximum.)
2. How to change the Adjustment Mode from Auto Adjustment Mode to Manual Adjustment
Mode.
(In the factory default, the adjustment mode is preset in the auto adjustment mode.)
6OPERATIONS
1) Switch ON the power switch on the upper part of Osada
Apit 11 body by pressing it
2) Depress the buzzer switch on the side of Osada Apit 11
body and adjust the buzzer volume as you want.
Sound
(Minimum)
Sound
(Maximum)
Return
3) The buzzer volume can be adjusted in three (3) levels as
above by pressing the buzzer switch repeatedly.
■MANUAL-ADJUSTMENT MODE
■AUTO-ADJUSTMENT MODE
CHANGE
Buzzer Switch
Set Switch
Power Swtich
1) First, turn off the power switch, and then depress the
power switch again while depressing the buzzer switch and
set switch on the side of Osada Apit 11 body at the same
time.
2)By doing so, the adjustment modes can be changed over
from the auto adjustment mode to the manual adjustment
mode and vice versa.
At the time of factory delivery, Osada Apit 11 is preset in the
auto-adjustment mode, therefore, by doing the above, the
adjustment mode can be changed to the manual
adjust-ment mode.

- 15 -
Meter Needle
Meter Needle
6. 3 HOW TO SET UP
3. How to change the Start-up Position of the Buzzer Sound (intermittent).
(At the time of factory delivery, the starting position is preset to the working length (W.L.).)
1) Depress the set switch once on the side of
Osada Apit 11 body. The set mode icon, , is
indicated on the display panel, at the same time,
the meter needle blinks.
2) When the set mode icon, , is indicated and
the meter needle is blinking, by depressing the set
switch again, the meter needle makes one scale
move to the right by one time depressed within the
range shown in the right figure and the start-up
position of the buzzer sound can be changed.
When keep depressing, the meter needle moves faster.
3) After the start-up position of the buzzer sound (intermittent)
is set, release the set switch on the side of Osada Apit 11.
body start-up position is inputted and the set mode icon, ,
will disappear from the display panel after three seconds.
Do not measure when the set mode icon, , is indicated on the display
panel. Always use after the set mode icon, , disappears from the display
panel.
The volume of the buzzer sound, changeover of the auto/manual adjustment
modes and start-up position of the buzzer sound are memorized even if the
power switch is turned off.
WARNING
CAUTION
6OPERATIONS

- 16 -

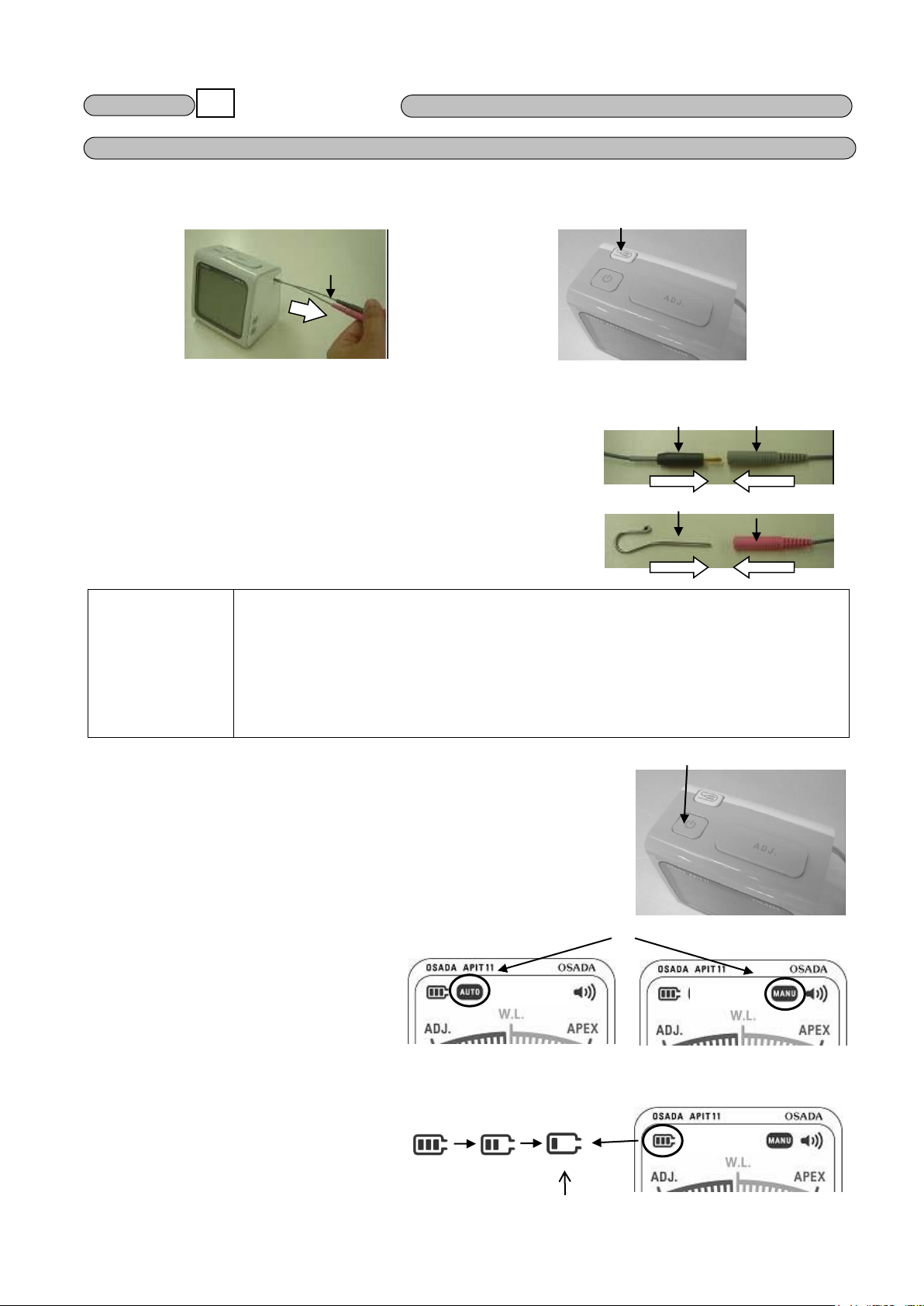

6. 4 PREPARATION BEFORE USE
1. How to pull out the Probe Cord from the Auto-Winding Module.
1) Pull out the probe cord in the horizontal direction.
2) If the probe cord is pulled out too long, retract it a little by depressing the probe winding button.
2. How to attach the File Holder Cord and Lip Clip.
1) Insert the plug of the file holder cord into the socket (grey)
of the probe cord.
2) Insert the lip clip into the socket (pink) of the probe cord.
1) Do not use the file holder cord and lip clip made by other manufacturer. If
those items made by other company are used, it is possible that sufficient
accuracy of measurement can not be gained.
2) Insert the plug of the file holder cord and lip clip fully into the socket.
3)To prevent infections, sterilize the lip clip and file holder cord by
steam-autoclave before use.
3. Turning on the Power and Confirming the Setup.
1) Turn on the power by depressing the power switch
on top of Osada Apit 11 body.
2) Confirm the adjustment mode.
(When changing the adjustment
mode, refer to 6.3 2. “How
to change the Adjustment Mode
from Auto Adjustment
mode to Manual Adjustment
Mode”of Page 14.)
3) Confirm the battery level icon
(the remaining battery power).
BATTERY LEVEL ICON
Socket (grey)
Lip Clip
Time for replacement
of dry batteries
CAUTION
Probe Cord
File Holder Cord
Socket (pink)
adjustment mode
6OPERATIONS
Probe Winding Button
Power Swtich

- 17 -

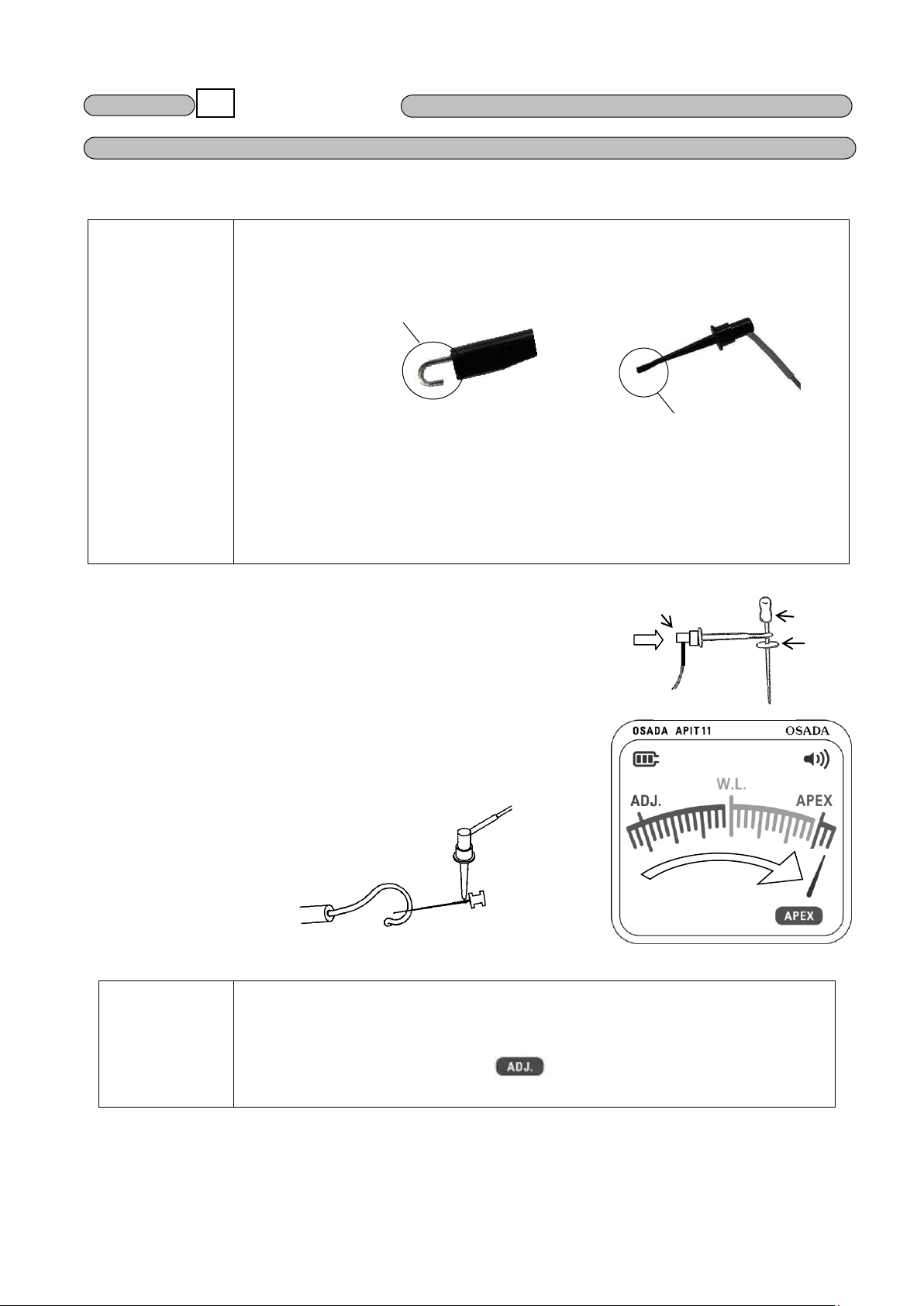

6. 4 PREPARATION BEFORE USE
4. Confirm the Faulty Connections and Cord Disconnection.
1) In order to assure stable measurements, wipe the metallic clipping end of the
file holder cord with cotton dipped in ethanol before measurements.
2) In order to prevent the faulty connection, confirm the metallic clipping end of
the file holder cord in which the K-file (or reamer) is clipped for corrosion or
accumulation of dirt.
3) In order to prevent electrical leakage, do not use the K-file (or reamer) with
the metallic handle.
1) Attach the K-file (or reamer) to the metallic clipping end of the
file holder cord.
2) Contact the lip clip with the metallic part of the K-file
(or reamer) and confirm that the meter needle on
the display panel swings into the right side beyond the
APEX position.
In case of the auto-adjustment mode, the zero adjustment may take place
automatically when contacting the lip clip with the metallic part of the K-file (or
reamer). In this case, confirm that the meter needle indicates the end of the
left side and the adjustment icon, , disappears when the lip clip and the
metallic part of the K-file (or reamer) is released.
Metallic Clipping End
File Holder
Rear end of
File Holder Cord
Plastic
Handle
Rubber
Stoppe
r
K-file (or reamer)
Lip Clip
CAUTION
File Holder Cord
CAUTION
6OPERATIONS

- 18 -
6. 5 HOW TO USE
Measurement by Auto-Adjustment Mode
1. Moisturizing the Root Canal.
1) The tooth which is being measured should not
be wet. Use a rubber dam or cotton rolls for
prevention from moisture.
2) Fill the root canal with a medicinal solution.
(Uniform the condition inside the root canal.)
▪Fill the solution up to the orifice of the root canal
with pincers or a syringe. In this case, medicinal
solution should not overflow.
▪In general, the normal saline solution is used as
medicinal solution. The medicinal solution of
good conductivity such as sodium hypochlorite,
EDTA, etc. can be used as well. In case of treating
a residual root, the medicinal solution tends to
overflow and may leak from the margin around tooth structure, as the result, the zero
adjustment becomes unstable. In this case, dry and clean the medicinal solution with paper
points and change the solution to normal saline solution if it was not so.
Always use a rubber dam for patient not to swallow the K-file (or reamer) or lip
clip by mistake.
As hydrogen perioxide (H2O2) is not the medicinal solution of good conductivity,
the measurement will show unstable state.
3) Hang the lip clip on the patient’s lip.
2. Inserting the K-file (or Reamer) into the Root Canal.
1) Insert the tip of the K-file (or reamer) into the root canal which is filled with the medicinal
solution.
2) After inserting the K-file into about till the middle of the root canal, clip it with the metallic
clipping end of the file holder cord.
The zero adjustment takes place automatically, at the same time, the adjustment icon, ,
appears on the display panel. It means that the condition inside the root canal has been
inputted.
While the zero adjustment is in work, it can be cancelled in three (3) seconds after detaching
K-file from the metallic clipping end of the file holder cord or extracting the K-file from the root
canal, as it means the electric circuit is blocked off.
During use, do not depress the probe winding button. There is a danger that the
tip of the probe cord may hit the body.
6OPERATIONS
A medicinal solution
should be at less than
the orifice of the root
canal.
Root Canal Orifice
Lip Clip
Cotton Roll
Rubber Dam
Pincers
Syringe
CAUTION
WARNING
CAUTION

- 19 -
6. 5 HOW TO USE
Measurement of Auto-Adjustment Mode
3. When the Zero Adjustment does not take place automatically.
When the zero adjustment does not take place automatically, even if the meter needle swings
widely, make the following 1) and 2) steps:
1) If there are any uncertain electric leakages, there is a chance
to be able to measure the root canal by depressing theADJ.
switch. If the zero adjustment can take place by depressing
the ADJ. switch, at the same time, the adjustment icon, ,
is indicated on the display panel, it means that the condition
inside the root canal has been inputted.
When canceling the zero adjustment, wait for three (3)
seconds or blocking the electric circuit, or switch off the power.
When turning on the power switch again, the zero adjustment is cancelled and ready for the
next measurement.
2) There are cases that the medicinal solution overflows from
the orifice of the root canal and leaks to the gingival. In this
case, measure again after wiping it with cotton rolls, etc.
When the medicinal solution overflows, accurate measurement
is not possible.
When gutta percha, etc remains in the root canal, the meter needle does not
swing and the accurate measurement is not possible.
Measurements of Manual-Adjustment Mode
4. Moisturizing the Root Canal.
Refer to 6.5 1. Moisturizing the Root Canal of Page 18.
5. Inserting the K-file (or Reamer) into the Root Canal.
1) Insert the tip of the K-file (or reamer) into the root canal which
is filled with the medicinal solution.
2) After inserting the K-file till about the middle of the root canal,
clip it with the metallic clipping end of the file holder cord
and depress the ADJ. switch, at the same time, the adjustment icon, , appears on the
display panel. It means that the condition inside the root canal has been inputted. In case the
zero adjustment is to be cancelled, turn off the power switch once. When the power switch is
turned on again, it works again in the condition of the manual adjustment being canceled.
During use, do not depress the probe winding button. There is a danger that the
tip of the probe cord may hit the body.
6OPERATIONS
Medicinal solution
should be at lower
than the orifice of the
root canal
Root Canal Orifice
CAUTION
Power Swtich
ADJ. Switch
Power Swtich
ADJ. Switch
CAUTION
