Osotto ES-M13 User manual

User Manual - Oscooto
Foldable Electric Scooter
Model ES-M13

Important Safety Notice
Before using your scooter please read this manual carefully.
Riding an electric scooter can be dangerous and can result in injury to the
rider and / or others. This can include death. You ride at your own risk, but
please use common sense and follow all safety instructions.
This scooter is suitable for persons aged over 16years old who are in a good
state of health and balance. Parents should carefully supervise children if
they are permitted to ride.
Persons with certain physical or mental disabilities should not ride this
electric scooter.
Always wear suitable protective gear including a helmet, knee pads and
elbow pads. Never ride barefoot.
Never ride the scooter when under the influence of alcohol, drugs, or any
other substances or medication that could affect your balance.
Never ride the scooter in ice or snow.
Never carry passengers on the scooter, and keep within the maximum load
of 120KG
Always ride at a safe speed and observe local regulations

Thanks for choosing Oscooto. Have fun with this electric scooter, but
please follow the important safety warnings and use it only where
allowed by law.
Contents:
1. Device & Accessories 01
2. Functions. 02
3. Assembling 04
4. Charging 05
5. Riding Instructions 05
6. Safety Recommendations 06
7. Folding & Transportation 12
8. Daily Maintenance and Storage 13
9. Model Specifications 17
10. End of Life Disposal 19
11. Warranty 20

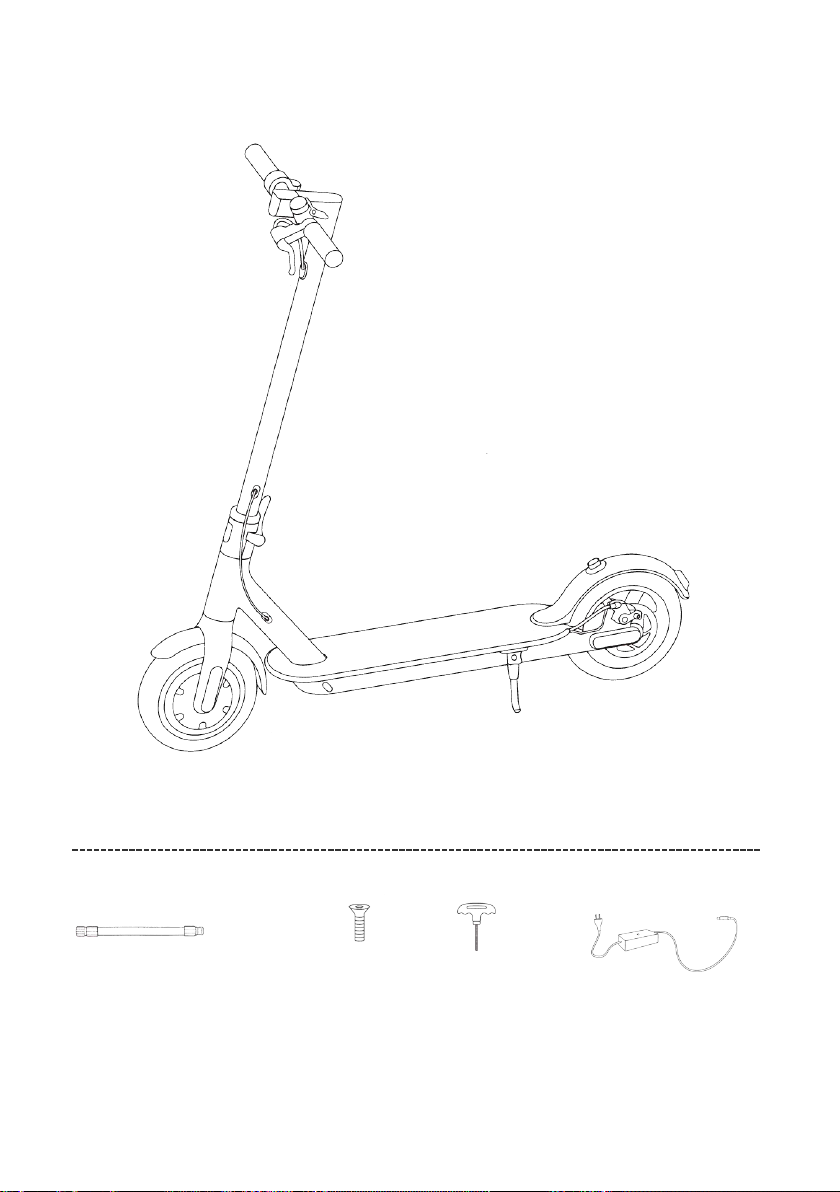

1. The Device & Accessories
Accessories
Fitting for wheels swap Screws x 2 Hex Wrench Charging Adapter

2. Functions

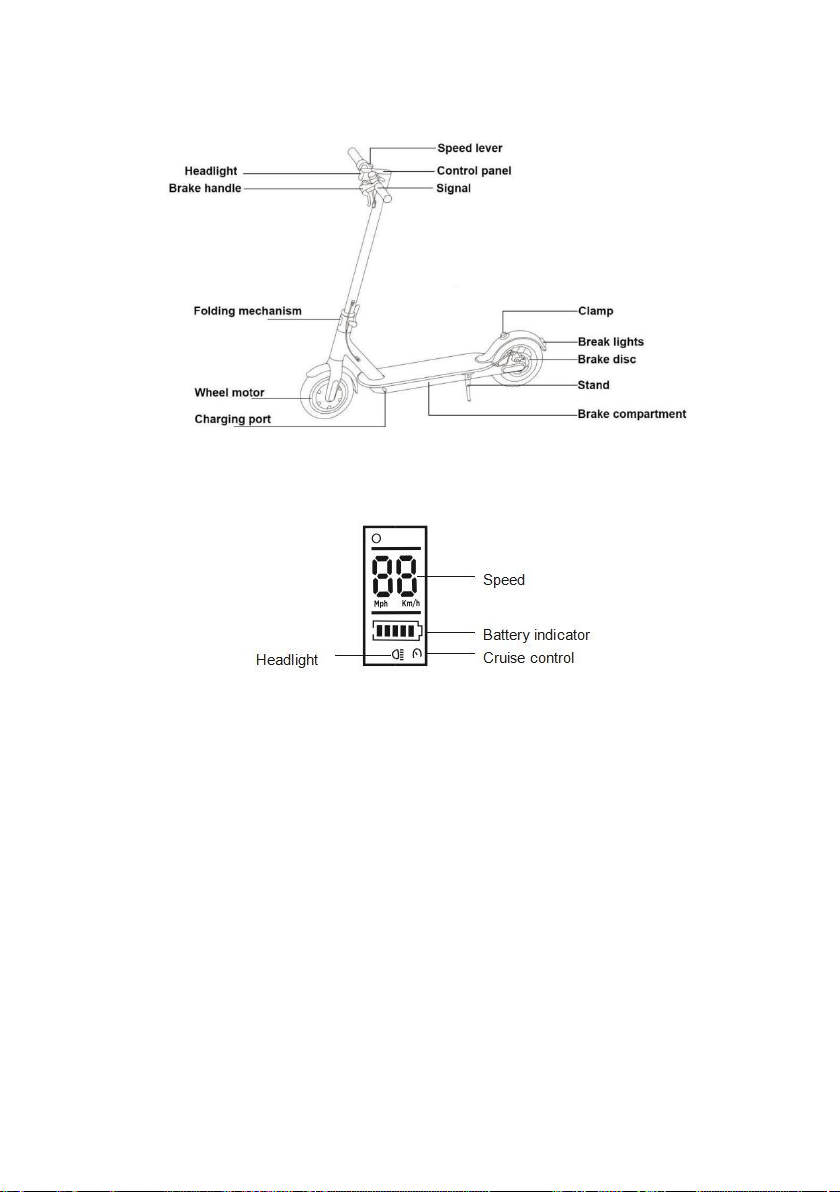

Indicator Mode
SWITCHING ON AND OFF:
Switching on: Long press the power button until the display lights up.
Switching off: Long press the power button until the display turns off and the
system is off.
DISPLAY:
Battery charge status: shows the current battery capacity remaining (the
battery image has 5 bars when full).
STARTING:
When the scooter is stopped and the accelerator is pressed, the scooter does
not start. Manually push the scooter to activate the accelerator.

3. Assembling the device

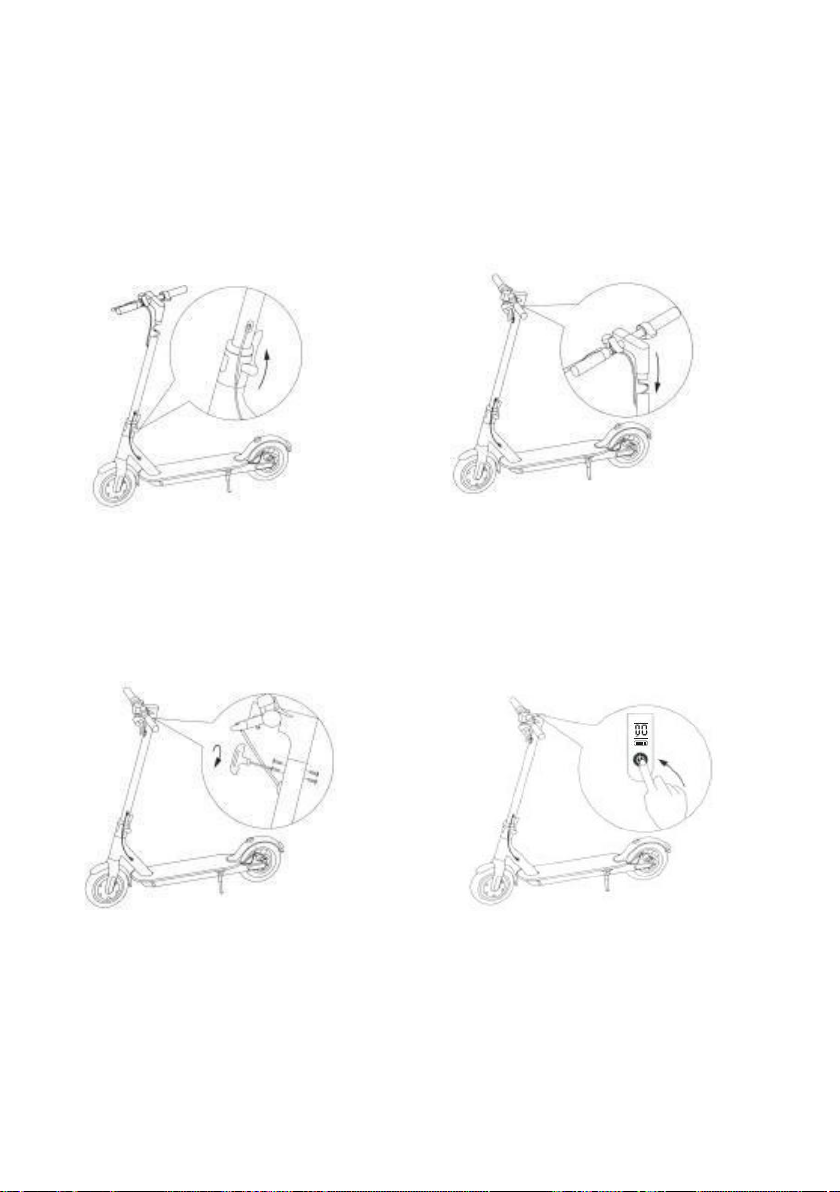

1).Affiix the steering rod
and and parking bridge
3).Using the supplied hex
wrench, tighten the screws
on the handle bar
2).Set handle bars vertical
4).Test the power switch after
assembling .
Power button:
Press power button to turn on the scooter. Press and hold the button for 2 seconds
to turn on. When switched on, press the power button again to turn the headlight
on or off. Press the power button twice to switch between normal mode and power
saving mode.
.

4. Charging scooter
Open the cover, connect the charger and close the cover
Charge Scooter for 8 hours before first use
5.Riding the Scooter:
Always wear helmet and knee
pads when riding
1. Power on and check the
battery led light

2. Stand on scooter with
one leg, with the other
leg on the ground
3. Push away gently. Once the scooter is moving, press the accelerate
button (only accelerate when the scooter speed is beyond 5km/h)
4. Release the accelerate button to slow down. Energy recovery
systems will deploy to slow down. Use the left brake lever if you want
to decelerate quickly or stop.
5. Lean your body left slightly to turn
left, lean your body right slightly to
turn right. And turn the handlebar
slowly

6. Safety Instructions
It is not recommended to
ride in the rain. Do not use
in icy conditions.
It is recommended to slightly
bend knees to better adjust to
a rough road.If you are
travelling on
rough roads, keep to low
speed (5-10km/h)
If e
ntering into a room, elevator, etc.
b
e careful not to injure yourself.

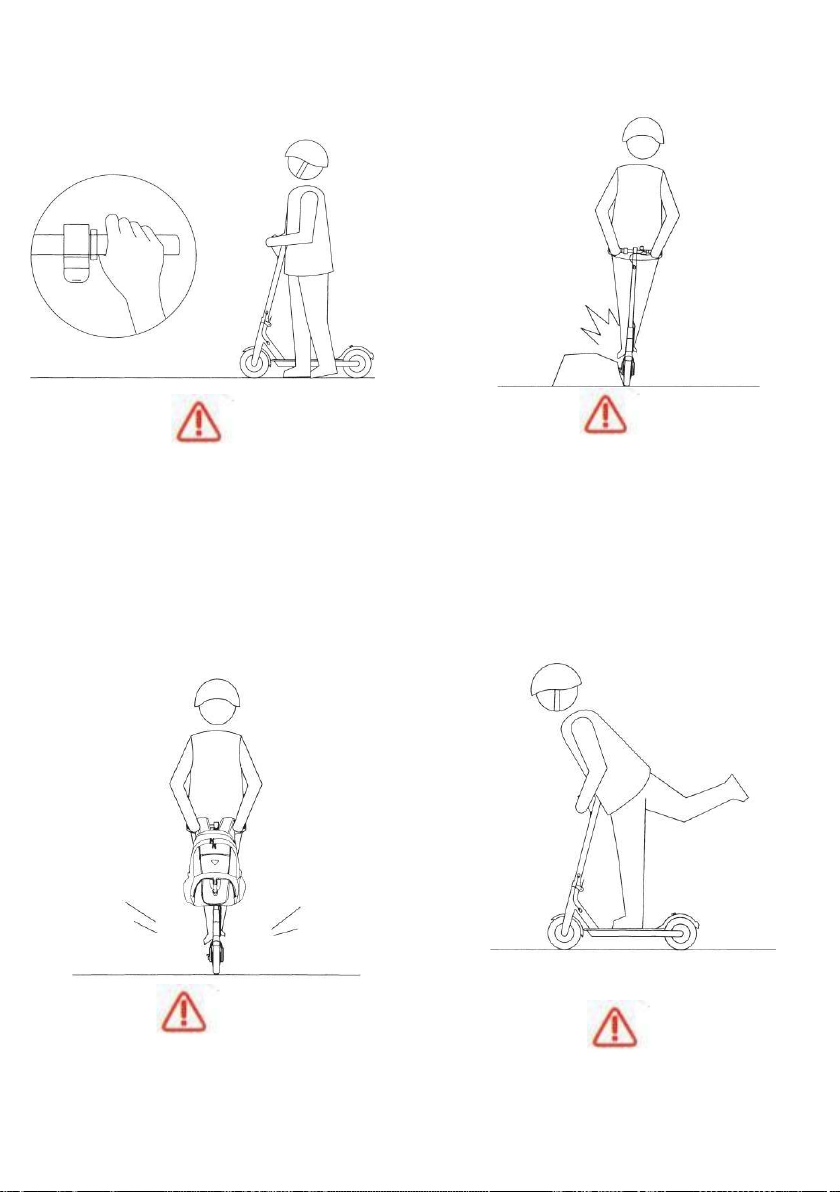

Don’t accelerate when descending a hill

While walking with the scooter,
do not press the speed knob
Don’t hang backpacks or
other heavy objects on the
handlebar
When riding, avoid obstacles in the
road
While riding, keep both feet on
the scooter until you stop.

Preventing dangerous driving
Check the Highway Code and
local by-laws to determine
where you are allowed to use
your scooter
Don’t drive through puddles
that exceed a depth of 2 cm.

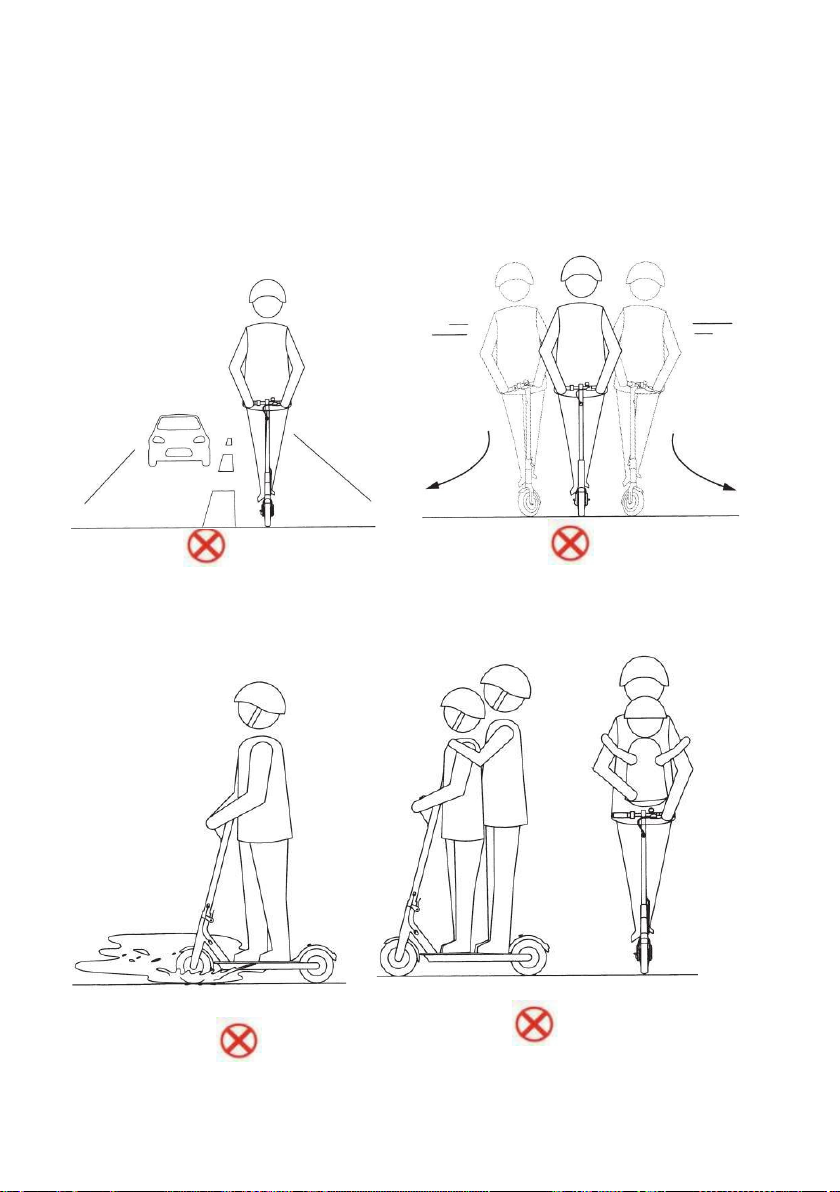

Avoid sharp turns
Never carry passengers.

Do not stand or place
objects on the mudguards

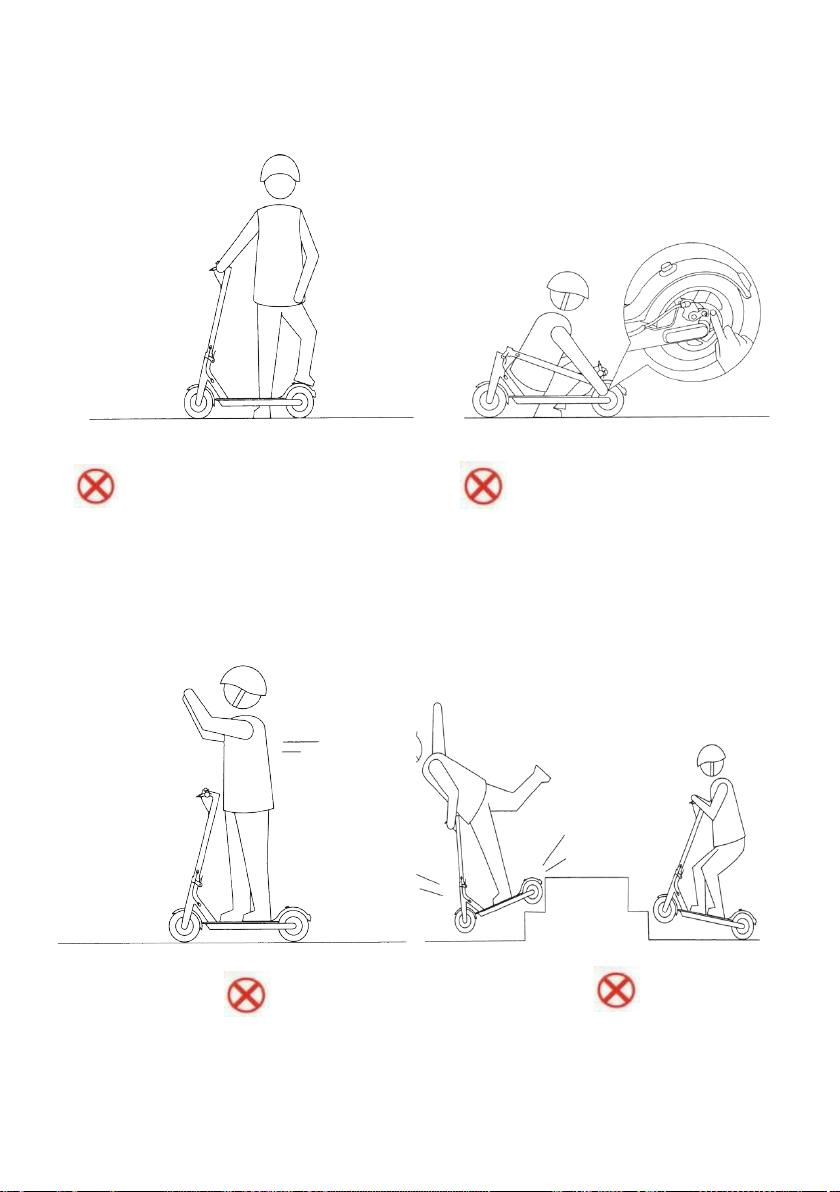

Do not touch the disc brake
Always keep both hands on the
handlebars Do not ride up or down steps or
attempt to jump over obstacles

Important Safety Recommendations
1) When riding in a public area, the electric scooter brings certian risks for your
own safety and the safety of others. You should always ride responsibly, and,
follow the instructions outlined in this manual. Please always show consideration
to other people.
2) You must check where the law allows you to use your scooter, and use it only
where permitted. There is always a possiblity of collision and the risk of injury,
due to improper operation of the scooter. As with all vehicles, the higher your
speed, the greater the braking distance. On some smooth road surfaces
emergency braking may cause skidding, loss of balance and potentially a fall.
When riding, you need to be alert and vigilant, keep to an appropriate speed, keep
a safe distance from pedestrians and other vehicles. Always wear a helmet, and
knee and elbow protection.
3) While riding your scooter, you should especially respect pedestrians and keep
a safe distance. Reduce speed when passing other people. If you are moving in
the same direction with pedestrians, make sure that they are aware of your
presence if you have to pass closely to them
4) Please strictly observe the law and any local by-laws as well as the guidance
set out in these instructions and safety recommendations. Failure to do so may
result in accidents and personal injury including the risk of death.
5) To avoid personal injury, do not loan electric scooter to others who do not know
how to ride it safely. Please ensure that all users are suitably trained or supervised,
and that they wear appropriate safety equipment .
6) You should inspect the scooter carefully before each use. If you find
shattered parts, battery life has decreased obviously, tires leak air or there
are signs of excessive wear, uncharacteristic sounds when turning or
other abnormal symptoms, please discontinue use of the scooter
immediately and undertake appropriate repairs.

7. Folding and Transporting
Fold
Make sure the power is off. While holding the front pole, loosen the lock lever
and lower steering rack. Position steering rack in a horizontal position and
secure by inserting a hook through the ring, located on the rear wheel
mudguard. To re-assemble the scooter, release the steering rack from the
mudguard hook, lift into the vertical position and lock the lever.
Transportation
You can transfer folded scooter with one hand

8. Care and Storage
Cleaning and storing Electric Scooter
If you find any stains on electric scooter housing, use a soft, damp cloth to wipe
the scooter. You can use toothpaste and a toothbrush to clean the scooter from
stains, and then wipe clean with a damp cloth. If you find light scratching on plastic
parts, use a very fine grade of wet sandpaper or a cutting polish to restore the
finish.
Warning: Do not use alcohol, petrol, kerosene or other solvents to clean the
scooter. These can cause serious damage to the scooter body and can damage
working parts and electronics. Do not wash the scooter with a pressure washer.
Always make sure the scooter in the off status.
After charging the scooter, be sure to insert the cover plug back into the charging
connector to prevent ingress of water and damage to the electrical components.
When not in use, store the scooter in a cool, dry place. Leaving the scooter in
direct sunlight or in extremely high or low temperatures can cause rapid aging
of the outer body and wheels of Electric Scooter and reduce battery life.
Maintenance of Electric Scooter Battery:
1) Your scooter contains a lithium battery. Misuse can cause a risk of fire or
explosion
2) Do not open or disassemble the battery. Avoid contact with metal objects to
prevent an occurrence of a short circuit.
3) Use only the charger supplied with the scooter.
4) At end of life, dispose of the battery at an appropriate disposal centre.

5) After each use of the scooter, charge the battery to prolong its service
life.
Do not store the scooter battery in conditions that exceed 50℃ or below -20℃. To
do so may deteriorate the battery or cause overheating including the risk of fire.
If unused, you should charge the scooter every sixty days in order to maintain
battery life.
Avoid fully discharging the battery in order to maintain it’s condition. When using
the scooter at normal temperatures, the battery will be allow greater distance and
performance. In colder temperatures (0c and below) battery performance is
reduced.
Note: A fully charged battery lasts about 120-180 days of standby time.The battery
has a smart chip that stores information about its charging-discharging. If you do
not charge the battery for a long time, it can cause serious damage from which it
is impossible to charge the scooter again. This kind of damage is not included in
the warranty.
.

Adjusting disc brake
If a brake is too tight: use the M5 hex wrench to loosen the screws on the brake
disc tensioner pulley, and slightly shorten the length of the brake cable, then
retighten the tensioner pulley. If the brake is too lose, do the same, but make
the cable longer. Always ensure that the tension pulley is retightened.
Adjusting handle bar
Use the M5 hex wrench to tighten the two screws near the folding
mechanism.
Inflating the wheels
If the rear wheel of the scooter is deflated, use the connecting pipe. For both
wheels, remove the dustcap, then use a pump to inflate the wheel.
Extend Inflator

9. Specifications:
Operating
parameters
Item
Parameters
Dimensions
Length x Width x
Height[1] (cm)
102 x 42.5 x 114
Package:Length x
Width x Height(cm)
109 x 15 x50
weight
Gross weight
15.2kg
Conditions
Max load
120 kg
Recommended ages
16-50 years old
Height(cm)
120-200
Main Parameters
Max speed(km/h)
25
Speed mode setting
6/15/25 Kmh
Maximum slope(%)
10%
Suitable area
Solid road surface, smooth
clay surface to overtime,
obstacles high less than
1cm, a depth of pools no
more than 2cm
Operating
temperature
range(℃)
-10 ~ +40
Temperature
storage(℃)
-20 ~ +45
Waterproof level
IP54
Battery Parameters
Rated
voltages(V/DC)
36V
Max voltage
charging(V/DC)
42V

Rated power(Wh)
280
Smart battery
management system
Stress,insufficent
voltage,short circuit,auto
sleep/wake up,
overheating, protection,
control of battery usage
Motor Parameters
Rated power(W)
200
Peak power(W)
400
Power
adaptor
parameters
Rated power(W)
71
Rated input
voltage(V/AC)
100-240V
Rated output
voltage(VDC)
42V
Rated current(A)
1.7
Certificate
CE
Charging time(h)
3-5h
