Osram Claypaky CloudIO User manual

1
INSTRUCTION MANUAL
ENGLISH
PRELIMINARY
INDEX
Page Contents
2 1. Safety information
2 2. Unpacking and preparation
3 3. Installation and start-up
3 3.1 Connecting to manis supply
4 3.2 Startup and CloudIO user menu
15 4. Specifications
15 5. Cause and solution of problems
CloudIO
CA8000
Congratulations on choosing a Claypaky product!
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.

2
CloudIO
Packing contents - Fig. 1
EN
IT
DE
ES
FR
RU
SAFETY INFORMATION
IMPORTA T: Claypaky recommends you carefully read and keep the safety information on this product, also
available in digital format at the following link:
www.claypaky.com
FIS01X - Safety Information CloudIO
INFORMA IONI DI SICURE A
IMPORTA TE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative
a questo prodotto, sempre reperibili in versione digitale al seguente link:
www.claypaky.com
FIS01X - Safety Information CloudIO
INFORMATIONEN UR SICHERHEIT
WICHTIG: Claypaky empfiehlt, die Sicherheitsinformationen bezüglich dieses Produkts genau zu lesen und
aufzubewahren. Sie sind in Digitalversion immer unter folgendem Link auffindbar:
www.claypaky.com
FIS01X - Safety Information CloudIO
INFORMACIONES DE SEGURIDAD
IMPORTA TE: Claypaky recomienda leer detenidamente y conservar la información de seguridad relativa a este
producto. Además, está disponible una versión digital de la misma en el siguiente enlace:
www.claypaky.com
FIS01X - Safety Information CloudIO
CONSIGNES DE SÉCURITÉ
IMPORTA T: Claypaky recommande de lire attentivement et de conserver les informations de sécurité relatives à
ce produit, disponibles en version digitale au lien suivant:
www.claypaky.com
FIS01X - Safety Information CloudIO
ИНСТРУКЦИЮ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ
ВАЖНО: Claypaky рекомендует внимательно прочитать и со ранить инструкцию по те нике безопасности
данного изделия, которая всегда доступна в электронном формате по следующей ссылке:
www.claypaky.com
FIS01X - Safety Information CloudIO
1. SAFETY INFORMATION
2. UNPACKING AND PREPARATION
1

1
1
2
3
2
2
3
4
Ethernet 1
DMX OUT DMX IN
Ethernet 2
Gigabit
PowerCon IN Main Switch
Antenna
Wi-Fi USB IN
Encoder Wheels
3
CloudIO
3. INSTALLATION AND START-UP
3.1 Connecting to mains supply
Control Panel - Fig. 3
DMX OUT: used to connect the controlled lighting fixtures (a terminating plug must be inserted into the last luminaire with a resistance of 120Ohm,
minimum 1/4 W, between terminals 2 and 3).
DMX IN : used to connect a Master Lighting Console
WiFi: used to connect the CloudIO Box to a local AP WiFi for Cloud Service Connection
Ethernet 1: Fast Ethernet for Art- et connection
Ethernet 2: GbE to be used to connected the CloudIo Box to a local AP Ethernet for Cloud Service Connection
Main Switch: used to power on/power off the CloudIO BOx
PowerCon IN: Main power input
USB IN: Used to connect eternal USB keyboard, mouse or USB Mass-storage key
Pin assembly - Fig. 2
Connecting and disconnecting power cable - Fig. 4

4
CloudIO
3.2 CloudIO Application Launcher
HOME SCREEN
CloudIO box Home screen.
At power up CloudIO presents the "Applicaton Launcher" page, where we can find the 3 main APP:
-Connectivity
Entering this tab, the user can enable or disable the CloudIO box.
- Offline Firmware Uploader
Entering in this tab the user can upload, through the dmx line, a firmware from an external storage device.
- Settings
Entering in this tab, the user can configure all the CloudIO Box parameters as the connection and cloud settings.

5
CloudIO
CloudIO box enabled / disabled
The Connectivity App activates the CloudIO BOx in gateway mode, allowing the management of the fixtures connected to the DMX OUT output throu-
gh the services provided by the CloudIO platform.
Refer to www.cloudiobox.tech to get info about the available cloud service information.
The DMX I and DMX OUT are typically digitally short-cutted, in order to allow to the DMX traffic coming from a Lighting console, connected on the
DMX I , to reach the lighting fixture connected on the DMX OUT.
When the Cloudio Box is enabled, the DMX I /DMX OUT digital short-cut is opened and the CloudIO BOx take the control of the Fixture as
Master DMX/RDM device excluding any other master device connected on DMX I .
CloudIO box must be first paired to the user account.
Please register your account to www.cloudiobox.tech cloud service and then in the Settings/Cloud tab please pair the device.
APP CONNECTIVITY

6
CloudIO
- Fixture offline firmware uploader - external storage insertion
This APP allows you to update the firmware of any Claypaky fixture. User can upload the ''.img file'' of the new firmware in the root of a USB KEY and
press CO TI UE in order to activate the update procedure: all Claypaky lights connected to the DMX OUT output, if compatible with the firmware
version present selected, will be updated to the new firmware version.
To download the firmware versions of the Claypaky products refer to www.claypaky.it
OFFLINE FIRMWARE UPLOADER FOR FIXTURES

7
CloudIO
- Fixture offline firmware uploader – firmware files selection
- Fixture offline firmware uploader – Uploading file selection
OFFLINE FIRMWARE UPLOADER FOR FIXTURES

8
CloudIO

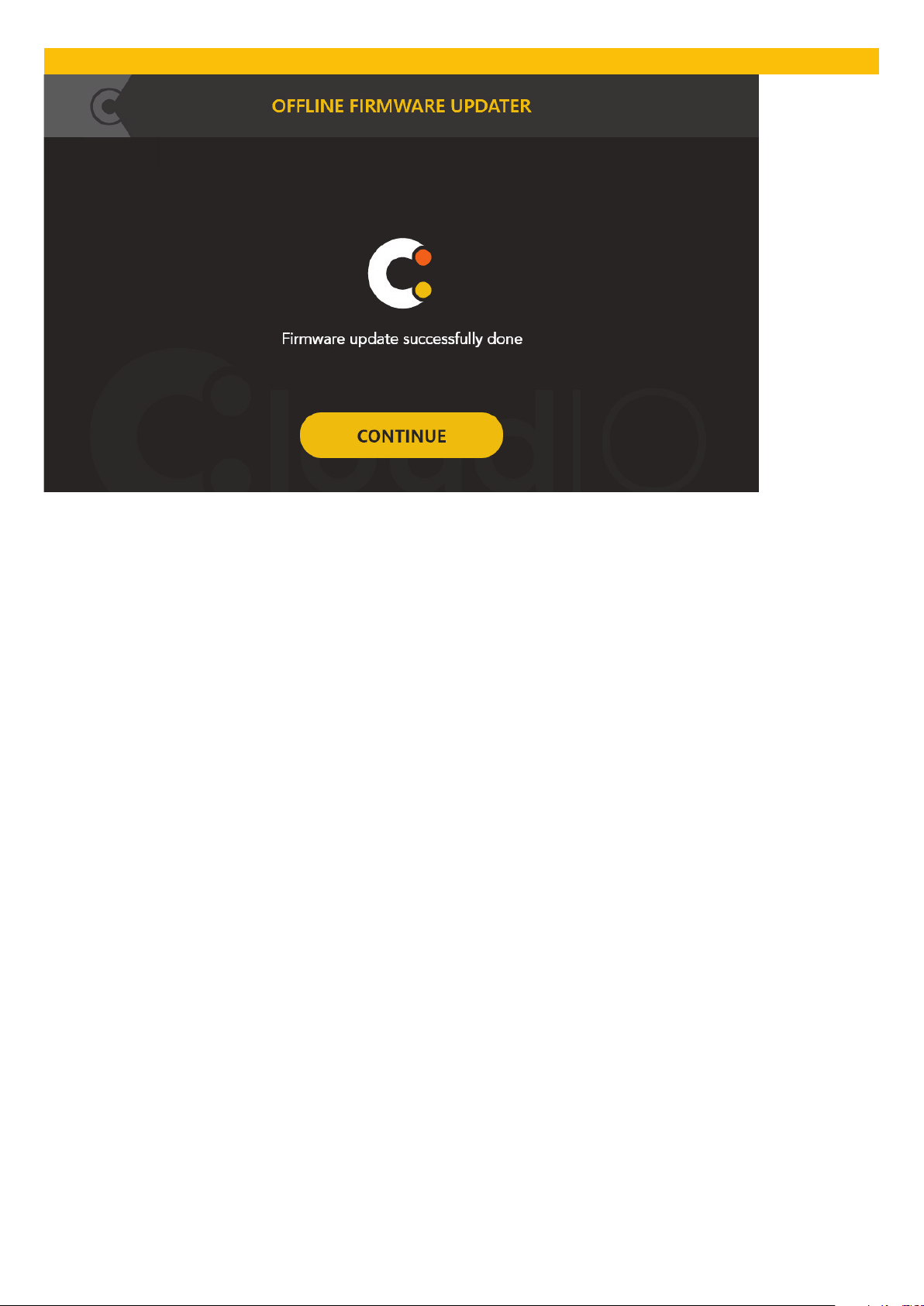

- Fixture offline firmware uploader - update performed correctly
OFFLINE FIRMWARE UPLOADER FOR FIXTURES

9
CloudIO
CloudIO Box settings - home page
CloudIO box Settings - General information
SETTINGS
CLOUDIO BOX – GENERAL INFO

10
CloudIO
CloudIO box WiFI Settings – etwork scanning
CloudIO box WiFI Settings – etwork detailed info
WIFI
SETTINGS_WIFI_INFO

11
CloudIO
CloudIO box Ethernet Settings – Ethernet port settings
ETHERNET

12
CloudIO
CloudIO box Cloud Settings - CloudIO box successfully pairied
CloudIO box Cloud Settings - CloudIO pairing CloudIO box/User
To pair your CloudIO BOx please register at cloudiobox.tech cloud service.
Then enter here your CloudIO account e-mail and password.
Ref to www.cloudiobox.tech to get info about the available Cloud Service information.
CLOUD
SETTINGS_CLOUD_PAIRED

13
CloudIO
- CloudIO Box Software Update - external storage insertion
- CloudIO box Settings software update – CloudIO box firmware sending
CloudIO SOFTWARE UPDATE

14
CloudIO
- CloudIO box Settings software update – CloudIO box firmware update performed correctly
CloudIO SOFTWARE UPDATE

15
CloudIO
240
(9.45")
255
(10.04")
132
(5.19")
POWER SUPPLIES AVAILABLE
100V-240V, 50/60Hz, 16W
WEIGHT
• 1.5 Kg (3.3 Ibs)
MAIN FEATURES
• Display lcd 7 inch + capacitive touch screen
• Internal power supply
• Digital switch / activation
• 2 Dmx in/out pass-through capability
• #4 Encoder
• #3 Usb
• 2 External antenna
• 2 Ethernet (artnet/tcpip)
• max 31 fixtures connected as per standard DMX
4. SPECIFICATIONS
THE FIXTURE WILL OT SWITCH O
PROBLEMS
ELECTRO ICS O -OPERATIO AL
POSSIBLE CAUSES CHECKS AND REMEDIES
o mains supply.
Signal transmission cable faulty or disconnected.
Fault in the electronic circuits.
Check the power supply voltage.
Replace the cables.
Call an authorised technician.
5. CAUSE AND SOLUTION OF PROBLEMS

Clay Paky S.p.A. - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. [phone] - Fax [phone] - www.claypaky.com
IST01T/001 – E - Preliminary 10/2019
