Osram Propoint kontour flat narrow User manual

ProPoint Kontour

INSTALLATION GUIDE

V1.0

Cover:

ProPoint Kontour Flat Narrow

ProPoint Kontour Flat Wide

ProPoint Kontour Round Narrow

ProPoint Kontour Round Wide

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 2 of 26

CONTENT

1. Introduction 4

2. Installation 10

3. System Configuration 16

4. Care and Maintenance 20

5. Technical Specification 21

6. Troubleshooting 25

7. Warranty Information 25

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 3 of 26

Safety And Operation

This installation guide uses the following special statement categories to alert you to key items:

1. WARNING - Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

2. CAUTION - Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

3. NOTICE - Indicates information considered important for the proper operation of the product but not hazard

related.

4. Please review this manual completely prior to beginning the installation process and take note of the

following:

— The ProPoint luminaire and associated accessories must be installed by a qualiﬁed person in conjunction

with all applicable electrical codes and standards.

— The ProPoint luminaire does not contain any user-serviceable parts. Opening of the luminaire will void the

warranty.

— Do not use the product if the cables are damaged.

— Handle the luminaire carefully to prevent damage during installation. Rough handling may damage the

internal electronics and void the warranty.

— Do not attempt installation in wet or severe weather conditions.

— Do not stare directly into the light beam while the unit is illuminated.

— IP66 rated. The ProPoint luminaire is not suitable for direct immersion in water.

— Do not operate the ProPoint luminaire without a connection to earth surface without a suitable earth

connection (refer to local standards).

— The ProPoint luminaire is designed for operation at 120-277V AC (ETL)/220-240V AC (CE). Voltages

outside of this range may damage the ﬁxture and will void the warranty.

— The ProPoint luminaire housing may become hot during normal operation and present a risk of burn

injury and ﬁre hazard. Exercise caution when working in proximity to the luminaire and make sure that

combustible material does not contact the housing or lens.

— Failure to keep the luminaire within the operating temperature range (-30°C to +55°C/-22°F to +131°F) will

result in improper operation and will void the product warranty.

— Do not use harsh chemicals, cleaning solvents or strong detergents when cleaning the luminaire.

— Persons installing this product should make sure:

i. The installation complies with all applicable codes, state and local laws, ordinances, standards and

safety regulations.

ii. The installation environment is carefully studied and suitable surge protection measure(s) is taken.

Suggested surge protection measures for outdoor application should reach “Live to Neutral” 5kV,

“Live/Neutral to Earth” 10kV.

iii. All luminaires can pass surge test up to “Live to Neutral” 1kV, “Live/Neutral to Earth” 2kV according

to EN61547 standard.

iv. They are qualiﬁed or competent in the handling of electrical equipment.

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 4 of 26

1. Introduction

1.1 Product Overview

The Traxon ProPoint Kontour is an AC line powered exterior luminaire used to distinguish facades, walls, and

architectural borders with a concentrated, even radiance. ProPoint Kontour’s compact, low-proﬁle design is

available in four lengths, two widths and is combined with a clip mounting system for efﬁcient installation.

This manual is intended for use with DMX512 versions of the ProPoint Kontour.

Model Length Power Consumption

(Typ.)

Available PXL Conﬁguration

ProPoint Kontour Narrow

300mm / 12” 4W

— 300mm can be 1PXL

— 600mm can be 1PXL or 2PXL

— 1200mm can be 1PXL, 2PXL, or 4PXL

— 2400mm can be 1PXL, 2PXL, 4PXL, or 8PXL

— PXL Conﬁguration is set during manufacturing,

and is not adjustable on-site

600mm / 24” 8W

1200mm / 48” 16W

2400mm / 96” 32W

ProPoint Kontour Wide

300mm / 12” 5W

600mm / 24” 10W

1200mm / 48” 20W

2400mm / 96” 40W

Features:

— Available lengths: 300mm / 12”, 600mm / 24”, 1200mm / 48”, 2400mm / 96”

— Diffused lens cover / Round diffused lens cover

— Long run lengths up to 305m (1000 ft) @ 277V with ProPoint Kontour Narrow

— Long run lengths up to 240m (800 ft) @ 220-240V with ProPoint Kontour Narrow

— DMX512

— Daisy Chain System

— Outdoor Applications

a. IP66-rated

b. IK08 Impact rating for ProPoint Kontour Narrow and IK07 Impact rating for ProPoint Kontour Wide.

c. ANSI 3G Rated

d. Suitable for coastal environment

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 5 of 26

1.2 Getting Assistance

Additional product information is available on the Traxon web site:

— www.traxontechnologies.com

— www.osram.us/traxon

For additional support, please contact Traxon Technical Support:

For Americas Regional Support:

— +1 (978) 570-3189 – Business Hours Technical Support

— +1 (978) 267-5346 – After Hours Technical Support

— TRXT[email protected]

For Asia Paciﬁc Regional Support

— [email protected]

For Europe, Middle East and Africa Regional Support

— [email protected]

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 6 of 26

1.3 Dimensions

FIG.1: ProPoint Kontour Narrow

With Mounting Bracket

Without Mounting Bracket

12.8mm / 0.5”

9.5mm / 0.4”

47.4mm / 1.9”

73mm / 2.9”

58mm / 2.3”

69.5mm / 2.7”

44mm / 1.7”

47.4mm / 1.9”

300mm / 11.8”

75mm / 3”

100mm / 3.9”

130mm / 5.1”

Power/Data Input side Power/Data Output side

600mm / 23.6”

15mm / 0.6”

250mm / 9.8”

1200mm / 47.2”

15mm / 0.6”

540mm / 21.3”

15mm / 0.6”

2400mm / 94.5”

1500mm / 59”

300mm / 11.8”

600mm / 23.6”

1200mm / 47.2”

2400mm / 94.5”

75mm / 3”

100mm / 3.9”

130mm / 5.1”

15mm / 0.6”

250mm / 9.8”

540mm / 21.3”

1500mm / 59”

46.5mm / 1.8”

63mm / 2.5”

58mm / 2.3”

With Mounting Bracket

Without Mounting Bracket

46.5mm / 1.8”

59.5mm / 2.3”

44mm / 1.7”

12.8mm / 0.5”

9.5mm / 0.4”

Power/Data Input side Power/Data Output side

46.5mm / 1.8”

Round

Flat

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 7 of 26

FIG.2: ProPoint Kontour Wide

75mm / 3”

93mm / 3.7”

84mm / 3.3”

With Mounting Bracket

12.8mm / 0.5”

9.5mm / 0.4”

75mm / 3”

89.4mm / 3.5”

70mm / 2.8”

Without Mounting Bracket

75mm / 3”

300mm / 11.8”

75mm / 3”

100mm / 3.9”

130mm / 5.1”

Power/Data Input side Power/Data Output side

600mm / 23.6”

15mm / 0.6”

250mm / 9.8”

1200mm / 47.2”

15mm / 0.6”

540mm / 21.3”

15mm / 0.6”

2400mm / 94.5”

1500mm / 59”

300mm / 11.8”

600mm / 23.6”

1200mm / 47.2”

2400mm / 94.5”

75mm / 3”

100mm / 3.9”

130mm / 5.1”

15mm / 0.6”

250mm / 9.8”

540mm / 21.3”

1500mm / 59”

75mm / 3”

69mm / 2.7”

84mm / 3.3”

With Mounting Bracket

12.8mm / 0.5”

9.5mm / 0.4”

75mm / 3”

66mm / 2.6”

70mm / 2.8”

Without Mounting Bracket

Power/Data Input side Power/Data Output side

75mm / 3”

Round

Flat

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 8 of 26

1.4 Packing Contents

FIG.3: Packing Contents

ProPoint Kontour 300mm/12”, 600mm/24”, 1200mm/48”, 2400mm/96”

(Temporary waterproof end cap included)

2 × Mounting Bracket

(2 screws pre-installed, 1 screw for each)

2 × Safety cable (Optional Accessory)

Power/Data Input side Power/Data Output side

1.5 Component Overview

Luminaire Options

The ProPoint Kontour is available in the following sizes:

Model Model Power Consumption (Typ.) Power Factor Input Voltage Range Operating

Temperature

Narrow

300mm / 12” 4W

≥0.9

120-277V AC 50/60 Hz

(ETL)

220-240V AC 50/60 Hz

(CE)

-30°C to +55°C /

-22°F to +131°F

600mm / 24” 8W

1200mm / 48” 16W

2400mm / 96” 32W

Wide

300mm / 12” 5W

600mm / 24” 10W

1200mm / 48” 20W

2400mm / 96” 40W

The in-rush current data of ProPoint Kontour is shown in the following tables:

NOTE — n: the number of fixtures in the chain

— NW: Narrow

— WD: Wide

— F: Flat

Description In-rush current @ 120V Present time

Quantity 1 Fixture 2 Fixtures 3 Fixtures …n Fixtures

300mm / 12” NW/WD 15A 30A 45A …n*15A 0.05ms

600mm / 24” NW/WD 15A 30A 45A …n*15A 0.05ms

1200mm / 48” NW/WD 9.7A 19.4A 29.1A …n*9.7A 0.8ms

2400mm / 96” NW 9.7A 19.4A 29.1A …n*9.7A 0.8ms

2400mm / 96” WD 11A 22A 33A …n*11A 0.8ms

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 9 of 26

Description In-rush current @ 230V Present time

Quantity 1 Fixture 2 Fixtures 3 Fixtures …n Fixtures

300mm / 12” NW/WD 30A 60A 90A …n*30A 0.05ms

600mm / 24” NW/WD 30A 60A 90A …n*30A 0.05ms

1200mm / 48” NW/WD 19.8A 39.6A 59.4A …n*19.8A 0.8ms

2400mm / 96” NW 19.8A 39.6A 59.4A …n*19.8A 0.8ms

2400mm / 96” WD 23.9A 47.8A 71.7A …n*23.9A 0.8ms

Description In-rush current @ 277V Present time

Quantity 1 Fixture 2 Fixtures 3 Fixtures …n Fixtures

300mm / 12” NW/WD 36A 72A 108A …n*36A 0.05ms

600mm / 24” NW/WD 36A 72A 108A …n*36A 0.05ms

1200mm / 48” NW/WD 21.4A 42.8A 64.2A …n*21.4A 0.8ms

2400mm / 96” NW 21.4A 42.8A 64.2A …n*21.4A 0.8ms

2400mm / 96” WD 24A 48A 72A …n*24A 0.8ms

The ProPoint Kontour is available with the following color options:

Model Color Options Lens Options DMX Control

Channels2Color Temperature

Narrow

RGBW

Ch1: Red

Ch2: Green

Ch3: Blue

Ch4: White

RGBW (White: 4000K standard)

RGB

Ch1: Red

Ch2: Green

Ch3: Blue

16.7 million additive RGB colors

White

4000K

Neutral White

3000K

Warm White

Ch1: White

3000K / 4000K Standard

(2200K, 2700K, 3500K, 5000K, 6500K,

Red, Green, Blue, Amber available1)

Wide

RGBW

Ch1: Red

Ch2: Green

Ch3: Blue

Ch4: White

RGBW (White: 4000K standard)

RGB

Ch1: Red

Ch2: Green

Ch3: Blue

16.7 million additive RGB colors

White

4000K

Neutral White

3000K

Warm White

Ch1: White

3000K / 4000K Standard

(2200K, 2700K, 3500K, 5000K, 6500K,

Red, Green, Blue, Amber available1)

1. No MOQ required. Please consult regional sales ofﬁce for pricing and lead time.

2: There is no “Master Dim” channel.

100° x 125°

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 10 of 26

2. Installation

2.1 Points to Consider

Plan your installation before mounting ProPoint Kontour RGB / RGBW / White.

The following should be considered for a successful installation:

— Weather conditions and ambient temperature of installation site.

— Installation distances and appropriate cable lengths. Please consult your local Traxon™ ofﬁce or authorized

agent for necessary aid.

— The number of ProPoint Kontour and Data Injectors and appropriate power sources.

— DMX512 controller to be used to control the ProPoint Kontour.

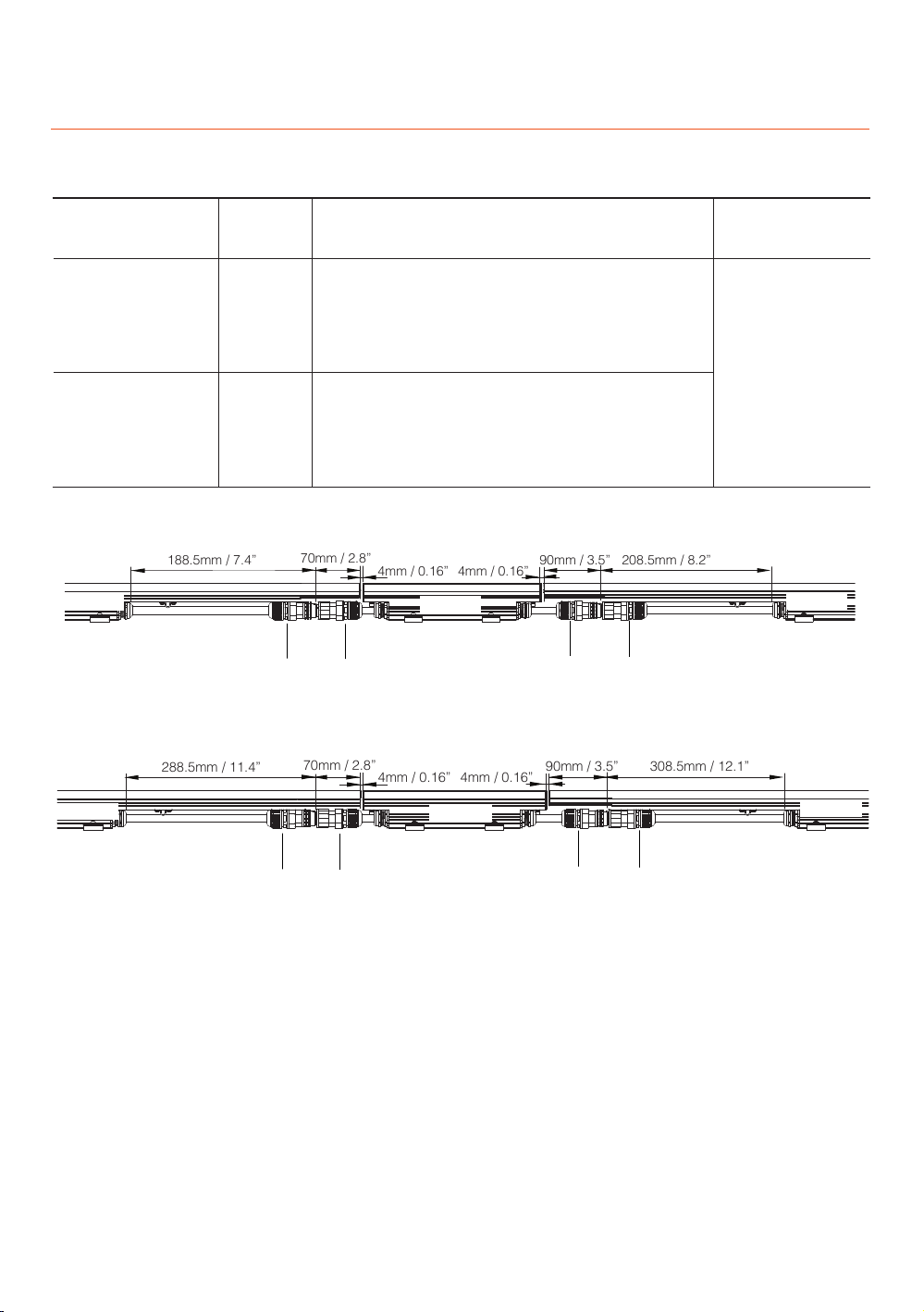

— Distance between each ProPoint Kontour for thermal expansion.

— Proper surge protection.

— If not beginning installation at the Data Injector, ensure that the layout of the luminaire input and output

connections are in the correct orientation.

2.2 Pre-Installation Checks

2.2.1 Installation Checklist

1. Perform visual check of ProPoint Kontour. Take care not to damage cables/connectors during pre-installation

checks.

2. Prepare cables and all necessary accessories (mounting brackets, temporary waterproof end caps etc).

3. Connect the luminaires, data injectors and power supplies in accordance with the wiring diagram.

4. Report any functional defect found to your nearest Traxon Technologies office. DO NOT attempt to install a

ProPoint Kontour with functional defects on-site.

5. Ensure all pre-installation checks laid out below have been followed.

6. If this installation is to be left in an incomplete state overnight, ensure that all connectors and cables are

properly protected using dust/end caps as required. Any unused materials should be left in an indoor

environment.

a. Ensure that all connected ProPoint Kontour ﬁxtures/data injectors outdoors with an open connector are

secured with an end cap (purchased separately) to keep all ports sealed.

b. Ensure all of the Interconnection Cables, ProPoint Kontour, and Data Injectors are initially stored in a dry

area to guarantee the complete sealing of the system from water before installation.

2.2.2 Cable Bending

The cable bend radius must NOT be less than the minimum bending radius (4 x Cable Diameter) as

specified by the cable manufacturer and the non-bendable Length of 5cm (1.97”) near the connector

end MUST be adhered to. In addition to the minimum bending radius, ensure that 5cm (1.97”) of cable

at the connector junction is kept straight – see image below:

To reduce stress induced on the ProPoint Kontour cable and connector, please adhere to the Minimum

Bending Radius of 50.4 mm (2”) and the non-bendable length of 50.4mm (1.98”) near the connector. It

is recommended to install lead cables through conduits/trunking.

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 11 of 26

FIG.4: Cable Bending Radius

Minimum Bending Radius Non-Bendable Length

≥ 50mm

50.4mm / 1.98” 50.4mm / 1.98”

5cm

2.2.3 Mounting Bracket

FIG.5: Mounting Bracket

58mm / 2.3” (Narrow)

84mm / 3.3” (Wide)

3.3mm / 0.13”

12.8mm / 0.5"

9.5mm / 0.37"

24.5mm / 1"

2.2.4 Installation Sequence

1. Plan for any possible bending of cables (see “2.2.2 Cable Bending”).

2. Measure the correct distances for mounting bracket holes.

3. Connect ProPoint Kontour in the daisy chain manner outlined in the system diagram/wiring

diagram to form a complete chain.

4. Perform a visual check of the complete system to ensure all parts of the system are properly

connected.

5. Perform a functional check (e.g. turn on and off the luminaire) to ensure that all of the luminaires

operate correctly under control.

2.3 On-Site Installation

— DO NOT attempt installation in wet or severe weather conditions.

— DO NOT leave and expose any ProPoint Kontour or Data Injectors unconnected under wet /

dusty / raining or snowing environment.

— IP failure induced by stressed/damaged cables during or after installation will not be covered

under warranty by Traxon Technologies.

— ALWAYS keep the cables protected from sharp objects and ensure no damage is present

on the cable.

— Failure to keep ProPoint Kontour within the operating temperature range of –30°C to +55°C

/ –22°F to +131°F and storage temperature range of –40°C to +80°C / –40°F to +176°F will

invalidate the product’s warranty.

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 12 of 26

2.3.1 Luminaire Interconnections

The ProPoint Kontour was designed to provide a concentrated, even radiance of light over Long run

lengths, up to 305m / 1000ft per Data Injector. This design allows for less power feeds, and simplifies

installation.

To ensure that there are no voltage drops over the distance of each run, ProPoint Kontour was designed

with a large-diameter cable. While the large-diameter cable ensures no voltage drop, it does limit the

movement of the cable and has special requirements that must be taken into consideration when arranging

the product layout as below:

Please reference figure 8 below on the minimum spacing between luminaires.

Fixture Length: 300mm / 12”

Standard cable length on condition that the spacing is 4mm / 0.16” (Min.)

1200mm / 47.2”

2400mm / 94.5”

15mm / 0.6”

540mm / 21.3”

1500mm / 59”

600mm / 23.6”

15mm / 0.6”

250mm / 9.8”

128.5mm / 5.1”

130mm / 5.1”

145mm / 5.7”

278.5mm / 10.96”

280mm / 11”

295mm / 11.6”

378.5mm / 14.9”

380mm / 15”

395mm / 15.6”

15mm / 0.6”

Interconnection Limitation

— 300mm / 12” Kontour cannot be connected end-to-end with any other Kontour luminaire and achieve the minimum

distance of 4mm / 0.16” spacing between ﬁxtures. See the below chart for the connection limitations.

— If the 300mm / 12” luminaire is required, it must be positioned next to a 1200mm / 48” or 2400mm / 96” luminaire that has

been customized with shortened input/output cables.

Fixture Length: 600mm / 24”, 1200mm / 48”, 2400mm / 96”

Standard cable length on condition that the spacing is 4mm / 0.16” (Min.)

1200mm / 47.2”

2400mm / 94.5”

15mm / 0.6”

540mm / 21.3”

1500mm / 59”

600mm / 23.6”

15mm / 0.6”

250mm / 9.8”

128.5mm / 5.1”

130mm / 5.1”

145mm / 5.7”

278.5mm / 10.96”

280mm / 11”

295mm / 11.6”

378.5mm / 14.9”

380mm / 15”

395mm / 15.6”

15mm / 0.6”

1200mm / 47.2”

2400mm / 94.5”

15mm / 0.6”

540mm / 21.3”

1500mm / 59”

600mm / 23.6”

15mm / 0.6”

250mm / 9.8”

128.5mm / 5.1”

130mm / 5.1”

145mm / 5.7”

278.5mm / 10.96”

280mm / 11”

295mm / 11.6”

378.5mm / 14.9”

380mm / 15”

395mm / 15.6”

15mm / 0.6”

1200mm / 47.2”

2400mm / 94.5”

15mm / 0.6”

540mm / 21.3”

1500mm / 59”

600mm / 23.6”

15mm / 0.6”

250mm / 9.8”

128.5mm / 5.1”

130mm / 5.1”

145mm / 5.7”

278.5mm / 10.96”

280mm / 11”

295mm / 11.6”

378.5mm / 14.9”

380mm / 15”

395mm / 15.6”

15mm / 0.6”

Interconnection Limitation

4mm/0.16”

Minimum spacing for thermal expansion

Power/Data output side Power/Data input side

— 600mm / 24”, 1200mm / 48” and 2400mm / 96” Kontour luminaires can

be interconnected end-to-end to allow a 4mm / 0.16” spacing.

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 13 of 26

300mm ﬁxture connecting with other length units:

Fixture Wiring

Illustration Possibility Connection description

(Ensure the Min. 4mm Spacing) Remarks

300mm / 12”

& 300mm / 12” ×

300mm / 12” Kontour cannot be connected end-to-end

with another 300mm / 12” luminaire to achieve the minimum

distance of 4mm / 0.16” spacing between ﬁxtures.

Min.Space: 65.59mm

300mm / 12”

& 1200mm /48” √

300mm / 12” & 1200mm / 48” Kontour can be connected

end-to-end to achieve the minimum distance of 4mm /

0.16” spacing between ﬁxtures. This however requires a

customized version of the 1200mm / 48” with a shortened

input cable, output cable, or both, depending on project

needs. Min.Space: 94.10mm

300mm / 12”

& 2400mm / 96” √

300mm / 12” & 2400mm / 96” Kontour can be connected

end-to-end to achieve the minimum distance of 4mm /

0.16” spacing between ﬁxtures. This however requires a

customized version of the 2400mm / 96” with a shortened

input cable, output cable, or both, depending on project

needs.

If wiring 1200mm / 48” + 300mm / 12” + 1200mm / 48”, the output cable of Fixture A must be reduced, and the

input cable of Fixture C must be reduced.

288.5mm / 11.4”

90mm / 3.5”

4mm / 0.16”

70mm / 2.8”

308.5mm / 12.1”

188.5mm / 7.4”

90mm / 3.5”

4mm / 0.16”

70mm / 2.8”

208.5mm / 8.2”

Power/Data

Output

Power/Data

Input

Power/Data

Output

Power/Data

Input

Fixture B

Fixture D Fixture E

Power/Data

Output

Power/Data

Input

Power/Data

Output

Power/Data

Input

Fixture F

Fixture C

Fixture A

If wiring 2400mm / 96” + 300mm / 12” + 2400mm / 96”, the output cable of Fixture D must be reduced, and the

input cable of Fixture F must be reduced.

288.5mm / 11.4”

90mm / 3.5”

4mm / 0.16”

70mm / 2.8”

308.5mm / 12.1”

188.5mm / 7.4”

90mm / 3.5”

4mm / 0.16”

70mm / 2.8”

208.5mm / 8.2”

Power/Data

Output

Power/Data

Input

Power/Data

Output

Power/Data

Input

Fixture B

Fixture D Fixture E

Power/Data

Output

Power/Data

Input

Power/Data

Output

Power/Data

Input

Fixture F

Fixture C

Fixture A

Conclusion:

The customer should work closely with your regional Traxon representative to ensure the product layout meets the

project needs.

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 14 of 26

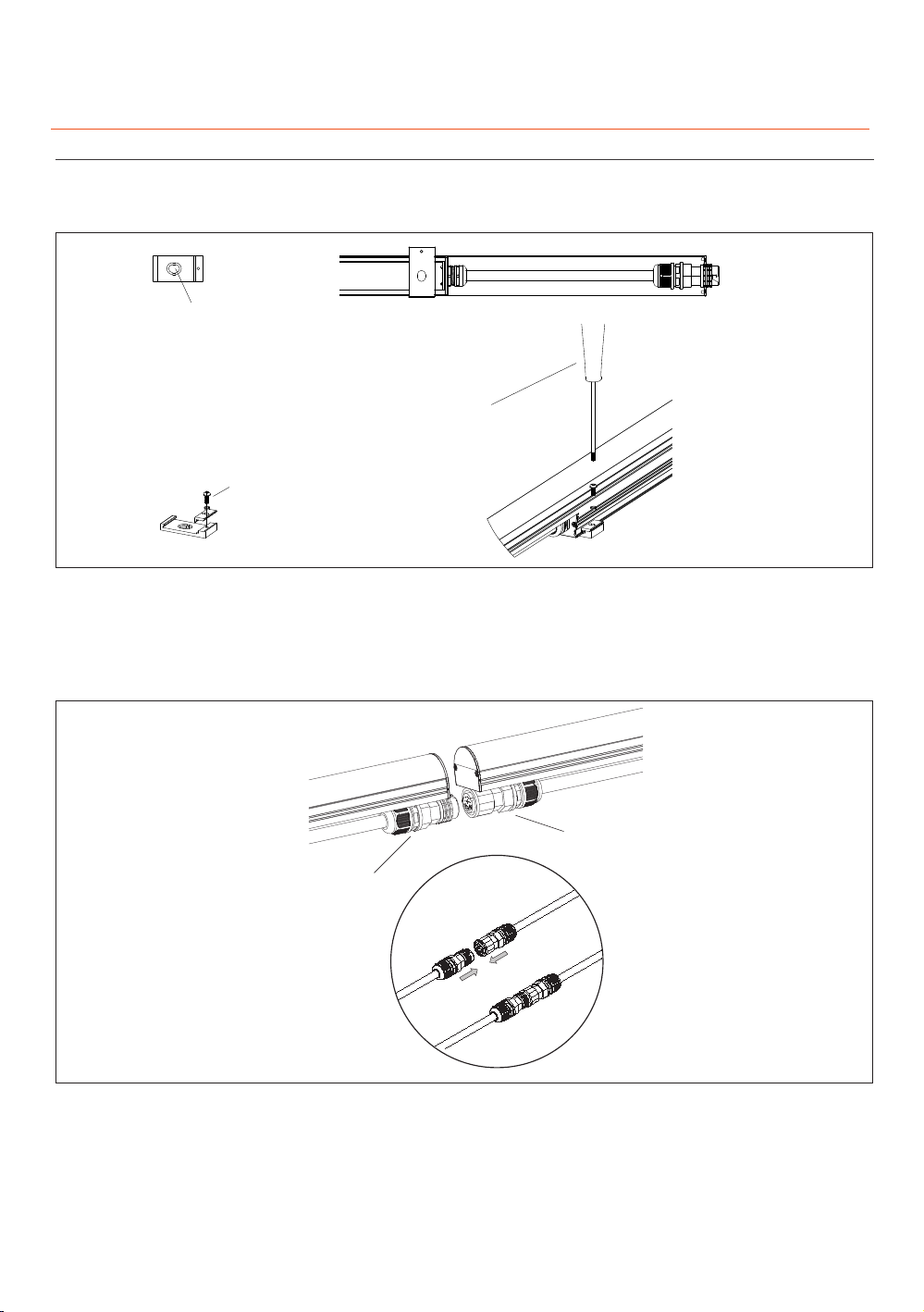

2.3.2 Mounting Bracket

1. Affix mounting bracket to the installation surface with anchor bolts. Bolts, anchor bolt heads

cannot protrude beyond 3mm (0.12”) above bracket.

FIG.6: Mounting Bracket to Surface

Mount bracket to surface

(hardware not included)

Screw driver type: M3 hex driver

M3 Screw (included)

2. Unplug the dust caps/waterproof end caps and keep them safe for future use.

3. Fully connect all ProPoint Kontour connection cables one after the other and begin from the data

injector. Do not work on the other unit’s connections until the first unit under installation is properly

connected. (see “FIG.7: Connect All ProPoint Kontour”).

FIG.7: Connect All ProPoint Kontour

Power/Data Input side

Power/Data output side

CLICK!

NOTE — Be sure not to compress the IN/OUT cables (see “2.2.2 Cable Bending”).

— To keep LED pitch consistent and allow for thermal expansion, be sure to keep a minimum

distance of 4mm (0.16”) between consecutive ProPoint Kontour (see “FIG.8: Minimum

Distance”).

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 15 of 26

FIG.8: Minimum Distance

4mm/0.16”

Minimum spacing for thermal expansion

Power/Data output side Power/Data input side

4. Attach the terminator end cap on last ProPoint Kontour in run.

2.4 Accessories Installation

Safety Wire Installation Method

1. Affix safety cable eyelet to installation surface with anchor bolts. DO NOT ANCHOR SAFETY

CABLE WITH THE SAME BOLT AS MOUNTING BRACKET!

FIG.9: Safety Cable to Surface

Safety Cable (Optional Accessory) to ﬁxture

φ10.2mm / 0.4”

To surface (hardware not included)

2. Attach the safety cable to the ProPoint Kontour using the snap clip.

FIG.10: Safety Cable to ProPoint Kontour

Snap-Clip to ﬁxture

φ10.2mm / 0.4”

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 16 of 26

3. System Conﬁguration

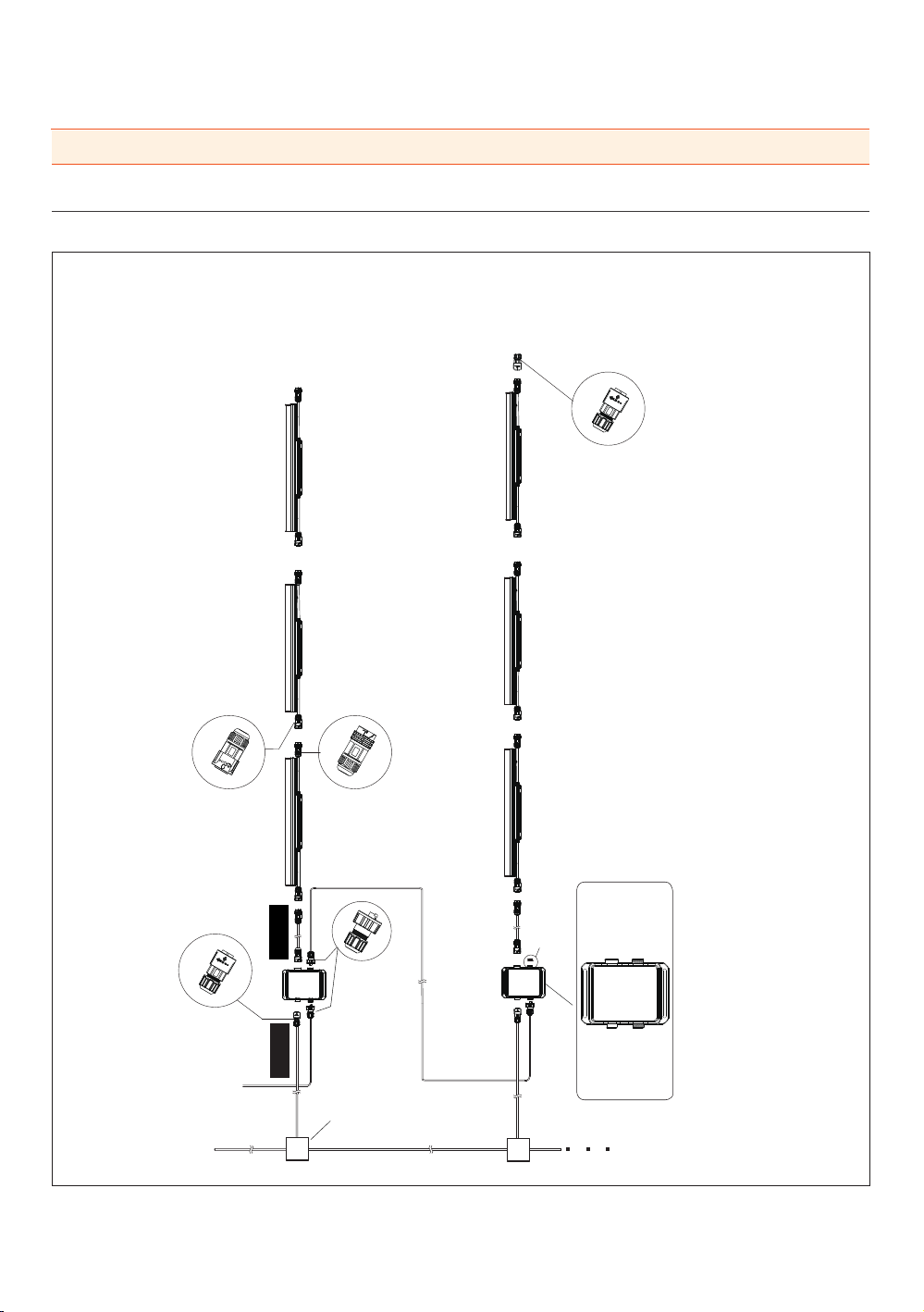

3.1 Wiring Diagram

FIG.11: System Wiring Diagram Details

Male connector

ProPoint Linear/Kontour

Injector Box

Mains AC 120-277V~ (ETL)

Mains AC 220-240V~ (CE)

DMX In

DMX Out

Use provided end cap for ﬁnal data injector in chain

3-pin Female connector

Female connector

Cable A*

DATA OUT

DATA IN

POWER IN TO FIXTURE

Use Kontour end cap w/Terminator (PP.AC.600000)

for ﬁnal ﬁxture in chain.

End cap includes resistor.

Junction Box

Outdoor cable speciﬁcation:

CAT-5e UTP/FTP

PVC jacket; UV resistant

Outer diameter 6mm/0.24”

Filled type

To construct a longer data cable,

use outdoor data cable with RJ45 housing.

1. All ordering information of accessories can be referred to next page.

2. All interconnection information can be referred to next page.

* Cable A, Cable B: Please refer to System Diagram Accessories table for options.

PP.AC.400000

ProPoint RJ45 Field Install Connectors (pair)

Cable B*

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 17 of 26

Wiring Information Details

ProPoint Kontour Narrow-CE

Model Power Consumption (Typ.) Input Voltage Max Connected Chain

300mm / 12” 4W 220-240V 512

600mm / 24” 8W 220-240V 400

1200mm / 48” 16W 220-240V 200

2400mm / 96” 32W 220-240V 100

ProPoint Kontour Narrow-ETL

120V

Model Power Consumption (Typ.) Input Voltage Max Connected Chain

300mm / 12” 4W 120V 432

600mm / 24” 8W 120V 216

1200mm / 48” 16W 120V 108

2400mm / 96” 32W 120V 54

277V

Model Power Consumption (Typ.) Input Voltage Max Connected Chain

300mm / 12” 4W 277V 512

600mm / 24” 8W 277V 500

1200mm / 48” 16W 277V 250

2400mm / 96” 32W 277V 125

ProPoint Kontour Wide-CE

Model Power Consumption (Typ.) Input Voltage Max Connected Chain

300mm / 12” 5W 220-240V 512

600mm / 24” 10W 220-240V 320

1200mm / 48” 20W 220-240V 150

2400mm / 96” 40W 220-240V 80

ProPoint Kontour Wide-ETL

120V

Model Power Consumption (Typ.) Input Voltage Max Connected Chain

300mm / 12” 5W 120V 344

600mm / 24” 10W 120V 172

1200mm / 48” 20W 120V 86

2400mm / 96” 40W 120V 43

277V

Model Power Consumption (Typ.) Input Voltage Max Connected Chain

300mm / 12” 5W 277V 512

600mm / 24” 10W 277V 400

1200mm / 48” 20W 277V 200

2400mm / 96” 40W 277V 100

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 18 of 26

Accessories (ETL / CE)

Model No. Description Item Code

PP.AC.100001 ProPoint Linear/Kontour Injector Box AM374890055

PP.AC.100002 ProPoint Linear/Kontour Injector Box BL AM374900055

PP.AC.100003 ProPoint Linear/Kontour Injector Box WT AM374910055

PP.AC.600000 PP LIN/KON End Cap W / TERM. AM380550055

PP.AC.400000 ProPoint RJ45 Field Install Connectors (pair) AM380560055

Accessories (CE)

Cable Type Model No. Description Item Code

Cable A* PP. A2.303000 3M PP Linear Power Input Cable CE AM374840055

Cable B* KO.KB.610000 10M Kontour PWR/DATA INT CBL CE AM357520155

Cable B* KO.KB.601000 1M Kontour PWR/DATA INT CBL CE AM357490155

Cable B* KO.KB.602000 2M Kontour PWR/DATA INT CBL CE AM357500155

Cable B* KO.KB.603000 3M Kontour PWR/DATA INT CBL CE AM357510155

Accessories (ETL)

Cable Type Model No. Description Item Code

Cable A* PP. A1.303000 3M PP Linear Power Input Cable ETL AM374840155

Cable B* KO.KA.610000 10M Kontour PWR/DATA INT CBL ETL AM357520055

Cable B* KO.KA.601000 1M Kontour PWR/DATA INT CBL ETL AM357490055

Cable B* KO.KA.602000 2M Kontour PWR/DATA INT CBL ETL AM357500055

Cable B* KO.KA.603000 3M Kontour PWR/DATA INT CBL ETL AM357510055

* All cables come pre-wired with male / female connectors.

3.2 Luminaire Addressing and Control

3.2.1 Luminaire Control

Standard configuration is set to control every 12” / 300mm. The pixel configuration can be set at the

factory to those listed in the table below:

Model Length Available PXL Conﬁguration

ProPoint Kontour Narrow

300mm / 12”

— 300mm can be 1PXL

— 600mm can be 1PXL or 2PXL

— 1200mm can be 1PXL, 2PXL, or 4PXL

— 2400mm can be 1PXL, 2PXL, 4PXL, or 8PXL

— PXL Conﬁguration is set during manufacturing, and is not adjustable on-site

600mm / 24”

1200mm / 48”

2400mm / 96”

ProPoint Kontour Wide

300mm / 12”

600mm / 24”

1200mm / 48”

2400mm / 96”

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 19 of 26

3.2.2 Luminaire Addressing and Control

The ProPoint Kontour utilizes 3 DMX channels for RGB, 4 DMX channels for RGBW and 1 DMX channel for White

per Pixel (every 300mm / 12”).

The ProPoint Kontour is shipped with a default DMX address of 001.

The ProPoint Kontour beneﬁts from an auto-addressing functionality to simplify the setup and commissioning of

the project:

— On startup, the ProPoint Data Injector automatically senses all Kontour luminaire’s connected to it.

— The ProPoint Data Injector automatically addresses each luminaire, starting at the ﬁrst unit closest to the Data

Injector. The ProPoint Kontour is auto addressing only and does not support manually assigned address.

— Each Data Injector consumes 512 DMX channels regardless of connected ﬁxture count. Maximum number of

Data Injector units per DMX-512 universe depends on number of ﬁxtures per Data Injector.

— Any standard DMX output device can be utilized with Kontour.

— The ProPoint Data Injector cannot sense the address of the last ﬁxture of the previous Data Injector and

continue the next address.

ProPoint Power-Up and Loss of Data Behavior

The ProPoint Kontour will exhibit the following behavior upon power-up and loss of DMX data:

Power-Up with no DMX data present Luminaire will illuminate at full power

Power-Up with DMX data present Luminaire will respond based on the DMX values being received

Loss of DMX data Luminaire will hold the last valid DMX values received until a power cycle or

until DMX is restored.

DMX Channel Functions

RGBW Unit

DMX Channel Function

1Red Intensity

2Green Intensity

3Blue Intensity

4White Intensity

RGB Unit

DMX Channel Function

1Red Intensity

2Green Intensity

3Blue Intensity

White Unit

DMX Channel Function

1White Intensity

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.0 03/21 P. 20 of 26

4. Care and Maintenance

— Traxon™ products are of superior design and quality and should be treated with care. The recommendations

below will help fulﬁll any warranty obligations and gain good use and longevity from the products.

— Do not attempt or use the product(s) until you read and understand the installation instructions. Failure to

adhere to these instructions could result in serious injury or property damage.

— Do not use product(s) if cables are damaged.

— Do not connect cables and connectors when wet or in wet area. Moisture on bare connectors can cause

electric shock and damage to product(s).

— Do not use product(s) in extreme heat environment. Ensure there is sufﬁcient airﬂow and use cool air circulation

if required.

— Do not drop, knock, or shake product(s). Rough handling can damage the electronics and void the warranty.

— Do not use harsh chemicals, cleaning solvents, or strong detergents to clean products. Wipe with a damp

cloth on housings and a dry cloth on electronics to remove dirt or dust.

— Do not attempt to service or repair the product(s) unless done by an authorized service personnel. Contact

your local Traxon ofﬁce or distributor for details.

— If the product is not working as speciﬁed, please contact your nearest authorized service center or Traxon

Technologies ofﬁce for assistance.

This manual suits for next models

Table of contents

Other Osram Lantern manuals

Osram

Osram MINI LED BATTENTM 300MM User manual

Osram

Osram ORBIS 46620 User manual

Osram

Osram ProPoint Sconce Series Installation instructions manual

Osram

Osram AR111 User manual

Osram

Osram BeetLED 46618 User manual

Popular Lantern manuals by other brands

BEGA

BEGA 84 268 Instructions for use

Coleman

Coleman 8D TWIN SPIRAL manual

Toshiba

Toshiba TLS-WPD installation instructions

BEGA

BEGA 22 050 Instructions for use

Festive Lights

Festive Lights SL145 manual

WAGNER

WAGNER HENRY manual

Cooper

Cooper MEDC Filament FB11 Technical manual

Solar Technology International

Solar Technology International SolarMate Tibu user manual

North Light

North Light TN-5055 manual

KYOWA

KYOWA KW-9130 instruction manual

Leotek

Leotek GreenCobra installation guide

AEL

AEL AVL SERIES installation instructions

Teknoware

Teknoware TWT/S65 L Series Installation

Intermatic

Intermatic Malibu LZ6 instructions

Philips

Philips Stylid Evo Compact ST770B manual

Nature Power

Nature Power Eco instruction manual

Lenmar

Lenmar SOLV17 owner's manual

Waldmann

Waldmann LINURA.edge LEA Instructions for use

Osram ProPoint Kontour Flat Narrow User manual

Popular Lantern manuals by other brands
