OTC Tools 5550 User manual
Sheet No.
Issue Date: Rev. B August 13, 2014
© Bosch Automotive Service Solutions LLC
Form No. 563797
Operating Instructions for: 5550
5551
5552
Spectrum Work Lights
655 EISENHOWER DRIVE
OWATONNA, MN 55060 USA
PHONE: (507) 455-7000
TECH. SERV.: (800) 533-6127
FAX: (800) 955-8329
ORDER ENTRY: (800) 533-6127
FAX: (800) 283-8665
INTERNATIONAL SALES: (507) 455-7223
FAX: (507) 455-7063
WEBSITE: WWW.OTCTOOLS.COM
Original Instructions
1 of 2
Explanation of Safety Signal Words
The safety signal word designates the degree or level of hazard seriousness.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
CAUTION: Used without the safety alert symbol indicates a potentially hazardous situation which, if not
avoided, may result in property damage.

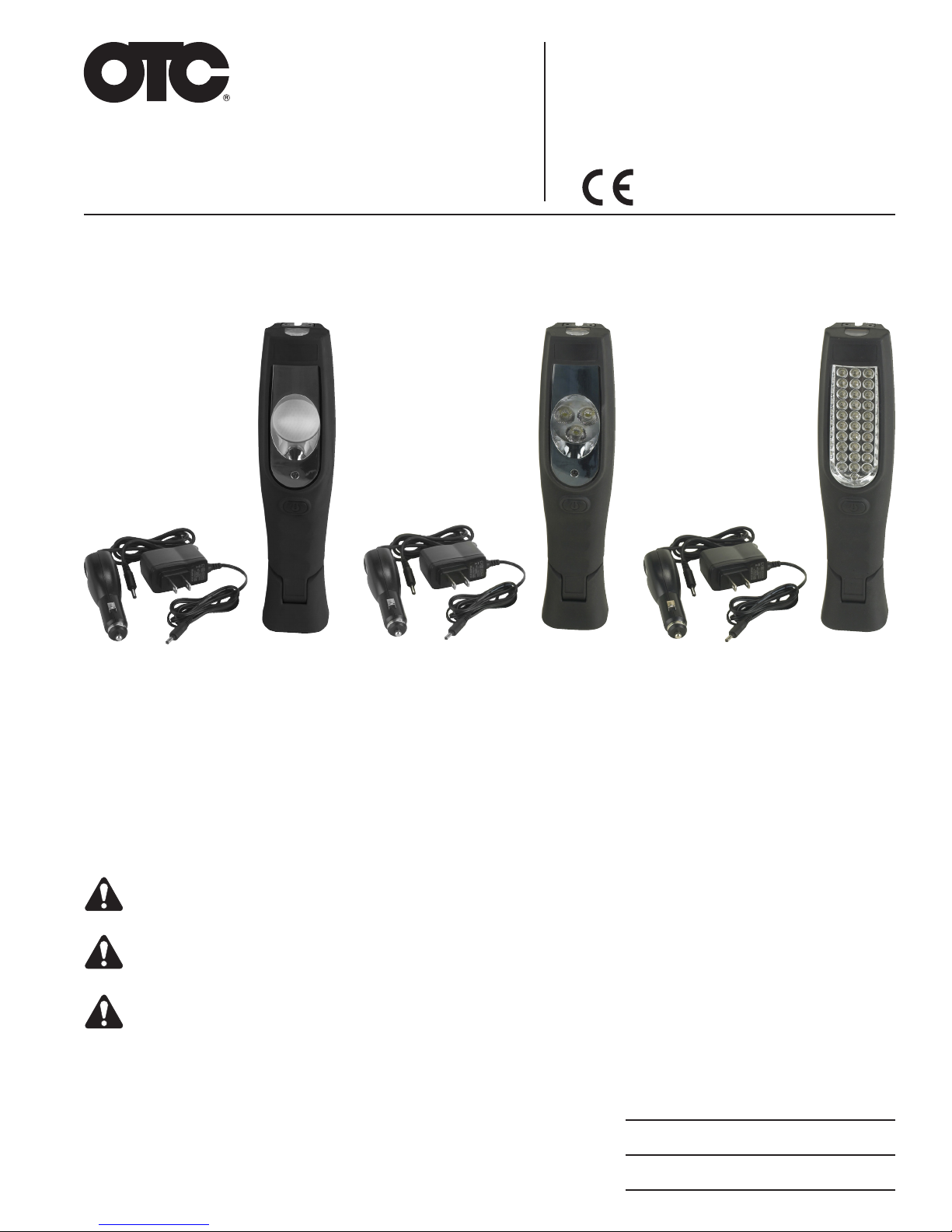

Description:
Waterproof-grade work light with
lithium-ion (LI-ION) rechargeable battery.
No. 5550
Spectrum Solar
10W LED Work Light
w/ UV Top Light
No. 5551
Spectrum Trio
9W LED Work Light
w/ 3W LED Top Light
No. 5552
Spectrum 30+4
30 Pc. LED Work Light
w/ 4 Pc. LED Top Light
Operating Instructions Form No. 563797, Sheet 1 of 2, Back
Operating Instructions
CAUTION: To prevent personal injury, wear ultraviolet (UV) goggles when using
this tool. Avoid direct eye contact with UV light.
Setup
1.Fullychargetheworklightbeforeusingitthersttime.Pulloutthetabonthebackoftheworklightand
insert one of the charging adapters. It may take three to four hours to achieve a full charge.
Charger input: AC 100 ~ 240V 50/60 Hz
DC 12V ~ 24V
Instructions
1.Presstheon/offswitchoncetoturnonalight;presstheswitchagaintoturnitoff.
2.Presstheon/offswitchathirdtimetoturnontheotherlight;presstheswitchagaintoturnitoff.
3. The work light may be:
• held in your hand.
• mounted to a metal surface by using the magnet in the base. The base is adjustable to six different
angles to help the light adjust to the work area.
• hung from a component by using the hook located on the back. The hook pulls away from the work light
housing and swivels 360° to help the light adjust to the work area.
Charging the Work Light
• Beforetheworklightisusedforthersttime,chargeitforaperiodofthreetofourhours.
• When the lights become weak, turn OFF the work light before charging it.
• Fully charge the work light before storing it for a long period of time.

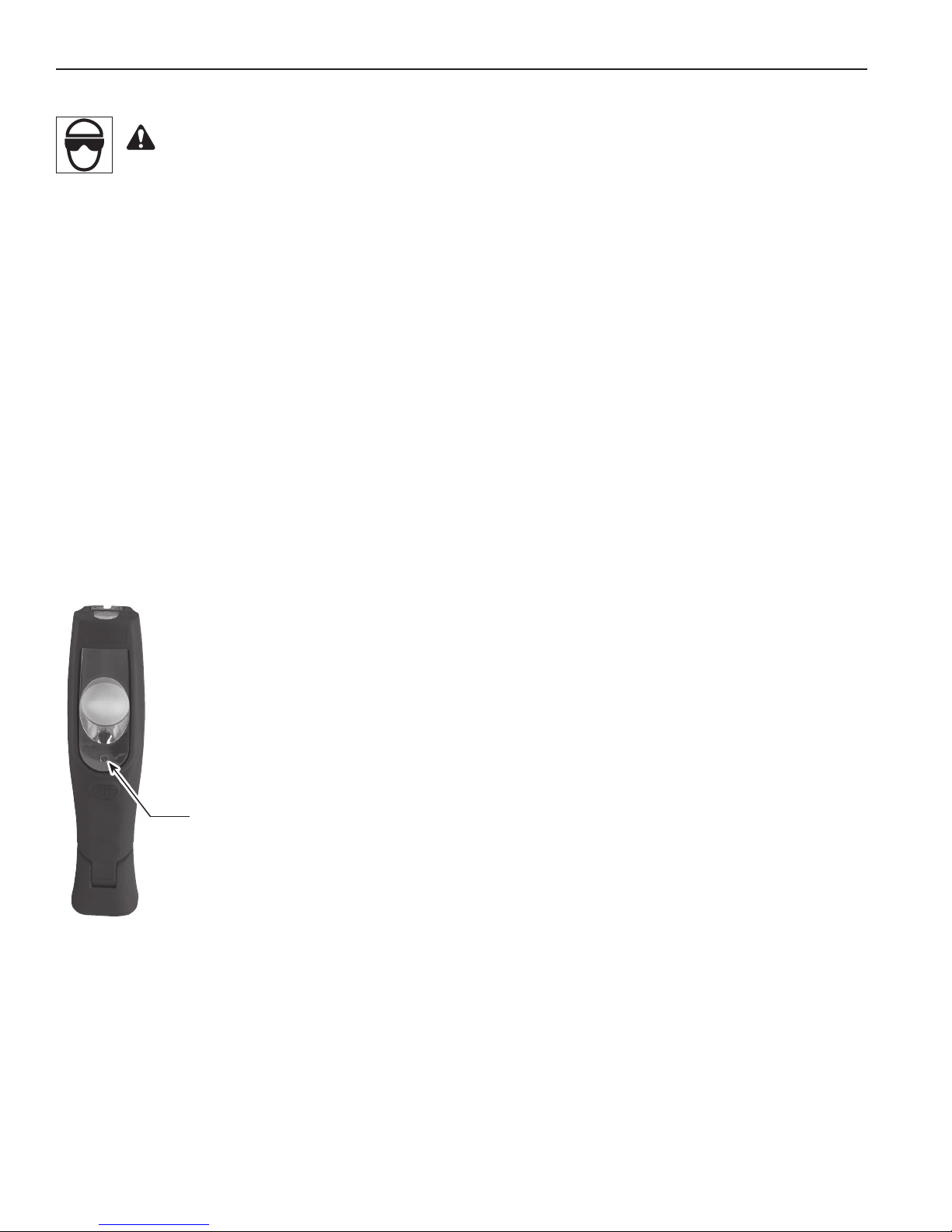

Red light illuminates during charging and
turns off when work light is fully charged.
(No. 5550 shown.)
OTC Limited Lifetime Warranty
OTC’s Limited Lifetime Warranty warrants this product to be free of defect, including the LED, for a lifetime of
use. We will repair, replace, or refund the purchase price, at our option, of any OTC Spectrum Lights product
that does not work as a result of a manufacturing defect for as long as you own it. This limited lifetime warranty
excludes abuse, batteries, chargers, switches, electronics, and normal wear and tear. Rechargeable batteries,
chargers, switches, and electronics have a two (2) year warranty with proof of purchase.
DISCLAIMER: THE ABOVE WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Sheet No.
Issue Date: Rev. B August 13, 2014
© Bosch Automotive Service Solutions LLC
Operating Instructions Form No. 563797
2 of 2
Specications
5550 5551 5552
10W LED Work light
with UV Top Light
9W LED Work light
with 3W LED Top Light
30PieceLEDWorklight
with4PieceLEDTopLight
LI-ION Rechargeable Battery –
3.6V 2250 mAH, AC/DC
LI-ION Rechargeable Battery –
3.6V 2250 mAH, AC/DC
LI-ION Rechargeable Battery –
3.6V 2250 mAH, AC/DC
ChargerInputAC100~240V;
50/60Hz;DC12V~24V
ChargerInputAC100~240V;
50/60Hz;DC12V~24V
ChargerInputAC100~240V;
50/60Hz;DC12V~24V
PowerOutput:5.0V1000mAH PowerOutput:5.0V1000mAH PowerOutput:5.0V1000mAH
Charger Time: 3.5 ~ 4.0 hours Charger Time: 3.5 ~ 4.0 hours Charger Time: 3.5 ~ 4.0 hours
Active Time: 2.5 hours Active Time: 3.0 hours Active Time: 4.0 to 5.0 hours
StorageTemperature:-4°Fto158°F;
-20°C to 70°C
StorageTemperature:-4°Fto158°F;
-20°C to 70°C
StorageTemperature:-4°Fto158°F;
-20°C to 70°C
Operating Temperature:
23°Fto122°F;-5°to50°C
Operating Temperature:
23°Fto122°F;-5°to50°C
Operating Temperature:
23°Fto122°F;-5°to50°C
PS:LEDSector:170° PS:LEDSector:25° PS:LEDSector:15°
At 50 cm: 350 LUX (750 LM) At 50 cm: 4000 LUX At 50 cm: 2250 LUX
WaterproofGradeIP65 WaterproofGradeIP65 WaterproofGradeIP65
Inspection and Maintenance
CAUTION: To prevent personal injury,
•Wear ultraviolet (UV) goggles when using this tool. Avoid direct eye contact with UV light.
• Onlyqualiedpersonnelshallperforminspectionsandrepairstothisworklight.
•Before each use, an approved inspector must inspect the work light for bends, cracks, dents,
elongated holes, or missing hardware. If damage is found, discontinue use.
Inspection
Before each use, an approved inspector must inspect the work light for bends, cracks, dents, elongated
holes, or missing hardware. If damage is found, discontinue use.
Disposal
At the end of the useful life of the work light, dispose of the tool according to all state, federal, and local
regulations.
IMPORTANT PRODUCT INFORMATION
Recordserialnumberandyearofmanufactureforfuturereference.Seeproductidentication
label on unit for information.
Serial Number: Year of Manufacture:
