OTEK M667TP User manual

Version 1.0 Sep. 2011
Model No. M667TP
Point-of-Sale
Hardware
System
User Manual

i
Copyright 2011
All Rights Reserved
Manual Version 1.0
Part Number:
The information contained in this document is subject to change
without notice.
We make no warranty of any kind with regard to this material,
including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. We shall not be
liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of
this material.
This document contains proprietary information that is protected by
copyright. All rights are reserved. No part of this document may be
photocopied, reproduced or translated to another language without
the prior written consent of the manufacturer.
TRADEMARK
Intel®, Pentium® and MMX are registered trademarks of Intel®
Corporation. Microsoft® and Windows® are registered trademarks of
Microsoft Corporation.
Other trademarks mentioned herein are the property of their
respective owners.

ii
Safety
IMPORTANT SAFETY INSTRUCTIONS
1. To disconnect the machine from the electrical Power Supply, turn
off the power switch and remove the power cord plug from the wall
socket. The wall socket must be easily accessible and in close
proximity to the machine.
2. Read these instructions carefully. Save these instructions for future
reference.
3. Follow all warnings and instructions marked on the product.
4. Do not use this product near water.
5. Do not place this product on an unstable cart, stand, or table. The
product may fall, causing serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are
provided for ventilation; to ensure reliable operation of the product
and to protect it from overheating. These openings must not be
blocked or covered. The openings should never be blocked by
placing the product on a bed, sofa, rug, or other similar surface.
This product should never be placed near or over a radiator or heat
register, or in a built-in installation unless proper ventilation is
provided.
7. This product should be operated from the type of power indicated
on the marking label. If you are not sure of the type of power
available, consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not locate this
product where persons will walk on the cord.
9. Never push objects of any kind into this product through cabinet
slots as they may touch dangerous voltage points or short out
parts that could result in a fire or electric shock. Never spill liquid
of any kind on the product.
CE MARK
This device complies with the requirements of the EEC directive
2004/108/EC with regard to “Electromagnetic compatibility” and
2006/95/EC “Low Voltage Directive”
FCC
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation

iii
CAUTION ON LITHIUM BATTERIES
There is a danger of explosion if the battery is replaced incorrectly.
Replace only with the same or equivalent type recommended by the
manufacturer. Discard used batteries according to the manufacturer’s
instructions.
Battery Caution
Risk of explosion if battery is replaced by an incorrectly type.
Dispose of used battery according to the local disposal instructions.
Safety Caution
Note: To comply with IEC60950-1 Clause 2.5 (limited power sources,
L.P.S) related legislation, peripherals shall be 4.7.3.2 "Materials for fire
enclosure" compliant.
4.7.3.2 Materials for fire enclosures
For MOVABLE EQUIPMENT having a total mass not exceeding
18kg.the material of a FIRE ENCLOSURE, in the thinnest significant
wall thickness used, shall be of V-1 CLASS MATERIAL or shall pass
the test of Clause A.2.
For MOVABLE EQUIPMENT having a total mass exceeding 18kg
and for all STATIONARY EQUIPMENT, the material of a FIRE
ENCLOSURE, in the thinnest significant wall thickness used, shall
be of 5VB CLASS MATERIAL or shall pass the test of Clause A.1
LEGISLATION AND WEEE SYMBOL
2002/96/EC Waste Electrical and Electronic Equipment Directive on
the treatment, collection, recycling and disposal of electric and
electronic devices and their components.

iv
The crossed dustbin symbol on the device means that it should not
be disposed of with other household wastes at the end of its working
life. Instead, the device should be taken to the waste collection
centers for activation of the treatment, collection, recycling and
disposal procedure.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types of
wastes and recycle it responsibly to promote the sustainable reuse of
material resources.
Household users should contact either the retailer where they
purchased this product, or their local government office, for details of
where and how they can take this item for environmentally safe
recycling.
Business users should contact their supplier and check the terms
and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for
disposal.

v
Revision History
Changes to the original user manual are listed below:
Revision Date Description
V1.0 Sep, 2011 zRelease ( C46 M/B )

vi
Table Contents
1 Item Checklist.................................................... 1
1-1 Standard Items..................................................................... 1
1-2 Optional Items...................................................................... 2
2 System View....................................................... 3
2-1 Front View............................................................................ 3
2-2 Rear View............................................................................. 4
2-3 Bottom View......................................................................... 5
2-4 I/O View................................................................................ 6
3 Peripheral Installation...................................... 7
3-1 MSR..................................................................................... 7
3-2 Second Display .................................................................... 8
3-3 Cash Drawer...................................................................... 10
4 System Assembly & Disassembly ................14
4-1 Replace the HDD ............................................................... 14
4-2 Remove the System Stand................................................. 15
4-3 Remove the LCD Rear Cover ............................................ 16
4-4 Replace the Motherboard................................................... 17
4-5 Replace the Inverter Board ................................................ 17
4-6 Replace the LCD Panel...................................................... 18
5 Specification ....................................................19
6 Jumper Settings ..............................................21
6-1 C46 Motherboard ............................................................... 21

vii
7 BIOS Settings...................................................26
Appendix ..............................................................30

1
1 Item Checklist
Take the system unit out of the carton. Remove the unit from the carton by
holding it by the foam inserts. The following contents should be found in the
carton:
1-1 Standard Items
a. c.
b. d.
e.
a. System
b. Driver CD
c. Power Adapter (65W)
d. Power Cable
e. COM-RJ45 Cable (x2)

2
1-2 Optional Items
a. d.

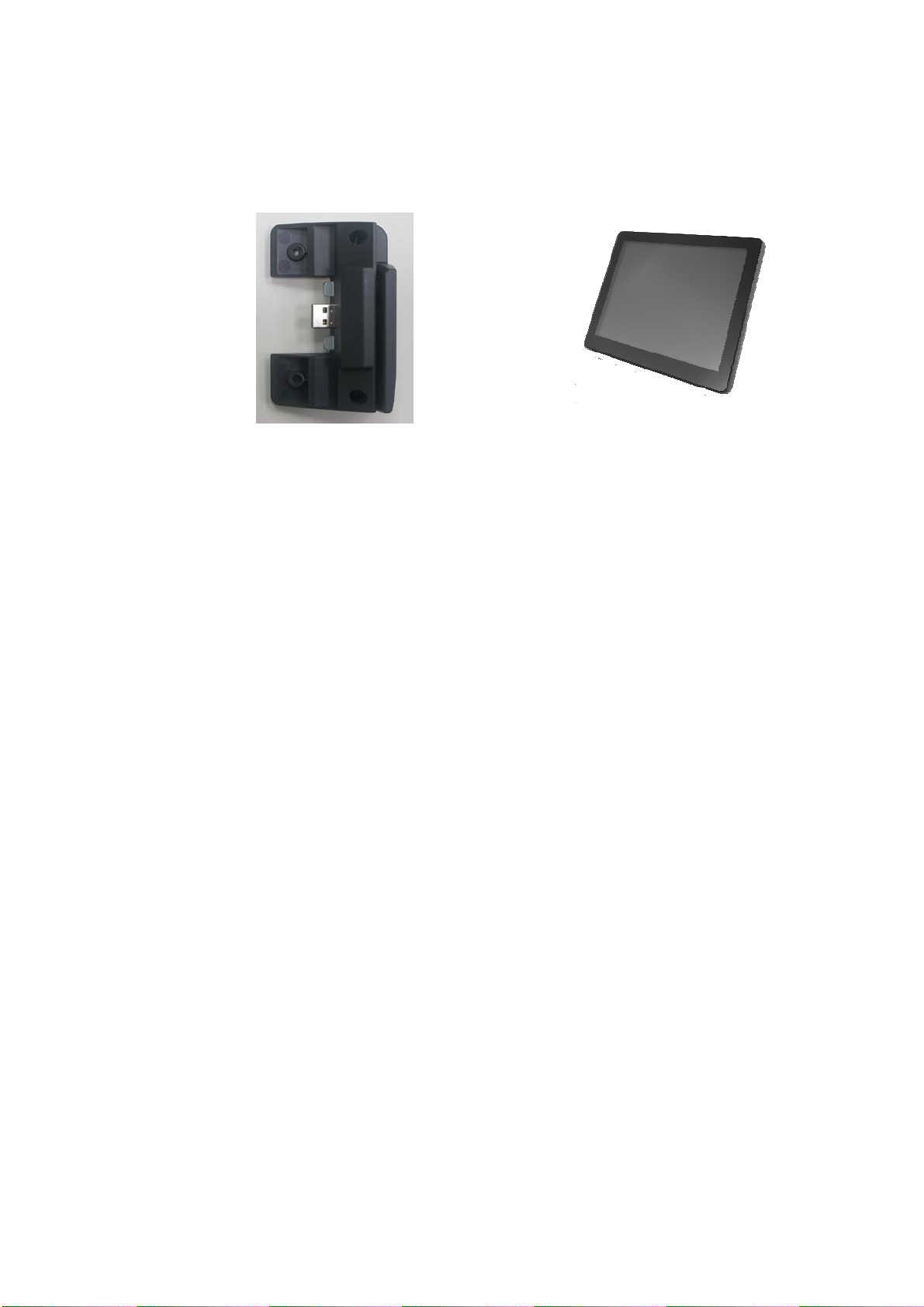

a. MSR Module
b. Second Display

3
2 System View
2-1 Front View

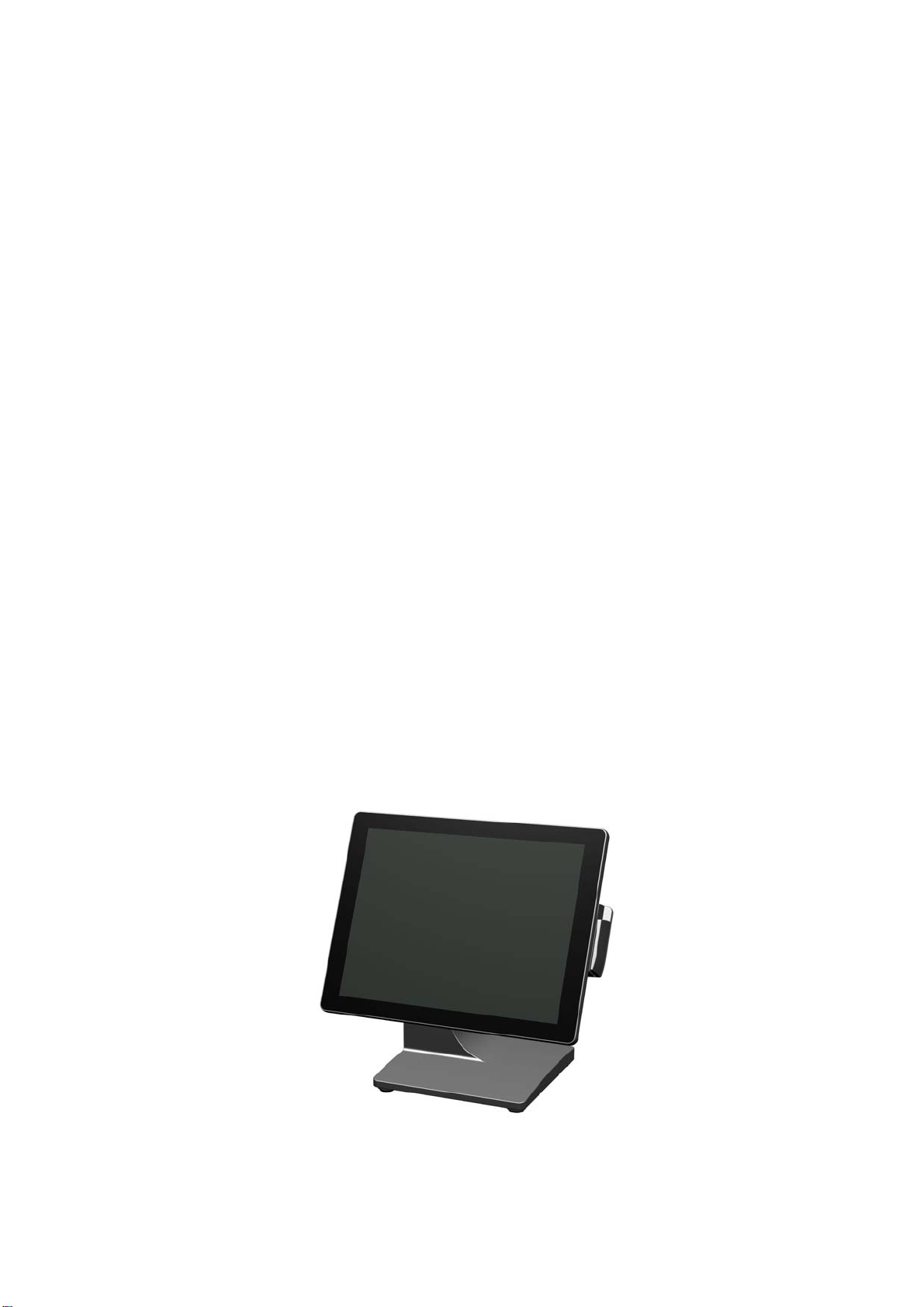

Number Description
1 Touch Screen
2 MSR Module (Option)
②
①

4
2-2 Rear View
Number Description
3 Cable Cover
4 Stand/Wall Mount Kit Installing Place
5 Stand
6 Use the power switch to turn the system power ON or OFF.
④
⑤
③
⑥

5
2-3 Bottom View
Number Description
7 Stand Pad
⑦

6
2-4 I/O View
Number Description
1 E-SATA connector (for OP15)
2 Power Jack for HDD (for OP15)
3 Cash Drawer
4 USB x 4
5 LAN
6 COM1~4 (from left to right)
7 VGA
8 Power Jack for System
9 Power Button
Note: The maximum current that can be drawn from each COM port is 500 mA.
③
④
⑤⑥⑦⑧①
②
⑨

7
3 Peripheral Installation
The peripheral and modules units provided are tested and can be supplied at your
request.
3-1 MSR
Components of MSR Kit:
1. Slide the MSR into the right position of the System.
2. Fasten the screws (x2).
MSR
Screws USB

8
3-2 Second Display （USB Interface）
Components of Second Display Kit:
Fix the parts of Second Display modules as steps ❶Æ❷Æ❸
1. as above picture shows. (detail steps as below)
❶Put the second display upside down.
❷Connect the USB cable to the Second Display Module
❸Fasten the screws (x4) to fix metal bracket with the system.
Second Dis
p
la
y
Metal Bracket
USB Cable Screws
❶
❷ ❸

9
2. Fasten the scrws (x3) to fix the Second Display moudle with the System.
3. Connect the USB cable to the System.
4. Finish.

10
3-3 Second Display（VGA Interface with POWER +12V）
Components of Second Display Kit:
Fix the parts of Second Display modules as steps ❶Æ❷Æ❸
1. as above picture shows. (detail steps as below)
❶Put the second display upside down.
❷Connect the VGA cable to the Second Display Module
❸Fasten the screws (x4) to fix metal bracket with the system.
Second Dis
p
la
y
Metal Bracket
USB Cable Screws
❶
❷
❸

11
2. Fasten the scrws (x3) to fix the Second Display moudle with the System.
3. Connect the VGA cable to the System.
4. Finish.

12
3-4 Cash Drawer
You can install a cash drawer through the cash drawer port. Please verify the pin
assignment before installation.
Cash Drawer Pin Assignment
Cash Drawer Controller Register
The Cash Drawer Controller use one I/O addresses to control the Cash Drawer.
Register Location: 48Ch
Attribute: Read / Write
Size: 8bit
BIT BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0
Attribute Reserved Read Reserved Write Reserved
7 6 5 4 3 2 1 0
X X X X X
Reserved
Cash Drawer “DOUT bit0” pin output control
Cash Drawer “DOUT bit1” pin output control
Reserved
Cash Drawer “DIN bit0” pin input status
Reserved
Pin Signal
1 GND
2 DOUT bit0
3 DIN bit0
4 12V / 19V
5 DOUT bit1
6 GND
