Otter Pro XT Cabin Manual

Page 1

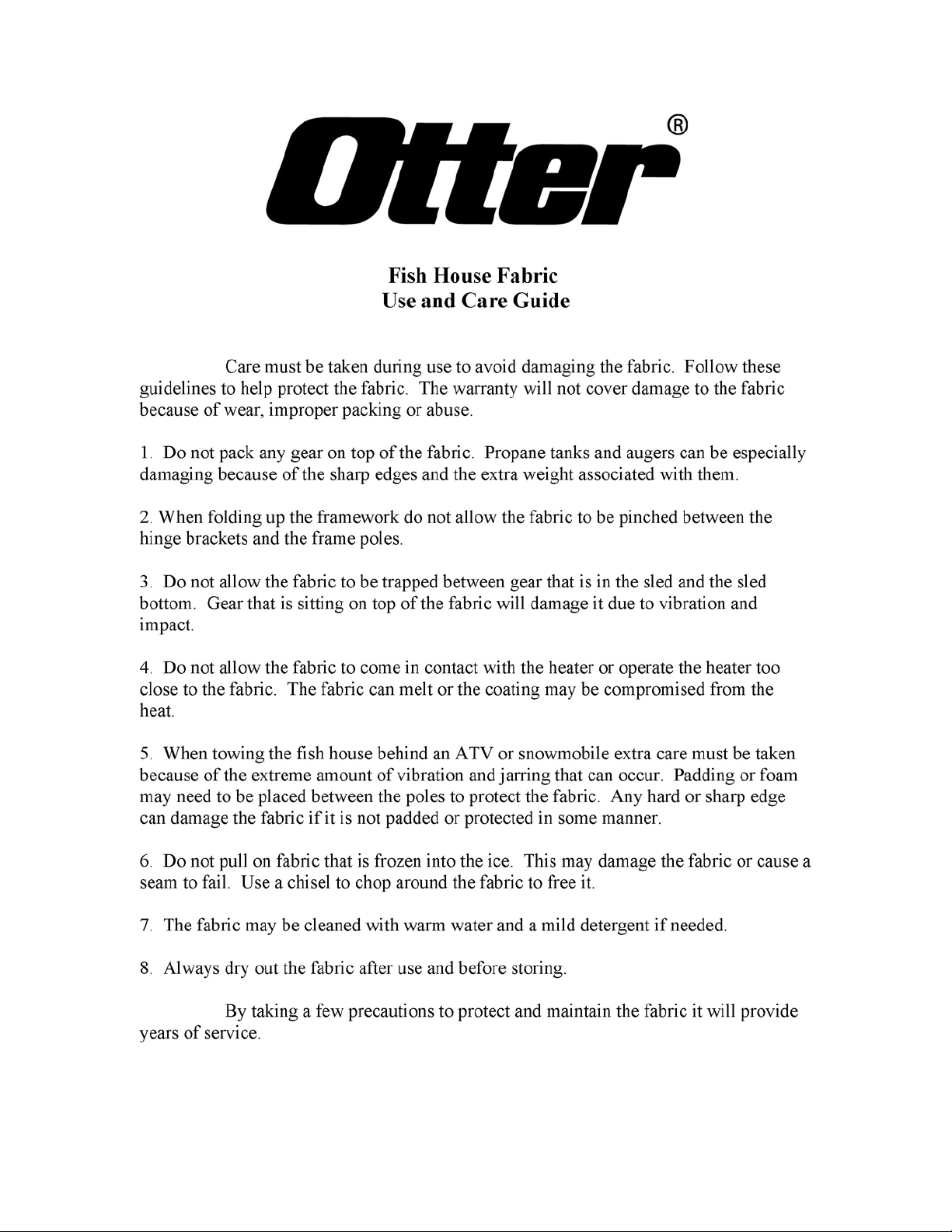

Otter Pro XT Cabin
Installation and Set-Up Instructions
Otter Pro XT Cabin
FitsMediumOtterProandOtterIISledOnly

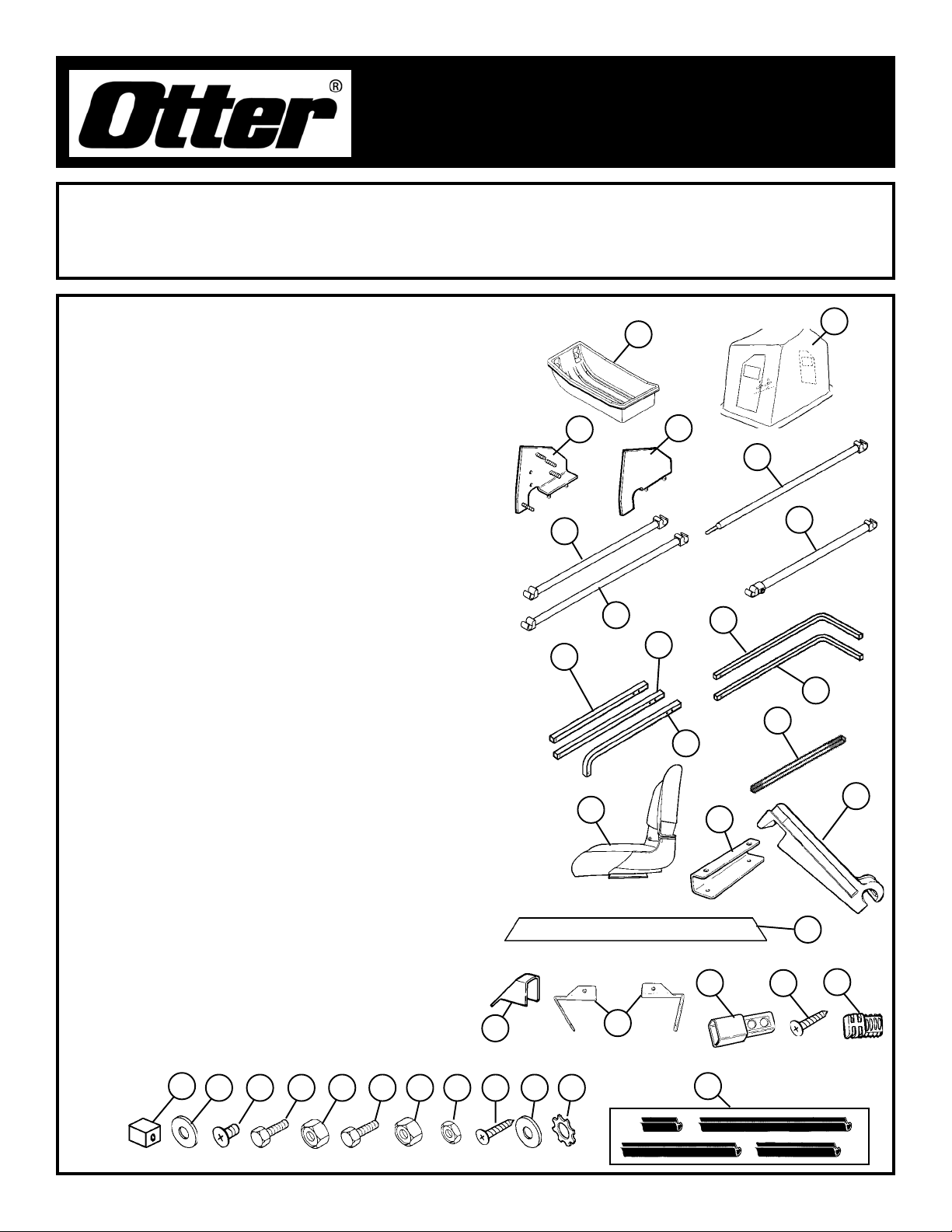

PartsIdentificationandCheckList
PP
PP
PARAR
ARAR
ARTS LISTTS LIST
TS LISTTS LIST
TS LIST
Item #Item #
Item #Item #
Item # QtyQty
QtyQty
Qty Part #Part #
Part #Part #
Part # DescriptionDescription
DescriptionDescription
Description
1 1 201066 Sled - Dark Gray
2 1 200966 TentXTProCabin
3 1 80172 FrameBracket“A”
4 1 80171 FrameBracket“B”
5 1 80516 Back Wind Support Bar - 48”
6 1 80513 CenterWindSupportBar- 25 5/8”
7 1 80514 CenterWind Support Bar- 40 1/2”
8 1 80512 AdjustableFront WindSupport Bar
9 2 80464 Main Frame Extension Bar - 25 3/8”
10 2 80465 Main Frame Extension Bar - 27 9/16”
11 4 80466 Main Frame Extension Bar - 26 1/16”
12 2 80468 Outer Main Frame Bar - 29 3/4”
13 6 80467 Outer Main Frame Bar - 28 1/2”
14 4 80469 MiddleMain FrameBar - 43”
15 2 200861 Seat withSwivel
16 2 200369 Seat Bracket
17 2 200806 Seat Base
18 1 200377 Seat Rail - 58”
19 2 200196 SeatRail Cap
20 2 200376 Seat Rail Bracket
21 8 200384 Sleeve
22 16 400641 #8 x 3/4” Self Tapping Screw
23 8 200197 Black Plug
24 8 200195 Black End Cap
25 14 200615 5/16 Washer
26 8 200944 1/4 x 1/2 Philips Head, Counter Sunk Screw
27 4 401017 1/4 x 3/4 Hex Bolt
28 16 400648 1/4 Nylon Hex Lock Nut
29 2 400367 5/16 x 2 Hex Bolt
30 2 200787 5/16 Nylon Hex Lock Nut
31 8 200235 1/4”Low ProfileNylon Lock Nut
32 12 200942 3/8” SelfTappingScrew
33 16 200941 Plastic Protector
34 16 200943 Star Washer
35 1 200975 Plastic Trim Lock Kit
2
1
5
6
7
8
23
22
3
11 10
9
13
12
14
21
19
16 17
18
15
4
MODEL NUMBERS:MODEL NUMBERS:
MODEL NUMBERS:MODEL NUMBERS:
MODEL NUMBERS:
Complete PkgComplete Pkg
Complete PkgComplete Pkg
Complete Pkg Pro XT Thermal Cabin 200957Pro XT Thermal Cabin 200957
Pro XT Thermal Cabin 200957Pro XT Thermal Cabin 200957
Pro XT Thermal Cabin 200957
20
Bottom
Front
Back &
Center
Front
Back
Center
Bottom
All
Instructions - 70760
3524 25 282726 3029 31 32 33 34

Installing the seating system before assembling the frame and
canvas will make installation easier.

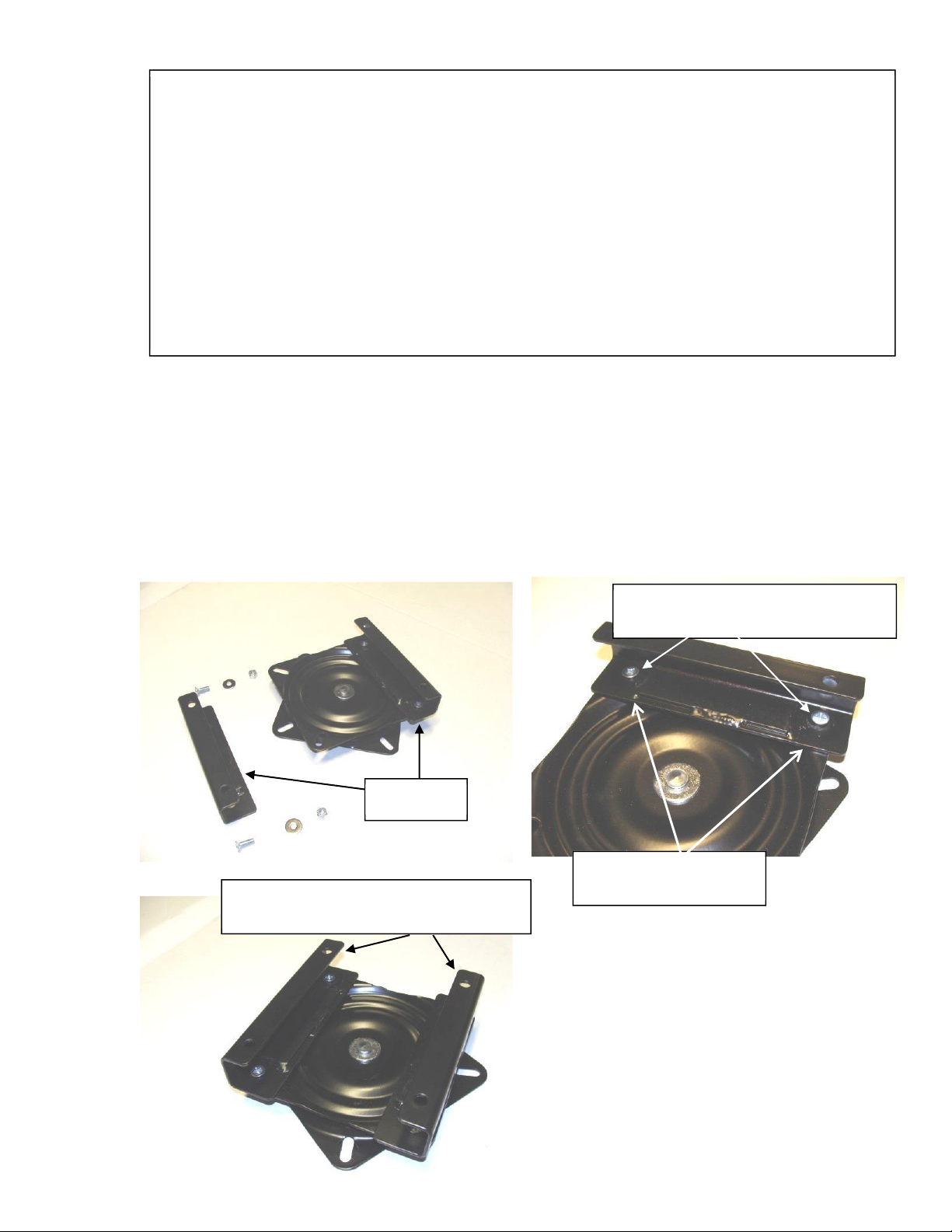

1. Install the seat slide brackets onto the seat swivel using the flathead machine
screws and nylock nuts and washers. Leave the bolts loose enough to allow them to
be adjusted.
Tools Required:
Ratchet & 7/16” socket
7/16”wrench
Short extension for Ratchet or 7//16” deep socket
Drill/Driver
Phillips Bit
Phillips Screwdriver
½” Wrench
½” socket
5/16” Drill Bit
7/16” Drill Bit
Seat slides
Flathead Phillips bolts are inserted
here
Phillips screwdriver is inserted through
these holes to tighten flathead screws.
Washer and nylock nut
attach on the backside.

2. Slide brackets and swivel part way onto the plastic base. Adjust the fit to be snug by
pressing in on the brackets. However the brackets still need to be able to slide smoothly
back and forth on the plastic base. Tighten the bolts securely once the fit is correct.
3. Line up the swivel with the inserts in the bottom of the seat. Loosely install the ¼ x ¾”
Phillips head bolt with washers (included in the seat box) into the inserts in the bottom of
the seat. Tighten all 4 bolts securely once the swivel is properly positioned.
Press in on slide
brackets and adjust
for proper fit on
plastic base.
Tighten all 4 nylock
nuts securely once
properly adjusted.
Install Phillips
head bolts and
washers here.

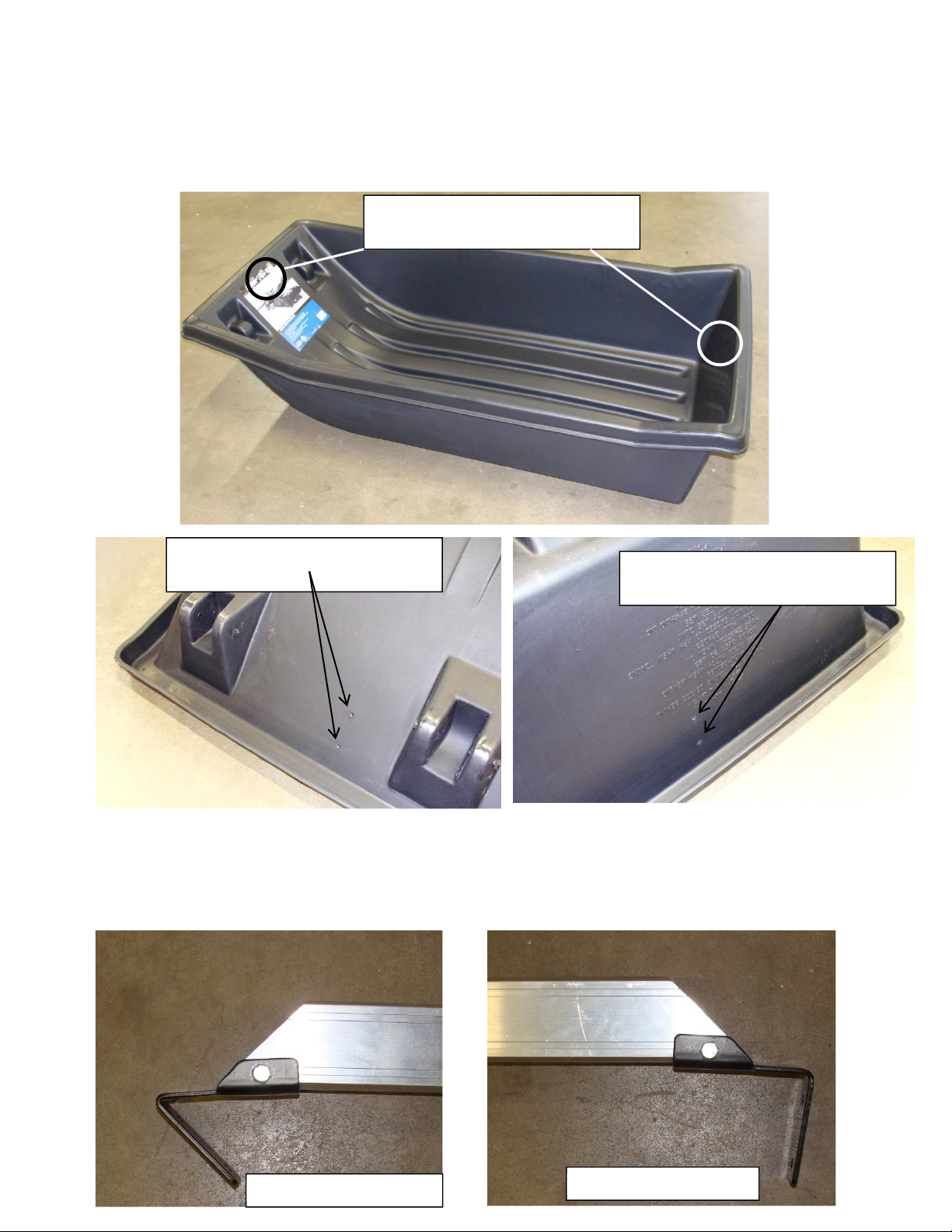

4. Drill out the four pre-marked holes for the seat rail brackets as shown using a 5/16”
drill bit. The sled may be tipped upside down to make drilling the holes easier.
5. Attach the metal brackets to the seat rail using the 5/16” bolts and nuts. The bracket
with the greater angle goes toward the front of the sled. Attach plastic end caps onto the
seat rail using the self tapping screws. A small pilot hole may be drilled to ease
installation.
Drill four pre-marked holes at these
locations.
Drill these 2 pre-marked holes with
a 5/16 drill bit. Drill these 2 pre-marked holes with
a 5/16 drill bit.
Bracket for front of sled. Bracket for rear of sled.

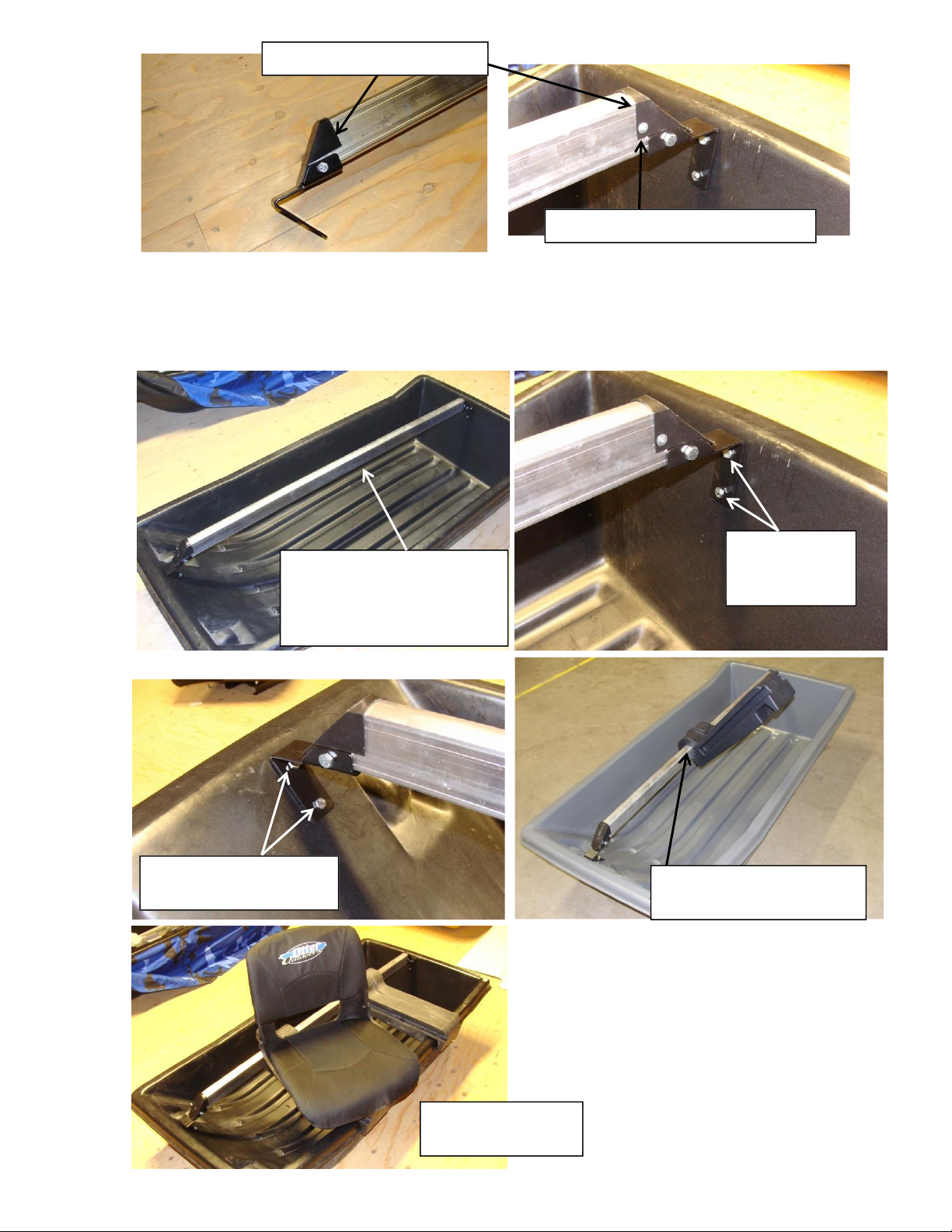

6. After the brackets and end caps are installed the seat rail may be bolted into place
with the ¼” bolts, washers and nylock nuts
using the previously drilled holes.
Install plastic base and seat onto the rail. Use WD-40 or silicone to lubricate plastic
seat base opening so it will go onto the aluminum rail easier.
Install plastic end caps here.
Secure with ¾” self tapping screws.
Install seat rail here. Some
downward pressure may be
necessary to get the holes to
align.
Bolt rear
bracket to sled
here.
Bolt front bracket to sled
here. Lubricate here for easier
pivoting on the seat rail.
Two seat bases and
one seat installed.

Page 6

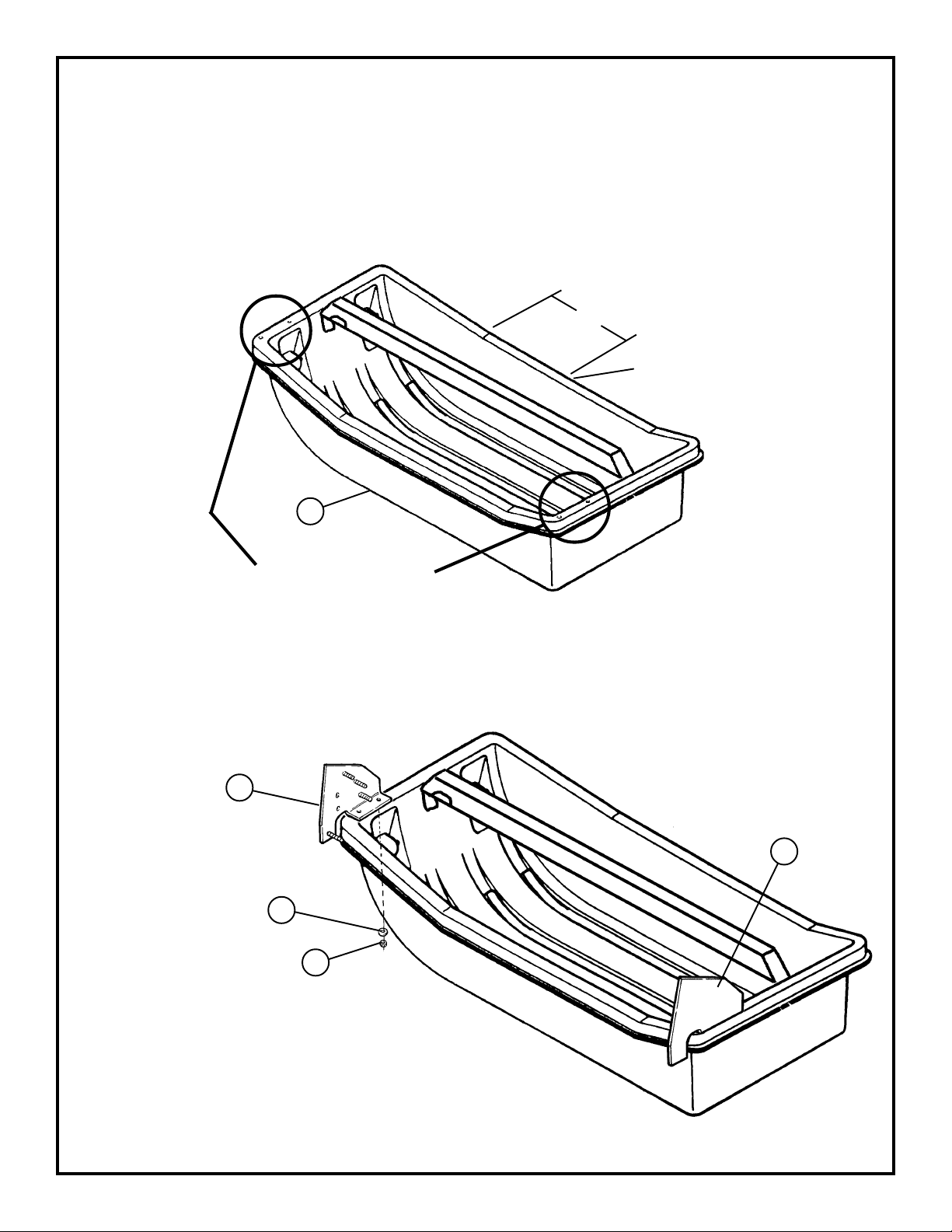

7. Position sled (Item 1) as shown in Diagram 7, with curved front to your left.
8. Drill the 4 marked holes using a 5/16” bit.
9. Drill the 7/16” hole in center of lip approximately 16 inches from bend in sled. The back wind support bar
(Item 5) is to be propped here.
Diagram7
Diagram8
Item 25 - 5/16 Washer
Item 28 - 1/4 Nylon Hex Lock Nut
10. Bolt frame brackets (Item 3 and Item 4) to sled using holes predrilled in Step 8.
Use appropriate fasteners shown in Diagram 8.
Drill4 premarked holes
with 5/16” drill bit.
16”
7/16”
Hole
1
3
25
28
4
Seatassemblynotshownforclarity.

Page 7

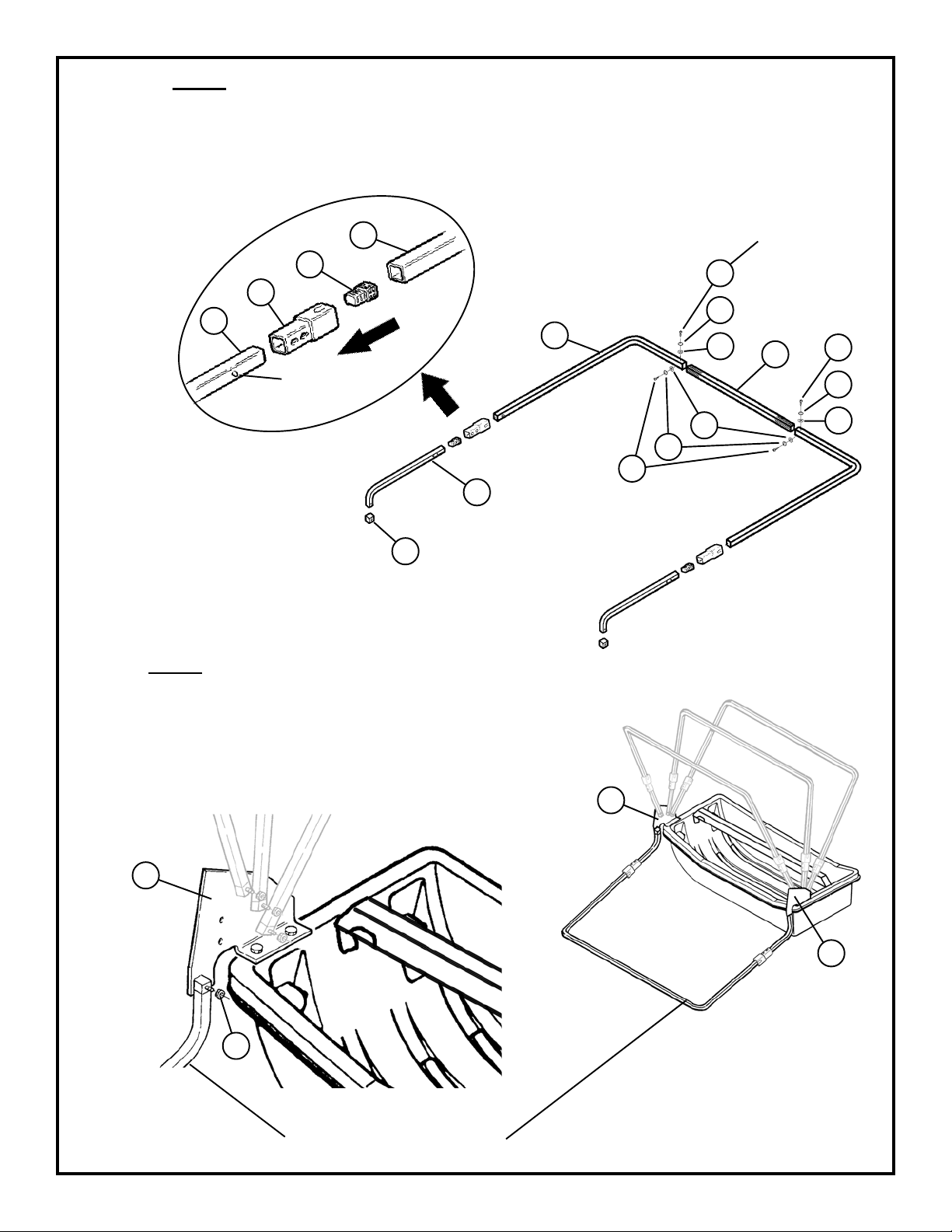

11. Assemble Back and Center Main Frame Bars: Insert the outer main frame bar (Item 13) into the middle main
frame bar (Item 14). Fasten with self-tapping screw (Item 22), plastic protector (Item 33), and star washer (Item
34). Slide the sleeve (Item 21) over the main frame extension bar (Item 11). (Line up holes with button lock,
press lock in as you slide over the bar). Insert the black plug (Item 23) into the main frame extension bar
(Item 11). Insert outer main frame bar (Item 13) into sleeve (Item 21). Cover end of main frame extension bar
(Item 11) with black end cap (Item 24). Ref. Diagram 9.
Diagram9
23 13
12. Attach Back and Center main frame assemblies (Assembled in Step 11) onto frame brackets (Item 3 and 4).
Secure with 1/4 nylon hex lock nut (Item 28). Ref. Diagram 10.
4
3
3
Back Main FrameAssembly
CenterMain FrameAssembly
28
Diagram10
21
24
Button lock
shouldface
inward
11 13
11
Note: Use a light oil
such as WD-40 to
lubricate the poles to help
them slide easier. Wipe
off any excess. Silicone
may be substituted but is
not as effective.
14
33
34
33
34
22
33 34
22
Important: Do
not overtighten to
preventstripping
of threads.
22

Page 8
13. Assemble Front Main Frame Bar: Insert the outer main frame bar (Item 12) into the middle main frame bar
(Item 14). Fasten with self-tapping screw (Item 22), plastic protector (Item 33), and star washer (Item 34). Slide
the sleeve (Item 21) over the main frame extension bar (Item 10). (Line up holes with button lock, press lock
in as you slide over the bar). Insert the black plug (Item 23) into the main frame extension bar (Item 10). Insert
outer main frame bar (Item 12) into sleeve (Item 21). Cover end of main frame extension bar (Item 10) with black
end cap (Item 24). Ref. Diagram 11.
14. Attach Front main frame assembly (Assembled in Step 13) onto frame brackets (Item 3 and 4). Secure with 1/4
nylon hex lock nut (Item 28). Ref. Diagram 12.
4
3
3
FrontMain FrameAssembly
Diagram12
28
Diagram11
Note: Use a light oil
such as WD-40 to
lubricate the poles to help
them slide easier. Wipe
off any excess. Silicone
may be substituted but is
not as effective.
23 12
21
24
Button lock
shouldface
inward
10 12
10
14
33
34
33
34
22
33 34
22
Important: Do
not overtighten to
preventstripping
of threads.
22

Page 9
23
21
Button lock
shouldface
inward
15. Assemble Bottom Main Frame Bar: Insert the outer main frame bar (Item 13) into the middle main frame bar
(Item 14). Fasten with self-tapping screw (Item 22), plastic protector (Item 33), and star washer (Item 34). Slide
the sleeve (Item 21) over the main frame extension bar (Item 9). (Line up holes with button lock, press lock
in as you slide over the bar). Insert the black plug (Item 23) into the main frame extension bar (Item 9). Insert
outer main frame bar (Item 13) into sleeve (Item 21). Cover end of main frame extension bar (Item 9) with black
end cap (Item 24). Ref. Diagram 13.
Diagram13
24
9
13
16. Attach Bottom main frame assembly (Assembled in Step 15) onto frame brackets (Item 3 and 4). Secure with
1/4 nylon hex lock nut (Item 28). Ref. Diagram 14.
4
3
3
Diagram14
28
Bottom Main FrameAssembly
9
13
Note: Use a light oil
such as WD-40 to
lubricate the poles to help
them slide easier. Wipe
off any excess. Silicone
may be substituted but is
not as effective.
14
33
34
33
34
22
33 34
22
Important: Do
not overtighten to
preventstripping
of threads.
22

Page 10

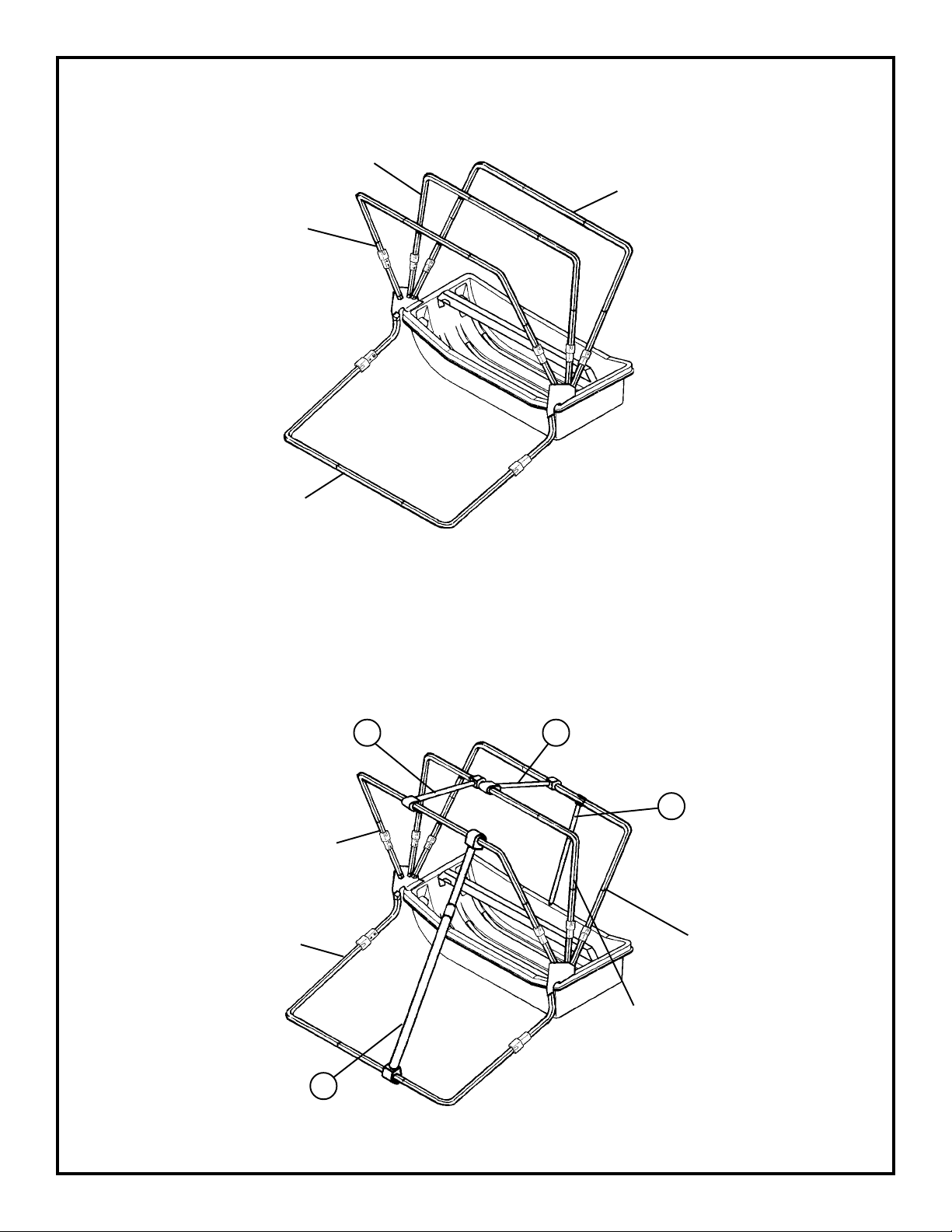

18. Install wind support bars starting in back (Item 5), up through center (Item 6), then between the front and center
main frame bars (Item 7) and finally with adjustable wind support bar (Item 8) in front. Ref Diagram 16.
Diagram16
Bottom Main Frame Bar
Front Main Frame Bar
CenterMainFrame Bar
Back Main Frame Bar
5
67
8
17. Set up main frame bars by grasping with both hands and pushing upward until button clicks into place. Start with
bottom main frame bar and continue to the back main frame bar pushing lengthened bars into appropriate position.
Ref. Diagram 15.
Diagram15
Bottom Main
Frame Bar
FrontMain
Frame Bar
CenterMain
Frame Bar Back Main
Frame Bar
Note:Note:
Note:Note:
Note: Seat
assembly not
shownfor clarity

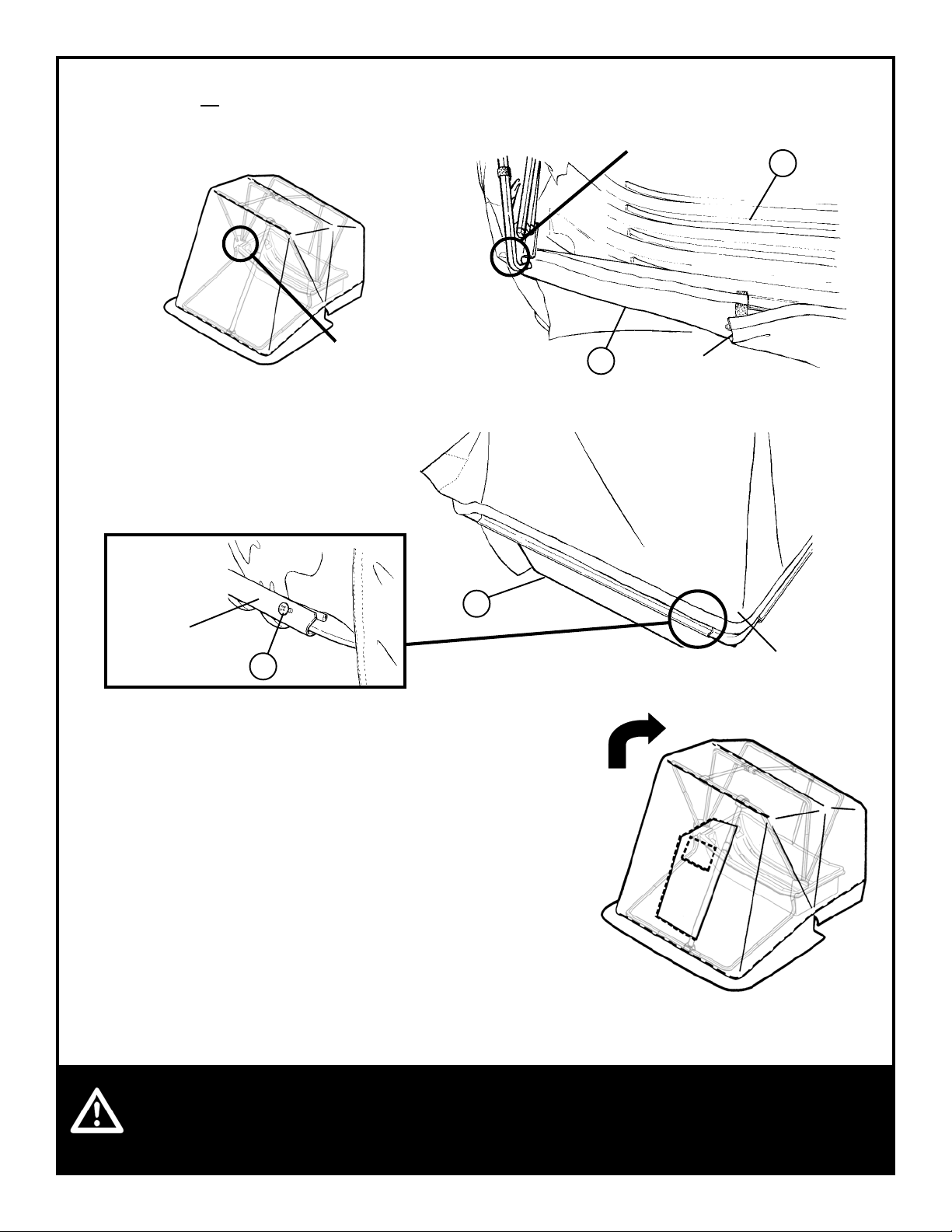

Note: There are two
holes that the buttons can
clickinto to optimize the
fit of the canvas.
