OULOO BK7 User manual

Model: BK7
Manual
OULOO-BK7 E-bike with 7 Speed
Maximum loading weight: 264.6 lbs
https://www.ouloobikes.com/ [email protected]

Note
Battery and charging:
Charge at 0 ℃~ 45 ℃and discharge at - 20 ℃~ 60 ℃, keep the battery dry. It is
strictly prohibited to put the battery in acidic and alkaline liquids, avoid rain, and stay
away from fire source, heat source and high temperature environment. It is strictly
prohibited to connect the positive and negative poles of the battery reversely and
damage it. Insert the battery or short circuit the battery. Please use the original
special charger for charging, not more than 6 hours, and the charging current shall
not exceed 2 A. When not in use for a long time, please keep the battery in a cool
and dry place, and charge the battery for five hours every month. Users must charge
according to the instructions, otherwise they will bear the consequences. Pay
attention to the battery type and applicable voltage that the charger can charge.
Mixed use is strictly prohibited. When charging, it shall be placed in a ventilated
environment. It is strictly prohibited to charge in residential buildings, confined
spaces or hot sun and high temperature environment. When charging, insert the
battery first, and then add the mains power; After fully charged, cut off the mains
power first, and then pull out the battery plug. When the green light is on, the power
supply shall be cut off in time. It is forbidden to connect the charger to the AC power
supply without charging for a long time. In case of abnormal indicator light, peculiar
smell or overheating of charger shell during charging, stop charging immediately and
repair or replace the charger. During the use and storage of the charger, pay
attention to avoid the entry of foreign matters, especially water or other liquids, so
as to avoid short circuit inside the charger. The charger shall not be carried with the
vehicle. If it is necessary to carry it, it shall be placed in the toolbox after shock
absorption treatment. It is not allowed to disassemble or replace the accessories in
the charger.
Riding:
Do not use the product before carefully reading the instructions and understanding
the performance of the product; Don't lend it to people who can't manipulate the
product. Before cycling, check whether the brake works. When braking, please brake
first and then front. Pay attention to the brake tightness. If the brake is too loose, use
an Allen wrench to tighten it. Pay attention to increase the braking distance when
riding in rain and snow. Applicable age: 16 ~ 65 years old. Please wear safety helmets
and obey the traffic rules when cycling. It is not allowed to drive in motor lanes and
roads with more pedestrians. Please check the tire pressure before cycling. The
recommended tire pressure is 35 ~ 45psi. Downhill and non brick pavement shall not
exceed 15km / h. When using the motor, pay attention not to hit it vigorously and
keep the rotating shaft lubricated. It is not allowed to ride beyond the maximum
weight of the vehicle body (maximum load 120kg). After use, the vehicle cannot be
parked in the building lobby, evacuation stairs and emergency exits. It shall be parked

correctly in accordance with the safety rules.
Statement of responsibility:
After riding, please put the car in a place without sunshine and rain, not in residential
buildings; Check the motor and brake frequently;
Regularly check the screws of the car and the places to be tightened, and tighten
them regularly.
Recommended torque: (unit: KGF. Cm) handle horizontal screw 60 - 80, handle
vertical screw 175 ~ 200, seat cushion screw 175 ~ 200, wheel screw 320 ~ 450;
The front and rear wheels of the vehicle shall be located in the center of the front
fork or frame;
Frequently check whether there are scars, cracks or excessive wear in the rotation.
The inner tube and air nozzle should be perpendicular to the wheel hub and should
not be tilted. Damage or excessive; The worn outer tire needs to be replaced
immediately. Please find a professional technician to replace your outer tire. If your
outer tire accidentally punctures and leaks, please contact a professional technician
to repair or replace it.
Maintenance:
The company reserves the right to modify and finally interpret the product models,
specifications or relevant information mentioned in this manual; The functions of the
specific model mentioned in this manual are only applicable to the specific model;
The product models, specifications or relevant information mentioned in this manual
are subject to any modification or change without notice;
The contents of the user manual shall not be copied, modified, reproduced,
transmitted or published in any form without the prior written permission of the
company. Please read this manual carefully before using the product and operate in
accordance with it. Otherwise, the company will not be responsible for product
damage or personal and property losses caused by improper and wrong use.
Product function diagram

Figure 1 (whole vehicle diagram)
1. Front adjustment chain finger dial
14. Wheel hub
2. Instrument buttons
15. Tube storage battery
3. Instrument
16. Sprocket
4. Rear adjustment chain finger dial
17. Front derailleur
5. Brake lever
18. Pedal
6. Handle
19. Seat tube adjustment quick release
7. Handlebar
20. Chain
8. Headlights
21. Rear derailleur
9. Shock-absorbing front fork
22.7 speed flywheel
10. Tires
23. Drive motor
11. Wheel reflector
24. Seat tube
12. Disc brakes
25. Rear reflector
13. Disc brake
26. Saddle

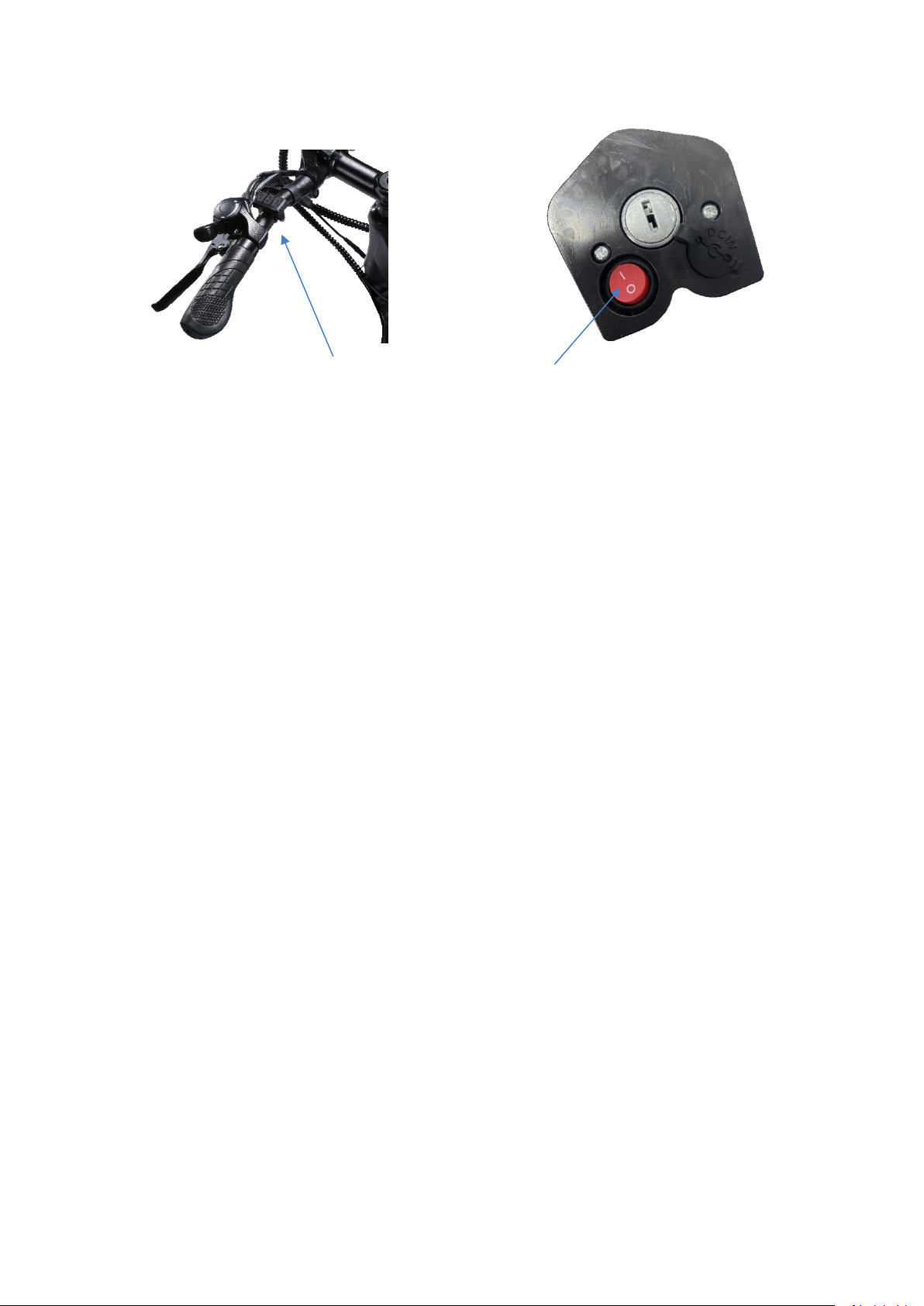

Figure 2 Figure 3
Function introduction:
1. Charging: Open the plastic cover on the left side of the battery and connect the
charger to start charging. When the battery is full and the charger indicator turns
from red to yellow-green, it means it is fully charged.
2. Turn on: Refer to Figure 3, and call the battery switch; refer to Figure 2, long press
the "M" key to turn on/off the power.
3.Power display: The dashboard lights up after power on, and displays the power. The
power is displayed in four grids, corresponding to high, medium, and low power.
4. Front light: Refer to Figure 2, long press the "+" key to turn on/off the front light.
Start mode: power-assisted riding, step on the sprocket of the car, and automatically
start electric power after a certain speed. If you don't need assistance, you can turn
off the power or turn off the battery.
5. Start mode: power-assisted riding, step on the sprocket of the car, and
automatically start electric power after a certain speed. If you don't need assistance,
you can turn off the power or turn off the battery.

Product Parameters
Parameters
Standard Edition
Appearance
dimension
body material
aluminium alloy
Vehicle color
black
Unfold size
Length*width*height:
1760mm*650mm*1150mm
Hub form
spoke wheel
Hub size
26”
Package size
Length*width*height:
1425mm*226mm*760mm
performance
parameter
Gross / net weight
26.2kgs/21.6kgs
Maximum payload
120kg
Top speed
25Km/h
Endurance Mileage
≦35 Km(pure electric riding)
Maximum climbing angle
25 degree
Service temperature
-10-45
Waterproof grade
IP54
Electrical
specifications
Battery type
18650 Lithium ion power battery
Battery volume
7.5Ah
Battery rated voltage
48V
Motor mode
moped
Motor type
26”/48V/High speed gear / spoke
wheel motor
Motor rated power
350W
Rated speed of motor
300r±10r/min
Charging voltage
54.6V / 2.0A
input voltage
100~240V 50/60Hz 3.0A
Undervoltage protection value
39V
Overcurrent protection value
15±1 A
Charging time
4-5h
Product
features
Instrument display
Multifunctional LCD screen
Front lighting
Y
Brake and braking mode
front disc brake rear disc brake
Tire style
Pneumatic tire
Tire specification
Tyre:26*2.35
Air nozzle: 26×2.35 The inner
tube valve is AV
Front fork
suspension front fork
Middle(rear)shock absorption
Y
Speed gear
21S
Headlights
Y
Tpye
Skate and go

Remarks: power, load, tire pressure, road environment, chain and axle lubrication
will affect the maximum speed; The endurance mileage is obtained from the
continuous test with load of 60kg, speed of 15 ~ 25km / h, flat and hardened road
surface, from full charge to complete power consumption; Driving habits,
temperature, load, tire pressure, road environment and other factors will affect the
mileage.
Instructions for manual control panel of instrument
I Appearance size and material: the product shell is ABS, the liquid crystal
transparent window is imported high hardness acrylic, and the hardness value is
equivalent to tempered glass.
II Function Description:
1. Display function: Speed, power-assisted gear, power, fault prompt, total mileage,
single mileage, headlight display, single driving time.
2. Control and setting functions: Power switch control, front light switch control,
6Km/h jog control, wheel diameter setting, maximum speed setting, idle automatic
sleep time setting, backlight brightness setting, voltage level setting.
3. Communication protocol: all contents of UART display screen (full display within
1s after startup)

Display content introduction:
1 headlamp
2 Power display
3 multi function display area
Total mileage ODO, single mileage TRIP, TIME single riding time, VOL current voltage, CUR
operating current
4 Power-assisted gear display
5 Speed display area
Maximum speed MAX, average speed AVG, unit MPH, KM/H

6 Status display area:
6KM/H Boost status Real time cruise
Assist ride Battery undervoltage
Brake display Controller fault
Motor fault Handle fault
III Key introduction:
The specific combination positions of keys are as follows:
Introduction to key use
The key operation is divided into short press, long press and long press with
combination keys.
Short press is used for fast / frequent operations, such as:
1. When riding, you need to modify the boost / speed
gear, briefly press it;
2. When riding, switch the multi-function area to display data, and
briefly click

Single key long press is mainly used for mode / switch state switching. The
composite key (long press) is used for parameter setting. Because the operation
is complex, it can reduce misoperation (short press does not make composite key,
because it is easy to trigger by mistake, and the operation is too difficult).
Specific operation explanation
1. Modify the boost ratio / electric gear, assuming that the current mode is boost
mode
Short press , boost + 1;
Short press , boost - 1;
2. Switching speed:
Long press +to switch the speed display mode
3. Set / release 6km / h cruise，switch the headlights：
When the vehicle is stationary, long press once to enter the 6km / h
cruise mode.
Long press to switch the headlights.
4. Switch on and off the LCD display：
If the current display is working, long press the display will be closed.
Otherwise, the display will be opened.
1. Switch the content of the multi-function display area：Short press
to switch the value of the multi-function display area;
Note:
Due to the upgrading of the company's products, the display content of the products
you get may be different from the manual, but it will not affect your normal use.

The parameter settings of the instrument have been set before leaving the factory. Please
operate according to the instructions of the manual and do not change the original settings of
the instrument. Our company will not be held responsible for abnormal functions or functional
damage caused by operations that are not in accordance with the instructions of the manual.
