Owner’s
Manual
Model number FMTT-102
LP Cylinder
not included
PORTABLE PROPANE
TONGA TORCH
OUTDOOR LIVING PERFECTED

PORTABLE PROPANE
TONGA TORCH
Owner & Safety Manual
D.102.000.V0
En-1 OUTLAND LIVING PORTABLE PROPANE TONGA TORCH OWNER & SAFETY MANUAL
Model number FMTT-102 - Tested by CSA International
CAUTION:
For residential and recreational use only.
CAUTION:
Watch for sharp edges,
especially as noted in the
manual. Wear protective
gloves if necessary.
DANGER:
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odour continues, keep away from the appliance and immediately
call your gas supplier or fire department.
WARNING:
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of
this or any other appliance.
WARNING:
For outdoor use only.
HANDLE WITH CARE
WARNING! HOT SURFACE!
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odour.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
CALIFORNIA PROPOSITION 65
WARNING: This product can expose you to chemicals including carbon monoxide
(CO), soot and other gas-fuel combustion by-products, which are known to the State
of California to cause cancer, birth defects or other reproductive harm. For more
information go to Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

En-2
1-888-514-1663 | WWW.OUTLANDLIVING.COM
GAS SAFETY:
Max. Input: 7,000 BTU/h
Max Gas Supply Pressure: 250 PSI
MINIMUM CLEARANCES:
• Bottom: Non-Combustible Surface
• Top: 2.03m (80 inches)
• Sides: 0.914m (36 inches)
For Installation on (or over) non-combustible floors only.
This appliance shall be used only outdoors in a well-ventilated
space and shall not be used in a building, garage or any other
enclosed area.
Never use this appliance as a heater.
The gas supply must be turned off at the LP-gas supply cylinder
when this appliance is not in use.
Indoor storage of this appliance is permissible only if the cylinder is
disconnected and removed from the appliance.
Cylinders must be stored outdoors in a well-ventilated area out of
the reach of children.
Disconnected cylinders must have threaded valve plugs tightly
installed and must not be stored in a building, garage or any other
enclosed area.
The gas pressure regulator provided with this appliance must be
used, and must be the same model as supplied with the unit.
Replacement parts and a list of such parts are available from FMI
Brands Inc. through the contact information provided on the last
page of this Manual.
WARNING:
Please ensure that all adults and children which use or are
near a unit in use are aware of the hazard of high-surface
temperatures present on the unit during use and should
use caution and stay away to avoid burns or clothing
ignition.
Carefully supervise young children in the area of this
appliance. Clothing or other flammable materials should
not be hung from the appliance or placed on or near the
appliance. Any guard or other protective device removed
for servicing the appliance must be replaced prior to
operating the appliance.
Installation and repair should be done by a qualified
service person. The appliance should be inspected before
use and at least annually by a qualified service person.
More frequent cleaning may be required as necessary.
It is imperative that control compartment, burners and
circulating air passageways of the appliance be kept clean.
WARNING:
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Read the
installation, operating and maintenance instructions thoroughly
before installing or servicing this equipment.
DANGER:
NEVER USE TONGA TORCH UNDER TREES, ROOFING, TARPS,
CANOPIES OR UNDER ANY OVERHANGING STRUCTURE OR
MATERIAL.
WARNING:
If the information in this manual is not followed exactly,
a fire or explosion may result causing property damage,
personal injury or loss of life. Installation and service must be
performed by a qualified installer, service agency or the gas
supplier.
WARNING:
a. Do not store a spare gas cylinder under or near this
appliance.
b. Never fill the cylinder beyond 80 percent full.
c. If the information in “(a)” and “(b)” is not followed exactly,
a fire causing death or serious injury may occur.
DANGER:
• Do not use this appliance under overhead combustible
surfaces.
• For Installation on (or over) a level, stable, non-combustible
surface only.
• This appliance is not for use in or on recreational vehicles
and/or boats.

PORTABLE PROPANE
TONGA TORCH
Owner & Safety Manual
D.102.000.V0
En-3 OUTLAND LIVING PORTABLE PROPANE TONGA TORCH OWNER & SAFETY MANUAL

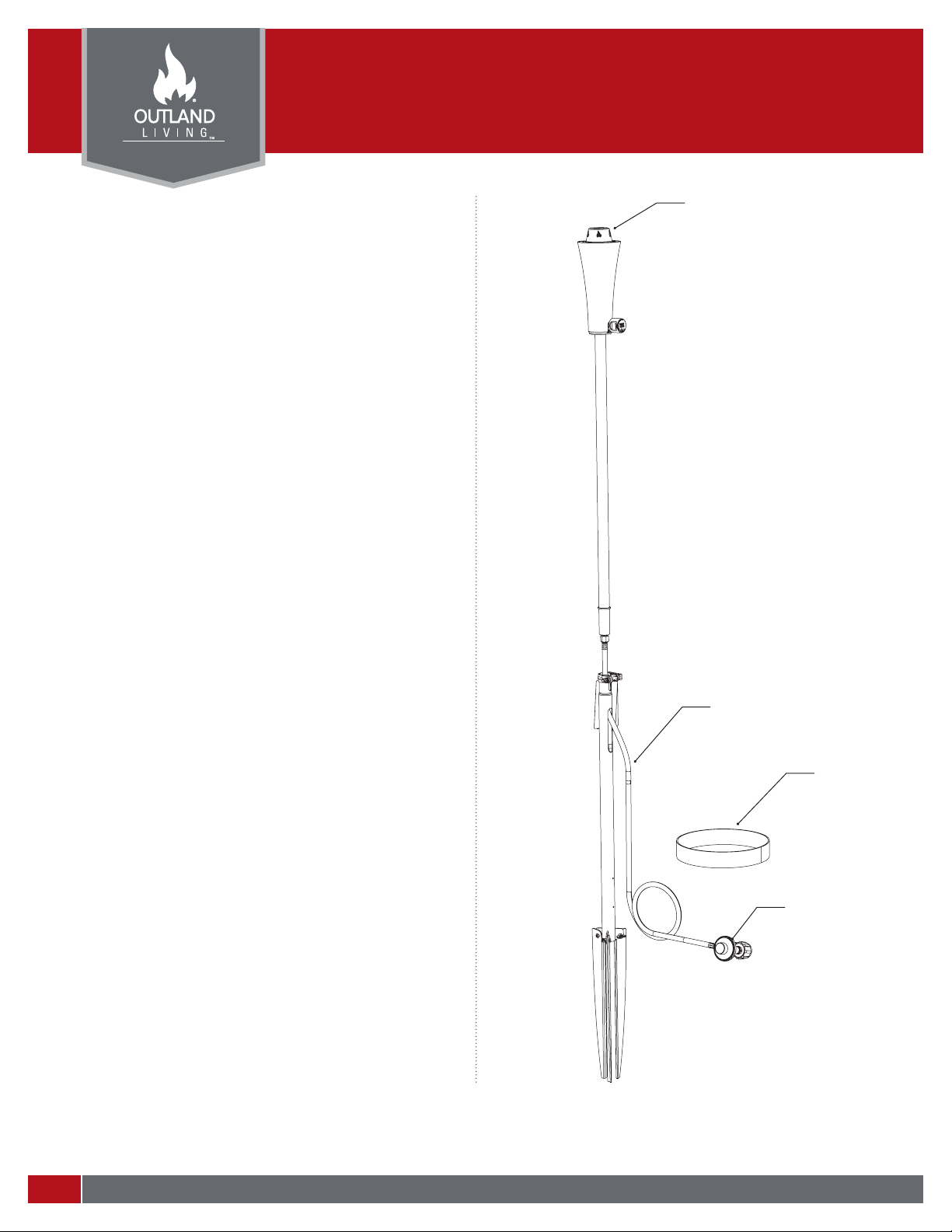

SUPPLIED PARTS & HARDWARE LIST:
1. Tonga Torch Top with factory assembled low pressure gas
hose and regulator
2. Tonga Torch Base
3. Tank Ring
LP CYLINDER (not included):
All LP cylinders to be used with this appliance must be:
a. Only a 20 lb. (9 kg) LP gas cylinder is to be used with this
appliance, approximately 18” (46 cm) high & 12” (30 cm)
diameter.
b. Constructed and marked in accordance with the specifications
for LP-gas cylinders of the U.S. Department of Transportation
(DOT) or for Canada, Standard, CAN/CSA B339, Cylinders,
Spheres and Tubes for the Transportation of Dangerous
Goods.
c. Provided with a listed overfilling prevention device.
d. Provided with a cylinder connection device compatible with
the connection for the appliance.
e. LP cylinder must be arranged for vapour withdrawal and
include a collar to protect the LP cylinder valve. Always keep LP
cylinders in upright position during use, transit or storage.
f. The use of an approved LP gas cylinder stabilizer, such as the
one included, must be used when using this appliance in order
to prevent the LP gas cylinder from tipping over.
Tonga Torch
Top
High heat enamel wind guard
with Trademark OUTLAND
Living flame icons
Gas Regulator
Tonga Torch
Base
Tank Ring
(20lb Propane
Cylinder
Support
Gas Hose

En-4
1-888-514-1663 | WWW.OUTLANDLIVING.COM
SECTION 1: SET UP
STEP 1

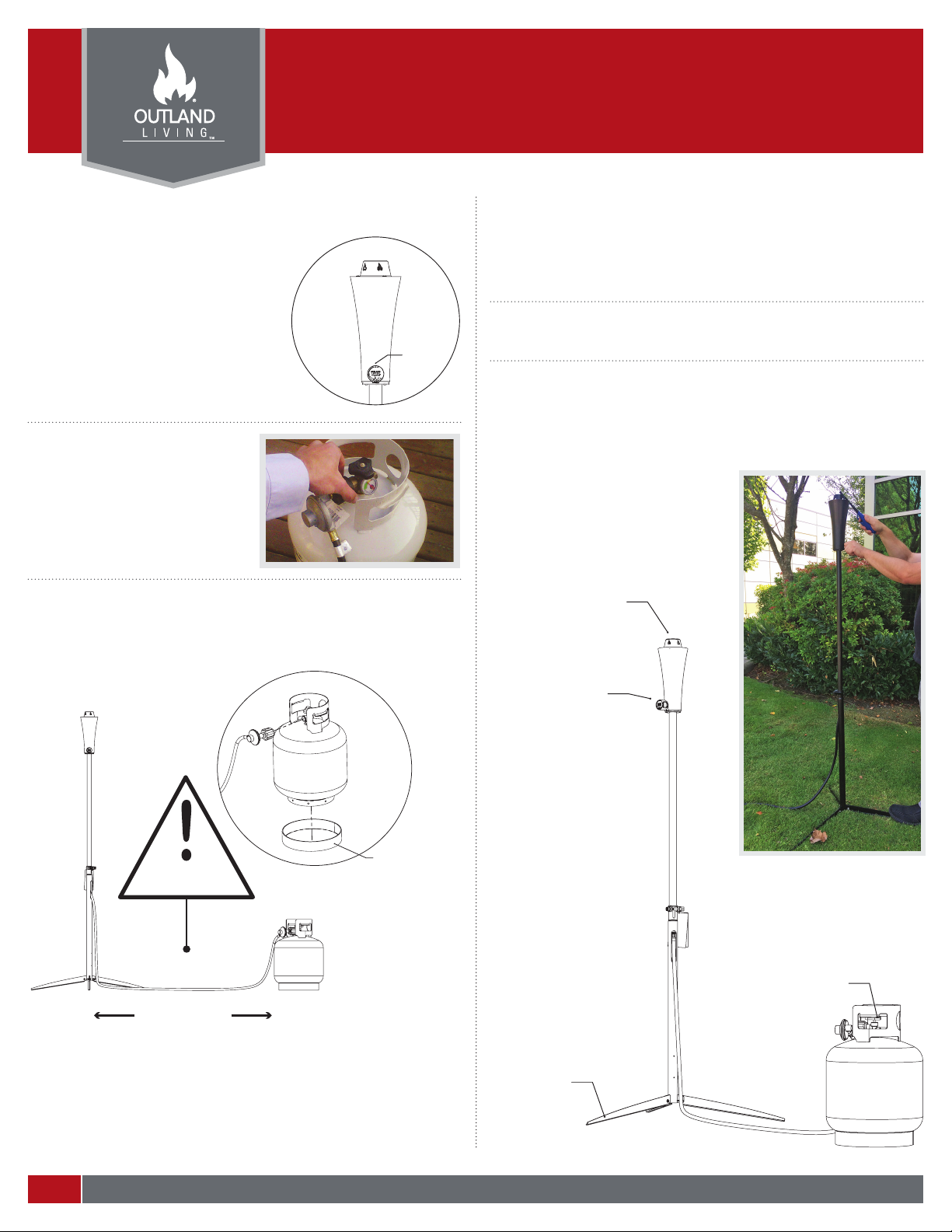

Insert Tonga Torch top into base tube.
STEP 2
Deploy legs. Stand the Tonga Torch straight. Tighten the wing nuts.
STEP 3
Unwind any twists or kinks in the gas hose. Ensure the hose is
straight.
STEP 4
Lock down the tube collar clamp.
Note: unwinding clamp counter clockwise will loosen clamp force;
winding clamp clockwise tightens clamp force.
Important adjustment points:
a. Legs: Tighten the wing nuts. Always ensure the torch
stands straight and the leg joints are firmly set.
b. Tube Collar Clamp: Always ensure the tube collar clamp
is tightly locked in position.
Lock down
the tube
collar clamp
Unwind any
twists or kinks
in the gas hose
Tighten the
wing nuts
IMPORTANT:
• Always ensure the Tonga Torch stands straight and vertical.
• The Tonga Torch is meant to be deployed on level ground. In
the event of uneven ground adjust the fixed angle of the legs.
• It is recommended to use large flat rocks to level the appliance
if the ground is very uneven.

PORTABLE PROPANE
TONGA TORCH
Owner & Safety Manual
D.102.000.V0
En-5 OUTLAND LIVING PORTABLE PROPANE TONGA TORCH OWNER & SAFETY MANUAL
SECTION 3: CONNECTION

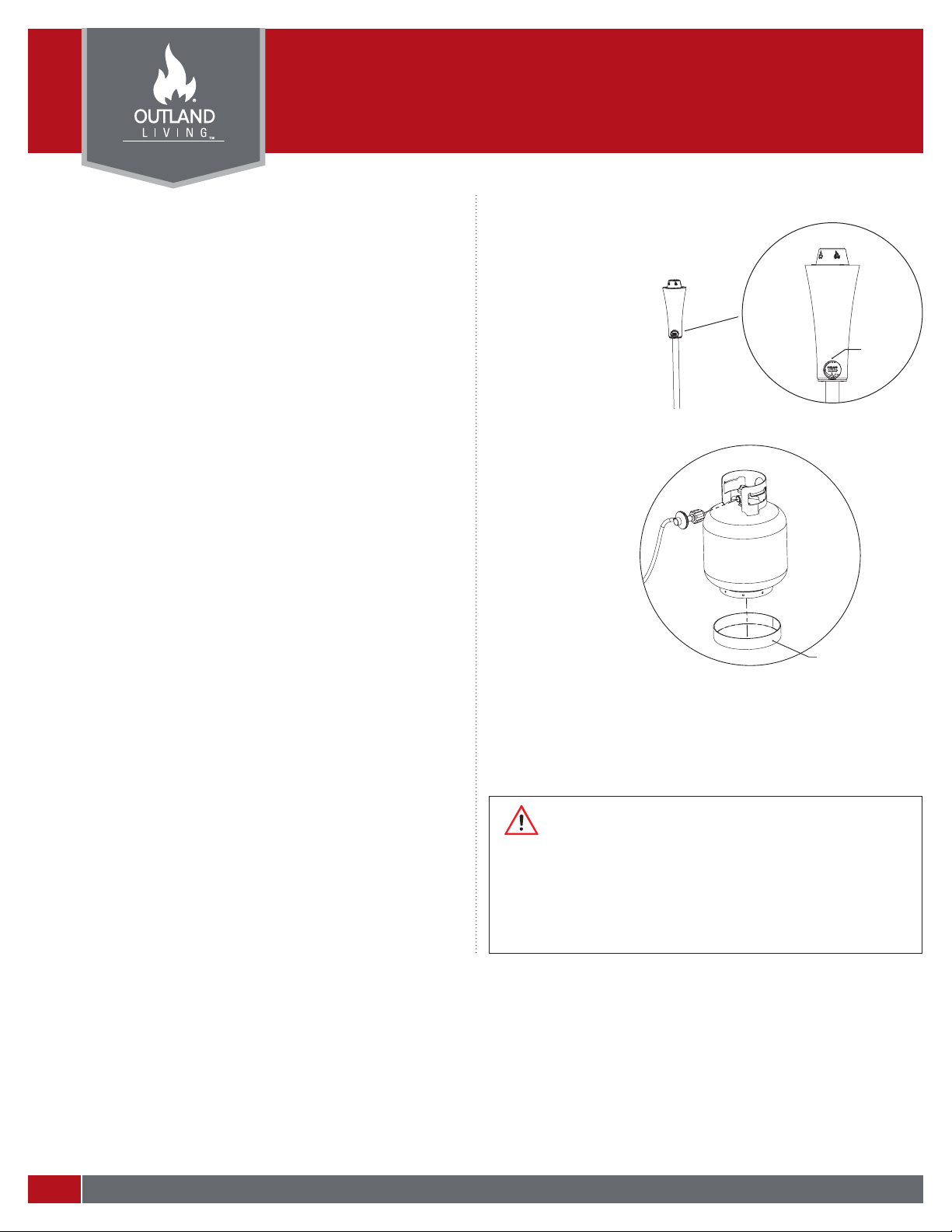

1. Be sure the cylinder
valve and appliance
valves are “off”.
2. Place full LP gas cylinder on tank stabilizer ring.
3. Center the nipple in
the cylinder valve
and hold in place.
4. Using the other
hand, turn the hand
wheel clockwise
until there is a
positive stop. Do
not use tools.
5. Hand tighten only.
When making the connection, hold the regulator in a straight
line with the cylinder valve, so as not to cross thread the
connection.
6. Leak test the connection. See section named “LEAK TEST”.
Tank Ring
(20lb Propane
Cylinder Support)
SECTION 2: APPLIANCE INSPECTION &
TEST SEQUENCE
Each time the appliance is put to use, and prior to ignition,
conduct the following appliance inspection and test sequence:
• Ensure all joints are firmly fastened and the appliance is
standing straight.
• Inspect the hose prior to each use. The hose assembly
must be replaced prior to the appliance being put into
operation if there is evidence of excessive abrasion or
wear, or if the hose is damaged. Contact FMI Brands Inc.
should you require a replacement hose.
• Inspect the mid-point gas connection (sealed gas fitting)
prior to each use. Check the fitting is firm and the seal is
not broken or damaged. WARNING: Removal of the sealed
gas fitting and/or seal is not permitted for safe operation
and may affect warranty or claims.
• Inspect the burner prior to each use. Ensure all holes are
clear and there are no leaves, pine needles, spider webs
or other debris in burner area. Burner must be replaced
prior to the appliance being put into operation if there is
evidence of damage. Replacement parts such as burners
are available from FMI Brands Inc.
• Ensure the proper gas connections are made. See section
labelled “Connection”.
• Leak Test all connections. See section labelled “Leak Test”.
• Ensure that the LP gas cylinder and gas hose is placed
in an area where it is unlikely to be tripped over (such as
pathways or trails) or subject to other accidental damage.
OFF
CAUTION:
Use caution, the hose is a potential trip hazard. Watch out for
children and pets during use. Ensure that the LP gas cylinder
and gas hose is placed in an area where it is unlikely to be
tripped over (such as pathways or trails) or subject to other
accidental damage.

En-6
1-888-514-1663 | WWW.OUTLANDLIVING.COM
WARNING:
DO NOT USE OR PERMIT SOURCES OF IGNITION IN THE
AREA WHILE DOING THE LEAK TEST.
THIS INCLUDES SMOKING.
SECTION 4: LEAK TEST
IMPORTANT: Leak testing should be done once per year or
whenever the LP gas cylinder or any other gas system part is taken
apart, serviced or replaced, whichever is more frequent.
1. Be sure the cylinder valve and appliance valves are “off”.
2. Ensure all gas system coupling joints are tight and properly
attached.
3. Prepare a leak testing solution of half liquid detergent and half
water.
4. Apply the solution to the LP gas delivery system at points as

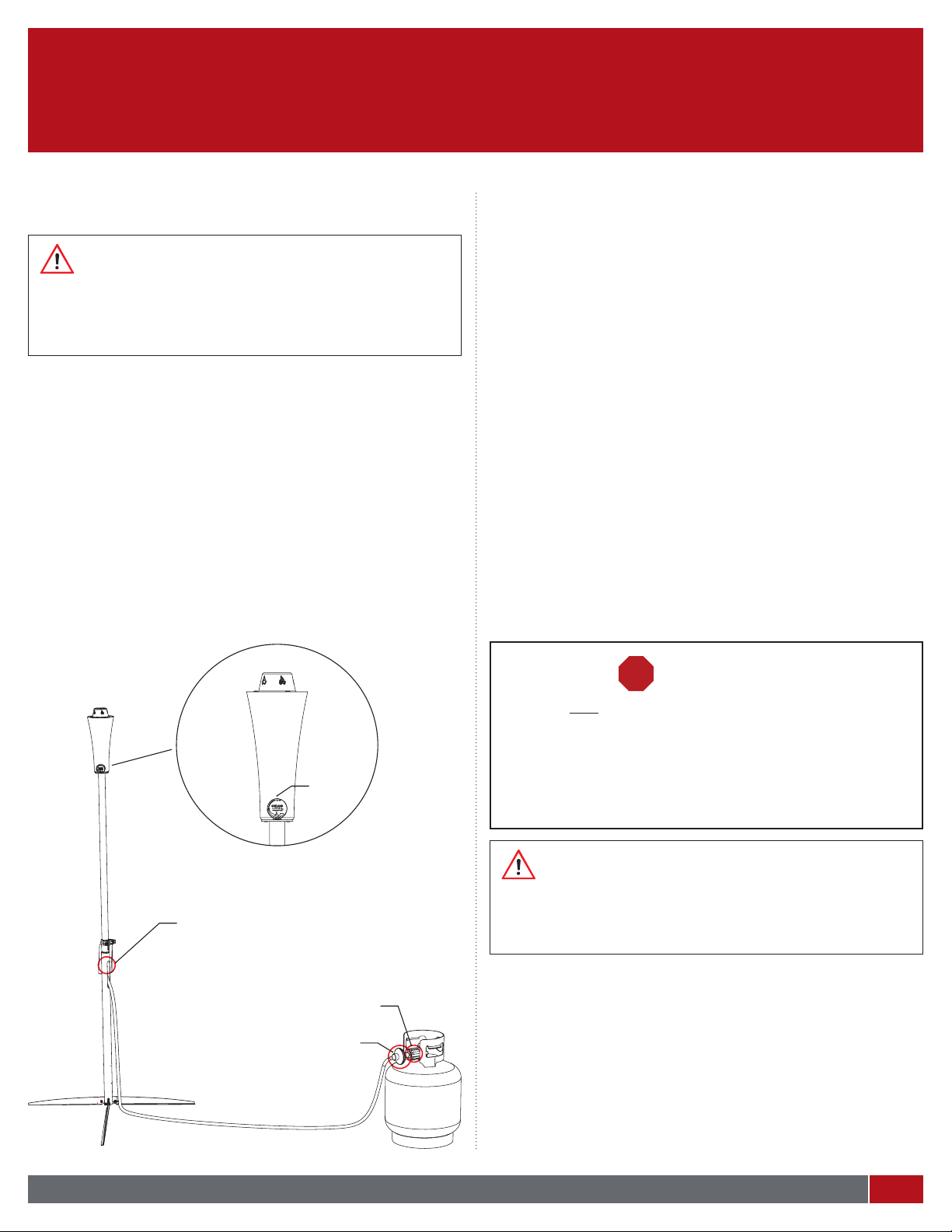

shown in illustration:
• LP Cylinder Valve Coupling
• Gas Hose Regulator
• Mid-point gas connection (Sealed gas fitting)
Mid-point gas connection
(Sealed gas fitting)
OFF
LP Cylinder Valve Coupling
Gas Hose Regulator
a) If parts of the fitting begin to produce bubbles, spray liquid,
or if you smell liquid propane gas, immediately close the
valve on the tank. Wait 5 minutes for any gas to dissipate.
After waiting for 5 minutes, the leak(s) must be stopped
by tightening the loose joints, if possible, or by replacing
the faulty parts(s) with the part(s) recommended by the
appliance manufacturer.
b) If no adverse reaction is observed and the connections all
seem fine then move to the ignition sequence.
THE APPLIANCE IS NOT TO BE USED UNTIL ANY LEAK IS
CORRECTED.
A gas appliance repairman or LP gas dealer should be called if
attempts to stop the leak(s) are unsuccessful and, in such case, the
LP gas supply must be shut off at the cylinder valve or the cylinder
must be removed from the appliance until the leak(s) is corrected.
IMPORTANT: Call OUTLAND for quick delivery of replacement
parts. DO NOT RETURN THE APPLIANCE TO THE RETAILER.
Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
NOTE TO INSTALLER:
Leave this guide with the consumer.
NOTE TO CONSUMER:
Please retain this guide for future use.
STOP:
Do not return this product to the store.
If you need help or parts, call the Outland Hotline:
1-888-514-1663
Get help for:
Missing/damaged parts • Assembly • Troubleshooting
Warranty Assistance • Product Information
WARNING:
If the information in this manual is not followed exactly, a fire
or explosion may result causing property damage, personal
injury or loss of life.

PORTABLE PROPANE
TONGA TORCH
Owner & Safety Manual
D.102.000.V0
En-7 OUTLAND LIVING PORTABLE PROPANE TONGA TORCH OWNER & SAFETY MANUAL
STEP 1
Ensure that the appliance valve dial is
in the “OFF” position by pushing and
turning clockwise until the dial stops.
SECTION 5: IGNITION
Gas Burner
Place
foot
Appliance Gas
Knob/Gas Valve
Cylinder
Gas Valve
TIP: You may find it convenient
to place your foot on one of the
legs to help stabilize the appliance
during the ignition sequence.
OFF
Caution:
Trip Hazard
Minimum
0.914m (36”)
Appliance Gas Cylinder
Gas Hose
Tank Ring
(20lb Propane
Cylinder Support)
STEP 4
***SLOWLY*** turn cylinder valve to the open position to avoid
tripping the excess flow safety device in the gas regulator. For more
information about the excess flow safety device see STEP 8 (What
is an Excess Flow Safety Valve? (EFV).
STEP 5
Leak Test all connections. See section labelled “Leak Test”.
STEP 6
Using a lighter or match, ignite lighter and hold flame slightly
above the burner, then open the valve on the appliance slowly by
turning (counter-clockwise) until the unit ignites.
STEP 2
Securely attach regulator (large
end of hose) to your propane
cylinder. See section labeled
“Connection”.
STEP 3
Extend hose to full length and ensure that the propane tank is as
far as safely possible from the appliance and place the tank in the
included stabilizer ring.

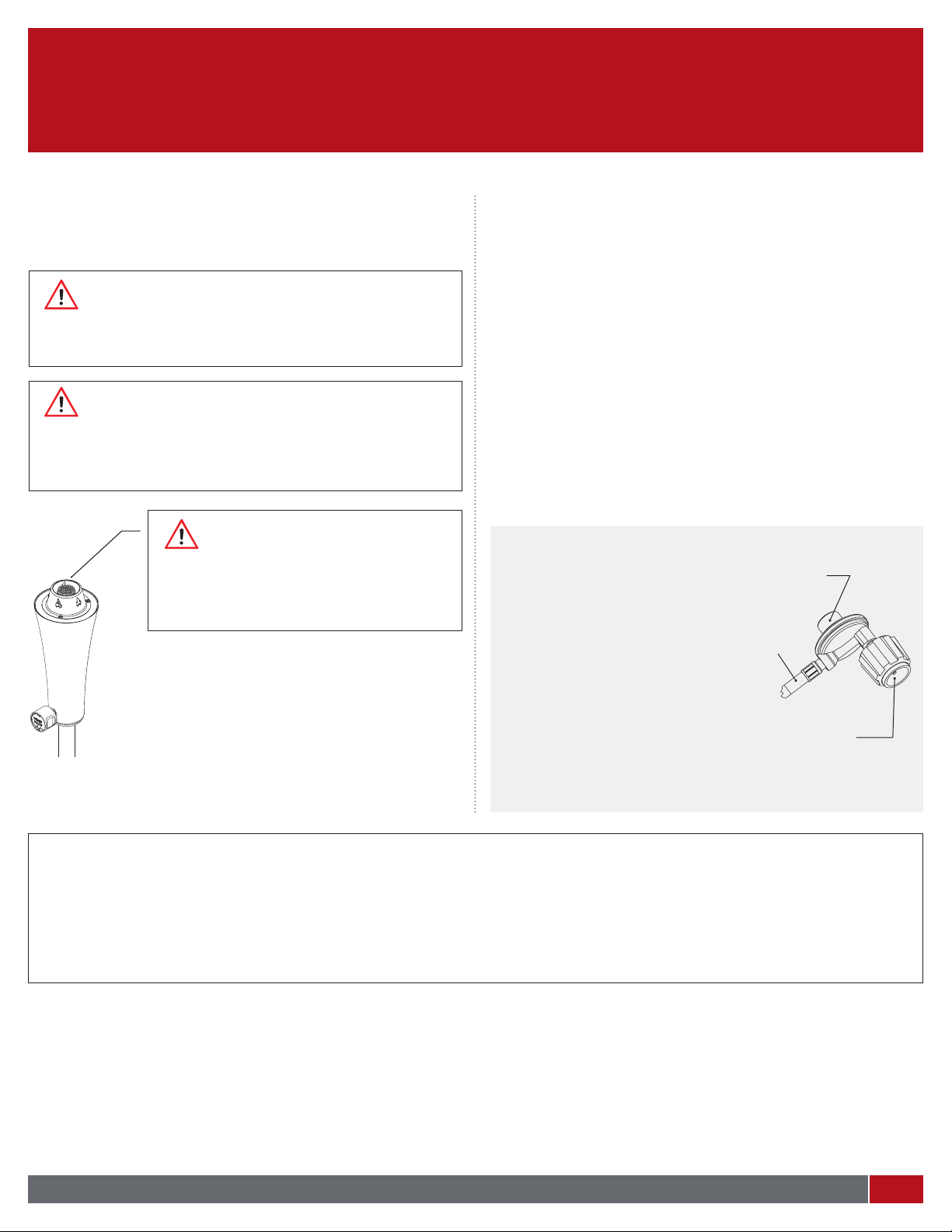

En-8
1-888-514-1663 | WWW.OUTLANDLIVING.COM
DANGER:
Keep hair tied back and keep head and face away from Tonga
Torch during ignition!
WARNING:
Ensure that no parts of your body, clothing, or any other
combustible material are above the burner before, during and
after ignition.
CAUTION:
Always ensure the burner area, burner
screen and burner orifices are clear of all
debris including spider webs.
STEP 8
GOT A LOW FLAME? OR FLAME HEIGHT DOES NOT APPEAR TO
BE NORMALLY ADJUSTED BY THE GAS KNOB?
CORRECTIVE ACTION:
1. Confirm your propane tank is NOT empty J, then;
2. Close propane cylinder valve “OFF”.
3. Open and then close appliance gas knob valve to release
pressure.
4. Disconnect and reconnect the propane cylinder valve
connection.
5. **SLOWLY** open propane cylinder valve.
6. Perform Leak Test and follow Ignition sequence.
The whole story…
A low flame can be caused by an empty propane tank or if the
Excess Flow Safety Valve (the EFV) has been tripped.
WHAT IS AN EXCESS FLOW VALVE? (EFV)
The EFV is a safety mechanism
contained within the gas
regulator. The purpose of the
EFV is to restrict the gas supply
if too much gas is flowing too
quickly through the gas hose.
For example this could happen
if the gas hose was severed. It is
normal that your EFV trips if you
open the gas valve too quickly
or if you leave the gas knob open before lighting, or both.
HOW TO PREVENT LOW FLAME OR EFV TRIPS
1. Always check that your Outland appliance gas valve/gas knob is closed before opening tank valve.
2. Always open propane tank valve **SLOWLY**.
PLEASE DO NOT RETURN TO STORE – IT’S NOT BROKEN
Questions? Outland support team: 1.888.514.1663
GAS
REGULATOR
NIPPLE WITH EXCESS
FLOW LIMITING
DEVICE (EFV)
GAS HOSE
STEP 7
Once the unit is burning normally set the dial to desired flame
height.

PORTABLE PROPANE
TONGA TORCH
Owner & Safety Manual
D.102.000.V0
En-9 OUTLAND LIVING PORTABLE PROPANE TONGA TORCH OWNER & SAFETY MANUAL
SECTION 7: EXTINGUISHING THE APPLIANCE
STEP 1
1. Turn valve on propane cylinder to “CLOSE” position.
2. Wait for flame to visibly extinguish.
3. Turn valve on unit to “OFF” position.
STEP 2
Allow unit to cool for at least five (5) minutes before relighting.
Upon igniting the appliance, visually
verify that the burner is indeed burning
as demonstrated in the image to the left.
The presence of flames will confirm that the
burner is burning.
Periodically check that the burner flame
is present during operation by visually
inspecting the burner to ensure the presence
of flames.
SECTION 6: PERIODIC INSPECTION OF BURNER FLAMES
If there are no flames present, as
demonstrated in the image to the left, the
appliance is likely not burning. If this is the
case, IMMEDIATELY turn the valve to the
“off” position if it is not already. Allow unit
to cool for at least five (5) minutes before
relighting. Repeat the ignition procedure
(See section labelled “IGNITION”).
WARNING NOTES:
• The portable propane Tonga Torch appliance is NOT a toy.
• Expected burn time: Your torch has a maximum power rating
of 7,000 BTU / hr. You can expect a 60-hour burn time for your
OUTLAND Tonga propane torch, assuming you start with a full
20 lb (9 kg) propane cylinder (430,000 BTU capacity) and that you
use it with the gas valve fully open. Using the torch with a lower
flame intensity will increase the burning time.
• When using this unit, children should be supervised at all times,
without exception.
• Do not place any objects inside the burner component.
• Do not add wood or any other materials to the fire. It is designed
to safely combust propane only.
• Solid fuels shall not be burned in this appliance.
• Keep the appliance area clear and free from combustible
materials, gasoline and other flammable vapors and liquids.
• Do not connect to a remote gas supply.
• Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any
gas control which has been under water.
• Always inspect and clear all valve and gas orifices of any foreign
debris including spider webs prior to lighting.
IMPORTANT: Only use the base provided.
• Appliance accessories and parts can be purchased at
www.outlandliving.com or by calling 888-514-1663.
• Replacement parts:
• FMTT-102 Low pressure gas hose and regulator

En-10
1-888-514-1663 | WWW.OUTLANDLIVING.COM
SECTION 9: APPLIANCE DIMENSIONS
(Approximate)
SECTION 8: APPLIANCE MAINTENANCE
Your Outland appliance requires periodic maintenance to keep
it in good running order. Follow the steps below to ensure your
appliance will provide you with the best possible performance:
1Keep your appliance out of the rain and store it in a dry place.
2 If you experience any signs of your propane cylinder ‘freezing
off’ or start to experience lower flames than usual, please simply
turn the burner control setting to low for 5–10 minutes, or replace
the cylinder with a full one.
3 Ensure that you clean the top of your Outland appliance after
every use to keep it looking GREAT. Simply use warm soap
water to wipe down your appliance to keep it clean. Do not use
abrasive cleaners.
4. Should any part of this appliance (including the burner) become
soiled or dirty, wipe lightly with a damp cloth. Do not use
flammable or corrosive cleaning products on or near this unit.
5 Periodically clean the burner orifice holes out with a small pin.
a. Remove top screw
b. Remove Burner Screen
c. Locate burner
d. Clean burner and burner screen orifice holes with small pin or
paperclip.
Ø 34” [Ø 862mm]
TRIPOD FOOTPRINT DIA.
71” [1.8 m]
STANDING HEIGHT
Torch Head
Wind
Guard
Burner
Burner
Orifices
Burner
Screen
Top Screw

PORTABLE PROPANE
TONGA TORCH
Owner & Safety Manual
D.102.000.V0
E n -11 OUTLAND LIVING PORTABLE PROPANE TONGA TORCH OWNER & SAFETY MANUAL
FOR REPLACEMENT PARTS AND ACCESSORIES PLEASE VISIT
WWW.OUTLANDLIVING.COM
The owner’s manual is available as a free download from www.outlandliving.com
Should you have any questions or comments regarding this appliance, please do not hesitate to contact FMI Brands Inc. at [phone] or
E-Mail to [email protected].
OUTLAND LIVING | the OUTLAND flame | Outdoor Living Perfected | are registered trademarks of FMI Brands Inc.
STOP:
Do not return this product to the store.
If you need help or parts, call the Outland Hotline: [phone]
Get help for:
Missing/damaged parts • Assembly • Troubleshooting • Warranty Assistance • Product Information
1 YEAR LIMITED WARRANTY
Customers in Canada and USA
All components are warranted by the manufacturer for a period of 1 year after date of purchase by the
original owner against defects in materials and workmanship under normal use. This warranty does NOT
cover normal wear and weathering, assembly and/or maintenance OR use in a commercial application.
At FMI Brands’ sole discretion, products under warranty will be repaired and/or replaced at no charge to
the customer. Any returns sent back to FMI Brands must be sent via prepaid freight and in the original
retail packaging.
Please register your OUTLAND Living product for proof of purchase and warranty at
http://outlandliving.com/register-products/
For more warranty information and details please contact FMI Brands Inc. at [e-mail]
