OXBOARD PRO2 User manual

E-SCOOTER PRO2
INSTRUCTIONS / HANDLEIDING
BENUTZERHANDBUCH / MODE D’EMPLOI

For full warranty and product liability,
please consult our website.
Voor de volledige garantievoorwaarden en product aansprakelijkheid,
gelieve onze website te raadplegen.
Für volle Gewährleistung und Produkthaftung,
konsultieren Sie bitte unsere Website.
Pour toutes informations sur la garantie et conditions du produits,
consulter notre site internet.

INtroduction 3
E-SCOOTER PRO 2 PUTS THE WORLD AT YOUR
FEET
Congratulations! You are the new owner of the E-Scooter PRO 2. A practical and fun way of transport that you will enjoy.
From now on you are part of the Oxboard community.
It is not for nothing that we say: It’s fun, easy and electric.
Warning
Of course we assume that you will handle your E-Scooter PRO 2 in a safe and responsible way. Its use is not entirely without
risk.
The use of the E-Scooter PRO 2 is entirely at your own risk. Therefore, read this manual carefully so that you can use it
safely. Oxboard B.V. is not liable for any personal injury and injuries to yourself and others. Therefore, protect yourself
well with a helmet and knee and elbow protection. If you fall, the protect a large part of your fall. This manual was originally
written in Dutch.

CONTENT
1. E-SCOOTER PRO 2 DESCRIPTION 5
1.1 E-Scooter PRO descriptions 5
1.2 E-Scooter PRO components 5
2. HOW DOES YOUR E-SCOOTER PRO 2WORK? 6
2.1 Getting started with your E-scooter PRO 2 6
2.2 Installation guide 6
2.3 Controle panel 8
2.4 How to ride the E-Scooter PRO 2? 8
2.5 Folding and transportation 10
2.6 Charging Instructions 11
3. E-SCOOTER PRO 2 PRECAUTIONS MEASURES
ADVICE 12
4. WEIGHT AND SPEED LIMITS 13
4.1 Maximum weights 13
4.2 Maximum speed in kilometers per hour 13
5. POSSIBLE HINDRANCE TO USE AND 14
ENVIRONMENTAL LIMITATION
6. BATTERY INFORMATION AND SPECIFICATIONS 15
6.1 Battery indication 15
6.2 Special situations 15
7. HOW TO MAINTAIN AND STORE YOUR E-SCOOTER
PRO 2 16
7.1 Maintenance tasks 16
7.2 Storage tips 16
8. E-SCOOTER PRO 2 SPECIFICATIONS AND A LIST 17
OF PRODUCTS DELIVERED
8.1 E-Scooter PRO 2 specifications 17
8.2 Products delivered 17
9. WARRANTY AND REGISTRATION 18
9.1 Warranty conditions 18
9.2 Warranty and repairs 18
10. CONTACT AND CUSTOMER SERVICES 19
11. CE-CONFORMITY 19
4

INSTRUCTIONS 5
1. E-SCOOTER PRO 2 PRODUCT DESCRIPTION
1.1 E-Scooter PRO 2 description
The E-Scooter Pro 2 is a personal transporter. The E-scooter is an electric scooter with a built-in motor that is powered by a
battery pack. The compact design makes it suitable to take it with you everywhere. The E-Scooter Pro is rain-resistant and
easily foldable.
The E-Scooter Pro 2 achieves a speed of max. 25 km per hour and has a range of 22 to 25 kilometers (depending on: sur-
face, user weight and ambient temperature). This makes it ideal for short distances from, for example, the station to school
or to work. The scooter can be used both electrically and normally (with the steppes of your feet). The top has a non-slip
layer. This provides extra control and grip. You give gas by means of a regulator on the handle.

2. HOW DOES YOUR E-SCOOTER PRO 2
WORK?
2.1 Getting started with your E-Scooter PRO 2
Take the scooter out of the box and place it on a flat
surface.

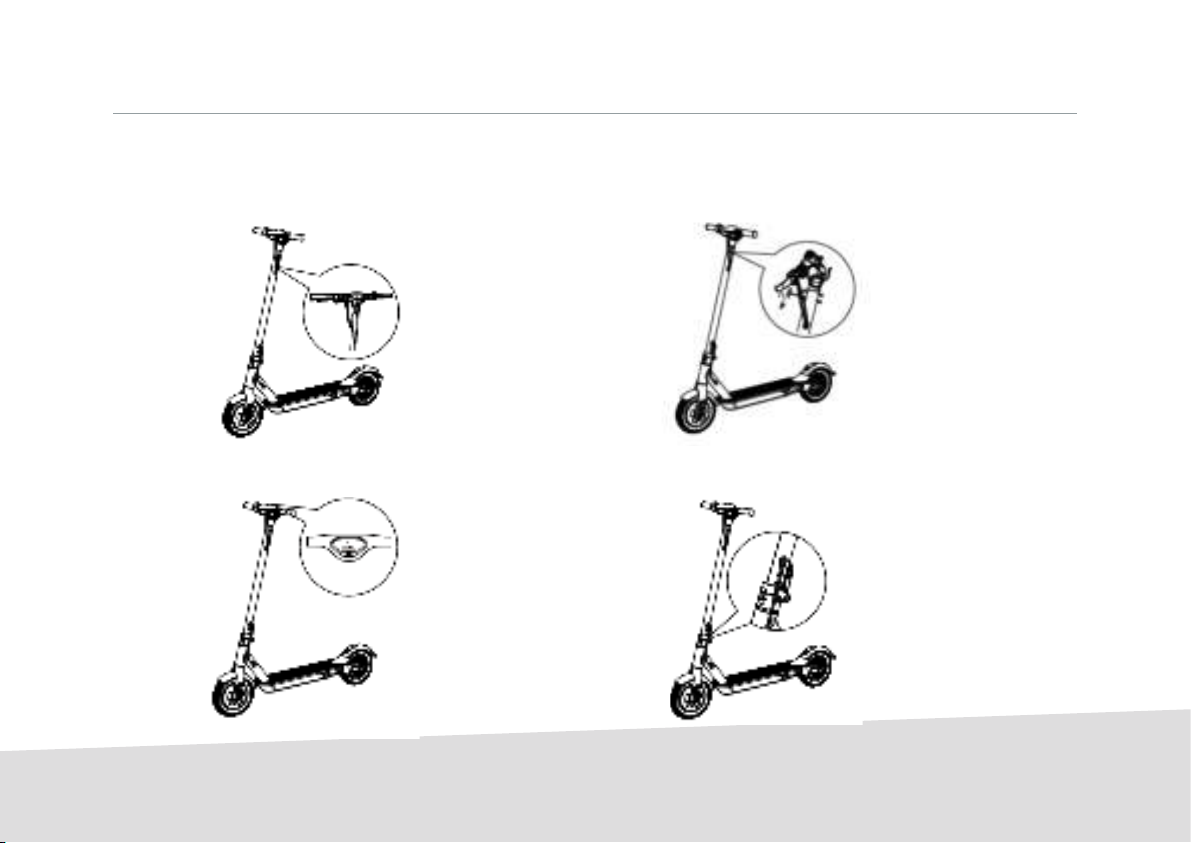

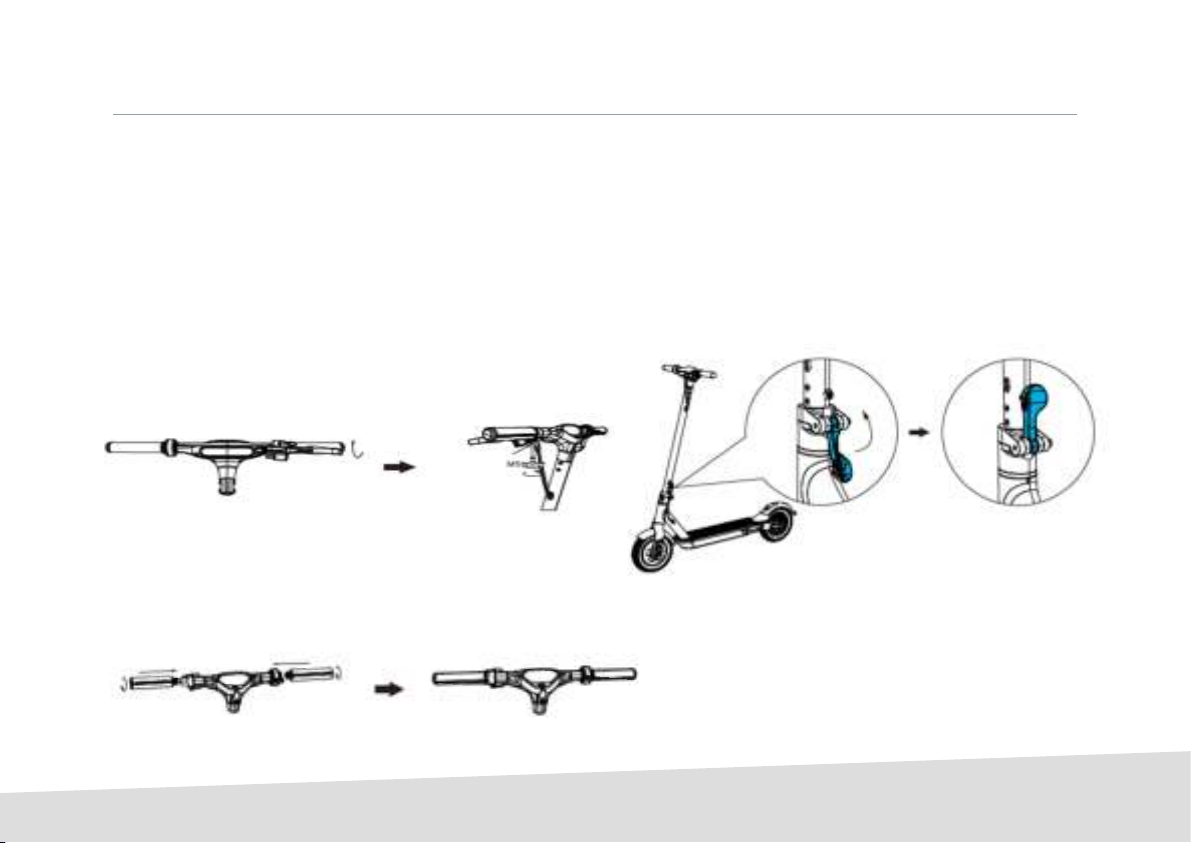

2.2 Installation guide
1. Instal the brakes to the correct position with the Hex
Wrench (m5 in the tool bag).
2. Instal the handlebars, pay attention to the installation
direction
3. Hold the E-Scooter PRO 2 up right to ensure that the lock
will not be affected, please keep the folding- spanner (the
blue part of the image at the bottom. Pull the folding-span-
ner to the top, the scooter is completely locked.
INSTRUCTIONS
6

INSTRUCTIONS 7
4. Fasten the E-scooter standpipe and fold out the kick-
stand.
6. Use the hex wrench in the mounting box to lock the
screws on both sidses.
5. Install the handlebars to the standpipe.
7. After the installation is completed, swich, on and off to
detect the scooter.

2. HOW DOES YOUR E-SCOOTER PRO 2 WORK?

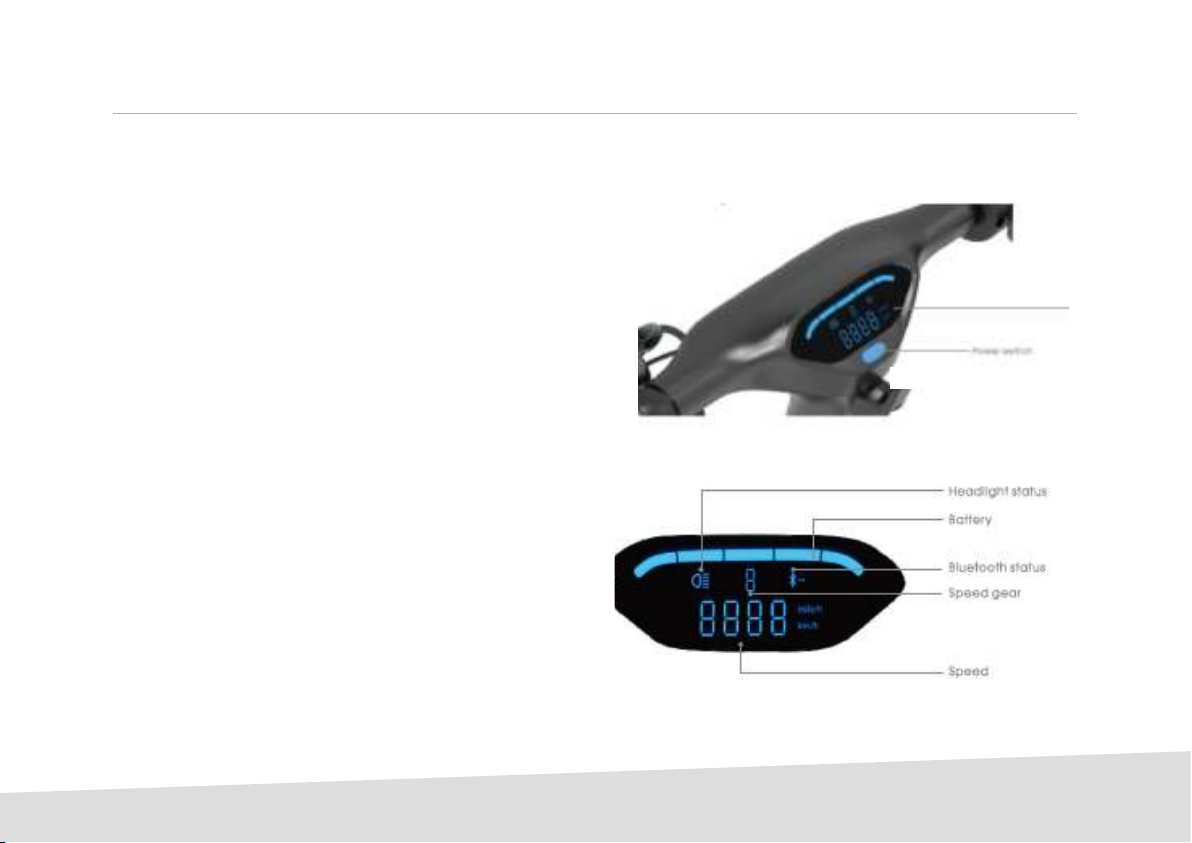

2.3 Control panel
Use the controle panel to controle the scooter. The specific
features are as follows.
1. Long press the power button to turn on the the scooter
and front ligth, lower atmosphere light, tall ligth and
brake light will all go on. The controle panel also shows
the power and the speed.
2. After turning on the, the control panel display shows
“1”, indicating that the speed is in 1st gear. Press the
button to display 2nd gear; the highest display is 3rd
gear.
3. Press the button twice and the front light goes on,
press again twice and the front light will go off.
4. Press the button the times to display the total mileage,
then press the button three times to display the speed.
5. When the brakes are applied in emergeny, the bright-
ness of the brake increases after the brake handles are
gripped.
6. Power display: five lights means fully loaded, four lights
means 50%, three lights means 30%, two lights means
10% and one ligt means less than 10%.
INSTRUCTIONS
8

INSTRUCTIONS 9

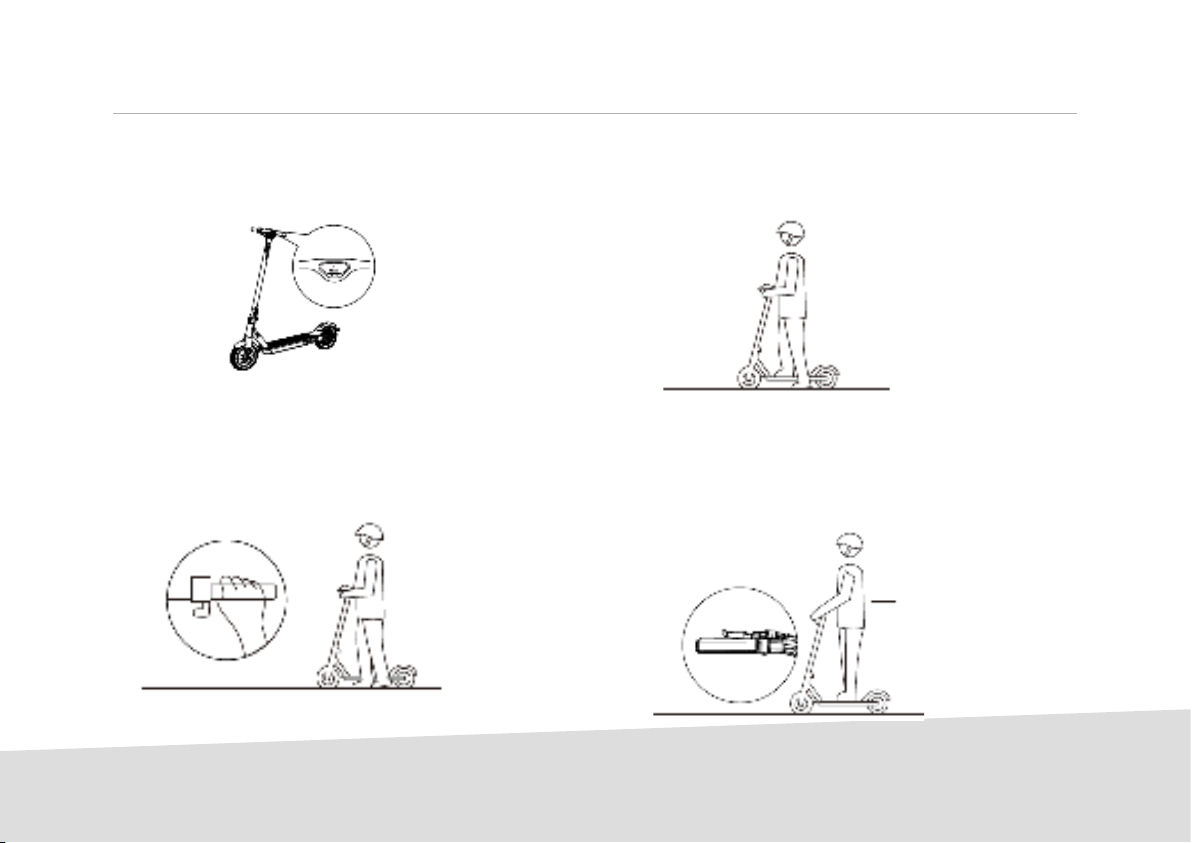

2.4 How to ride the E-Scooter PRO 2.
1. Turn on the power and check the indicator.
3. When the E-Scooter PRO 2 is driving, the other foot steps
on the deck. After this you slightly press the throttle (speed
above 5 km/h will start the throttle)
2. One foot steps on the deck, the other foot kicks
backward.
4. Release the throttle to slow down the speed. Also the
automatic energy recovery system can help to slow down.
For an emergent brake the handlebar brake on the left side
needs to be used.

INSTRUCTIONS
10
Pull the safety lock up, meanwhile holding the standpipe, then open up the folding spanner (blue part in the image)
aim it at the bell and the fender hook, then buckle the bell with the back- fender.
After you folded the E-Scooter PRO 2 you can transport him easily.
2.5 Folding and transporting instructions

INSTRUCTIONS 11
2.6 Charging instructions
1. Open rubber cap.
2. Insert the charging plug.
3. After charging is completed, close the rubber cap.

INSTRUCTIONS
12
3. E-SCOOTER PRO 2 PRECAUTIONS
MEASURES / ADVICE
A number of precautions are described in this chapter. To
ensure that your experiences with the E-Scooter PRO 2
are always positive and enjoyable, it is important that you
take these recommendations to heart. Failure to comply
with these measures may result in injuries and (serious)
injuries, possibly resulting in death. Oxboard BV is under no
circumstances responsible for damage caused to oneself or
to others. The advice:
• minimum age of the E-Scooter PRO 2 is 14 years;
• if you have a heart condition or high blood pressure or
regularly pass out, it is advised not to drive the
E-Scooter PRO 2;
• pregnant women and people with disabilities cannot
ride the E-Scooter PRO 2;
• you may not use the E-Scooter if you have drunk
alcohol or used drugs;
• never ride the E-Scooter PRO 2 with more than one
person;
• Make sure you always wear shoes when riding your
E-Scooter PRO 2;
• make sure that any luggage and the weight of the per-
son riding the E-Scooter PRO 2 does not exceed 100
kilograms;
• always drive responsibly so that you do not put yourself
and others at risk;
• make sure you do not get distracted while using the
E-Scooter PRO 2 to prevent accidents. Consider the use
of your mobile phone and listening to music;
• avoid slippery surfaces such as ice, snow and wet
surfaces. The E-Scooter can slip.
• avoid roads with branches, loose stones and other
objects. Be careful on an uneven surface.
• Abrupt braking can cause the wheel to lock. This may
cause you to fall out of balance and fall.
Disclaimer: The use of the E-Scooter 2 is not allowed in all countries on the
public road. Also you are not insured against possible injury and damage you
cause to others. Oxboard BV accepts no liability for this.
• NL not allowed
• BE allowed
• DE not allowed

4. WEIGHT AND SPEED LIMITS
4.1 Maximum weight
Maximum weight: 120 kilograms
4.2 Maximum speed in kilometers per hour
The E-Scooter PRO 2 has a maximum speed of 25 km / hour.*
*The maximum speed depends on the surface, the total weight and the ambient temperature.
INSTRUCTIONS

INSTRUCTIONS
14
5. POSSIBLE USER NON-USE AND
ENVIRONMENTAL LIMITATIONS
There are a number of factors that reduce a range of
22-25 km. These are the following factors:
• Terrain
When you ride on a flat and smooth surface, this ensures
that you can drive long distances. When you drive up or on
a rough and uneven surface, this causes the step harder to
work to transport you.
This will drain your battery faster.
• Weight
The weight of the driver also affects the distance. With a
light person, your scooter does not have to work as hard
to move, so the distance becomes longer and the battery
runs out less quickly.
• Temperature
Make sure that when you use the E-Scooter PRO 2 it is not
colder than -15 degrees Celsius or warmer than 50 degrees
Celsius. The range will decrease, especially at temperatures
below 10 degrees.
• Charging the battery
Make sure you do not leave the E-Scooter PRO 2 in the
charger for too long. If you do this, the battery may
deteriorate. This means, among other things, that you can
no longer travel long distances and that you can enjoy the
E-Scooter PRO 2 for shorter periods.
• Speed and drinving style
By constantly maintaining an average speed and not
stopping abruptly too often in succession, you ensure that
you can cover longer distances.

INSTRUCTIONS 15
6. BATTERY INFORMATION AND SPECIFICATIONS
6.1 Battery indication
The indication of the battery can be closely monitored in
the gate via the LCD screen on your handlebars. As the
battery runs out you will see this on the indicator on your
handlebar.
6.2 Special situations
Call customer service immediately if you:
notices that a strange air is coming from the battery;
notice that the battery becomes very hot while you are
driving on E-Scooter PRO 2;
notice that something seems to be leaking from the battery
and / or your E-Scooter PRO 2 .
Do not try to solve the problem yourself, as this could da-
mage the battery and your E-Scooter PRO 2.
Component Parameter
Battery type Lithium-ion
Charing time 4-6 hours
Voltage 36V
Capacity 7.5 Ah
Operating temperature -15 to 50 C°
Charging temperature 0 tot 40 C°
Storage period (at ~20 tot 25 C°) Maxium 12 months
Humidiity in the storage room 5% to maximum 95%

INSTRUCTIONS
16
7. HOW DO YOU MAINTAIN YOUR E-SCOOTER
PRO 2 AND HOW TO STORE HIM?
7.1 Maintenance steps
• Make sure you remove the E-Scooter PRO 2 from the
charger in a timely manner and switch it off.
• Check for any damage to your E-Scooter PRO 2 and
check if your wheels are still strong and have enough
tread.
• Slightly dampen a cloth. Use a small amount of soap
and clean your E-Step PRO 2. Make sure no water ends
up at your On button and charging port.
7.2 Storage tips
• Make sure you keep your E-Scooter PRO 2 in a dry
place so that no liquids can get into your scooter.
• Make sure your E-Scooter PRO 2 is fully charged. If you
store it for more than three months, charge it every
three months to keep the battery in good condition.
• Your E-Scooter PRO 2 must not be stored in a room
that is too cold or too warm.
• Store your E-Step PRO 2 indoors, in a dry room at a
moderate temperature.

INSTRUCTIONS 17
8. E-SCOOTER PRO 2 SPECIFICATIONS AND DELIVERED PRODUCTS
8.1 E-ScooterPRO2specications
Net weight 12 kilogram
Load Max 120 kilogram including
any bagage
Maximum speed 25 kilometer an hour*
Maximum distance 22 to 25 kilometer*
Maximum angle 15 degrees
Battery Lithium-ion
Motor 350 W Hub motor
Power supply AC 100-240V/50-60H
Platform height 110 millimeter
Tyres 8,5 inch
Battery voltage 36 V
Batterij capacity 7.5 Ah
Noise emisson (when in use) < 70 dbA
8.2 Delivered products
E-Scooter PRO 2 1 x
Charger 1 x
Manual 1 x
Screws m3 4x
Knob 1x
Hex wrench m5 1x
Hex wrench m3 1x
* depending on: surface, user weight and ambient temperature

INSTRUCTIONS
18
9. WARRANTY AND REGISTRATION
9.1 Warranty conditions
Your invoice is your guarantee certificate. The invoice date is
also the effective date of the guarantee. You have no
guarantee when it appears:
• that you yourself have tried to repair your E-Scooter
PRO 2 and as a result have aggravated any damage or
system errors;
• that you have not followed the advice in this manual.
Consider, for example, the method of storage, weight
limits and how to maintain and use your scooter;
• that unexpected damage has occurred, by the user
himself, in case of heavy vibrations (no flat surface),
wear, a collision with someone or an object, or water
damage;
• that other damage has occurred that is not related to
product design, technology, manufacturing defects or
quality control;
• that the defect was caused by typical wear, exces-
sive use, water damage and damage due to extreme
weather conditions.
Do you want to know for sure that your defect is under
warranty? Contact our customer service.
This can be done by sending an email or calling
+ 3140-7505678.
9.2 Warranty and repairs
Oxboard B.V. gives a 2 year warranty on manufacturing
defects. You can register a warranty claim within this period
via [e-mail]. We will contact you as soon as
possible (within 3 working days at the latest). After re-
ceiving the defective E-Scooter PRO 2 it will be repaired
within 5 working days. If the repair falls under the warranty
conditions (these are described above) then no costs will be
charged. If the repair is not covered by the warranty, we will
contact you about the repair costs before the repair.

19
instructions
10. CONTACT AND CUSTOMER SERVICE
Do you have a question about your E-Scooter PRO 2?
Then you can contact our customer service.
Oxboard B.V. by mail
Oxboard B.V.
Langendijk 21
5652 AX EINDHOVEN
Oxboard B.V. by telephone
You can contact us on workdays between 9:00 AM and 5:00
PM reach on this telephone number: + 3140-7505678
Oxboard B.V. by e-mail
You can do it online via our website www.oxboard.com
fill in the contact form. You can of course also send an
e-mail to [e-mail]. For questions about warranty
you can send an email to [e-mail].
11. CE CONFORMITY
OXBOARD B.V. Hereby declares that the E-Scooter PRO 2
and its adapter are in compliance with the required directi-
ves of the EC directives and in particular with the required
directives and other relevant requirements of the 2006/42 /
EC Machine Directives.
You will find this EC Declaration of Conformity on the
following page.

INSTRUCTIONS
20
EC Declaration of Conformity
OXBOARD B.V.
Langendijk 21, 5652 AX, Eindhoven, The Netherlands
We, Oxboard B.V., hereby declare that the following machinery
E-Scooter PRO 2 , art. No. OX9945SB, EAN Code: 7436943969945
fulfils all of the relevant requirements of
2006/42/EC Machinery Directive
Declaration includes the aspects of additional EC directives, specifically the Electromagnetic
Compatibility Directive (EMC) and 2014/30/EU.
The following harmonized standards were used:
EN 60335:1:2012 +A11:2014
EN 61000-3-2:2014 (EMC)
EN 62233:2008
EN 61000-3-3:2013 (EMC)
IEC 60598-2-4:1997 + IEC 60598-1:2014
EN 62031:2008+a1:2013+A2:2015
EN 61000-6-1:2007
EN ISO 12100: 2010
EN 61000-6:2007+A1:2011
EN 60204-1: 2006+AC: 2010
RoHS European Counsil Directive
2011/65/EU
UL
The following other technical standards and specifications were used:
UN 38.3 / NEN-EN-IEC 62281:2013 (batteries during transport)
The party authorized to compile the technical file is: OXBOARD B.V.
Signed by E. (Ernest) Richard Hiemstra and M. (Mark) Benjamin Collee, OXBOARD B.V.
_______________
Eindhoven (The Netherlands),
25 September 2019
__________________
Eindhoven (The Netherlands),
25 September 2019
EC Declaration of Conformity
OXBOARD B.V.
Langendijk 21, 5652 AX, Eindhoven, The Netherlands
We, Oxboard B.V., hereby declare that:
Equipment: E-Scooter PRO 2 AC/DC Charger 42V Li-ion Battery
fulfils all of the relevant requirements of
2014/35/EC Low Voltage Directive
2014/30/EC Electromagnetic Compatibility Directive
The following harmonized standards were used:
EN 60335-1:2012/A11:2014
EN 60335-2-29:2004/A2:2010
EN 62233:2008
AfPS GS 2014: 01 PAK 3.1
RoHS European Counsil Directive
2011/65/EU
UL
This declaration of conformity is issued under the sole responsibility of the manufacturer.
Signed by E. (Ernest) Richard Hiemstra and M. (Mark) Benjamin Collee, OXBOARD B.V.
__________________
Eindhoven ( the Netherlands),
14 September 2019
__________________
Eindhoven ( the Netherlands),
14 September 2019
