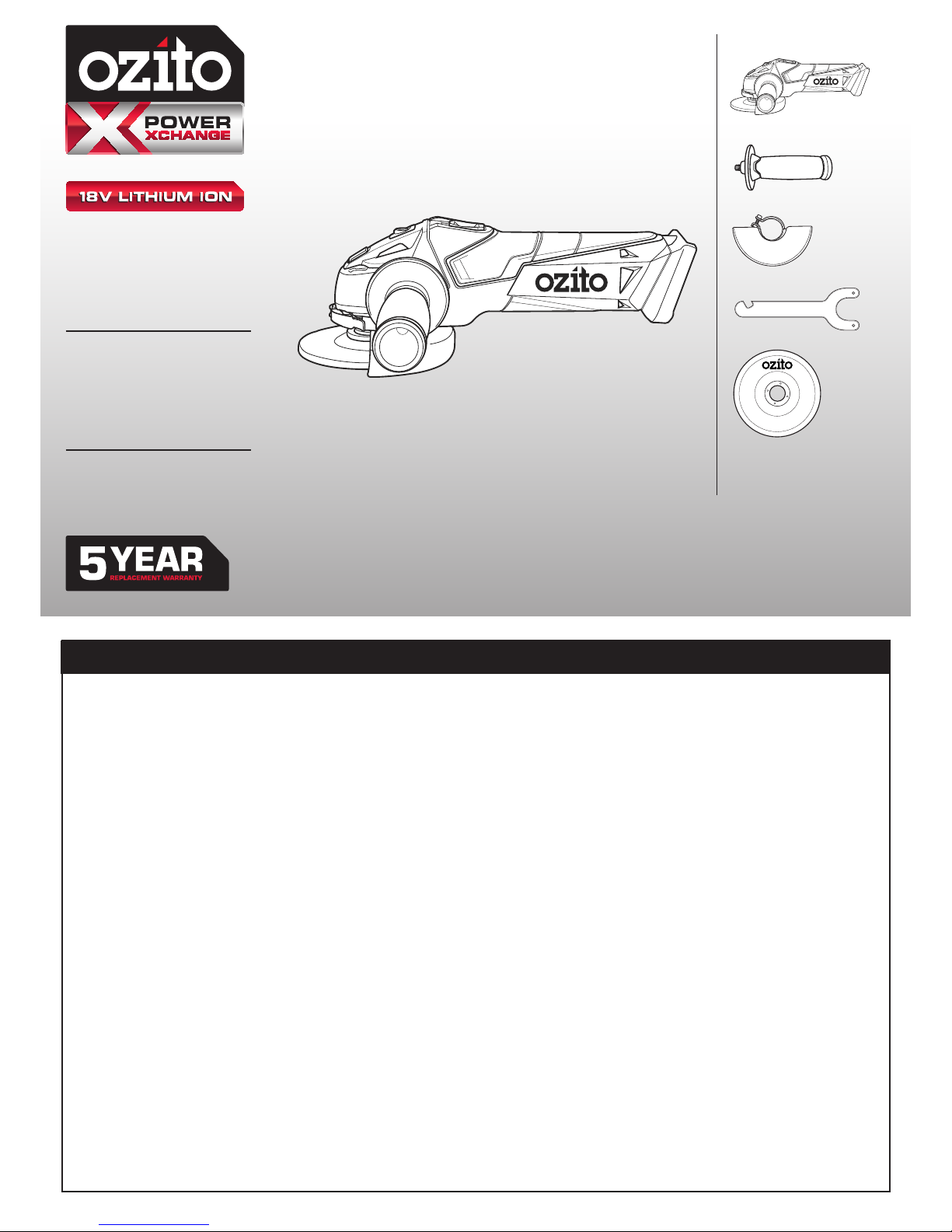

Ozito PXAGS-500U User manual

SPECIFICATIONS
Voltage: 18V
No Load Speed: 8500/min
Disc Diameter: 115mm (41/2”)
Spindle: M14
Weight: 1.8kg
CORDLESS
ANGLE GRINDER
ORIGINAL INSTRUCTIONS
ozito-diy.co.uk
PXAGS-500U
WHAT’S IN THE BOX
Angle Grinder
Side Handle
Safety Guard
Pin Wrech
Grinding Disc
Battery & Charger
sold separately
WARRANTY
OZITO UK Unit 9 Stadium Court, Wirral International Business Park, Plantation Road, Bromborough, Wirral, CH62 3QG 0416
All of our products undergo strict quality checks to ensure that they reach you in perfect
condition. In the unlikely event that your device develops a fault, please contact our service
department at the address shown on this guarantee card. You can also contact us by
telephone using the customer service number shown. Please note the following terms under
which guarantee claims can be made:
1. These warranty terms regulate additional warranty services, which the manufacturer
mentioned below promises to buyers of its new products in addition to their statutory
guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services only covers defects due to material or manufacturing faults on
a product which you have bought from the manufacturer mentioned below are limited to
either the rectication of said defects on the product or the replacement of the product,
whichever we prefer.
Please note that our devices are not designed for use in commercial, trade or professional
applications. A guarantee contract will not be created if the device has been used by
commercial, trade or industrial business or has been exposed to similar stresses during the
guarantee period.
3. The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly instructions or due to
incorrect installation, a failure to follow the operating instructions (for example connecting
it to an incorrect mains voltage or current type) or a failure to follow the maintenance and
safety instructions or by exposing the device to abnormal environmental conditions or by
lack of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example overloading the
device or the use or unapproved tools or accessories), ingress of foreign bodies into the
device (such as sand, stones or dust, transport damage), the use of force or damage caused
by external forces (for example by dropping it).
- Damage to the device or parts of the device caused by normal or natural wear or tear or by
normal use of the device.
4. Your Product is guaranteed for a period of 60 months from the original date of purchase
and is intended for DIY (Do It Yourself) use only. Lithium Ion batteries and chargers are
covered by a 12 month warranty. Warranty excludes consumable parts, for example:
grinding discs. Guarantee claims should be submitted before the end of the guarantee
period within two weeks of the defect being noticed. No guarantee claims will be accepted
after the end of the guarantee period. The original guarantee period remains applicable
to the device even if repairs are carried out or parts are replaced. In such cases, the work
performed or parts tted will not result in an extension of the guarantee period, and no new
guarantee will become active for the work performed or parts tted. This also applies if an
on-site service is used.
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO
THE PLACE OF PURCHASE WITH YOUR REGISTER RECEIPT.
Please refer to the restrictions of this warranty concerning wearing parts, consumables and
missing parts as set out in the service information in these operating instructions.
CUSTOMER SERVICE HELPLINE
GB: 0151 294 4488
IRL: 1850 882711
Ozito-diy.co.uk

KNOW YOUR PRODUCT SETUP & PREPARATION
1. ASSEMBLY
CORDLESS ANGLE GRINDER
1 2 3 4 5 6
1 Spindle Lock
2 Guard Locking Lever
3 Side Handle
4 Lock On Slide Switch
5 Sure Grip Handle
6 Battery Seating
7 Pin Wrech
Inserting & Removing the Battery (not included)
1 Align the ribs of the battery with
the recess at the back of the
angle grinder & push in until it
clicks into place.
2 To remove, press and hold the
battery release tab and then
slide out.
1 Loosen the safety guard locking
lever to allow it to spin.
1 To t, screw the side handle
clockwise into 1 of 3 handle
positions.
2 Rotate the guard into the desired
position & secure in place with
the locking lever.
2 To remove, screw the handle
anti-clockwise.
Fitting and Removing the Side Handle
Adjusting the Safety Guard
WARNING! ENSURE THE TOOL IS SWITCHED OFF AND
THE BATTERY IS REMOVED BEFORE PERFORMING ANY
OF THE FOLLOWING TASKS.
WARNING! DO NOT OPERATE THE ANGLE GRINDER
WITHOUT THE SAFETY GUARD FITTED AS POSSIBLE
INJURIES COULD OCCUR.
7
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to the
online manual.
BATTERY & CHARGER (sold separately)
This tool is compatible with all battery and chargers from the Ozito
Power X Change Range.
For optimal performance, we recommend the use of a 3.0Ah battery or
higher to operate this Power X Change Angle Grinder.

CAUTION: THE CHARGER FOR THIS PRODUCT SHOULD
BE PROTECTED BY A RESIDUAL CURRENT DEVICE
(RATED AT 30MA OR LESS).
1 Connect the charger into a mains power outlet.
4 The charger LED will illuminate
red signifying that the battery is
charging.
3 With the charger sitting on a at
surface, align the raised ribs on
the battery with the recess in the
charger and slide onto the charger
ensuring a rm connection.
2 The charger LED will ash green
showing power is being supplied
to the charger.
5 The charger LED will illuminate
green once the battery is charged.
Charging your lithium ion battery - Fast Charger
Charger LED Indicator
LED Indicator Situation
GREEN (Flashing) Stand By (no battery pack is inserted)
RED (Flashing) Battery is charging (low charge)
RED (Illuminated) Battery is charging (mid charge)
GREEN (Illuminated) Battery is 85% - 100% Charged and ready for use
BOTH(Illuminated) Battery pack is too hot or too cold (charging will begin
automatically when battery reaches correct charging
temperature).
BOTH (Flashing) Defective battery. Never charge a defective battery
pack!
Remove battery pack from charger.
3. BATTERY & CHARGING (sold separately)2. REPLACING A GRINDING DISC

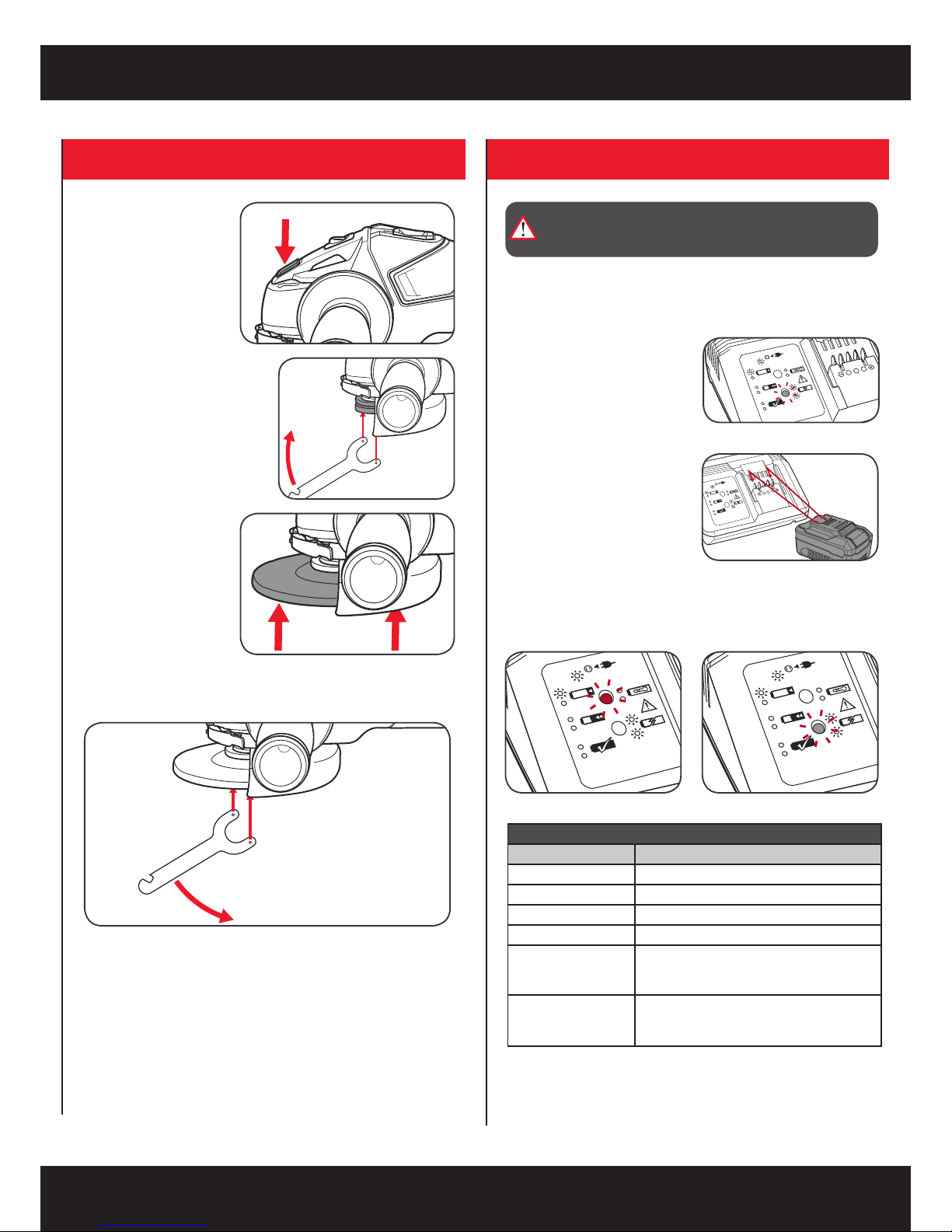

2 Using the pin wrech loosen
the ange by rotating it anti
-clockwise.
4 Screw the ange back onto the spindle and tighten using the pin wrech
while holding the spindle lock down.
1 Depress and hold the
spindle lock to prevent
the spindle spinning.
3 Remove the ange and
replace the grinding disc
on the spindle.

Battery Charge Indicator
The purchased battery is equipped with a
battery charge indicator to show the state of
the battery charge.
Press the charge indicator button and look to
see which LED lights.
Battery requires
immediate charging
Low state of charge, requires charging soon.
Mid state of charge
Full state of charge.
Note: The battery needs to be removed from the tool to check the state of charge.
1 Connect the charger into a mains power outlet.
4 The charger LED will illuminate red signifying that the battery is charging.
3 With the battery sitting on a at
surface, align the raised ribs on the
battery with the recess in the charger
and slide onto the battery ensuring a
rm connection.
2 The charger LED will ash green
showing power is being supplied
to the charger.
5 When removing the charger from the
battery, rst press the battery release
tab, then slide the charger from its
position.
Charging your lithium ion battery - Eco Charger
Charger LED Indicator
LED Indicator Situation
GREEN (Flashing) Stand By (no battery pack is inserted)
RED (Illuminated) Battery is charging (low charge)
GREEN (Illuminated) Battery is Charged and ready for use
RED (Flashing) Battery or Charger fault
RED & GREEN (Flashing) Battery pack is too hot or too cold (remove battery from
charger and store at room temperature 20ºC. Insert
battery again when at correct charging temperature). If
this happens again, the battery is defective and needs
to be replaced.
OPERATION
1 To turn on, slide the lock-on
switch across to the right and
then forward.
1 Ensure the workpiece is securely
held down.
2 To turn off, slide the lock-on
switch back and to the left.
2 Hold the angle grinder
rmly with both handles
and switch on.
3 Begin grinding your workpiece. The optimum grinding angle is 10-150to
the workpiece.
Note: Do not apply excessive pressure. Allow the tool to do the work, this
will prevent deep gouging.
10-150
4. GRINDING
Turning On and Off
Grinding Procedure
PXAGS-500U

DESCRIPTION OF SYMBOLS
BATTERY & CHARGER SAFETY WARNINGS
TROUBLESHOOTING
SPARE PARTS
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR
YOUR BATTERY CHARGER.
1. Before using the charger read all instructions and cautionary markings on the charger, battery pack
and the product using the battery pack.
2. This charger is not intended for any uses other than charging rechargeable batteries. Any other use
may result in risk of re, electric shock or electrocution.
3. Do not place any object on top of the charger or place the charger on a soft surface that may result
in excessive internal heat. Place the charger in a position away from any heat source.
4. To reduce risk of damage to the electric plug and cord, pull by the plug rather than the cord when
disconnecting the charger.
5. Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected
to damage or stress.
6. An extension cord should not be used unless absolutely necessary. Use of an improper extension cord
could result in the risk of re, electric shock or electrocution.
7. Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in
any way. Have it checked by an electrician or power tool repairer.
8. Do not disassemble charger. Take it to an electrician or power tool repairer when service or repair is
required. Incorrect reassembly may result in a risk of electric shock, electrocution or re.
9. To reduce risk of electric shock, unplug the charger from the outlet before attempting any cleaning.
Removing the battery pack will not reduce this risk.
10. Never attempt to connect 2 chargers together.
11. DO NOT store or use the tool and battery pack in locations where the temperature may reach or exceed
40ºC (such as inside sheds or metal buildings in summer).
12. The charger is designed to operate on standard household electrical power (240 volts). Do not
attempt to use it on any other voltage!
13. The battery pack is not fully charged out of the carton. First read the safety instructions and then
follow the charging notes and procedures.
14. The longest life and best performance can be obtained if the battery pack is charged when the air
temperature is between 18 - 24ºC. Do not charge the battery pack in an air temperature below 10ºC
or above 40ºC. This is important and will prevent damage to the battery pack.
15. Do not incinerate the battery pack even if it is seriously damaged or is completely worn out. The battery
can explode in a re.
16. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or
cracks, immediately discontinue use and do not recharge.
17. During charging, the battery must be placed in a well ventilated area.
LED lights do not illuminate on charger
Check the charging adaptor is securely plugged into the wall out let.
Check the battery is rmly connected to the charging cradle.
Check that the charging jack is securely connected to the charging cradle.
Sparking visible through the housing vents
A small amount of sparking may be visible through the housing vents.
This is normal and does not indicate a problem.
Spindle locking button will not depress
The spindle will need to be rotated until the lock can engage. Simply rotate the spindle
while applying a small amount of pressure on the spindle lock.
MAINTENANCE
• After each use, blow air through the tool housing to ensure it is free from all dust,
dirt, etc. Build up of dust, dirt particles may cause the tool to overheat and shorten
the life of the tool.
• If the housing of the angle grinder requires cleaning, do not use solvents but a moist
soft cloth or soft brush only.
• Never let any liquid get inside the tool, never immerse any part of the tool into liquid.
• When not in use, the angle grinder should be stored in a dry, frost free location not
within the reach of children.
WARNING! ALWAYS ENSURE THE TOOL HAS
COMPLETELY STOPPED AND THE BATTERY IS
REMOVED PRIOR TO ANY MAINTENANCE.
Note: Ozito Industries will not be responsible for any damage or injuries caused by
the repair of the angle grinder by an unauthorised person or by mishandling of the
angle grinder.
Battery protection system
The tool is equipped with the battery protection system, which helps to ensure a long service
life.
The output power automatically cuts off during operation when the tool and/or battery are
placed under the following situations:
• When the tool is overloaded:
If this occurs, release the trigger switch and remove causes of overload, then pull the
switch trigger again to restart.
• When the remaining battery capacity becomes low:
Recharge the battery pack.
Note: The battery protection system does not in any way damage the tool.
Note: The indicated capacity may be lower than the actual level during use or immediately
after using the tool.
Spare parts can be ordered from the Special Orders Desk at your local
Bunnings Warehouse or Homebase store.
For further information, or any parts visit
www.ozito-diy.co.uk or contact Ozito Customer Service:
Great Britain: 0151 294 4488
Ireland: 1850 882711
E-mail: enquires@ozito-diy.co.uk
Read instruction manual
mA
n0
Milliamperes
Ah Amp hour
No load speed
VVolts Hz Hertz
ac/~ Alternating current
Direct current
dc/
/min
Always wear ear, eye and
a safety mask
Revolutions or
reciprocation per minute
Always wear gloves
Wear eye protection

WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of fire, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The charger has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating
plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for the UK.
This tools charger is double insulated; therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation system is for
added protection against injury resulting from a possible electrical insulation failure within the tool.
The power supply for this products charger should be protected by a residual current device (rated at 30mA or less). A residual current
device reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power
tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk
of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of
electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the
risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of
battery pack may create a risk of re when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and re.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from one
terminal to another. Shorting the battery terminals together may cause burns or a re.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
6. Service
a. Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
ANGLE GRINDER SAFETY WARNINGS
WARNING! a) This power tool is intended to function as a grinder, sanding or cut-off
tool. Read all safety warnings, instructions, illustrations and specifications provided with
this power tool.
Failure to follow all instructions listed below may result in electric shock, fir and/or serious injury.
b) Operations such as wire brushing, or polishing are not recommended to be performed with this
power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
c) Do not use accessories which are not specifically designed and recommended by the tool
manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
d) The rated speed of the accessory must be at least equal to the maximum speed marked on the
power tool. Accessories running faster than their rated speed can break and y apart
e) The outside diameter and the thickness of your accessory must be within the capacity rating of
your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
f) The arbour size of wheels, flanges, backing pads or any other accessory must properly fit the
spindle of the power tool. Accessories with arbour holes that do not match the mounting hardware of the power tool will run out
of balance, vibrate excessively and may cause loss of control.
g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks,
backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for
damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the
plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally
break apart during this test time.
h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As
appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or work piece fragments.
The eye protection must be capable of stopping ying debris generated by various operations . The dust mask or respirator must be
capable of ltrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal
protective equipment. Fragments away and cause injury beyond immediate area of operation.
j) Hold power tool by insulated gripping surfaces only, when performing an operation where the
cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make
exposed metal parts of the power tool “live” and shock the operator.
k) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory
may grab the surface and pull the power tool out of your control.
l) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag
your clothing, pulling the accessory into your body.
m) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive
accumulation of powdered metal may cause electrical hazards.
n) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
o) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.
Kickback and related warnings
Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging
causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of
the accessory’s rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched by the work piece, the edge of the wheel that is entering into the pinch point
can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from
the operator, depending on direction of the wheel’s movement at the point of pinching. Abrasive wheels may also break under these
conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking
proper precautions as given below.
a)Maintain a firm grip on the power tool and position your body and arm to allow you to resist
kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The
operator can control torque reactions or kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.
c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will
propel the tool in direction opposite to the wheel’s movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners,
sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback
and loss of control.
Additional safety instructions for grinding and abrasive cutting-off operations
a) Use only wheel types that are recommended for your power tool and the specific guard designed
for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
b) The guard must be securely attached to the power tool and positioned for maximum safety, so
the least amount of wheel is exposed towards the operator. The guard helps to protect operator from broken wheel
fragments and accidental contact with wheel.
c) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off
wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
d) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel.
Proper wheel anges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from
grinding wheel anges.
e) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for
the higher speed of a smaller tool and may burst.
Additional safety instructions for abrasive cutting-off operations:
a) Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of
cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of
kickback or wheel breakage.
b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of
operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.
c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and
hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off
wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the
cause of wheel binding.
d) Do not restart the cutting operation in the work piece. Let the wheel reach full speed and carefully reenter the
cut. The wheel may bind, walk up or kickback if the power tool is restarted in the work piece.
e) Support panels or any oversized work piece to minimize the risk of wheel pinching and kickback.
Large work pieces tend to sag under their own weight. Supports must be placed under the work piece near the line of cut and near the
edge of the work piece on both sides of the wheel.
f) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding
wheel may cut gas or water pipes,electrical wiring or objects that can cause kickback.
Additional safety instructions for sanding operations
a) Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting
sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of
the disc or kickback.
We highly recommend that when using abrasive cutting wheels, that a cutting guard should be
fitted to your angle grinder. These cutting guards are available as a spare part and can be ordered
through the special orders desk

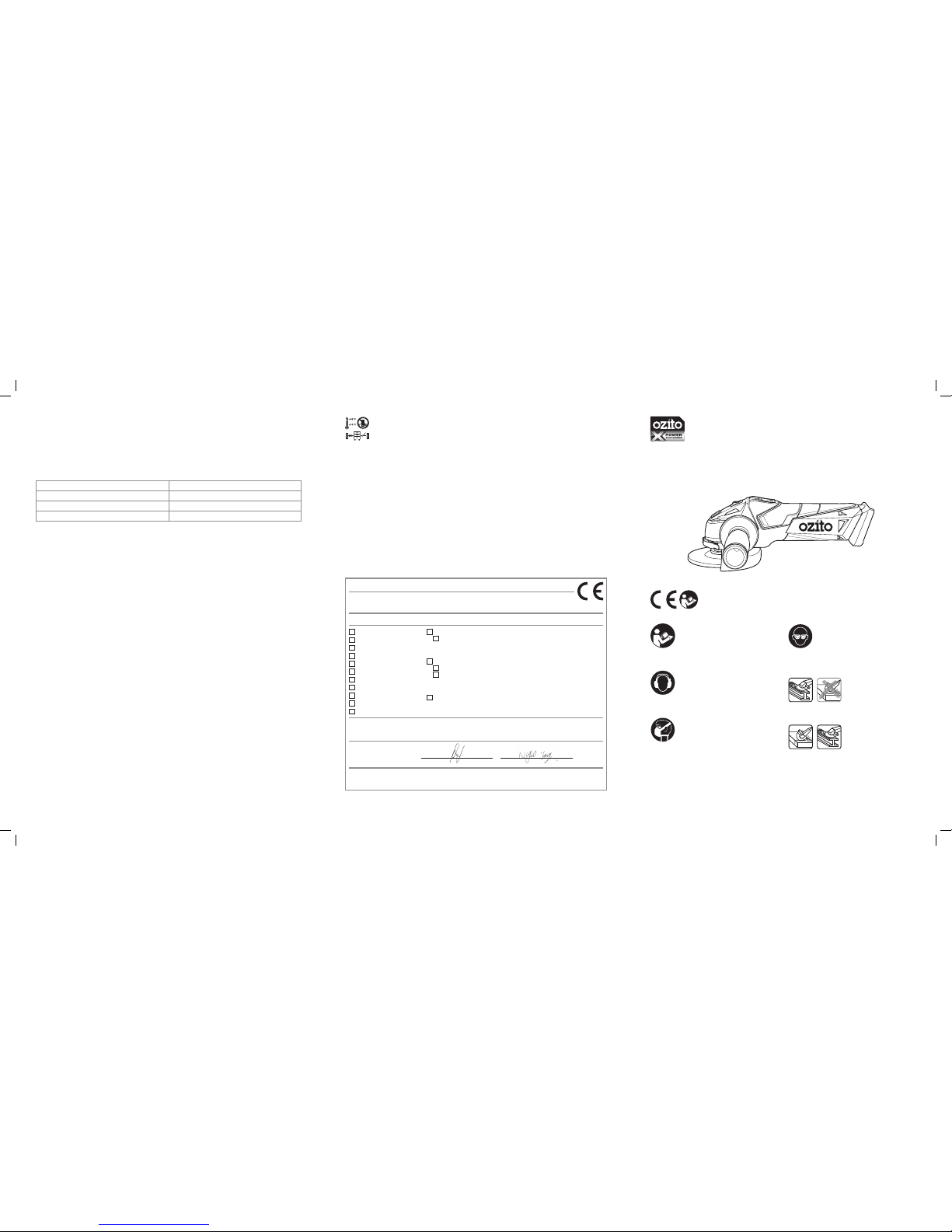

size 445 x 210 mm
Danger! - Read the operating instructions to re-
duce the risk of inquiry
Caution! Wear ear-mus. The impact of noise
can cause damage to hearing.
Caution! Wear a breathing mask. Dust which
is injurious to health can be generated when
working on wood and other materials. Never use
the device to work on any materials containing
asbestos!
Caution! Wear safety goggles. Sparks gene-
rated during working or splinters, chips and dust
emitted by the device can cause loss of sight.
This safety guard is designed for sanding/
grinding.
This safety guard is designed for cutting and
grinding/sanding.
(not included in items supplied)
PXAGS-500U
GB Additonal operating & safety instructions Cordless Angle Grinder
Service information
We have competent service partners in all countries named on the guarantee certicate whose contact
details can also be found on the guarantee certicate. These partners will help you with all service re-
quests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the
following parts are therefore also required for use as consumables.
Category Example
Wear parts* Carbon brushes, Battery
Consumables* Cutting wheels, grinding wheels
Missing parts
* Not necessarily included in the scope of delivery!
In the eect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Plea-
se ensure that you provide a precise description of the problem and answer the following questions in all
cases:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
Yang/Product-ManagementWeichselgartner/General-Manager
- 135 -
explains the following conformity according to EU directives and norms for
the following product
Cordless Angle Grinder PXAGS-500U / Fast Charger PXCG-030U (Ozito)
2014/29/EU
2005/32/EC_2009/125/EC
2014/35/EU
2006/28/EC
X2014/30/EU
2014/32/EU
2014/53/EC
2014/68/EU
90/396/EC_2009/142/EC
89/686/EC_96/58/EC
X2011/65/EU
X2006/42/EC
Annex IV
Noti ed Body:
Noti ed Body No.:
Reg. No.:
2000/14/EC_2005/88/EC
Annex V
Annex VI
Noise: measured LWA = dB (A); guaranteed LWA = dB (A)
P = KW; L/Ø = cm
Noti ed Body:
2004/26/EC
Emission No.:
Standard references: EN 60745-1; EN 60745-2-3; EN 60335-1; EN 60335-2-29;
EN 62233; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3
Landau/Isar, den 21.03.2016
First CE: 16 Archive-File/Record: NAPR014205
Art.-No.: 44.311.16 I.-No.: 11016 Documents registrar: R. Gerhard
Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar
ISC GmbH · Eschenstraße 6 · D-94405 Landau/Isar
Declaration of conrmity
Store the battery only in dry rooms with an am-
bient temperature of +10°C to +40°C. Place only
charged batteries in storage (charged at least
40%). (not included in delivery)
The reprinting or reproduction by any other me-
ans, in whole or in part, of documentation and
papers accompanying products is permitted only
with the express consent of the iSC GmbH.
Subject to technical changes

size 445 x 210 mm
Charger indicator / Fast Charger
Indicator status Explanations and actions
Red LED Green LED
O Flashing Ready for use
The charger is connected to the mains and is ready for use; there is no
battery pack in the charger
On O Charging
The charger is charging the battery pack in quick charge mode.
O On The battery is 85% -100% charged and ready for use.
(Charging time for 1.5 Ah battery: 30 min)
(Charging time for 2.0 Ah battery: 40 min)
(Charging time for 3.0 Ah battery: 60 min)
(Charging time for 4.0 Ah battery: 80 min)
(Charging time for 5.2 Ah battery: 105 min)
Action:
Take the battery pack out of the charger. Disconnect the charger from
the mains supply.
Flashing O Adapted charging
The charger is in gentle charging mode.
For safety reasons the charging is performed less quickly and takes
more than 1 hour.The reasons can be:
- The battery pack has not been used for a very long time or an already
at battery was further discharged (exhaustive discharge).
- The battery pack temperature is outside the ideal range (between 25°
C and 45° C).
Action:
Wait for the charging to be completed; you can still continue to charge
the battery pack.
Flashing Flashing Fault
Charging is no longer possible.The battery pack is defective.
Action:
Never charge a defective battery pack.
Take the battery pack out of the charger.
On On Temperature fault
The battery pack is too hot (e.g. due to direct sunshine) or too cold
(below 0° C).
Action:
Remove the battery pack and keep it at room temperature (approx. 20°
C) for one day .
Items supplied
Please check that the article is complete as
specied in the scope of delivery. If parts are
missing, please contact our service center or the
sales outlet where you made your purchase at
the latest within 5 working days after purchasing
the product and upon presentation of a valid bill
of purchase. Also, refer to the warranty table in
the service information at the end of the operating
instructions.
• Open the packaging and take out the equip-
ment with care.
• Remove the packaging material and any
packaging and/or transportation braces (if
available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for
transport damage.
• If possible, please keep the packaging until
the end of the guarantee period.
Battery and charger sold separately.This tool is
compatible with all 18V battery and chargers from
the Power X Change range.
Danger!
The equipment and packaging material are
not toys. Do not let children play with plastic
bags, foils or small parts. There is a danger of
swallowing or suocating!
Proper use
The angle grinder is designed for grinding metal
and stone when using the appropriate grinding
wheel and guard.
Warning! To cut metal and stone the grinder/san-
der may only be used when the guard (available
as an accessory) is mounted.
The equipment is to be used only for its prescri-
bed purpose. Any other use is deemed to be a
case of misuse. The user / operator and not the
manufacturer will be liable for any damage or inju-
ries of any kind caused as a result of this.
Please note that our equipment has not been de-
signed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
Technical data
Motor power supply: ............................... 18 V DC
Rated speed: ........................................ 8500/min
Max. wheel diameter: ............................. 115 mm
Grinding wheels: ....................... 115 x 22 x 6 mm
Cutting wheel: ........................... 115 x 22 x 3 mm
Mounting spindle thread: .............................. M14
Danger!
Sound and vibration
Sound and vibration values were measured in
accordance with EN 60745.
LpA sound pressure level ..................... 76.1 dB(A)
KpA uncertainty ............................................. 3 dB
LWA sound power level ....................... 87.1 dB(A)
KWA uncertainty ............................................. 3 dB
Wear ear-mus.
The impact of noise can cause damage to hea-
ring.
Total vibration values (vector sum of three direc-
tions) determined in accordance with EN 60745.
Handle
Vibration emission value ahAG = 3.1 m/s2
K uncertainty = 1.5 m/s2
Additional handle
Vibration emission value ah= 2.59 m/s2
K uncertainty = 1.5 m/s2
The specied vibration value was established in
accordance with a standardized testing method. It
may change according to how the electric equip-
ment is used and may exceed the specied value
in exceptional circumstances.
The specied vibration value can be used to
compare the equipment with other electric power
tools.
The specied vibration value can be used for initi-
al assessment of a harmful eect.
Keep the noise emissions and vibrations to a
minimum.
• Only use appliances which are in perfect wor-
king order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever
necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.
Caution!
Residual risks
Even if you use this electric power tool in ac-
cordance with instructions, certain residual
risks cannot be rules out. The following ha-
zards may arise in connection with the equip-
ment’s construction and layout:
1. Lung damage if no suitable protective dust
mask is used.
2. Damage to hearing if no suitable ear protecti-
on is used.
3. Health damage caused by hand-arm vibra-
tions if the equipment is used over a pro-
longed period or is not properly guided and
maintained.
For EU countries only
Never place any electric power tools in your
household refuse.
To comply with European Directive 2012/19/EC
concerning old electric and electronic equipment
and its implementation in national laws, old elec-
tric power tools have to be separated from other
waste and disposed of in an environment-friendly
fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to
the manufacturer, the owner of the electrical
equipment must make sure that the equipment
is properly disposed of if he no longer wants to
keep the equipment.The old equipment can be
returned to a suitable collection point that will
dispose of the equipment in accordance with the
national recycling and waste disposal regulations.
This does not apply to any accessories or aids
without electrical components supplied with the
old equipment.
This consignment contains lithium-ion batteries.
In accordance with special provision 188 this
consignment is not subject to the ADR regula-
tions. Handle with care. Danger of ignition in case
of damage to the consignment package. If the
consignment package is damaged: Check and
if necessary repackage. For further information
contact: 0049 1807 10 20 20 66 (xed network
14 ct/min, mobile phone max. 42 ct/min) Outside
Germany charges will apply instead for a regular
call to a landline number in Germany.
Table of contents
Other Ozito Grinder manuals

Ozito
Ozito AGG-042K User manual

Ozito
Ozito AGB-1201 User manual

Ozito
Ozito OZWDBG250WA User manual

Ozito
Ozito AGG-042K User manual

Ozito
Ozito AGS-4050 User manual

Ozito
Ozito AGS-4050U User manual

Ozito
Ozito DGR-6000 User manual

Ozito
Ozito AGL-9100U User manual

Ozito
Ozito AGG-1000 User manual

Ozito
Ozito ANGLE GRINDER KIT User manual

Ozito
Ozito AGS-0125 User manual

Ozito
Ozito PXAGS-500 User manual

Ozito
Ozito BGRT-120 User manual

Ozito
Ozito LFG-4100 User manual

Ozito
Ozito AGK-PRO User manual

Ozito
Ozito AGS-4000 User manual

Ozito
Ozito OZBG150WA User manual

Ozito
Ozito AGB-1200 User manual

Ozito
Ozito PXAGS-500 User manual

Ozito
Ozito OZWDBG250WA User manual
