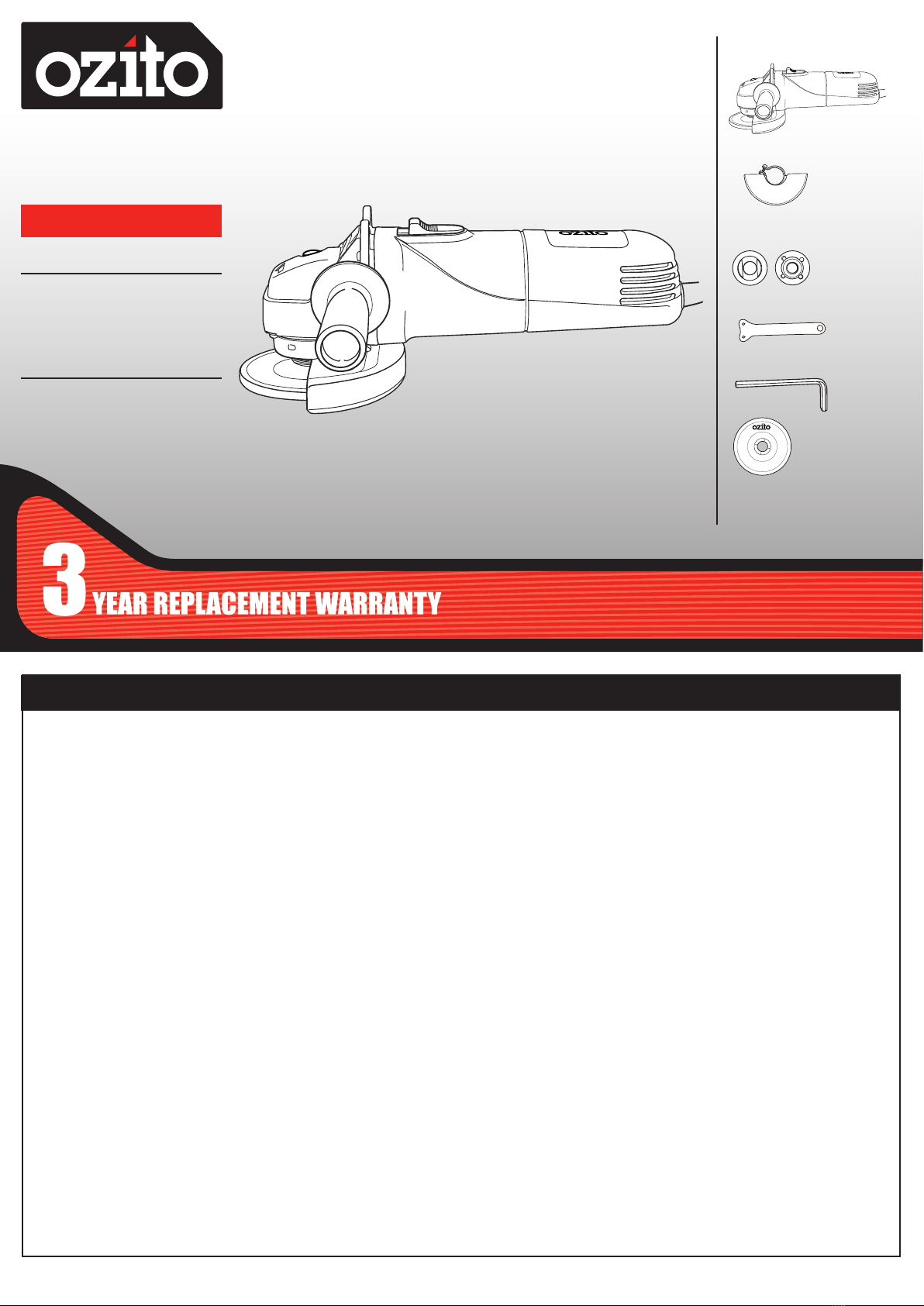

Ozito AGG-1000 User manual

ANGLE
GRINDER
100mm (4”)
INSTRUCTION MANUAL
SPECIFICATIONS
Motor: 850W
No Load Speed: 12,000/min
Disc Diameter: 100mm (4”)
Spindle: M10
Weight: 2kg
AGG-1000
WHAT’S IN THE BOX
Angle Grinder
Inner & Outer Flange
Hex Key
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from the
original date of purchase and is intended for DIY (Do It Yourself)
use only. If a product is defective it will be replaced in accordance
with the terms of this warranty. Warranty excludes consumable
parts, for example: grinding discs, carbon brushes, disc guard,
flange.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
Pin Spanner
Metal Grinding Discs
Safety Guard
1113

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
2. Tighten guard
bolt.
1. Spindle Lock
2. Adjustable Safety Guard
3. Side Handle
4 Lock On Slide Switch
ANGLE GRINDER
KNOW YOUR PRODUCT
1. SIDE HANDLE & GUARD
Side Handle
The side handle can be tted on either side of your grinder. The
correct position will be determined by your preferred hand and the
operation being performed.
Removing
2. Turn side handle anti-
clockwise to loosen
and remove.
5. Pin Spanner
6. Hex Key
7. Inner Flange
8. Outer Flange
9. Metal Grinding Disc x 10
ACCESSORIES
SETUP & PREPARATION
Safety Guard
The safety guard should be used at all times whilst operating the
angle grinder.
Attaching
Removing
3. Loosen guard bolt.
Attaching
1. Screw the side
handle in clockwise
to rmly secure the
desired position on
the grinder.
1. Loosen guard bolt, align tabs and
rotate guard to the required position.
4. Align tabs on the guard with slots on the guard collar. Remove
guard.

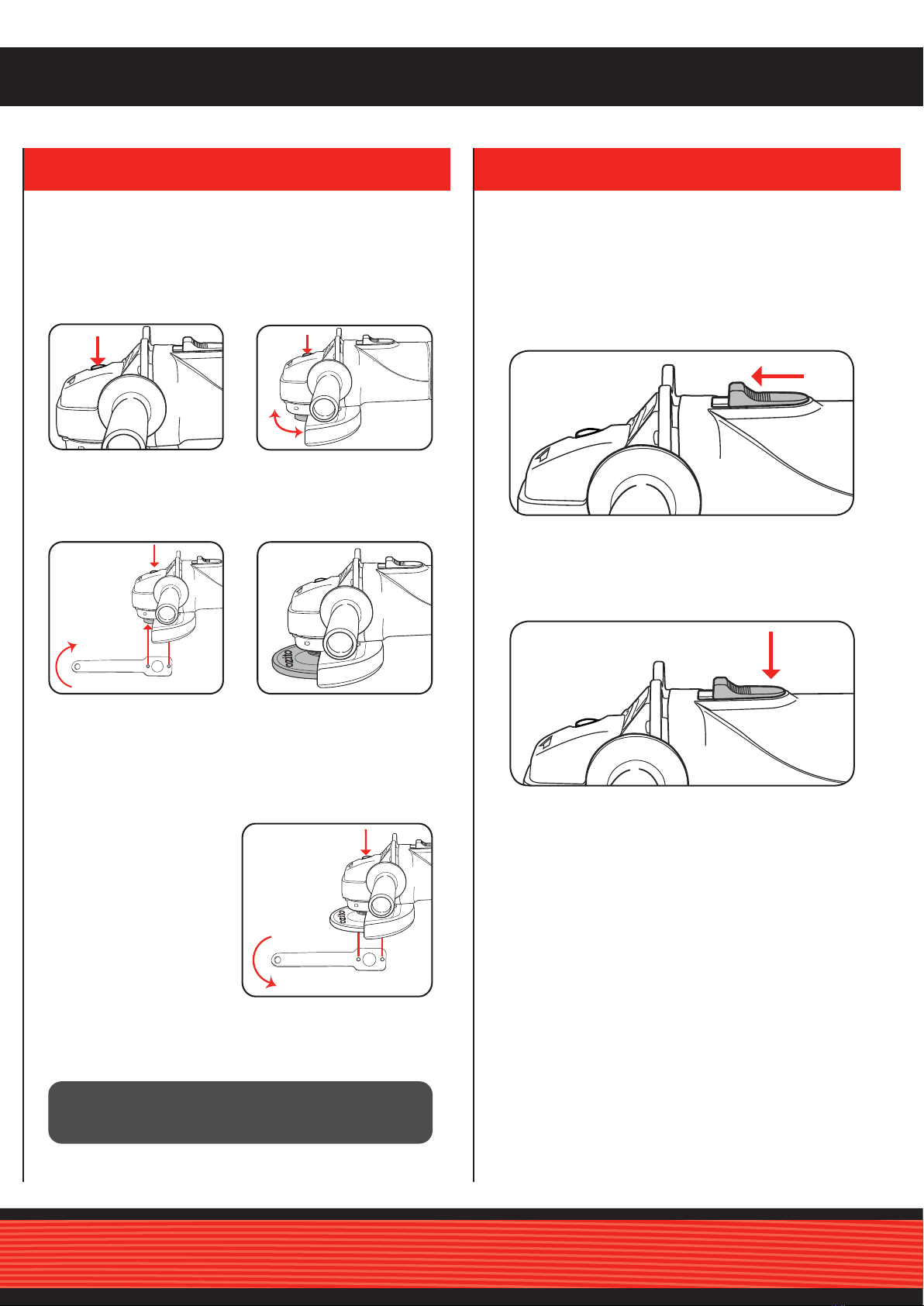

Ensure the tool is disconnected from the power supply
before performing any of the following operations.

7. Use the above operation in reverse to remove grinding disc.
6. Depress and hold spindle
lock button. Firmly tighten
the outer ange with the
pin spanner.
2. GRINDING DISC 3. LOCK ON SLIDE SWITCH
3. Use pin spanner to loosen
the outer ange.
2. Rotate spindle to locate
the lock position. 1. To turn the grinder on, press the on/off switch forward
until it locks into place. The tool is now locked on for
continuous use.
2. To turn the grinder off, push down on the rear of the
switch.
CAUTION: REGULARLY CHECK THAT THE OUTER
FLANGE HAS NOT BECOME LOOSE DURING
OPERATION.
OPERATION
The tool is recommended for use with a residual current
device with a rated residual current of 30mA or less.
Inspect the grinding disc before tment to ensure it is not cracked
or deformed. The grinding disc is suitable for grinding tasks only.
Only use grinding discs with a diameter of 100mm.
1. Depress and hold
spindle lock button.
4. Insert the disc with the label
facing up.
5. Screw the outer ange onto the spindle.
Note: the ring on the ange must locate within the hole on the
grinding disc.

AGG-1000

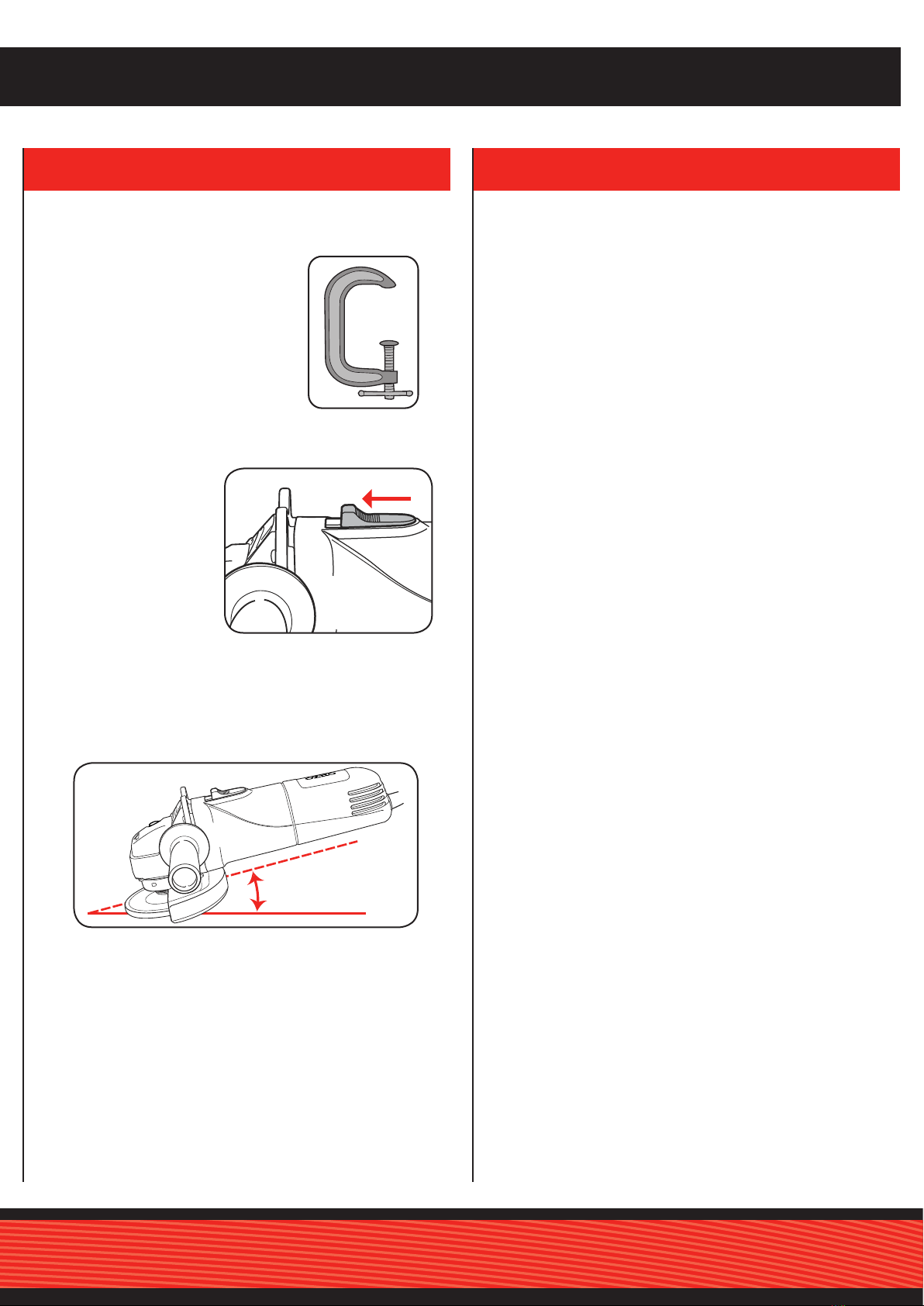

4. GRINDING
1. Ensure the workpiece is
securely held down.
2. Turn on the angle
grinder.
3. Begin grinding your workpiece. The optimum grinding
angle is 10-15°to the workpiece. Do not apply excessive
pressure. Allow the tool to do the work. This will prevent
deep gouging.
10-15°

MAINTENANCE
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
• Keep the ventilation vents of the angle grinder clean at all times, if possible,
prevent foreign matter from entering the vents.
• The grease in the gearbox will require replacement / replenishment after
extensive use of the grinder. Please see a qualied electrical repairer to
provide this service.
• After each use, blow air through the angle grinder housing to ensure it is
free from all dust particles which may build up. Build up of dust particles may
cause the angle grinder to overheat and fail.
• If the enclosure of the angle grinder requires cleaning, do not use solvents but
a moist soft cloth only. Never let any liquid get inside the angle grinder; never
immerse any part of the angle grinder into a liquid.
Carbon Brushes
When the carbon brushes wear out, the angle
grinder will spark and/or stop. Discontinue use as
soon as this happens. They should be replaced
prior to recommencing use of the angle grinder.
Carbon brushes are a wearing component of the
angle grinder therefore not covered under warranty.
Continuing to use the angle grinder when carbon
brushes need to be replaced may cause permanent
damage. Carbon brushes will wear out after many uses but when the carbon
brushes need to be replaced, take the angle grinder to an electrician or a power
tool repairer for a quick and low cost replacement. Always replace both carbon
brushes at the same time.
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the angle grinder by an unauthorised person or by mishandling
of the angle grinder.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents.
This is normal and does not indicate a problem.
Excessive sparking visible through the housing air vents
and/or the angle grinder failing to operate
May indicate the carbon brushes have worn out and need to be
replaced. Carbon brushes should only be replaced by a qualied
electrician or power tool repairer.
Inner Flange SPAGG-0399A
Outer Flange SPAGG-0399B
Side Handle SPAGG-0386
Guard 115mm SPAGG100A-21
Switch SPAGG-0393
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute
Double insulated Regulator compliance mark
Read instruction manual
Always wear gloves
Wear eye protection
Always wear ear, eye and
safety mask
noNo load speed

ANGLE GRINDER SAFETY INSTRUCTIONS
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tool is double insulated in accordance with AS/NZS 60745-1;
therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician
or a power tool repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings
refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Donotoperatepowertoolsinexplosiveatmospheres,suchasinthepresenceofammableliquids,
gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of
electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of
electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of
electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not
useapowertoolwhileyouaretiredorundertheinuenceofdrugs,alcoholormedication. A moment
of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached
to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power
tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will
do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of
untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into
account the working conditions and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
5. Service
a. Haveyourpowertoolservicedbyaqualiedrepairpersonusingonlyidenticalreplacementparts.
This will ensure that the safety of the power tool is maintained.
b. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! a) This power tool is intended to function as a grinder, sanding or cut-off tool.
Readallsafetywarnings,instructions,illustrationsandspecicationsprovidedwiththispower
tool.
Failuretofollowallinstructionslistedbelowmayresultinelectricshock,rand/orseriousinjury.
b) Operations such as wire brushing, or polishing are not recommended to be performed with this power
tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
c)Donotuseaccessorieswhicharenotspecicallydesignedandrecommendedbythetool
manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power
tool. Accessories running faster than their rated speed can break and y apart
e) The outside diameter and the thickness of your accessory must be within the capacity rating of your
power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
f)Thearboursizeofwheels,anges,backingpadsoranyotheraccessorymustproperlytthespindle
of the power tool. Accessories with arbour holes that do not match the mounting hardware of the power tool will
run out of balance, vibrate excessively and may cause loss of control.
g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips
and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or
accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an
accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool
at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.
h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety
glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping
small abrasive or work piece fragments. The eye protection must be capable of stopping ying debris generated
by various operations . The dust mask or respirator must be capable of ltrating particles generated by your
operation. Prolonged exposure to high intensity noise may cause hearing loss.
i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal
protective equipment. Fragments away and cause injury beyond immediate area of operation.
j) Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting
accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make
exposed metal parts of the power tool “live” and shock the operator.
k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and
your hand or arm may be pulled into the spinning accessory.
l) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory
may grab the surface and pull the power tool out of your control.
m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory
could snag your clothing, pulling the accessory into your body.
n) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and
excessive accumulation of powdered metal may cause electrical hazards.
o)Donotoperatethepowertoolnearammablematerials.Sparks could ignite these materials.
p) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in
electrocution or shock.
Kickback and related warnings
Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other
accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the
uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the
binding.
For example, if an abrasive wheel is snagged or pinched by the work piece, the edge of the wheel that is entering
into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel
may either jump toward or away from the operator, depending on direction of the wheel’s movement at the point
of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse
and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given
below.
a)Maintainarmgriponthepowertoolandpositionyourbodyandarmtoallowyoutoresistkickback
forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during
start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.
c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will
propel the tool in direction opposite to the wheel’s movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory.
Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or
kickback.
e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback
and loss of control.
Additional safety instructions for grinding and abrasive cutting-off operations
a)Useonlywheeltypesthatarerecommendedforyourpowertoolandthespecicguarddesignedfor
the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are
unsafe.
b) The guard must be securely attached to the power tool and positioned for maximum safety, so the
least amount of wheel is exposed towards the operator. The guard helps to protect operator from broken
wheel fragments and accidental contact with wheel.
c) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-
off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may
cause them to shatter.
d)Alwaysuseundamagedwheelangesthatareofcorrectsizeandshapeforyourselectedwheel.
Proper wheel anges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off
wheels may be different from grinding wheel anges.
e) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable
for the higher speed of a smaller tool and may burst.
Additional safety instructions for abrasive cutting-off operations:
a) Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of
cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut
and the possibility of kickback or wheel breakage.
b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of
operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power
tool directly at you.
c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold
the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off
wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective
action to eliminate the cause of wheel binding.
d) Do not restart the cutting operation in the work piece. Let the wheel reach full speed and carefully reenter
the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the work piece.
e) Support panels or any oversized work piece to minimize the risk of wheel pinching and kickback. Large
work pieces tend to sag under their own weight. Supports must be placed under the work piece near the line of
cut and near the edge of the work piece on both sides of the wheel.
f) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding
wheel may cut gas or water pipes,electrical wiring or objects that can cause kickback.
Additional safety instructions for sanding operations
a) Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when
selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard
and may cause snagging, tearing of the disc or kickback.
The tool is recommended for use with a residual current device with a rated residual current of 30mA or
less.
Wehighlyrecommendthatwhenusingabrasivecuttingwheels,thatacuttingguardshouldbettedto
your angle grinder. These cutting guards are available as a spare part and can be ordered through the
special orders desk
