OZTI OSD 800 User manual

PRODUCTION YEAR: SERIAL NO :
PRODUCTION SITE : Cumhuriyet Mh. Eski Hadımköy Yolu No:37 Büyükçekmece İstanbul/TÜRKİYE
Phone : [phone] (8 Hat-Lines) Fax : [phone]
Published on : 23.01.2007 VER . 05 1/16
HOT CUPBOARD (ELECTRICAL)
USER’S MANUAL
Our website: www.oztiryakiler.com.tr e-mail: [e-mail]
ozti
MANUFACTURER : ÖZTİRYAKİLER MADENİEŞYA SAN. VE TİC A.Ş.
081

TABLE OF CONTENTS
CONTROL BOARDS12
TERMS OF GUARANTEE16
WARNING SIGNS7
OPERATION OF THE DEVICE13 -14
CLEAN-UP AND MAINTENANCE15
INSTALLATION OF THE DEVICE11
TRANSPORTING AND MOVING10
SAFETY DETAILS8 – 9
MAIN DIMENSIONS6
ELECTRICAL CIRCUIT DIAGRAM5
TECHNICAL DATA4
INTRODUCTION3
TABLE OF CONTENTS2
COVER PAGE1
TOPICSPAGE NR.
2/16
CAUTION
This device should only be used in facilities where relevant standards,
laws and safety requirements are complied with

INTRODUCTION
☞Please read and ensure that your operation personnel also reads this
user’s manual carefully before installing and using the device. If the
device is operated without reading the user’s manual, the device will not
be covered by the guarantee.
☞The manual containing information about installation, usage and
maintenance of our product you purchased should be read carefully.
Please ensure that power supply connections to the device are already
installed by qualified personnel according to local legislation, before our
authorized service personnel arrives for the installation of the device.
☞If you are confused or you don’t have enough information
please get in touch with authorized service by phone.
☞Please keep in mind that, if the service personnel is delayed at
your site, related expenses and delay costs will be charged to
you on hourly basis.
☞We hope that you will get the best performance from our product…
Dear User,
Thank you for purchasing our device and for your reliance upon our
company. Our devices have been used within our customers kitchen,
your kitchen in 75 countries. Our devices are produced in
compliance with international standards. Important notice: Please read
or ensure that the users read this user’s manual in order to achieve the
desired performance in line with your expectations and to use your
device for long years. Please take the warnings mentioned above into
consideration before calling for service...
3/16

6,7
IP 21
1
5°
3 X 1,5
30 – 90
50
230
1538
1200X700X550
OSD 1200
6,7
IP 21
1
5°
3 X 1,5
30 – 90
50
230
1538
800X700X550
OSD 800
6,7
FUSE CURRENT (A)
5°
MAXIMUM SLOPE
1
CLASS
IP 21
PROTECTION CLASS
3 X 1,5
SUPPLY CABLE
30 – 90
THERMOSTAT (°C)
50
WORKING FREQUENCY (Hz)
230
POWER SUPPLY VOLTAGE (V)
1538
TOTAL ELECTRICAL INPUT (W)
1600X700X550
MAIN DIMENSIONS (mm)
OSD 1600
YOUR DEVICE'S TYPE
TECHNICAL DATA
4/16

ELECTRICAL SCHEMA
MotorM
SwitchS
Thermostat 30-90 °CT
Thermostat lamp GreenL2
ResistanceH
COMPONENTS
CODE
5/16
ALL OSD SERIES
N
PE
LS
L2 H
T
M
4500 W

MAIN DIMENSIONS
6/16
OSD 800

POWER NETWORK GROUNDING
PE
GROUNDING
OVERHEAT
POWER SUPPLY CONNECTIONS
220-240V NPE / 50 Hz
VOLTAGE: 220-240 V
SUPPLY CONNECTION: SINGLE PHASE
GROUNDED
FREQUENCY : 50 Hz
POWER
7/16
WARNING SIGNS

SAFETY DETAILS
☞The device should only be operated under a chimney hood.
☞Any kind of flammable solid and liquid material (cloths,
alcohol and derivatives, petrochemical products, wooden and
plastic materials, cutting blocks, curtains etc.) should never be
held near the device.
☞Use can use this device simultaneously together with
other products of ours.
☞The device should not be immersed in water.
☞Do not clean up the device with pressure water
☞This device should be installed in line with effective
regulations and only be operated in well ventilated places.
Please refer to the instructions before installing and
operating the device.
☞This device is designed for industrial use and should
only be operated by personnel trained on the device.
8/16

SAFETY DETAILS
☞The device should not be handled by anyone else
except for the manufacturer or authorized service.
☞In case of fire or flame in the area where the device is
operated, act without panic, close gas valves, turn off power
switches and use a fire extinguisher. Never use water to
extinguish the fire.
9/16

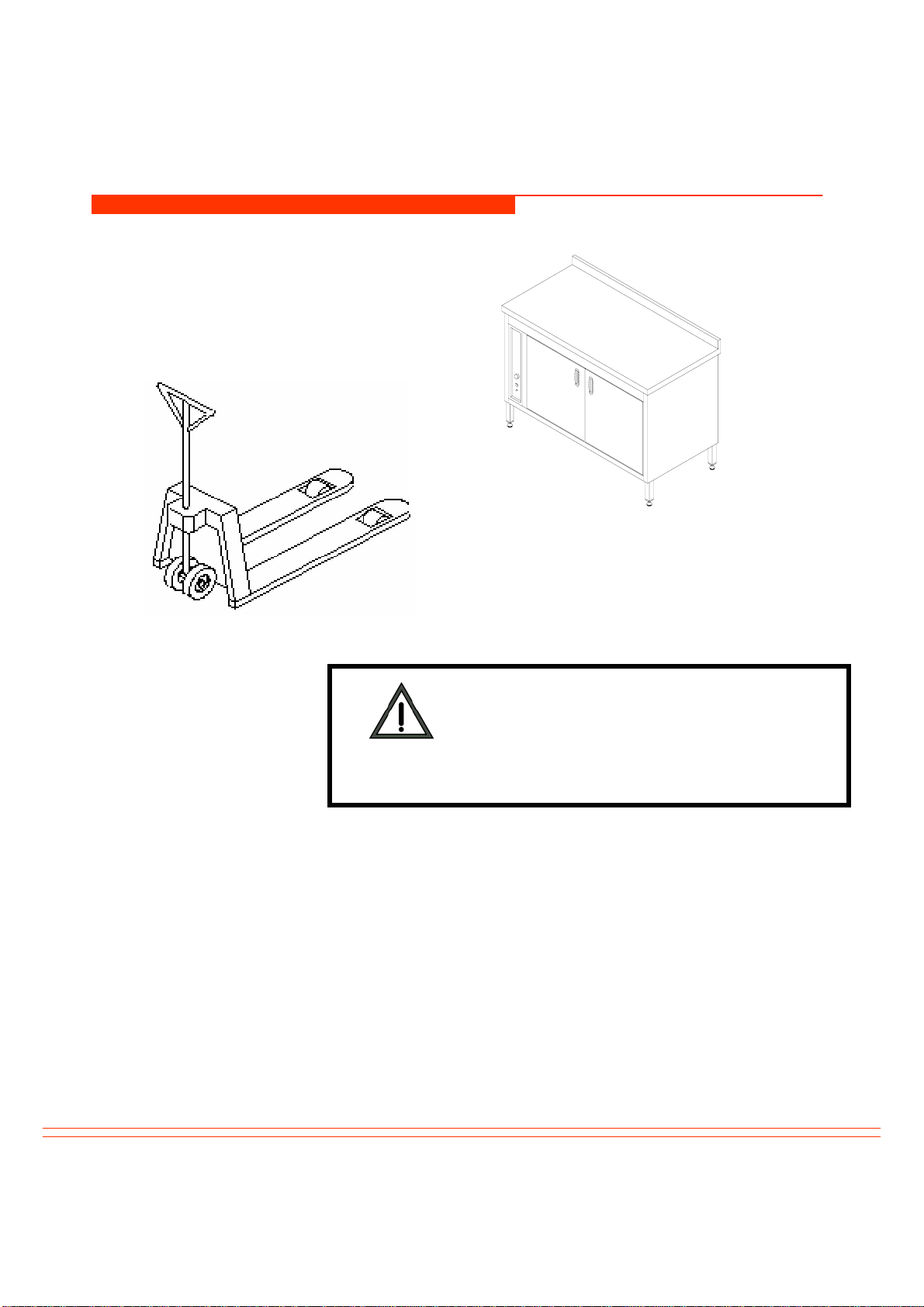

TRANSPORTING AND MOVING
☞The vehicle can be moved with supplementary vehicles like forklift.
☞Feet of the forklift should be placed under the device.
☞If the transported distance is far, the machine should be moved slowly and
the device should be fixed on palette or supported in order to prevent jolt.
☞Do not hit or drop the device when moving.
CHANGING THE LOCATION;
Machines installed by an authorized
service CANNOT BE MOVED ELSEWHERE,
ITS POWER SUPPLY CABLES CANNOT BE EXTENDED
OR REPLACED except by an authorized service.
10/16

If this device located near to any wall, separation, kitchen furniture,
decorative coating etc. the distance in between should be 20 cm. and if
those are coated with fireproof heat insulating material, the distance should
be 5 cm. It is strongly recommended that fire safety protection instructions are observed.
All of the items mentioned below in connection with the installation
of the device should be carried out by authorized service personnel.
INSTALLATION OF THE DEVICE
☞Workbench on which the device stands should be adjustable
and the device should be ensured to operate in a leveled
position.
☞Power supply connection of the device should be checked by an
eligible electrician, and it should be connected to a fuse at a
maximum height of 170 cm.
☞Power supply connection should be made using a 30 mA current
leakage fuse as a protection against current leakage danger.
☞Power installation to be used should be grounded by connecting
it to a grounding bar at the nearest panel.
11/16

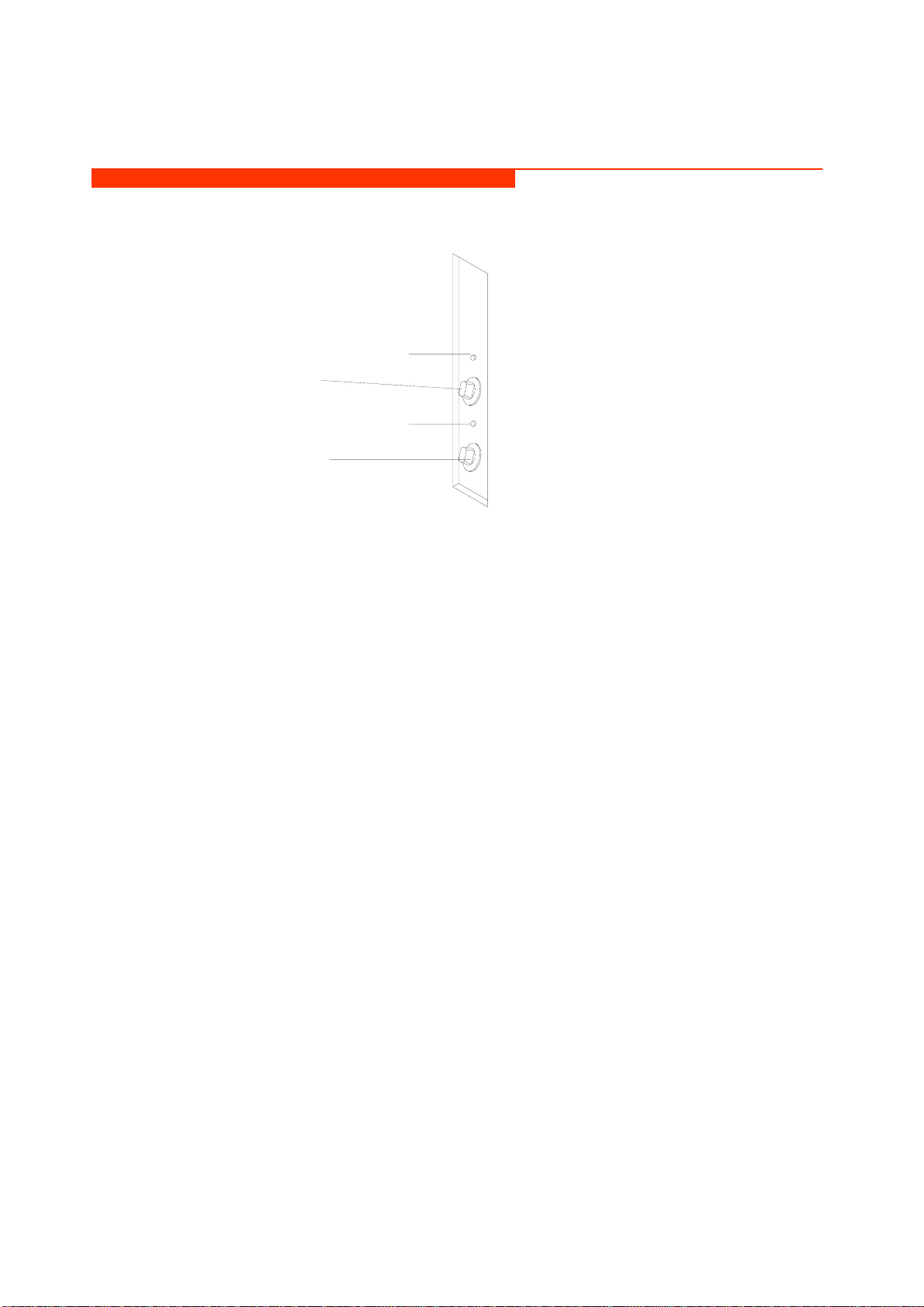

CONTROL BOARDS
12/16
A : ON-OFF SWITCH
B : POWER WARNING LAMP
C : THERMOSTAT
D : THERMOSTAT LAMP
B
C
D
C
ALL OSD SERIES

OPERATION OF THE DEVICE
The device should be located under a filtered chimney hood connected to fresh air
channel.
NOTE: Do not use except purpose of use. The device should
be operated by qualified personnel knowing safety terms and
technical specifications and who has read the instruction
manual.
13/16
Hot cupboard is used in kitchens of restaurants, fast food stands, canteens, hospitals in
order to keep the plate warm and ready for service.
Before initial use of the device, the outer surface should be wiped with a cloth soaked in
warm water and soap.
Turn the on-off key on and set controlled thermostat to the desired operating
temperature (Green lamp will light). When water temperature reaches the
desired level, green lamp will go off.
Turn the thermostat to “0” position to turn the device off. Then turn the on-off key off.
It is recommended to operate the device between temperatures of +5ºC +40ºC and
in ambient humidity of maximum 65%.
CAUTION !
NEVER OPERATE YOUR DEVICE
WITHOUT GROUND CONNECTION.

OPERATION OF THE DEVICE
CAUTION! :The device should be installed and operated as described in
this user’s manual.
If any failure is encountered please contact our nearest
authorized service dealer.
WHEN THE DEVICE HAS A FAILURE ONLY AUTHORIZED ………SERVICE
DEALERS ARE ALLOWED TO HANDLE THE DEVICE. IF ANY PERSON
OTHER THAN ONLY AUTHORIZED …… SERVICE DEALERS HANDLE THE
DEVICE,
IT WILL NOT BE COVERED BY THE GUARANTEE.
NEVER ALLOW PEOPLE WHO ARE NOT AUTHORIZED TO HANDLE THE
DEVICE. OTHERWISE PRODUCER COMPANY WILL NOT BE RESPONSIBLE
FOR THE CONSEQUENCES. DURING MAINTENANCE SERVICE OUR
AUTHORIZED SERVICE DEALERS SHOULD NOT BE PROPOSED TO USE
NON-ORIGINAL SPARE PARTS FOR WHATSOEVER. INSTALLING ANY
NON-ORIGINAL SPARE PART TO THE DEVICE LEAVES THE DEVICE OUT
OF GUARANTEE COVERAGE.
14/16

CLEAN-UP AND MAINTENANCE
15/16
1. CLEAN-UP:
Before (before the power is switched on) and after the first use and every
subsequent use, outer surface of the device should be completely
cleaned up with sponge and liquid detergent and then wiped dry.
Do not use CHEMICAL CLEANING AGENTS like hydrochloric acid or
abrasive cleaning agents.
2. MAINTENANCE:
Periodic maintenance should be carried out by a technician. It is
recommended to carry out maintenance at least every 6 months,
depending on the frequency of use. Periodic maintenance conducted by
authorized service personnel of ours is charged, even the guarantee
period has not expired.
LIFE OF USE
Devices life of use is 10 year if it is used under recommended conditions.

WARRANTY CONDITIONS
16/16
1- Documents without sales date, factory and sales company approval
on, are not valid. In order to benefit from the guarantee, guarantee
document should be presented.
2- If the device is installed and operated following the instructions in
the installation, maintenance and user's manual, it is warranted for
failures resulting from failures resulting from workmanship and
material failures.
3- The failures within the scope of guarantee, how and where these
will be eliminated, and the way and place of maintenance is
determined by ................
4- The guarantee is only valid provided that the guarantee terms and
the instructions in the installation, maintenance and user's manual
are fully complied with. The guarantee is only valid for the
warranted device, and no other right or compensation for some
other thing may be claimed.
5- If the information about the kind and the type of the device, serial
numbers printed on the guarantee document are scraped, rubbed
or changed, then the guarantee is not valid.
6- The guarantee covers only maintenance and repairing of material
or workmanship failure within the valid guarantee period. Failures
and parts within the scope of the guarantee are repaired and
replaced without any charge. Replaced parts belong to ................
7- The failures occurring in the device may only be handled by service
personnel authorized by ................ If people who are not
authorized handle the device, it will not be covered by the
guarantee.
8- Installation should be carried out by authorized service personnel
and the service should be informed about the location change of
the device.
9- When any failure occurs during operation, authorized service dealer
should be contacted.
10- Guarantee does not cover failures and damages resulting from
loading, unloading and shipping, which are outside the responsibility
of ................ Similarly, failures and damages resulting from external
factors are not covered.
