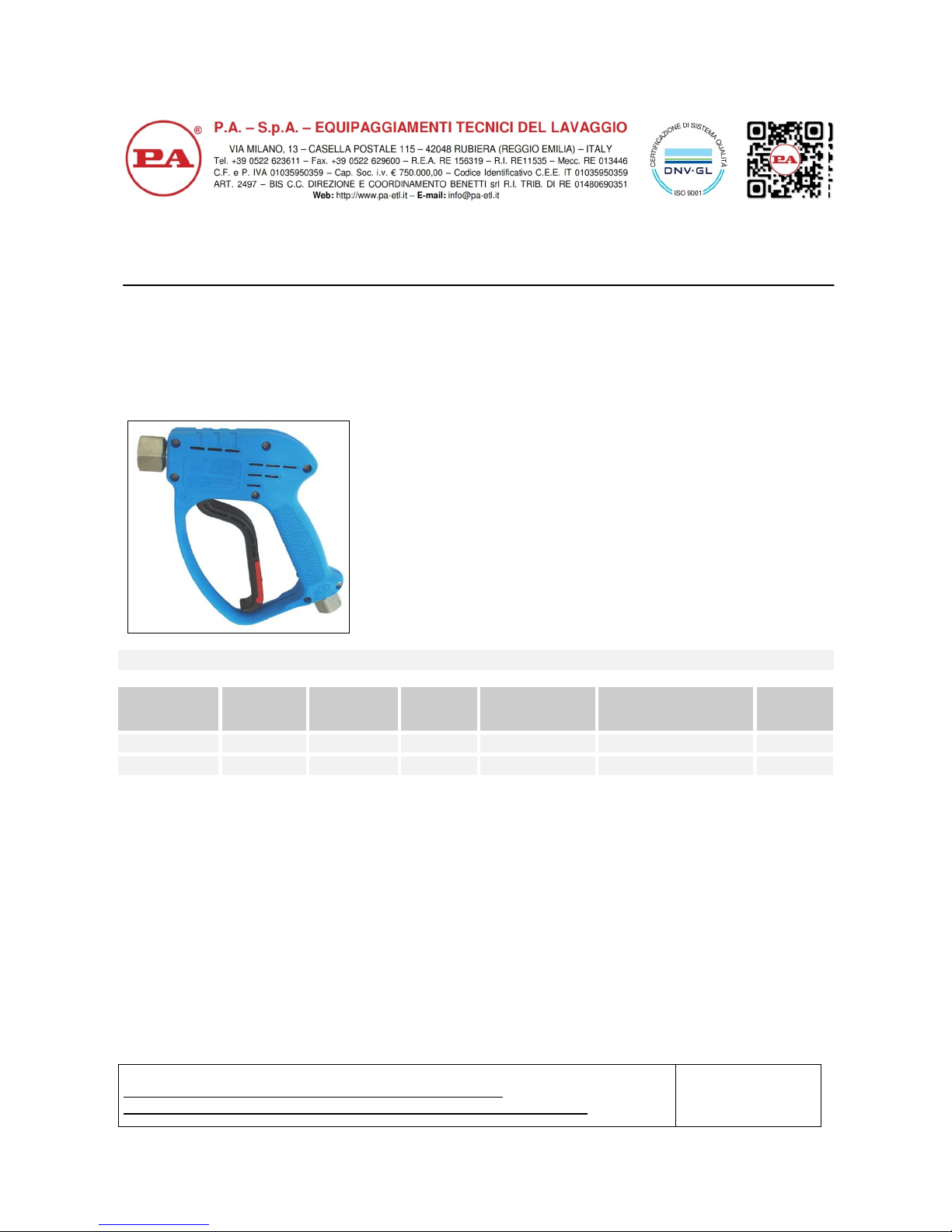

RL60 –Spraygun 60bar–6MPa
Technical manual : E 122
Guns suitable for use up to 60 bar –6 MPa rated pressure centrifugal pumps.
Equipped with closure retarder device.
DN15
TECHNICAL SPECIFICATIONS
P/N
RATED
PRESSURE
bar - MPa
PERMISSIBLE
PRESSURE
bar - MPa
MAX FLOW
RATE
I/min
(1) MAX
TEMPERATURE
°C
INLET
OUTLET
WEIGHT
gr
30.3170.00
60 - 6
65 –6.5
60
100
G1/2 FF
600
30.3170.90
60 - 6
65 –6.5
60
100
G1/2 FF
600
(1) The gun has been designed for continuous use, at a water temperature of 60°C (140°F). It can resist at the max
temperature of 100°C (210°F) for short periods only, as, when the gun shuts off, the heater continues to transmit the heat
to the water, thus increasing both temperature and pressure up to high, dangerous values.
Using the gun at a water temperature higher than 60°C involves for the operator the use of adequate safety devices,
such as gloves, glasses, etc.
Instruction manual, maintenance, installation, spare parts.
For a correct utilization, follow the directions of this manual
Re-print them on the Use and Maintenance booklet of the machine.
n. 12.9122.00
30.3170.00 RL60 w/swivel G1/2 FF
30.3170.90 RL60 w/swivel G1/2 FF
- Covered by shockproof plastic semi-housings.
- Gun with closure retarder to eliminate pressure spikes in
systems without safety valves.
- Built with wide internal passages
- Teflon seat and Sst shutter
- Internal structure in brass and Sst.
- Ergonomic construction.
- Minimum fatigue for trigger opening
- Quick closure version (30.3170.90)

Last Update: 30/01/17
2
DIMENSIONAL DRAWING
INSTRUCTIONS
This product is to be utilized with clean fresh water, even slightly additivated with normal detergents. For use involving
different or corrosive liquids, contact the PA Technical department. Appropriate filtration should be installed when using
unclean liquids. Choose the gun in line with the data of nominal running (system rated pressure, max flow and max
temperature). In any case, the pressure of the machine should not exceed the permissible pressure rate imprinted on the
gun.
INSTALLATION
This gun was designed to operate with hot water (in compliance with the technical specs). Provide the plant generating
hot water with an equipment limiting the incidental increase of the fluid temperature.
Always fit a safety valve to protect the delivery conduct when the latter is under pressure.
Choose a suitable nozzle and ad just the valve mounted in the front of the gun, thus obtaining a constant supply and
avoiding unpleasant pressure spike when closing the system.
If the nozzle wears out, the pressure falls. When you install a new nozzle, adjust the system back to the original
pressure.
OPERATIONS
The gun opens and closes a high pressure conduct by means of a piston acting on a seat; the return is controlled by a
spring which releases the trigger: ATTENTION: this gun is equipped with a retarder closing device in order to limit
the pressure spikes on the pump and in particular conditions during the starting of the pump a pressure spout
may arise for a few seconds even with the gun closed. In order to prevent injuries or damage see illustrated
chart nr 10.9113.00 attached to the article.
WATER HOSE FEED
By high or very unsteady pressure values on delivery, it is necessary to mount a pressure reducer , both to level the flow
rate on delivery and to protect the system components.

Last Update: 30/01/17
3
PROBLEMS AND SOLUTIONS
PROBLEMS
PROBABLE CAUSES
SOLUTIONS
Leakage from the nozzle
Presence of impurities
Gun seat worn out
Clean
Replace the seat
Fit adequate filters and/or check
Leaking seals
Seals worn out
Replace seal
Difficult trigger opening
High pressure inside circuit
Check the bypass valve and adjust it if necessary
REGULATIONS
The design and construction of our products comply with: norm CEI EN 60335-2-79 first edition, published in
1999-03 and its respective variations on the project norm prEN 1829.
Read this manual before starting the assembly.
For a correct utilization, follow the directions described in this manual and re-print them on the Use and maintenance
manual of the machine.
The present manual is valid for all the guns named RL 60.
SPARES
Use original PA spares only in order to get both a correct operation and a long lasting, reliable product.
MAINTENANCE
Maintenance has to be carried out by Specialized Technicians.
STANDARD: every 400 working hours (circa 10,000 cycles), check and lubricate the seals with water
resistant grease.
SPECIAL: every 800 working hours( circa 20,000 cycles), check the wear of the seals and internal parts and
if necessary, replace with original PA parts, taking care during installation to lubricate with water resistant
grease.
CAUTION: re-assemble the gun restoring the original conditions.
The manufacturer is not to be considered responsable for damage as a result from incorrect fitting
and maintenance.
Technical data, descriptions and illustrations are indicative and liable to modification without notice.

Last updated 23/05/2017

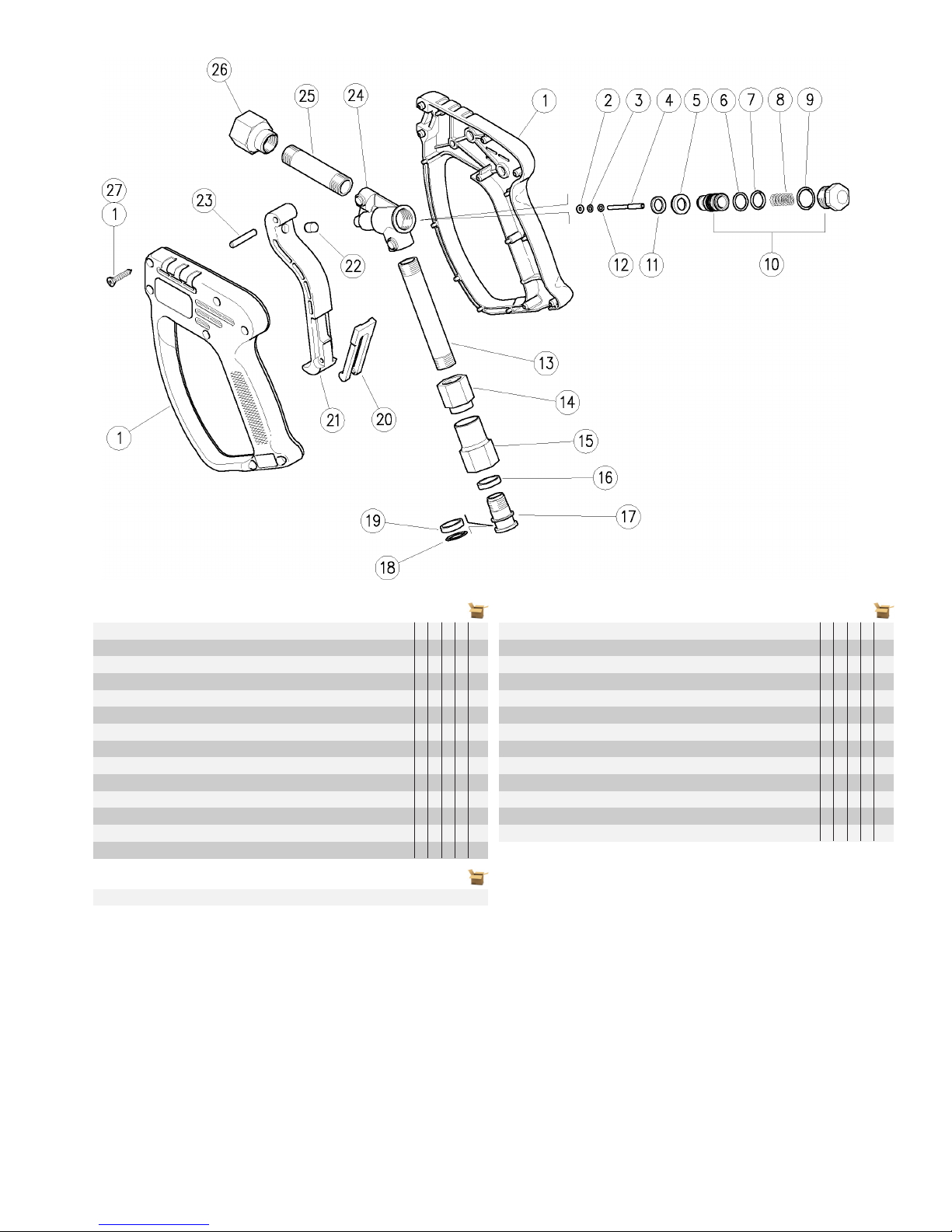

30.3170.00 RL60 spr.gun,sst+sw.5 1/2FF Bsp
Pos. P/N Description Q.ty K1K2K3K4 Pos. P/N Description Q.ty K1K2K3K4
1 30.3188.24 Casing-kit -RL60 +screws, Sst. 1 1
2 10.4018.00 Back-up ring, 3,2x7,5x1,2 mm 1 • 10
3 10.3165.00 O-ring, 2,62x2,84 mm Vi 70 1 • 10
4 30.2516.51 Piston, 3 mm Sst. 1 • 10
5 30.3179.85 Seat, 10x16,3x4,5 mm PTFE 1 • 5
6 10.4157.00 Stem seal, 12,4x14x2 mm 1 • 10
7 10.3020.10 O-ring, 1,5x10 mm Vi 70 1 • 10
8 30.1507.51 Spring, 1,4x9x21 mm Sst. 1 10
9 10.3003.10 O-ring, 1x15 mm Vi 70 1 • 10
10 30.3189.24 Spares kit -RL60, Plug+Piston 1 mm 1 1
11 30.3178.51 Spacer ring, Sst. 1 3
12 14.3511.00 Washer, 3,2x7x0,5 mm sst. 1 10
13 30.3173.56 Tube, M16x1 MM 96mm Sst. 1 5
14 30.3181.51 Coupl., M16x1F-M15x1F Sst. 1 3
15 30.3182.51 Coupl., 1/2F Bsp Sst. 1 3
16 26.1074.85 Bushing, 15,5x19x4 mm PTFE 1 • 5
17 26.1072.51 Pin, M15x1-19 mm Sst. 1 • 5
18 10.3092.10 O-ring, 2x15 mm Vi 70 1 • 10
19 26.1075.85 Bushing, open 15,5x19x4 mm PTFE 1 • 5
20 30.1510.84 Safety latch, PA red 1 10
21 30.2506.84 Trigger -RL31, PA black 1 10
22 30.0675.51 Stop pin, 8x7,1mm Sst. 1 10
23 30.2517.31 Parallel pin, 5x27,5 mm brass 1 10
24 30.3175.55 Housing -RL60, Sst. 1 3
25 30.3180.56 Tube, M16x1 MM 57mm Sst. 1 3
26 30.3171.51 Coupl., M16x1F-1/2F Bsp Sst. 1 3
27 16.3075.51 S/tapping scr. 3,5x18 mm sst. 7 10
Kit P/N Description
K1 30.3183.24 Repair kit -RL60+sw, 11x1pcs. 1
