P1PE P5200EA User manual

1
.

2
CONTENTS
PAGE NO.S
1
SAFETY
3 –8
2
PART LOCATIONS
9
3
ASSEMBLY
10 –11
4
FUELING
11 –12
5
STARTING PROCEDURE
12 –14
6
STOPPING PROCEDURE
14
7
USING THE MACHINE
15 - 17
8
MAINTENANCE & TRANSPORT
18 –22
9
STORAGE & WINTERIZATION
23
10
TROUBLESHOOTING
24
11
SPECIFICATION
25
12
DECLARATION OF CONFORMITY
26
13
PRODUCT DISPOSALE & RECYCLING
27
14
MANUAL UPDATES
28
15
WARRANTY
28
16
CONTACT DETAILS
28
INDEX

3
1.1 General Safety Notes.
1.2 The operator of the machine is responsible for, and has a duty of care in making sure
that the machine is operated safely and in accordance with the instructions in this user
manual. Keep the manual safe and pass it on if the machine is loaned or soldto another
user.
1.3 Please note the following safety points.
1.4 The machine should never be left it in a condition which would allow an untrained or
unauthorised person/s to operate this machine.
1.5 All due care and diligence should be taken by the operator for the safety of and with
regard to those around whilst using the machine.
1.6 Some or all of the following - warning signs, symbols and/or PPE pictograms may ap-
pear throughout this manual. YouMUST adhere to their warnings. Failure to doso
may result in personal injury to yourself or those around you.
DANGER
Indicates a hazard, which, if not avoided, could result in serious injury or death.
WARNING
Indicates a hazard, which, if not avoided, could result in serious injury.
CAUTION
Indicates a hazard which, if not avoided, might result in minor or moderate injury.
NOTE
Indicates a situation that could easily result in equipment damage.
READ and keep the manual safe and pass it on if the machine is loaned or sold to another user.
You MUST fully understand all instructions to ensure you use and operate the machine safely.
Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or
repairing the machine.
1. SAFETY

4
1.10 Carbon Monoxide (where applicable).
1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause
death as well as serious long term health problems such as brain damage.
1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the
following;
Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness.
1.13 Carbon monoxide poisoning symptoms are similar to flue, food poisoning, viral
infections and simply tiredness. It is quite common for people to mistake this very
dangerous poisoning for something else.
1.14 To avoid carbon monoxide poisoning DO NOT use Petrol/Diesel powered equipment
inside any of the following; Home, garage, tent, camper van, mobile home, caravan
or boat. This is not exhaustive and if you are in any doubt contact your dealer.
1.15 If you think you have or someone around you has been affected by carbon monoxide
poisoning;

5
1.16 Get them fresh air immediately, by leaving the affected area or by opening doors and
windows. If safe and practical to do so make sure that the machine is turned off.
DO NOT enter a room you suspect of having carbon monoxide present –instead call
the emergency services.
1.17 Contact a Doctor immediately or go to Hospital –let them know that you suspect
carbon monoxide poisoning.
1.18 DO NOT use in an enclosed area or moving vehicle.
1.20 General Fuel Safety (where applicable).
CAUTION
ALL FUELS ARE FLAMABLE
1.21 Fire Hazard –keep fuel away from all sources of ignition for example heaters.
Lamps, sparks from grinding or welding.
1.22 DO NOT carry out hot work on tanks that have contained fuel.
1.23 ALWAYS keep the work area tidy.
1.24 ALWAYS clean up spills promptly using absorbent granules and a lidded bin.
1.25 ALWAYS dispose of waste fuels correctly.
1.30 Fueling/De-fueling (where applicable).
CAUTION
ALL FUELS ARE FLAMABLE
1.31 ALWAYS fuel and defuel in a well ventilated area outside of buildings.
1.32 ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment
(PPE), suggested items are but not limited to safety gloves, overalls.
1.33 When fueling/de-fueling ALWAYS avoid inhaling fumes.
1.34 When de-fueling ALWAYS use a proper fuel retriever.
1.35 ALWAYS carry fuel in the correct and clearly marked container.
1.40 Electrical Safety )where applicable).
1.41 Electricity can kill –NEVER work on LIVE/ENERGISED equipment.
1.42 Prior to carrying out any maintenance work you MUST identify electrical isolation
methods and isolate all electrical supplies.

6
1.43 Prior to use and with all electrical supplies isolated, you MUST check all electrical
cables, plugs and connectors for the following;
1.44 Are intact and have no signs of damage, to include but not limited to bare wires,
chaffing, cuts and loose wiring.
1.45 If there are any signs of damage, the damage item MUST be taken out of service
until the damage has been repaired by an electrically competent person.
1.46 All trailing cables should be routed so as not to cause any kind of trip hazard.
1.47 NEVER work on or near electricity with wet hands, wet clothing and wet gloves.
1.50 Batteries (where present).
1.51 Batteries present a risk if they become damaged by the possible leaking of
electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care
should be taken when working on or near them. NOTE the electrolyte may be in
a liquid or gel form.
1.52 Should you come in to contact with electrolyte you should;
1.53 Remove all clothing contaminated with electrolyte. If you cannot remove then
saturate them in water.
1.54 Get medical assistance as soon as possible. You must advise the medical staff of
the type of acid.
1.55 Lead/acid battery = dilute sulphuric acid.
1.56 Nickel/cadmium = potassium hydroxide alkali electrolyte.
1.57 Use fresh running water to wash off excess electrolyte, continue this until medical
assistance arrives. Make sure that you do not was the electrolyte to another part of
your body or face.
1.58 If electrolyte comes in to contact with Eyes the electrolyte needs to be immediately
washed away with large amounts of water. Make sure that you do not wash the
electrolyte to another part of your face or body.
1.59 Gasses from charging batteries are highly flammable and great care should be taken
to charge in well ventilated areas.
1.59.1 There is an explosion risk if the battery terminals are short circuited, when
connecting/disconnecting ALWAYS exercise great care so that the terminals or
battery leads are NOT allowed to touch and cause a spark. ALWAYS use suitable
insulated tools.
1.60 Vibrations (where applicable).
1.61 Prolonged use of hand held (operated) machines will cause the user to feel the
effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s
phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the
hand to feel and regulate temperature, causing numbness and heat sensations and
may cause never damage and circulatory tissue death.
1.62 Not all factors that lead to white finger disease are known, but cold weather, smoking
and other diseases that affect blood vessels and blood circulation as well as large
and long-lasting impact of shocks are considered factors in the formation of white

7
finger. Note the following to reduce the risk of white finger and carpal tunnel
syndrome;
1.63 Wear gloves and keep your hands warm.
1.64 Take regular breaks.
1.65 All of the above precautions may help reduce the risk of white finger disease but not
rule out the carpal tunnel syndrome. Long-term and regular users are therefore
recommended to observe the condition of your hands and fingers. Seek medical
attention immediately if any of the above symptoms should occur.
1.70 Noise (where applicable).
1.71 The operating noise of the machine can damage your hearing. Wear hearing
protection such as earplugs or ear defenders to protect your hearing. Long-term
and regular users are advised to have hearing checked regularly. Be especially
vigilant and cautious when hearing ear protection because your ability to hear alarm
warnings will be reduced.
1.72 Noise emissions for this equipment is unavoidable. Carry out noisy work at approved
times and for certain periods. Limit the working time to a minimum. For your personal
protection and protection of people working nearby it is also advisable for them to
wear hearing protection.
1.73 See Certificate of Conformity section for Outdoor Noise declaration of
conformity.
1.80 General Machine Safety.
1.81 Read the owner’s manual carefully to understand how to operate this machine
properly.
1.82 You should NEVER use the machine when;
1.83 Wearing loose clothing, barefoot or sandals.
1.84 Under the influence of drink or drugs or as a result of having taken medication for
cold or flu, or any other times when a possibility exists that your judgement might be
impaired or that you might not be able to operate the machine properly and in a safe
manner.
1.85 Suffering from exhaustion or lack of sleep.
1.86 When the ground is slippery or when other conditions exist which might make it not
possible to maintain a steady posture.
1.87 At night, at times of heavy fog, or at any other times when your field of vision might
be limited and it would be difficult to gain a clear view of the area.
1.88 During rain storms, lighting storms, at times of strong or gale force winds, or at
any other times when the weather conditions might make it unsafe to use this
product.
MACHINE SPECIFIC SAFETY

8
1.89 NEVER run the engine indoors. The exhaust gasses contain harmful carbon
monoxide.
1.90 When using this machine for the first time and before actual work, you MUST learn
how to handle the machine from an experienced or skilled person.
1.91 Limit the amount of time using the machine continuously to somewhere around 10
minutes per session and take 10 to 20 minutes of rest between sessions. Also try to
keep the total amount of work in a single day limited to 2 hours or less.
1.92 NEVER allow children or anyone unable to fully understand the directions given in
this manual to operate this product.
1.93 Make sure you keep this manual handy so you may refer to it whenever questions
arise and ensure you pass this manual on if the machine is loaned or sold.
1.94 Correct Personal Protective Equipment (PPE) MUST be worn at all times when
operating or repairing this machine. This should include but is not limited to;
1.95 DO NOT use this machine inside a confined space such as but not limited to a
vehicle, house, garage, container, boat or building. Only use outside in a well
ventilated area.
1.96 For air cooling a minimum of 1m is required all around the machine.
1.97 Maximum ambient temperature 40 degrees Celsius.
1.98 Fire risk- Fuel can expand and overflow in a hot environment or moving vehicle.
1.99 Explosion risk- LPG/ Petrol can leak and the vapour is heavier than air. Never store
in confined spaces especially in a boat where the vapour/has will accumulate in the
hull and create a high risk of explosion.
1.99.1 Carbon monoxide poisoning risk- Never run an engine in a confined space or poorly
ventilated area. Keep the machine away from windows to prevent fumes entering the
internal space. Carbon monoxide is produced by the engine and contained in the
exhaust fumes. You cannot see it or smell it and it can kill you in minutes.
1.99.2 Never use inside a confined space with an exhaust extension. If the exhaust
extension fails the escaping exhaust gases could kill you

9
1
Drive Unit
11
Locking Pin
2
Auger Drill Bit Ø 100mm
12
Choke Lever
3
Auger Drill Bit Ø 150mm
13
Air Filter Housing
4
Auger Drill Bit Ø 200mm
14
Spark Plug
5
Main Handle
15
Fuel Tank
6
Operating Handle
16
Fuel Filler Cap
7
Throttle Trigger
17
Fuel / Oil Mixing Bottle
8
ON / OFF Switch
18
Tool Kit
9
Drive Shaft
19
Recoil Starting Handle
10
Shaft Locking Bolt
20
Primer Bulb
2. PART LOCATIONS

10
3. ASSEMBLY
CAUTION
Petrol machinery produces Carbon Monoxide –a poisonous, colourless and
odourless gas that can cause serious injury or death.
Petrol is Highly Flammable.
Always handle with extreme care and in a well ventilated area.
2.0 Place the auger on a flat level surface (1).
2.1 Locate the hole in the shaft of the main auger unit (2).
2.2 Select one of the 3 auger bits (3).
2.3 Slide the auger bit over the shaft on the main auger unit and ensure that the hole on
the shaft and the hole on the auger bit, line up (4).
2.4 Pass the locking bolt through the auger shaft (5).
2.5 Continue until the locking bolt passes all the way through (6).
Assembly and Starting Procedures are also available via
the P1PE YouTube channel.
Simply search for P1PE on YouTube.

11
4. FUELLING
2.6 Insert the locking pin into the hole in the locking bolt (7).
2.7 Slide through until it locks into place (8).
2.8 The auger should now be fully assembled (9).
NOTE
This machine uses a 2 Stroke Fuel Mixture at a ratio of 40:1.
Failure to use the correct fuel/2stroke oil mixture will result in engine damage that
will not be covered by the warranty.
DANGER
All fuels are highly flammable and must be handles and stored correctly.
Always fuel and de-fuel in a well ventilated area away from any possible sources
of ignition and always allow the engine to cool before refuelling.
Leave a 25mm gap between the fuel and the top of the fuel tank.
40 Parts Unleaded Petrol
1 Part 2 Stroke Semi-Synthetic Oil
1 litre
25ml
2 litres
50ml
3 litres
75ml
4 litres
100ml
5 litres
125ml

12
5. STARTING PROCEDURE
FROM COLD

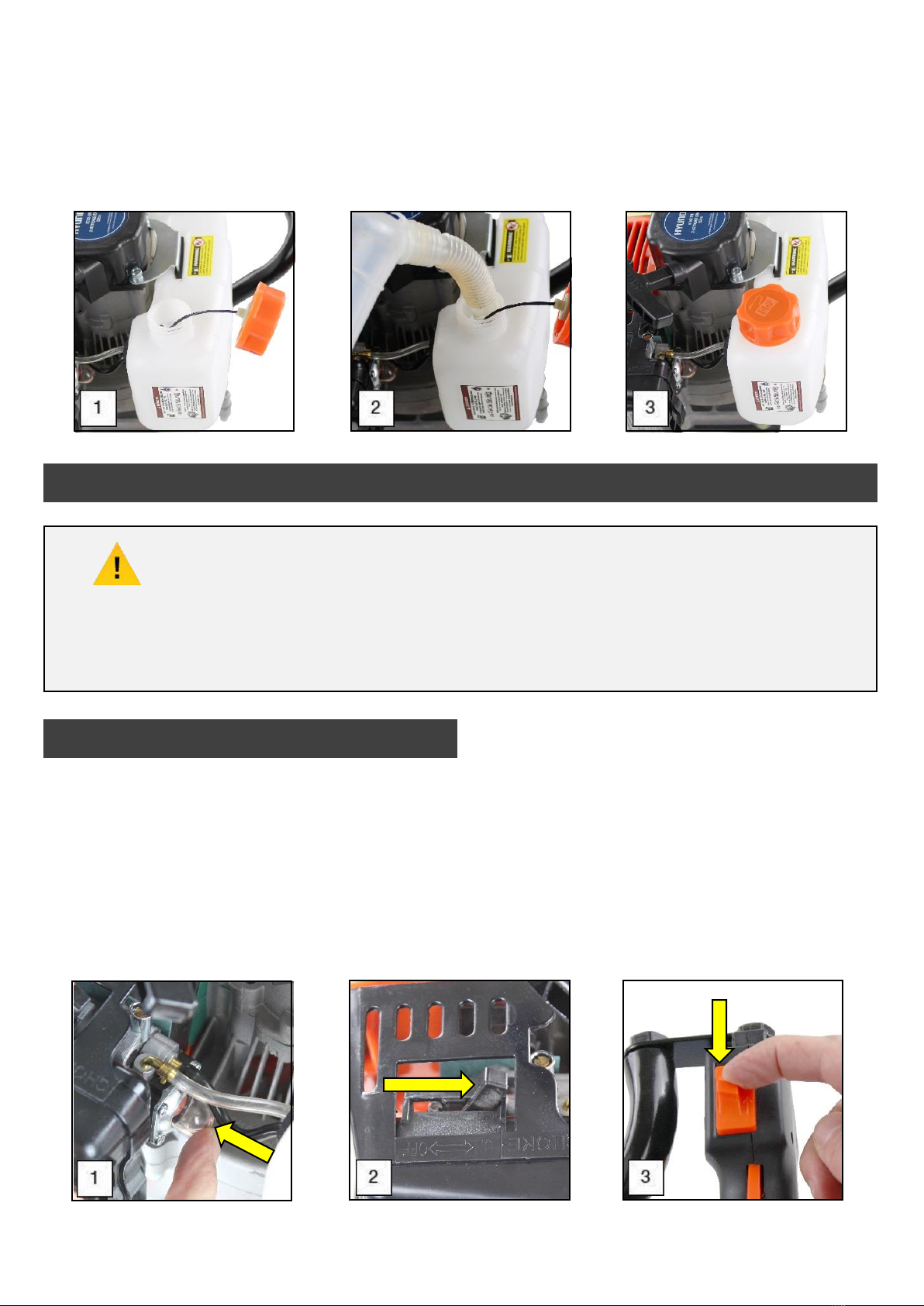

3.0 Unscrew the fuel filler cap (1).
3.1 Slowly fill with a 40:1 ratio of 2 stroke fuel/oil mixture and leave a 25mm gap
between the fuel and the top of the fuel tank (2).
3.2 Refit the fuel filler cap securely (3).
DANGER
Petrol machinery produces Carbon Monoxide –a poisonous, colourless and
odourless gas that can cause serious injury or death.
Petrol is Highly Flammable.
Always handle with extreme care and in a well ventilated area.
4.0 Fill the fuel tank with the correct 40:1 mix of unleaded petrol and semi-synthetic 2 stroke
engine oil.
DO NOT overfill, leave a 25mm gap at the top of the fuel tank.
4.1 Firmly press the primer bulb 6 times or until a fuel mixture is visible in the bulb (1).
4.2 Move the choke lever to the ON (choke) position (2).
4.3 Move the ignition switch on the main handle to the START position (3).

13

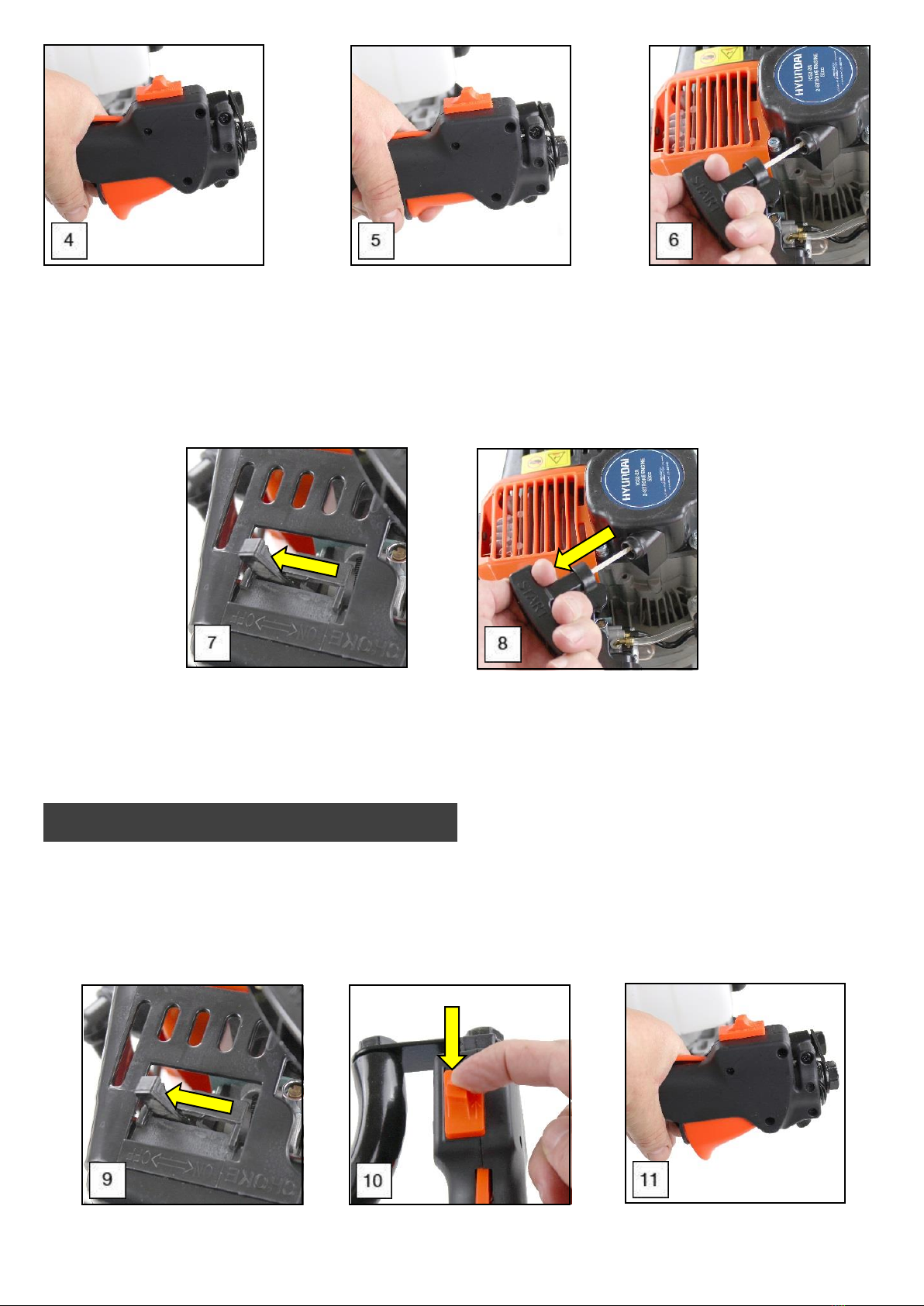

4.4 Hold the trigger lock down on the main control handle (4).
4.5 Lift the throttle trigger (5).
4.6 Holding the auger firmly, gently pull the recoil starter handle until you feel resistance
and then pull swiftly until the engine attempts to start (6).
4.7 Move the choke lever to the OFF (run) position (7).
4.8 Pull the recoil starter handle until the engine runs (8).
4.9 Allow the engine to warm up at idle for 20 seconds before operation.
4.10 Move the choke to the OFF (run) position (9).
4.11 Move the ignition switch on the main handle to the START position (10).
4.12 Hold the trigger lock down on the main control handle (11).
FROM WARM

14
6. STOPPING PROCEDURE
4.5 Lift the throttle trigger (12).
4.6 Holding the auger firmly, gently pull the recoil starter handle until you feel resistance
and then pull swiftly until the engine starts (13).
5.1 Release the throttle lever and throttle lock lever (1).
5.2 Allow the engine to idle for 30 seconds.
5.3 Move the ignition switch to the OFF position (2).
5.4 The engine should now stop.
5.5 Allow the engine to cool fully before refuelling or storing the machine.

15
7. USING THE MACHIINE
WARNING
You MUST STOP using the machine if any of the following occur.
The engine speed changes with no control.
In case of misfire
In case of high vibration.
When flames or smoke appear.
In rain or adverse weather conditions.
CAUTION
If you are not familiar with this type of machine you should seek advice and
guidance from your dealer.
DO NOT attempt to lift or move the machine while the engine is running.
6.0 Make sure you always have a secure footing and good balance when using the
machine.
6.1 Always hold the auger firmly with both hands on the handles.
6.2 The auger is designed to be operated by one person only.
6.3 DO NOT allow other people or animals in the work area when the tool is in operation.
6.4 Position the machine is such a way that it cannot move during use, maintenance,
cleaning, adjustment, assembly of accessories or spare parts, as well as under
storage.
6.5 DO NOT force the machine. Use the correct machine for your application.
The correct machine will do the job better and safer t the rate for which it is
designed.
6.6 DO NOT change the engine governor settings.
If the engine speed is too high it will cause excessive wear.
If the engine speed is too low the auger will not drill holes effectively.
6.7 Check and adjust the idle speed setting regularly.
If the auger bit continues to rotate when the engine is at idle, have it checked
by your service dealer.
6.8 Only ever start and stop the machine as outlined in this user manual.
6.9 DO NOT place excessive body weight on the auger.
This machine will operate better with a shaving action caused by the weight of the
auger itself.
6.10 NEVER run the engine indoors or in enclosed spaces. Exhaust fumes can be fatal.
6.11 In the event of imminent danger or in an emergency, switch off the engine immediately.
6.12 DO NOT run the engine at high speeds when not in use.
6.13 Avoid contact with hot fuel, oil, exhaust fumes and hot surfaces.

16
6.14 DO NOT put your hands or feet near rotating parts.
Failure to do this could result in serious injury or death.
6.15 DO NOT touch or allow clothing or other flammable materials to come into contact
with the engine exhaust.
This part gets extremely hot during operation. They remain hot for a while after use.
6.16 Allow the engine and exhaust to cool completely before refuelling, carrying out
maintenance or storing the auger.
6.17 If the machine should start to make an unusual noise or vibration, immediately shut
off the engine, disconnect the spark plug HT lead cap, and check for the cause.
Unusual noise or vibration is generally a warning of trouble.
You MUST find the source of the problem and fix it before reusing the machine.
6.18 Use only attachments and accessories approved by the manufacturer. Failure to do
so can result in personal injury, and may invalidate any warranty.
6.19 Maintain the machine and check for misalignment or binding of moving parts, broken
parts and any other condition that may affect the machine’s operation. If damaged,
have the machine repaired before reuse.
6.20 Keep the engine, exhaust and muffler free of grass, leaves, excessive grease or
carbon build up to reduce the chance of a fire hazard.
6.21 NEVER pour or squirt the unit with water or any other liquid. Keep handles dry, clean
and free from debris. Clean the machine after each use.
6.22 DO NOT allow persons unfamiliar with the machine or these instructions to operate
it. This machine is extremely is dangerous in the hands of untrained users.
6.23 Thoroughly inspect the area to be worked, keep the working area clean and
free of debris to prevent tripping. Operate on a flat level ground.
6.24 NEVER place any part of your body where it would be in danger if movement
should occur during assembly, installation, and operation, maintenance, repairing or
moving.
6.25 Keep all bystanders, children, and pets at least 23m (75 feet) away. If you are
approached, stop the unit immediately.
6.26 The operator or user is responsible for preventing accidents or hazards
occurring to other people, their property, and themselves.
6.27 Start the engine carefully according to instructions.
6.28 Before starting the auger, make sure that the area to be drilled is free of all
underground obstacles such as power cables, water and drainage pipes.
6.29 NEVER place your hands, feet, or any part of your body into the auger drill bit
whilst the machine is rotating.
6.30 NEVER allow an accumulation of earth or drilled material to build up on the
earth auger drill bit, this will prevent proper discharge from the hole and will make the
auger heavy to handle.

17
6.31 NEVER attempt to unclog either the auger drill bit while the engine is running.
Immediately shut off the engine. Allow the auger drill bit to come to a complete stop.
Remove the clogged material. Inspect for damage and check for any loose parts for
repair or replacement.
6.32 Whenever you leave the operating position or if you have to remove
processed material, leaves or debris from the machine, You MUST always shut
down the engine, disconnect spark plug HT lead cap, keeping them away from the
spark plug to prevent accidental starting, and wait for all moving parts to come to a
complete stop.
.
6.33 ALWAYS stop the engine before moving the machine.
6.34 You MUST keep all combustible materials and substances away from the
engine when it is hot.
6.35 NEVER cover the machine while the engine or exhaust are still hot.
6.36 NEVER operate the machine on slopes.
6.37 Move the machine at least 3m away from the refuelling point before starting
engine.
6.38 ALWAYS check the fuel/oil mixture level of the engine before use.
6.39 Inspect that all nuts and bolts are tight and well connected to ensure the
safety and reliability of this machine prior to any operation.
6.40 After allowing the engine to warm up before operation.
6.41 If the machine jams you MUST release the throttle and move the auger drill bit
before re-commencing work.
6.42 To remove blockages DO NOT under any circumstances use your hands.
6.43 Stop and disable the machine by removing the HT lead plug cap.
6.44 Clear the auger drill bit of materials which have become stuck to the auger bit.

18
8. MAINTENANCE
WARNING
ONLY carry out maintenance and servicing if you are qualified to do so.
ALWAYS stop the engine and remove the spark plug HT lead cap before doing
any repairs or maintenance.
NEVER touch the rotating auger bit.
Check and maintain fuel levels regularly and maintain the fuel/oil mix to the correct
ratio.
CAUTION
ALWAYS refuel and defuel in a well ventilated area with the engine switched off
allowed to cool and the spark plug HT lead cap removed.
Whilst carrying out maintenance you must wear the appropriate Personal Protective
Equipment (PPE).
CAUTION
NEVER use a pressure washer or hose pipe to clean the auger.
Water can penetrate the power unit and cause damage to the engine that will NOT
be covered by the warranty.
* Increase maintenance interval if operating in a dusty environment.
ITEM
Every
use
Every 3
months
or 15
hours
Every 6
months
or 50
hours
Every 12
months
or 100
hours
Every 24
months
or 300
hours
Air Filter
Check
O
Clean
O*
Fuel Filter
Check
O
Clean
Replace
as
required
Spark Plug
Check/Adjust
O
Replace
O
Gearbox
Check/Fill
Recommended Change Interval. 1st After 30 Hours of
Use
Thereafter Every 25 Hours of Use.
Cooling Fins
Check/Clean
O
Mechanical
Connections
Check/Tighten/Examine
O
Fuel Tank
Examine
O
Fuel Pipes
Examine
Every Use, Replace as Required

19
SPARK PLUG
CAUTION
The spark plug must be tightened with a torque of 12-15Nm otherwise the engine
could overheat causing damage.
Only complete the following steps once the engine has been turned off and allowed
to cool.
7.0 Carefully remove the spark plug HT lead cap (1).
7.1 Unscrew the spark plug in an anti-clockwise direction using the plug wrench
provided (2).
7.2 Remove the spark plug and ensure no dirt or debris can enter the cylinder bore (3).
7.3 Inspect the spark plug and if it shows signs of damage or heavy wear, replace
immediately.
7.4 Remove carbon deposits from the spark plug using a soft wire brush.
7.5 The spark plug gap should be 0.6-0.7mm.
Check the gap using a feeler gauge and adjust as necessary by carefully bending
the side electrode to achieve the correct gap.
7.6 Check the spark plug compression washer for damage and replace if necessary.
7.7 Refit the spark plug by hand to avoid cross threading.
7.8 Tighten the spark plug to a torque of 12-15Nm.
7.9 Reattach the spark plug HT lead cap.
0.6 –0.7mm

20
FUEL FILTER
GEARBOX
NOTE
A clogged fuel filter can cause lack of power or poor pick up.
7.10 Remove the fuel filler cap (1) and drain the fuel into a suitable container.
7.11 Using a wire hook (2), gently pull the fuel line and fuel filter out of the fuel filler neck (3).
7.12 If the fuel filter is damaged or degraded, replace immediately.
7.13 Disconnect the fuel filter by gently pulling it from the fuel line.
7.14 Spray with a carburetor cleaner solvent, then clean by blowing air from inside the
fuel filter to the outside.
7.15 Replace the fuel filter into the fuel line and reinstall back into the fuel tank.
7.16 Check the gearbox grease after the first 30 hours of use and refill if required.
7.17 Thereafter check and top up after every 25 hours of use.
7.18 Use a high temperature grease such as, Morris K323 Premium Blue Grease or
equivalent.
7.19 20 grams is sufficient for a full top-up.
Grease Point
