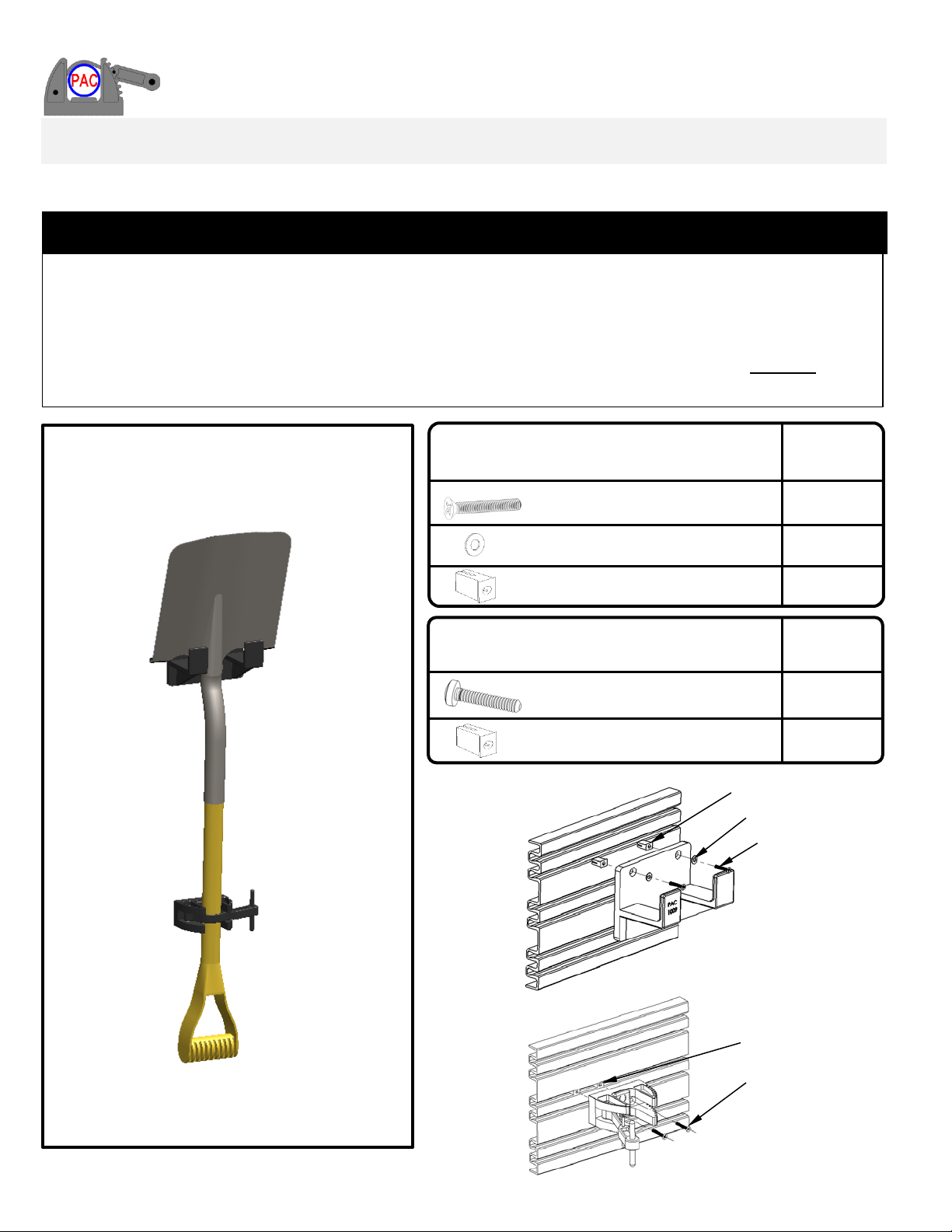

TOOL HANGER KIT P/N K5009 INSTALLATION INSTRUCTIONS
PERFORMANCE ADVANTAGE COMPANY 10-2018
CAUTION
To avoid the risk of personal injury, property damage or product damage, please use the included
fasteners for mounting.
* The bracket must be securely mounted to a stable surface and material.
* When mounting bracket to PAC TRAC aluminum products P/N 7000, P/N 7020, P/N 7040,
P/N 7050 with the included Trac Lok inserts P/N 7016, torque the screws to a maximum 15 in-lbs.
* PAC recommends regular and frequent inspections to be certain of proper operation and installation.
For additional assistance call 888-514-0083 between 8AM-5PM EST or email: [e-mail]
INS-K5009
www.pactoolmounts.com
P/N 2031
STANDARD MTG. HARDWARE QTY
¼-20
Nylon Locking Nut
2
4
P/N 2031
P/N 2069LN
¼-20 x 1 S.S.
S.S. Flat Head Screw
P/N 3017
P/N 2069LN
P/N 2069LN
17/64” DIA. (2)
FIGURE 1
(Thru Mounting Method)
P/N 3017 ¼-20 x 1 S.S.
S.S. Pan Head Screw 2

P/N 2046 #10-24 x 1 S.S.
S.S. Pan Head Screw
PERFORMANCE ADVANTAGE COMPANY 10-2018
CAUTION
To avoid the risk of personal injury, property damage or product damage, please use the included
fasteners for mounting.
* The bracket must be securely mounted to a stable surface and material.
* When mounting bracket to PAC TRAC aluminum products P/N 7000, P/N 7020, P/N 7040,
P/N 7050 with the included Trac Lok inserts P/N 7016, torque the screws to a maximum 15 in-lbs.
* PAC recommends regular and frequent inspections to be certain of proper operation and installation.
FIGURE 2
(PAC TRAC Mounting)
#10-24 x 1 S.S.
Flat Head Screw
TRAC LOK INSERT
2
2
2
P/N 2043
P/N 7016
P/N 7016
For additional assistance call 888-514-0083 between 8AM-5PM EST or email: [e-mail]
INS-K5009
PAC TRAC MTG. HARDWARE QTY
2
www.pactoolmounts.com
TOOL HANGER KIT- PT P/N K5009 INSTALLATION INSTRUCTIONS
P/N 2054
PAC TRAC MTG. HARDWARE QTY
#10 S.S. Washer 2
P/N 2054
TRAC LOK INSERT
P/N 2043
P/N 7016
P/N 2046
P/N 7016
