240417-16 FP30 Arch Craftsman 5055.5154
INSTALLATION
INSTRUCTIONS
SAFETY NOTICE
If this stove is not properly
installed, a house fire may result.
For your safety, follow the instal-
lation instructions. Contact local
building or fire officials about
restrictions and installation
inspection requirements in your
area.
IMPORTANT:
THESE INSTRUCTIONS ARE TO
REMAIN WITH THE HOMEOWNER.
PLEASE SAVE THESE INSTRUCTIONS.
FP30 ARCH
CRAFTSMAN SURROUND
For use only on MODEL:
FP30AR Series B
Visit www. pacificenergy.net for the most up-to-date version of this manual

5055.5154-A
FP30 Arch Craftsman 240417-16 2
This Accessory Face can only be used on an FP 30 ARCH Series B Wood Fireplace.
This manual is to be used in with your FP 30 AR Series B Owners Manual.
This manual covers the clearances, assembly and installation specic to this optional surround. Installation
of the replace into the chase and venting is covered in the FP 30 AR Series B Owners Manual. and must
be followed for safe operation. This manual supperceeds any clearances or requirements for chase air inlet
written in the FP30 AR series B manual.
This Installation requires the use of a chase air inlet to supplement the air required for both natural and forced
convection through the unit.
The Top Brow Mount and Side Brackets must be in place before placing the non-combustible board on the
front of the replace.
IMPORTANT READING
TABLE OF CONTENTS
SAFETY NOTICE: ...................................................................... 3
CLEARANCES ........................................................................... 4
ASSEMBLY - INSTALLATION .................................................... 6
Fireplace Installation into the Chase .................................. 6
Removing the Upper and Lower Grill assemblies:............. 6
Mounting the Side Brackets............................................... 6
Attaching the front wall Board. .......................................... 7
CHASE INLET ............................................................................ 8
Installing the Top Brow Mount and Upper Grill .................. 9
Attaching the lower grill ................................................... 10
DECORATIVE FINISH ON THE FRONT ................................... 11
Raised Hearth .................................................................. 11
INSTALLING THE FRONT ........................................................ 12

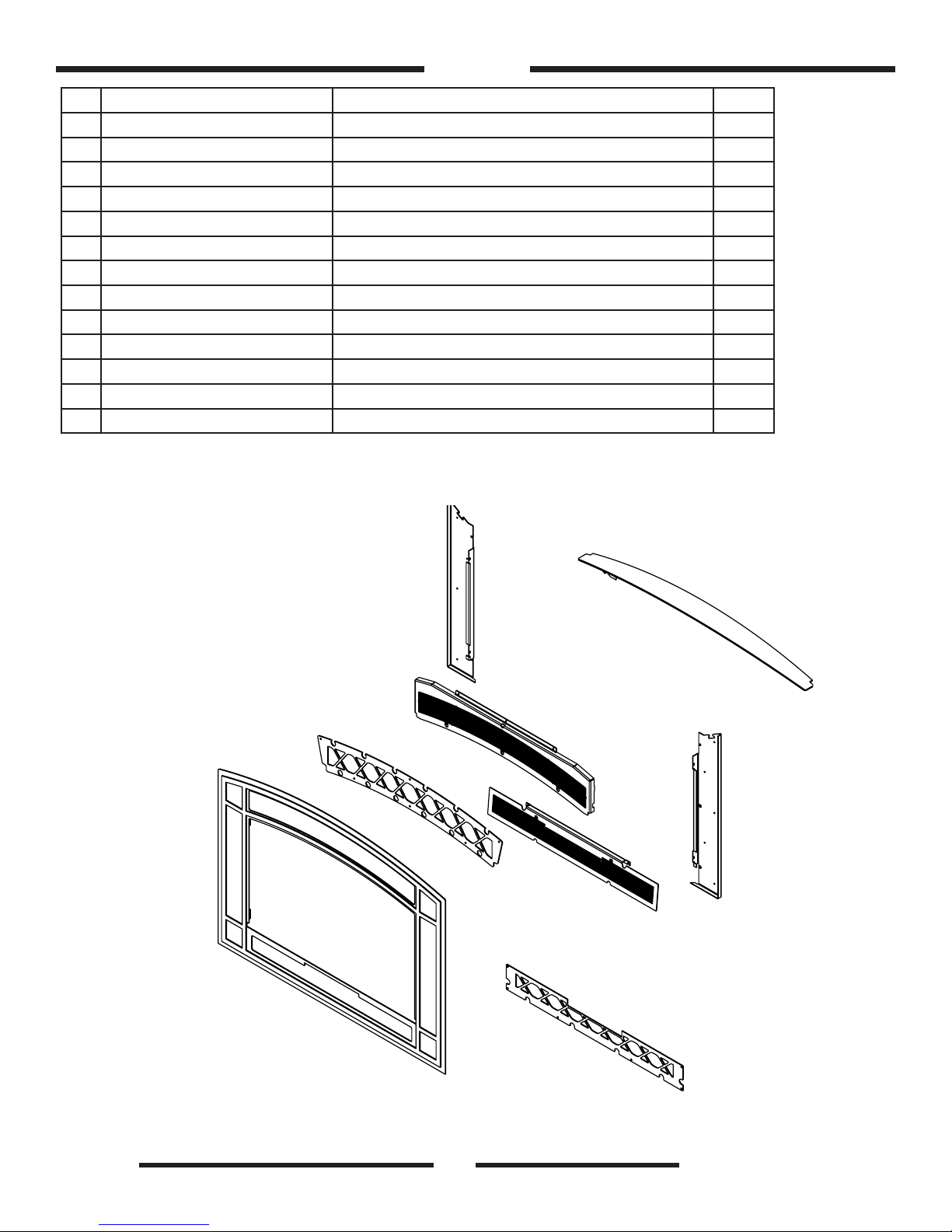

PARTS ..................................................................................... 13

5055.5154-A FP30 Arch Craftsman 240417-16
3
WE STRONGLY RECOMMEND THAT SMOKE DETECTORS BE INSTALLED.
You may notice that your smoke detector goes off shortly after replace installation. This may be due to the
initial curing of stove paint or fumes caused by accidentally leaving the re door open. Do not disconnect the
detectors. This Fireplace is not designed to be operated with the door open. Open the door for loading only.
SAFETY NOTICE:
If this stove is not properly installed, a house re may result. For your safety, follow the installation instruc-
tions. Contact local building or re ofcials about restrictions and installation inspection requirements in your
area.
Read this entire manual and the FP30 AR Series B Owners Manual before you install and use your new room
heater. Failure to follow the instructions in this manual and those in the FP30 AR Series B Owners Manual,
may result in property damage, bodily injury, or even death.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
WARNING

5055.5154-A
FP30 Arch Craftsman 240417-16 4
CLEARANCES
A Minimum distance from top of the Arch to 4” [100mm] deep combustible mantel 14” (355mm)
B Minimum distance from base of the replace to 4” [100mm] deep combustible mantel 51 3/4” (1.315m)
C Minimum distance from top of the Arch to 12” [305mm] deep combustible mantel 22” (560mm)
D Minimum distance from base of the replace to 12” [305mm] deep combustible
mantel
59 3/4” (1.52m)
E Minimum distance from the sides of the replace door to Mantle Pillars/Legs (max. 3
1/2” [90mm]deep)
10” (255mm)
F Minimum distance between the Mantle Pillars/Legs (max. 3 1/2” [90mm]deep) 47 1/2” (1.205m
G Minimum distance from a Side Wall to the side of the replace door 29” (735mm)
H Minimum distance from the base of the replace to the ceiling 84” (2.135m)
** Minimum depth of (UL1618 Class 1) non-combustible Ember Protection from the front
of the replace
18” (460mm)
L Minimum width of (UL1618 Class 1) Ember Protection: In Canada
:In U.S.A.
58” (1.47m)
39”

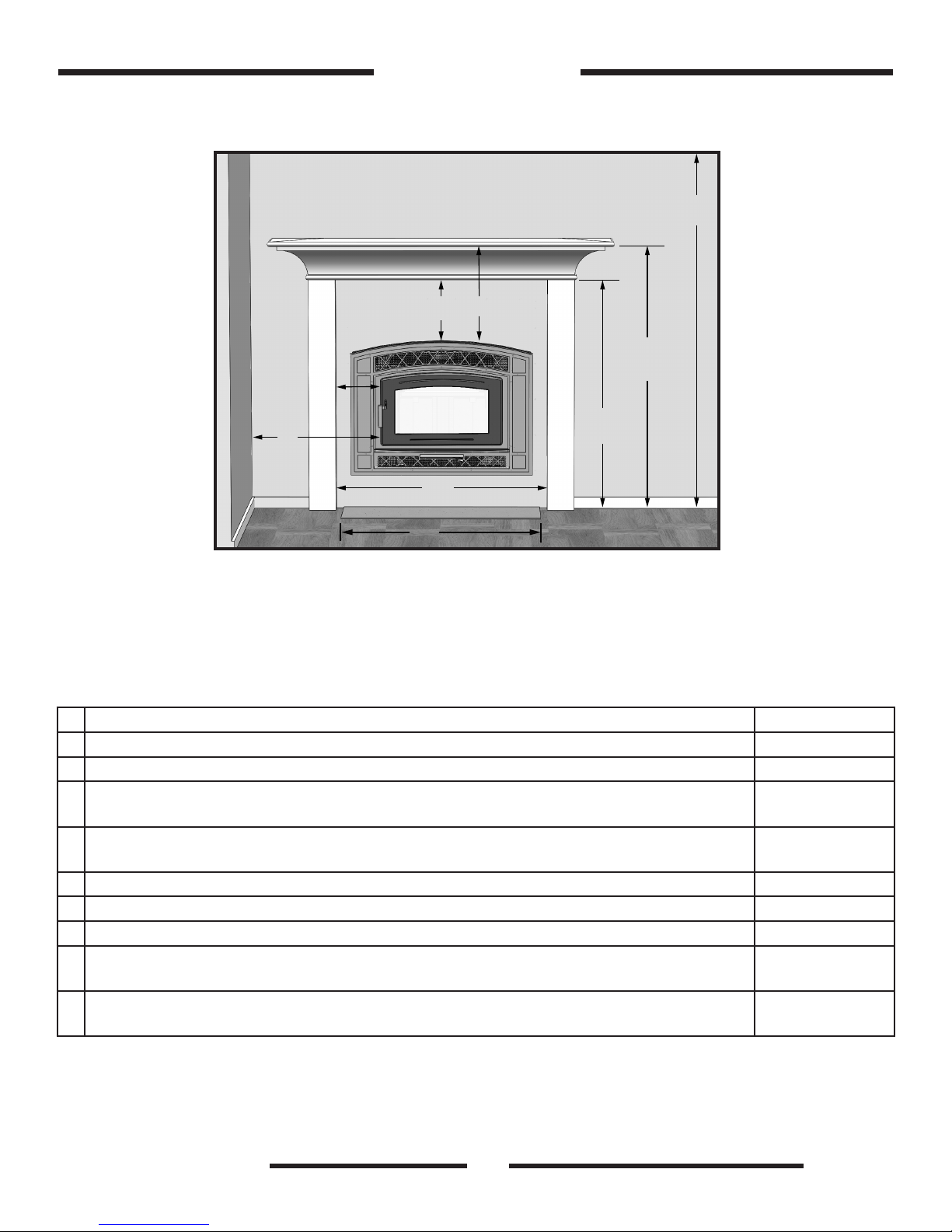

Fireplace Clearances (Figure 1)
B
B
C
A
B
I
F
G
E
H
D
Figure 1: FP30.Body B Arch Surround - Clearance.

5055.5154-A FP30 Arch Craftsman 240417-16
5

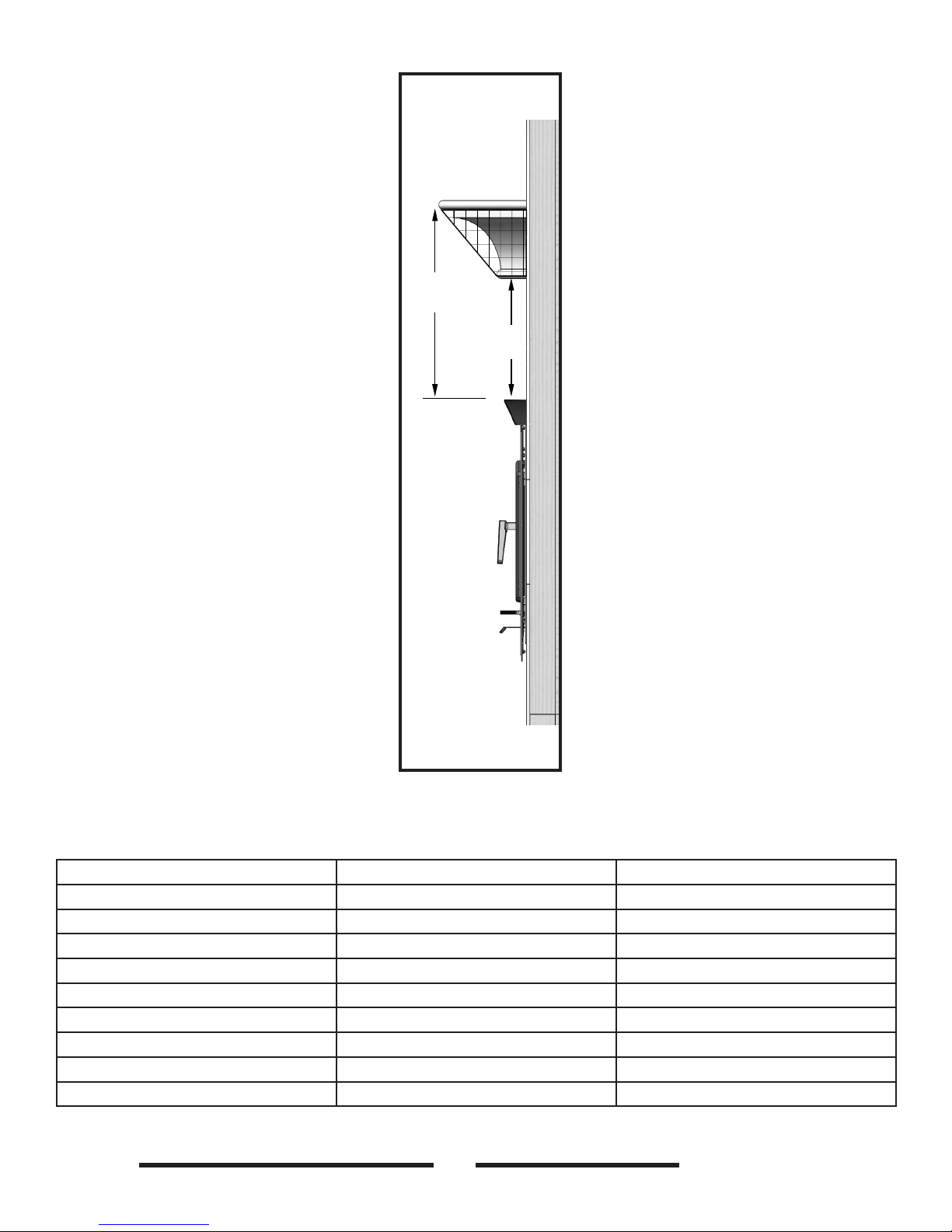

Graduated Mantle (Figure 1b)
Depth Height from top of arch Height from bottom of unit
4”(102mm) 14”(355mm) (A) 51 3/4”(1.315m) (B)
5”(127mm) 52 3/4”(1.34m)
6”(150mm) 16”(406mm) 53 3/4”(1.365m)
7”(178mm) 54 3/4”(1.391m)
8”(203mm) 18”(457mm 55 3/4”(1.416m)
9”(229mm) 56 3/4”(1.441m)
10”(254mm) 20”(508mm) 57 3/4”(1.467m)
11”(279mm) 58” 3/4”(1.492m)
12”(305mm) 22”(560mm) (C) 59 3/4”(1.518m) (D)
C
A
Figure 2: Mantel clearances.

5055.5154-A
FP30 Arch Craftsman 240417-16 6
ASSEMBLY - INSTALLATION
Fireplace Installation into the Chase
The Fireplace must be installed into the Chase and vented as per the instructions in the FP30 AR (Arch)
Instruction Manual. Use these instructions to Install the Craftsman Front mounting brackets and the Non-
Combustible wall board.
Mounting the Side Brackets
1. Drill out the top rivet and through
into the rebox front ange, using
a 7/32” drill bit.
2. Align the side bracket over
the two remaining rivet heads,
centering the holes.
3. Install one of the 1/4-20 thread
cutting screws through the large
hole in the bracket and into
the rebox front ange. Do not
tighten completely.
4. Using (5) #8 self-drilling screws,
fasten the Side Bracket to the
replace front using the holes
provided in the bracket.
5. Gently tighten all screws
6. Repeat the process on the other
side.
Removing the Upper and Lower
Grill assemblies:
• Remove the Upper and Lower
Louver Assemblies by removing
the mounting screws located
on both sides, inside the upper
and lower grills using a 5/16” nut
driver (Figure 3).
• Remove both grills. They will not
be reused.
A
B
Mounting Screws
STEEL STUDS PROVIDED WITH UNIT
MUST BE USED - SEE INSTRUCTION MANUAL
Figure 3: FP30.Body B Arch Surround.
4
2
1, 3
Figure 4: FP30 Craftsman side bracket screws.

5055.5154-A FP30 Arch Craftsman 240417-16
7

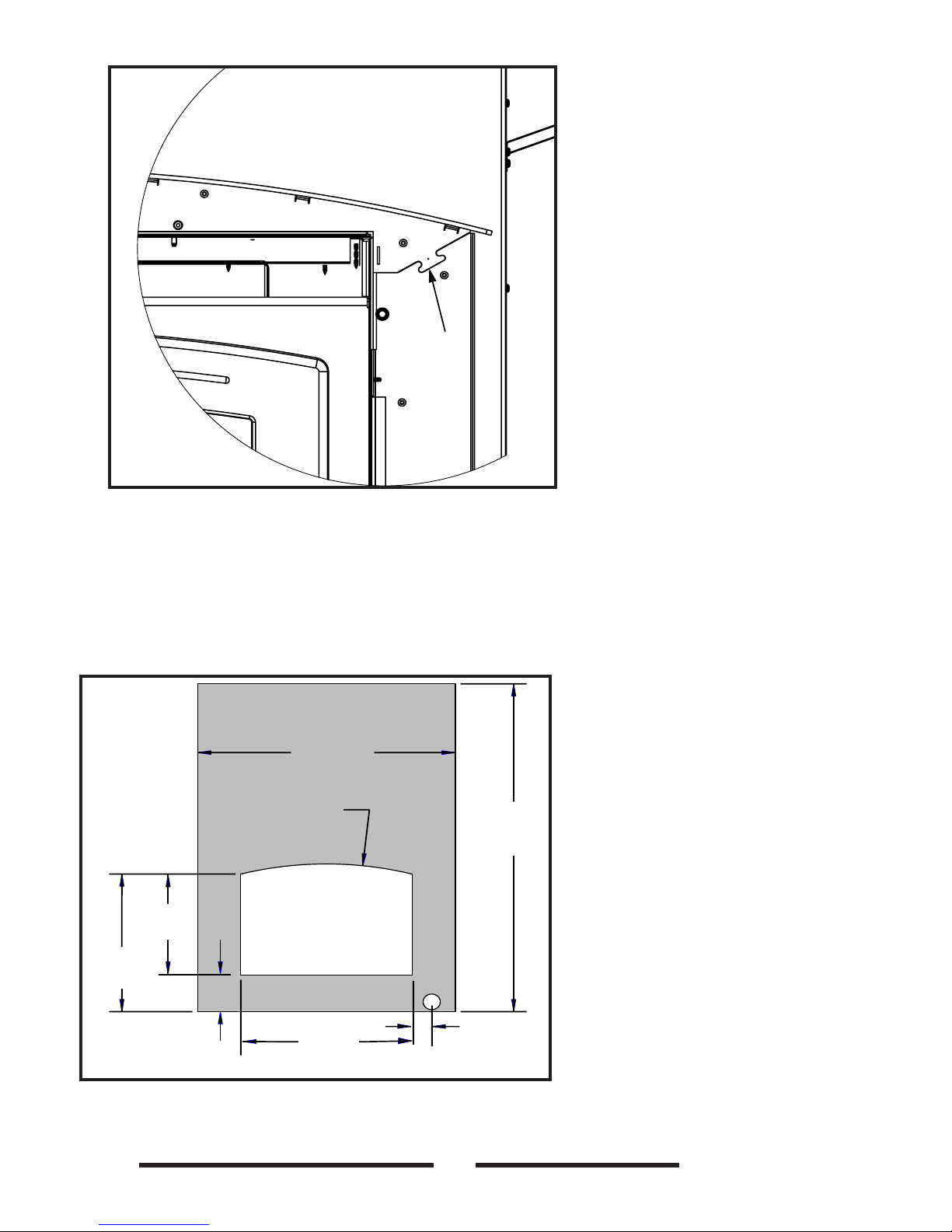

Attaching the front wall Board.
1. Dry t and Mark the replace
by Inserting the tabs located on
each end of the Top Brow Mount
into the corresponding cutout in
the side brackets.
• Ensure the top and sides are
ush against the replace. The
clearance holes for the rivets
should be over the rivets.
2. While holding the Top Brow
Mount in place, use a pencil to
trace the top edge of the brow
onto the Fireplace’s front panel.
3. Place the brow in a safe place
until after the wall board is in
place.
The front of the Fireplace and Chase can only be covered using non-combustible board.
Cut the opening (as per the board manufacturers guidelines) using the dimensions and the Arch template
provided (Figure 6). Do not place any vertical joints in the wall board above the unit as this may lead to
cracking of the joint compound.
NOTE: the dimensions shown here
are from the bottom of the unit. If
the unit is raised, add the height to
the bottom dimensions.
4. Anchor the boards to the
replace and studs following the
board manufacturers guidelines
for drilling holes, screw type and
spacing.
• Make sure you can see the
pencil line for the Brow as this
will mean you have enough
clearance to mount the Top Brow.
1
Figure 5: FP30 Craftsman Top Brow tab.
35-5/16”
[897mm]
26”
[660mm]
40”
[1.016m]
60”
[1.524m]
7’
[2.14m]
R77.8”
4-1/2”
[115mm]
9-5/16”
[236mm]
Figure 6: NC board cutout.

5055.5154-A
FP30 Arch Craftsman 240417-16 8
When the Craftsman Arched Front is installed on a FP 30 AR Series B Fireplace, the chase requires 16sq.in.
[100cm2] of chase inlet air. This air helps support the replace’s convection airow and is separate from the
Combustion Intake air. The duct doesn’t have to be round or a single inlet. The requirement is that the total
inlet area must be equal to 16sq.in. or greater.
This air must enter the chase no higher than 12” [305mm] from the bottom of the replace. And can be placed
on the front (off to the side of the unit (Figure 6 on page 7) or on the sides or back of the chase if it pro-
trudes into the room. Air can be drawn from under the chace if that space is sealed within the house enve-
lope. The air must come from inside the house, preferably the room the replace is installed in.
Dimensions to note when installing the non-combustible wall board
A Non-combustible wall board and all decorative facing materials.
B Minimum height from base of the replace covered by non-combustible wall
board
84” (2.135m)
C Minimum width of non-combustible wall board covering front of unit. 60”(1.525m
D Supplied steel stud wall section.
E Combustible stud framing.
F Chase air intake - locate on front between unit and chase side wall if the chase
front is ush with wall. (see Figurue 5 for distance from opening).
Min. 16 sq.” (100 cm2)
F Chase air intake - Can be located on the side, back or underneath the chase,
as long as that inlet is drawing air from inside the house.
Min. 16 sq.” (100 cm2)
E
D
A
B
C
F
Figure 7: FP30 Installed 3.
CHASE INLET

5055.5154-A FP30 Arch Craftsman 240417-16
9
Installing the Top Brow Mount and Upper Grill
1. Clean any debris off of the replace front before placing the Top Brow Mount. Insert the tabs located on
each end of the top brow mount into the corresponding cutout in the side brackets. Ensure the top and
sides are ush. The clearance holes for the rivets should be over the rivets. Secure the mount on both
ends. Using a self drilling screw, attach through the holes provided.
2. Attach the Upper Grill by screwing three (3) #8 self drilling screws through the holes in the Grill as well as
the holes in the Top Brow Mount into the replace front (Figure 8).
3. The joints and gaps in the wall board can now be lled in, using the board manufacturer’s recommended
joint ller/compound.
1

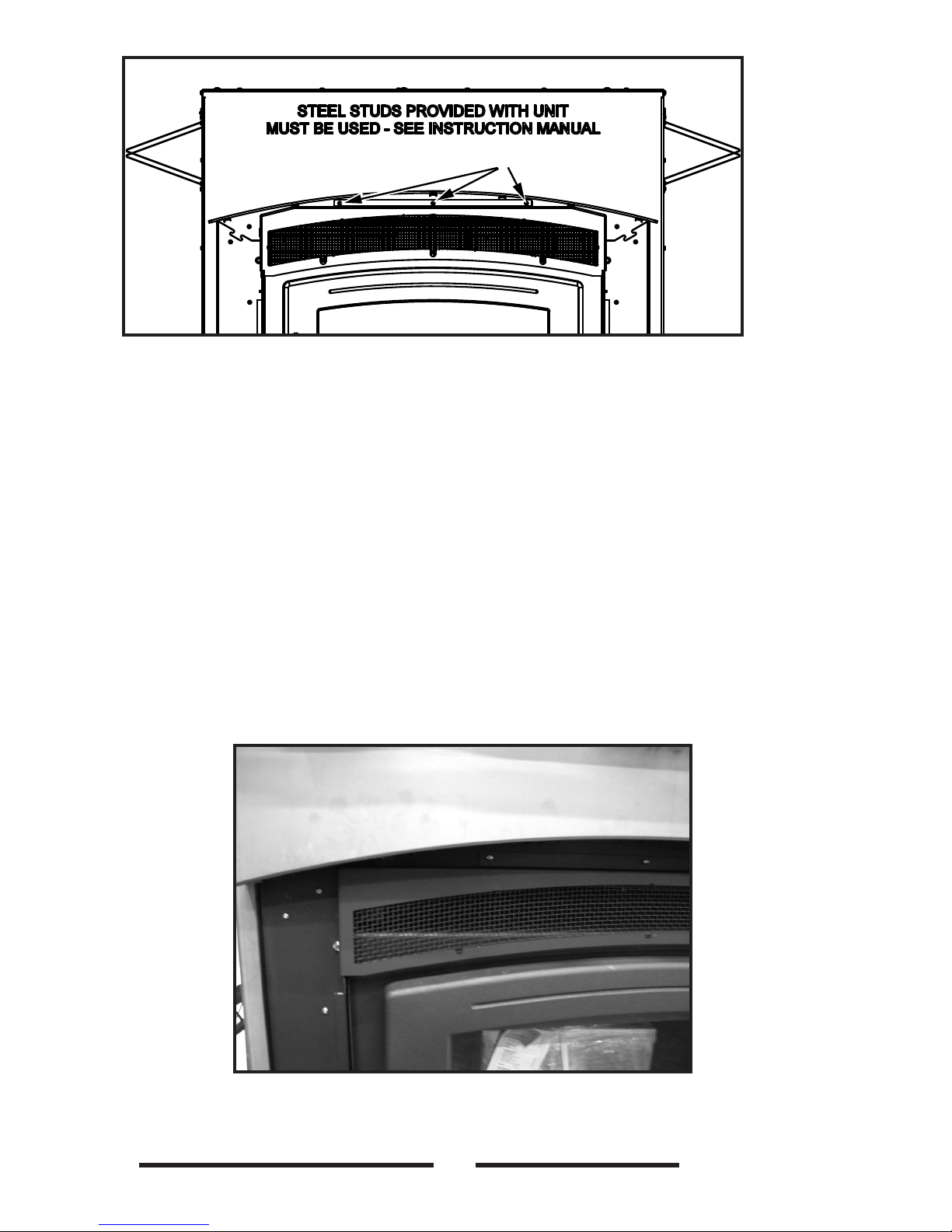

Figure 8: FP30 Craftsman Top Grill mounting screws.
Figure 9: FP 30 Craftsman top grill mount.

5055.5154-A
FP30 Arch Craftsman 240417-16 10
Attaching the lower grill
1. Loosen the two bolts holding the Ash Shelf in place using a 3/8:” socket or nut driver. Caution the ash
shelf is heavy - Do not completely remove the bolts.
2. Place the lower grill in front of the air control level and place the lever through the slot in the lower grill.
3. Lift up slightly on one end of the Ash Shelf for clearance, hook the grills corresponding mounting slot over
the screw head.
4. Repeat the process on the other side. Tighten the screws using a 3/8:” socket or nut driver.

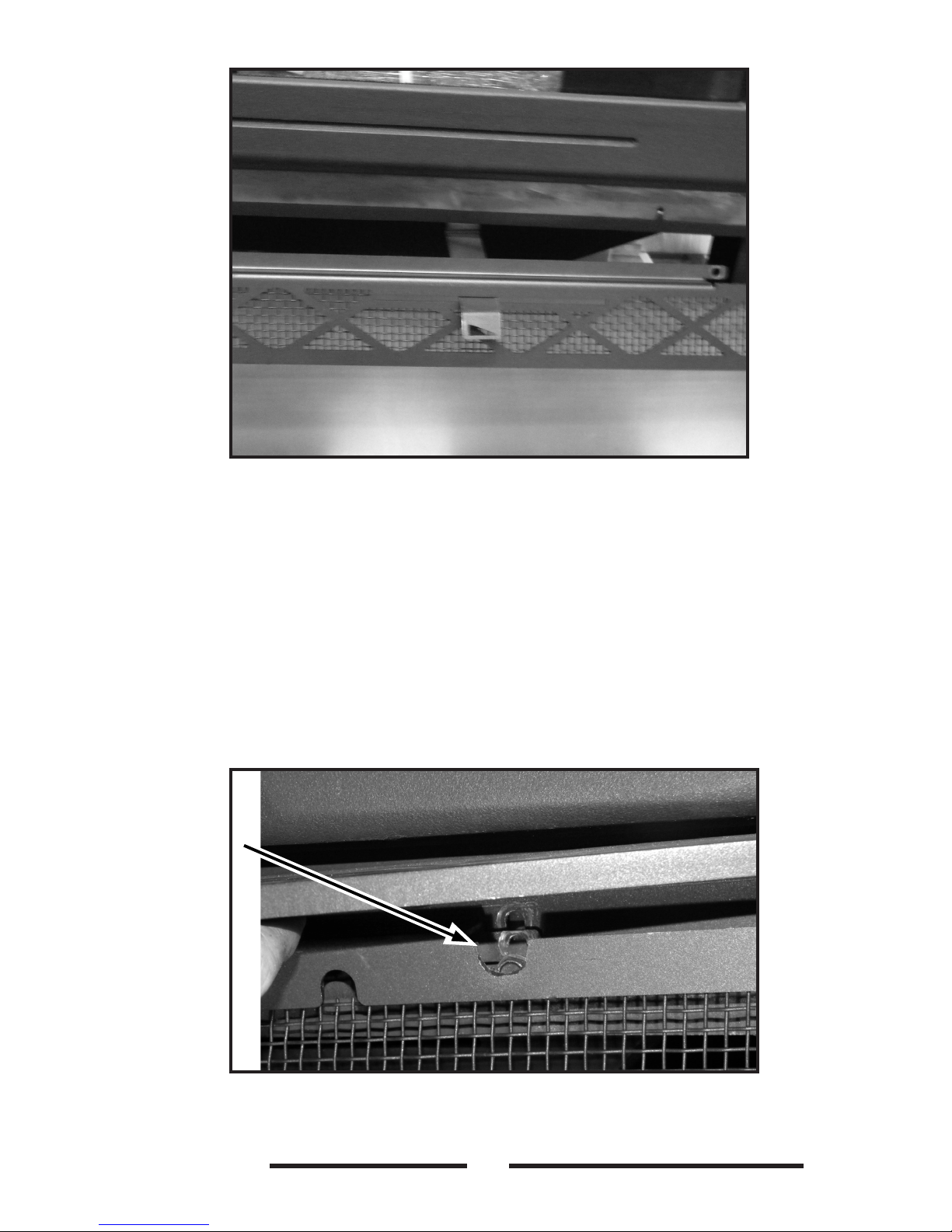

Figure 10: 2 Slide Lower Grill (2).
Figure 11: FP30 Craftsman lower grill mount tab.

5055.5154-A FP30 Arch Craftsman 240417-16
11
DECORATIVE FINISH ON THE FRONT
The the area shown around the front (Figure 12) can be only be nished with non combustible materials
only.
The area within the dashed line next to and below the Side Brackets cannot be thicker than 5/8” including
the non-combustible wall board. If there is anything thicker in this area, the decorative front will not be able to
mount on the brackets.
Raised Hearth
If you are installing a raised hearth
with this unit, it must be made
entirely of non combustible materials.
The maximum height for the hearth is
7” [178mm] from the base of the unit
(Figure 13).
1”
[25mm]
2-1/4”
[57mm]
1”
[25mm]
47-1/2”
[1.21m]
51-3/4”
[1.315m]
Non-combustible facing materials only in this area
Side
bracket
Side
bracket

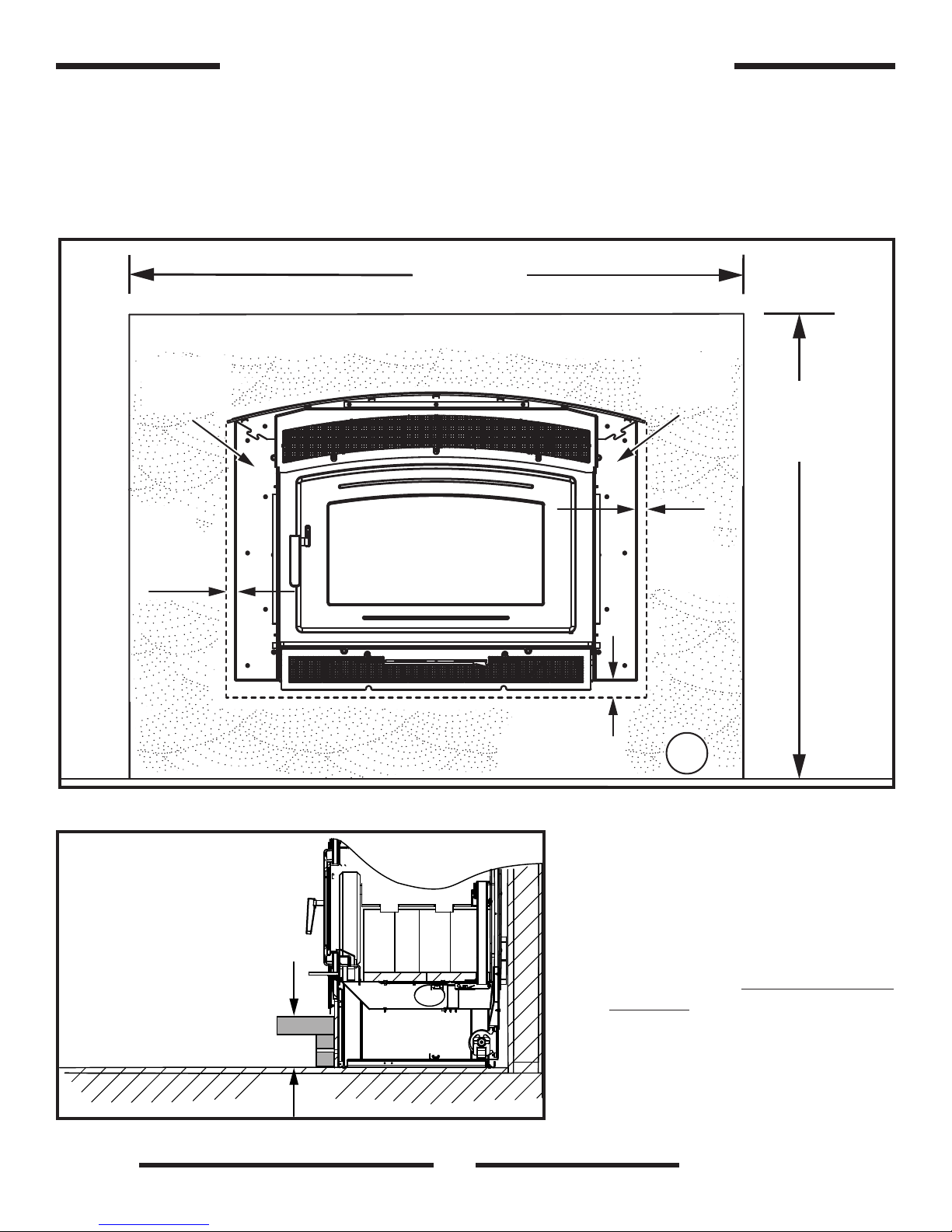

Figure 12: FP30 Craftsman Front border area.
Non-combustible Hearth
Maximum nished height:
7” [178mm] from base
of unit
Figure 13: FP30 Craftsman front hearth height.

5055.5154-A
FP30 Arch Craftsman 240417-16 12

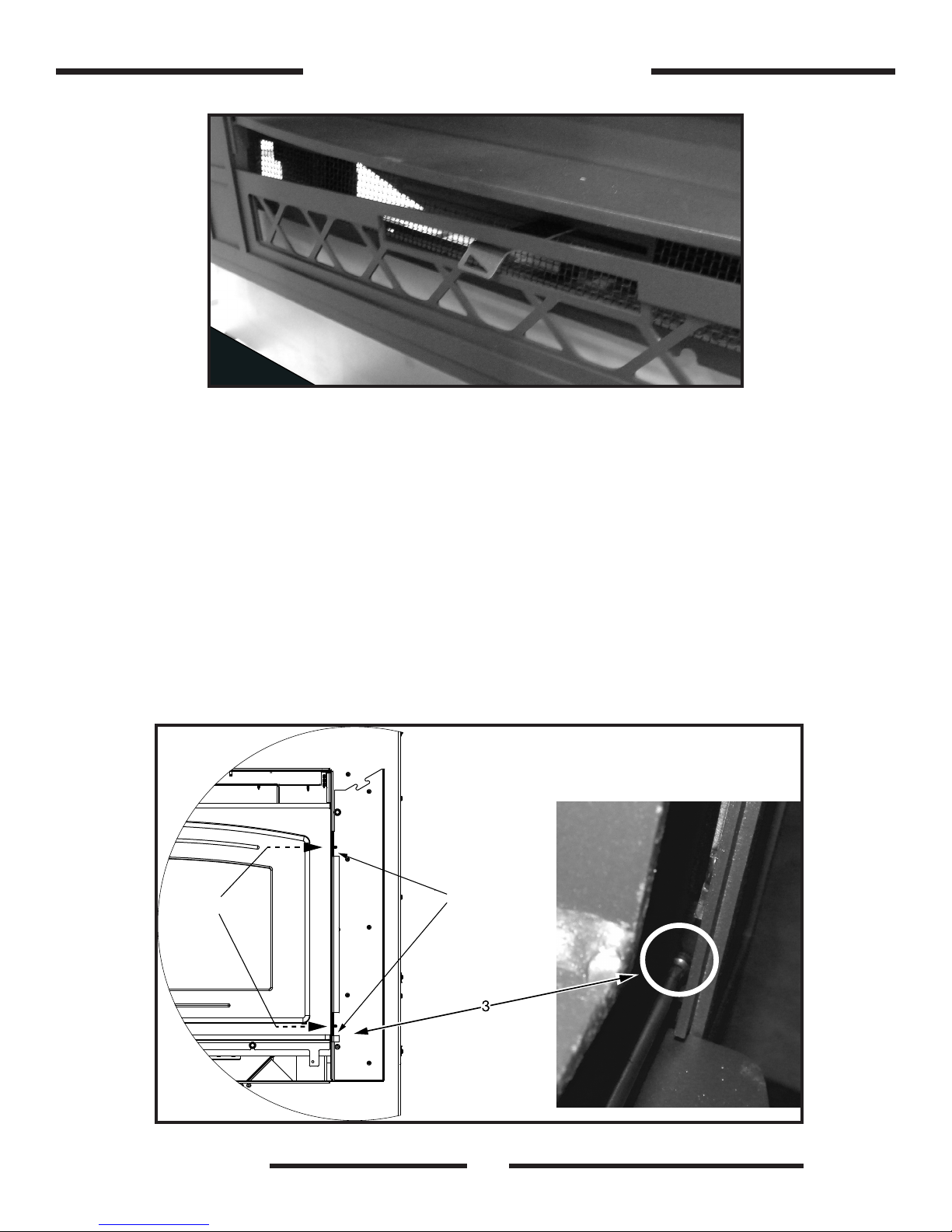

INSTALLING THE FRONT
To install the front;
1. Align and place the air control lever through the opening in the lower section of the Front Assembly
(Figure 14).
2. Tilt the front up and under the Brow. Lift up and guide the side tabs into the corresponding openings
located in the side brackets. Push the Front Assembly into the slots, until it drops slightly - engaging the
mounting tab locks.
3. To lock the Front Assembly in place, install the four black #8 Torx screws provided into the holes located
behind the Front Assembly.
• In the door opening behind the Front, there are four screw holes. These may require the door to be
removed ( open door and lift up on hinge side) to see and access them clearly.
Figure 14: FP30 Craftsman front damper clearance.
2
3
Figure 15: Openings for the front tabs and the position of the screws.

5055.5154-A FP30 Arch Craftsman 240417-16
13
PARTS
1. FP30.RP777110 Top Brow Mount Assembly
2. FP30.RP777113 Left side bracket
3. FP30.RP777112 Right side bracket
4. FP30.RP777108 Top Grill Assembly
5. FP30.RP777106 Lower Grill Assembly
6. FP30.RP777101 Front Assembly
7 FP30.RP777104 Upper Decorative Panel
8 FP30.RP777103 Lower Decorative Panel
INCLUDED FASTENERS
1/4- 20 type F screws x 2
#8 self drilling screws x 15
#8-32 Black Thread rolling screws x 4
7/32” Drill Bit
1
2
3
4
5
8
7
6

5055.5154-A
FP30 Arch Craftsman 240417-16 14

5055.5154-A FP30 Arch Craftsman 240417-16
15

PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
2975 Allenby Rd., Duncan, B.C. V9L 6V8
For technical support, please contact your retailer.
Web site: http://www.pacificenergy.net
© 2017 Copyright Pacic Energy Fireplace Products LTD
Reproduction, adaptation, or translation
without prior written permission is prohibited,
except as allowed under the copyright laws.
