Pacific TIGERRAY 21 Installation and operation manual

TIGERRAY MODELS
21, 24 & 27
20 HP PROPANE
BURNISHERS
OPERATING & MAINTENANCE
INTRODUCTION INSTRUCTIONS
READTHISBOOK
This operator’s book has important information for the use
and safe operation of this machine. Read and understand
theEngineOperator’sManualandthismanualbeforestart-
ing the machine. Keep this book and tell all operators to
readthe book. Ifyoudonotfollowtheinstructions,youcan
causean injuryordamage equipment,furnitureor build-
ings.
For new books write to:
Pacific
2259 S. Sheridan
Muskegon, MI 49442-6252
Carefully inspect all components to ensure that there is no
concealed freight damage. If such damage is discovered,
filea“CONCEALEDDAMAGEREPORT”immediatelywith
thedeliveringcarrier.
The contents of this manual are based on the latest product
information available at the time of publication. Pacific
reserves the right to make changes or improvements to its
machines without notice.
FORYOURCONVENIENCE,RECORDTHEMACHINE
ANDENGINESMODELANDSERIALNUMBERSHERE:
MACHINEMODEL
MACHINESERIALNUMBER
ENGINEMODEL
ENGINESERIALNUMBER

IMPORTANTSAFETYINSTRUCTIONS 3
TRANSPORTINGTHEMACHINE 4
A. Transport Position
B. Position for Maintenance and Cleaning
PREPARATION 4
A. Maintenance Schedule
B.Check EngineOil
C.FillLPTank& Check forLeaks
D. Connecting HP Hose to Tank
E. Install Fresh Pad
OPERATION 5
A. Prepare Machine
B.StartEngine
C. Movement
D. Stop Engine
E. Transporting
F.CleaningEquipment
G. Storing Machine & Tank
MAINTENANCE 6
A. Machine & Engine Maintenance
B. Engine Maintenance Meter
C. Troubleshooting Electrical System
D.Belt,Pad Drive Facing, Idler Pulley orDriveShaft Replacement
TROUBLESHOOTING 7
PARTSLISTS
A.TigerRay 21 8
B.TigerRay 24 10
C.TigerRay 27 12
WARRANTYPOLICY 16
TABLE OFCONTENTS
2
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

IMPORTANTSAFETYINSTRUCTIONS
READ AND UNDERSTAND ALL INSTRUCTIONS AND WARNINGS
BEFORE OPERATING THIS MACHINE!
WARNINGS:
1. DONOTSTOREORUSEGASOLINEOROTHERFLAMMABLEVAPORSANDLIQUIDSINTHEVICINITYOF
THISMACHINE.ALWAYSSTOREEQUIPMENTAWAYFROMHEATERROOMS,BOILERS,GAS-FIREDWATER
HEATERSORANYOTHERSOURCEOFOPENFLAME.
2. NOSMOKING,NOSPARKS,NOFLAMESNEARUNITORLPTANK.
3. OPERATEONLYINWELLVENTILATEDAREAS. BUILDINGSMUSTBEPROVIDEDWITH:
A) ACONTINUOUSMECHANICALVENTILATIONTHATREMOVESTHEPRODUCTSOFCOMBUSTIONTO
THEOUTDOORSOFNOTLESSTHAN300CFMFOREACH10,000BTUHORFRACTIONTHEREOF;OR
B) NATURALVENTILATIONOFNOTLESSTHAN300CFMFOREACH10,000BTUHINPUTORFRACTION
THEREOF,BASEDONAMAXIMUMOFONE-QUARTERAIREXCHANGEPERHOURFORTHENETBUILD-
INGVOLUME.
4. IFYOUSMELLLPGAS,STOPTHEUNITANDCHECKFORLEAKS. ALSOOPENWINDOWS,DON’TTOUCH
ELECTRICALSWITCHES,EXTINGUISHANYOPENFLAMES. CALLYOURGASSUPPLIERIFNOLEAKSARE
FOUND.
5. DONOTADJUSTTHEFUELSYSTEMWITHOUTTHEPROPERANALYSISEQUIPMENT.
6. NEVERTURNTHEUNITONITSSIDE.
7. NEVERTILT&TRANSPORTWHILEENGINEISRUNNING.
8. KEEPHANDSANDFEETCLEAROFALLMOVINGPARTS.
9. TURNTHEGASOFFATTHETANKTOKILLTHEENGINE.
10. REMOVETHELPTANKANDSTOREITINANAPPROVEDAREAWHENNOTINUSE. A“NOSMOKING”SIGN
SHOULDBEPERMANTLYDISPLAYEDATTHESTORAGEAREA.
11. ALWAYSVENTANOVER-FULLBOTTLEUSINGTHETANK’SBLEEDVALVE,OUTOFDOORSAWAYFROM
ALLCLOSEDPLACESANDAWAYFROMANYFIREORFLAMEPRODUCINGDEVICE.
12. KEEPALLOBJECTSCLEAROFTHEEXHAUSTSYSTEMDURINGANDAFTEROPERATION.
13. DONOTLEAVETHISMACHINEUNATTENDEDWHILETHEENGINEISRUNNING.
14. ALWAYSSTOREEQUIPMENTAWAYFROMPOSSIBLEDAMAGEBYFALLINGOBJECTSINWAREHOUSE-
TYPEAREAS.ALWAYSSTORELPGTANKSOUTSIDEINASECURE,WELL-VENTILATEDAREA.
15. WHENTHELPTANKISATTACHEDTOTHEMACHINEANDNOTRUNNING,THEOPERATORSHOULDNOT
LEAVETHEMACHINEUNATTENDEDEXCEPTFORSHORTPERIODSOFTIMESUCHASRESTSTOPS,WASH-
ROOMORMEALSTOPS.
16. THEOPERATORMUSTCOMPLETELYUNDERSTANDALLINSTRUCTIONS,WARNINGSANDOPERATING
PROCEDURESBEFOREUSINGTHISMACHINE.
17. THISMACHINEMUSTBEMAINTAINEDINACCORDANCEWITHTHISMANUALSRECOMMENDEDMAINTE-
NANCEINSTRUCTIONSANDTHEENGINEMANUFACTURERSRECOMMENDEDMAINTENANCEPROCEDURES.
FAILURETODOSOMAYCAUSEDAMAGETOTHEMACHINE,EQUIPMENT,FURNITURE,BUILDINGSOR
PERSONALINJURY!

TRANSPORT&PREPARATION
4
WARNING! Followthe instructionsgiveninthisbooklet,
theEnginesOwnersManualandthetraininggivenbyyour
supervisorforthesafeoperationofthismachine.Failureto
do so can result in personal injury and/or damage to the
machineorproperty.
TheTigerRayshavea20HP Kawasakiwith a12volt
batterystarter.
TRANSPORTINGTHEMACHINE
NEVERTRANSPORTWHILEENGINEISRUNNING!
A. TRANSPORTPOSITION
To transport the machine it is necessary to tilt the machine
back on the rear wheels so the pad is not in contact with the
floor.
B. POSITIONFORMAINTENANCE&CLEANING
To perform certain maintenance & cleaning tasks the ma-
chine should be placed in the “tilt back” position and the
handlemust bein theshipping(forward)position.Thehandle
must be in the forward position to ensure stability in the
“tiltback”position. A secondpersonshouldaid inthelift
and securethe machine whilebeingserviced.
DONOTOPERATETHISMACHINEINANEXPLOSIVE
ENVIRONMENT!
PREPARATION
A. CHECKTHATTHESUGGESTEDMAINTENANCE
SCHEDULEHASBEENOBSERVED.
Allmachines areequipped withamulti-function maintenance
meter. The functions include the following: hour meter, ser-
vice alert and tachometer. (See Engine Maintenance Meter
Instructions)
B. CHECK THE ENGINE OIL BEFORE EVERY
OPERATION!
Make sure the machine is level when checking the oil. Al-
ways take 2 readings of the dip stick before adding oil. If the
oil level is below the full mark, add just enough oil to the
engine to bring the oil level up to the full mark. Neverover
fill. Follow the guidelines in your Engine Owners Manual.
RecommendedoilisSAE10W-30. Checkfor foreignmaterial
on the dipstick.
C. PROPERLYFILLANDCHECKYOURLPTANKAND
ALLLPFUELLINESFORLEAKS!
1. Everytank has beenpressureand leaktested. How-
ever, everytimeatankisfilledand/orconnectedtothe
machineitshould be soaptested. AllLPlines must be
pressurizedandevery inch of line and connectionsmust
be sprayed. If you find a leak, make the proper repairs
before operating the machine. NOTE: The connection
and disconnection of the LP tank must be done in a well
ventilatedarea with NO sourceofignition within 10feet
(3 meters) from the point of connection.
2. Never over fill the LP tank! The LP tank is de-
signed to hold just 20 pounds of propane. Make sure to
weigh the tank as it is being filled. The gross weight of
a full tank should not exceed 48 pounds. If while oper-
ating the machine you notice frost forming on the LP
lines or the regulator, your tank has been over filled. If
you continue to operate the machine in this condition
damagewilloccur. The excess propaneinthe tank must
beremovedbeforenormaloperations resume. Thebleed-
ing of a propane tank should be done in a safe location
outside the building. In some cases the regulator must
defrost before restarting the engine.
D. CONNECTINGTHEHIGHPRESSUREHOSETOTHE
LPTANK: Make sure the couplers are in line and screwed
together hand tight. If this is not done properly, fuel will not
pass through to the regulator. Never complete the connec-
tion of the tank to the machine by using a wrench. Always
do it by hand. Listen for the rush of fuel to the lock-out
device when you open the tank valve. If you hear this, it
indicates a good connection has been made at the tank.
NEVERCHANGEORALTERTHEPROPANECONTROL
EQUIPMENT!
E. INSTALL A FRESH PAD BEFORE EVERY JOB
If not new, at least clean. To install a fresh pad, tilt the
machine back and adjust the handle forward. Unscrew and
remove the pad-centering ring. Remove the old pad and
center the new pad onto the pad driver. Reinstall the pad-
centering ring. Never “flip”apad. Keep the samesidedown
throughout the life of the pad. Even after a pad is cleaned,
you can tell the down side by the centering ring indentation.
This practice will increase the pad life and help maintain a
properlyfunctioning paddriver. NEVERTILTAMACHINE
ONITSSIDE!

5
OPERATION
C. MOVEMENT
1. Follow the machine (straight ahead) at a moderate
walking speed. Always keep the machine moving
while the pad is touching the floor.
2. Keep hands, fingers and feet clear of all moving
parts while the machine is in operation.
NEVERTILTBACKMACHINETOMAINTENANCE
POSITIONWHILEENGINEISRUNNING.
DONOTUSEFORWETSCRUBBINGOPERATIONS
D. STOPPINGTHEENGINE
1.Turn the propane tank valve clockwise to a closed
position, then turn the key OFF.
NOTE: The exhaust system will be very hot and
takes several minutes to cool, so keep yourself and
all materials clear!
E. TRANSPORTINGTHEMACHINE
The tank should be securely fastened and tank valve
must be closed.
F. CLEANTHEEQUIPMENT
Placemachinein the “tilt back”positionwith the handle
forward and clean the equipment.
G. STORINGTHEMACHINE&TANK
1. Remove theLPtank from themachine and store the
tank in an well ventilated approved area.
2. Store your machine in a safe area: away from en-
closedhighheat, away fromsparksor flames, away
from traffic lanes of heavy equipment.
PROVIDEANDUSEEARPROTECTIONDURING
OPERATION.
NEVERLETANUNTRAINEDPERSONOPERATEOR
PERFORMREPAIRSONTHEMACHINE.THEYMAY
HURTTHEMSELVES,DAMAGETHEFLOORORTHE
EQUIPMENT.
ENGINESPEEDNOTTOEXCEED3400RPM.
THISMACHINEISNOTSUITABLEFORPICKINGUP
HAZARDOUSDUST.
DO NOT USE ON SURFACES WITH A GRADIENT
EXCEEDING2%.
A. PREPARETHEMACHINEFOROPERATION
1. Follow steps A through E in the previous section
and determine the best pad for the task.
B. STARTENGINE.
1. Start engine with machine tilted so pad is off floor.
2. Open propane(LPG)tankvalve(counter clockwise).
3. Set the throttle control at idle for 12V system.
4. Turn key to the start position and move throttle
toward fast position. If engine does not start, re-
lease key and return to step “4”.

MAINTENANCE
A. MACHINE&ENGINE MAINTENANCE
1. Refer toenginemanufacturer’s owners manualand
comply completely with the instructions. Change
the oil and filter according to the Engine Owners
Manual.Recommended oil is SAE10W-30.
2. Keep a good service log on the machine with the
date, hour meter reading, type(s) of service per-
formed and the name of the person who performed
them.
3. Clean the entire unit after each use. When cleaning
the unit, check for possible loose nuts and bolts.
B. ENGINE MAINTENANCEMETER
This multi-function meter acts as a preventive mainte-
nance tool; which benefits you with increased fuel
economy, less down time and longer engine life.
The meter’s displays are:
HOURMETER:Displays totalrunhours whenmachine
is off.
TACHOMETER: Indicates engine R.P.M. during op-
eration.
SERVICEALERT:The display flashes to alert you to
lube and change the oil at 25 hour intervals. The service
alert only flashes during operation and it warns you to
change the oil for only two hours. After the two hours
is reached, the alert will automatically reset to the next
25 hour interval. Therefore, it is recommended that a
separate maintenance log be kept to track oil changes.
REMEMBER THAT BEINGSAFE ISAFULL-TIME,
EVERYDAYJOB. FOLLOWALLINFORMATION
POSTEDONTHEMACHINEANDTHELPTANK.
NEVERALLOWANYONE TO OPERATETHIS MA-
CHINETHATHAS NOTREADORCANNOTUNDER-
STANDTHEGIVENINSTRUCTIONS.
C. TROUBLESHOOTINGTHEELECTRICALSYSTEM
1. Check all wire connections for obvious problems.
Remove LPG tank, then remove battery box cover.
Check all connections visibly and physically. If
any “loose”, damaged or unconnected wires are
noticed, replace or repair as needed.
6
2. Check the battery posts and wires. Always wear a
faceshield, safetyglassesandprotective clothing
whenworking aroundabattery!Thegases can be
explosive and the acid is highly corrosive to met-
als, cloth and ALL HUMAN TISSUE (skin, eyes,
etc.) If the battery post(s) are corroded, remove the
wires and clean posts and wires. Applying some
axle grease on the posts or the battery after they
are cleaned will slow down the battery corrosion
process.
If nothing obvious is noted, a more detailed investiga-
tion is warranted. Before any such troubleshooting be-
gins, the following things should be done:
3. Replace propane (LPG) tank with one from a ma-
chine that runs.
4. Charge the battery or provide an absolute source
of 12 volt DC power capable of 50 amperes total
output. (A pair of good jumper cables from your
car or truck battery will suffice.) Equip yourself
with an inexpensive 12 volt test light.
5. If the trouble seems to be in the electrical control
equipment, you may wish to disconnect the starter
from the system so as to check the system without
spinning the engine.
D. BELT,PADDRIVEFACING,IDLERPULLEYOR
DRIVESHAFTREPLACEMENT
1. Tilt the machine back and adjust the handle forward
toenable the machineto stand onits’ rear wheelsfor
maintenance. A second person should aid in the lift
and secure the machine while being serviced.
2. Remove the pad drive nut, pad centering device
and four bolts (9/16” wrench).
3. Remove pad driver (replace if worn).
4. Remove idler pulley(replace if worn).
5. Remove belt(s). Replaceif worn.
6. To remove driveshaft unit: Remove retaining bolt
and clip, then pull driveshaft out of housing (a slide
hammer may assist in removal, do NOT pry with
crow bar). While drive shaft is removed spin bear-
ings. If roughness is felt, bearing replacement may
be necessary.
7. Reassemble, follow above steps in reverse order.

TROUBLESHOOTING
PROBLEM
Enginecranksbut will not start:
1. Empty fuelcylinder.
2. Cylinder shut-off valve closed.
3. Clogged, obstructed, kinked or cut fuel or vacuum
line.
4. Spark plug lead disconnected.
5. Faulty choke or throttle settings.
6. Faulty ignition coil.
7. Faulty killswitch.
8. Faulty regulator.
Enginestartshard:
1. Faulty choke or throttle settings.
2. Clogged, obstructed, kinked or cut fuel or vacuum
line.
3. Faulty regulator.
4. Low compression.
Enginewill notcrank:
1. Battery is discharged.
2. Lose or faulty connections or wires.
3. Faulty ignition key switch or starter control switch.
4. Faulty electric starter.
Engineoverheats:
1. Incorrect fuel settings.
2. Air intakefilter,screen,cooling finscloggedwith debris.
3. Low oillevel.
Exhaustemissionorpropaneodors:
1. Carburator or regulator settings incorrect.
2. Dirty or cloggedairfilter.
3. Choke engaged.
4. Loose fittings, clamps or hoses.
5. Cracked, cut or leaking fittings.
SOLUTION
1. Refill cylinder.
2. Open valve.
3. Remove obstruction or replace.
4. Conenct lead to spark plug .
5. Set controls to correct positions.
6. Replace coil.
7. Replace switch.
8. Replace or rebuild regulator.
1. Set controls to correct positions.
2. Remove obstruction or replace.
3. Replace or rebuild regulator.
4. Have engine serviced by trained technician.
1. Charge or replace battery.
2. Tighten, repair or replace.
3. Repair or replace.
4. Repair or replace.
1. Have engine serviced by trained technician.
2. Clean orreplace.
3. Check and add oil if necessary.
1. Have engine serviced by trained technician.
2. Replace airfilter.
3. Adjust to correct setting.
4. Tighten, seal or replace. Recheck with soap and water
solution. If bubbles occur, there is still a leak.
5. Tighten, seal or replace. Recheck with soap and water
solution. If bubbles occur, there is still a leak.
7

TigerRay 21
8

TigerRay 21
9

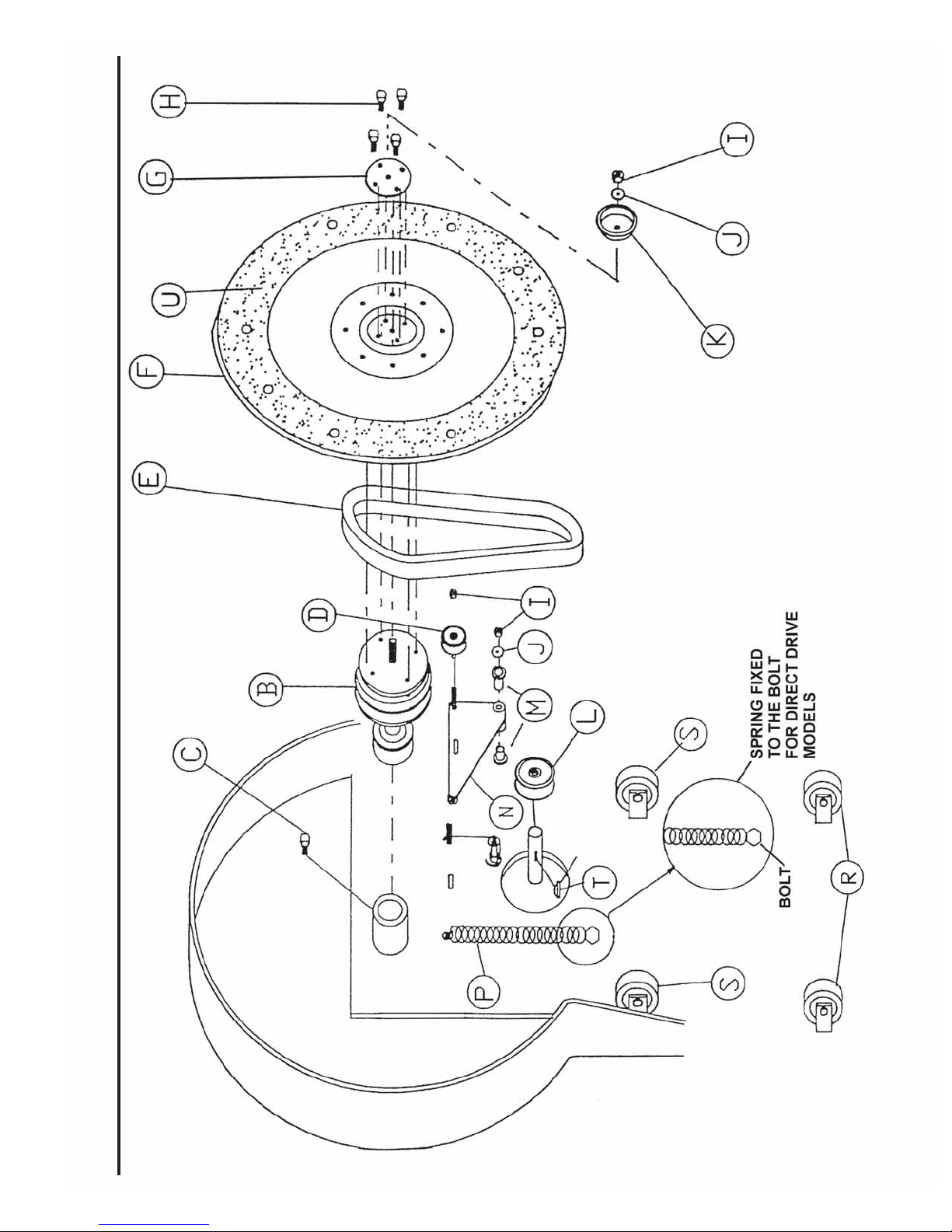

ITEM PART NUMBER DESCRIPTION QTY
B 277701 Drive Shaft 1 C W183D Bolt, 1/4 x20 x1/2"Hex Hd. 1 D 276906 Flat Idler Pulley 1
E 903027 Drive Belt, L5 Ser.-34.5" 1 F 275904 Pad Driver Complete (includes U) 1
G 277005 Washer Plate, 5-1/2" 1 H W504D Bolt, 3/8 - 16 x 3/4" 4
I 920002 Hex Nut, 3/8-16 3
J 980007 Flat Washer, 5/16" 2
K 272405 Drawn Cup 1
L 276907 Engine Crank Pulley, 3.0P x 1" 1
M 271113 Nylon Bushing 2
N 274802 Idler, Clutching 1
P 278304 Spring - 7" 1
R 279704 Wheel, 3 x 1.25 Poly 2
S 279706 Wheel, 4" 2 T 915004 Key, 1/4 Square X 1.25 Long 1
U 273303 Harpoon Dish, 21" 1
273301 Filter, Top FoamEngine 1 273314 Filter, Pre FoamCarb 1 273315 Filter, Paper Carb Intake 1 273316 Filter, Oil 1 278509 Spark Plug 1 278510 Screen, Debris 1 279405 Valve, OilDrain 1
20 H.P. Engine Maintenance Items Not Shown:

TigerRay 24
10

TigerRay 24
11
ITEM PART NUMBER DESCRIPTION QTY
B 277702 Drive Shaft 1 C W183D Bolt, 1/4 x20 x 1/2"Hex Hd. 1 D 276901 Vee Idler Pulley 2
E 903026 Belt, L548 2 F 275903 Pad Driver Complete (includes N) 1
G 277004 Washer Plate, 8-1/2" 1 H W504D Bolt, 3/8 - 16 x 3/4" 4
I 920002 Hex Nut, 3/8-16 4
J 980007 Flat Washer, 5/16" 2
K 272405 Drawn Cup 1
L 276908 Engine Pulley 1
M 271113 Nylon Bushing 2
N 273304 Harpoon Dish, 24" 1 O 279704 Wheel, 3 x 1.25 Poly 2 Q 962148 WheelBolt, 3/8 x 16 x 2 2
R 278304 Spring, 7" 1
S 279707 Wheel 2 T 915004 Key, 1/4 Square X 1.25 1
U 274803 Idler, Clutching 1
273301 Filter, Top FoamEngine 1 273314 Filter, Pre FoamCarb 1 273315 Filter, Paper Carb Intake 1 273316 Filter, Oil 1 278509 Spark Plug 1 278510 Screen, Debris 1 279405 Valve, OilDrain 1
20 H.P. Engine Maintenance Items Not Shown:

TigerRay 27
12

TigerRay 27
13
ITEM PART NUMBER DESCRIPTION QTY
B 277702 Drive Shaft 1 C W183D Bolt, 1/4 x20 x1/2"Hex Hd. 1 D 276901 Vee Idler Pulley 2
E 903025 Belt, L549 2 F 275902 Pad Driver Complete (includes V) 1
G 277004 Washer Plate, 8-1/2" 1 H W504D Bolt, 3/8 - 16 x 3/4" 4
I 920002 Hex Nut, 3/8-16 4
J 980007 Flat Washer, 5/16" 2
K 272405 Drawn Cup 1
L 276909 Engine Pulley 1
M 271113 Nylon Bushing 2
O 279704 Wheel, 3 x 1.25 Poly 2 Q 962148 WheelBolt, 3/8 x 16 x 2 2
R 278304 Spring, 7" 1
S 279707 Wheel, 5" 2 T 915004 Key, 1/4 Square X 1.25 1
U 274803 Idler, Clutching 1 V 273305 Harpoon Dish, 27" 1
273301 Filter, Top FoamEngine 1 273314 Filter, Pre FoamCarb 1 273315 Filter, Paper Carb Intake 1 273316 Filter, Oil 1 278509 Spark Plug 1 278510 Screen, Debris 1 279405 Valve, OilDrain 1
20 H.P. Engine Maintenance Items Not Shown:

14
MAINTENANCELOG

15
MAINTENANCELOG

WARRANTYPOLICY
TIGERRAY MODELS
The Pacific TigerRay has been manufactured, tested and inspected in accordance with specific engineering requirements and is
WARRANTED to be free from defects in workmanship and materials as follows:
Two (2) years parts and labor - Engine (Warranty through Kawasaki)
One (1) year parts and labor -All other components unless excluded below (Warranty through Pacific).
This warranty extends to the original user/purchaser and only when used, operated and maintained in accordance with Pacific
Operating and Maintenance instructions.
This warranty does not apply to the wear parts and accessories of the machine including belts, brushes, pad drivers and starters.
Nor does it apply to damage or failure caused by improper use, abuse or neglect. Warranty credit or replacement of return parts
including motors, etc., is subject to incoming inspection of those items.
To secure repair under this warranty, the following procedure should be taken:
•If the warranty issue is not the engine, the inoperative machine or warranted parts must be delivered to the authorized Pacific
dealer with shipping and delivery charges prepaid. If unable to locate the Dealer, you may contact Pacific at the address
listed herein for the location of the nearest Pacificrepair center or agent or for other instructions pertaining to your warranty
difficulty.
•For Engine Warranty repair deliver the machine to the nearest Kawasaki Warranty Service Center. To locate the nearest
Kawasaki Sevice Center call 1-800-433-5640 or go to www.kawpowr.com and choose “Dealer Locator”, then select the
Product Category “KAWASAKI ENG SVC:ALLOEMS” and input your zip code.
•Upon compliance with the above warranty procedure, all warranted repairs would be completed at no additional charge or
cost to the user.
•Only Pacific or its authorized dealers and agents may make no charge warranty repairs on this product. All others do so at
their own risk.
This warranty limits Pacific liability to the repair of the product and/or warranted parts replacement and does not include
incidental or consequential damages arising from the use of a Pacific machine whether defective or not.
This warranty is in lieu of all other expressed or implied warranties and is extended to the original purchaser/user.
08/10
2259 Sheridan
Muskegon, Michigan 49442
Ph: [phone] Fax: [phone]
www.nextwaveofclean.com
