Pacific TRIUMPH 1190 Manual

READTHISBOOK
This operator’s book has important information for the
useandsafe operation ofthismachine. Read this book
carefully before starting the machine. Keep this book
and tell all operators to read the book. If you do not
followthe instructions, you can causean injuryor dam-
ageequipment,furniture orbuildings.
For new books write to:
Pacific
2259SouthSheridanRoad
Muskegon,MI 49442
Carefullyinspect all componentsto ensurethatthere is
no concealed freight damage. If such damage is dis-
covered,file a “CONCEALEDDAMAGE REPORT”im-
mediatelywiththe deliveringcarrier.
The contents of this manual are based on the latest
productinformation available atthe timeof publica-
tion. Pacific reserves the right to make changes or
improvements to its machines without notice.
FORYOURCONVENIENCE,RECORDTHE
FOLLOWINGIMPORTANTINFORMATION:
MODEL_______________________________
SERIALNUMBER______________________
PARTNUMBER_________________________
DATEPURCHASED____________________
OPERATING & MAINTENANCE
INTRODUCTION INSTRUCTIONS
TRIUMPH 1190
CARPET EXTRACTOR
Parts Manual

INTRODUCTION
The SELF CONTAINED EXTRACTOR is a fully self-contained, portable carpet extractor system and is intended for
commercialuse. Awandwithexternalvacuum andsolutionhoses arenot necessary withyour machine, butavailable.
TheSELF CONTAINED EXTRACTOR hasa 100 psi solution pump anda four (4)jet spraying system located onthe
bottom side of the machine to apply solution to the carpet.
A rotating brush (16”) is driven by a cogged belt system at approximately 1200 RPM’s. This brush provides a very
aggressive agitation of the solution into the carpet fibers to loosen ground-in dirt. The chevron pattern of the brush
bristles channels the dirty water to the center of the aluminum vacuum head for better extraction.
Theheavydutythree-stagevacuummotoriscapableof 137inchesofwaterlift. YourSELFCONTAINEDEXTRACTOR
extracts virtually all of the dirty solution from the carpet fibers, which dramatically reduces drying time.
TheSELFCONTAINED EXTRACTORis very“userfriendly” machines. All controlsare located atthetop ofthehandle
grips,literally atyour fingertips. The recovery tank drainvalve islocated highenough for the recovered solutionto be
drainedinto a five (5) gallon bucket or bathroom toilet.
TheSELFCONTAINEDEXTRACTORis balanced onlarge10"diameterwheels for easeofoperationandtransporting.
Themachines can be rotated 360°withrelative ease, even when filledwith solution.
The location of the wheel axle and the large diameter wheels allows for easy transporting up and down
steps when empty. It is not recommended these machines be transported up or down steps while contain-
ing any liquid in either the solution or recovery tanks.
This machine must be grounded. If it should malfunction or break
down, grounding provides a path of least resistance for electric
currenttoreducetheriskofelectricshock. Thismachineisequipped
with a cord having an equipment-grounding conductor and ground-
ing plug. The plug must be inserted into an appropriate outlet that
is properly installed and grounded in accordance with all local
codes and ordinances.
WARNING - Improper connection of the equipment-grounding con-
ductor can result in a risk of electric shock. Check with a qualified
electrician or service person if you are in doubt as to whether the
outlet is properly grounded. Do not modify the plug provided with
the machine - if it will not fit the outlet, have a proper outlet installed
by a qualified electrician.

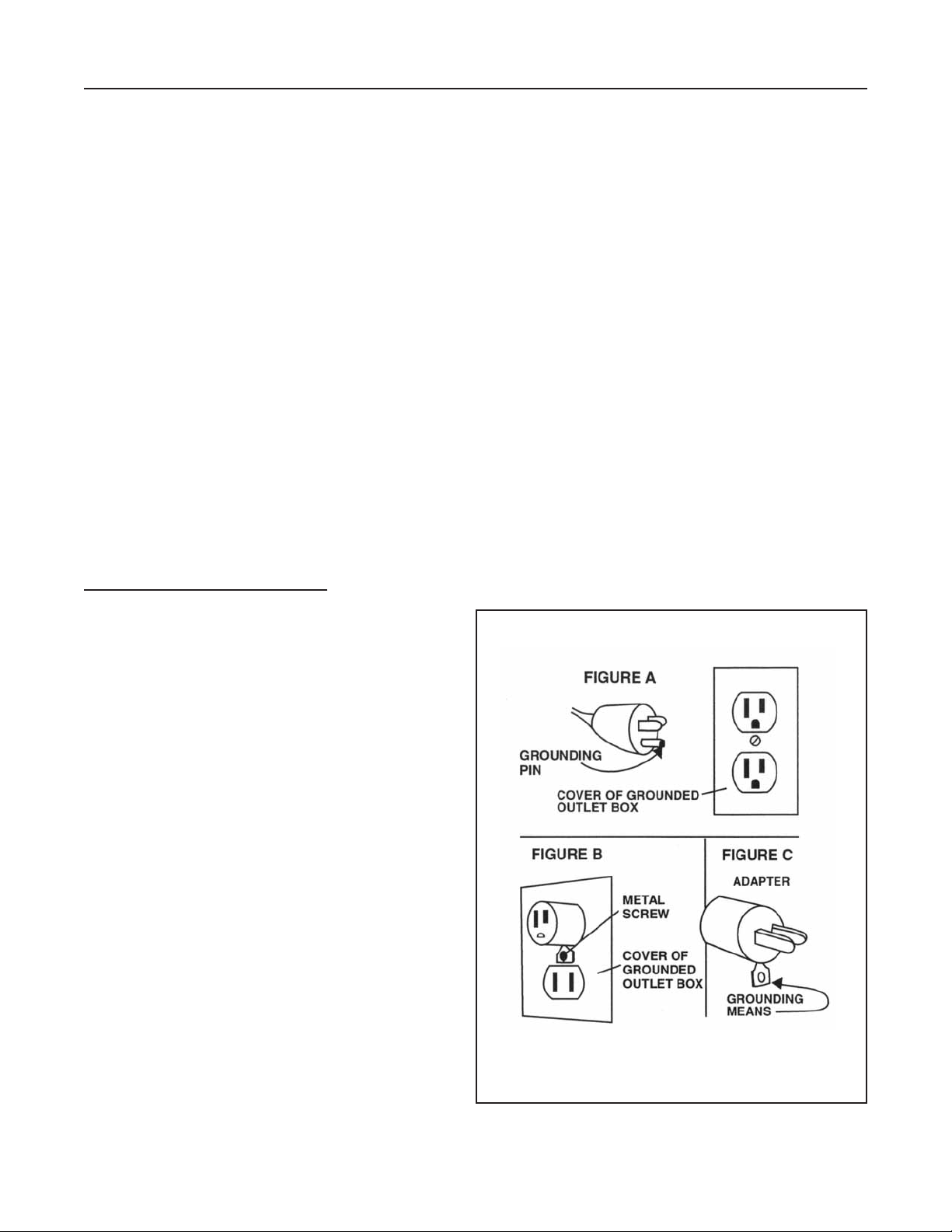

This machine is for use on a nominal 120-volt circuit, and has a
grounded plug that looks like the plug illustrated in figure A. A
temporary adapter that looks like the adapter illustrated in figures B
and C may be used to connect this plug to a 2-pole receptacle as
shown in figure B if a properly grounded outlet is not available.
The temporary adapter should be used only until a properly
grounded outlet (figure A) can be installed by a qualified electri-
cian. The green colored rigid ear, lug, or the like extending from the
adapter must be connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the adapter is
used, it must be held in place by a metal screw.
NOTE: In Canada, the use of a temporary adapter is not permitted
by the Canadian Electrical Code
EXTENSIONCORDS
Use only three-wire 12/3 or larger gauge approved extension
cords that have three-prong grounding type plugs and three-pole
receptacles that accept the appliance’s plug. Replace or repair
any damaged cords or plugs.
When servicing, refer to authorized person only. Use only identi-
cal replacement parts.
GroundingInstructions
NOTE: Do not use adapters shown in figures B & C in Canada
2

IMPORTANTSAFETYINSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE
WARNING: To reduce the risk of fire, electric shock, or injury:
1. You must have training in the operation of this machine before using it.
2. Machines can cause an explosion when near flammable materials and vapors. Do not use this machine with or
nearfuels, grain dust, solvents, thinners, or other flammable materials.
3. Do not operate this machine unless it is completely assembled.
4. Do not use this unit for dry pick-up of dust or debris; Do not pick up anything that is burning or smoking, such as
cigarettes, matches or hot ashes.
5. Toprevent electric shock, always remove the electrical plug fromthe electrical outletbefore doing anyrepairs or
maintenance to this machine.
6. Toprevent injury,always removethe electrical plug from the electrical outlet beforeleaving the machine.
7. Maintenance and repairs must be done by authorized personnel only.
8. Do not immerse. To reduce the risk of electrical shock, use only on carpet moistened by the cleaning process.
Protect the machine from rain. Keep the machine in a dry building. Always clean the machine with a clean dry
cloth.
9. Always use a three-wire electrical system connected to the electrical ground. For maximum protection against
electrical shock, use a circuit that is protected by a ground fault circuit interrupter. Consult your electrical
contractor.
10. Toprevent damage tothe power cord, do not move this machine over the power cord. Always liftthe power cord
overthe machine. Donot pull or carry cord, use cordas ahandle, closea door on cord, orpull cordaround sharp
edges or corners. Keep cord away from heated surfaces.
11. Make sure all switchesare turned offbefore plugging orunplugging it powercord into/from awall receptacle.
12. Do not use water that is hotter than 60°C (140°F).
13. To prevent damage to the solution system components do not store in freezing temperatures without proper
maintenance.
14. Do not allow to be used as a toy. Close attention is necessary when used near children.
15. Do not use with damaged cord or plug. If the machine is not working as it should, has been dropped, damaged,
left outdoors, or dropped into water, return it to a service center.
16. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
17. Do not handle the plug or machine with wet hands.
18. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and
anythingthat may reducethe airflow.
19. Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
20. Use extra care when cleaning on stairs.
3
SAVETHESEINSTRUCTIONS

4
PREPARATIONANDTRANSPORTATION
PRESTART-UPCHECKS
The SELF CONTAINED EXTRACTOR is very simple and easy to operate. Very little maintenance and service are
required to keep your machine in top operating condition.
Thefollowing procedures are recommended to maintain the high level of performance expected from your machine.
They are also intended to identify potential safety hazards and problems which could reduce the service life of the
machine.
READBEFORETRANSPORTINGOROPERATINGYOUR MACHINE:
1. Check power cord, plug and strain relief for worn or damaged insulation. Repair or replace if necessary.
2. Makesurethe drain valve is closed (T-Handlepushed down). If the valve isleftopen, thevacuum isdramatically
reducedand anyrecovered solution will drain out.
3. The knob for the spool valve is located on the lower back panel of the machine. During normal operation as a
self-contained extractor this knob is turned toward “machine” (horizontal position). It should be turned to the
“tool” position (vertical) when a wand or other tool is being used.1.
4. Lock the brush chassis in the up position for storage or transport. This is done by pulling up on the lift-handle
at the front of the machine, then resting the round lift stop behind the bracket.
5. Inspect the vacuum head andbrush by tilting themachine backwards, allowingit to balanceon the wheelsand
drainvalvespout.
a) Vacuum Head: Check for any damage. Burrs on the contact surface may snag carpet fibers. Gouges,
scratchesand chippedareas can reduce vacuum performance.
b) Brush: Inspect for damaged or missing bristles, replace if necessary.
Return the machine to the upright position.
6. Check the inlet strainer for damage or debris. It is located at the bottom of the fresh water tank. Holes in the
screencan allow contaminants to enter the pump resulting in costlyrepairs. Aclogged strainerwill reduce pump
performanceand maycause permanentdamage.
7. Removethe clear dome on top of therecovery tank.
a) Inspect for damage to the dome and gasket. Dirt or debris on the gasket or sealing surface of the tank
cancause avacuum leakand reducevacuum performance.
b) The intake filter screen at the vacuum hose connection shouldbe clean ofdebris and checkedperiodi-
cally for any damage, replace if necessary.
c) Ensure that the deflector shield and intake filter are in their proper positions to prevent recovered
waterfrom entering thevacuum motor(blower).
Return the cover to its original position with the front lip seated under the retaining bracket.
YOUR MACHINE IS NOW READY FOR OPERATION.
TRANSPORTING
TheSELFCONTAINED EXTRACTOR isequippedwith large diameter(10”)wheels forbalanceand easeoftransport-
ing. Itis designedto betilted backon the wheels and pushedor pulled. The brush chassis should be locked in the
up position any time the machine is in storage or being transported.
Thelarge diameter of the wheelspermits youto pull the machine upstairs in the same manner you woulduse a hand
truck. Never go up or down stairs with recovered water or solution in the tanks. Always empty the machine
completelybefore transporting up or down stairs or in a vehicle.
When empty, the machine may be laid down on the side for transporting without damaging any of its components.

OPERATINGPROCEDURES
5
The SELF CONTAINED EXTRACTOR is the most “user friendly” self-contained extractors available. The following
procedures are intended to describe and detail proper operation of your machine. Failure to follow these recom-
mendedprocedures can reduce the machine’s performance and may result in damage to the machine.
1. Vacuum the area to be cleaned. Your machine will do a more thorough job if the loose dirt and debris are
removedbefore theextraction processbegins.
2. Fill the fresh water tank (lower tank) with water and Heavy Duty Carpet Extraction chemical. Hot water is
recommended, but not required. Do not use water hotter than 60°C (140°F). Mix in chemicals according to the
chemicalmanufacturer’s recommendations.
3. Use ofan extensioncord isnot recommended. However,if one is necessary, use only a 14 gauge or largercord.
Smalleror inferior cords are dangerous and may cause damage to your machine.
4. After the machine is filled with solution, connect the power cord plug to a 115 volt grounded wall socket.
SeeGrounding Instructions.
5. Lower the floating brush chassis using the lift handlelocated inthe front of the machine. Lift the handleoff the
lift stop bracket and lower until the brush contacts the floor. Remember to always raise and lock the brush
chassis for storage and transport.
6. Turn the spool valve knob (located on the back of the machine) to the:
a) “Machine” (horizontal) position for routine carpet extraction as a self-contained unit, or
b) Turn it in the “Tool” (vertical) position when using a wand or tool.
7. The switch panel is located on top of the handle and contains the following:
a) Turn the vacuum switch on to start the vacuum motor.
b) Accessory only pump switch: Do not turn on the accessory pump switch unless the spool valve knob is
turned to the tool position.
8. Pull backward during operation. DO NOT ATTEMPT TO OPERATE IN A FORWARD DIRECTION. Position
yourself behind the machine, grasp the handle and gently lift up on the actuator bar. Lifting the actuator bar
activates the brush drive motor and the pump. Walk slowly backward to perform the cleaning process.
9. Release the actuator bar approximately 6 inches before completing each pass. The spray jets are located
behind the vacuum head making it necessary to pull the machine a few inches further to pick up the last amount of
solution dispensed onto the carpet.
10. Tilt the machine back on the rear wheels and walk forward to position the machine along side the previous
pass(slightly overlapping).
11. As dirty solution is recovered, some foaming may be noted. Excessive foaming can be counteracted with liquid
defoamer applied according to the chemical manufacturing directions. Do not allow foam to rise into or near the
dome. Use defoamer or empty and flush the recovery tank.
12. To drain the recovery tank, place an empty bucket under the drain valve located on back of the machine. To open
thedrain valvepull theT-Handle up. Closethe drainwhen thebucket isfull or the recovery tank is empty. Dispose of
therecoveredwater properly.
13. If streaking occurs after a period of operating time, this means the solution (fresh water) tank is near empty.
Streaking is eliminated by adding more water and chemical solution to the tank.
14. To drain the solution tank, attach the small drain or “pump out” hose to the accessory quick connect on the back
ofthemachine. Turn thespool valve knobto the “tool”position. Place the openend of thehose into abucket andturn
onthe accessory pump switch. When empty, turn offthe pump switch andremove the hose from thequick connect.
Also return the spool valve knob to the “machine” position.
15. After each use clean the dome, intake filter and gasket. Do not reinstall the dome until the next use, this will
allow the recovery tank to dry out.
16. Raise the brush chassis for storage.

6
SERVICING
The SELF CONTAINED EXTRACTOR is designed and manufactured to provide years of trouble free service with a
minimumofmaintenance and service. Thefollowingrecommendations are intendedtoassistthe operatorandService
Technician in performingroutine maintenance.
Failureto follow theserecommendations can resultin damage toyour machine anddiminished performance.
Warning: Always unplug your machine before performing any service. Severe personal injury could result
if the electrical power is not disconnected.
1. Always follow through with the recommended prestart-up checks found in the Preparation and Transportation
section of this manual.
2. Store your machine ina dry,protected areawith thebrush chassisraised andlocked inplace. Do notexpose this
machineto rain, standingwater or freezing temperatures.
3. We recommenda good,thorough cleaning after each use. Cleanthe dometop, intake filter screen andrecovery
tank with fresh, clean water. Flush the fresh water tank and strainer periodically with clean water.
4. After continuous or repeated use, the jet tips and strainer/check valves will need cleaning. Unplug the cord and
emptythe recovery and solution tanks. Tiltthe machine backwardallowing it to balance onthe wheels and drain
valve. Removethe jet caps shown in the brush chassisillustration and clean with whitevinegar and a soft bristle
brush. Removethe jettip andstrainer/check valve and soak it in vinegar until visible deposits aredissolved, then
scrub with a soft bristle brush.
Jet tips and strainer/check valves should be replaced once a year because they tend to erode under extended
use. This can cause overuse of solution and possible streaking.
AN AUTHORIZED SERVICE CENTER SHOULD PERFORM THE FOLLOWING PROCEDURES
1. Drive Belt Adjustment and/or Replacement: The cogged drive belt system rarely needs tightening, so if
it becomes loose from wear, it is time to replace it. Follow this procedure:
a) Removethe twoscrews that attach the hangerbracket to the brush shroud. Then remove thethru-bolt from
the brush chassis and lift handle. Remove the lift handle and lift stop.
b) Tiltthe machinebackward allowing itto balanceon the wheelsand drainvalve. The brush chassiswill remain
onthe floor exposingthe brush drive belt and motor.
c) Loosenthetwo motorbracketmounting bracketmounting bolts witha 7/16”wrench. DONOT REMOVE THE
BOLTS UNLESS YOUARE REPLACINGTHE MOTOR. Slide the motor away from the brush to tighten the
beltor towardthe brushfor removal.
Unlike a “V” type belt, the cogged belt is run with basically zero deflection. To test the belt tension, hold
the belt between your thumb and forefinger and twist to the side. It should turn approximately 90°with little
effort. If it twists more than 90°, retighten the belt.
2. PumpReplacement:
a) Remove the lift stophandle as described in the“Belt Drive” procedure (#1a).
b) Tilt the machine backwardas described inthe “Belt Drive” procedure (#1b)
c) Disconnect black wire (#2) and the white wire from the bridge rectifier (part #A130172). Also disconnect the
ground wire (this will need to be respliced and reconnected to the ground wire on the brush motor when
reassembling). Referencethe electrical schematic.
d) Remove the two hoses from the pump. It is now fully exposed for replacement.
e) When reassembling after any repairs, make certain that all wire connections are properly plugged in and
secure.
f) Make all solution hose connections secure.

7
3. VacuumBlowerReplacement:
a) Remove the dome topand carefully turnthe machine upside down.
b) Remove the two hex bolts at the base of the black panel on the back of machine.
c) Remove the wheels in order to get at the hex bolts in step (d). Shoulder bolts hold the wheels on.
d) Then remove the six hex head bolts on both sides of blower chassis.
e) Disconnect the two power leads and the ground wire coming through the back of the machine to the blower.
f) Tipthe blower and brush chassis away from the machine and carefully feed the vacuum hose down through
the back of the machine.
g) Then remove the three (3) bolts that hold the bracket for the blower. Remove the bracket.
h) Release the blower from the bracket by removing the three bolts which hold them together.
i) The blowercannow beremoved.
j) When reassembling after any repairs, make certain that all wire connections are properly plugged in and
secure.
k) Avoid abrasive contact with sharp edges on the metal parts as injury can result.
l) Make sure all vacuum hose connections are secure.

TANK & BLOWERASSEMBLY
8

5
TANK & BLOWERASSEMBLY PARTS LIST
9
ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY.
1 208662 Recovery Tank 1 39 980026 Washer #8 Int. Tooth 5
2 W191D1 Screw #10-24 x 3/4 RHP SS 2 40 W143D Nut: Hex #8-32 SS 4
3 217201 Dome Clasp 1 41 W317D Screw #4-40 x 1-1/4" PHP MS SS 2
4 W106D Nut #10-24 Hex SS 3 42 3703 Switch - Momentary 2
5 215005 Dome Assembly w/Gasket 1 43 W307D Washer #4 Ext Tooth 2
6 212704 Dome Assembly w/o Gasket 1 44 W385D Nut: #4-40 Hex w/Nyloc 2
7 213405 Dome Gasket 1 45 3675 Switch Plate 1
8 3685 Intake Filter (3732 Scr.; 3733 PVC) 1 46 980015 Washer #10 Ext Tooth 1
9 A12999 Lift Stop 1 47 3716 Sleeve: Wiring 6"
10 A12998 Lift Handle 1 48 3799 Actuator Bar 1
11 D161C Decal: Add Defoamer 1 49 3686 Switch Enclosure 1
12 3698 Cuff Hose 2 50 3710 Grommet 2
13 3694 Hose 1 1/2 " x 33" (part of 3691) 1 51 C12995 Chassis 1
14 3735 Cuff Hose 1 53 W169D Screw 1/4-20 x 1/2" HH CS SS 15
15 3695 Hose 1 1/2" x 62" 1 54 W104D Washer 1/4" Flat SS 9
16 S611A Hose Clamp 1 55 980005 Washer 1/2" Wave 2
17 S216P Hose Clamp 2 56 229750 Wheel 2
18 A13007 Adaptor 90° 1 57 509820 Washer: Fibre 2
19 A13122 Drain Hose 1 1/4" x 1.25' 1 58 960031 Shoulder Bolt 2
20 A13006 Adaptor: Reducing 1 59 A129671 Hinge 1
21 S102P Thru the Hull Fitting w/Gasket & Nut 1 60 W363D Pop Rivet 7
22 930008 Pop Rivet 5 61 C12996 Bracket: Blower Mounting 1
23 S400P6 0 Ring 1 62 W362D Bolt 1/4-20 x 4 1/2" HH 3
24 S400PB Drain Valve 1 63 603473 Gasket Blower (effective 11/00) 1
S400P2 Drain Valve Seal Kit 1 64 A13504 Blower 3-Stage 115V 1
S400P3 T-Handle 1 65 210901 Carbon Brush for A13504 Motor 2
25 S400PB4 Drain Elbow 2" 1 66 920004 Nut 1/4-20 Hex SS 7
26 W189D Screw 1/4-20 x 3/4 HH CS SS 10 67 W311D Washer 1/4" Fender 6
27 980002 Lockwasher Split 1/4" 24 68 213403 Gasket: Lift Bracket (S791N1) 1
28 W212D Washer 5/16" Fender Zinc 2 69 A13439 Bracket: Vac Head 1
29 208663 Main Body - Black 1 70 C13118 Shroud 1
30 3687 Back Plate 1 71 C13382 Head: Vacuum 1
31 3739 Snap Bushing 2 72 B13000 Lift Bar 2
32 D167C Decal: Warning Disconnect 1 73 B13126 Hanger Bracket 1
34 908104 Power Cord 50' 1 74 920011 Nut 1/4-20 Nyloc 3
35 A13020 Strain Relief 1 75 W340D Screw 1/4-20 x 3 3/4 HH SC 1
36 911089 Switch Rocker 2 77 980004 Washer 1/4" Flat 6
37 W136D1 Screw #8 x1/2" THP SMS B/O 6 78 S209P Hose: Exhaust 6" 1
38 W387D Screw #8-32 x 3/8 RHP M/S B/O 4 79 920616 Nut 1/2 NPT 1

10
PUMP& CHASSIS

11
PUMP& CHASSIS PARTS LIST
ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY.
1 S626P Strainer 1 27 211501 Jet Cap 4
2 W166D Brass: Jam Nut 5 28 W205D Screw #8-32 x 1" Nylon M/S 1
3 S372P Washer: Nylon 1 29 A13445 Rectifier 1
4 211310 90° Jet Body 3/8 2 30 920617 Nut #8-32 Hex Nylon 2
5 203308 Quick connect 1/4 Female 1 31 A13017 Motor: Brush Drive 115V 1
6 920620 Nut, .875 Stud 1 32 200870 Bracket: Brush Motor 1
7 3770 Elbow: Barb 1/8 to 3/8 2 33 W124D Washer: Lock #10 Int Tooth 2
8 202050 Clamp: Hose 14 34 W329D Nut #10-32 Hex 2
9 S250P Hose (Order 6") 2 35 3719 Cog: Drive Motor 1
10 3766 Tee: Barb 3/8 Nylon 1 36 3723 Belt: DriveBrush 1
11 A13151 Knob 1 37 7560 Brush Assembly 1
12 3824 Spool Valve w/Knob 1 38 962062 Screw #6 x 3/4" SMS 4
13 3771 Elbow: Barb 1/4 to 3/8 1 39 3718 Cog: Brush 1
14 S250P Hose (Order 36") 1 40 3677 Bearing: Rulon 1
15 S250P Hose (Order 36") 1 41 3722 Insert: Drive Brush 1
16 S250P Hose (Order 36") 1 42 3689 Brush 1
17 S250P Hose (Order 6") 3 43 3721 Insert: End Brush 1
18 3785V Pump: 100 PSI 115V 1 44 A13084 Bearing: Rulon 1
18A 204557 Pump Head Complete 1 45 A12954 Brush Shaft 1
18B 911112 Kit: Pump Switch 1 46 980612 Washer: Nylon 2
18C 3787 Kit: Check Valve 1 47 W353D Screw 1/4-20 FHP MS SS w/Nylon 2
18D 3786 Kit: Upper Housing 1 48 980032 Washer 1/4" FH Lock 2
19 3765 Elbow: Barb 3/8 2 49 213603 Splash Guard 1
20 W169D Screw 1/4-20 x1/2 HH MS 6 50 213602 Belt Guard 1
21 980002 Washer 1/4" Lock 6 51 W363D Pop Rivet 3
22 W104D Washer 1/4" Flat 6 52 W171D Screw 6-32 x 1/4 RHP MS 1
23 C12988 Chassis: Brush 1 53 218206 Spacer - Spray Jets 4
24 211309 Tee: Jet Body 3 54 F920W Pump Out Hose 1
25 S280P Strainer/Check Valve: Brass 4 55 S453P Clamp-Hose 2
26 S962P Jet Tip (8002) Note: 2 Outside Jet Tips 2 56 9600 Wiring Harness Assembly 1
26A A13013 Jet Tip (11002) Note: 2 Inside Jet Tips 2

WARRANTY POLICY
SELF-CONTAINED EXTRACTOR
The Pacific Self-Contained Extractor has been manufactured, tested and inspected in accordance with specific
engineeringrequirements andis WARRANTED tobe freefrom defectsin workmanshipand materials as follows:
Five (5) years parts, One (1) year labor – Polyethylene components.
One (1) year parts and labor – All other components unless excluded below.
Thiswarrantyextends tothe original user/purchaserand only whenused, operated andmaintained in accordance
withPacific Operating andMaintenance instructions.
This warranty does not apply to the following wear parts and accessories of the machine including:
Part Number Part Name
Nordoes itapply todamage orfailure causedby improperuse, abuse or neglect. Warranty credit or replacement
of return parts including motors, etc., is subject to incoming inspection of those items.
To secure repairunder this warranty, the followingprocedure shouldbe taken:
· Theinoperative machineor warrantedparts mustbe deliveredto theauthorized servicecenter with shipping
and delivery charges prepaid. If unable to locate a service center, you may contact Pacific at the address
listed herein for the location of the nearest repair center or agent or for other instructions pertaining to your
warrantydifficulty.
· Uponcompliancewiththeabovewarrantyprocedure, all warrantedrepairswouldbecompletedatnoadditional
charge or cost to the user.
· Only Pacific or its authorized dealers and agents may make no charge warranty repairs on this product. All
others do so at their own risk.
This warranty limits Pacific liability to the repair of the product and/or warranted parts replacement and does not
include incidental orconsequential damagesarising from theuse of a Pacific machinewhether defective or not.
This warranty is in lieu of all other expressed or implied warranties and is extended to the original purchaser/
user.
908052
209750
S962P
A13013
3723
3689
210901
3685V
S626P
S280P
F920W
CordAssembly
Wheel
JetTip
JetTip
Belt
Brush
CarbonBrush
IntakeFilter
Strainer
Strainer/Check Valve
PumpOut Hose
2259 South Sheridan Road
Muskegon, MI 49442
Phone: [phone] Fax: [phone]
www.pacificfloorcare.com [email protected]06/07 215601
