Pacific PQ6830AB User manual

Model Number:
PQ6830AB, PQ6830AW
PQ6836AB, PQ6836AW
Read all instructions before operating the range hood.
PACIFIC RANGE HOOD
OPERATING INSTRUCTION
Airfl ow Control Technol og y
TM
C
www.2pacific.com
XP022665(2)

Troubleshooting P20
Safety Information P1-P3

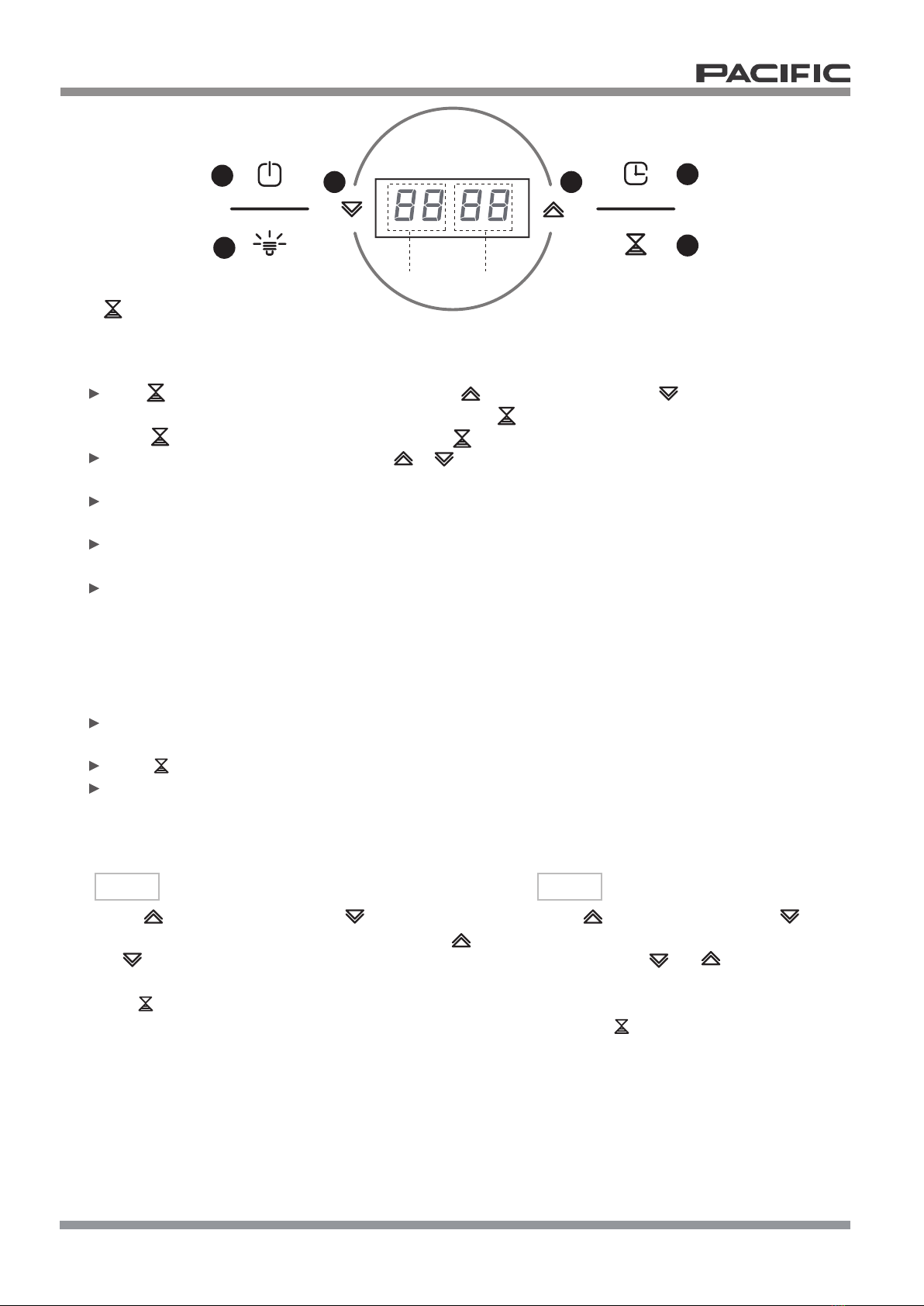

Operating Instructions
P12-P13
P16-P18

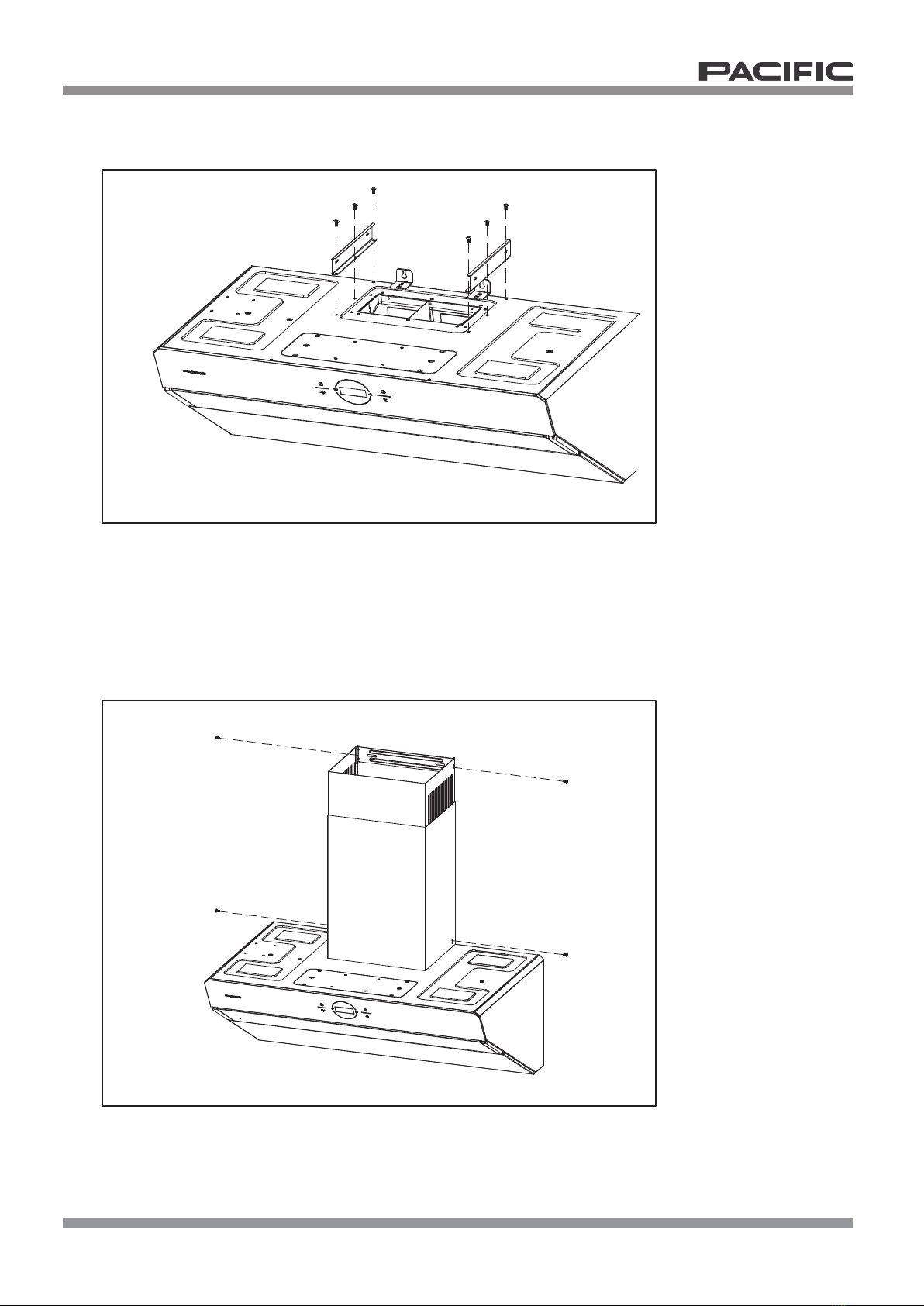

Installation Instructions – Optional Duct Cover P13-P15
Surface Maintenance P19
Table of Content
www.2pacific.com
Product Functions / Performance Specification Chart P4
Product Dimension P7
Circuit Diagram P6
Part Supplied P5
P9
P10-P11
List of Materials P8
Installation Procedures – Wall Mount
Installation Procedures – Under Cabinet
Installation Guidelines

1www.2pacific.com
Safety Information
Your safety and the safety of others are very important.
We have provided many important safety messages in this
manual for your appliance. Always read and obey all safety
messages.
This is the Safety Alert Symbol. This symbol alerts you to
potential hazards that can cause severe bodily injury or death.
All safety messages will follow the Safety Alert Symbol and either
the words “DANGER” “ WARNING” or “ CAUTION”
DANGER
Danger means that failure to heed this safety statement may
result in severe injury or death.
READ AND SAVE THESE INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the
b) Before servicing or cleaning unit, switch power o at service
manufacturer. If you have questions, contact the manufacturer.
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
General Safety
WARNING
Warning means that failure to heed this safety statement
may result in extensive product damage, serious personal
injury, or death.
CAUTION
Caution means that failure to heed this safety statement
may result in minor or moderate personal injury, property or
equipment damage.
WARNING
To reduce the risk of fire or electric shock, do not use this fan
with any solid-state control device.
WARNING
CAUTION
For General Ventilating Use Only. Do Not Use To Exhaust
Hazardous Or Explosive Materials And Vapors. Take care
when using cleaning agents or detergents. Suitable for use in
household cooking area.
WARNING
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE:
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or
when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe’).
c) Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for
the size of the surface element.

2www.2pacific.com
Safety Information
WARNING
READ AND SAVE THESE INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
BURNS. If the flames do not go out immediately, EVACUATE AND
aBased on “kitchen Firesafety Tips” published by NFPA.
metal tray, then turn o the burner. BE CAREFUL TOPREVENT
CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN – You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels – a
violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class ABC extinguisher, and you
already know how to operate it.
2) The fire is small and contained in the area where it
started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit
WARNING
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
CAUTION
To reduce risk of fire and to properly exhaust air outside, do
not vent exhaust air into spaces within walls, ceilings, attics,
crawl spaces, or garages.
WARNING
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes and
standards, including fire-rated construction.
exhausting of gases through the flue (chimney) of fuel burning
b) Sucient air is needed for proper combustion and
equipment to prevent back drafting. Follow the heating
equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association
(NFPA), and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and the local code
authorities.
c) When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.
e) If this unit is to be installed over a tub or shower, it must be
marked as appropriate for the application and be connected
to a GFCI (Ground Fault Circuit Interrupter) - protected branch
circuit.
WARNING
Prop. 65 Warning for California Residents: This product may
contain chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
FOLLOWINGa:

3www.2pacific.com
Safety Information
Operation
Always leave saf ety grilles and fil ters in place. Without these components, operating blowers could catch onto hair, fingers
and loose clothing.
The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,
maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to
negligence and the warranty of the unit automatically expires due to improper maintenance.
NOTE:Please check www.2pacic.com for revisions before doing any custom work.
Electrical Requirements
Important:
Observe all governing codes and ordinances.
It is the customer’s responsibility to be aware of these below:
To cont act a qualified electrical in staller.
To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest
edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local
codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground
path is adequate.
Do not ground to a gas pipe.
Check with a qualifi ed electrician if you are not sure the range hood is properly grounded.
Do not have a fuse in the neutral or ground circuit.
This appliance requires a 120V 60Hz electrical supply and connectedto an individual properly grounded branch circuit
protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to
Electrical Diagram on product.
A cable locking connect or (not supplied) mig dnaesahcrup,stnemeriuqerlacolhtiwkcehC.sedoclacolybderiuqereboslath
install appropriate connector if necessary.
* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
READ AND SAVE THESE INSTRUCTIONS
pacifichoods.com

Performance Specification Chart
Product Functions
4www.2pacific.com
Maximum Voltage
Color
Weights(Kg/Ibs)
Size
24.9/54.78
30”
27.2/59.84
36”
Led Lighting
Installation Type
Maximum consumption
power
Dimension(inch)
ACT™
Duct Size
PQ6830AB/AW PQ6836AB/AW
9W LED x 1
Under Cabinet/Wall-Mounted
1200 CFM
7”Round(Verntical)
120V-60Hz
4A / 340W
29-3/4” x 18-7/8" x 12-1/8" 35-7/16” x 18-7/8" x 12-1/8"
290/390 CFM
Black Glass + Stainless Steel
White Glass + Stainless Steel
Model
Maximum CFM
1. Memory function to remember the last used fan and light settings
2. 3-min and 5-min automatic delay o
3. Built-in timer
4. Built-in clock
5. Airow Control Technology (ACT™)

Parts Supplied
5www.2pacific.com
(1) 7” Collar
(1) Mounting Bracket
(1) Blower Housing
(2) Bae Filter
(1) Bottom Panel
(1) Glass Touch Control
(1) LEDStrip
(1) Oil Tray
(1) Hood Body

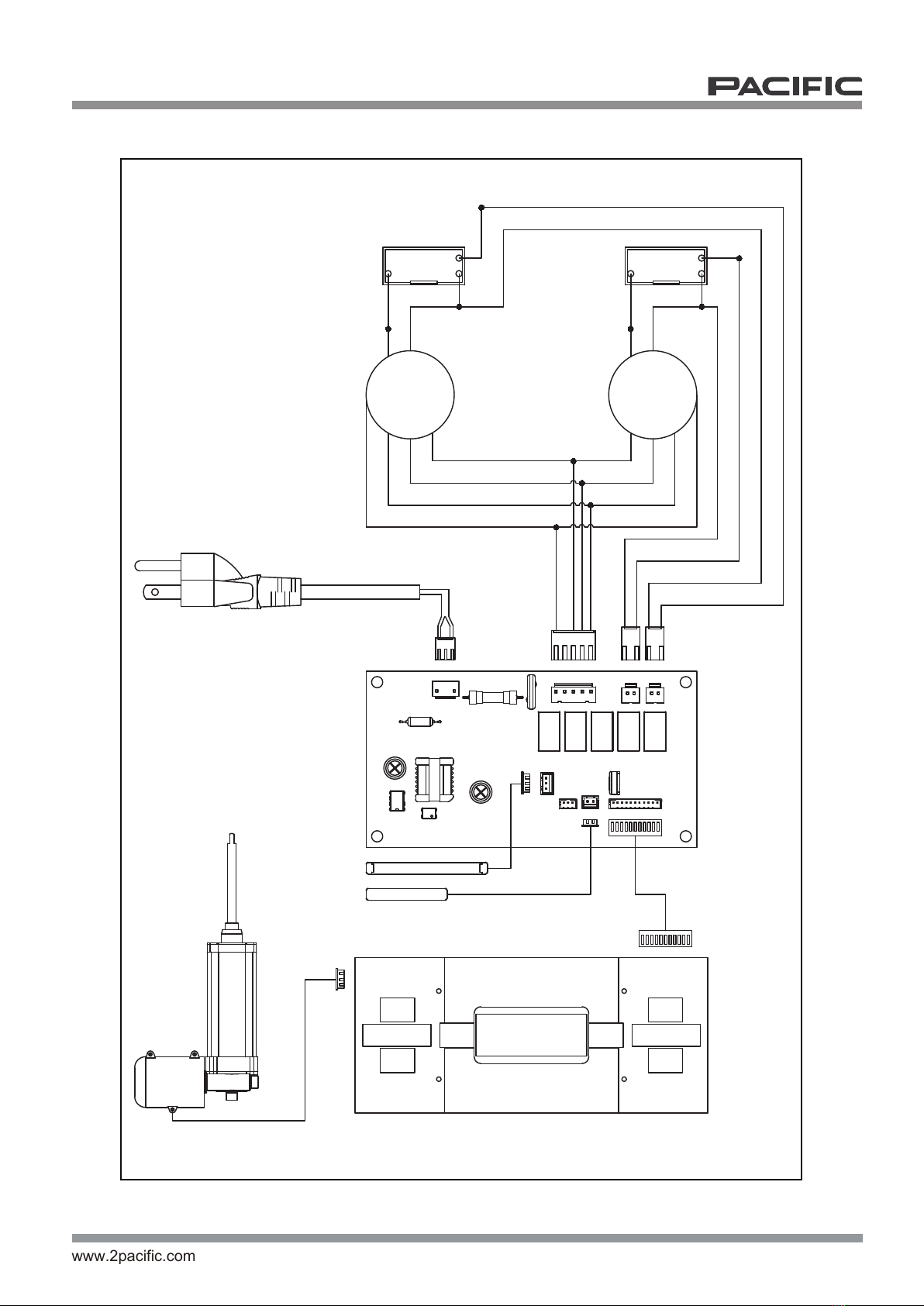

Circuit Diagram
6www.2pacific.com
MOTOR MOTOR
LED
LOGO LED
Blue Blue
Brown Brown
Black Black
White White
RedRed
RedRed
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow Yellow

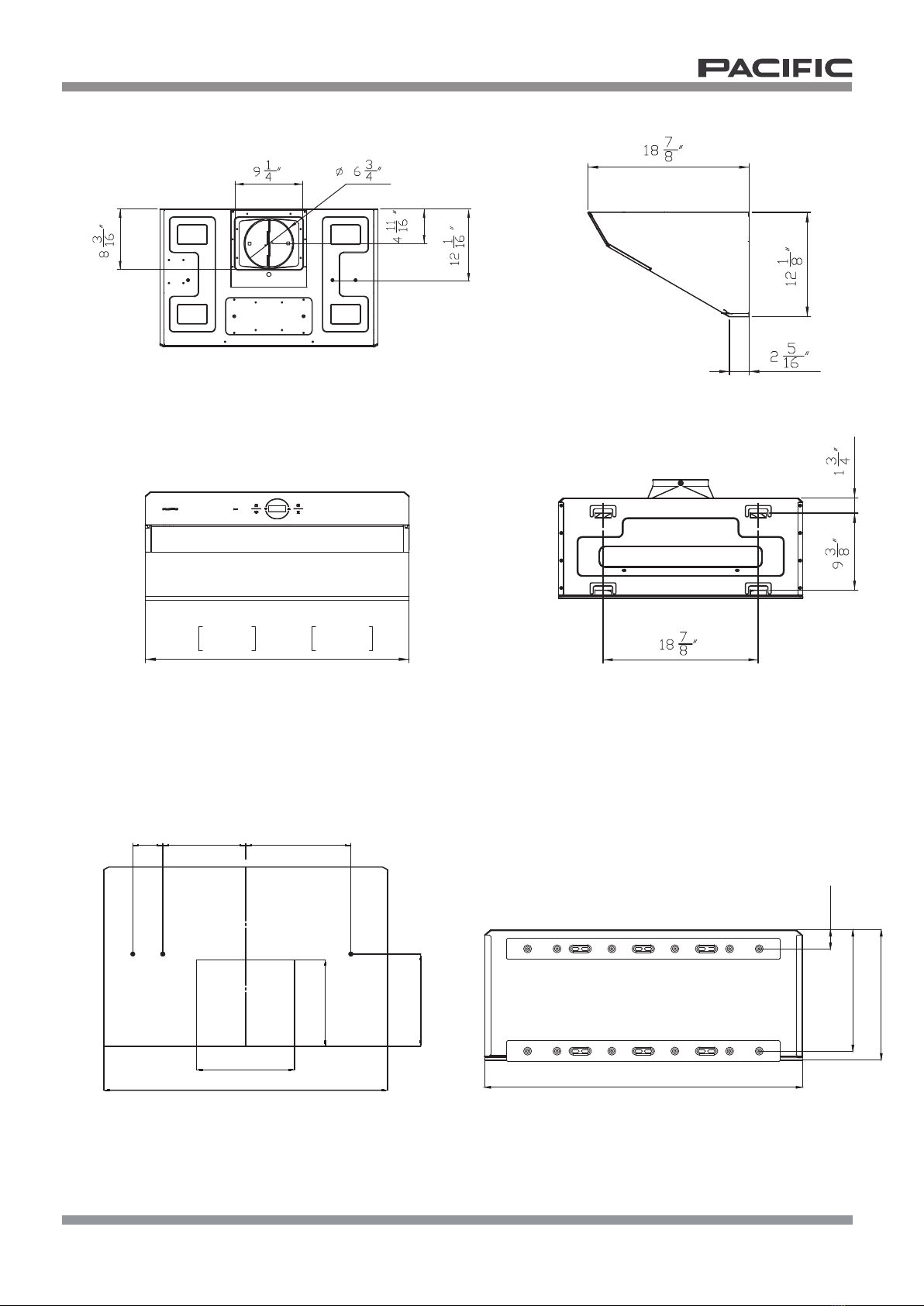

Dimensional Drawing
Cabinet Wall
7www.2pacific.com
Installation Specifications
Mounting Template
Top Side
Front Back
30”29-3/4''
3-1/8'' 8-11/16''
9-11/16''
9-1/16''
10-1/4''
29-3/4'' / 35-7/16'' 29-3/4'' / 35-7/16''
1-3/4''
11-5/16''
12-1/8''
11''
36”35-7/16''
/

List of Materials
User Manual
Oil Tray
Foam Strip
7 inch Collar
Hood 1
1
1
1
1
1
2
1
1
1
Cabinet Mounting
Template
Bracket Mounting
Template
STANDARD CONFGURATION
8www.2pacific.com
5x24x1T Washer
1-1/2 Wood Screw
M4x8 Round Head Screw
HARDWARE PACKET CONTENT
4
8
6
3
Bracket
Support Bracket
Hardware Packet
Part Supplied
3/16x2”
Duct Cover; Upper
Bracket, Wall
Bracket, Bottom
Duct Cover; Lower
1
1
1
2
1-1/2 Wood Screw
M4x8 Round Head Screw
2
4
6
M4x8 Black Screw
Flat Head Screw

(FIG.3)
15“ min.
20-1/2" max.

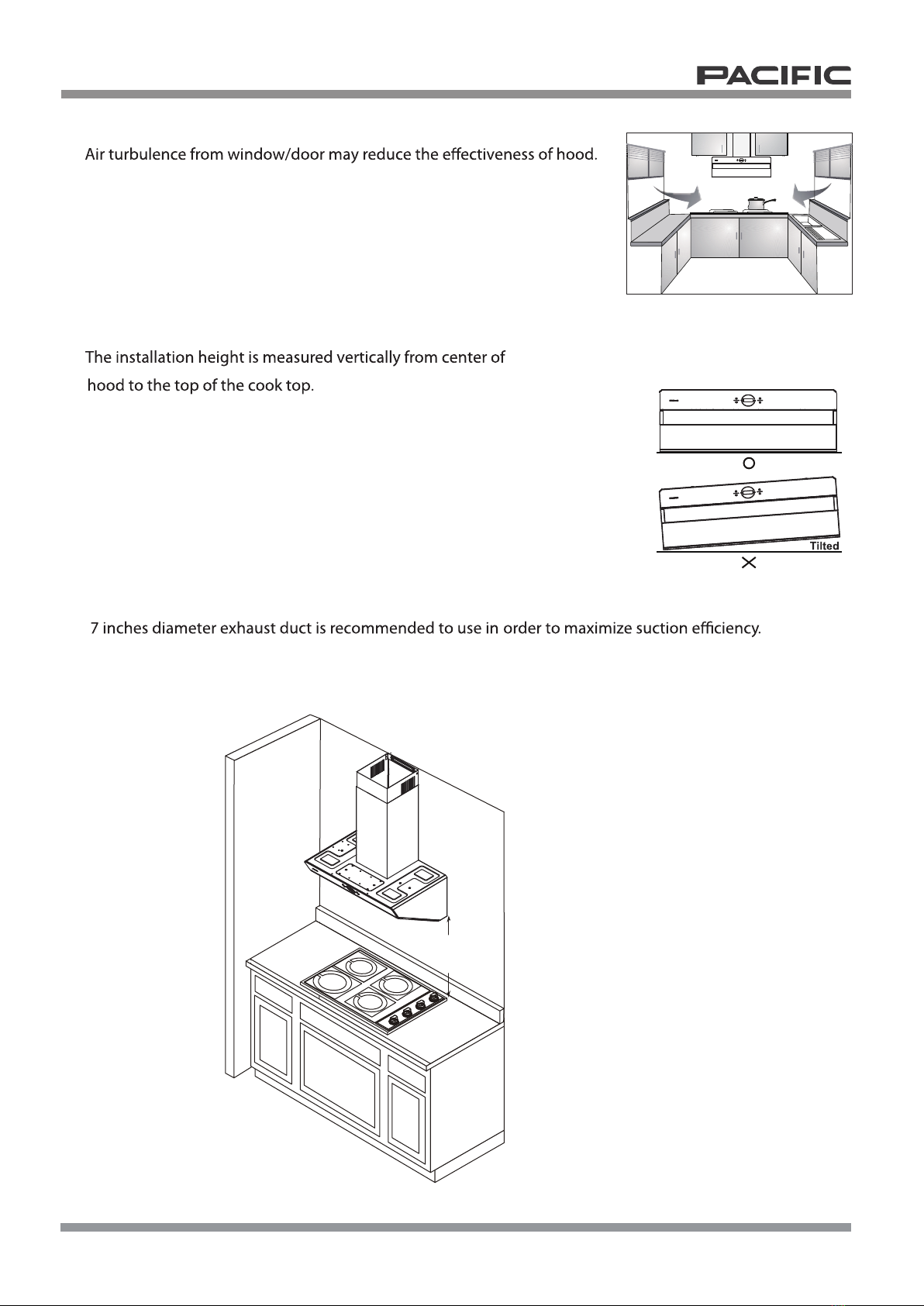

Installation Guidelines
9www.2pacific.com
•The minimum mount height is 15 inches from the bottom of the range hood
to the surface of the stove top, and the maximum is 20-1/2 inches.(FIG. 3)
Suggest to close windowdoor before using hood .(FIG. 1)
•
•
•
• Avoid left-right or front-dropped inclination.(FIG. 2)
•
•
Install the range hood and exhaust duct to the plastic collar and seal with metal tape.
6 inches diameter exhaust duct is available, but it might impact the suction eciency.
3.Exhaust duct
2.Mounting Height and Position
1.Location
(FIG.1)
(FIG.2)

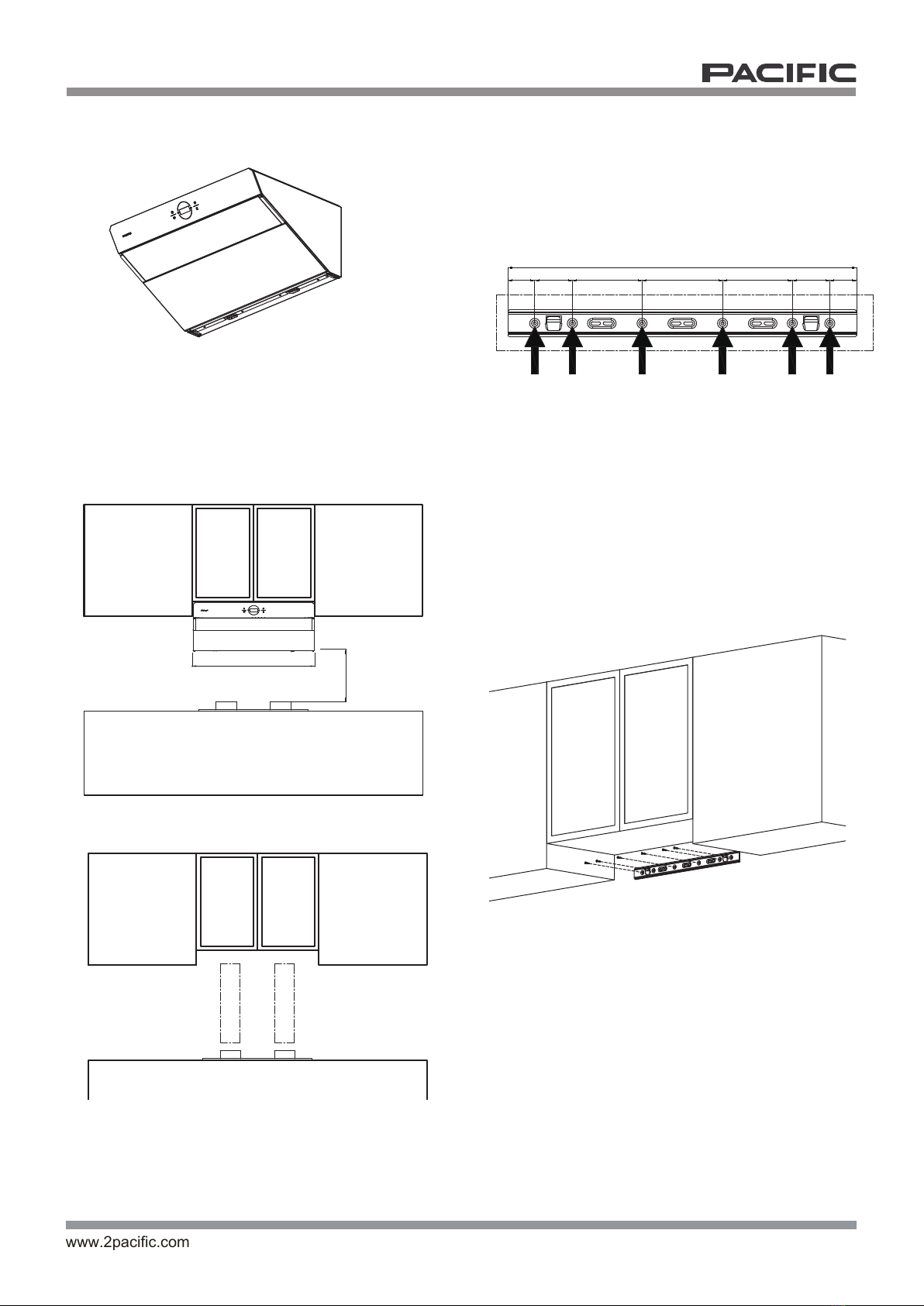

1. Take out the appliance from the box and check the
List of Material .
2. The ideal installation height is a distance of 15''
to 20-1/2'' (381mm to 520mm) from the bottom
of the range hood to the surface of the stove top.
30in product need installation width at least
29-15/16" (760mm)
36in product need installation width at least
35-5/8" (905mm)
5. Tear o the installation bracket mounting
template from the wall, place the main bracket on
the wall, adjust the level and use (6)1-1/2'' wood
screws to screw the installation bracket on the
wall.
15''
3. Locate the wooden beam and mark the location.
650
50 70 130 150 130 70 50
29-15/16'' 35-5/8''
Min (760mm) / (905mm)
Min(381mm)
4. Measure the Installation Bracket Location.
Take out the Installation Bracket and the Installation
Bracket Mounting template from the accessory pack,
stick the template on the wall, and then drill the holes
as indicated on the template.

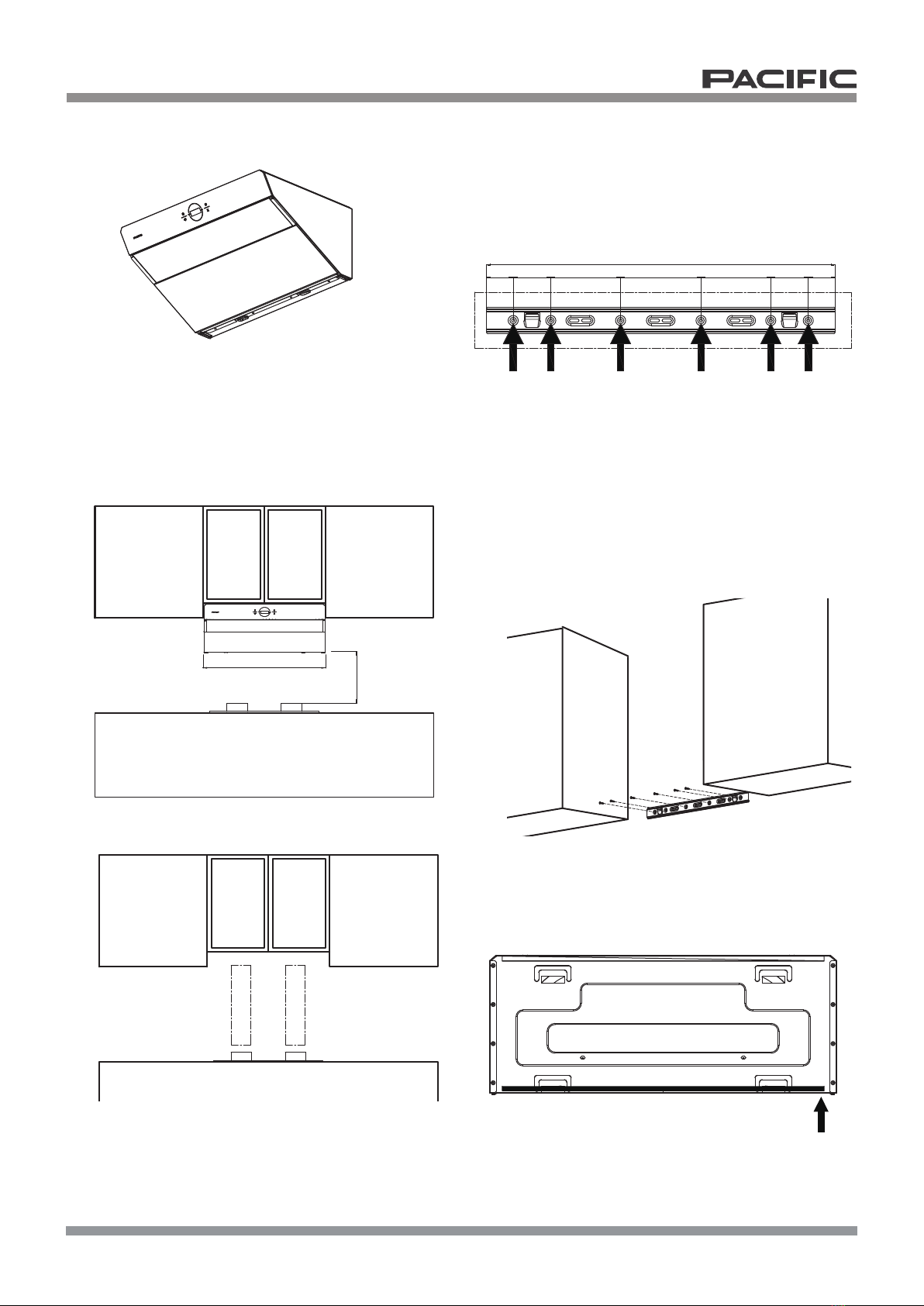

Installation Procedures – Under Cabinet
10www.2pacific.com

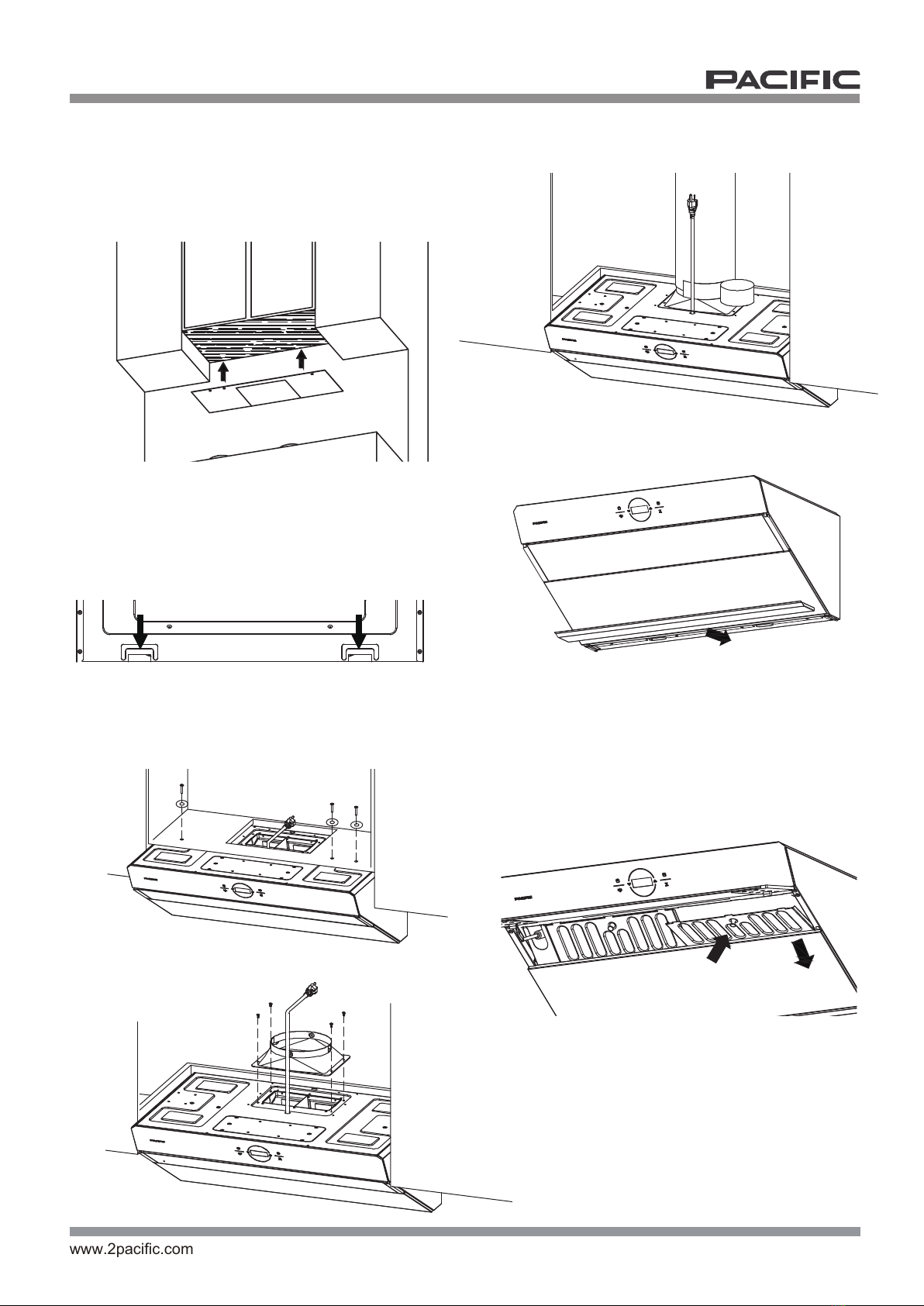

6. Place the cabinet installation template facing
down and stick the template on the bottom of
the upper cabinet, then open and drill holes
according to the template, after done those holes,
tear o the template from the cabinet.
7. Remove the protective lm from the range hood
surface.
9. Use one hand lightly push the appliance and x it on
the cabinet with (3) 3/16x2 Flat head screws and
(3) 5x24x1T Washer. (Two for right and one for left)
10. Use (4)M4x8 round head screws to screws the collar
on the top of hood.
11. Install duct work and seal with aluminum
duct tape.
12. Remove the protective lm from oil tray and
install it on the lower side of appliance.
14. Plug the appliance for a test run.
8. Use the two holes under backside to hang the
appliance on the installation bracket .
15. Turn on the light and you can open the
deector panel.
When the panel is open, please take down the
bae lters, and re-install the lters after remove
the protective lm from those lters.
Installation Procedures –Under Cabinet
11www.2pacific.com

1. Take out the appliance from the box and check the
List of Material .
2. The ideal installation height is a distance of 15''
to 20-1/2'' (381mm to 520mm) from the bottom
of the range hood to the surface of the stove top.
30in product need installation width at least
29-15/16" (760mm)
36in product need installation width at least
35-5/8" (905mm)
15''
3. Locate the wooden beam and mark the location.
29-15/16'' 35-5/8''
Min (760mm) / (905mm)
Min(381mm)
5. Tear o the installation bracket mounting template
from the wall, place the main bracket on the wall,
adjust the level and use (6)1-1/2'' wood screws to
screw the installation bracket on the wall.
Foam Strip
6. Take out the foam strip from the accessory bag, and
stick it on the appliance under back side.
Installation Procedures –Wall Mount
4. Measure the Installation Bracket Location.
Take out the Installation Bracket and the Installation
Bracket Mounting template from the accessory pack,
stick the template on the wall, and then drill the holes
as indicated on the template.
650
50 70 130 150 130 70 50
12www.2pacific.com

13www.2pacific.com
Installation Procedures –Wall Mount
10. Use (4)M4x8 round head screws to screws the
collar on the top of hood.
11. Install duct work and seal with aluminum
duct tape.
12. Remove the protective lm from oil tray and
install it on the lower side of appliance.
13. Plug the appliance for a test run.
14. Turn on the light and you can open the
deect panel.
When the panel is open, please take down the
bae lters, and re-install the lters after remove
the protective lm from those lters.
9. And use(2) 1-1/2" wood screws to screw the
appliance on the wall.
7. Use the two holes under backside to hang
the appliance on the installation template .
8. Fix the support brackets with (2) M4x8 round
head screws above the appliance .

Installation Instructions – Optional Duct Cover
14
www.2pacific.com
1. Center and attach duct cover bracket to wall below ceiling or sot using (2) 1-1/2” wood screws.
Optional Duct Cover 30"-36"
Model #: P1C-0068
Note: P1C-0068 is not supplied in the package, To order it, please visit us online at www.2pacic.com
or call 888-833-8833.
P1C-0068 Duct cover
Min.
Max.
www.pacifichoods.com
718-633-3688

Installation Instructions – Optional Duct Cover
15
www.2pacific.com
2. Attach the bottom bracket to the top of hood by securing the (6) M4x8 black screws for each side.
4. Then extend inner (top) duct cover upwards and secure to duct cover bracket using
(2) M4x8 round head screws.
3. Remove the protective lm from the duct cover surface.

3 3
1
5
4
2
Show the
Speeds & Timer
Hour Minute

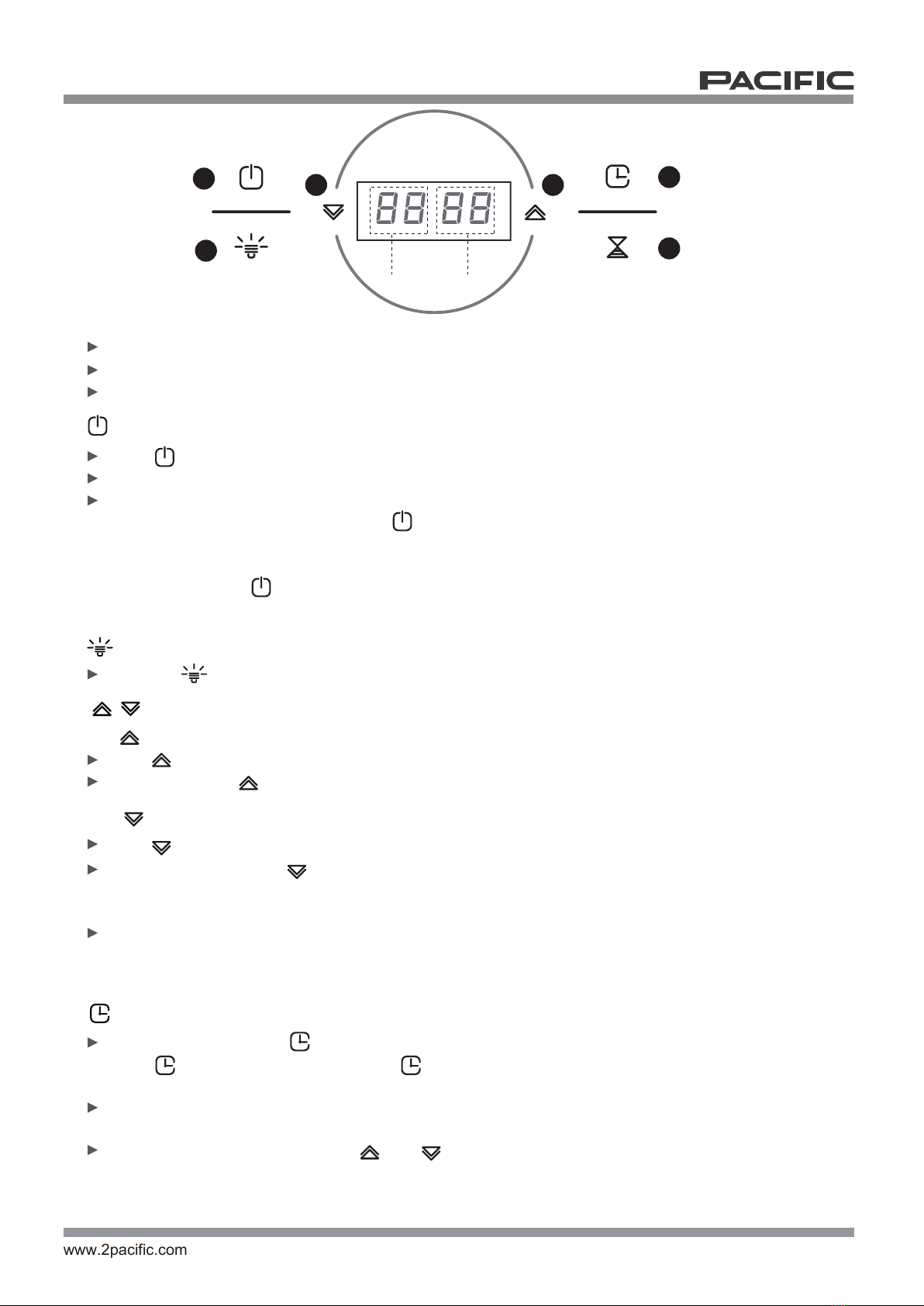

Operating Instructions
16www.2pacific.com
When approaching the hood while it is powered off, the clock will illuminate.
If neither the fan nor lights are turned on within 60 seconds, the clock will turn off.
The icons will not disappear until the fan and lights are turned off.
Press to power on or o the fan, lights and deect panel.
The hood has a memory function to remember the last used settings for the fan and lights.
Lock Screen :
While the fan is o, press and hold the for 3 seconds, and all the icon will be dim, the dimming icon
means the control is lock.
The purpose of this function is to clean the control easily.
Press and hold the for another 3 seconds until the icon turn lighter indicates that the lock function is
on unlock the screen.
Press the to change lighting level from 2, 1, o.
Press to increase fan speed from o, 1, 2, 3, 4 .
If hood is O and is pressed, fan will turn on Speed 1.
Press to decrease fan speed from 4, 3, 2, 1, o.
If fan is on Speed 1 and is pressed, fan will power O.
When ACT is enabled, the fan speeds will be reduced as follows:
(1)390 CFM
(2)290 CFM
While the fan is on, press to enable the delay o timer, it provides the options for either 3 or 5 minutes,
press one time for 5 minutes, press again for 3 minutes, the delay o timer will automatically
operate after 3 seconds when the timer is selected.
The fan will change to speed 1, and the timer will begin counting down from 3 or 5 minutes. After the timer
reaches 00:00, the fan and lights will power o.
When delay o timer is operating, and are available.
PROXIMITY SENSOR
On/O1.
2. Light
Fan down
4. Delay o
3. Speed Selection Button
Fan up
ACT Enabled Speed Selections

3 3
1
5
4
2
Show the
Speeds & Timer
Hour Minute
Press one time to enable alarm function. Press to increase minutes and to decrease
minutes. After completed the setting of minutes, press second time to set the “hours”. And
press again to start the alarm function. Press to stop the alarm function.
Under the setting mode, press and hold or for 2 seconds, the timer will quickly increase or
decrease numbers.
If no button is touched for more than 6 seconds, while the hood is in alarm setting mode, the
hood will exit the setting mode without saving the changes.
The default time is 00:00(HH:MM), and the adjustment scope is 99:59(HH:MM). The second time
usage will follow the last memorized time.
When time is up, the display will illuminates “00:00” with beep sound. Press any button to stop
the beep sound, the display of “00:00” will be disappeared, and then resume the original
operating status. Or press the On/O button to turn o the fan and lights.
Alarm
Operating Instructions
17www.2pacific.com
Timer5.
Clock settings
The display time on the screen is 12-hour clock. At the rst time delivery power it automatically display
12:00.
Press for 3 seconds to enable the clock setting.
If no buttons is touched for more than 6 seconds, while the
hood is in alarm setting mode, the hood will exit the setting mode without saving the changes. When
setting the clock , the alarm function will stop forcibly.
Minute Hour
Press to increase minutes and to decrease
minutes. Under the setting mode, press and hold
or for 2 seconds, the timer will quickly increase
or decrease, the numbers are cyclically from 0 to 59.
Press second time to set the “hours”
Press to increase minutes and to
decrease minutes. Under the setting mode,
press and hold or for 2 seconds,
the timer will quickly increase or decrease, the
numbers are cyclically from 0 to 99.
And press to conrm.

3 3
1
5
4
2
Show the
Speeds & Timer
Hour Minute
18www.2pacific.com
Airow Control Technology (ACT™)
Operating Instructions
Some local codes limit the maximum amount of CFM a range hood can move. ACT™ allows you to control the
maximum blower CFM of select Pacic range hoods without the need for expensive make up air kits.
ACT™ enables the installer to easily set the maximum blower speed to one of three most commonly specied
CFM levels; 390, or 290 CFM. The usage of ACT™ may not be necessary for your installation. Please check your
local codes for CFM restrictions
With the hood o, press and hold the and simultaneously for 3 seconds, fan speed indicators illuminate
for 3 seconds to show current setting. Under the ACT verication mode, press to enable setting mode. If no
button is touched for more than 6 seconds, while the hood is in alarm setting mode, the hood will exit the
setting mode without saving the changes.
Enabling ACT™
When the screen display 6, it is the factory setting.
Set the maximum CFM to 390CFM: press until display
4 on screen.
Set the maximum CFM to 290CFM: press until display
3 on screen.
