Pacific SC8230S User manual

XP022441(1)
Read all instructions before operating the range hood.
XP022441(1)
(使用前，請先詳細閱讀此說明書)
抽油煙機
使用說明書
抽油煙機
使用說明書
Model number: SC8230S /SC8236S /SC8230W /SC8236W
SC8130S /SC8136S /SC8130W/SC8136W
SC8830BS /SC8836BS /SC8830BW/SC8836BW
Serial Number:
182766
R
抽油機型號: SC8230S /SC8236S /SC8230W/SC8236W
SC8130S /SC8136S /SC8130W /SC8136W
SC8830BS /SC8836BS /SC8830BW/SC8836BW
序 號:
182766
R

IMPORTANT SAFETY NOTICE
READ AND SAVE THESE INSTRUCTIONS
a) Use this unit only in the manner intended by the manufacturer, if you have questions,
contact the manufacturer.
b) Before servicing or cleaning unit, switch power off at service panel and lock the service
disconnecting means to prevent power from being switched on accidentally. When the
service disconnecting means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
a) Never leave surface units unattended at high settings. Boil overs cause smoking and
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b)Always turn hood ON when cooking at high heat or when flaming food.(i.e.Cherries
Jubilee, Peppercom Beef Flambe’).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.
e) Keep fan, fillters and grease laden surfaces clean.
f ) Use high setting on hood only when necessary.
g) Don’t leave hood unattended when cooking.
h)Always use cookware and utensils appropriate for the type of and amount of food being prepared.
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN – You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion
will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class ABC extinguisher, and you already know how to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit
WARNING
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
WARNING -
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
WARNING -
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP
FIRE, OBSERVE THE FOLLOWING:
WARNING -
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
CAUTION
For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive
Materials And Vapors.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH
ANY SOLID-STATE CONTROL DEVICE.

IMPORTANT SAFETY NOTICE
a) Installation work and electrical wiring must be done by qualified person(s) in accordance
with all applicable codes and standards. Including fire-rated construction.
b) Sufficient air is needed for power combustion and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent back-drafting. Follow the heating equipment
manufacturer’s guideline and safety standards such as those published by the National Fire
Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE) and the local code authorities.
c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities.
d) Ducted fans must always vent to the outdoors.
e) NEVER place a switch where it can be reached from a tub or shower.
f ) Make sure the power is off before installing, wiring or maintenancing.
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
ELECTRICAL REQUIREMENTS
Important: Observe all governing codes and ordinances.
OPERATION
Always leave safety grilles and filters in place. Without these components, operating blowers
could catch onto hair, fingers and loose clothing.
The manufacturer declines all responsibility in the event of failure to observe the instructions given
here for installation, maintenance and suitable use of the product. The manufacturer further
declines all responsibility for injury due to negligence and the warranty of the unit automatically
expires due to improper maintenance.
CAUTION
To reduce risk of fire and to properly exhaust air outside - Do not vent exhaust air into spaces
within walls, ceilings, attics, crawl spaces or garages.
It is the customer’s responsibility:
- To contact a qualified electrical installer.
- To assure that the electrical installation is adequate and in conformance with National Electrical
Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code,
Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualified
electrician determine that the ground path is adequate.
*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
This appliance requires a 120V 60Hz electrical supply and connected to an individual properly
grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse.
Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product.
A cable locking connector (not supplied) might also be required by local codes.
Check with local requirements, purchase and install appropriate connector if necessary.
Do not have a fuse in the neutral or ground circuit.
Check with a qualified electrician if you are not sure the range hood is properly grounded.
Do not ground to a gas pipe.

Table of Content
I. Product Functions/Performance Specification Chart .......... 1
II. Parts Supplied - SC8130S/W,SC8136S/W ............................ 2
Parts Supplied - SC82xxS/W & SC88xxBS/BW ........................ 3
III. Installation Guidelines ................................................ 4

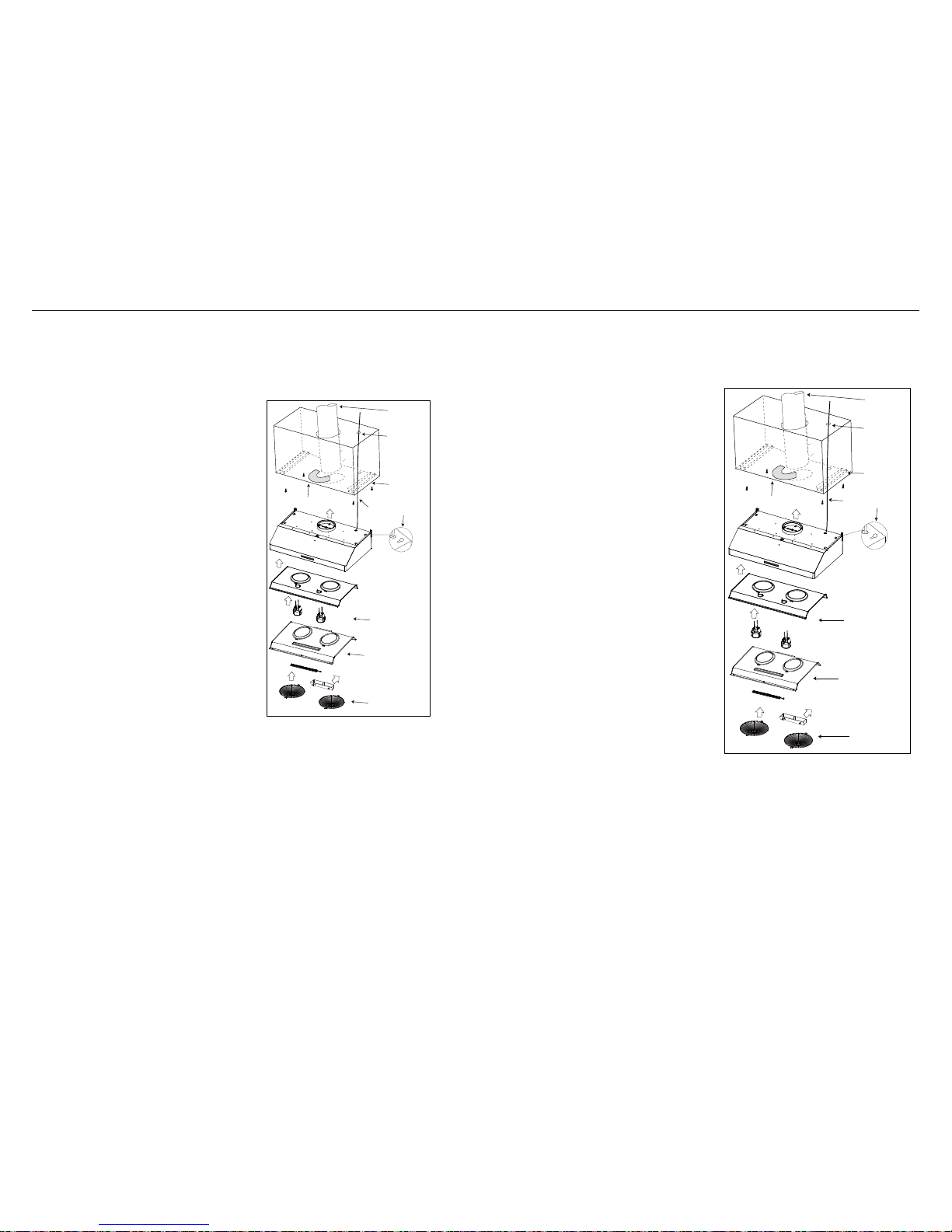

IV. Installation Procedures - SC8130S/W,SC8136S/W ................... 5
Installation Procedures - SC82xxS/W & SC88xxBS/BW ............... 6
V. Venting Instruction .................................................... 7

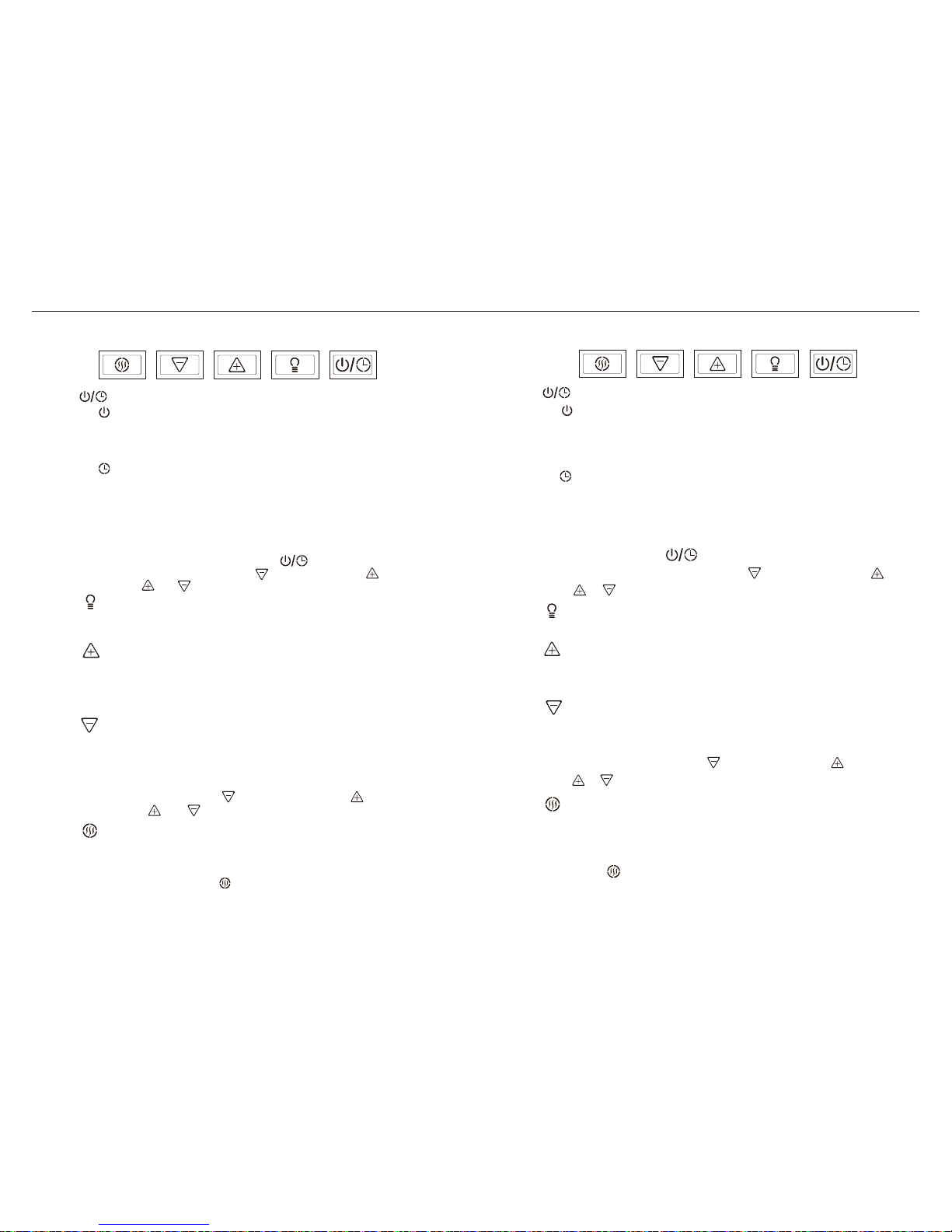

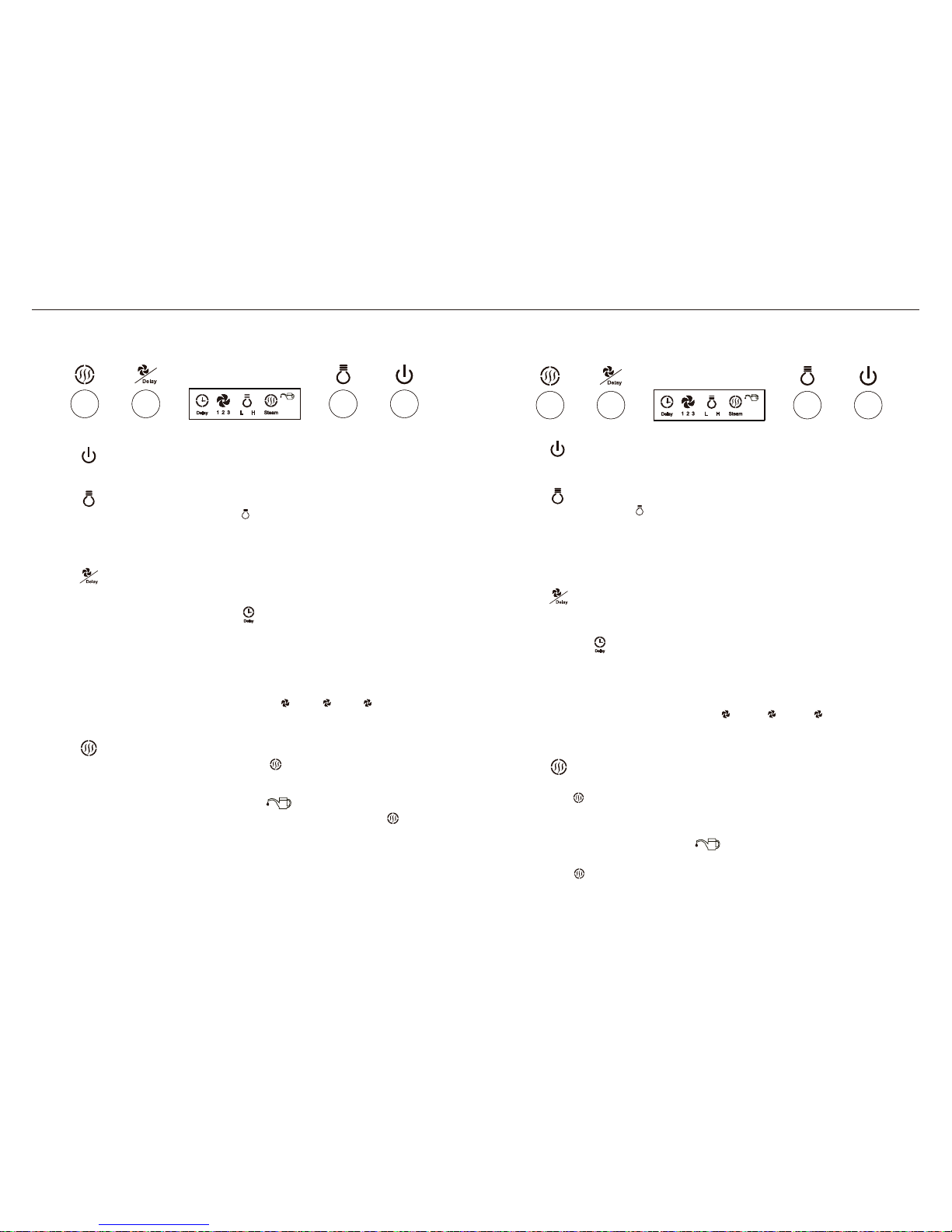

VI. Operating Instructions - SC8130S/W,SC8136S/W .................... 8
Operating Instructions - SC8230S/W,SC8236S/W .................... 9
Operating Instructions - SC8830BS/BW,SC8836BS/BW ............. 1 0

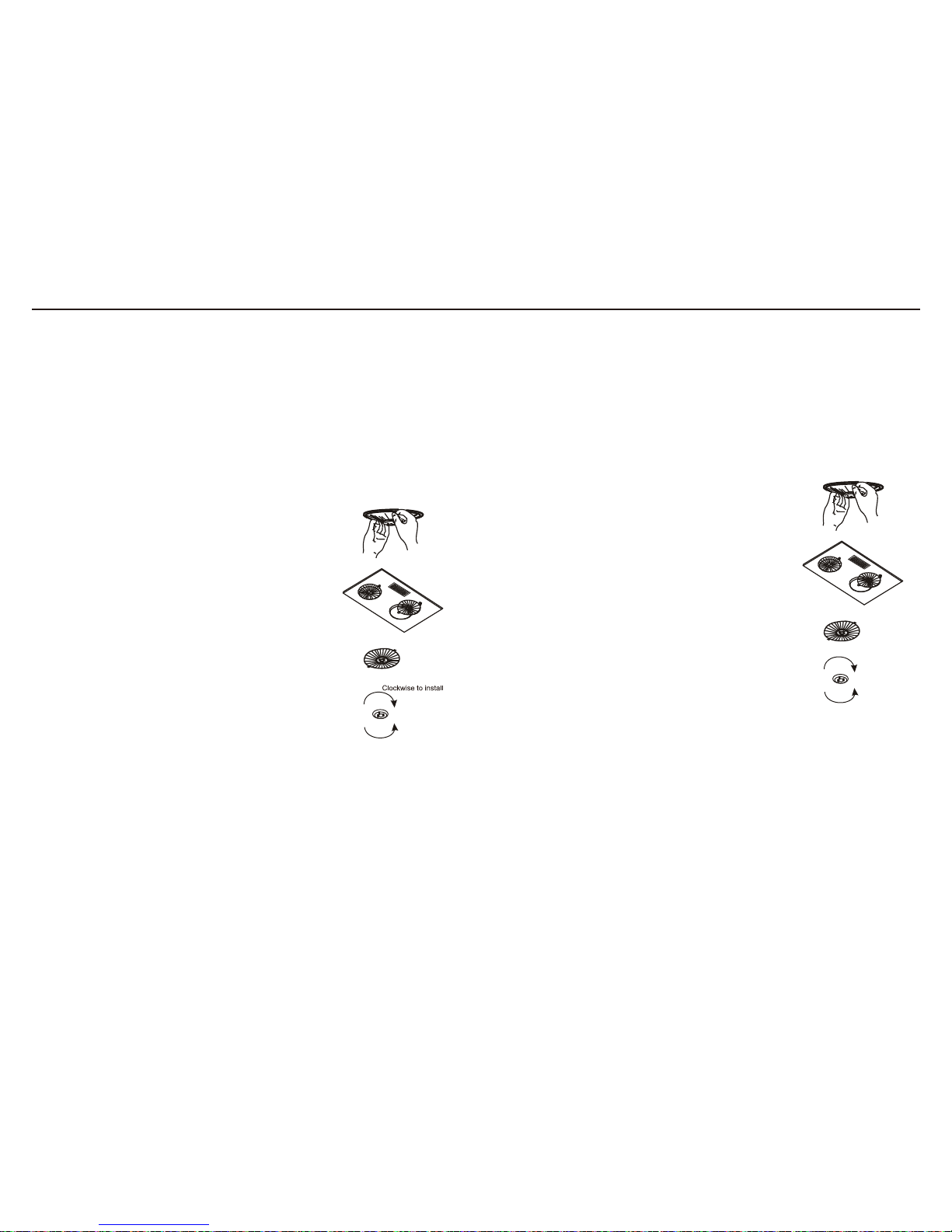

VII. Replacing Light Bulb .................................................. 11
VIII. Surface Maintenance ................................................. 12
IX. Remarks ................................................................. 1 3
X . Troubleshooting ....................................................... 14
目錄
一.功能簡介/性能規格表 .............................. 1
二.配件說明-SC8130S/W,SC8136S/W ................... 2
配件說明-SC82xxS/W & SC88xxBS/BW ............... 3
三.安裝原則 ............................................... 4
四.安裝步驟-SC8130S/W,SC8136S/W ................... 5
安裝步驟-SC82xxS/W & SC88xxBS/BW ............... 6
五.安裝排風管 ............................................ 7
六.按鍵說明-SC8130S/W,SC8136S/W ................... 8
按鍵說明-SC8230S/W,SC8236S/W ................... 9
按鍵說明-SC8830BS/BW,SC8836BS/BW ........... 10
七.移除燈泡 ............................................... 11
八.機身表面保養和清潔 .................................. 1 2
九.注意事項 ................................................ 1 3
十.排除故障 ............................................... 14

一.功能簡介/性能規格表
SC8236S(W) / SC8836 BS(BW)
42.11磅
120V – 60Hz
7吋
36”X23”X8”
SC8230S(W) / SC8830
BS(BW)
38.14磅
120V – 60Hz
7吋
10A/1200W 10A/1200W
10A/1200W 10A/1200W
LED燈條 8Wx1(SC88)
鹵素燈 50Wx2(SC82)
LED燈條 8Wx1(SC88)
鹵素燈 50Wx2(SC82)
30”X23”X8”
1.不停電狀況下，操作風速可記憶󲛐
2.風速選擇
3.可以控制照明燈的開/關，具亮、暗二段調整
4.具有延遲功能
5.蒸氣清洗(蒸氣洗淨功能)
6.指示燈顯示(SC88/SC82)/LED藍光背光顯示(SC81):風速、清洗、延遲關機
按鍵功能:開/關、風速增減、光源、延遲關機、蒸氣清洗
A.產品功能
B.規格表
重 量(英磅)
型 號
尺 寸(英吋)
最大伏特數
風管直徑
燈 泡
最大消耗功率
I. Product Functions/Performance Specification Chart
A. Product Functions
1. The hood has built-in memory function,It will remember the last speed
and light level it was last turned off at .
2. Multiple Fan Speed Levels.
3. 2 light levels.
4. Delay off function.
5. Steam clean function.
6. Switch Panel indicates: fan speed, clean, delay off, and light level.
Button Function: power, fan speed light level, delay off and steam clean.
B. Specification Chart
Weight(Pound)
Models
Measurement(inches)
Maximum Voltage
Exhaust Pipe Diameter
Light
Maximum consumption
power
120V – 60Hz
7 inches
LED light 8Wx1(SC88)
Halogen light 50Wx2(SC82)
LED light 8Wx1(SC88)
Halogen light 50Wx2(SC82)
120V – 60Hz
7 inches
30”X23”X8” 36”X23”X8”
SC8236S(W) / SC8836
BS(BW)
42.11 lbs
SC8230S(W) / SC8830 BS(BW)
38.14 lbs
SC8136S(W)
36.86 磅
120V – 60Hz
7吋
36"X22-1/16"X7-1/16"
SC8130S(W)
33.66 磅
120V – 60Hz
7吋
10A/1200W 10A/1200W
鹵素燈 35Wx2 鹵素燈 35Wx2
30"X22-1/16"X7-1/16"
重 量(英磅)
型 號
尺 寸(英吋)
最大伏特數
風管直徑
燈 泡
最大消耗功率 10A/1200W 10A/1200W
Weight(Pound)
Models
Measurement(inches)
Maximum Voltage
Exhaust Pipe Diameter
Light
Maximum consumption
power
120V – 60Hz
7 inches
Halogen light 35Wx2 Halogen light 35Wx2
120V – 60Hz
7 inches
SC8136S(W)
36.86 lbs
SC8130S(W)
33.66 lbs
36"X22-1/16"X7-1/16"30"X22-1/16"X7-1/16"
1. 1.

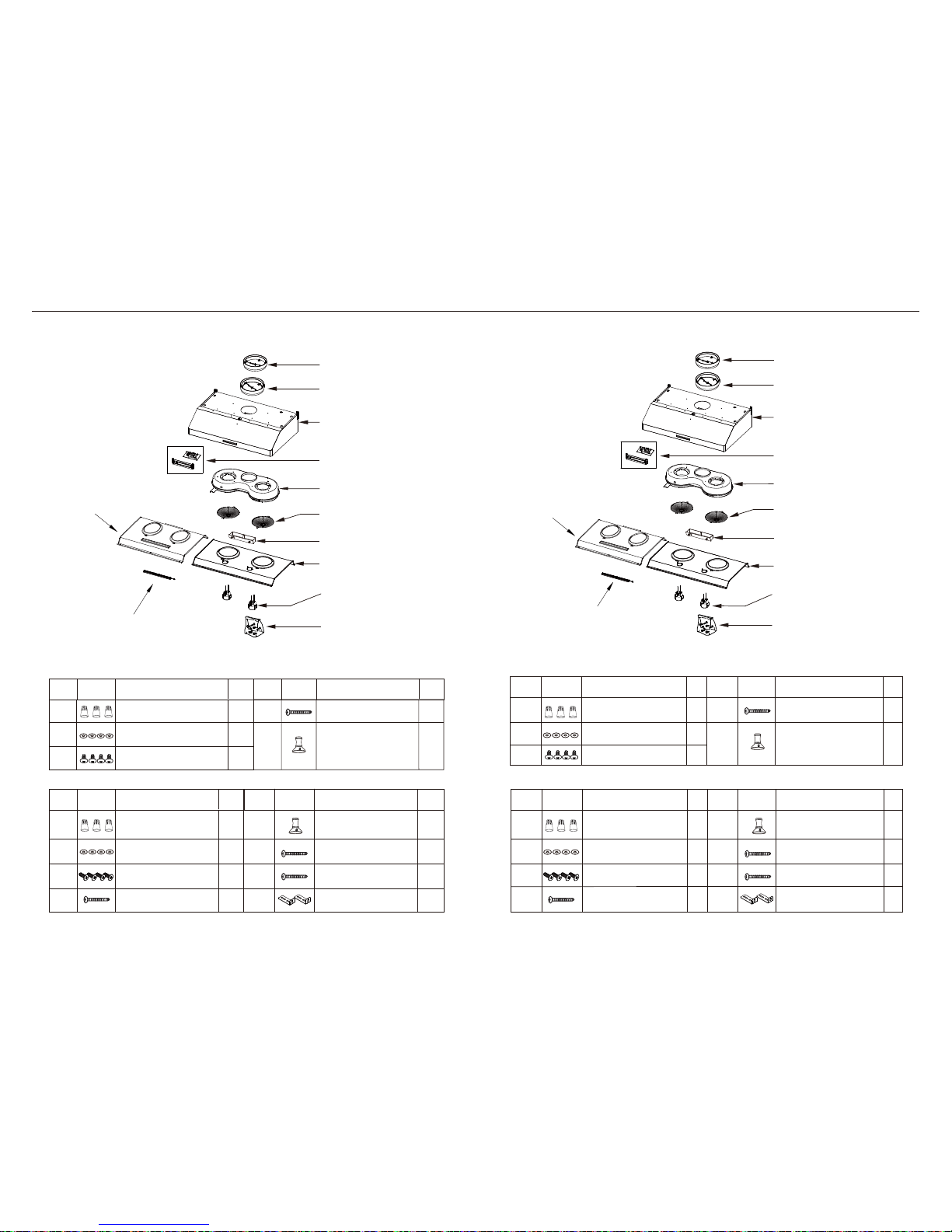

二.配件說明- SC8130S/W & SC8136S/W
2. 2.
II. Parts Supplied - SC8130S/W & SC8136S/W
DESCRIPTION Q’ty Q’ty
Q’ty
Q’ty
HARDWARE PACKAGE CONTENTS (For Canada)
TYPE
Wire Nuts
5 x 24m/m
Washers
M6 x 1-1/2” Wood Screws
3
4
A
B
Halogen Light Suction Cup
DESCRIPTION
HARDWARE PACKAGE CONTENTS (For USA)
TYPE
Wire Nuts
5 x 24m/m
Washers
M6 x 1-1/2” Wood Screws
3/16 x 1/2
Screws
3
4
4
4
A
C
B
D
M6 x 1” Wood Screws
M6 x 2” Wood Screws
Wall Brackets
4
1
2
2
F
E
H
G
Halogen Light Suction Cup
DESCRIPTION
TYPE
1
4
D
C
DESCRIPTION
TYPE
種 類 數量
序號 圖示
P3螺母
5 x 24m/m 華司
M6 x 1-1/2吋木螺絲
鹵素燈拆裝吸盤
螺絲包配件(美國地區):
3
4
4
4
A
C
B
D
4
1
2
2
F
E
H
G
種 類 數量
序號 圖示
3/16 x 1/2 平頭田丸
十字螺絲 M6 x 1吋木螺絲
M6 x 2吋木螺絲
吊掛組
種 類 數量
螺絲包配件(加拿大地區):
序號 圖示
P3螺母
5 x 24m/m 華司
3
4
A
B
種 類 數量
序號 圖示
M6 x 1-1/2吋木螺絲 4
1
C
D
鹵素燈拆裝吸盤
(1) 7” Collar
(1) 7” to 6” Collar
(1) Blower Housing
(2) Safety Grilles
(2) Grease Cups
(1) Bottom Panel
(1) Hardware Packet
(2) Halogen Lights
(1) Shell
(1) Switch
(1) 7吋風管圈
(1) 7轉6吋風管圈
(1) 風胃
(2) 保護網
(2) 油杯
(1) 煙罩
(1) 螺絲包
(2) 鹵素燈
(1) 機箱
(1) 開關組

Q’ty
Q’ty Q’ty
Q’ty
二.配件說明-SC8230S/W, SC8236S/W,SC8830BS/BW, SC8836BS/BW
II. Parts Supplied - SC8230S/W, SC8236S/W,SC8830BS/BW, SC8836BS/BW
(1) 7” Collar
(1) 7” to 6” Collar
(1) Shell
(1) Switch
(1) Blower Housing
(2) Safety Grilles
(1) Grease Cup
(1) Bottom Panel
- SC8230S(W) / SC8236S(W)
(1) LED Light Strip
- SC8830BS(BW) / SC8836BS(BW)
(1) Hardware Packet
(2) Halogen Lights
- SC8230S(W) / SC8236S(W)
3. 3.
DESCRIPTION
HARDWARE PACKAGE CONTENTS (For Canada)
TYPE
Wire Nuts
5 x 24m/m
Washers
M6 x 1-1/2” Wood Screws
3
4
A
B
Halogen Light Suction Cup
SC8230S(W) / SC8236S(W)
DESCRIPTION
HARDWARE PACKAGE CONTENTS (For USA)
TYPE
Wire Nuts
5 x 24m/m
Washers
M6 x 1-1/2” Wood Screws
3/16 x 1/2
Screws
3
4
4
4
A
C
B
D
M6 x 1” Wood Screws
M6 x 2” Wood Screws
Wall Brackets
4
1
2
2
F
E
H
G
Halogen Light Suction Cup
SC8230S(W) / SC8236S(W)
DESCRIPTION
TYPE
1
4
D
C
DESCRIPTION
TYPE
E4M4*8 Screws
種 類 數量
序號 圖示
P3螺母
5 x 24m/m 華司
M6 x 1-1/2吋木螺絲
鹵素燈拆裝吸盤
SC8230S(W) / SC8236S(W)
螺絲包配件(美國地區):
3
4
4
4
A
C
B
D
4
1
2
2
F
E
H
G
種 類 數量
序號 圖示
3/16 x 1/2 平頭田丸
十字螺絲 M6 x 1吋木螺絲
M6 x 2吋木螺絲
吊掛組
種 類 數量
螺絲包配件(加拿大地區):
序號 圖示
P3螺母
5 x 24m/m 華司
3
4
A
B
種 類 數量
序號 圖示
M6 x 1-1/2吋木螺絲 4
1
C
D
鹵素燈拆裝吸盤
SC8230S(W) / SC8236S(W)
M4*8傘頭2種牙螺絲鎳
E4
(1) 7轉6吋風管圈
(1) 機箱
(1) 開關
(1) 風胃
(2) 保護網
(1) 煙罩
- SC8230S(W) / SC8236S(W)
(1) 油杯
(1) LED燈條
- SC8830BS(BW) / SC8836BS(BW)
(1) 螺絲包
(2) 鹵素燈
- SC8230S(W) / SC8236S(W)
(1) 7吋風管圈
(1) LED Bottom Panel
- SC8830BS(BW) / SC8836BS(BW)
(1) LED 煙罩
- SC8830BS(BW) / SC8836BS(BW)

4. 4.
III. Installation Guidelines
Check the surrounding of range hood. If there
are too many windows or doors nearby, it is
advisable to close the windows and doors before
turning on the range hood to prevent the external
convection and affecting the ventilation.
The smoke has to rise up to 10inches from the
stove/grate to be within the range of venting
efficiency.
The ideal installation height is a distance of
24 to 30inches from the bottom of the range
hood to the surface of the stove top.
The front, back, right and left of hood must be
in parallel and horizontal level, to avoid the oil
in the oil tub from spilling over. To ensure that
the hood is leveled when installing, it can be
measured by the hook mark for the left and right
side; and the screws fixed securely onto the wall
to ensure the front and back of the hood are parallel.
In order to increase the venting efficiency of the hood, it is recommended to
use the 7 inch duct to maintain the best air flow efficiency; the length of duct
must also be as minimal as possible.
Please do not plug the range hood to the circuit breaker with other high
electricity consumption appliances.
Before installing the hood, please apply fast drying glue to the collar and securely attach
it to the top of the range hood’s vent lid. Install the range hood and attach pipe to the
plastic collar and seal with aluminum tape and prevent steam and smoke leakage.
Too many windows, too much convection
Fig. 1
Fig. 2
Fig. 3
1. Surrounding Environment (Fig.1)
2. Installation Heights (Fig.2)
3. Hood installed in parallel and horizontal level
(Fig.3)
4. Exhaust duct
5. Electrical arrangement
24~30 in
三.安裝原則
抽油煙機安裝位置，如在窗上或附近有太多門
窗，請在開動抽油煙機前，先關閉門窗，以免
空氣對流大而影響吸力，因當油煙上昇未至10
吋之有效吸力範圍，則無法充分發揮抽油煙最
佳效果
1. 周圍環境(圖一):
安裝高度自本機底板至煮食爐面之距離以24~
30吋為最理想
2. 安裝高度(圖二):
機體應保持前、後、左、右水平，以免氣流箱，
導油盆積油而溢出
左、右水平可由掛碼調整，前、後水平則由鋼
丁螺絲鎖緊牆壁，以固定標準
3. 機體應保持水平(圖三):
4. 排風管:
5. 插座安排:
安裝前先以矽利康注入風管圈後將風管崁入，再用封膠封住風管圈
為增加吸力效能，請配合使用本機出風管接頭
之直徑7吋排風管，排風管長度應以適合長度最
佳，不宜過長
請勿與烤箱或冰箱等耗電量較高之電器產品共
用一個插座。
24~30 in

5. 5.
四.安裝步驟 -SC8130S/W & SC8136S/W
1.請準備安裝位置及空間。
2.測量出風口及電源線孔的大小，然
後再鑽孔
3.櫥櫃需加強本機固定的地方，建議
使用木條強化在櫥櫃內底部
4.請用十字螺絲起子移除油機底板，
卸下油機底板及燈泡電線
5.依安裝位置設置四支木螺釘
6.安裝時用木螺釘扣上之後，將油機
與櫥櫃用螺絲鎖緊，讓油機與櫥櫃
安全不會掉落
7.裝設電源。
8.安裝風管並用風管膠帶密封。
9.檢查風管處是否緊密及其他功能是
否正常。
10.將油機底板與燈泡重新安裝上去。
11.將油杯與出風口安全網裝進油機。
櫥櫃安裝說明:(如圖一)
風管膠帶
風管圈孔
電源線孔
木條
木螺釘鑰匙孔
煙罩與燈源線
油杯與保護網
圖一
IV. Installation Procedures -SC8130S/W & SC8136S/W
Hood is designed for installation under a kitchen cabinet.
See Fig.1 for details.
1. Prepare duct location on hood .
7. Install electrical.
8. Install ductwork and seal with aluminum duct tape.
10. Reinstall bottom panel and reconnect lighting harness.
11. Slide oil cups into their openings on the bottom of the hood. Install protection
grilles over each blower opening and secure with the pre-installed screw.
9. Power up hood and check for leaks around duct tape and test all functions.
3. Reinforce cabinet bottom with wood strips
if additional strengthening is required or
if cabinets are framed.
4. Remove bottom panel from hood using
a Philips screwdriver to remove each of
the screws. Also remove lighting harness
by pressing in on the clip to release the
lights from the internal wiring.
5. Use 4 wooden screws to secure the
hood to the bottom of the cabinet.
6. Lift hood onto screws located on cabinet
bottom and lock into place. Make sure
all(4) key-holes cover the screws.
Tighten each screw to secure hood to
cabinet.
2. Measure and cut out duct and electrical
openings in cabinet or wall to match up
with the hood. Make sure duct opening
is large enough to apply aluminum duct
tape.
Fig 1
bottom panel &
lighting harness
oil cups &
protection grilles
duct tape
ductwork
electrical
wood blocking
installation screws
and key-holes

6. 6.
IV. Installation Procedures -SC8230S/W, SC8236S/W,SC8830BS/BW, SC8836BS/BW
Hood is designed for installation under a kitchen cabinet.
See Fig.1 for details.
1. Prepare duct location on hood .
7. Install electrical.
8. Install ductwork and seal with aluminum duct tape.
10. Reinstall bottom panel and reconnect lighting harness.
11. Slide oil cup into their opening on the bottom of the hood. Install protection
grilles over each blower opening and secure with the pre-installed screw.
9. Power up hood and check for leaks around duct tape and test all functions.
3. Reinforce cabinet bottom with wood strips
if additional strengthening is required or if
cabinets are framed.
4. Remove bottom panel from hood using a
Philips screwdriver to remove each of the
screws. Also remove lighting harness by
pressing in on the clip to release the lights
from the internal wiring.
5. Use 4 wooden screws to secure the hood
to the bottom of the cabinet.
6. Lift hood onto screws located on cabinet
bottom and lock into place. Make sure all
(4) key-holes cover the screws. Tighten
each screw to secure hood to cabinet.
2. Measure and cut out duct and electrical
openings in cabinet or wall to match up
with the hood. Make sure duct opening is
large enough to apply aluminum duct tape.
bottom panel &
lighting harness
LED bottom panel
& lighting harness
oil cup &
protection grilles
duct tape
Fig 1
ductwork
electrical
wood blocking
installation screws
and key-holes
四.安裝步驟 -SC8230S/W, SC8236S/W,SC8830BS/BW, SC8836BS/BW
1.請準備安裝位置及空間。
2.測量出風口及電源線孔的大小，然
後再鑽孔
3.櫥櫃需加強本機固定的地方，建議
使用木條強化在櫥櫃內底部
4.請用十字螺絲起子移除油機底板，
卸下油機底板及燈泡電線
5.依安裝位置設置四支木螺釘
6.安裝時用木螺釘扣上之後，將油機
與櫥櫃用螺絲鎖緊，讓油機與櫥櫃
安全不會掉落
7.裝設電源。
8.安裝風管並用風管膠帶密封。
9.檢查風管處是否緊密及其他功能是
否正常。
10.將油機底板與燈泡重新安裝上去。
11.將油杯與出風口安全網裝進油機。
櫥櫃安裝說明:(如圖一)
煙罩與燈源線
油杯與保護網
圖一
電源線孔
木條
風管膠帶 木螺釘與鑰匙孔
風管圈孔
LED煙罩與燈源線

V. Venting Instruction
side wall cap
w/gravity damper
cabinet
soffit or crawl space
side wall cap
w/gravity damper
roof pitch w/
flashing & cap
WARNING FIRE HAZARD
Ducting Options
NEVER exhaust air or terminate duct work into spaces between walls, crawl
spaces, ceiling, attics or garages. All exhaust must be ducted to the outside.
Use metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints with
certified Silver Tape or Duct Tape.
五.安裝排風管
用重力阻尼器
加蓋於側牆面
櫥櫃
依梁柱底面或櫥櫃空間爬行
用重力阻尼器
加蓋於側牆面
屋面坡度可以用遮雨罩或其他遮罩加蓋
櫥櫃安裝注意事項:
安裝之風管、牆壁、櫥櫃空間、天花板或車庫與閣樓之間的空間都要有所保留。
風管只能使用金屬材質。
安裝之連接處的金屬螺絲要鎖緊，接頭處要用有認證的銀膠帶或風管膠帶貼緊。
風管安裝選項:
7. 7.

8. 8.
VI. Operating Instructions -SC8130S/W & SC8136S/W
(1) On/Off
(1) Lights are two levels, press once is bright, press again is dim, press again
to turn off.
■ When activating the fans or steam clean, the will lights on.
■ Delay-Off speed indicator Speed 1 : only blinks. Speed 2 : only blinks.
Speed 3 : both and blink.
(2) Delay-off
1. On/Off & Delay-off:
2. Light Switch:
六.按鍵說明 -SC8130S/W & SC8136S/W
1. 開/關按鍵 & 延遲關機按鍵:
(1) 開/關按鍵:
2. 電燈按鍵:
(1) 電燈為兩段式。按第一次全亮；按第二次微亮；再按一次可關閉電燈。
• 按壓一次開啟風扇﹔再按壓一次關閉風扇。
• 此按鍵有記憶功能，自第二次使用會在上次關機的速度和電燈段數
啟動。
• Press to turn on the fans and press again to turn off the fans.
• From fans are off, press to turn on the range hood at the last speed and
light level it was turned off at.
• With the fans on or off press and hold this button for 3 seconds to start
the delay off. The fans will change to speed 1 and this button will blink
on and off indicating delay off function has started. The fans and lights
will automatically turn off after 5 minutes.
• The fans speed is adjustable during delay off.
• Clean function is not available during delay off.
(2) 延遲關機按鍵:
• 按下此按鍵3秒鐘可啟動延遲關機功能。會自動進入最低風速，此按
鍵會閃爍警示延遲關機功能已啟動。5分鐘後風扇和電燈會自動關閉。
• 延遲關機啟動時仍可調整風速。
• 延遲關機啟動時不可執行蒸氣清洗功能。
3. 風速 加速按鍵:
(1) 每按一次則速度遞增，至最高速為止。即1 →2 → 3(最高速)。
(2) 當風扇停止運轉時，按此按鍵會在上次關機的速度和電燈段數啟動。
5. 清洗 按鍵:
(1) 按下此按鍵啟動蒸氣清洗功能。
(2) 清洗時此按鍵恆亮。
(3) 執行蒸氣清洗功能時，不可執行風扇速度增減。
(4) 缺水時， 按鍵會閃爍。
(5) 清洗功能異常時，會啟動自動鎖定功能，所有指示燈會閃爍警示該鎖
定功能啟動。
■ 風速指示燈說明: 低速:只會亮起 按鍵。中速:只會亮起 按鍵。
高速: 和 按鍵皆會亮起。
■ 當啟動風扇或蒸氣清洗， 按鍵會亮起。
■ 延遲關機風速指示燈說明:低速:只會閃爍 按鍵。中速:只會閃爍 按鍵
高速: 和 按鍵皆會閃爍。
(1) Press to start steam cleaning process.
(2) This button will illuminate when the range hood is cleaning.
(3) During the steam cleaning process, the fan speed button will not be available.
(4) When water level is low, the button will blink.
(5) Steam clean function will auto-lock when the function is unusual, all indication
lights will blink indicating an error.
5. Steam Clean:
(1) Press this button to decrease the fan speed, fan speed will change from
3 →2 →1 (Lowest speed).
(2) From fans are off, press to turn on the range hood at the last speed and
light level it was turned off at.
4. Speed Down:
(1) Press this button to increase fan speed, fan speed will change from
1 →2 →3 (Highest speed).
(2) From fans are off, press to turn on the range hood at the last speed and
light level it was turned off at.
3. Speed Up:
4. 風速 減速按鍵:
(1) 每按一次則速度遞減，至最低速為止。即3 →2 → 1(最低速)。
(2) 當風扇停止運轉時，按此按鍵會在上次關機的速度和電燈段數啟動。
■ Speed indicator: Speed 1 : only lights on. Speed 2 : only lights on.
Speed 3 : both and light on.

VI. Operating Instructions -SC8230S/W & SC8236S/W
LH
(1) LCD indicate when start lamp function
(2) From off, press one time for bright light (the "H" on the LCD screen will
blink). Press again for dim light (the "L" on the LCD screen will blink).
Press again to power lights off.
(3) The button is not controlled by on / off and delay off.
(1) Press for 3 seconds to start delay off and fan runs at the lowest
speed automatically. The range hood will turn off after 5 minutes.
The on the LCD screen will blink but light is not impacted.
(2) Under this mode, speed can be adjusted. Steam clean is not available.
(3) Under this mode, press the button 2 seconds to stop delay off function;
press on/off to turn off fans.
(4) Fan speed can be changed by pressing this button.
The LCD will indicate fan speed:
(5) When fans are off, press this button and fans will start at last speed
and light when it was last turned off at.
(1) Press to turn on the fans and press again to turn off the fans.
1. On/Off:
2. Light Switch:
3. Delay-off / Fan Speed
(1) Press to start steam cleaning process, when the range hood is cleaning. The
on the LCD screen will illuminate during steam cleaning process.
(2) During the steam cleaning process, the fan speed button is will not
be available.
(3) When water level is low, the on the LCD screen will blink.
(4) Steam clean function will auto-lock if the function senses an error, the
on the LCD screen will blink indicating an error.
4. Steam Clean
12 3
1 2 3
(Low)/ (mid)/ (High)。
1 2 3
1. 電源/開關按鍵:
(1) 按壓一次開啟風扇；再按壓一次關閉風扇
2. 電燈按鍵:
(1) 啟動燈泡時，LCD面板顯示 
(2) 按第一次全亮LCD面板顯示H，按第二次微亮LCD面板顯示L
(3) 此按鍵獨立控制不受電源/開關按鍵和延遲開關按鍵影響
3. 延遲開關/ 風速 控制按鍵:
(1) 按壓3秒不放後，啟動延遲關機功能，自動進入最低風速，計時5分
鐘自動關機功能，LCD面板以 閃爍顯示，但鹵素燈不受影響
(2) 運轉中途可變換風速上下，當執行計時中按蒸氣清洗鍵無效
(3) 啟動中按一下延遲開關按鍵2秒，只會關閉延遲功能，按電源/開
關按鍵會直接關機結束風扇動作
(4) 風速上調控制至高速為止，下調控制至低速為止，每按一次則
依序遞增或遞減，LCD面板分別顯示
(5) 當風扇停止運轉時，按風速上或下鍵即以上次關機之速度啟動
4. 清洗按鍵:
(1) 按下開始清洗流程，LCD面板顯示 ，其餘時熄滅狀態
(2) 啟動蒸氣清洗時，按風速上、下鍵皆無效
(3) 缺水時，按此鍵無效且LCD面板以 閃爍顯示警告
(4) 清洗功能異常時會啟動自動鎖定功能，LCD面板閃爍顯示
為警示該鎖定功能啟動
LH
12 3
1 2 3
(低)/ (中)/ (高)。
1 2 3
Steam
Steam
Steam
Steam
六.按鍵說明 -SC8230S/W & SC8236S/W
9. 9.

10. 10.
VI. Operating Instructions -SC8830BS/BW & SC8836BS/BW
(1) From off, press one time for bright light. Press again for dim light.
Press again to turn lights off.
(2) The button is not controlled by on / off and delay off.
(1) This button will increase the speed with each press.
(2) Press the speed up or speed down button when the fans are off to
turn on the range hood at the last speed and light level it was last
turned off at
(1) Press to turn on the fans and press again to turn off the fans.
1. On/Off:
2. Light Switch:
3. Speed Up
(1) This button will decrease speed with each press.
(2) Press the speed up or speed down button when the fans are off to
turn on the range hood at the last speed and light level it was last
turned off at.
4. Speed Down
(1) Press to start steam cleaning process, the indication light is illuminate
when the range hood is cleaning.
(2) When steam cleaning process is operating, speed up and down
buttons are not available.
(3) When water level is low, the steam clean button will blink until water
is added.
(4) Steam clean function will auto-lock if the function senses an error,all
indication lights will blink indicating an error.
5. Steam Clean
(1) Press one time to start the delay off function, range hood is adjusted
to the lowest speed automatically, the fan will turn off after 5 minutes.
Light function is not impacted.
(2) Under this mode, speed can be adjusted. Steam clean function is
not available.
(3) Under this mode, press the button again will stop the delay off function.
Light will not be impacted. Press on/off button to turn off the fans.
6. Delay-off
六.按鍵說明 -SC8830BS/BW & SC8836BS/BW
(1) 按一下此鍵啟動延遲關機功能，自動進入最低風速，啟動計時5分
鐘自動關機功能，但LED燈不受影響
(2) 延遲關機啟動時可變換風速上下，當執行計時中按蒸氣清洗鍵無效
(3) 延遲關機啟動時按一下延遲開關按鍵，只會關閉延遲功能，按電源/
開關按鍵會直接關機結束風扇動作
1. 電源/開關按鍵:
(1) 按壓一次開啟風扇；再按壓一次關閉風扇
2. 電燈按鍵:
3.
風速加速按 鍵:
4.
風速 減速按鍵:
(1) 按第一次全亮﹔按第二次微亮﹔再按一次關閉電燈
(2) 此按鍵獨立控制不受電源/開關按鍵和延遲開關按鍵影響
(1) 風速上調至高速為止，每按一次則速度遞增
(2) 在風扇停止運轉時，按風速減速按鍵或風速加速按鍵即以上次關
機之速度啟動
(1) 風速下調至低速為止，每按一次則速度遞減
(2) 在風扇停止運轉時，按風速減速按鍵或風速加速按鍵即以上次關
機之速度啟動
5. 蒸氣清洗按鍵:
(1) 按下開始蒸氣清洗流程，清洗動作時燈恆亮，其餘時熄滅狀態
(2) 啟動蒸氣清洗時，按風速上、下鍵皆無效
(3) 缺水時，按此鍵無效並且會持續閃爍警示，直到加水為止
(4) 清洗功能異常時，會啟動自動鎖定功能，所有指示燈會閃爍警示
該鎖定功能啟動
6. 延遲關機按鍵:

LED light:
Remove bottom panel and disconnect the LED light strip wire.
After removing the plastic cap, the light strip will come off (see picture below).
Please contact dealer to purchase new LED light strip.
Inside of the panel
Halogen light:
When the range hood is activated or has been running for a long time,
be careful when handling the light bulb as it may be too hot to handle.
Please double check to make sure the power supply to the range hood
is shut off and the light bulb is cool before removing it.
Remove the Halogen bulb by turning it counter-clockwise to remove.
The black rubber suction tool in the hardware package is for removing the
halogen light bulb.
七.移除燈炮
LED燈條移除注意
移除煙罩板拆除內部條燈連接電線
直接將條燈罩與條燈鋁殼拆開後即可移除條燈(如下圖)
請洽經銷商購買新燈條
燈飾板內部
鹵素燈移除注意
當油煙機在運轉或經過長期運轉後請小心燈泡高溫請務必關閉電源並等待燈
泡冷卻後再移除燈泡
請用黑色吸盤(隨機附上)以逆時針旋轉拆除,並參考以下圖示移除燈泡
請洽經銷商購買新燈泡
VII. Replacing Light Bulb
11. 11.

12.
VIII. Surface Maintenance
A. Surface Maintenance
1. Please clean the range hood surface regularly with warm soapy water
and wipe with a cotton cloth to prevent grease from accumulating.
2. Please do not use harsh cleansers or coarse material to clean the surface
because that will damage the surface.
3. A non-invasive stainless steel polish is recommended to polish the surface
after cleaning.
4. Please use soft cloth for polishing because it will make your range hood
surface shinier.
5. Please do not use cleaning solutions that have bleach as an ingredient.
B. Surface Cleaning and Maintenance
1. Always disconnect from power supply before cleaning.
2. Clean both exterior and interior of the hood for long
lasting. Do not use abrasive cleanser.
3. Fan’s protection grille can be detached for cleaning by
removing the screws with a screwdriver.
It must be reinstalled before using the range hood again.
4. Oil dish on the grille can also be detached for cleaning
by turning the dish counter-clockwise.
5. The oil cup in the center of the hood for holding grease
can be detached and cleaned regularly.
6. Make a habit of turning on the range hood first before
turning on the stove to avoid high temperature in the
kitchen.
counterclockwise to detach
12.
八.機身表面保養和清潔
一.機身表面保養
1.請定期以熱肥皂水和棉布擦拭機身以防油垢堆積
2.請勿使用腐蝕性洗碗精和材質過粗的布料擦拭以免傷害到機身表面
3.擦拭完成後建議使用無刺激性的不鏽鋼拋光劑來進行第二次擦拭
4.請使用軟布輕擦您的油煙機表面將會更加光亮
5.請勿使用含有漂白成分的清潔液
二.保養和清潔
1.清潔前務必要切斷電源
2.定期清潔抽油煙機的內外側，可以保持抽油煙機壽命，
切勿使用研磨性清潔劑。
3.使用螺絲起子移除保護網的螺絲後，可將保護網取
下做清潔。完成清潔後，必須重新鎖回保護網。
4.按逆時針方向旋轉(即反轉)，可取下保護網的小油碟
並做清潔。完成清潔後，必須重新裝回小油碟。
5.抽油煙機中央的小油碟可拆下做定期清潔。
6.在開啟煮食爐前，請先開啟抽油煙機以免廚房溫度太高。
正轉裝置
反轉拆卸

九.注意事項
三.注意事項及警告標示
二.操作說明
一.功能說明
1.使用專用水壺，加入蒸餾水或去鈣離子水之指定分
量。
2.將水壺從機器之注入口倒入蒸餾水或去鈣離子水，
抽油煙機內有隱藏式水箱，第一次使用此油機，請
加入兩壺的水量。
3.按蒸氣清洗鍵即啟動馬達，機器自動噴出蒸氣，清
洗機器內部。
4.油杯外觀有透視窗，水位已達透視窗可見位置時，
即應取下倒去油污以防外溢。
1.清潔時請使用蒸餾水或去鈣離子水。
2.請按照隨機附有的水壺指示添加蒸餾水或去鈣離子水。
3.建議消費者一星期清洗2次即可，亦可按需要減少清洗次數。
4.注入蒸餾水時，請用隨機附上的水壺小心倒進水箱，勿使蒸
餾水溢出機外。
5.清洗時注意，勿使油污超過透視窗高度，以防油污溢出。
6.請謹防異物流入水箱中，以防噴水孔堵住。
7.建議每次清洗後，請取下油杯倒去油污，以防外溢。
8.首次啟動蒸汽洗功能時，因部分零件防鏽油受熱蒸發，或有些許白煙
及煙硝味，為首次啟動正常現象。
1.本機利用蒸餾水注入機器內水箱備用，以馬達高速運轉時之離心力及衝
擊力，達到清洗內部的功能，可永保抽油煙機內部清潔延長抽油煙機使
用壽命。
2.蒸氣清洗功能有安全自動鎖定設計，如有異常狀況即鎖定清洗功能。
如被鎖定及其他異常狀況，請立即連絡經銷商，務必請專業維修人員協
助詳細檢測及維修。
注水口
水箱
專用水壺
蒸餾水
IX. Remarks
A. Functions:
B. Operating lnstructions:
1. Pour distilled water or decalcified water into provided jar.
2. Pour distilled water or decalcified water from the jar into the
hidden water storage unit of the range hood through the water
inlet as shown in the picture. First time use the hood, please
pour the volume of two provided jars.
3. Press the steam clean button to start the motors and the distilled
water or decalcified water will be discharged automatically
and cleans the inside of the range hood.
4. The oil retainer shall be taken out to remove the dirty oil once
the dirty oil and residue reaches the window of oil retainer
to prevent spillage.
C. Precautions:
1. Use distilled water or decalcified water for steam clean.
2. Use the provided jar to pour distilled water or decalcified water.
3. Consumers are advised to clean the range hood twice a week. It may be cleaned
less frequently according to individual needs.
4. When filling the range hood with the distilled water or decalcified water,use only
the provided jar the provided jar with the range hood and take precautions not to
overfill the cleaner storage unit.
5. Check and empty the oil retainer after the cleaning process to prevent oil spillage.
Do not allow dirty oil and residue to exceed the height of window.
6. Do not put any other substances into the water storage unit as this will cause
blockage of its steam nozzle.
7. Suggest to take out the oil retainer to remove the dirty oil after every steam clean.
8. When using the steam clean function for the first time you might see some vapors
or smell smoke from the hood, this is the anti-rust oil from the heating block evaporating
after heating and should not be cause for alarm.
1. The range hood should be cleaned by using distilled water or decalcified water only.
The cleaning process works by centrifuga force and cleaning power generated by
revolving motors at high speed, It will keep the inside of the blower housing clean
and prolong the lifespan of the range hood.
2. Steam clean function will auto-lock if the function senses an error, the indication light
of user interface will blink indicating an error. Please contact supplier for details or
repair.
Water inlet
Water
storage unit
JAR
decalcified
distilled water
13. 13.

14.14.
X. Troubleshooting
Problem
Motor stops running
Possible Cause Solution
1. No power (burnedwire or fuse) 1. Replace the PC board
Motor speed slows
down automatically
1. Distorted capacitor or low power 1. Replace capacitor
1. Short circuit on the motor 1. Replace motor
Inverted fan blades
Motor doesn’t regulate
speed
1. Capacitor defected 1. Replace capacitor
2. Electrical wiring is off
2. Fix the electrical wires
Motor runs on and off
2. Motor temperature regulator comes on and off 3. Change the motor electrical wiring
and de-activate the temperature
regulator.
2. Motor temperature regulator is off and can’t
be recovered
3. Motor copper wire is burned 3. Replace motor
2. Replace motor
(replace power cord)
5. No power (burned wire) or burned fuse 5. Check power meter
4. Capacitor defected 4. Replace capacitor
2. Motor defected 2. Replace motor
2. Air comes out of the air outlet instead
of sucks up
2. Air outlet or exhaust pipe is
blocked and needs cleaning
1. Motor stops running when it reaches unusual
high temperature, and starts again when it cools
down to normal cooking temperature This is cause
by temperature running too high during cooking.
1. Recommend changing your
cooking routine slightly
2. Replace motor
Delay-off function
fails
1. Main control PC board failed 1. Replace main control PC board
2. PC board switch failed 2. Replace PC board switch
3. LED light failed 3. Replace LED light
3.
Halogen light failed 3. Replace Halogen light
Power leakage 1. Water got in the motor 2. Replace motor
Two sections of the
LED light not working
Two sections of the
Halogen light not
working
1. Short circuit on LED light control power cord 1. Raplace LED light control
power cord
2. Short circuit on the light power cord in the main
control PC board
1. Short circuit on
Halogen light control power cord 1. Raplace Halogen light control
power cord
2. Short circuit on the light power cord in the main
control PC board
2. Replace main control PC board
2. Replace main control PC board
2. Replace PC board
1. Main control PC board failed 1. Replace main control PC board
2. PC board switch failed 2. Replace PC board switch
Display unit failed
Steam clean failed
2.PC board failed
1.Check water level 1. Refer to IX. Remarks for instruction
3.Nozzle is clogged 3. Check nozzle
4.Water pump failed 4. Change water pump
5.Steam clean function is locked. Indication light
of user interface blink to notice.
5. Press steam key 5 sec. to reset then
re-try steam clean function.
if it is still unusual situation, please
contact supplier immediately.
十.排除故障
異常狀況
馬達不轉
原 因 處理方式
1.無電源輸入(電源線燒毀)或保險絲燒毀
2.馬達溫控跳脫無法回復
3.馬達銅線燒毀
4.電容器燒毀
5.無電源輸入(電源線燒毀)或保險絲燒毀
1.更換PC板
2.更換馬達
2.更換馬達
4.更換電容器
5.三用電表測(更換電源線)
馬達轉速變慢 1.電容器變形或電量不足
2.馬達燒毀
1.馬達銅線短路
2.出風口逆風現象(倒灌風)
1.更換馬達
2.出風口或排風管阻塞清理
1.更換電容器
2.更換馬達
風葉有反轉現象
馬達無分段速度 1.電容器燒毀
2.線路脫落
1.主控PC板失效
2.開關PC板失效
1.LED燈控制線斷路
2.主控PC板燈線斷路
1.更換主控PC板
2.更換開關PC板
3.LED燈故障 3.更換LED燈
1.更換LED燈控制線
2.更換主控PC板
1.鹵素燈控制線斷路
2.主控PC板燈線斷路
3.鹵素燈故障 3.更換鹵素燈
5.按住STEAM鍵5秒後重置設定，請
再試一次蒸氣清洗功能。 如仍有
異常，請連絡經銷商進行維修。
1.更換鹵素燈控制線
2.更換主控PC板
1.更換馬達
1.更換電容器
2.重整電線
馬達時轉時不轉 1.溫控在感應到異常高溫時，馬達會停止
轉動，當溫度降到一般煮食時，會恢復
正常運作
2.馬達溫控跳脫會時有時無
1.馬達入水造成
3.更改馬達結線, 不使用溫控
2.更換馬達
Delay off 延遲失效
漏電
LED燈兩段失效
鹵素燈兩段失效
1.主控PC板失效
2.開關PC板失效
1.更換主控PC板
2.更換開關PC板
顯示器失效
1.檢查面板是否有警示缺水狀況
2.開關PC板失效
1.依說明書九.注意事項指示添加
去鈣產品或蒸餾水
2.檢查PC板或更換PC板
蒸氣清洗失效
1.建議煮食方法稍改:
若煮食時長時間用大火，建議改
用中小火或暫停煮食
3.噴水孔堵塞
4.噴水馬達失效
5.檢查面板是否有指示燈閃爍，警示該
鎖定功能已啟動
3.檢查噴水孔
4.更換噴水馬達
