Pacific TruSteam SC9830AS User manual

Model Number:
Read all instructions before operating the range hood.
SC9830AS, SC9836AS
OPERATING INSTRUCTION
PACIFIC RANGE HOOD
Airfl ow Control Technology
TM
C
331-01-000467(2) www.2pacific.com
www.pacifichoods.com

Table of Content
www.2pacific.com
P1-3
Safety Information
P6
Circuit Diagram
P5
Parts Supplied
P7
P8
List of Materials
P9
Installation Guidelines
P10-13
Installation Procedures – Under Cabinet
Installation Procedures – Wall P14-17
Installation Instructions – Optional Duct Cover P18-21
P4
Product Functions / Performance Specification Chart
P22-P24
Operating Instructions
P27
Features & Controls
P28
ACT™ Conversion
P29
Surface Maintenance
P30
Steam Clean Function Remarks
P25-p26
P31-33
Troubleshooting
Pacific Kitchen + App Set Up
Installation Specifications

1www.2pacific.com
Safety Information
Your safety and the safety of others are very important.
We have provided many important safety messages in this
manual for your appliance. Always read and obey all safety
messages.
This is the Safety Alert Symbol. This symbol alerts you to
potential hazards that can cause severe bodily injury or death.
All safety messages will follow the Safety Alert Symbol and either
the words “DANGER” “WARNING” or “CAUTION”
DANGER
Danger means that failure to heed this safety statement may
result in severe injury or death.
READ AND SAVE THESE INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the manufacturer.
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
General Safety
WARNING
Warning means that failure to heed this safety statement
may result in extensive product damage, serious personal
injury, or death.
CAUTION
Caution means that failure to heed this safety statement
may result in minor or moderate personal injury, property or
equipment damage.
WARNING
To reduce the risk of fire or electric shock, do not use this fan
with any solid-state control device.
WARNING
CAUTION
For General Ventilating Use Only. Do Not Use To Exhaust
Hazardous Or Explosive Materials And Vapors. Take care
when using cleaning agents or detergents. Suitable for use in
household cooking area.
WARNING
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE:
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or
when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe’).
c) Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for
the size of the surface element.

2www.2pacific.com
Safety Information
WARNING
READ AND SAVE THESE INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN – You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels – a
violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class ABC extinguisher, and you
already know how to operate it.
2) The fire is small and contained in the area where it
started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit
WARNING
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
CAUTION
To reduce risk of fire and to properly exhaust air outside, do
not vent exhaust air into spaces within walls, ceilings, attics,
crawl spaces, or garages.
WARNING
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes and
standards, including fire-rated construction.
exhausting of gases through the flue (chimney) of fuel burning
equipment to prevent back drafting. Follow the heating
equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association
(NFPA), and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and the local code
authorities.
c) When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.
e) If this unit is to be installed over a tub or shower, it must be
marked as appropriate for the application and be connected
to a GFCI (Ground Fault Circuit Interrupter) - protected branch
circuit.
WARNING
Prop. 65 Warning for California Residents: This product may
contain chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.

3www.2pacific.com
Safety Information
Operation
Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers
and loose clothing.
The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,
maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to
negligence and the warranty of the unit automatically expires due to improper maintenance.
NOTE:Please check www.2pacific.com for revisions before doing any custom work.
Electrical Requirements
Important:
Observe all governing codes and ordinances.
It is the customer’s responsibility to be aware of these below:
To contact a qualified electrical installer.
To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest
edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local
codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground
path is adequate.
Do not ground to a gas pipe.
Check with a qualified electrician if you are not sure the range hood is properly grounded.
Do not have a fuse in the neutral or ground circuit.
This appliance requires a 120V 60Hz electrical supply and connectedto an individual properly grounded branch circuit
protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to
Electrical Diagram on product.
A cable locking connector (not supplied) might also be required bylocal codes. Check with local requirements, purchase and
install appropriate connector if necessary.
* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
READ AND SAVE THESE INSTRUCTIONS
pacifichoods.com

Product Functions
Performance Specification Chart
4www.2pacific.com
SC9830AS
Weight (lbs)
Size 30”
55.6
36”
59.3
Color Stainless Steel
Model SC9836AS
Dimension (inch)
Maximum Voltage
Duct size
Lighting
Maximum comsumption
power
Maximum CFM
ACT™
120 V – 60 Hz
7 “Round (Vertical)
8.4A/920W
6W LED x 2
1200 CFM
290/390 CFM
WiFi Connection
35-11/16” x 11”
x 22-1/2” x 22-1/2
x 11”29-3/4”
1. Automatic steam clean function
2. Turbo mode to quickly remove cooking fumes and smoke
3. Motion activation to turn on/off the range hood with a wave of your hand
4. Memory function to remember the last used fan and light settings
5. 3-min and 5-min automatic delay off
6. Built-in timer
7. Built-in air quality detector (AQI)
8. Airflow Control Technology (ACT™)
9. Compatible with Pacific Kitchen + App
10. Compatible with Google Home and Amazon Alexa
Installation Type
Google Home /Amazon Alexa
Under Cabinet / Wall-Mounted

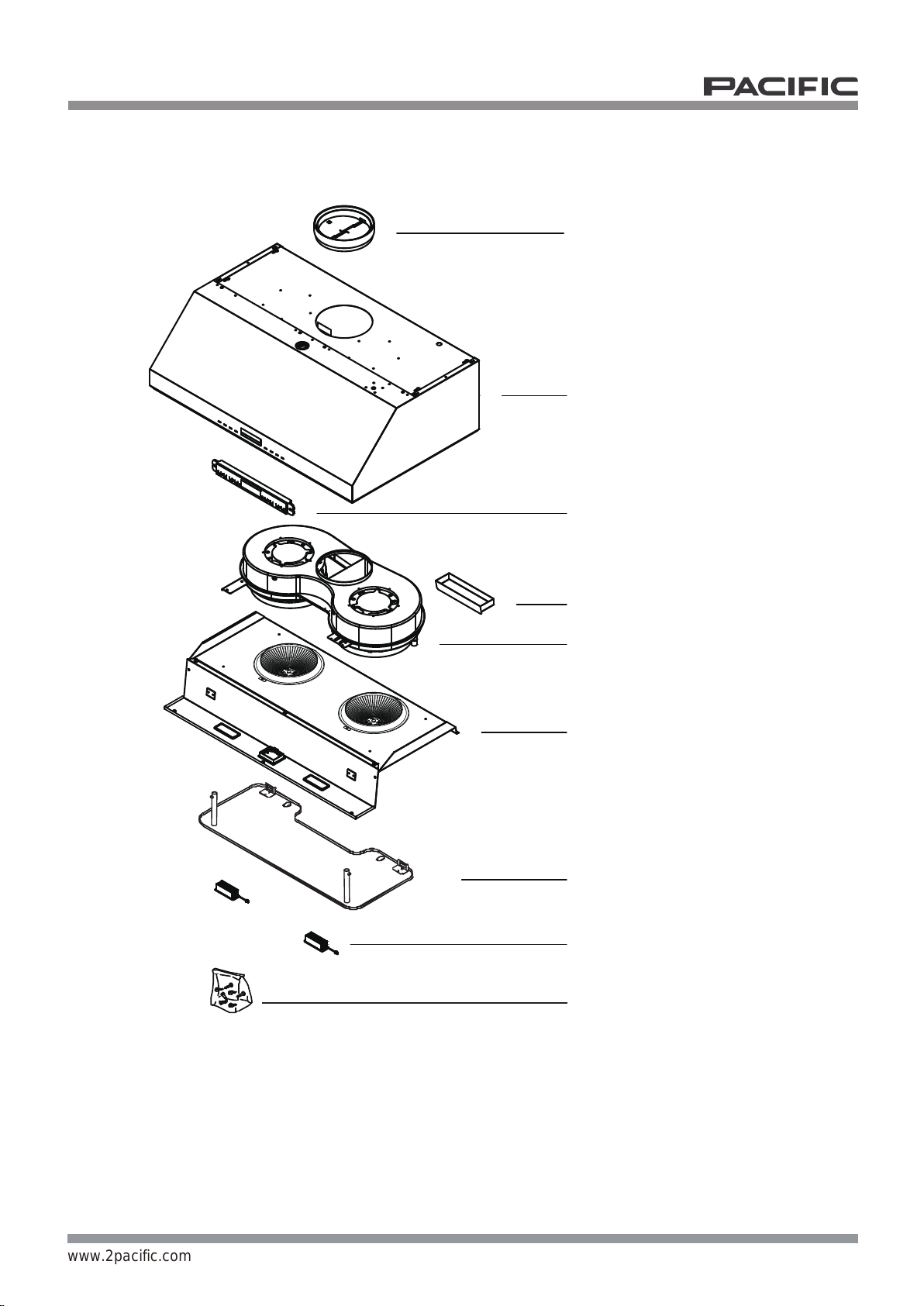

Parts Supplied
5www.2pacific.com
(1) Oil Cup
(1) Bottom panel
(1) IR Switch assembly
(2) LED light
(1) Hood body
(1) 7" Collar
(1) Housing
(1) Hardware Packet
(1) Deflector Board

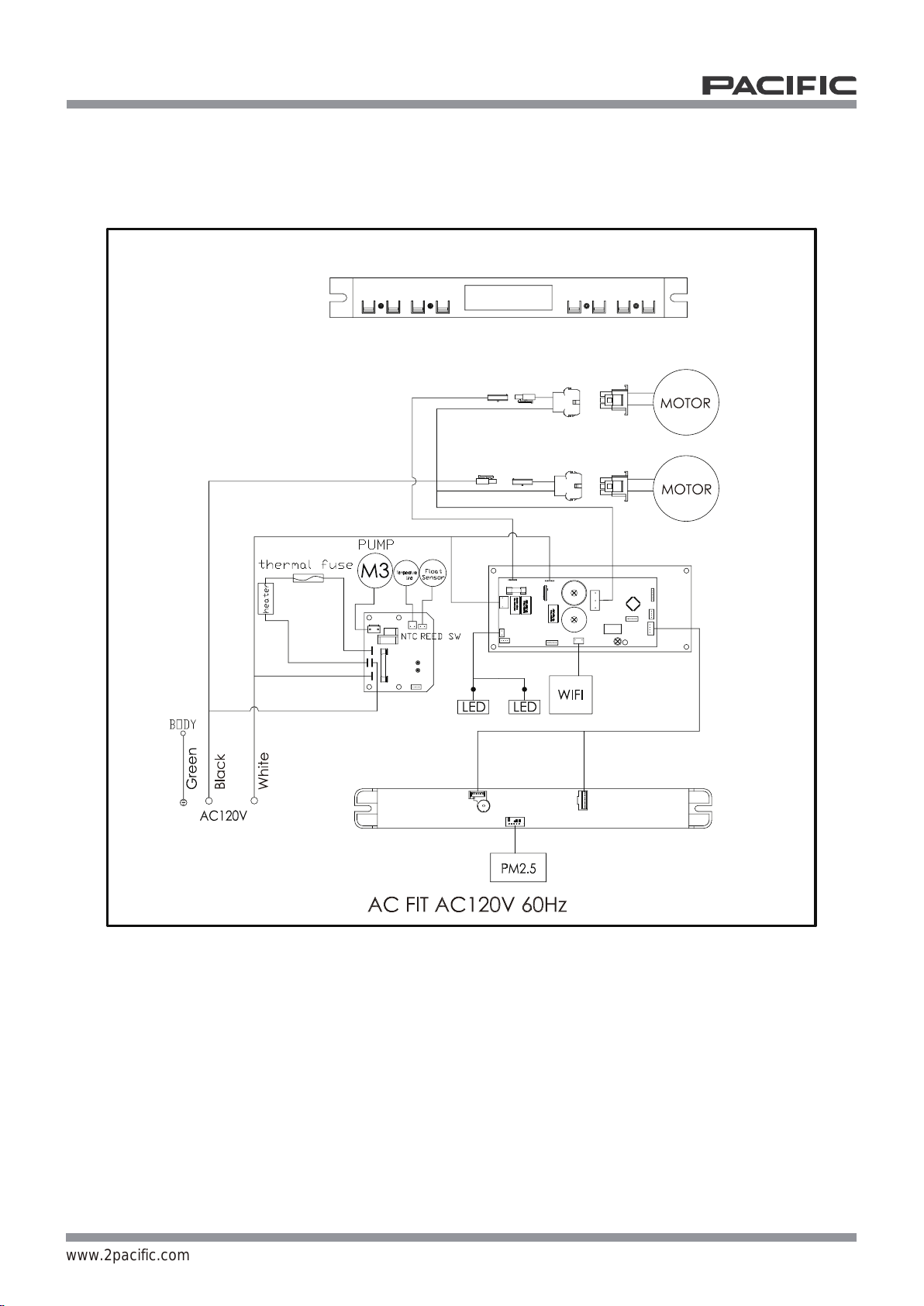

Circuit Diagram
6www.2pacific.com
CIRCUIT DIAGRAM

7
www.2pacific.com
Installation Specifications
Wall
Cabinet
Dimensional Drawing
Mounting Template
BackFront
Side
Top
Under Cabinet

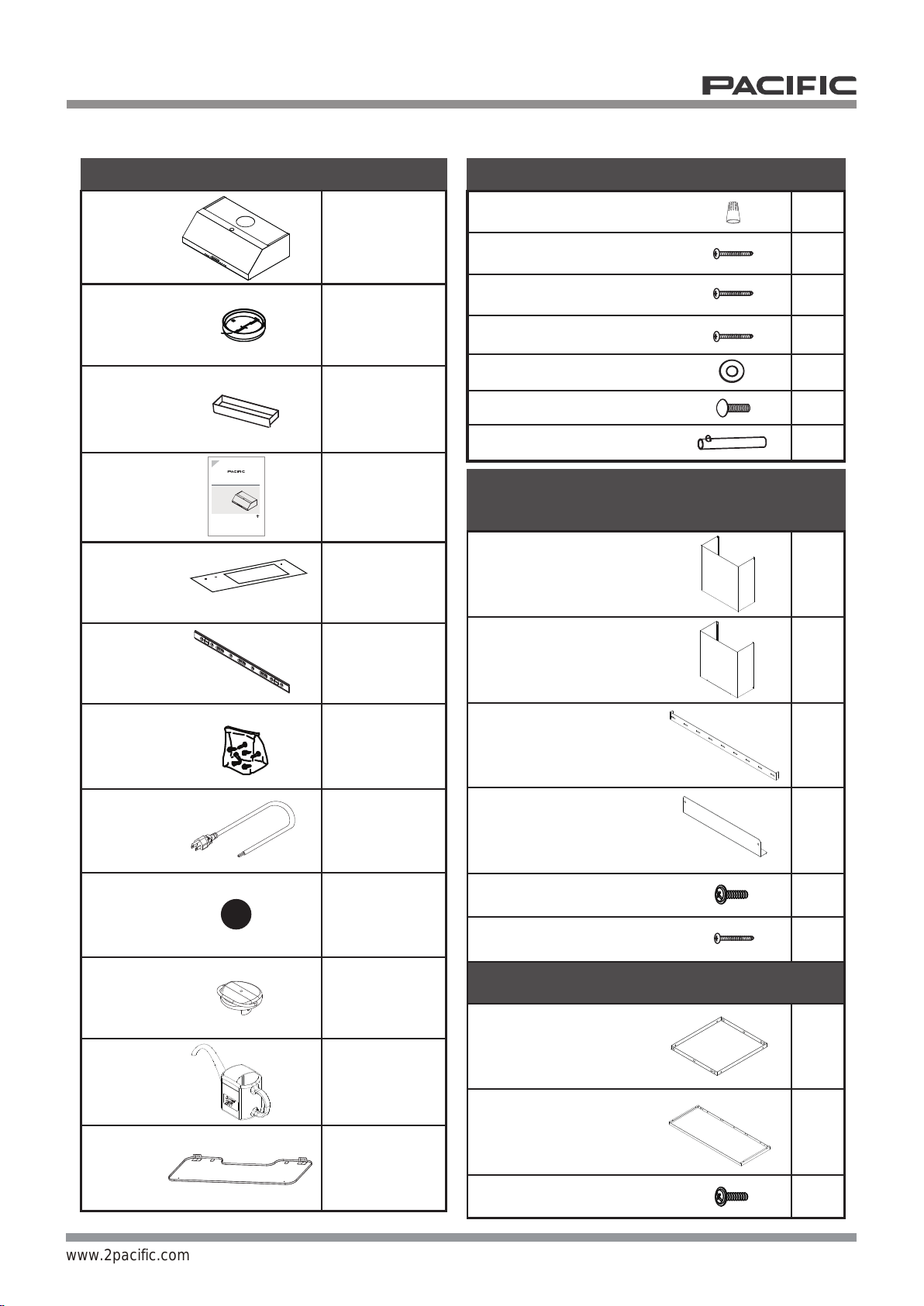

List of Materials
8www.2pacific.com
Supplied
4
3
4
2
2
12
3/16 x 10" screws
Holder, Deflector Board
#6 x 2 " Wood screws
#6 x 1" Wood screws
P3 Wire nuts
#6 x 1-1/2" Wood screws
HARDWARE PACKAGE CONTENTS
1
1
2
10
M4*8 Screw
3
#6*1-1/2"Screw
2
Side Panel
1
12
Center Panel
M3.5*10 Screw
Bracket, Wall
Duct Cover, Lower
Bracket, Bottom
Duct Cover, Upper
ACCESSORIES(OPTIONAL)
TELESCOPIC DUCT COVER P1C-0098
12” DUCT COVER 30”-SC0930
36”-SC0936
1
5 x 24 x 1T washers 4
1
1
1
1
2
1
1
2
1
1
1
1
STANDARD CONFIGURATION
排油煙機使用說明書
型號
www.2pacific.com
(使用前，請先詳細閱讀此說明書)
SC9830AS/SC9836AS
太平洋油煙機
Manual
Oil cup
7”Collar
Hood
Mounting
Template
Mouting
bracket
Hardware
packet
Power
cord
Round
Rubber
Water
cap
Water
Refiller
Deflector
Board

(FIG.2)
Installation Guidelines
9www.2pacific.com
is 26”, and the maximum is 32". (FIG. 3)
•Avoid left-right or front-dropped inclination. (FIG. 2)
(FIG.3)
(FIG.1)
Air turbulence from window/door may reduce the effectiveness of hood.
Suggest to close window/door before using the hood .(FIG. 1)
•
•The installation height is measured vertically from the center of the
hood to the top of the cooktop.
•The minimum mount height between range top to hood bottom
•7 inches diameter exhaust duct is recommended to use in order to
maximize suction efficiency. 6 inches diameter exhaust duct is available,
but it might impact the suction efficiency.
•Install the range hood and exhaust duct to the plastic collar and seal with metal tape.
3.Exhaust duct
2.Mounting Height and Position
1.Location
26” min.
32” max.
36”

5.Reinforce cabinet bottom with wood strips if additional strengthening is
required.(see Fig. 3)
Wood
(Fig. 3)
Wood
Installation Instructions – Under Cabinet
10
www.2pacific.com

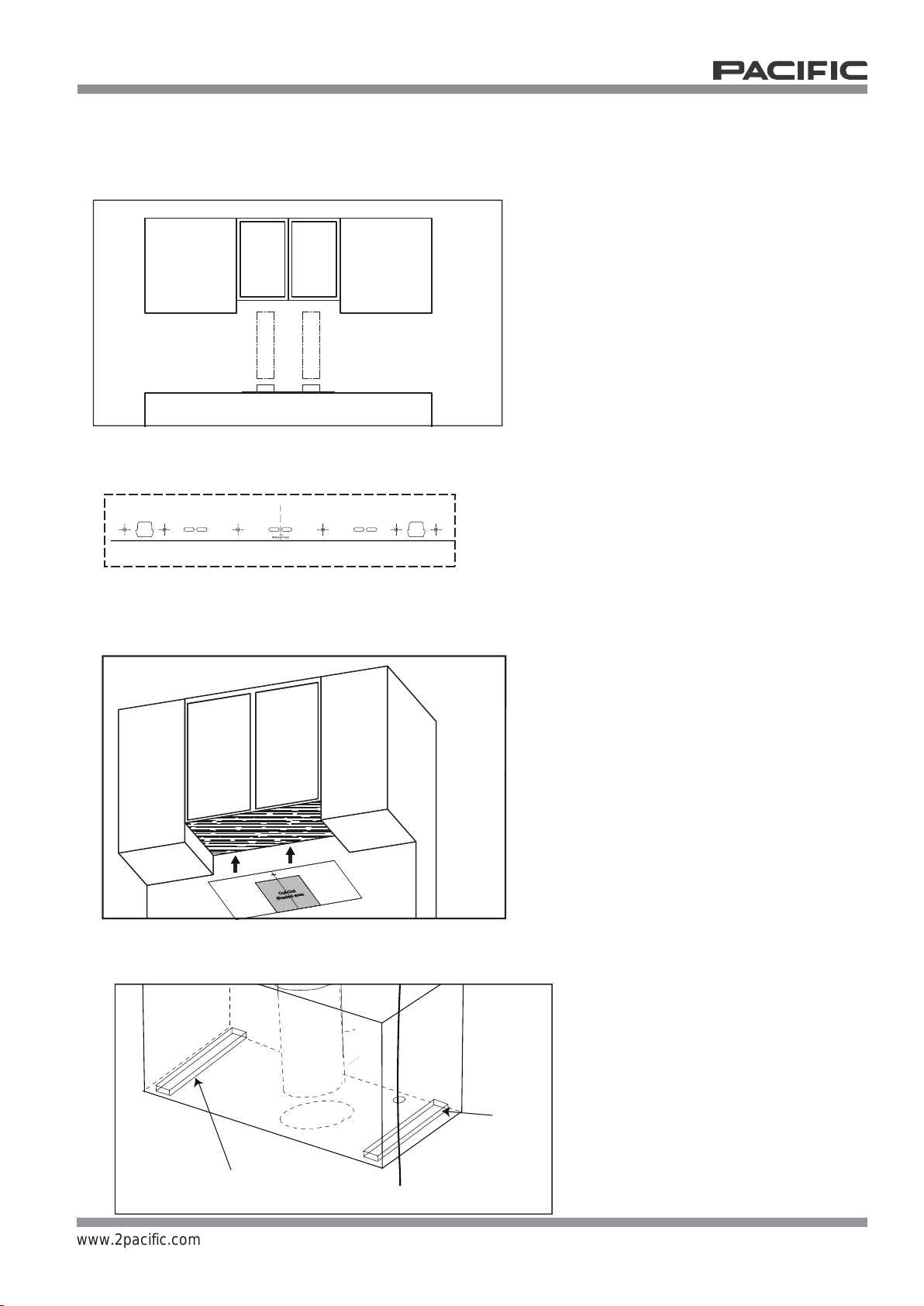

1.Open package to confirm contents and check product appearance.
2.Refer the mounting height on Page 9.
3.Locate the wooden beam and mark the location. (see Fig. 1)
(Fig. 1)
(Fig. 2)
4. Place the template at the desired location on the wall, and drill the holes as indicated
on the template, remove the template after all holes were drilled.
Place the "Cabinet" template facing down and stick it on the bottom of the
upper cabinet, drill holes according to the template, take down the template
(see Fig. 2)
after all holes were drilled.

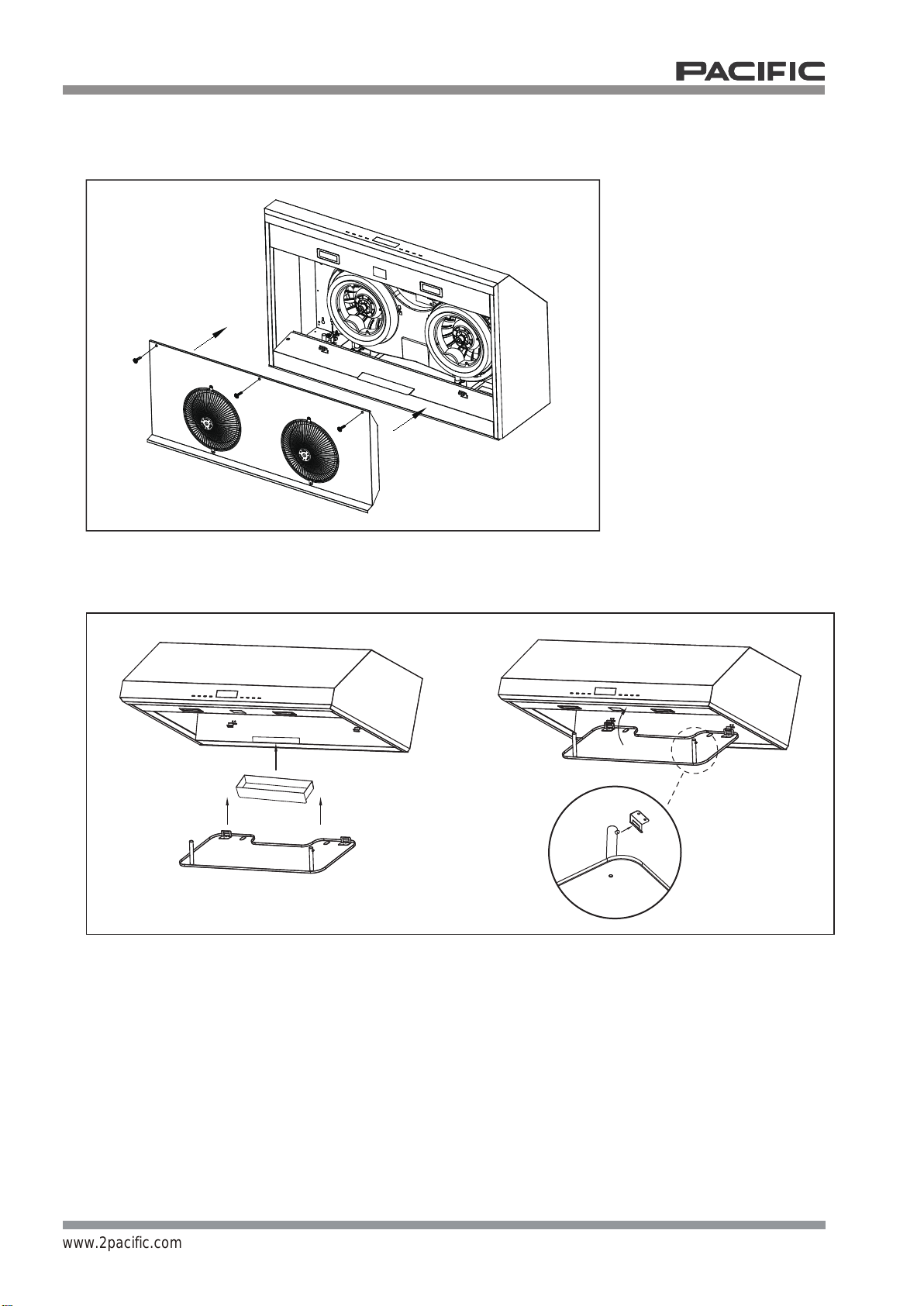

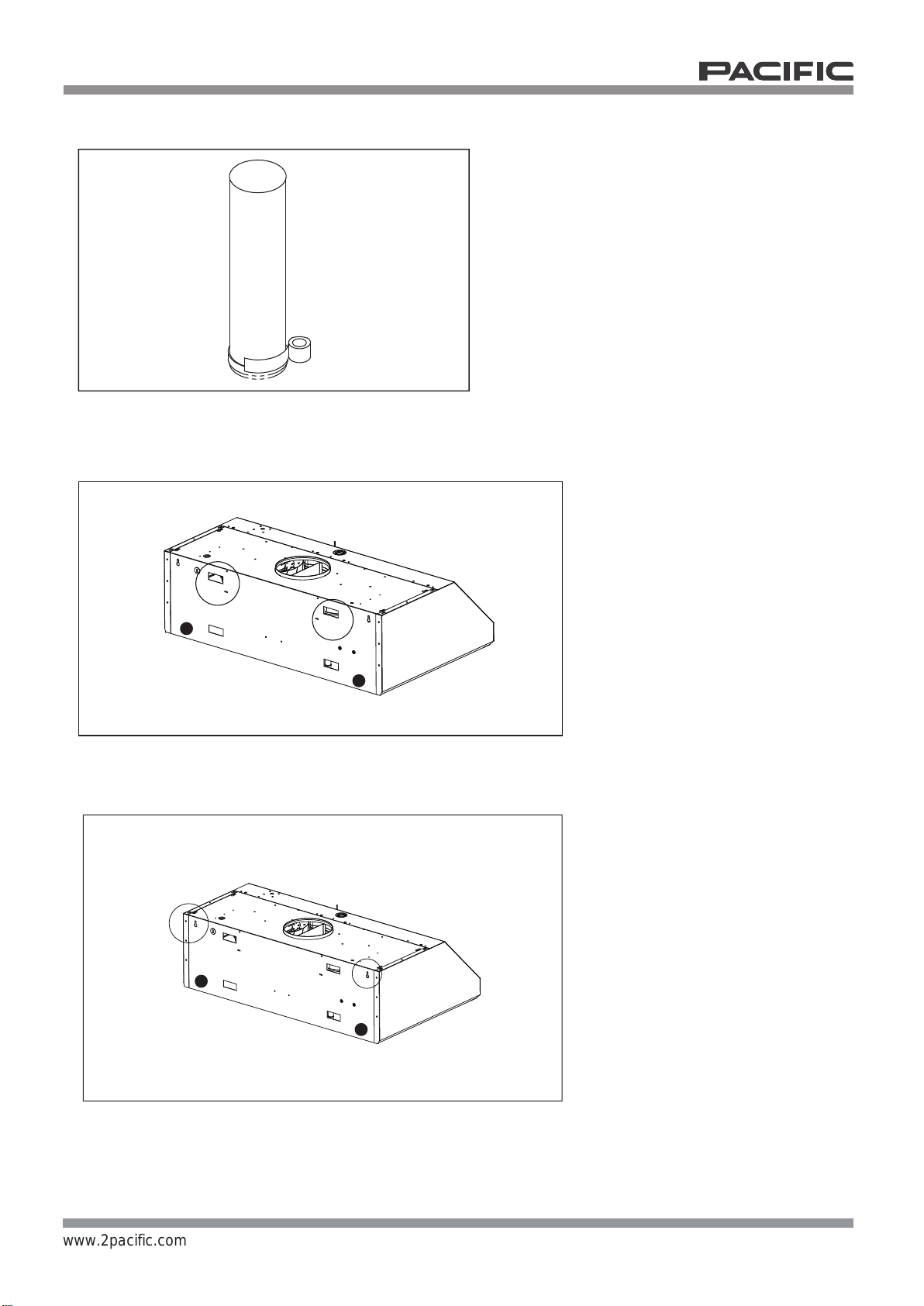

7.Remove the bottom panel from the hood by using a Phillips head screwdriver
to remove each screw.
Use caution when removing the bottom panel. Be careful not to scratch
side panels during removal. (see Fig. 5)

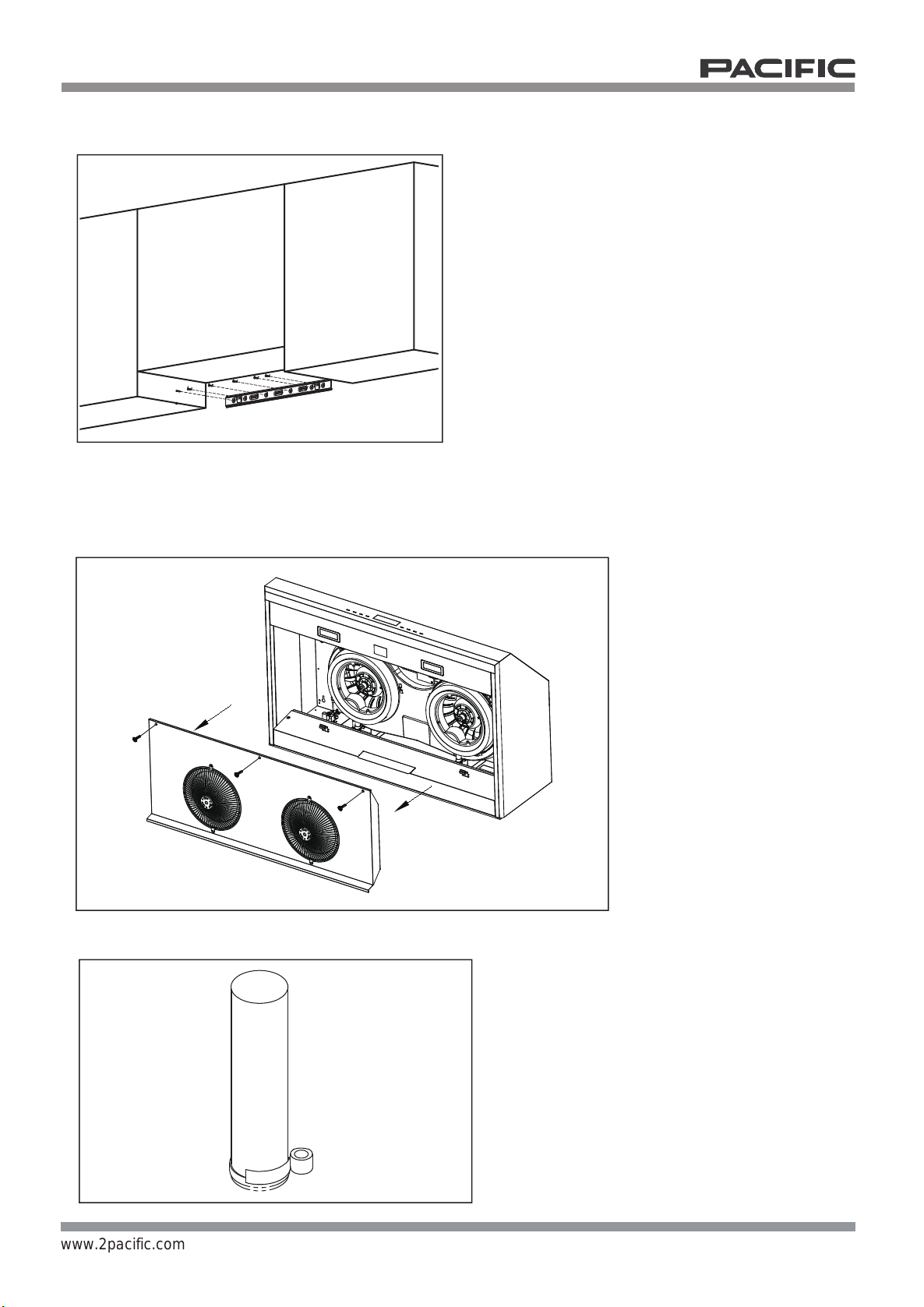

Installation Instructions – Under Cabinet
11
www.2pacific.com
(Fig. 5)
6.Attach the mounting bracket to the wall using (6) #6 x 2”screws.(see Fig. 4)
(Fig. 4)

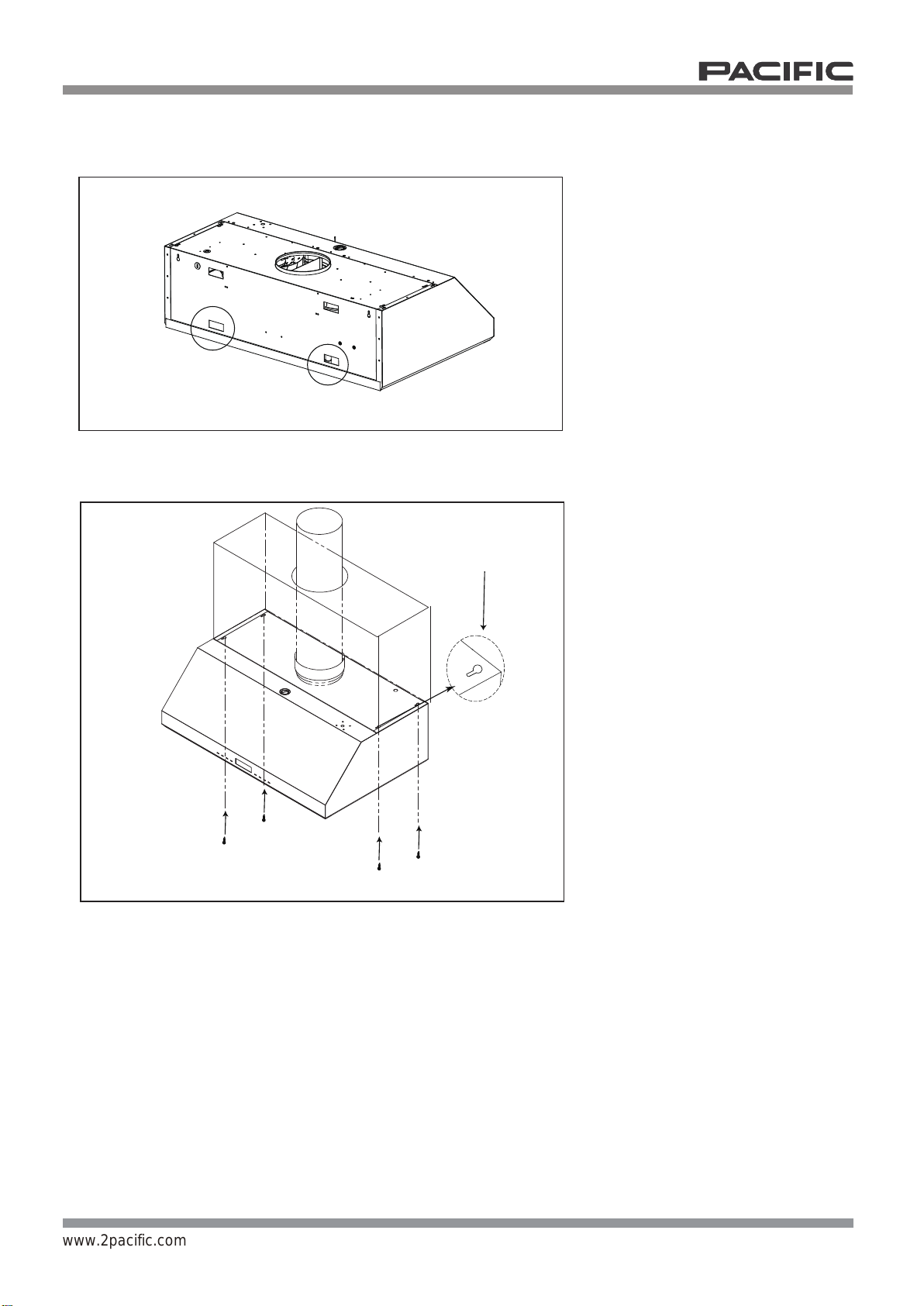

8.Install collar and duct work, then seal with aluminum duct tape. (see Fig. 6)
(Fig. 6)

9.Lift the hood and insert mounting bracket into (2) lower holes on the
hood's back panel. (see Fig. 7)
Installation Instructions – Under Cabinet
12
www.2pacific.com
(Fig. 8)
10.Install electrical.
11.Turn on the hood and check for any air leakage from the pipe around
duct tape and test all functions.
Push the hood against the bottom of cabinet and secure the hood
using (4) #6 screw to the drilled screw holes. (see Fig. 8)
(Fig. 7)
Wood Screws
Wood Screws
Key Hole

13.Install the deflector board and oil cup.
Installation Instructions – Under Cabinet
13
www.2pacific.com
(Fig. 10)
(Fig. 9)
12.Reinstall bottom panel. Use caution when installing bottom panel.
Be careful not to scratch side panels during installation.(see Fig. 9)
Press the left and right side clip to engage the deflector board with clip holder.(see Fig. 10)

Installation Instructions – Wall
14
www.2pacific.com
4.Place the mounting bracket to the desired location and secure the
bracket using (6) #6x2 screws. (see Fig. 2)
(Fig. 2)
1.Open package to confirm contents and check product appearance.
2.Refer the mounting height on Page 9.
3. Locate the wooden beam and mark the location. (see Fig. 1)
(Fig. 1)

6.Remove bottom panel from hood using a Philips head screwdriver to
remove each of the screws.
Use caution when removing the bottom panel. Be careful not to scratch side
panels during removal.
(see Fig. 4)
Installation Instructions – Wall
15
www.2pacific.com
5.Attach the round rubbers on the lower back panel of the hood. (see Fig. 3)
(Fig. 3)
(Fig. 4)
Round Rubber
Round Rubber

10.Turn on the hood and check for any air leakage from the pipe around duct tape and
Installation Instructions – Wall
16
www.2pacific.com
(Fig. 7)
8.Lift the hood and insert mounting bracket into (2) upper holes on the hood's back panel.
(see Fig. 6)
Then fasten (2) 6# x 2”screws into wall on the back panel of the hood. Do not fasten screws all
the way, leave approximately 3/8” exposed. (see Fig. 7)
(Fig. 6)
7.Install collar and duct work, then seal with aluminum duct tape. (see Fig. 5)
(Fig. 5)
test all functions.
9.Install electrical.

12.Install the deflector board and oil cup.
Installation Instructions – Wall
17
www.2pacific.com
(Fig. 8)
11.Reinstall bottom panel. Use caution when installing bottom panel.
Be careful not to scratch side panels during installation. (see Fig. 8)
(Fig. 9)
Press the left and right side clip to engage the deflector board with clip holder.(see Fig. 9)

Installation Instructions – Optional Duct Cover
18
www.2pacific.com
1. Attach the bottom bracket on the top of hood using (2) M4x8 screws
to secure on each side.
Optional Duct Cover : 30-9/16"- 57-3/16"
Model #: P1C-0098
Note: P1C-0098 is not supplied in the package, To order it,
please visit us online at www.2pacific.com or call 888-833-8833.
P1C-0098 Duct cover
Installation
